Front bumper with integrated receiver

rharr

Well-Known Member
Joined
May 6, 2021
Threads
20
Messages
1,262
Reaction score
1,661
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
Here are a few photos of my efforts adapting a cavfab bumper to accept a 2" receiver tube for a removable winch. I can get my hand between the skid plate and the bumper and fit a hitch pin in place fairly easy while avoiding the fog lights. SO no complicated spring load pin system should be needed.

I may have to switch to synth rope and a aluminum fair lead to get rid of that bulky roller fair lead and make they system slightly less pronounced.

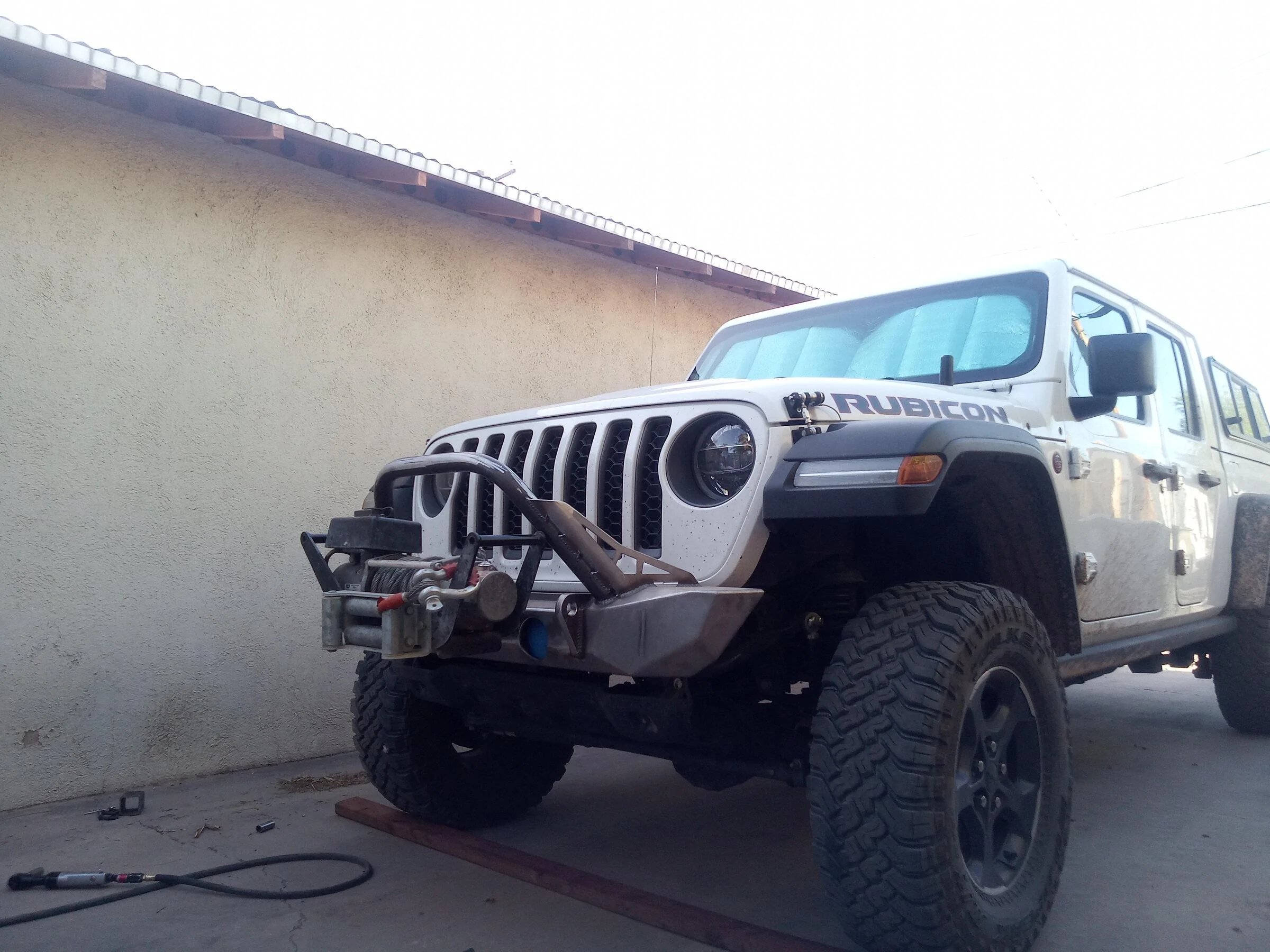

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_173155

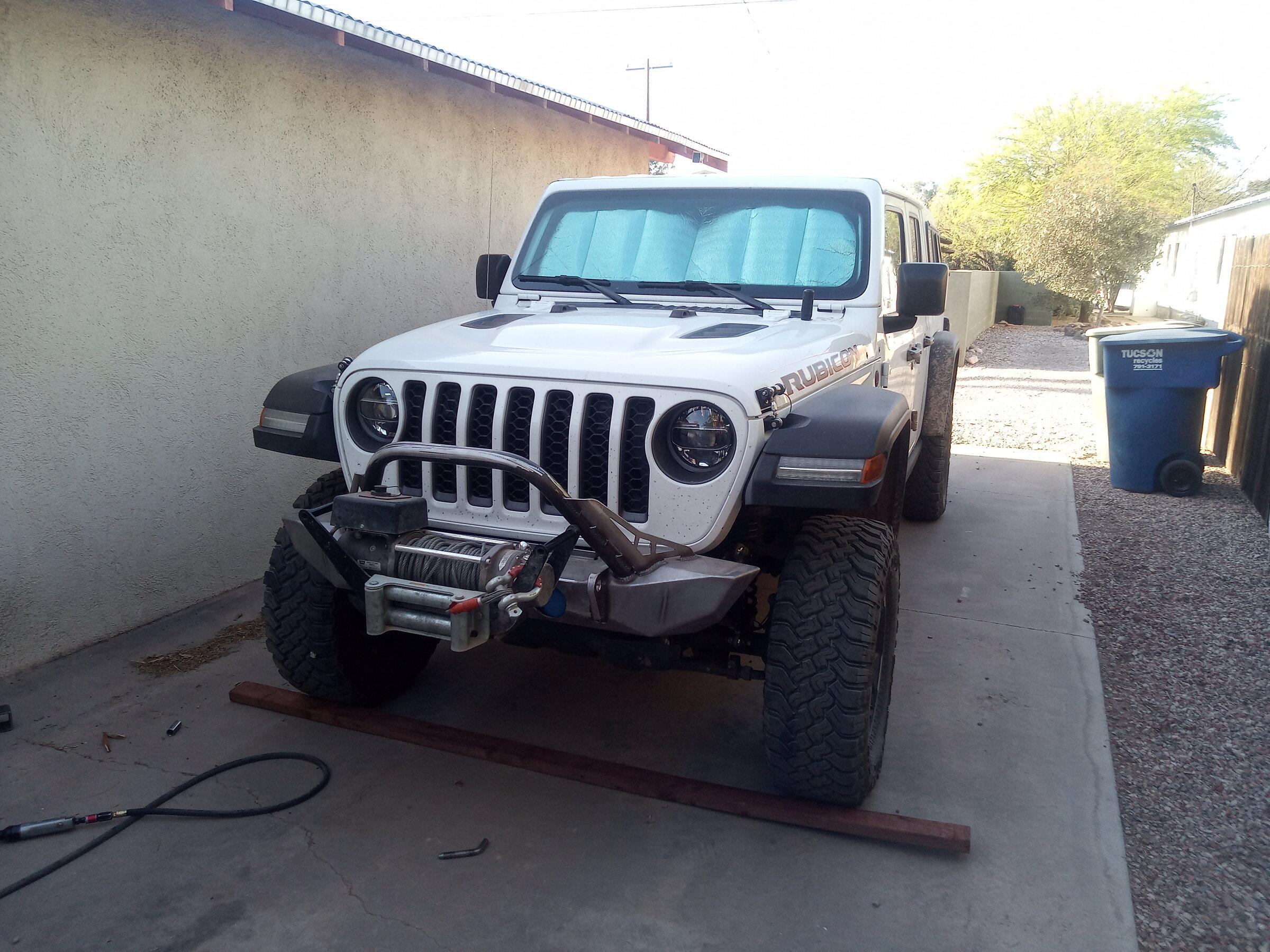

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_173206

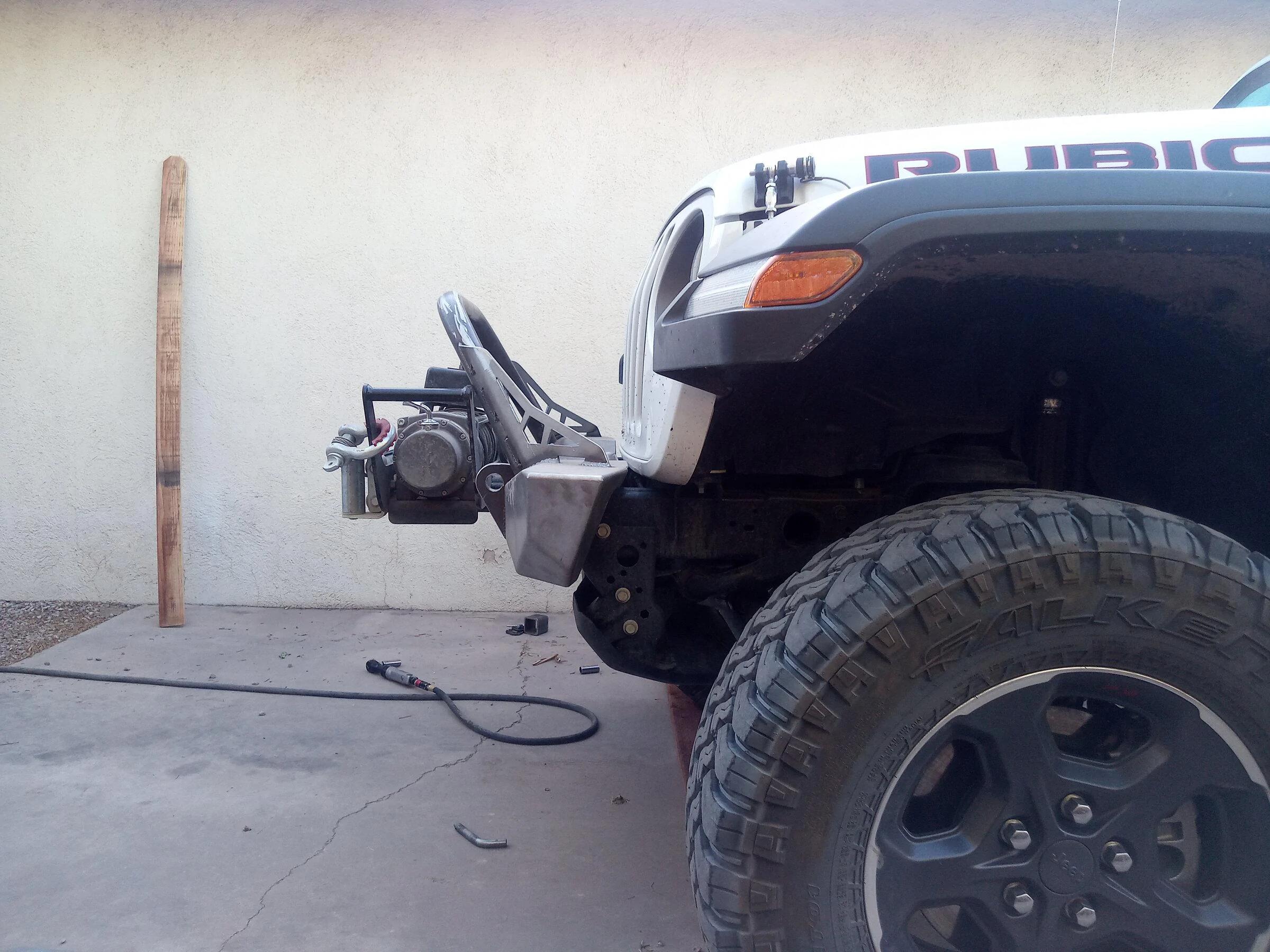

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_173140

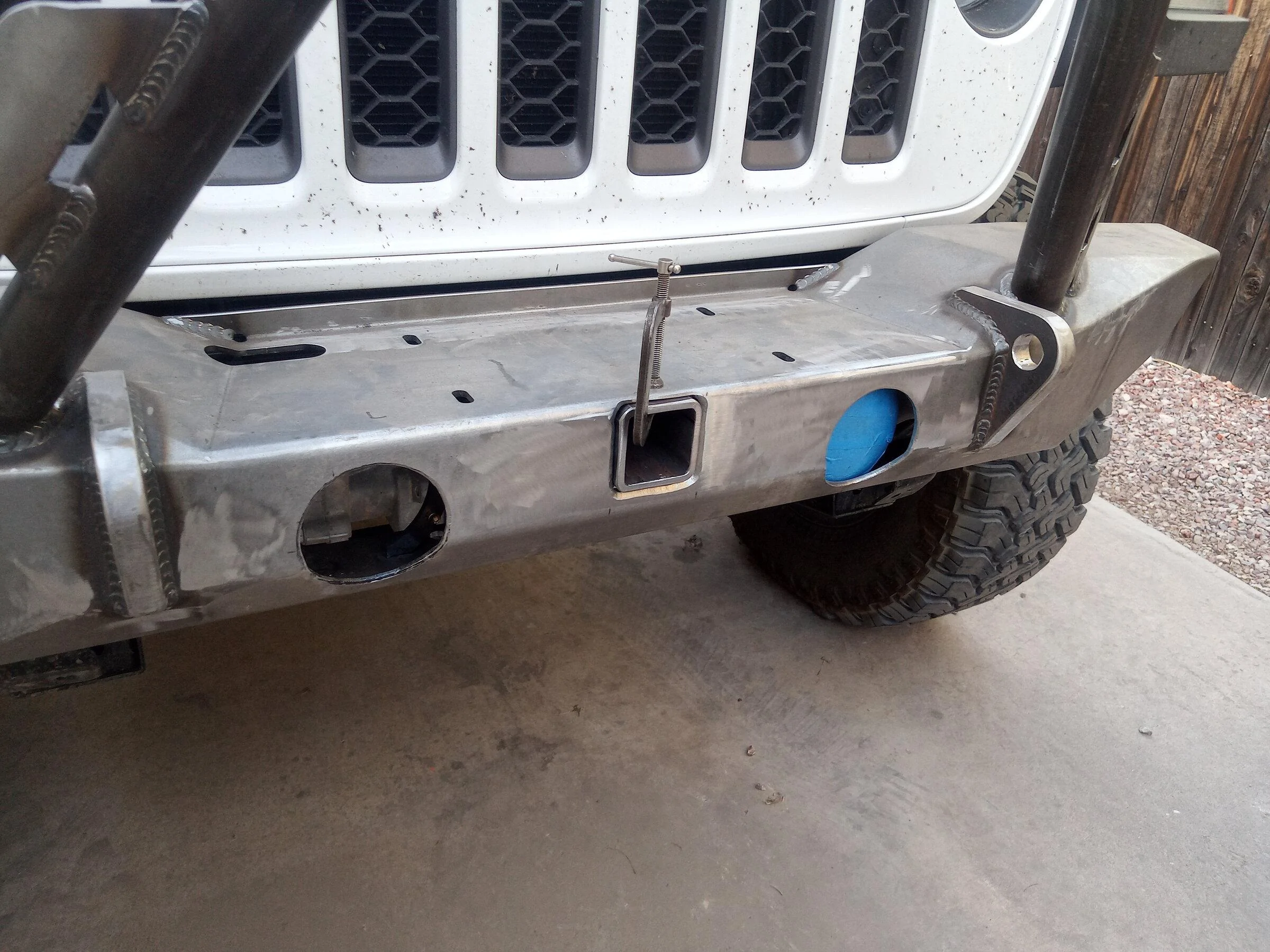

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_174216

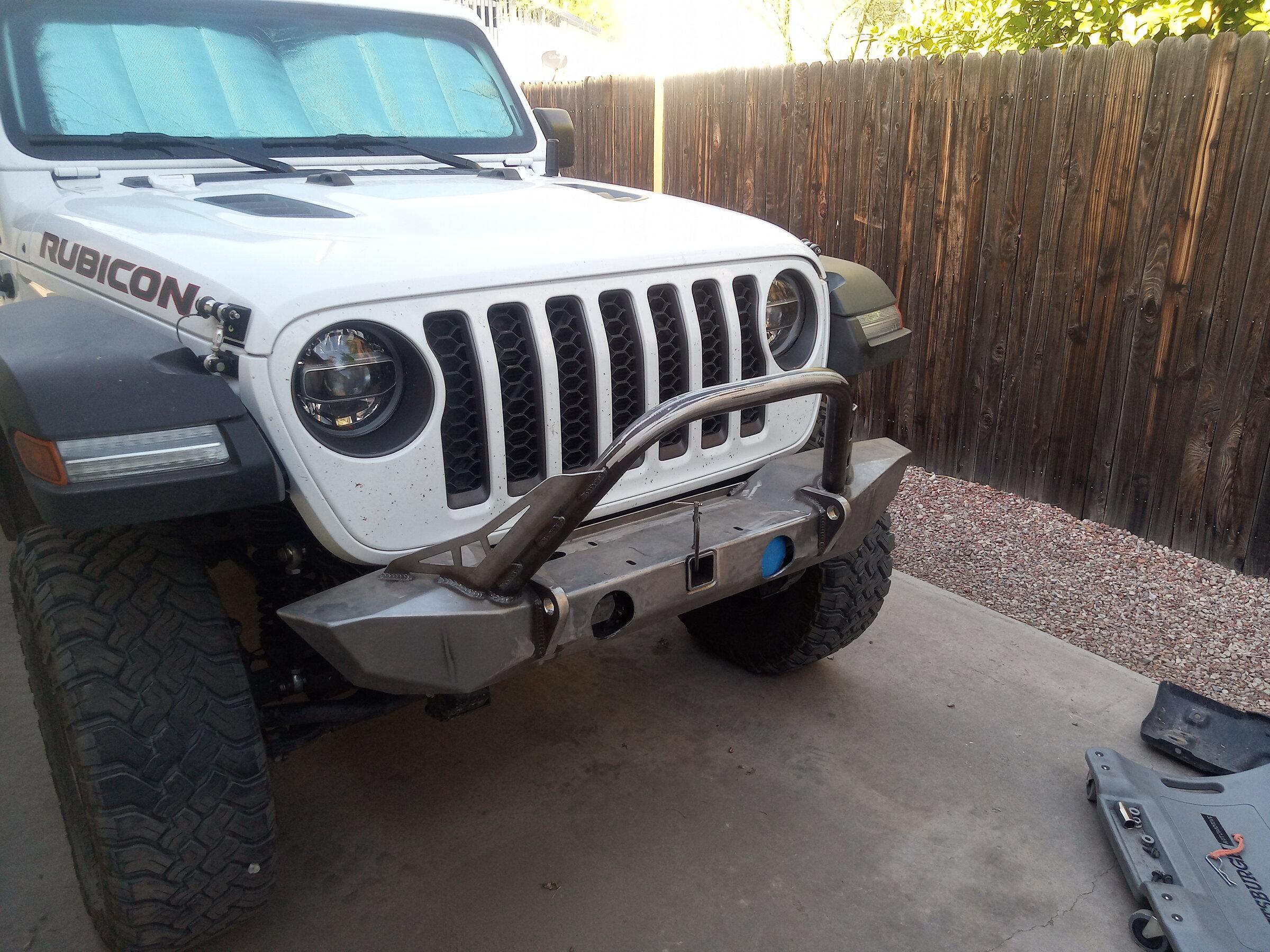

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_174222

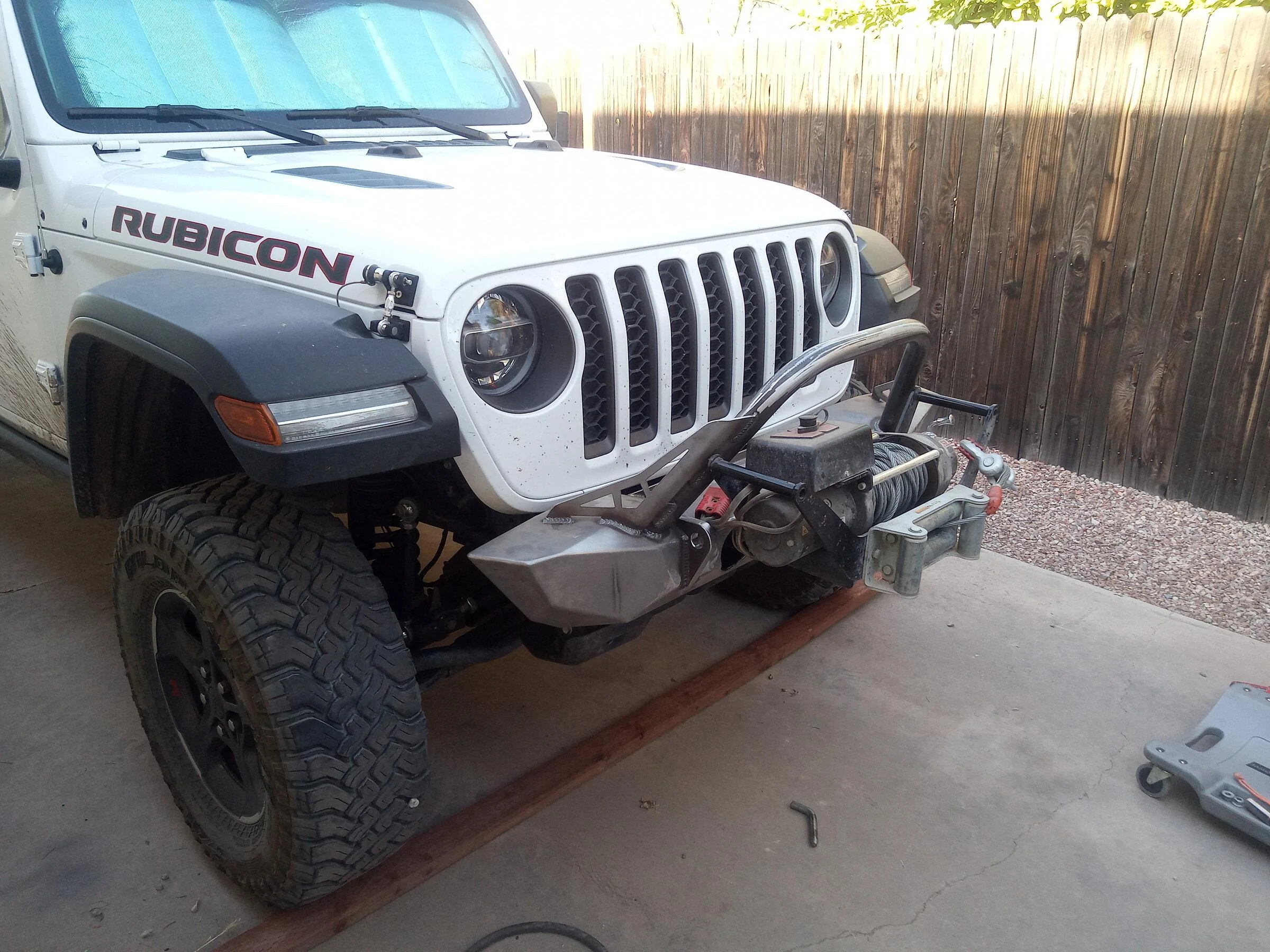

Jeep Gladiator Front bumper with integrated receiver IMG_20220417_173127
Sponsored



Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Threads
11
Messages
2,344
Reaction score
2,119
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Build Thread
Link
Vehicle Showcase
1
Nice, not having to haul 60 plus pounds around all the time is a plus. Another thing is could cut down on a deer vs front end and reduce damage. I do like the look of that bumper too maybe not the finish.

OP
OP

rharr

Well-Known Member
Joined
May 6, 2021
Threads
20
Messages
1,262
Reaction score
1,661
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
It's raw steel right now, will powder coat black once welding is done.

OP
OP

rharr

Well-Known Member
Joined
May 6, 2021
Threads
20
Messages
1,262
Reaction score
1,661
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
Follow up to close out the thread. @CavFab_MFG
Got it powder coated to match the rear bumper and rock rails.

Cavfab JK / JL / JT Crawler Series Front Winch Bumper With Hoop + mods

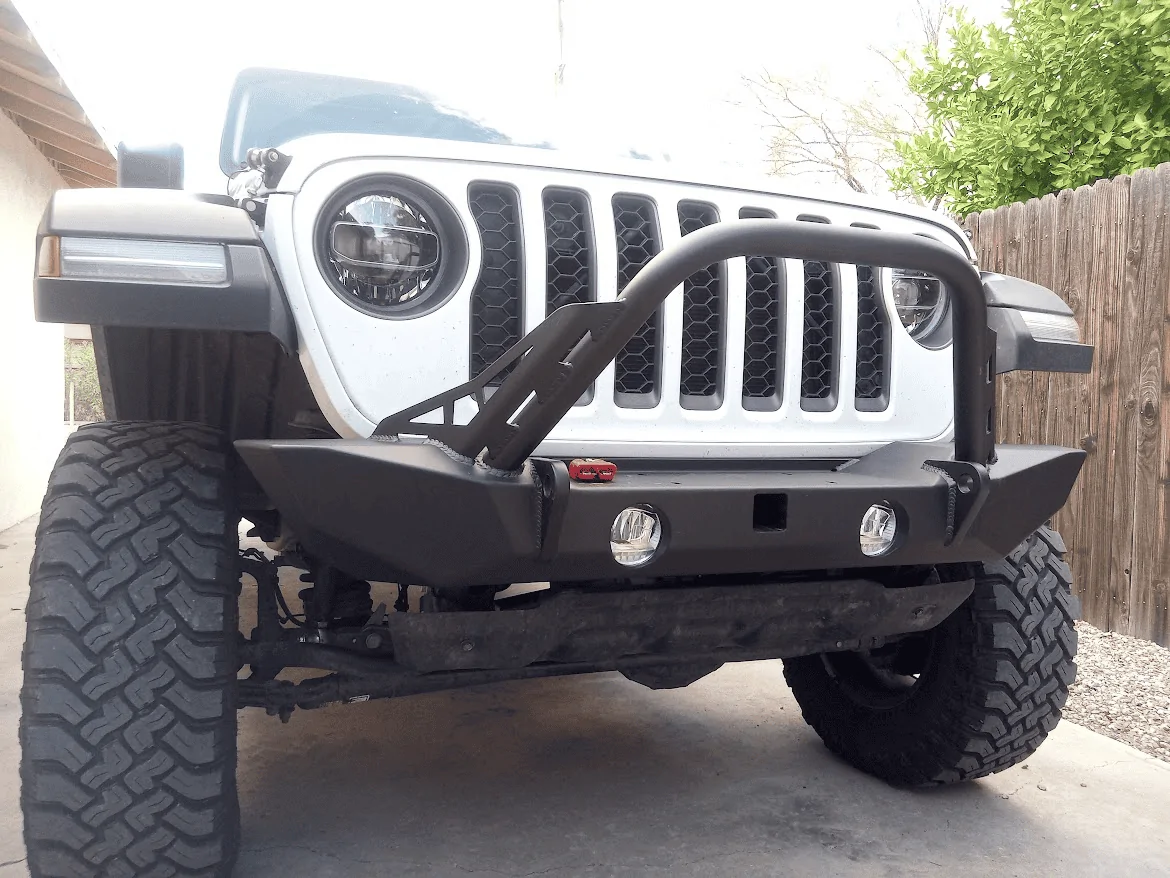

Jeep Gladiator Front bumper with integrated receiver 1663607194760

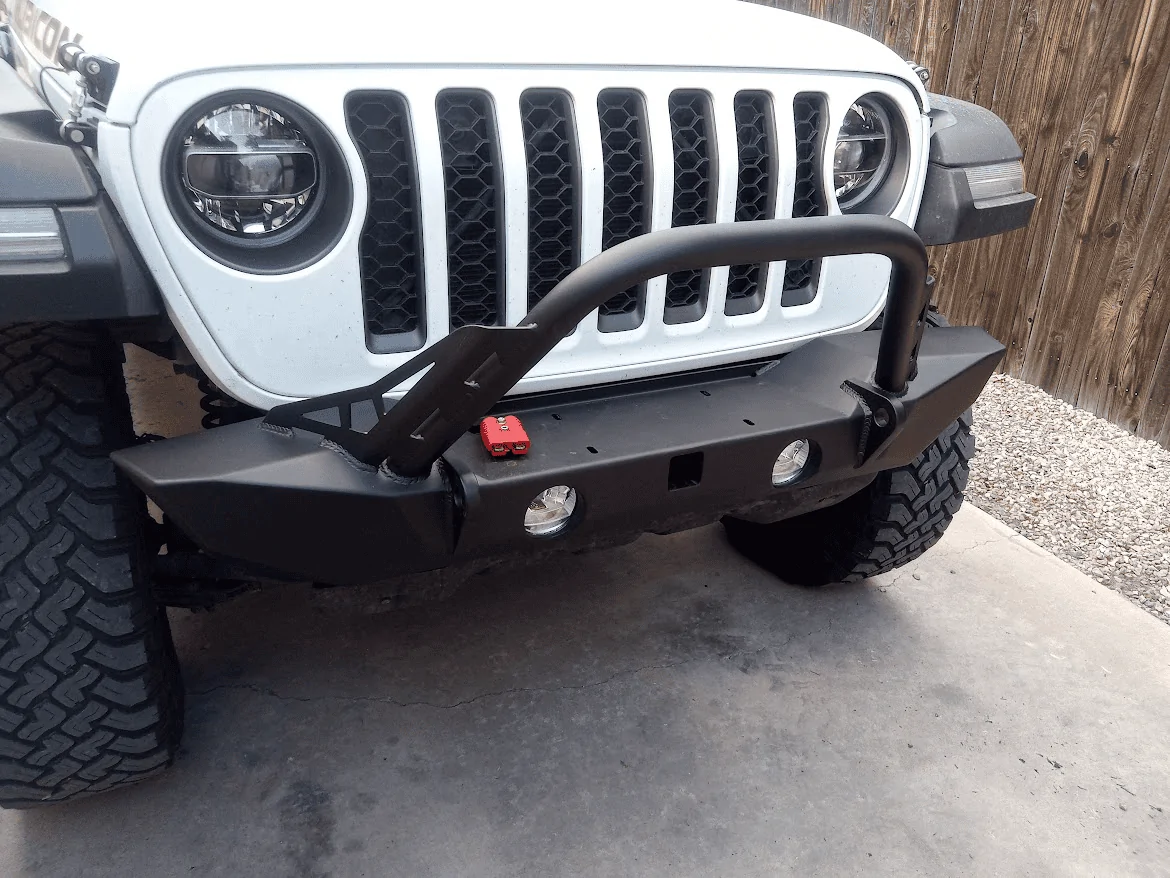

Jeep Gladiator Front bumper with integrated receiver 1663607217798

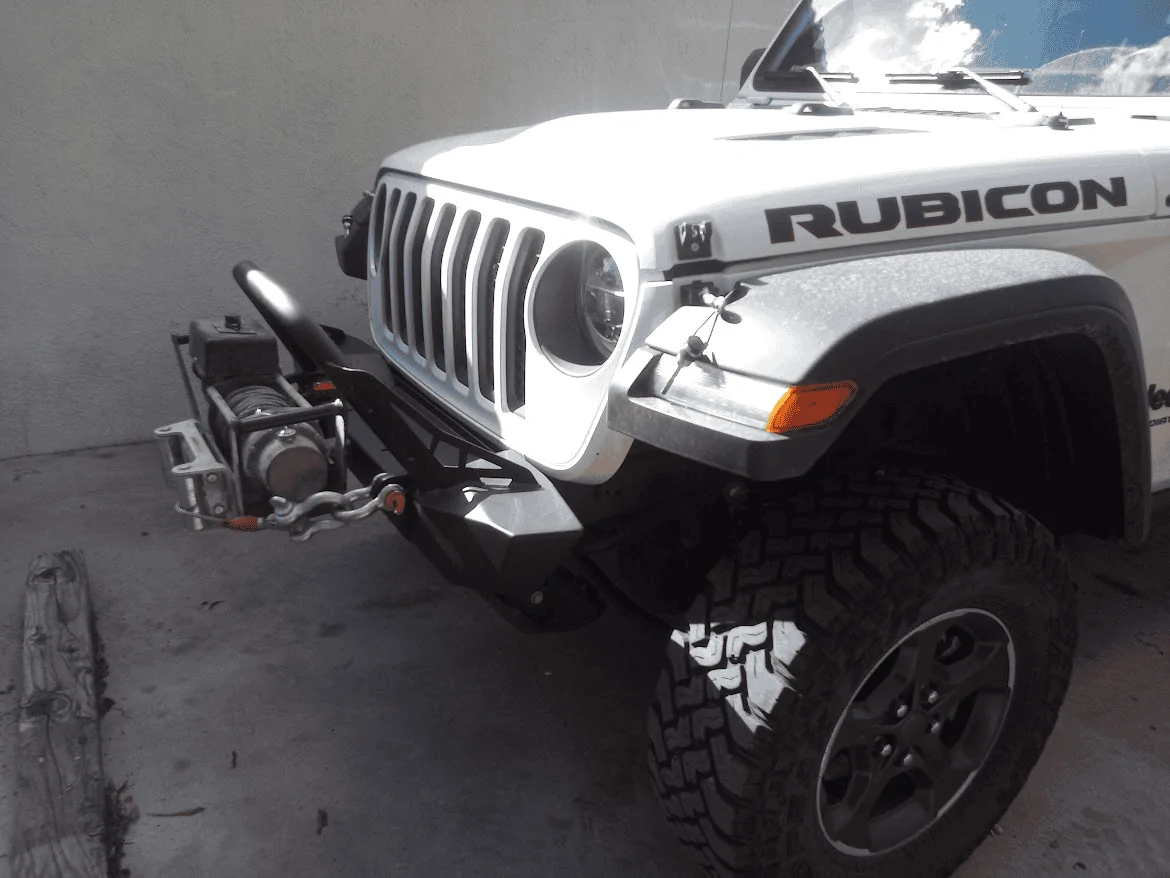

Jeep Gladiator Front bumper with integrated receiver 1663607231722

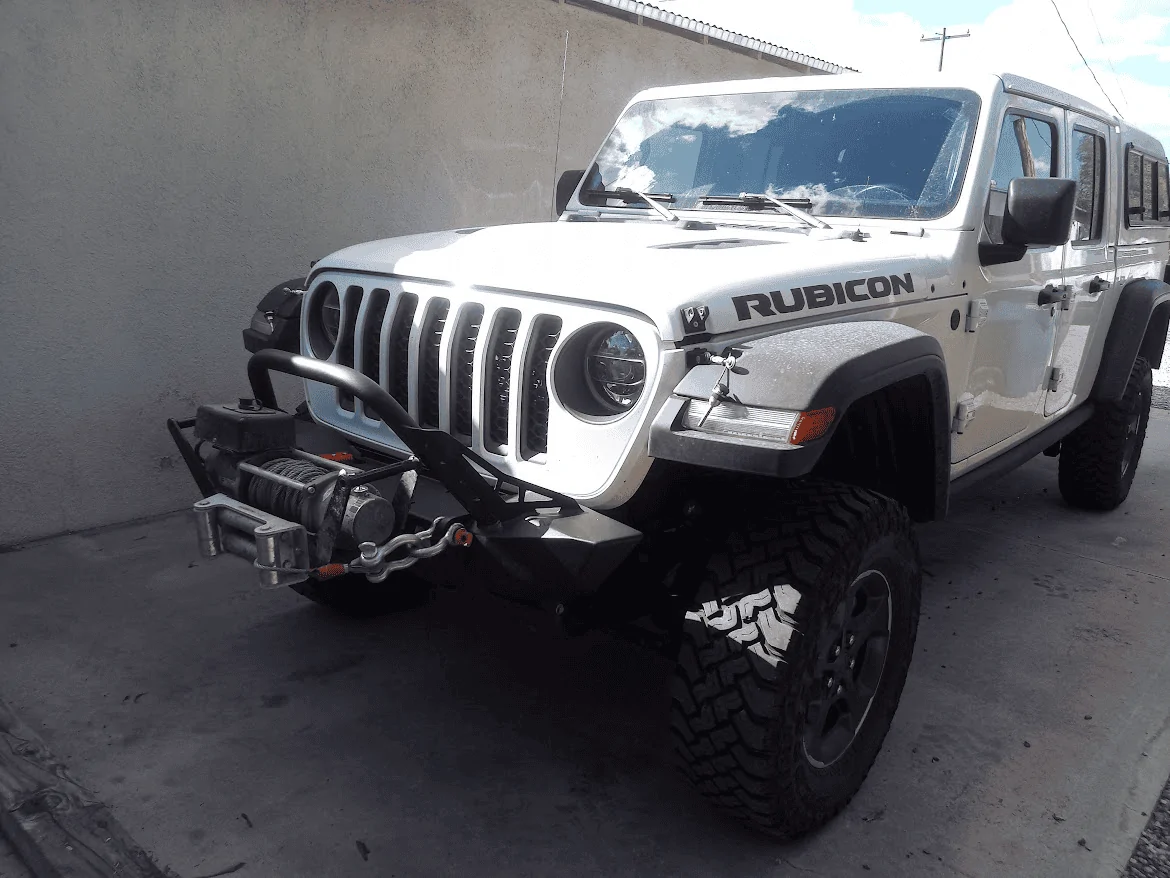

Jeep Gladiator Front bumper with integrated receiver 1663607247806

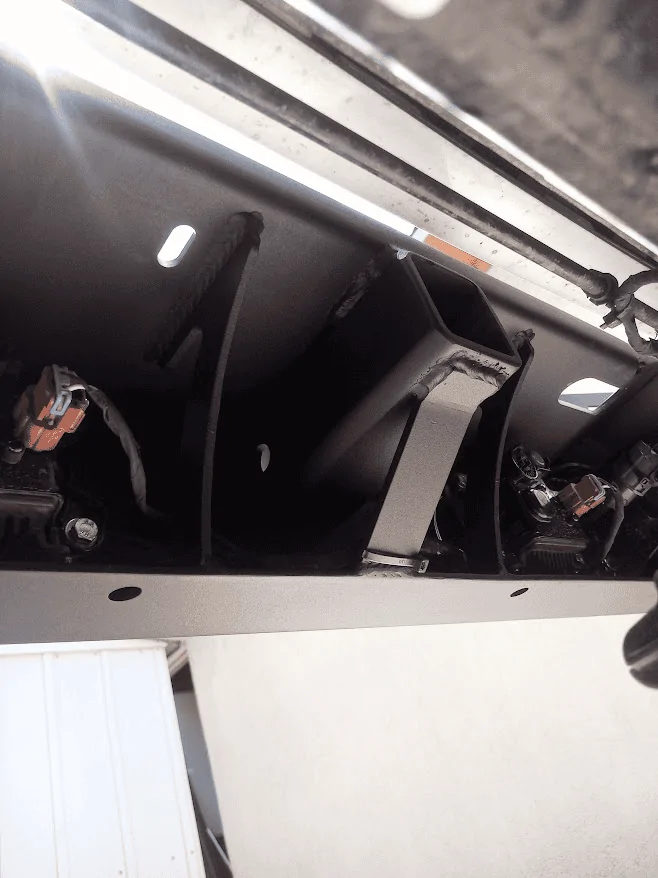

Jeep Gladiator Front bumper with integrated receiver 1663607265815

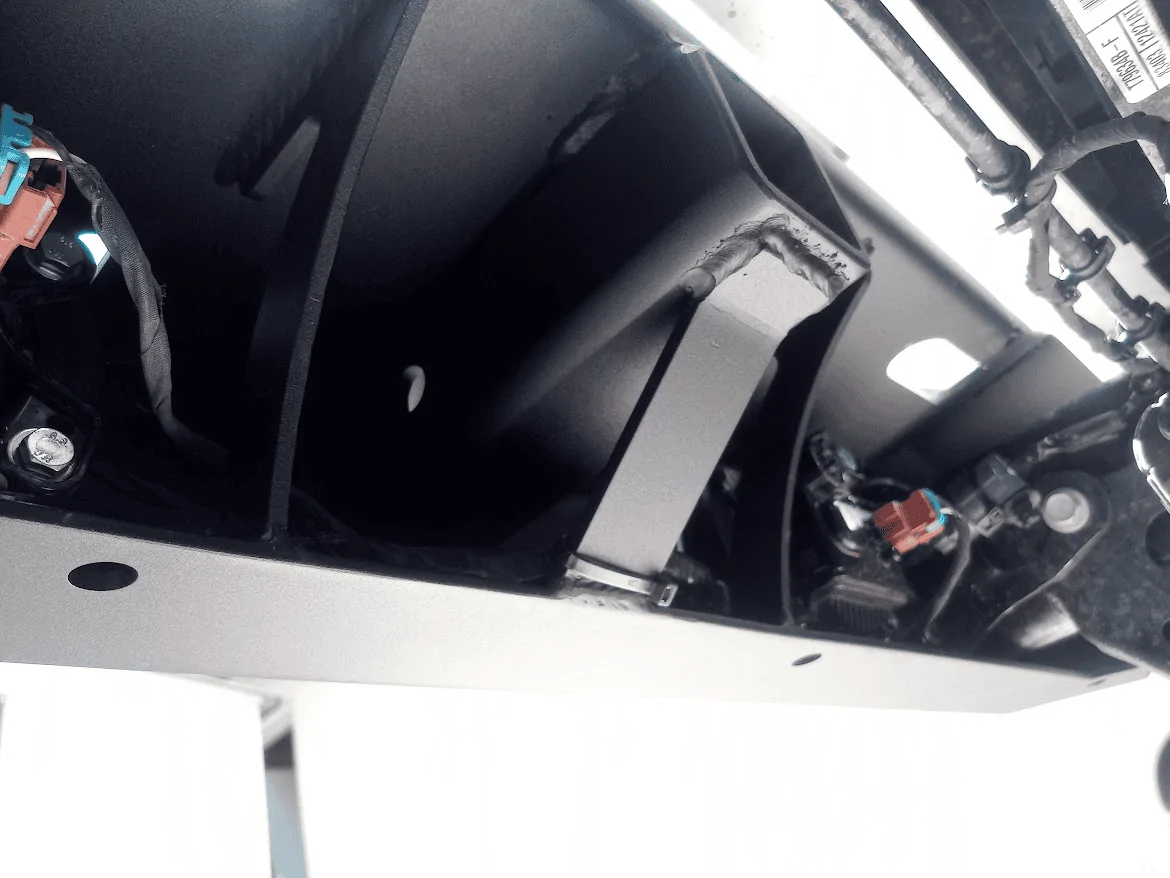

Jeep Gladiator Front bumper with integrated receiver 1663607280559

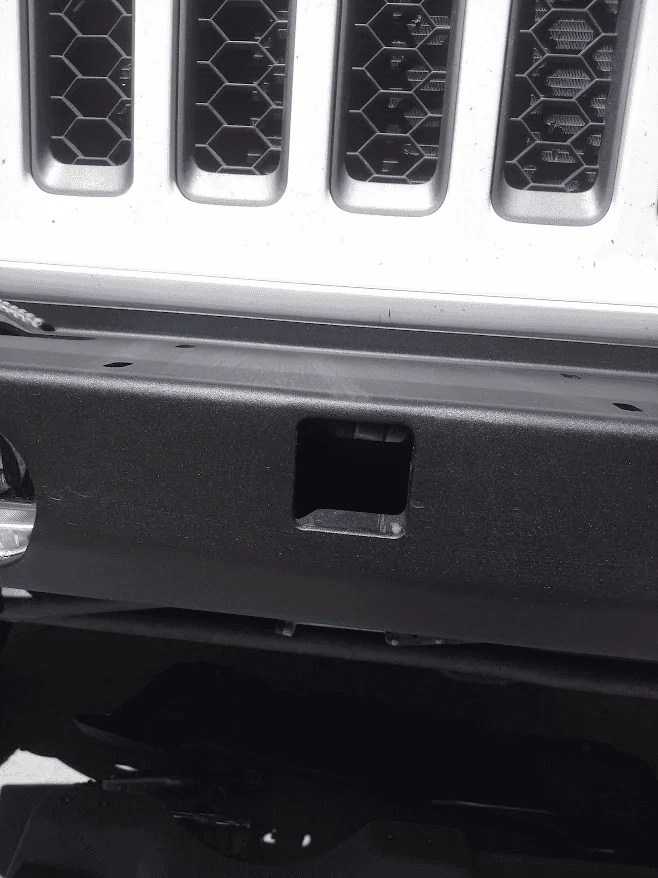

Jeep Gladiator Front bumper with integrated receiver 1663607297968

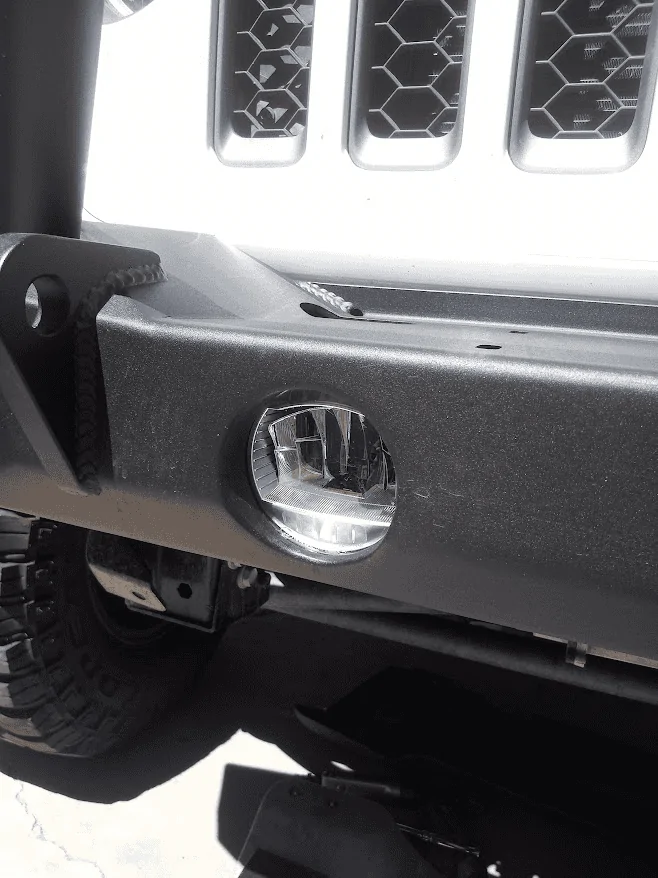

Jeep Gladiator Front bumper with integrated receiver 1663607309361
