Front coil spring bow just like the JL once lifted

  1. kyleking777

    kyleking777 Active Member

    First Name:
    Kyle
    Vehicle(s):
    2014 JKRU
    Joined:
    Apr 23, 2019
    Location:
    Tulsa, Oklahoma
    Posts:
    29
    Liked:
    91

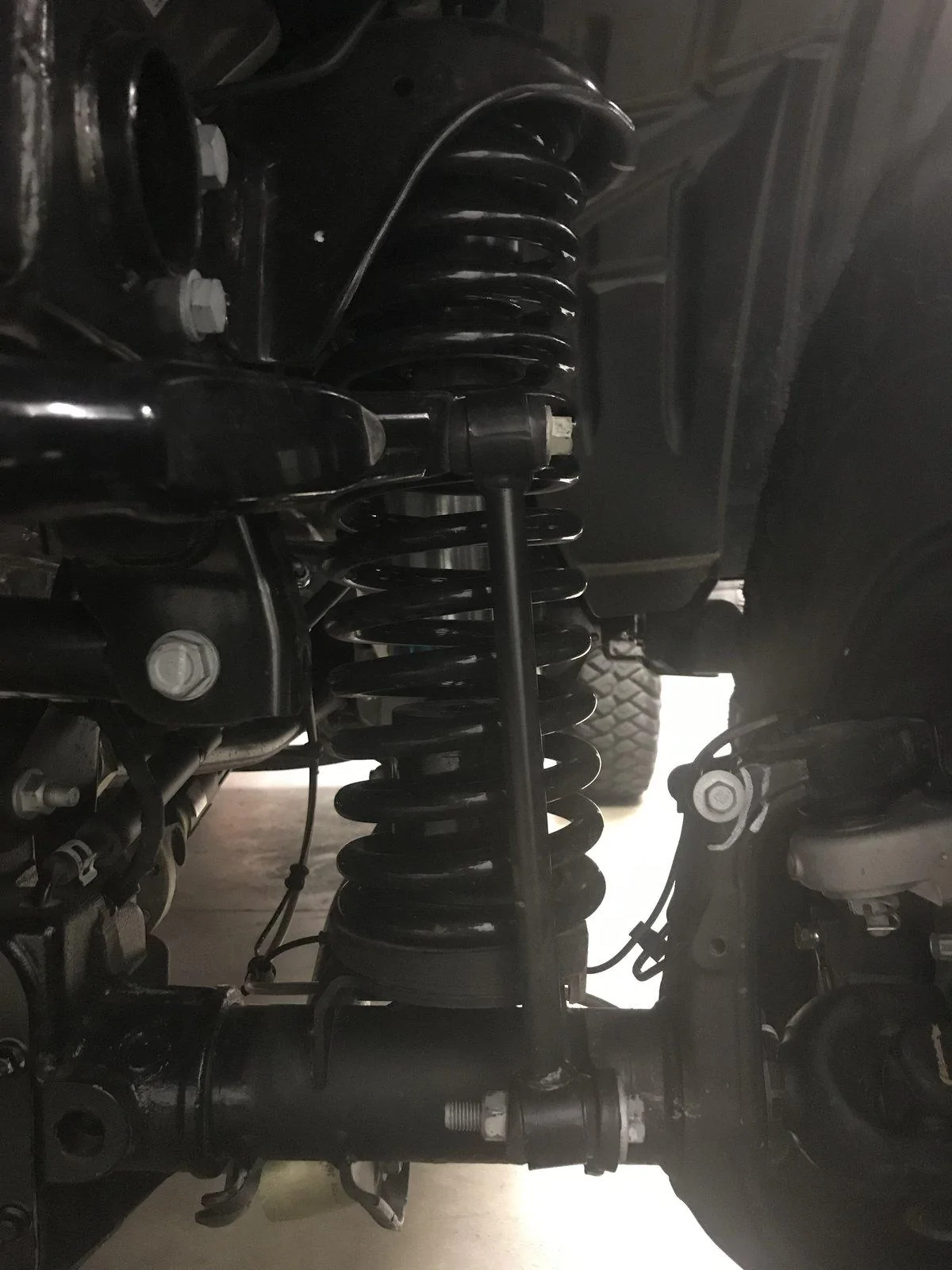

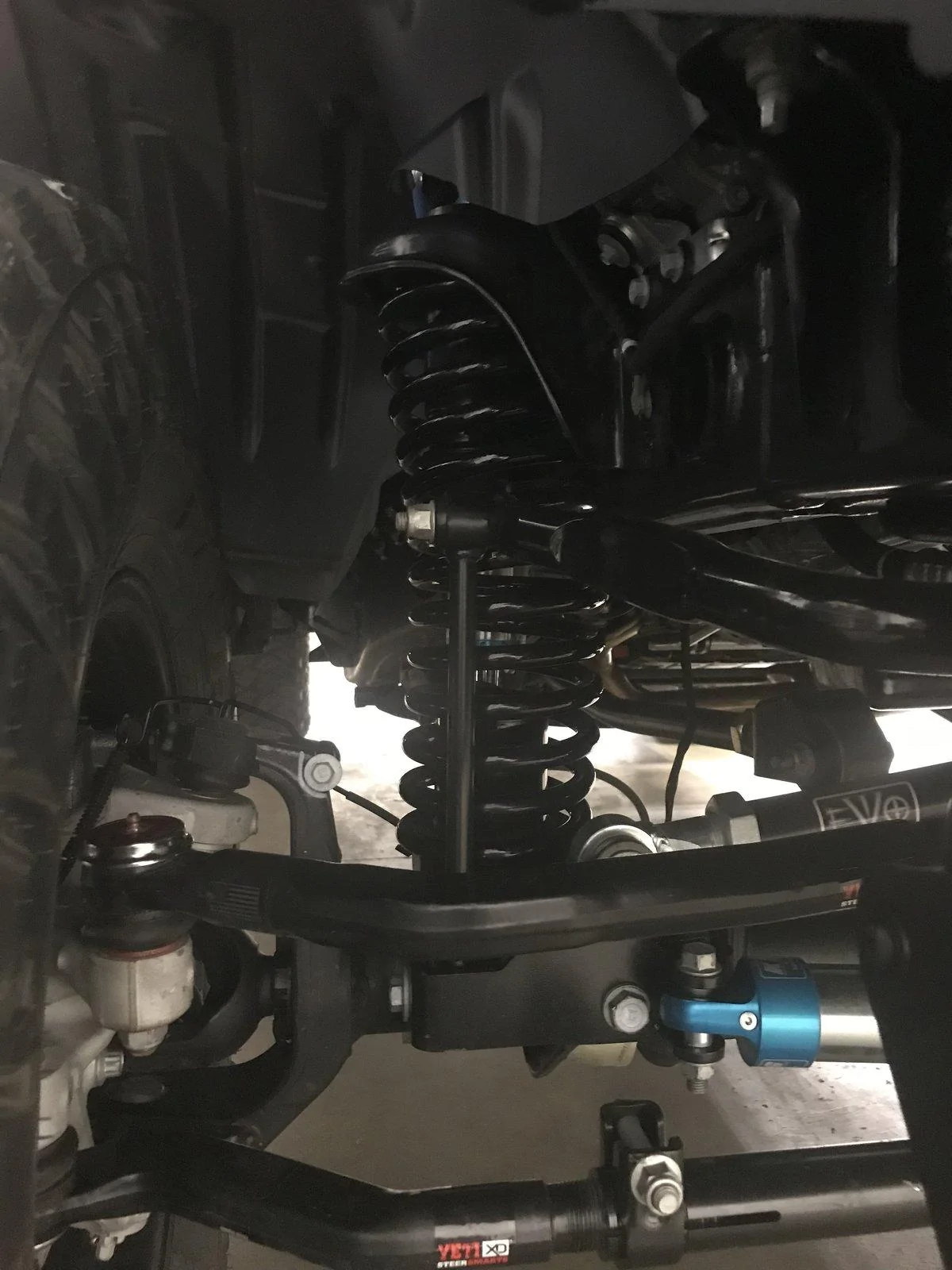

    After lifting my gladiator, I have a severe bow in my front cool springs. However, from what I’ve seen on the JLs, the coil bows outward away from the from. However, mine are bowing toward the frame on both sides. Anybody else having this issue?

  2. bgenlvtex

    bgenlvtex Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2020 JTR
    Joined:
    Jun 8, 2019
    Location:
    Texas/Alaska
    Posts:
    385
    Liked:
    413
    Did you change control arms?

  3. BosRacing

    BosRacing Well-Known Member

    First Name:
    Bill
    Vehicle(s):
    2018 JL, 2018 MegaCab, 2020 Gladiator
    Joined:
    Apr 3, 2019
    Location:
    Seattle
    Posts:
    70
    Liked:
    124
    Did you replace the lower coil spring isolators? Do you have them indexed properly? Are the springs indexed to the isolators correctly? Are the upper spring isolators installed/indexed properly with the nubs in the correct holes? Got any pictures? <insert popcorn emoji>

    Mjolnir likes this.
  4. OP
    OP
    kyleking777

    kyleking777 Active Member

    First Name:
    Kyle
    Vehicle(s):
    2014 JKRU
    Joined:
    Apr 23, 2019
    Location:
    Tulsa, Oklahoma
    Posts:
    29
    Liked:
    91
    Yes, upper and lower.

    I did replace the lower isolators with the ones that came with the evo Coils. I confirmed with Evo that they are daystar could isolators. Yes they are indexed at both the upper and lower indexes. Isolators are also indexed into their factory locations. I’ll try to get some pictures.

    Here is my best guess. So on the JLs, from what I’ve seen. The coils actually bow away from the from. Mine are bowing toward the frame almost touching the game actually. So I’m kind of guessing that the daystar isolators account for the outward bow and have added height on the side each isolator away from the frame ,vs the factory isolators. And it may be over compensating and pushing the coils too far toward the frame.

    I can’t imagine anybody can visualize what I just typed lol.

  5. Gren71

    Gren71 Well-Known Member

    First Name:
    Matthew
    Vehicle(s):
    Jeep JT sports S
    Joined:
    Jul 9, 2019
    Location:
    Delaware
    Posts:
    95
    Liked:
    43
    just curious what lift you installed?

  6. OP
    OP
    kyleking777

    kyleking777 Active Member

    First Name:
    Kyle
    Vehicle(s):
    2014 JKRU
    Joined:
    Apr 23, 2019
    Location:
    Tulsa, Oklahoma
    Posts:
    29
    Liked:
    91
    Evo 4.5” Engorcer Overland stage 4 Plus



  7. BosRacing

    BosRacing Well-Known Member

    First Name:
    Bill
    Vehicle(s):
    2018 JL, 2018 MegaCab, 2020 Gladiator
    Joined:
    Apr 3, 2019
    Location:
    Seattle
    Posts:
    70
    Liked:
    124
    Adjust your trackbar.... Hard to tell from the pictures but what I see is the axle being too far to the driver side causing the springs to be all wonky.

    TTEChris likes this.
  8. TTEChris

    TTEChris Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2018 JLUR, 2020 Gladiator
    Joined:
    May 17, 2017
    Location:
    Houston, TX
    Posts:
    133
    Liked:
    268
    Occupation:
    Jeep
    It looks off center to me as well, but could just be the angle of the pics.
    Also daystar makes two different isolators. One for the Mopar coils, and another set for "aftermarket" coils. The Mopar coils are notorious for their extreme outwards bow while most aftermarket I've tried are not.

  9. Reasons

    Reasons Well-Known Member

    Vehicle(s):
    JLU MOAB
    Joined:
    Apr 5, 2019
    Location:
    NC
    Posts:
    81
    Liked:
    38
    What did EVO say?

  10. copejc

    copejc New Member

    First Name:
    Jake
    Vehicle(s):
    JL Sahara
    Joined:
    Sep 19, 2018
    Location:
    Ga
    Posts:
    1
    Liked:
    0
    Any updates I'm having the same issue. Looks identical on 2.5 inch kit.

  11. smess

    smess Well-Known Member

    Vehicle(s):
    2011 Hemi Wrangler, AEV Ram Prospector, 2020 LE Gladiator
    Joined:
    May 17, 2019
    Location:
    EAST AND WEST
    Posts:
    60
    Liked:
    34
    Do you have an electronic sway bar disconnect?

    With that much lift did it come with longer sway bar quick connects?

  12. OP
    OP
    kyleking777

    kyleking777 Active Member

    First Name:
    Kyle
    Vehicle(s):
    2014 JKRU
    Joined:
    Apr 23, 2019
    Location:
    Tulsa, Oklahoma
    Posts:
    29
    Liked:
    91
    Have been working with EVO on this. Have gotten three alignments adjusting things to try and correct it with no luck. EVO has sent me a replacement coil, Will report back if that is the issue. As of now, bow remains

  13. smess

    smess Well-Known Member

    Vehicle(s):
    2011 Hemi Wrangler, AEV Ram Prospector, 2020 LE Gladiator
    Joined:
    May 17, 2019
    Location:
    EAST AND WEST
    Posts:
    60
    Liked:
    34
    I see a stock sway bar disconnect in pic and eco kit says it comes with replacement ones. I could be wrong but springs do that when the track bar needs adjustment or they are being limited but I don't think anyone would have gotten the spring back in if something was being limited that much.

  14. smess

    smess Well-Known Member

    Vehicle(s):
    2011 Hemi Wrangler, AEV Ram Prospector, 2020 LE Gladiator
    Joined:
    May 17, 2019
    Location:
    EAST AND WEST
    Posts:
    60
    Liked:
    34
    axle needs to go towards pass side would help but not sure it would make it perfect. those coils are stuffed in there, they look like they are being restricted.
