Genuine Mopar Passive Entry Kit Driver Side

TNBob2021

Active Member
First Name
Bob
Joined
Sep 1, 2021
Threads
2
Messages
36
Reaction score
43
Location
Murfreesboro, TN
Vehicle(s)
2021 JT Oscar Mike
Occupation
RN
My wife has a 2021 Sahara Altitude Wrangler JLU. We ordered it with Lots of extras... One of the things she wanted besides heated seats and 1 touch top was Passive Entry setup.

I bought mine from off the lot. I settled for a few things.Well, a month or so ago... I ordered a Passive Entry Kit for my Gladiator (Freedom/Oscar Mike) from AllMoparParts.com. It's been sitting in my closet waiting to be installed.
I chose to only get the set up for the drivers side. Since 90% of the time, I'm the only one in the Jeep.

Passive Entry Kit

Today, I was able to squeak out some time with the temp around 50.
It took me about an hour, but know what I know know.... I could probably do it easily in 30 minutes. 😄

I did you my Tazer Mini to activate the Passive Entry.
For those who don't know... It's located under the OTHER in the TAZER Menu.

While this is far from the 1st and definitely not the last addition to my Gladiator.... It is one I am going to enjoy. Now I don't have to dig my key out when I coming from the gym or anywhere else for that matter.

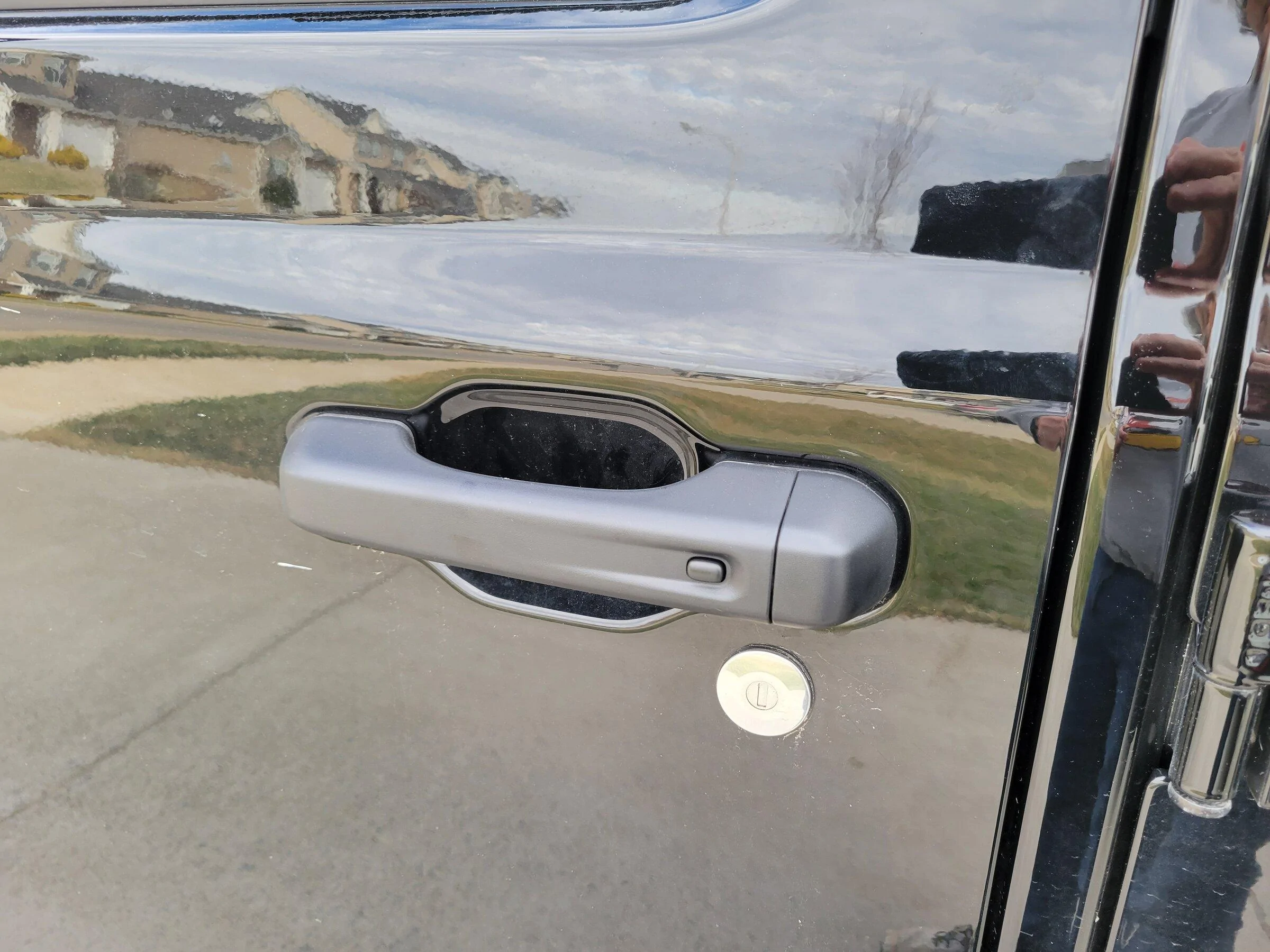

Passive Entry Dr Side 01272022.jpg
Sponsored



Coachcal

Well-Known Member
First Name
Aidan
Joined
Oct 12, 2020
Threads
15
Messages
107
Reaction score
53
Location
Burnet, TX
Vehicle(s)
2021 Jeep Gladiator
Occupation
Education
Did your Gladiator already have the appropriate wiring harness in the door?
Was it just plug and play other than the Tazer update?


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
48
Messages
1,679
Reaction score
2,564
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
How easily did the window bolts come off? Another member broke his...green loctite.

OP
OP
TNBob2021

TNBob2021

Active Member
First Name
Bob
Joined
Sep 1, 2021
Threads
2
Messages
36
Reaction score
43
Location
Murfreesboro, TN
Vehicle(s)
2021 JT Oscar Mike
Occupation
RN
Did your Gladiator already have the appropriate wiring harness in the door?
Was it just plug and play other than the Tazer update?

yes, plug and play...
the wiring was already in the factory connector.

  • Like
Reactions: mog
OP
OP
TNBob2021

TNBob2021

Active Member
First Name
Bob
Joined
Sep 1, 2021
Threads
2
Messages
36
Reaction score
43
Location
Murfreesboro, TN
Vehicle(s)
2021 JT Oscar Mike
Occupation
RN
How easily did the window bolts come off? Another member broke his...green loctite.
Used a 1/4" socket wrench...
It came off with minimal effort.


Sponsored

Average Oregonian

Well-Known Member
Joined
Jul 10, 2021
Threads
4
Messages
96
Reaction score
160
Location
Oregon
Vehicle(s)
2021 JTR
Nice work! I will say that I have found the passenger side to be quite handy as well since I often load smaller cargo into the passenger side. Or if I just need to grab something out of the glove box or whatever, I can just enter that side.


mog

Well-Known Member
Joined
Mar 28, 2021
Threads
9
Messages
306
Reaction score
674
Location
Southern Oregon
Vehicle(s)
'21 Gladiator Rubicon, '09 C4500 Kodiak
Occupation
Kodiak Wrangler
WOW! Just so I am clear prior to ordering, a Gladiator (trim level higher than sport)+ this kit + Tazer = passive entry on the driver's side?
I'm in the same boat as you, 90%+ solo, so $165 sure beats the $695 option (yes that does all the doors)
And is this just passive unlock, or does it also lock from the door handle?
Thanks :clap:


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
48
Messages
1,679
Reaction score
2,564
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
WOW! Just so I am clear prior to ordering, a Gladiator (trim level higher than sport)+ this kit + Tazer = passive entry on the driver's side?
I'm in the same boat as you, 90%+ solo, so $165 sure beats the $695 option (yes that does all the doors)
And is this just passive unlock, or does it also lock from the door handle?
Thanks :clap:
If you order a 2022 this is standard on some trims now. Mojave for sure. Check that out.

  • Like
Reactions: mog

Coachcal

Well-Known Member
First Name
Aidan
Joined
Oct 12, 2020
Threads
15
Messages
107
Reaction score
53
Location
Burnet, TX
Vehicle(s)
2021 Jeep Gladiator
Occupation
Education
Too bad there is a 45 day backorder right now! Someone PM me if they have a passive entry door handle laying around.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
142
Messages
21,616
Reaction score
24,396
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
yes, plug and play...
the wiring was already in the factory connector.
IN the door harness itself? So you ONLY needed the handle and button? You didn't have to swap harnesses in the door?


Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
142
Messages
21,616
Reaction score
24,396
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
WOW! Just so I am clear prior to ordering, a Gladiator (trim level higher than sport)+ this kit + Tazer = passive entry on the driver's side?
I'm in the same boat as you, 90%+ solo, so $165 sure beats the $695 option (yes that does all the doors)
And is this just passive unlock, or does it also lock from the door handle?
Thanks :clap:
The handle has a button you press to lock, stick your hand behind the handle and it senses and unlocks. You can exit the truck, close the door and push a button on the handle to lock it.

  • Like
Reactions: mog
OP
OP
TNBob2021

TNBob2021

Active Member
First Name
Bob
Joined
Sep 1, 2021
Threads
2
Messages
36
Reaction score
43
Location
Murfreesboro, TN
Vehicle(s)
2021 JT Oscar Mike
Occupation
RN
IN the door harness itself? So you ONLY needed the handle and button? You didn't have to swap harnesses in the door?
No, you need to replace the door harness and the handle.
The plug under the kick panel/dash had the proper 2 wires connected to it so I could add the kit.

  • Like
Reactions: DC3
OP
OP
TNBob2021

TNBob2021

Active Member
First Name
Bob
Joined
Sep 1, 2021
Threads
2
Messages
36
Reaction score
43
Location
Murfreesboro, TN
Vehicle(s)
2021 JT Oscar Mike
Occupation
RN

asdgs

Well-Known Member
First Name
why
Joined
Jan 27, 2022
Threads
15
Messages
276
Reaction score
429
Location
NV
Vehicle(s)
2021 JTSD
A warning to those that are thinking about doing it after. I did this, and the button sometimes works. its hit and miss.
