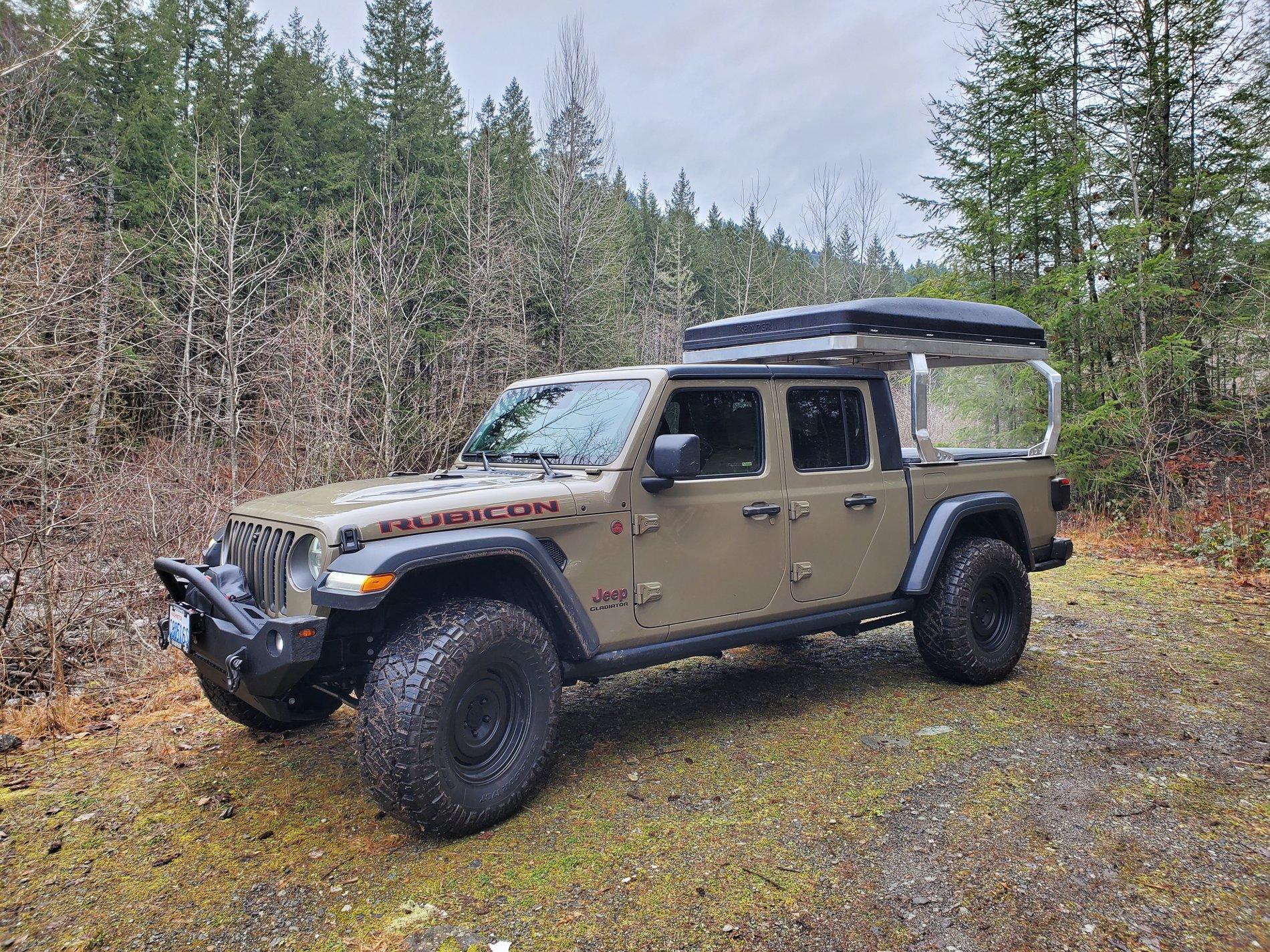

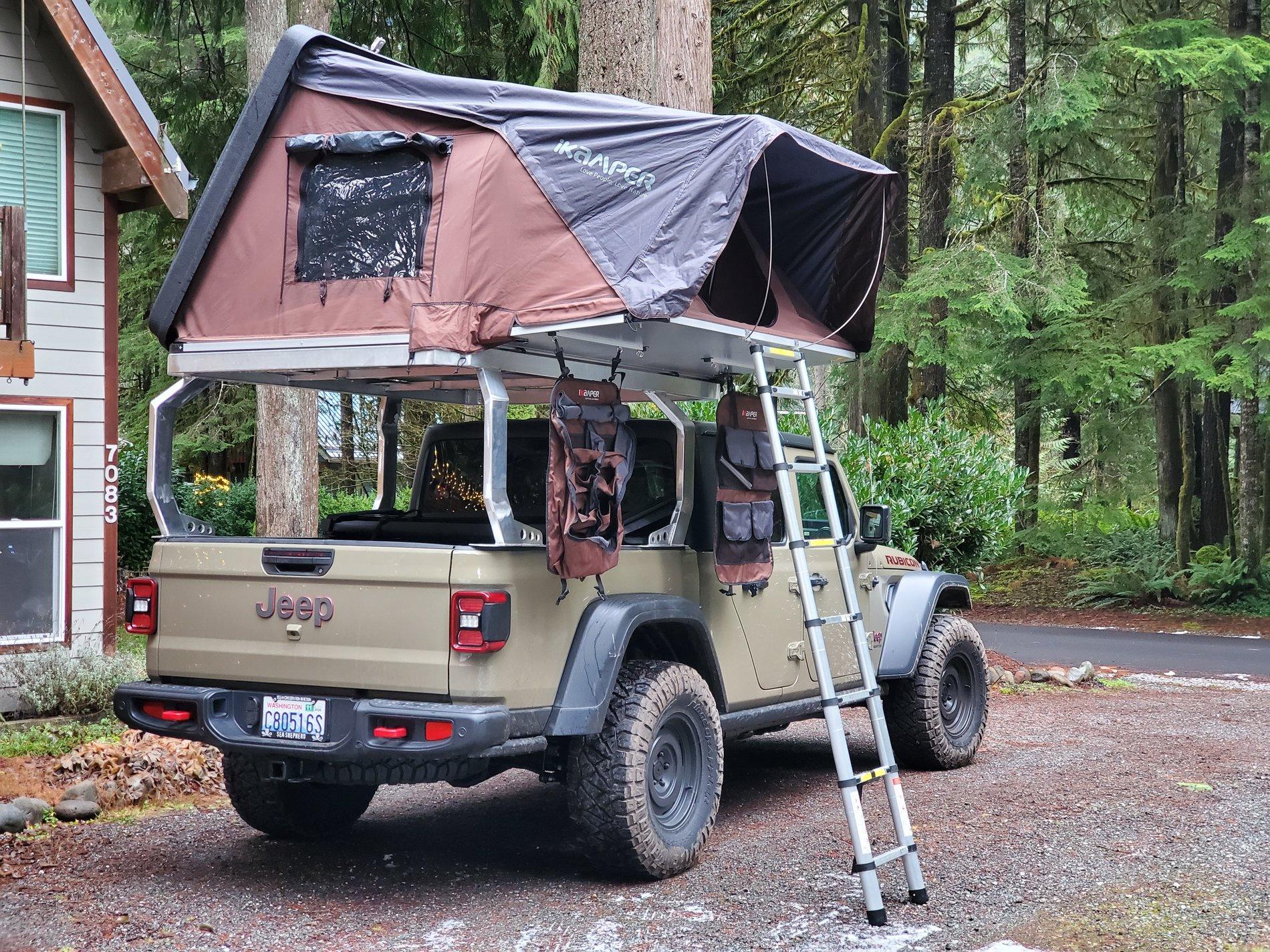

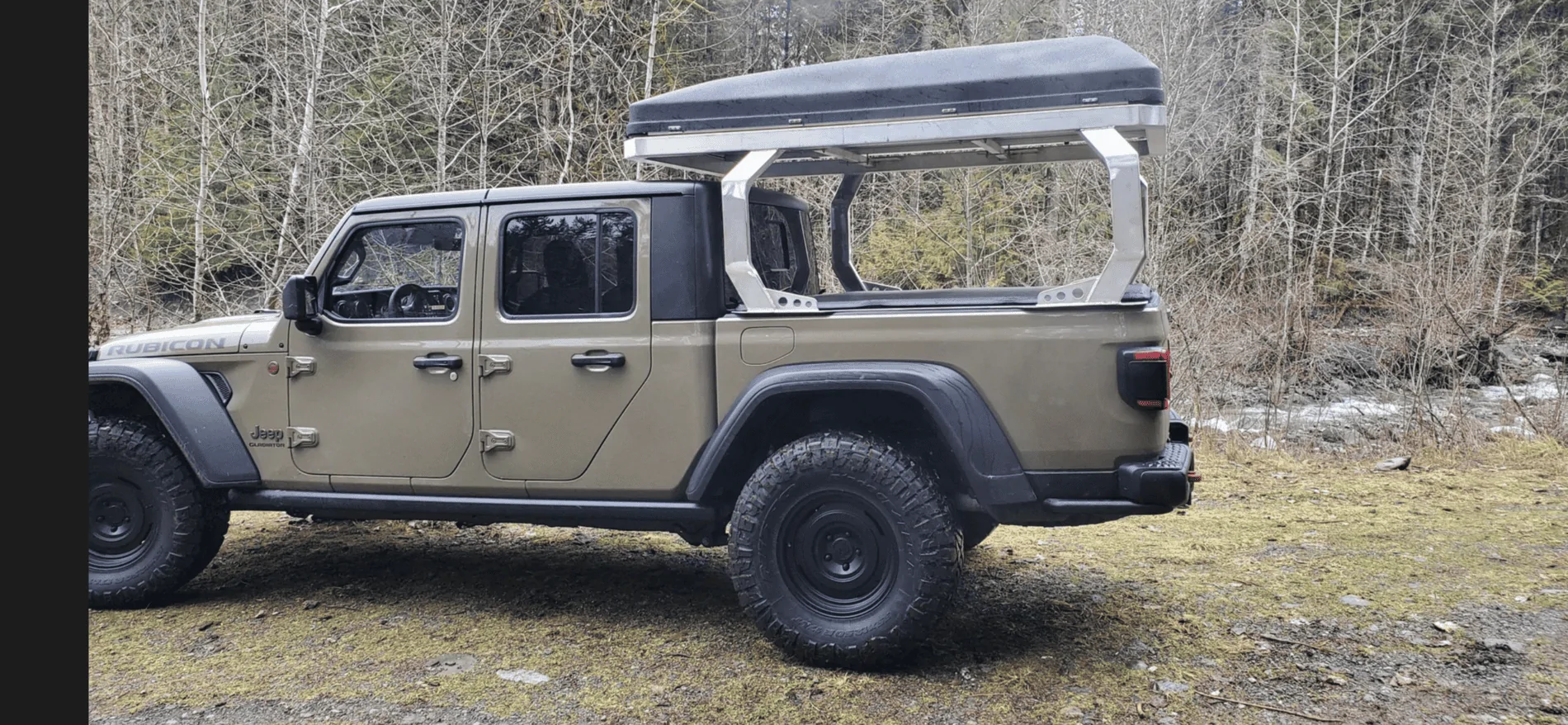

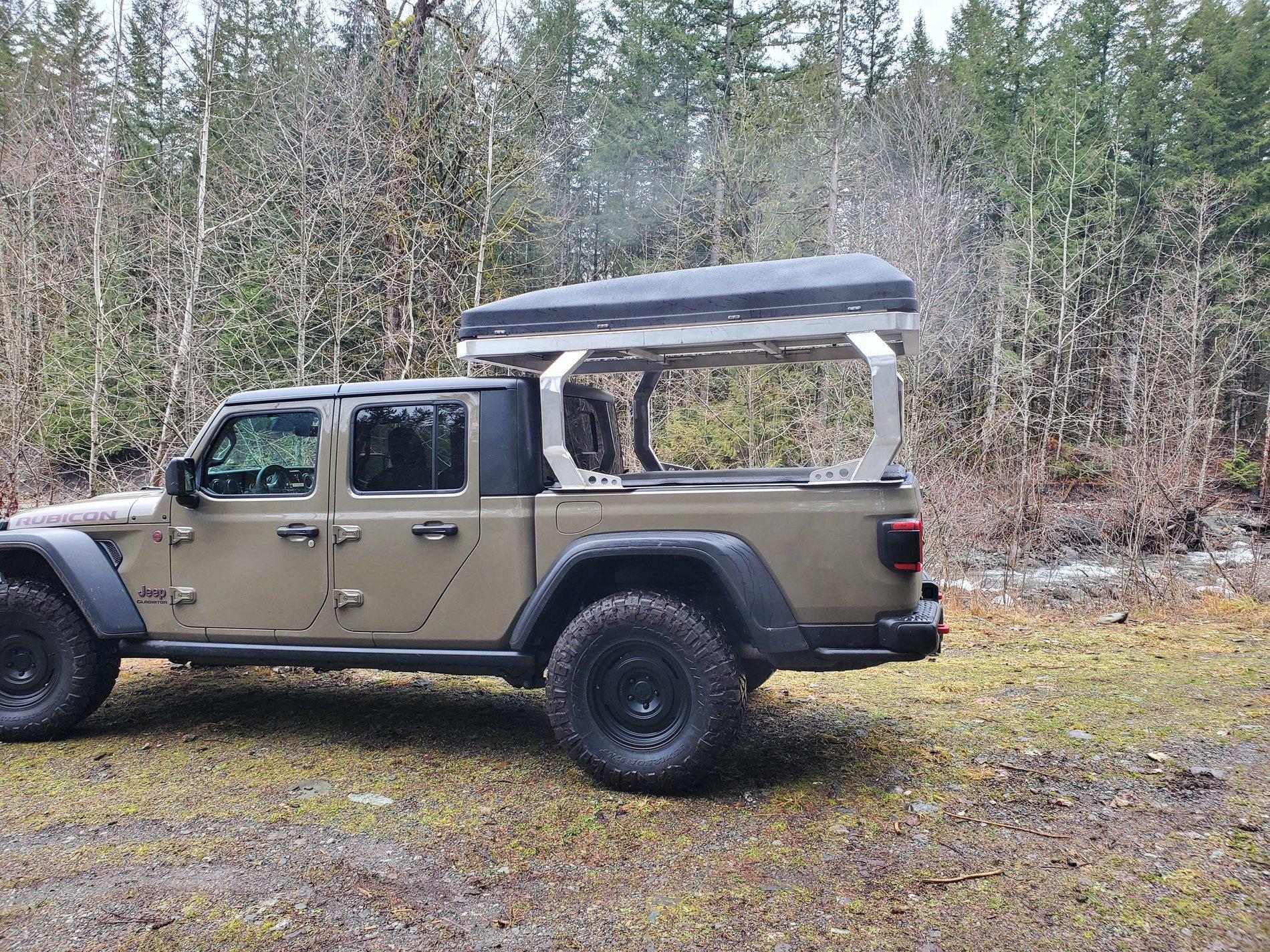

I'm slowly plugging away at building my JT very similar to the Wayout concept. Of course it's not going to be exact but some things I'm doing as close as possible.
Here is what I've done so far:

Installed Tazer JL mini
35" Nitto tires with fifteen52 Analog HD wheels.
DV8 steel bumper with Warn EVO 10K winch with synthetic line. Warn shackles & winch hook.
Custom Aluminum rack based off the Wayout concept but to accommodate a factory trifold Tonneau cover. Rack will be Line X'd next week. The upper support frame of the rack will have fittings so it can be filled with approximately 10 gallons of potable water.

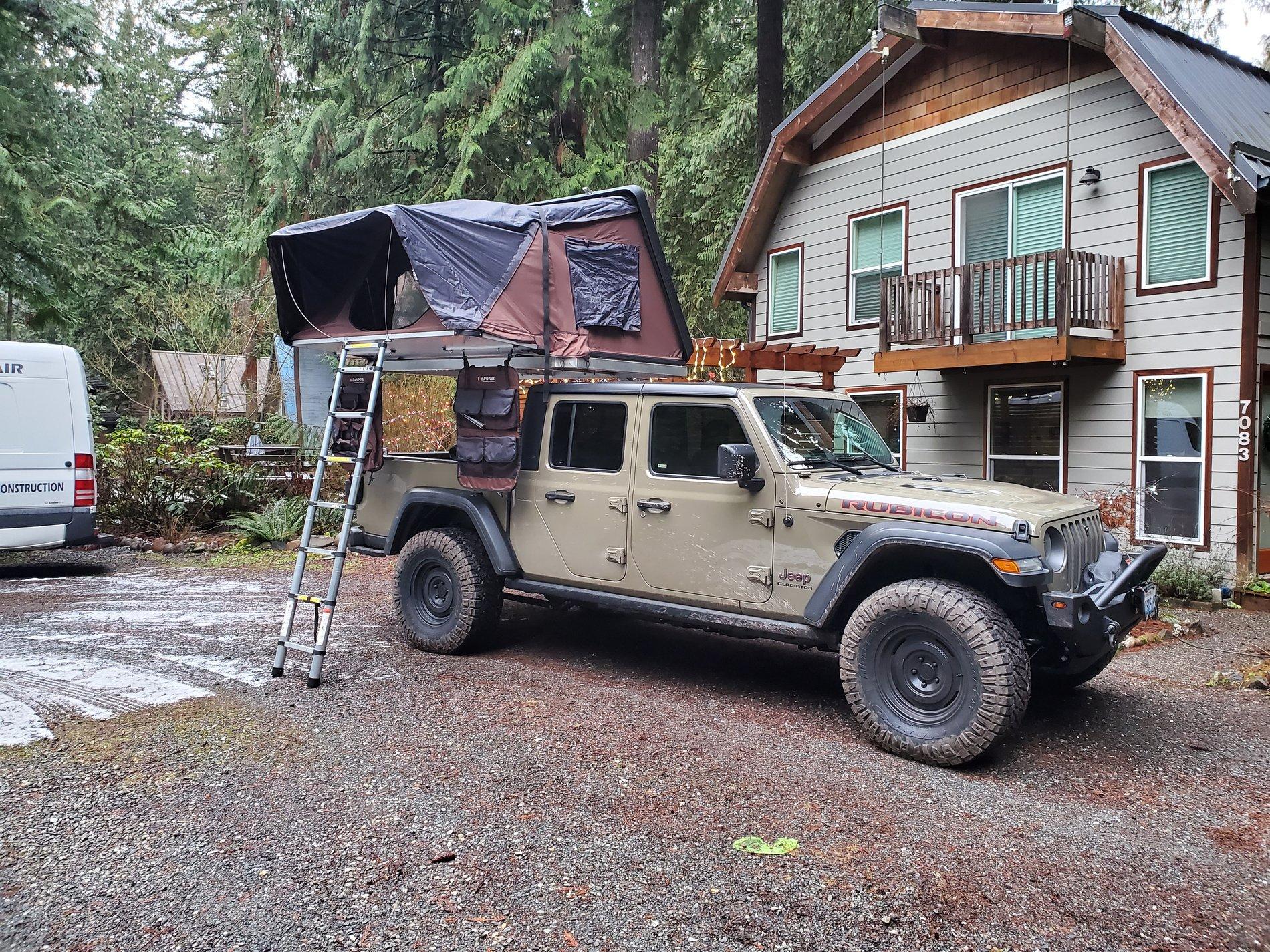

Ikamper skycamp RTT with Line X shell.

Things still left to do:

Install cowl KC lights.
Install KC lights on the brush bar of the bumper.
Have the JT exterior wrapped exactly like the wayout concept.
Remove antenna and cover with Trail Rated badge.
Install lights into the bed rack
Remove all red Rubicon & jeep decals/emblems.
And I'm sure there is more I forgot to mention.


















Advertisement





WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Messages
1,797
Reaction score
2,891
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
1
Wow! I like what you’ve done!

I started the Wayout thread on here because I knew it’s a great concept by Jeep. And you’ve done a terrific version of it!

Wayout thread: https://www.jeepgladiatorforum.com/...ilding-planning-to-build-a-jeep-wayout.20229/

The big question I and I’ll bet others will have is regarding your custom aluminum rack. Please tell us all about it - did you design it? Who dabbed it? What’d it cost, etc?

Last edited:

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Messages
1,797
Reaction score
2,891
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
1
This pic shows how much overhang is needed with a rack supporting a RTT and it’s been my only concern - the height of the rack due to the RTT being longer than the box.


OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #4
Wow! I like what you’ve done!

I started the Wayout thread on here because I knew it’s a great concept by Jeep. And you’ve done a terrific version of it!

Wayout thread: https://www.jeepgladiatorforum.com/...ilding-planning-to-build-a-jeep-wayout.20229/

The big question I and I’ll bet others will have is regarding your custom aluminum rack. Please tell us all about it - did you design it? Who dabbed it? What’d it cost, etc?

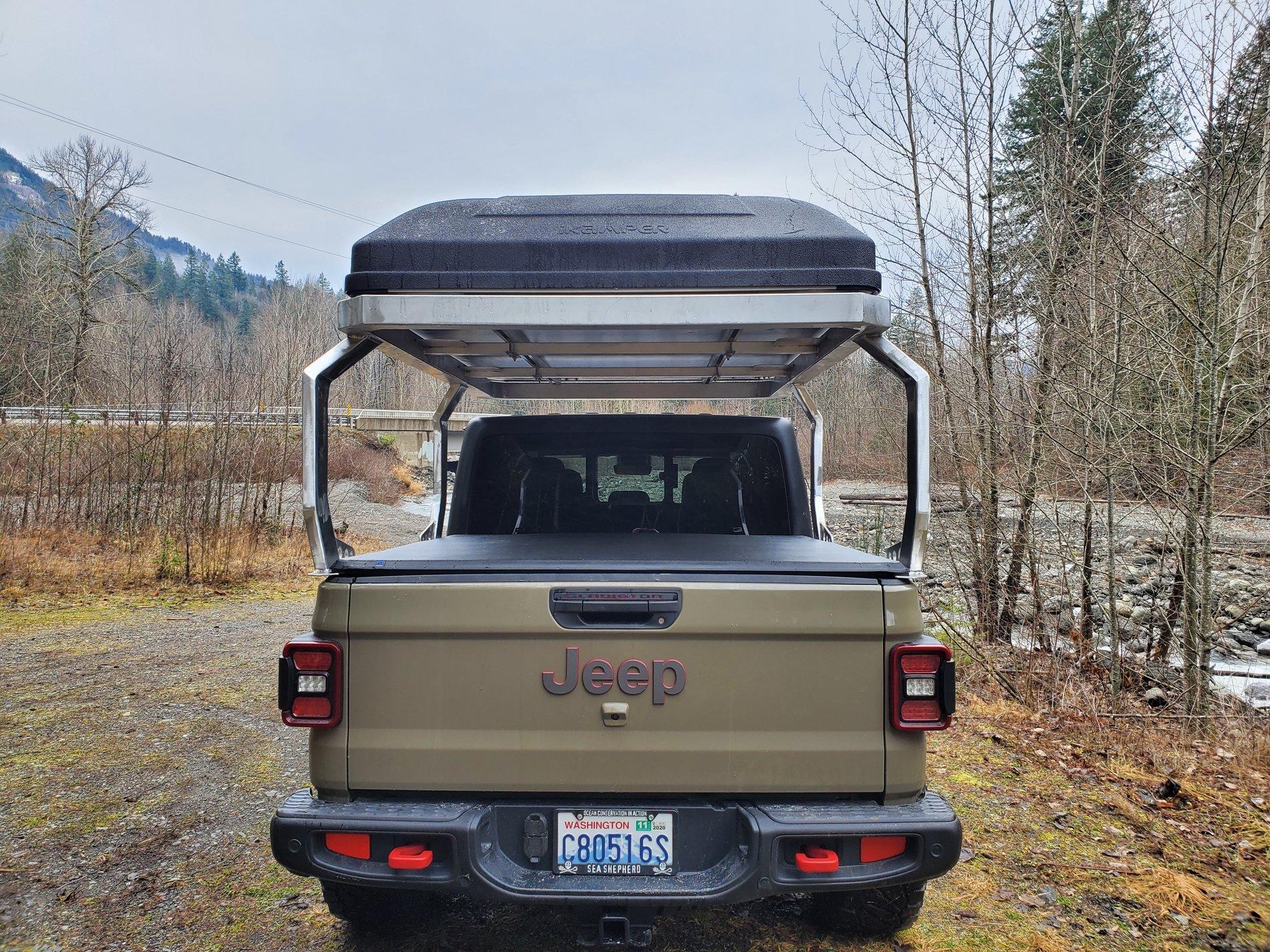

The rack was fabricated by a welder I know here in Washington state. You can find him on Instagram at TRO fabrications. I basically gave him several pictures of the wayout rack and told him I wanted this rack but needed to work with a tonneau cover and my RTT. I chose aluminum to reduce weight and also so I can use the upper support to hold water to use for showering or whatever. It will heat up nicely once the rack is linex black.
The rack cost me $2,500 and I think that is fair considering the cost of aluminum and I have a 1off rack that works with a tonneau. I have asked several manufacturers if their racks would work with a tonneau and could not find any I liked that did.

OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #5
This pic shows how much overhang is needed with a rack supporting a RTT and it’s been my only concern - the height of the rack due to the RTT being longer than the box.

I'm not sure if you are familiar with the skycamp but it is one of the bigger RTT. I think it is 84" so that is why it overhangs so far. I wanted a rommie tent so I was willing to sacrifice. When it's time to take the top off this rack is light (70lbs ish)so I'll just slide it out of the way.
Regarding height off the roof.. he builds many off road projects and wanted to take flex between the bed & cab into mind so there were no issues in severe situations off road.

OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #6

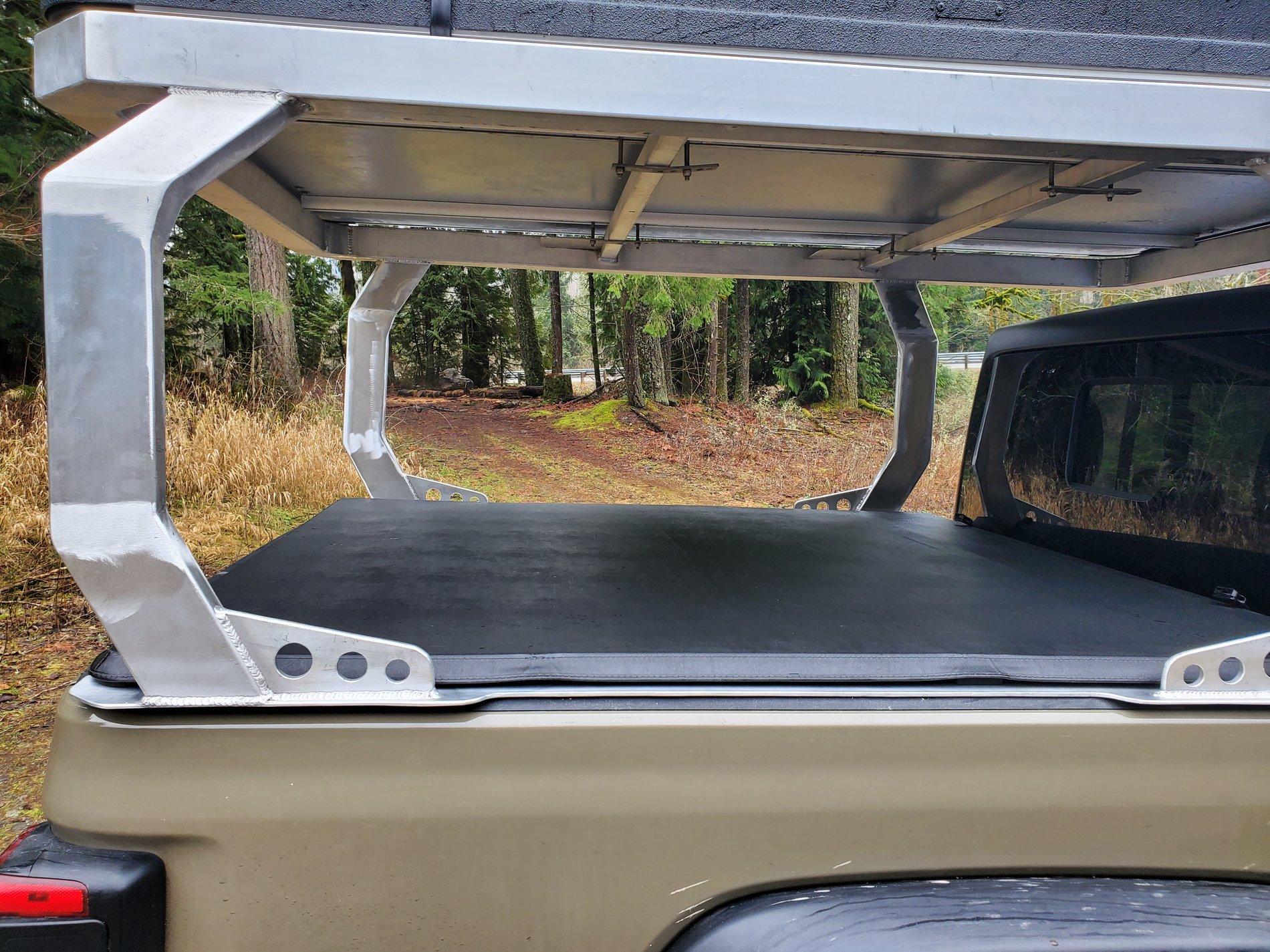

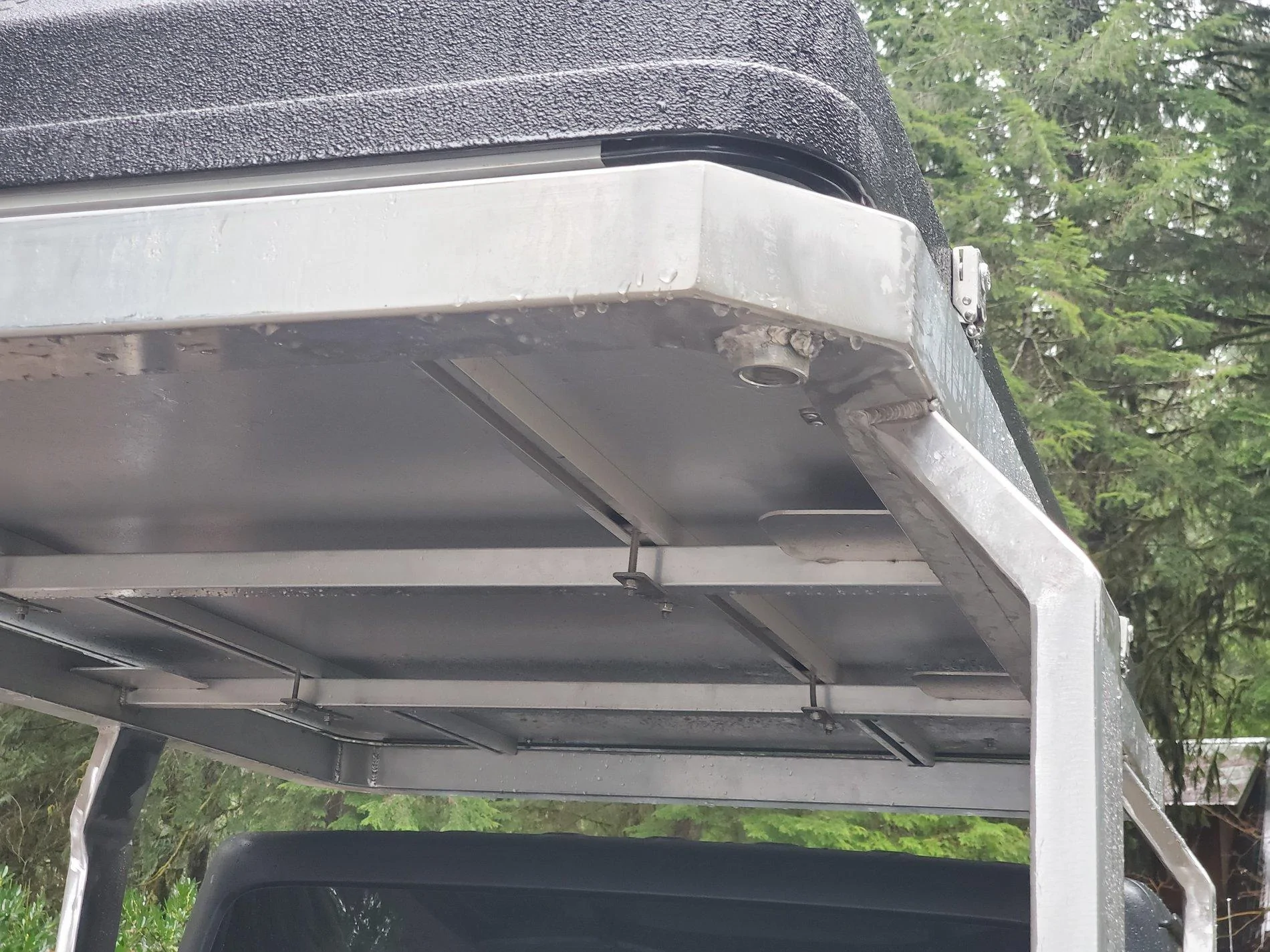

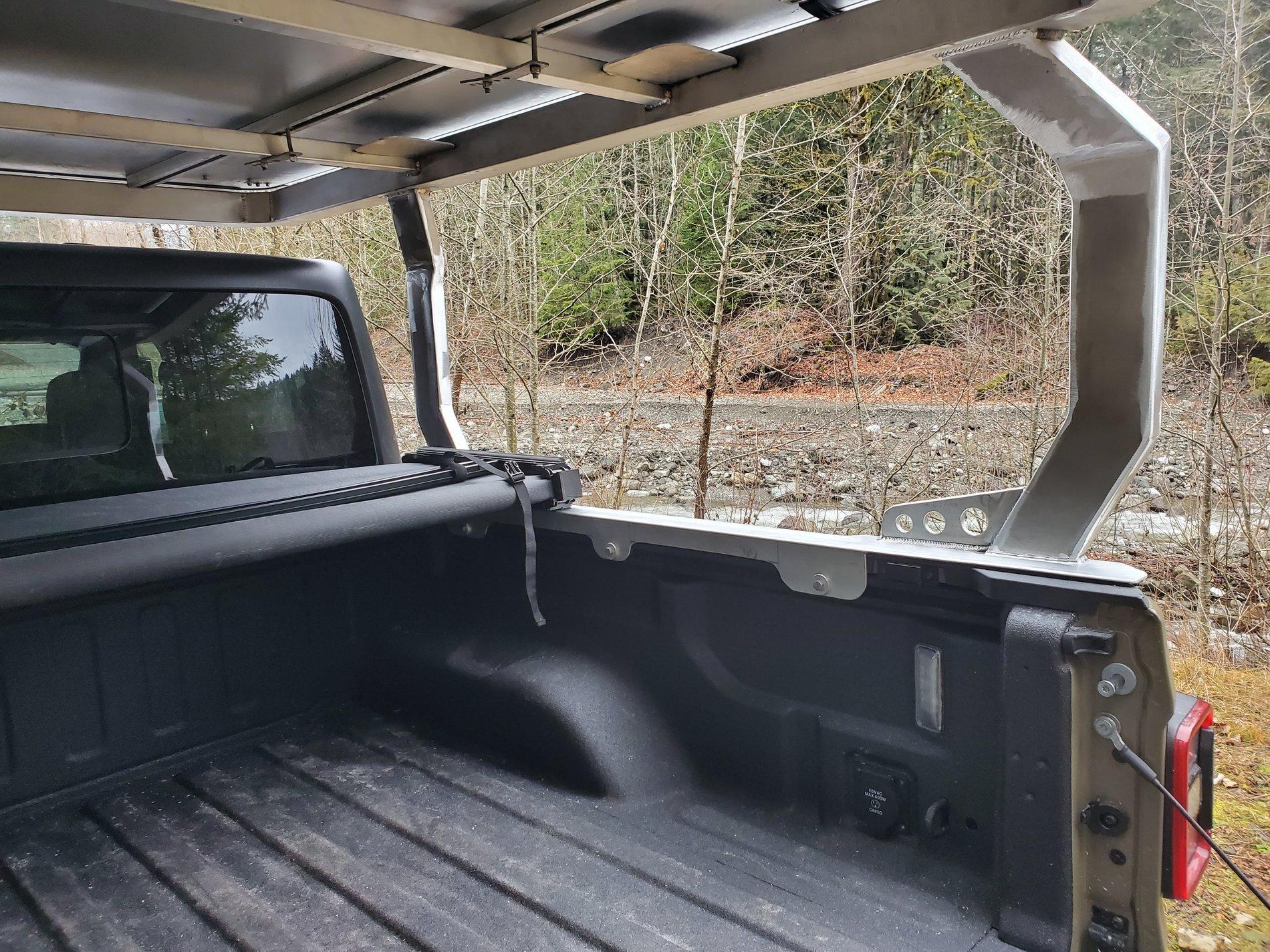

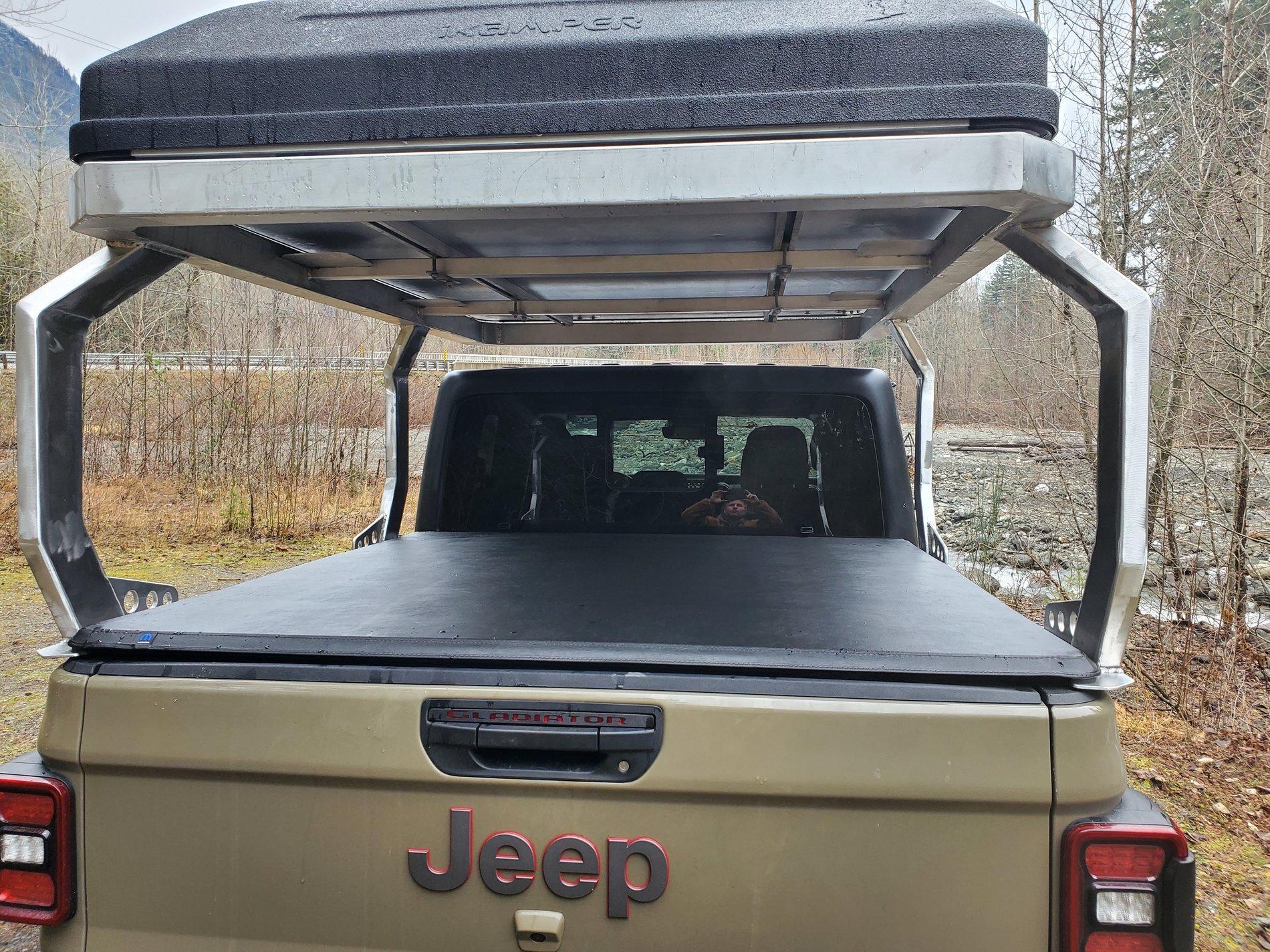

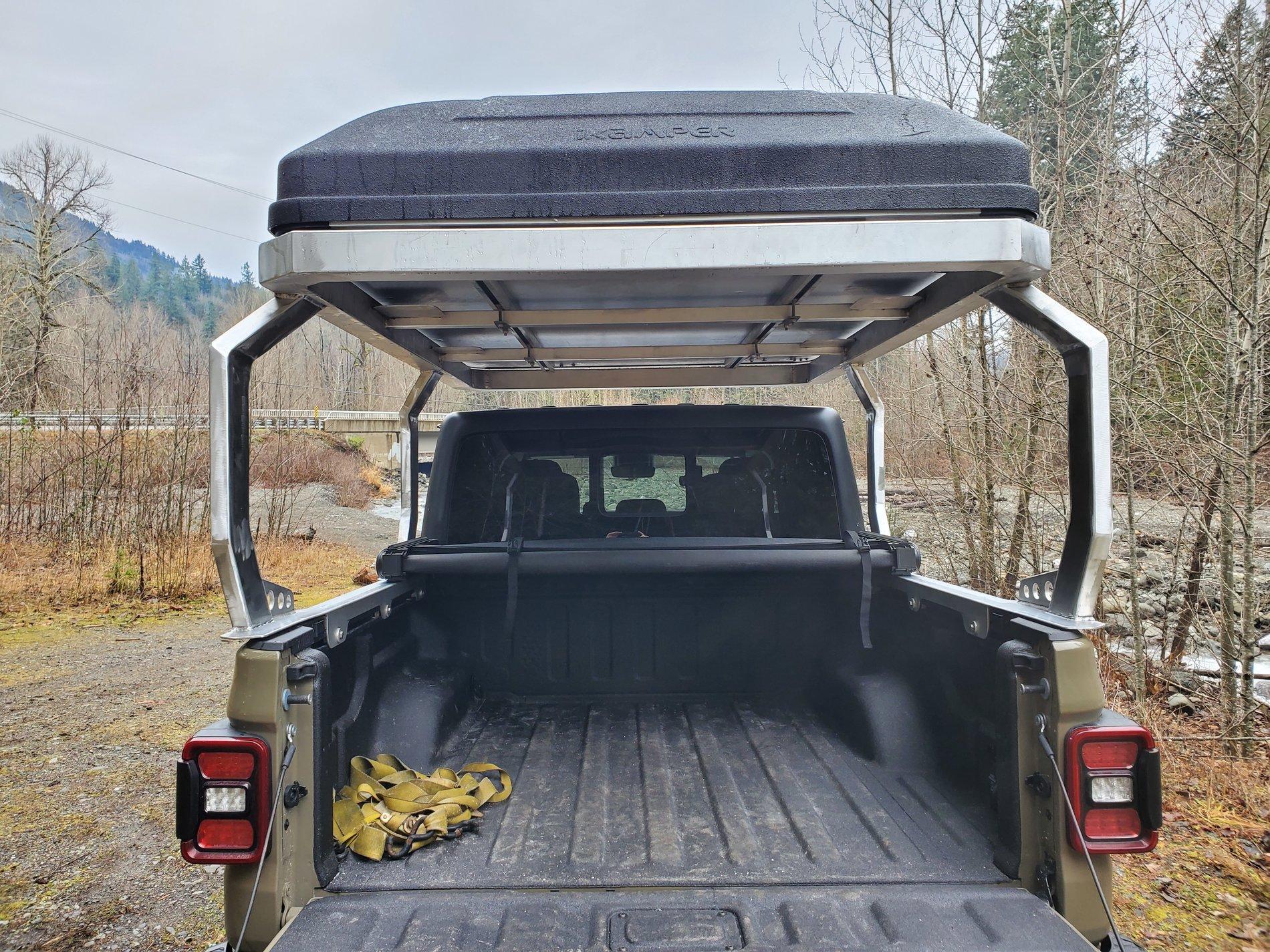

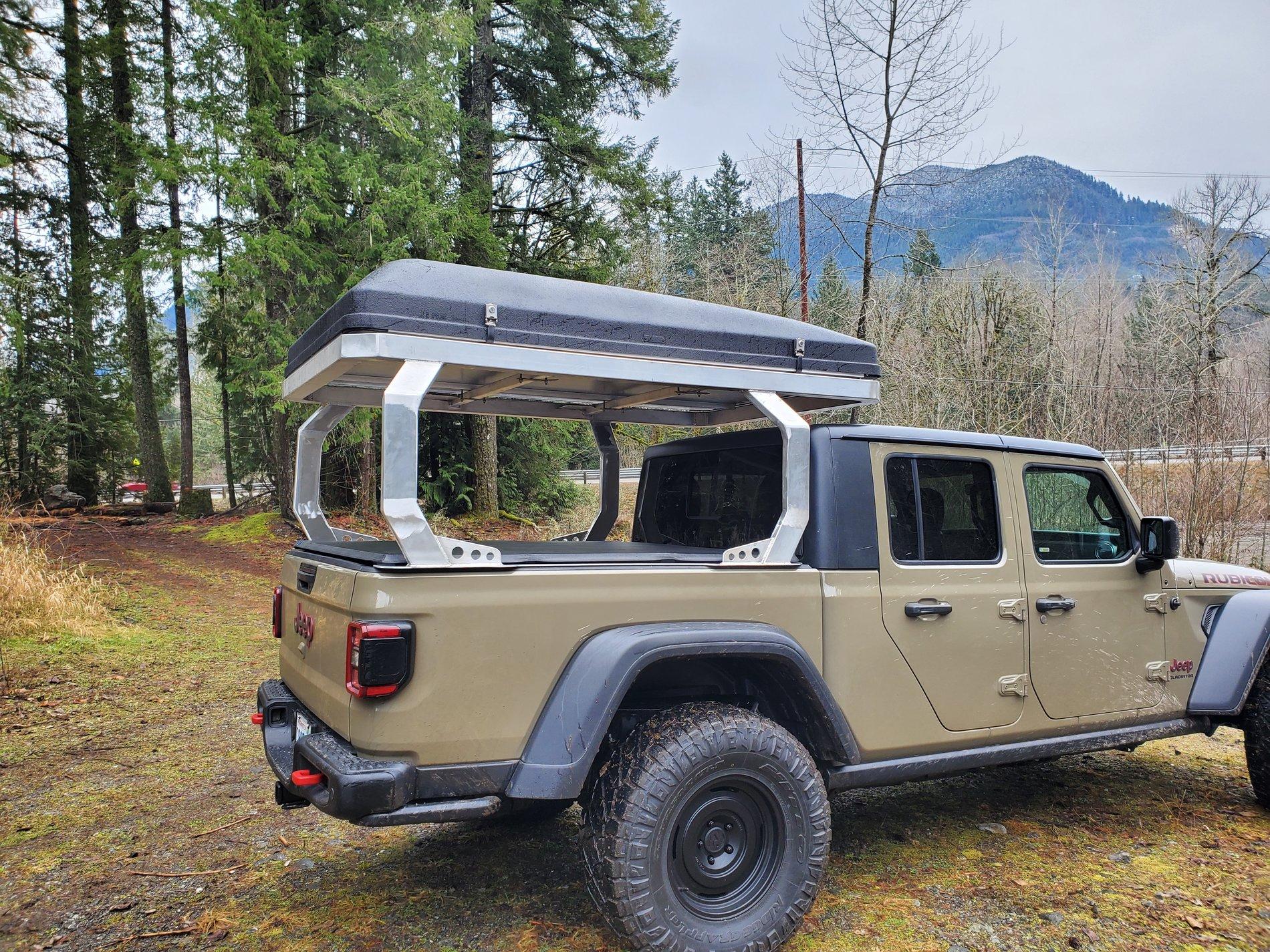

Here are some pictures of how the rack mounts into the bed rail system.





Factoid

Well-Known Member
First Name
Mark
Joined
Dec 2, 2019
Messages
848
Reaction score
1,341
Location
San Antonio, TX/Mahopac, NY (Atlanta temporarily)
Vehicle(s)
2020 Gladiator, 2019 Porsche Cayenne S, 1964 Corvette coupe
Occupation
Performance Coach
Really well done in design and execution! Even the drilled gussets add function and style. Do you have close up pictures with the tonneau cover closed? Mine hangs over the sides slightly.

OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #8
Really well done in design and execution! Even the drilled gussets add function and style. Do you have close up pictures with the tonneau cover closed? Mine hangs over the sides slightly.
Thanks! Yeah the gussets were an added touch more for support cause the rack overhangs the bed but with the holes and they are 3/8" aluminum they will come in handy to latch things down or whatever.
Are you asking if the tonneau overhangs the rack? The entire side has 1/4" plate and the tonneau now seals on that instead of the bed rail.



Factoid

Well-Known Member
First Name
Mark
Joined
Dec 2, 2019
Messages
848
Reaction score
1,341
Location
San Antonio, TX/Mahopac, NY (Atlanta temporarily)
Vehicle(s)
2020 Gladiator, 2019 Porsche Cayenne S, 1964 Corvette coupe
Occupation
Performance Coach
Thanks! I see it now. I didn’t realize the extensions were outside the bed, really well done!

OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #10
Ticked more things off the list yesterday:

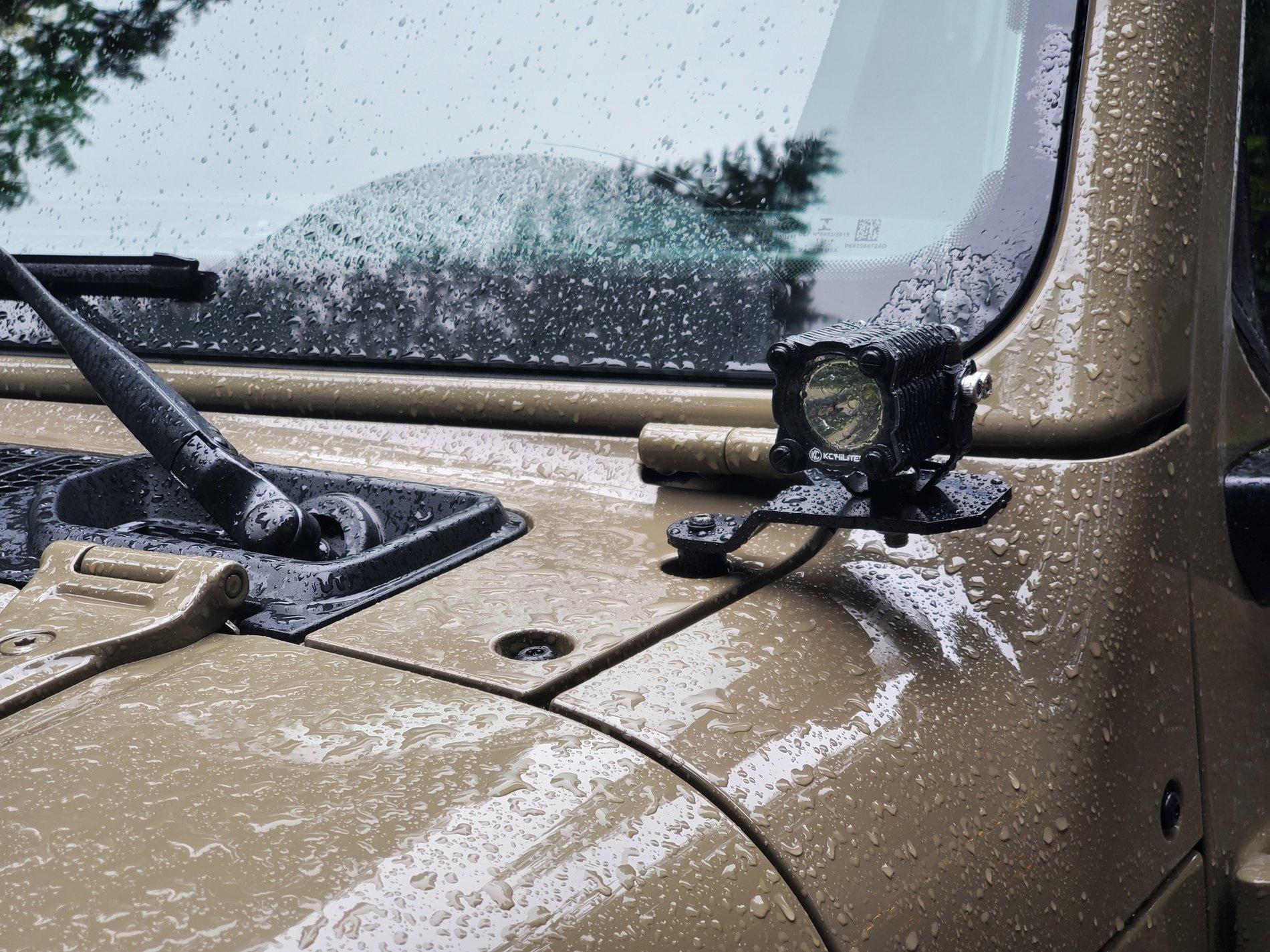

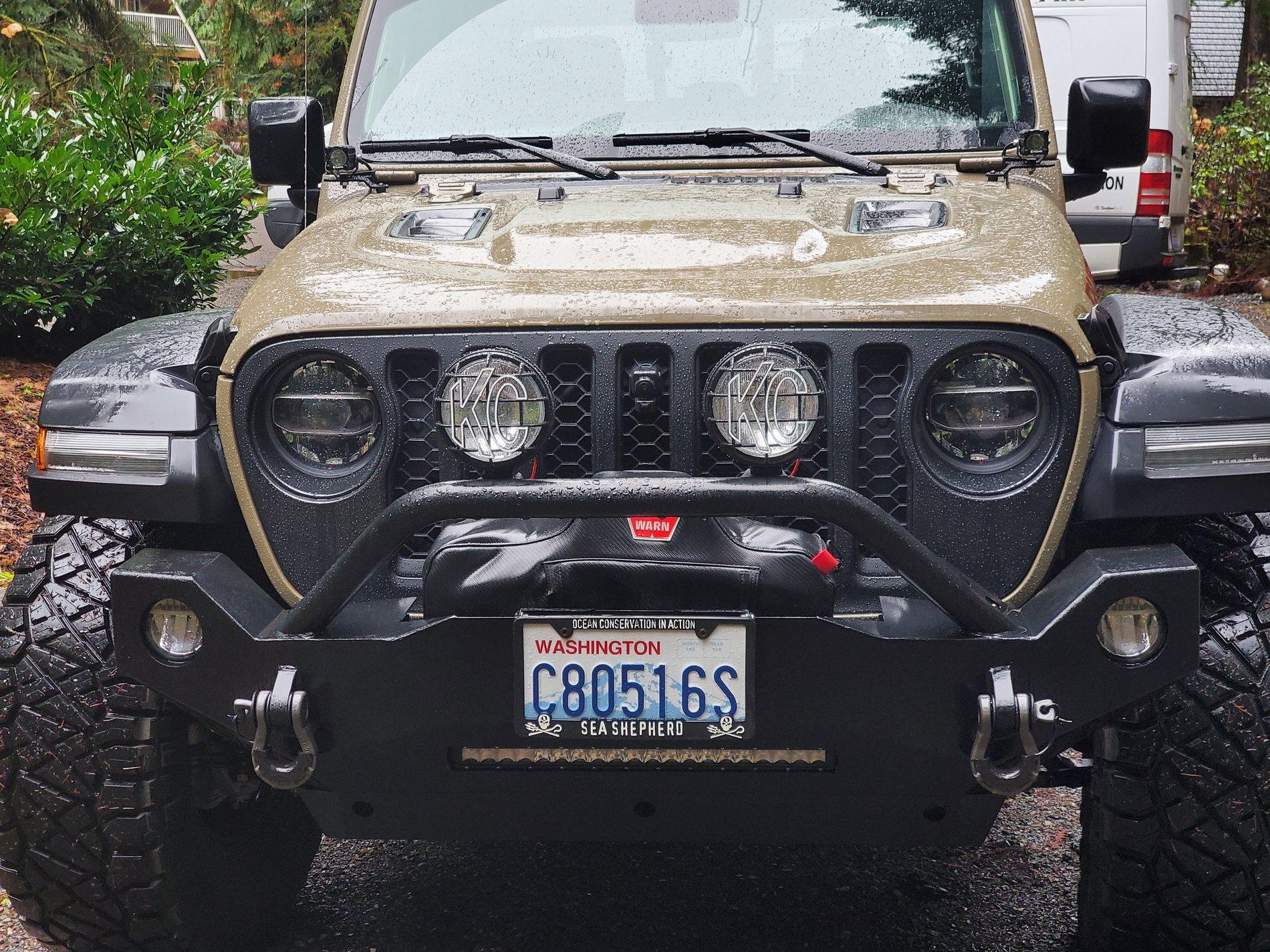

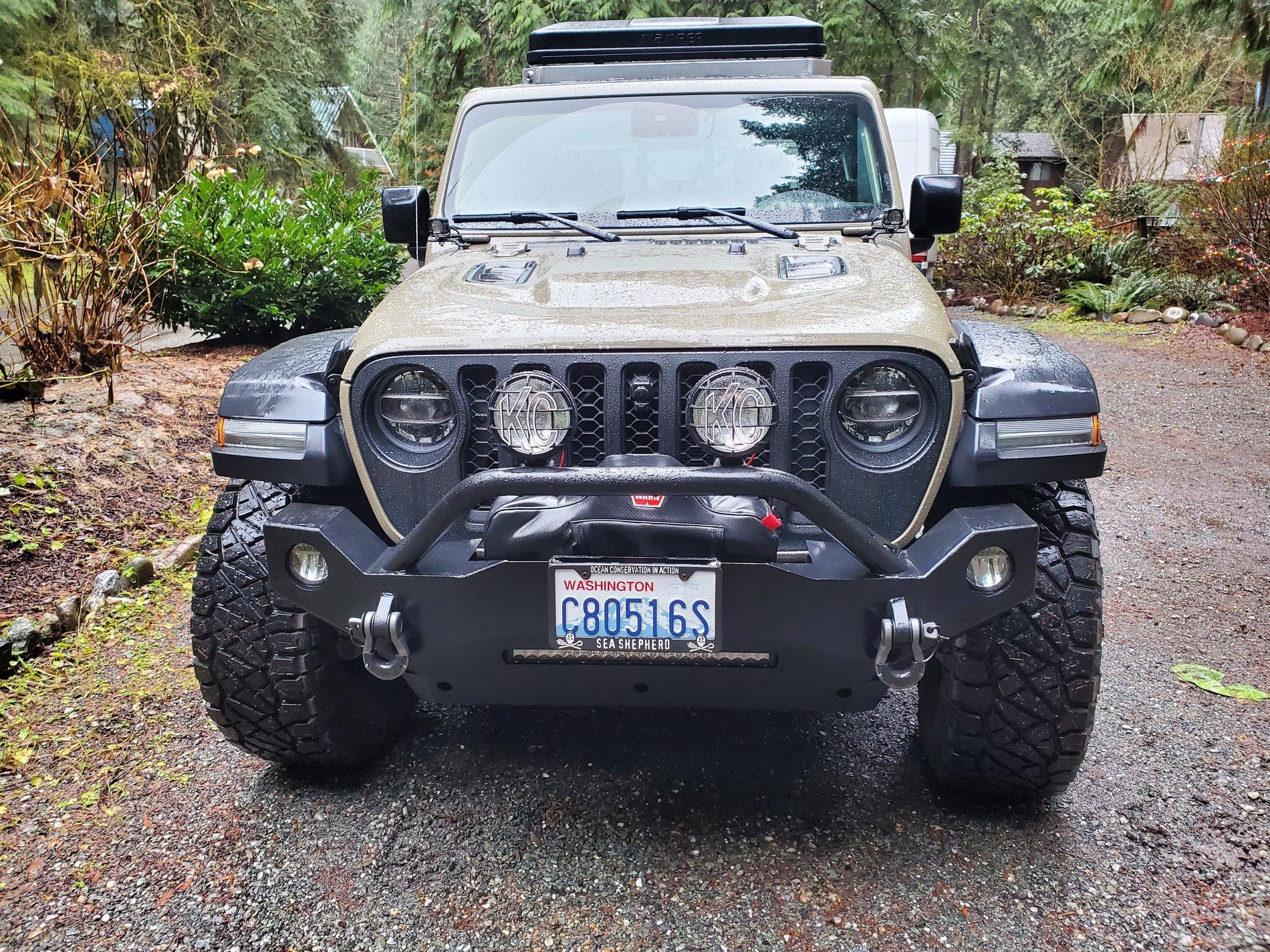

Installed KC LED spot cowl lights.
Installed KC 6" halogen flood lights to the brush bar.
Installed mopar matte black grill.
Installed badge glow auxiliary switch distribution panel.

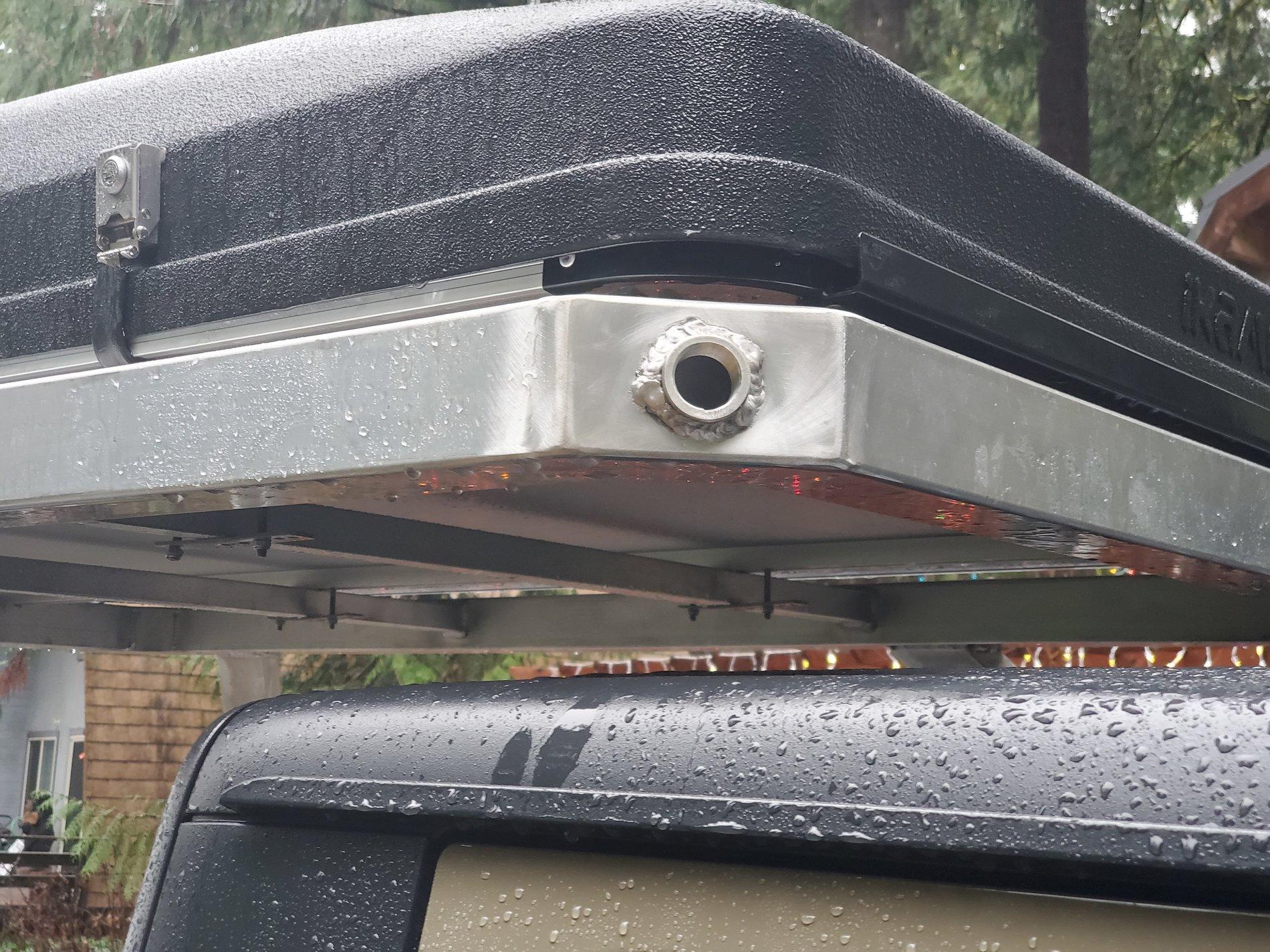

Had inlet & outlets welded into the upper rack frame for potable water storage.











Law Gator

Member
First Name
Chris
Joined
Jan 2, 2020
Messages
6
Reaction score
2
Location
Florida
Vehicle(s)
2020 Jeep Gladiator Rubicon (Gator), 2005 Jeep Unlimited Rubicon Sahara Edition (Rubihara)
Occupation
Attorney
Nice build. How much poke are you seeing with those wheels and tires? I like those Analogs and a couple of the Black Rhino offerings, but I am looking for the tires to be largely tucked under the flares. Would it be possible to see a view from the front and back?

OP
GlacierGladiator

GlacierGladiator

Well-Known Member
Joined
Sep 25, 2019
Messages
557
Reaction score
735
Location
98244
Vehicle(s)
2020 Gator Gladiator Rubicon, 2018 Subaru Legacy, 2012 Mercedes Sprinter
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #12
Nice build. How much poke are you seeing with those wheels and tires? I like those Analogs and a couple of the Black Rhino offerings, but I am looking for the tires to be largely tucked under the flares. Would it be possible to see a view from the front and back?

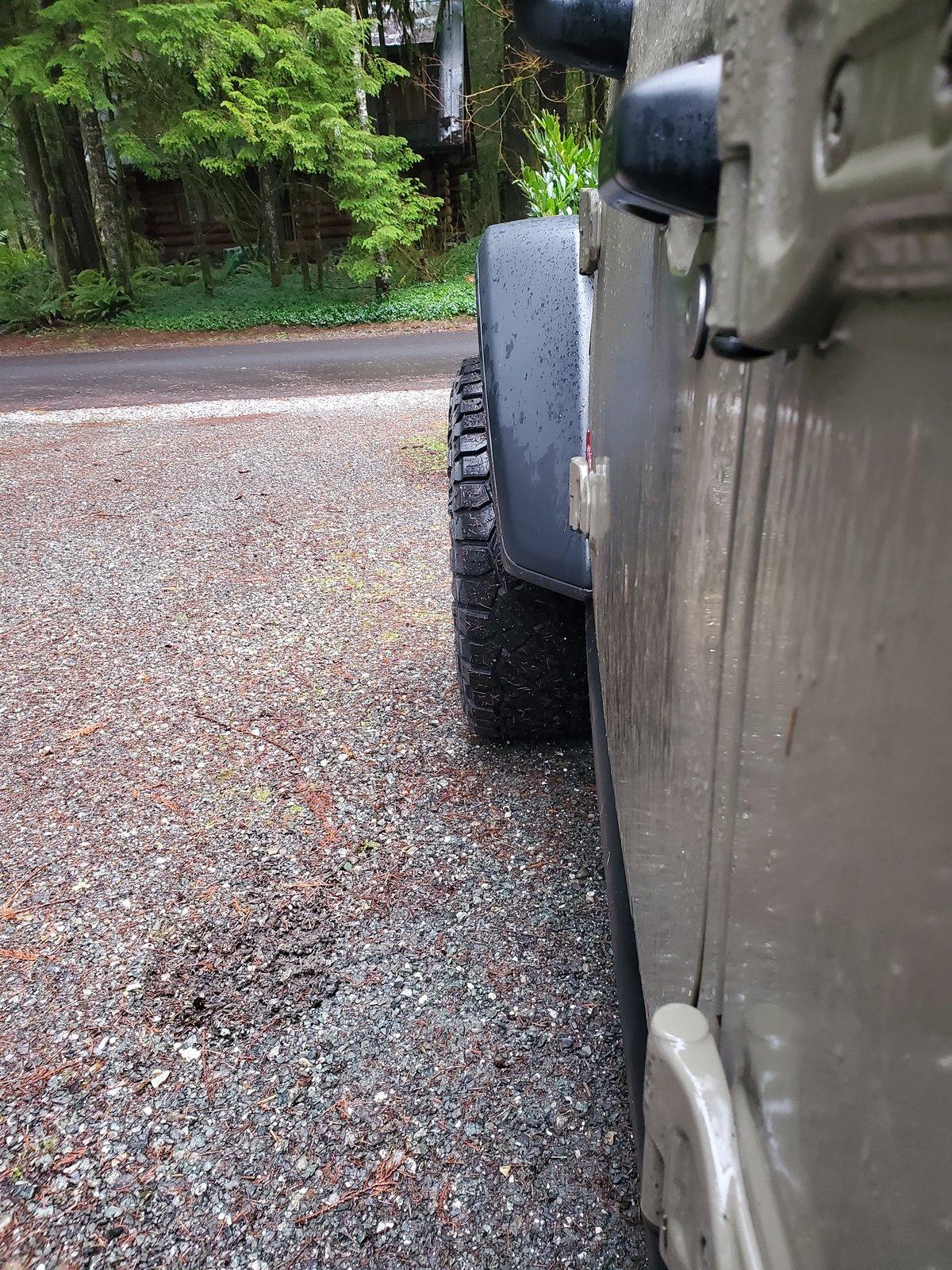

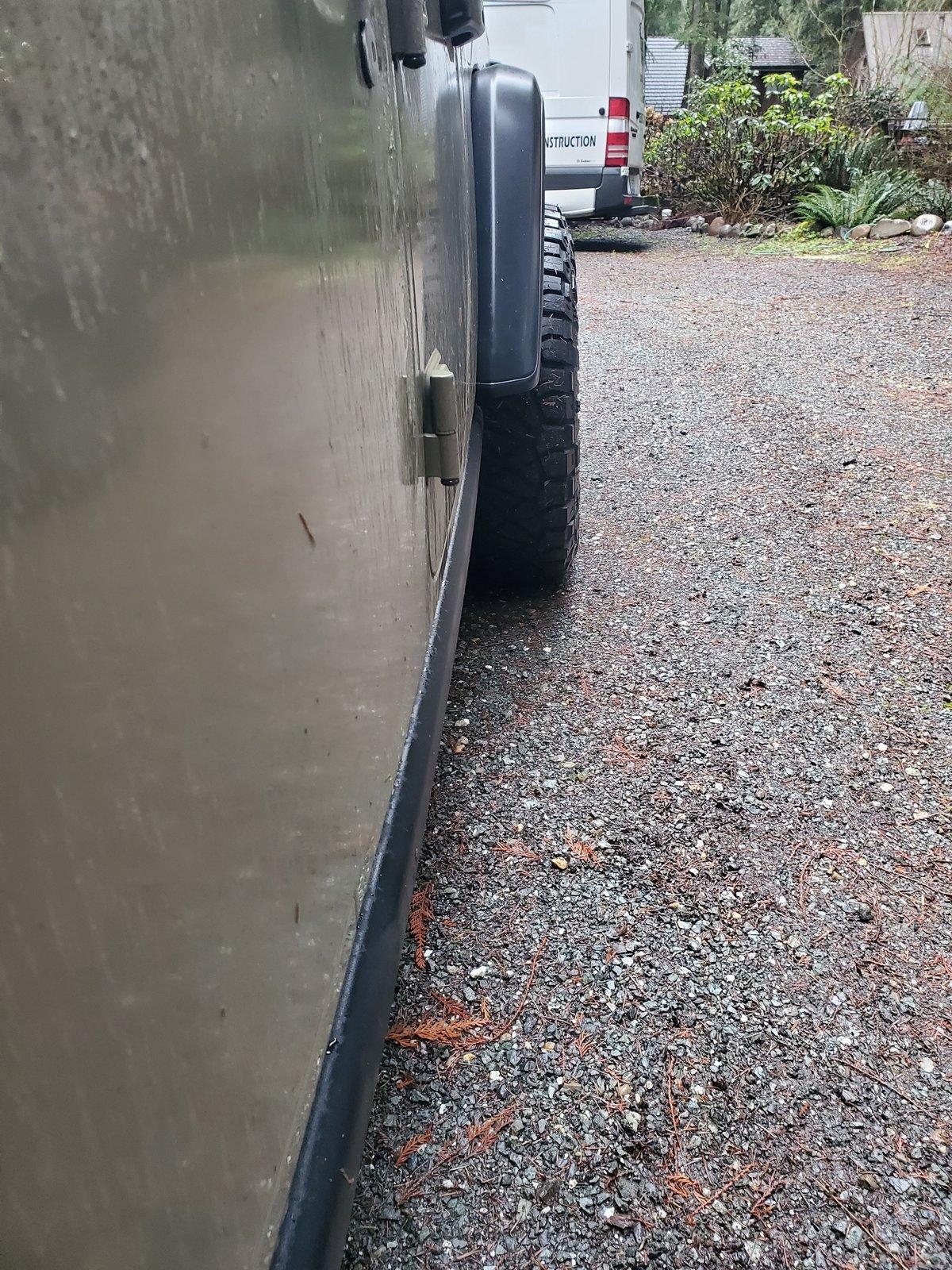

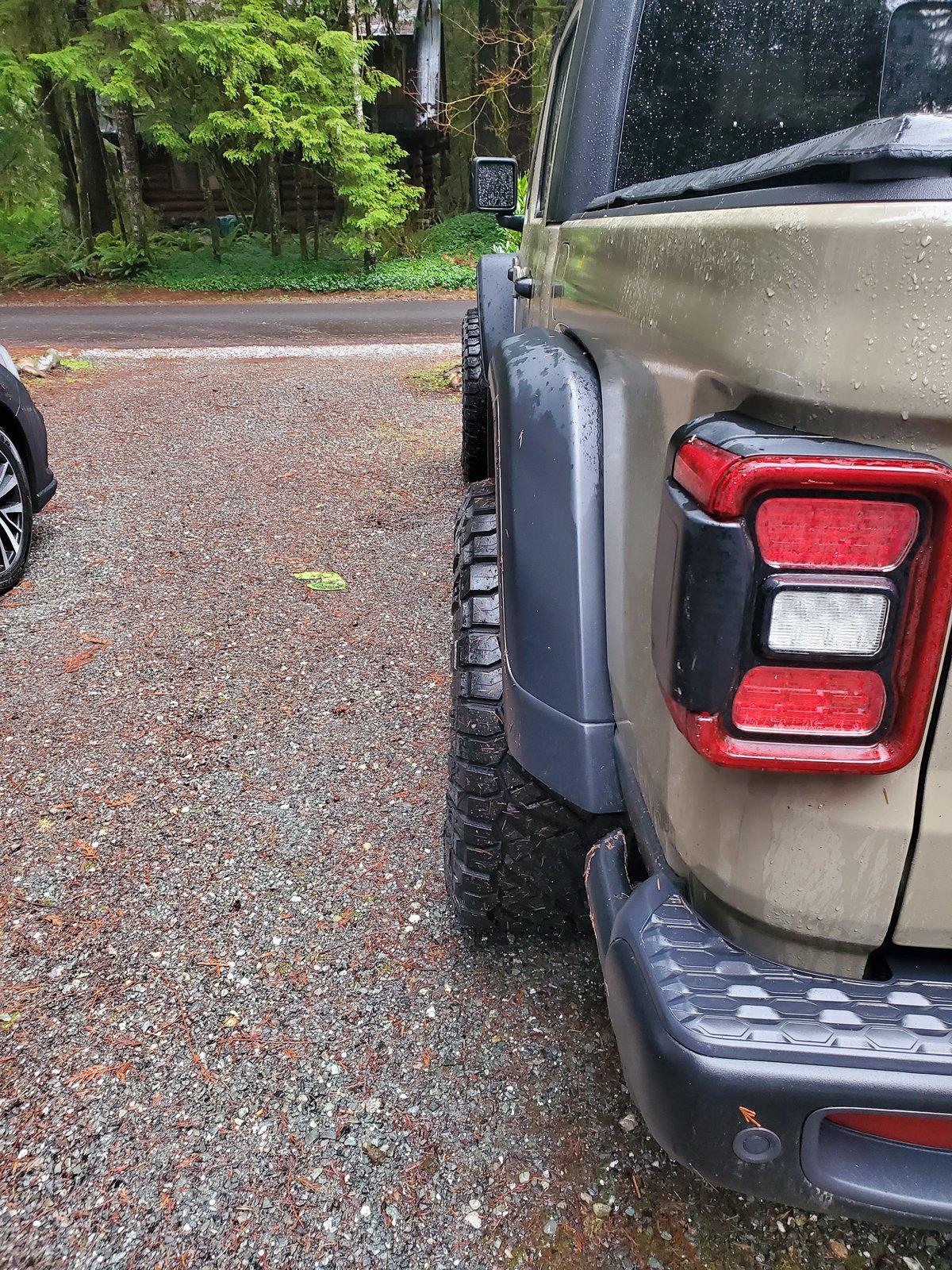

I'll try to take a picture tomorrow. They stick out a little bit and I do get some spray from them. The other day on the trail my tread got some mud in them and when I got on the paved road it threw some mud up on the windshield so they definitely stick out past the fender flares.
