Gladiator tailgate can support up to 500 lbs payload in middle position

JeepCares

Well-Known Member
First Name
JeepCares
Joined
Nov 29, 2018
Messages
702
Reaction score
351
Location
Auburn Hills, MI
Vehicle(s)
Jeep Family
Occupation
Customer Care
@JAY, IT ISN'T BEDTIME YET!

You stated in the most recent, news flash, https://www.jeepgladiatorforum.com/plywood-question-put-to-bed-yes-they-fit-flat-in-the-gladiator/ that "P.S. in case you didn’t know — setting the Gladiator’s three-position tailgate on the middle setting matches the top of the tailgate up with the tops of the rear wheel housing and enables the Gladiator to carry 20 sheets of 4×8 plywood or drywall flat; this is according to Jeep."

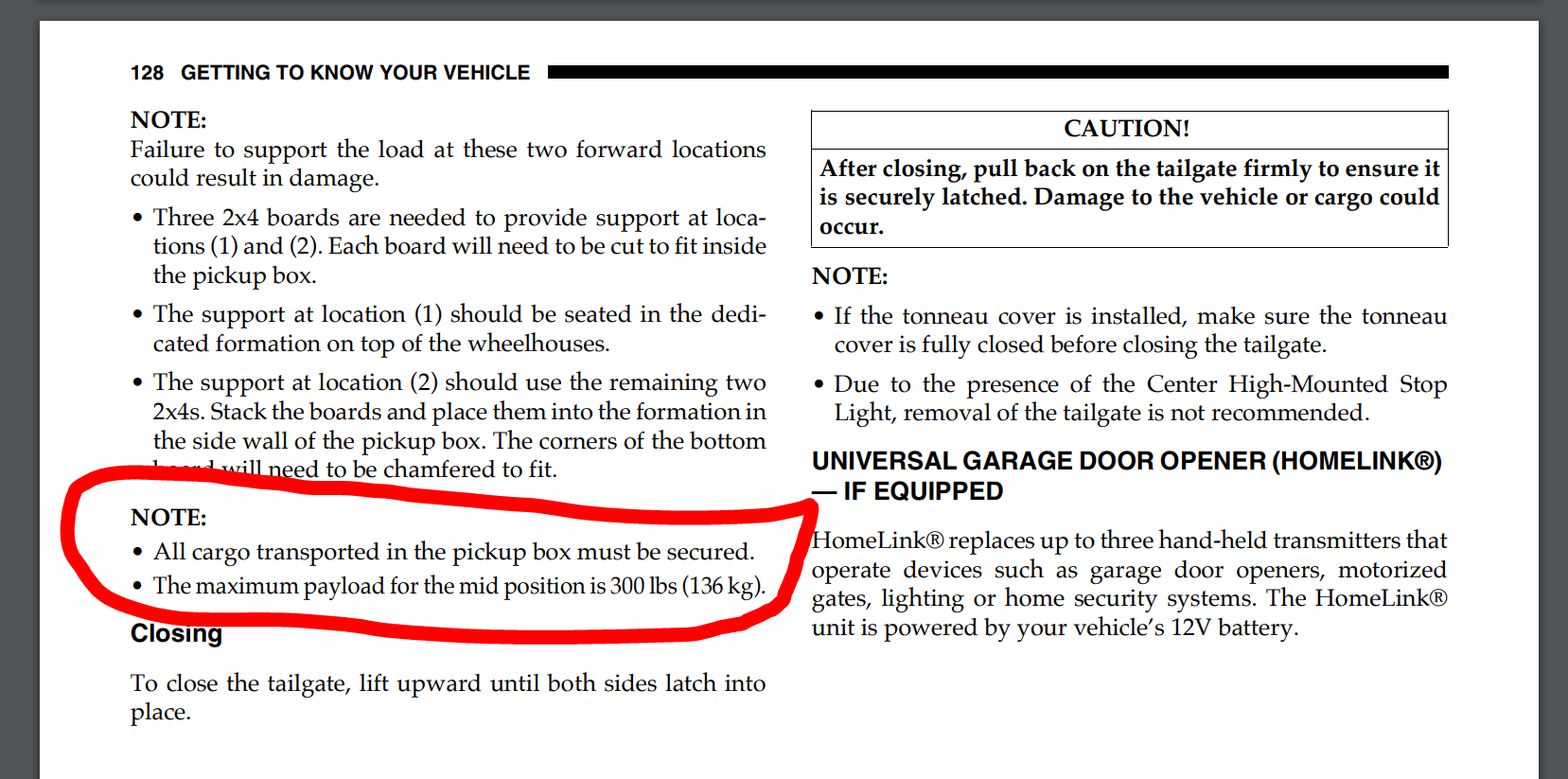

Well the JT manual says we can only put 300lbs weight on the tailgate at half position. So we still have a possible bed problem!

Even 1/4" plywood weighs about 22 lbs per sheet, at 19 sheets that's, 418lbs......hey @JeepCares , which is it, 418lbs or 300lbs? Is Engineering right, or is Marketing right? Or did Marketing not take the engineer's numbers correctly?


i'll post the manual in a sec. https://www.jeepgladiatorforum.com/forum/threads/gladiator-owners-manual-download-in-pdf.15679/

Hi steffen707,
We have checked with our internal resources and after conducting additional testing, Jeep engineering has confirmed that up to 500 lbs payload can be carried in the bed with the tailgate in the mid position. This payload rating is dependent on the sheet cargo being properly supported with 2x4s positioned in the bed as specified by the owner's manual. Future printings of the owner's manual will show the new 500 lbs payload. I hope this offers some clarification!
Alex
Jeep Social Care Specialist



Advertisement





steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,245
Reaction score
8,037
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Hi steffen707,
We have checked with our internal resources and after conducting additional testing, Jeep engineering has confirmed that up to 500 lbs payload can be carried in the bed with the tailgate in the mid position. This payload rating is dependent on the sheet cargo being properly supported with 2x4s positioned in the bed as specified by the owner's manual. Future printings of the owner's manual will show the new 500 lbs payload. I hope this offers some clarification!
Alex
Jeep Social Care Specialist
HEY! Thank you for that info!

Now where do we store this info guys/gals?


DanOnTheCob

Well-Known Member
First Name
Danny
Joined
Apr 10, 2019
Messages
245
Reaction score
314
Location
Cincinnati, OH
Vehicle(s)
Jeep Gladiator Rubicon
Sweet, already a new revision on the Gladiator Manual. Making the ones out now sorta desirable.

OP
JeepCares

JeepCares

Well-Known Member
First Name
JeepCares
Joined
Nov 29, 2018
Messages
702
Reaction score
351
Location
Auburn Hills, MI
Vehicle(s)
Jeep Family
Occupation
Customer Care
  • Thread starter
  • Thread Starter
  • #5
@JeepCares what's the payload of the tailgate in the down position? Thanks!
Good Morning,

Sorry for the delay in response, per the Jeep team:

  1. Up to 500 lbs payload can be carried in the bed with the tailgate in the mid position. This payload rating is dependent on the sheet cargo being properly supported with 2x4s positioned in the bed as specified by the owner's manual.
  2. Ramp load at end of down tailgate
    • Single ramp = 600lbs
    • Dual Ramp = 425lbs/ramp or 850lbs total
  3. Distributed load across down tailgate: 1850lbs
Please let me know if you have any additional questions.

Lamar
Jeep Social Care Specialist


Oilburner

Well-Known Member
First Name
Tim
Joined
Jun 8, 2018
Messages
783
Reaction score
920
Location
Nowhere, AR
Vehicle(s)
1982 Scrambler, 1969 Wagoneer, 2020 JLUR Ecodiesel
In the plywood scenario, the tailgate is not supporting the entire weight of the load anyway.


WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
1,824
Reaction score
1,931
Location
Bluegrass region of Kentucky
Vehicle(s)
2020 Jeep Gladiator
Occupation
Meteorology and Transportation
Wow, those numbers far exceeded my expectations. 1,850 lbs. max load distributed across the tailgate? That's more than you can legally load onto any Gladiator including the Max Tow model. Wow.

I will no longer worry about myself and someone else sitting on the tailgate. :)


biggdave92

Well-Known Member
Joined
Mar 18, 2019
Messages
202
Reaction score
186
Location
SC
Vehicle(s)
JKR 10A
Good Morning,

Sorry for the delay in response, per the Jeep team:

  1. Up to 500 lbs payload can be carried in the bed with the tailgate in the mid position. This payload rating is dependent on the sheet cargo being properly supported with 2x4s positioned in the bed as specified by the owner's manual.
  2. Ramp load at end of down tailgate
    • Single ramp = 600lbs
    • Dual Ramp = 425lbs/ramp or 850lbs total
  3. Distributed load across down tailgate: 1850lbs
Please let me know if you have any additional questions.

Lamar
Jeep Social Care Specialist
thank you!


MadManMoheenid

Well-Known Member
Joined
Apr 7, 2019
Messages
122
Reaction score
206
Location
Florida
Vehicle(s)
2020 Gladiator LE & 1958 Chevy Apache
Wow, those numbers far exceeded my expectations. 1,850 lbs. max load distributed across the tailgate? That's more than you can legally load onto any Gladiator including the Max Tow model. Wow.

I will no longer worry about myself and someone else sitting on the tailgate. :)
Then, I guess its safe to load my Harley into the back, with a ramp positioned on the edge of the tailgate.


Yellow1098

Well-Known Member
First Name
Greg
Joined
Jul 2, 2019
Messages
495
Reaction score
347
Location
Orlando, FL
Vehicle(s)
2020 Gladiator Silver Sport S, 77 trans am, Ducati 1098
So at 275lbs I can sit on it with a woman? Wonderful!
