California GOOD OPTION TO ADD AUXILIARY SWITCHES

[Kball]

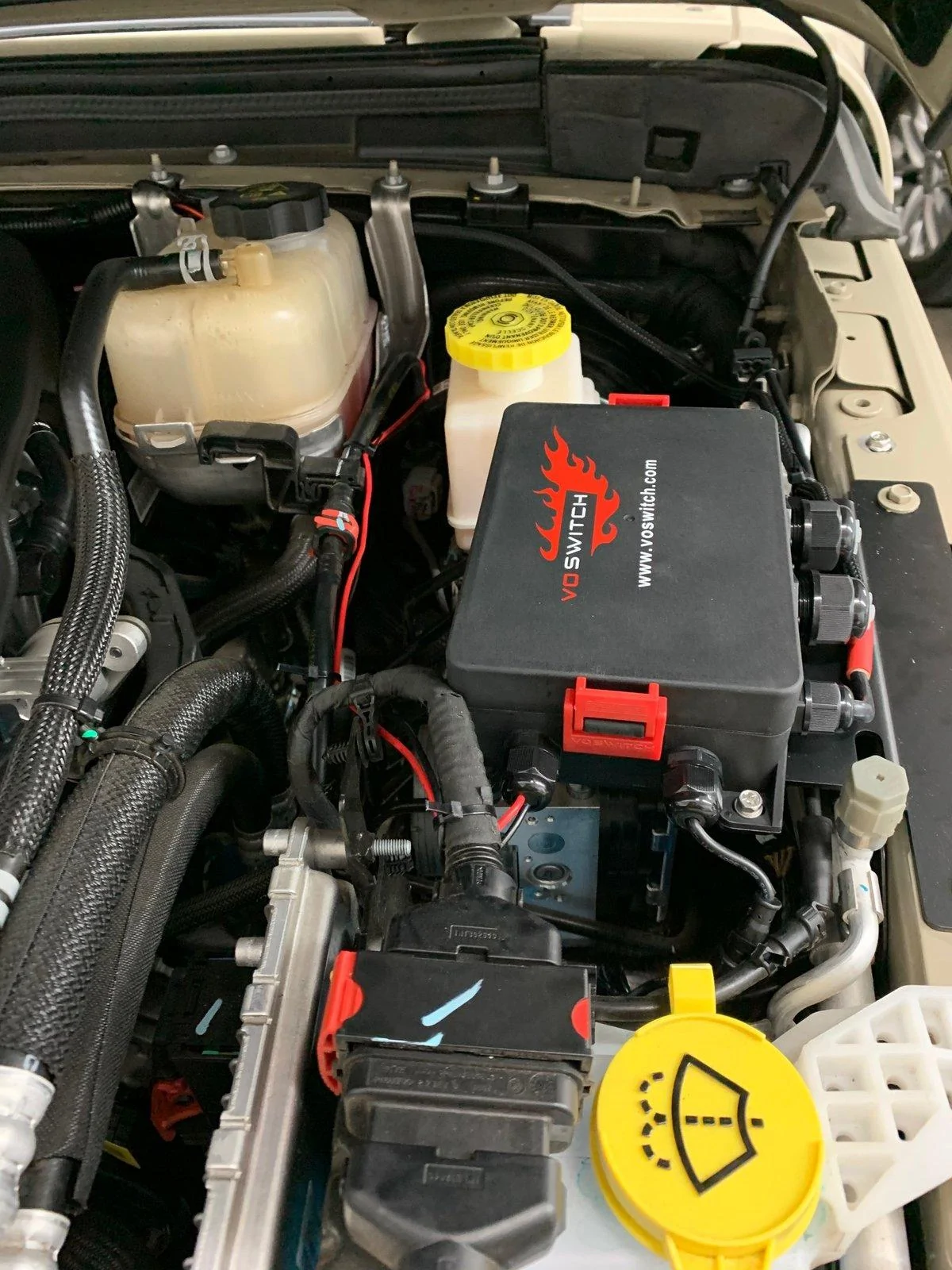

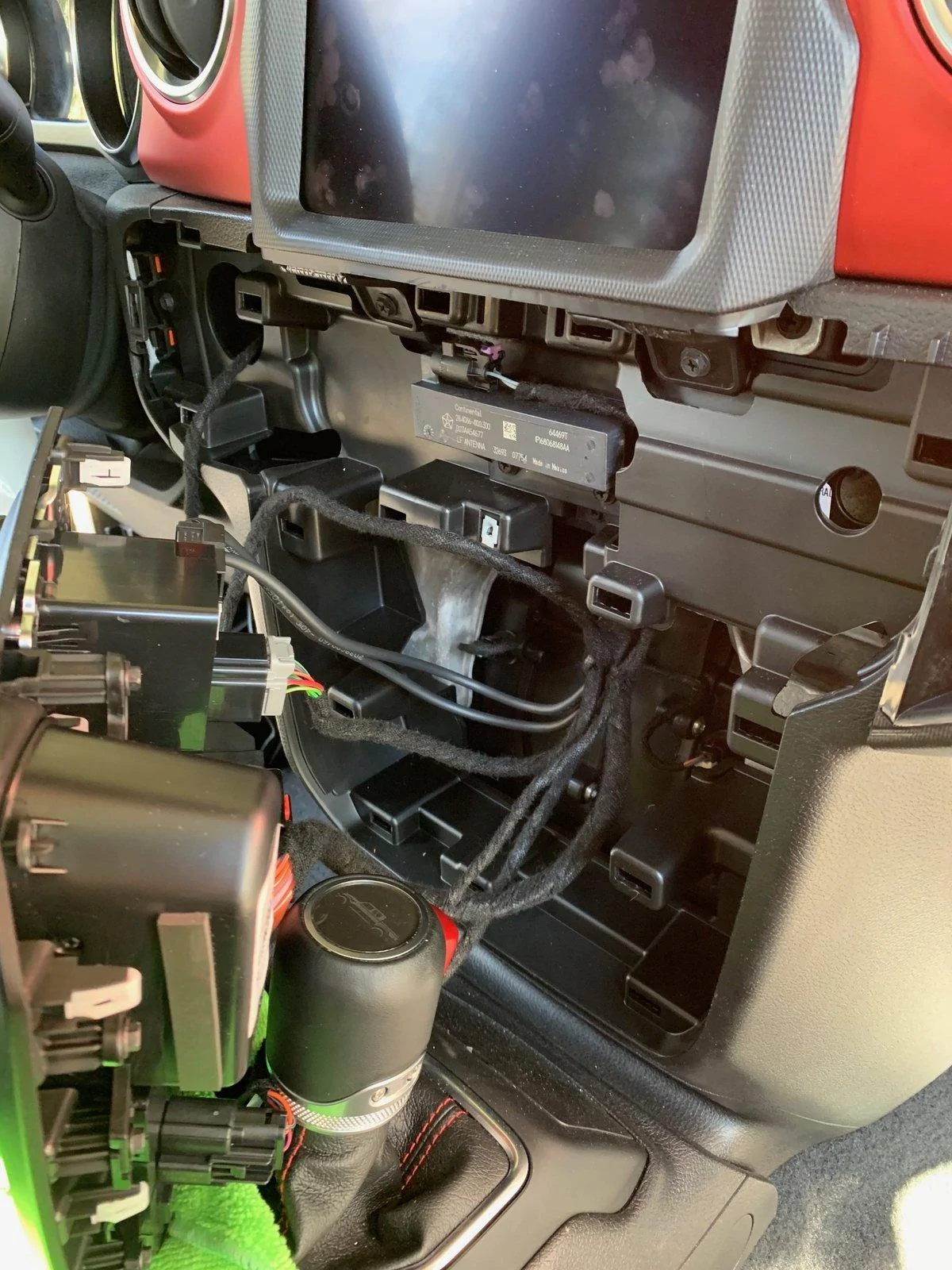

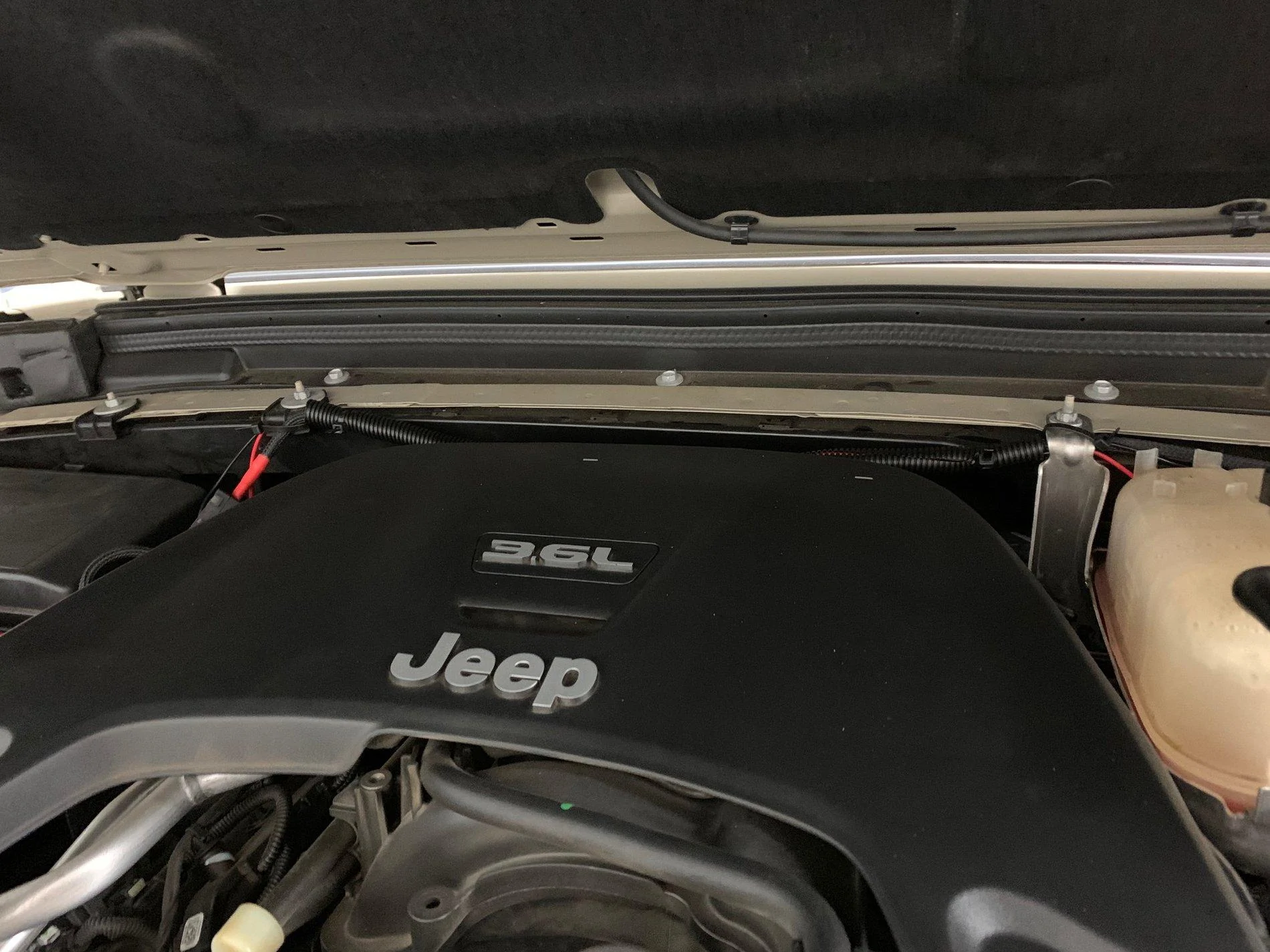

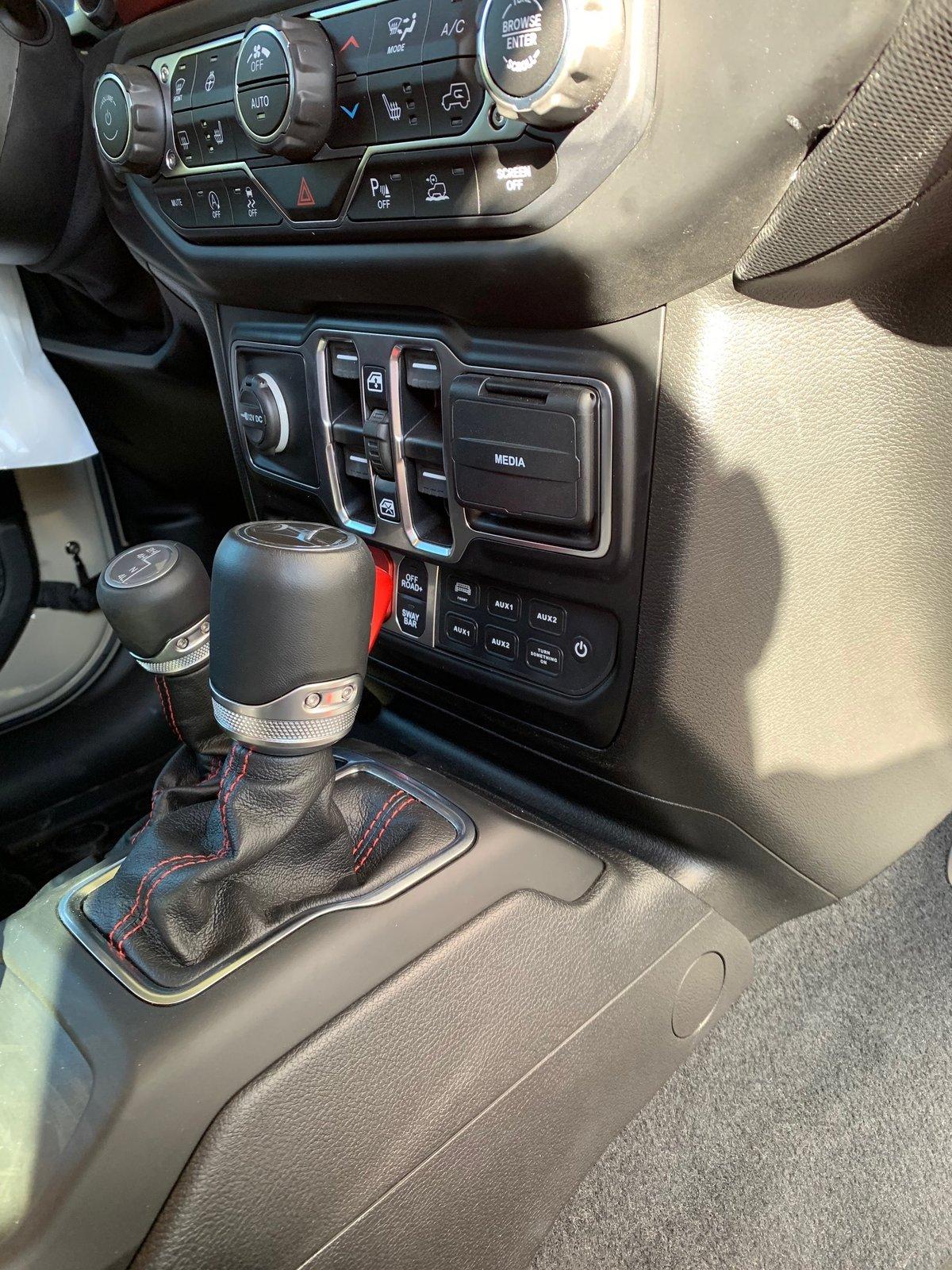

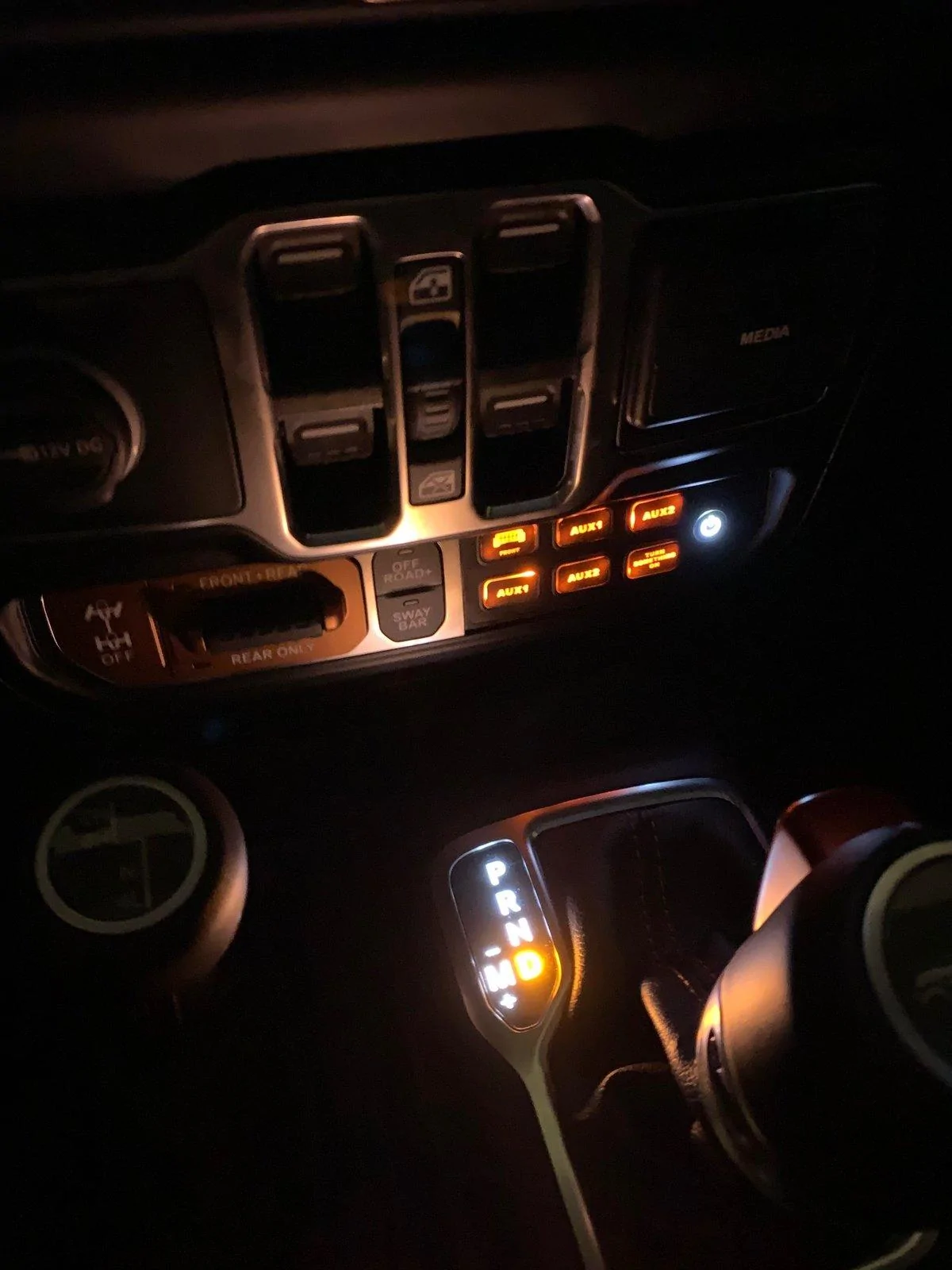

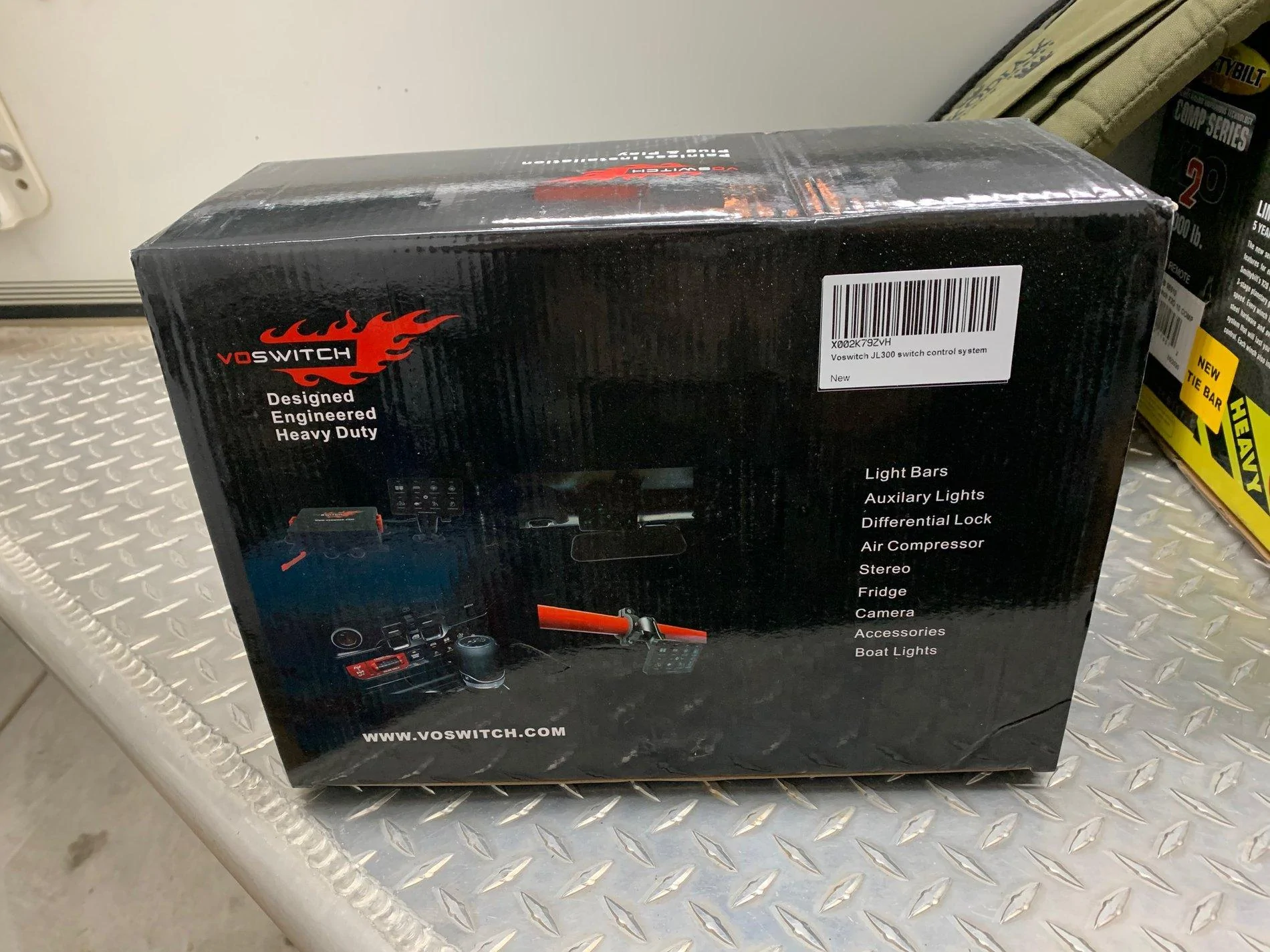

I just installed the Voswitch JL-300 switch control system to my Rubicon. There were a couple of options I wanted but didn’t get with my Gladiator. One was the optional Aux switches and the other is the front trail cam. This aftermarket switch system was real good quality, and had great directions, and overall pretty easy to install. I’m going to be adding lighting and other devices, so this has 6 switches. I also tied it into the fuse panel so it would only come on if it was in accessory or run mode. The trigger wire to do this came with it. It recommended using the number 52 fuse slot or cigar lighter, but I ended up using 50 because the 52 slot came on without pushing the ignition button. This isn’t bad but I was afraid I would leave it on, and drain the battery. Regards

W

Sponsored



[Centerville]

I'm installing this today. Awesome stuff.



[Kball]

I'm installing this today. Awesome stuff.

Great good luck. Not sure why fuse 52 as suggested worked when everything was off, but slot 50 works like it should with the trigger wire. Regards



[DeezJT]

Where do attach the negative/positive aux wires to the terminals like spod?

Is this Bluetooth capable?

Can the switches have 2 programs?...press once to turn on and press twice to strobe?



[DeezJT]

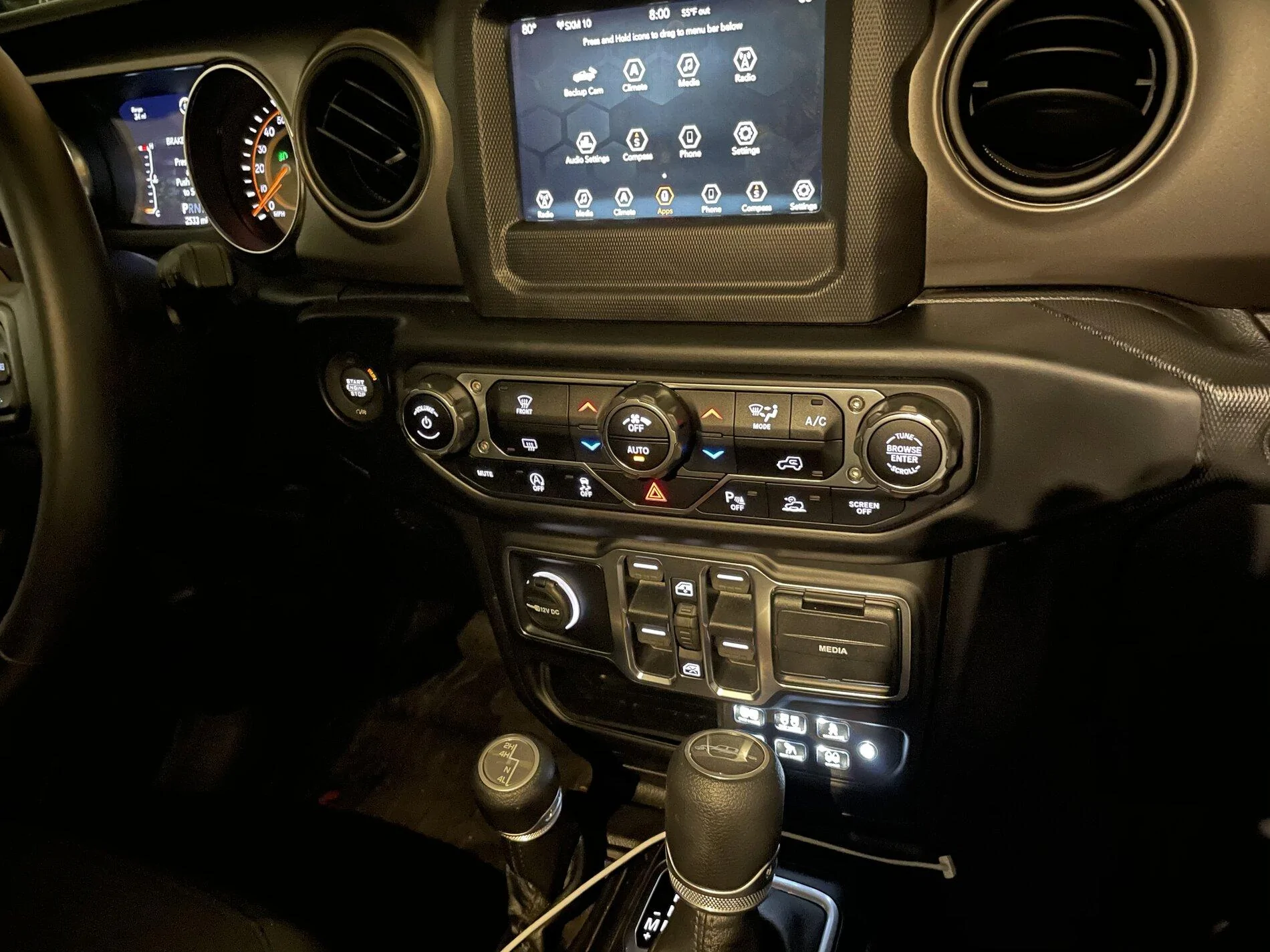

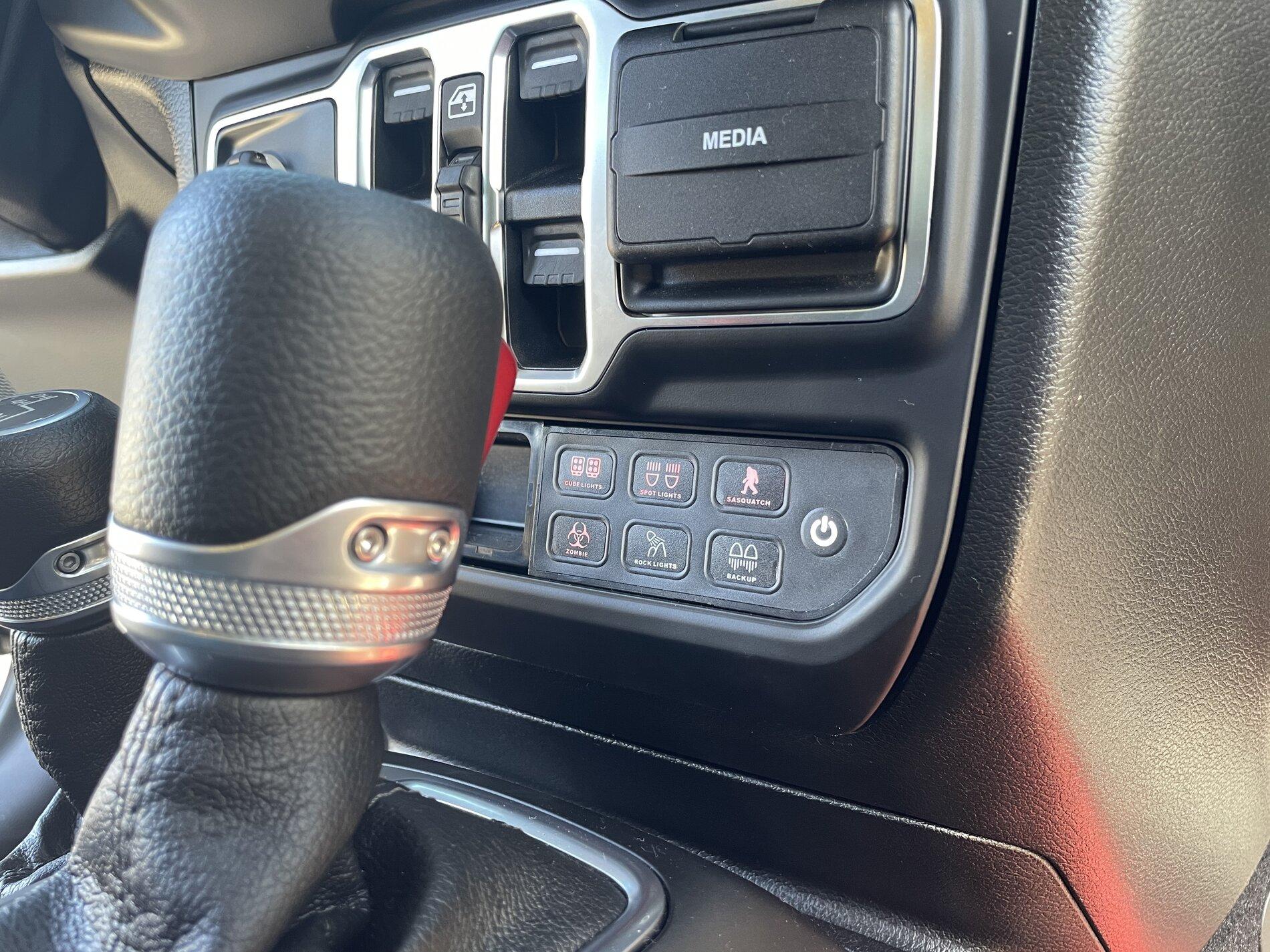

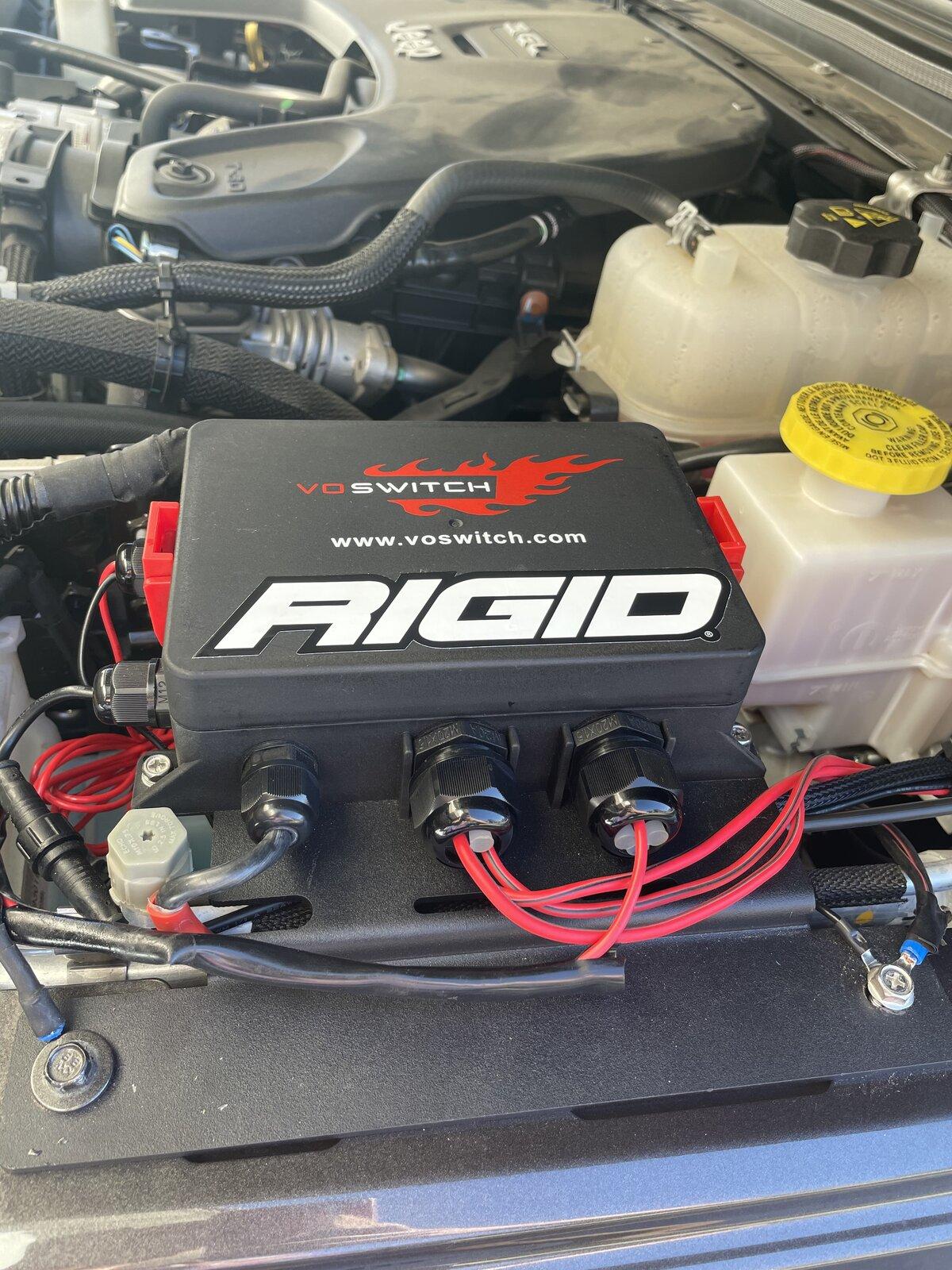

Installed mine and it’s pretty easy to install.
I have 4 lights wired up and the other two are still pending location depending on my end goal (8 LUX rock lights and 2 Rigid SRQ floods).
the only thing I dislike is that there is no dimmer option for this setup. The other models do. It does not distract though.



[93civej1]

I like this setup. Why does it have a main power button though?
Also why is this in the member marketplace section?



[Erievon]

I was wondering about the power button too. Do you have to power on the unit before the switches are active, or does that power button only turn on the back lighting?



[rr11]

The power button turns the switch panel on and off. The buttons maintain the last setting.



[Blknblu]

They are currently on back order till Feb 15, I am looking at this option too.

Bruce



[RodRecket]

Switch panel looks good but why are so many posts like this getting placed in the Marketplace section?



[kdaa25]

I just installed the Voswitch JL-300 switch control system to my Rubicon. There were a couple of options I wanted but didn’t get with my Gladiator. One was the optional Aux switches and the other is the front trail cam. This aftermarket switch system was real good quality, and had great directions, and overall pretty easy to install. I’m going to be adding lighting and other devices, so this has 6 switches. I also tied it into the fuse panel so it would only come on if it was in accessory or run mode. The trigger wire to do this came with it. It recommended using the number 52 fuse slot or cigar lighter, but I ended up using 50 because the 52 slot came on without pushing the ignition button. This isn’t bad but I was afraid I would leave it on, and drain the battery. Regards

W

Nice Setup. Just to double check, you used F50 which on the Fuse Box says "HD ACC - If Equipped"?. Thanks
