Is anyone running one of these, or has seen one in person?
I'm in 'need' of a front bumper and was thinking 'stubby', but I like the looks of this.
Any feedback would be appreciated.

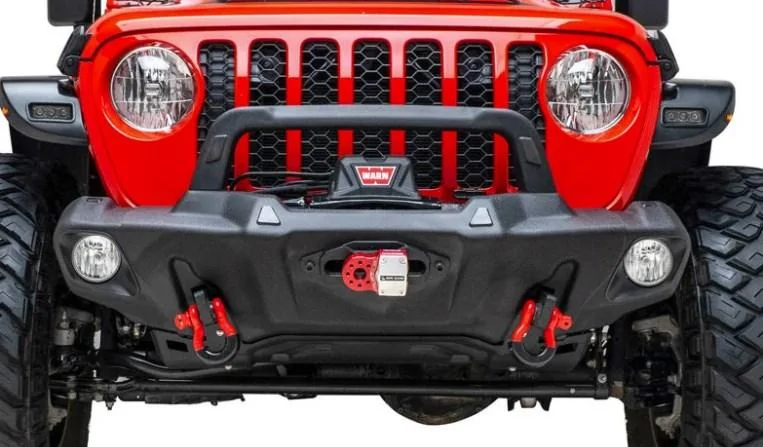

Jeep Gladiator Guardian Mid-width Front Bumper ? p-bumer1

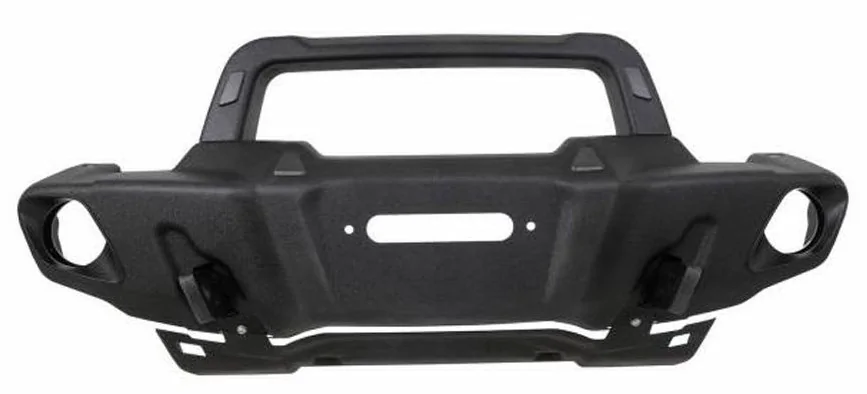

Jeep Gladiator Guardian Mid-width Front Bumper ? p-bumer2

More info here - Guardian Bumper
Sponsored



hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter
I'll let you know in a week or so. Just bought one and mounting a winch. The steel rubicon bumper was my original pick but geese...new skid, bumper, winch mount plate, hoop...almost 2 grand before I even buy the winch. This has all of those for 670. And you re use your factory fogs. I like the finished look as well. Next I need to figure out how to. mount a pair of spot lights on it. Not much info on this out there yet.

  • Like
Reactions: mog
OP
OP
mog

mog

Well-Known Member
Joined
Mar 28, 2021
Threads
9
Messages
330
Reaction score
741
Location
Southern Oregon
Vehicle(s)
'21 Gladiator Rubicon, '09 C4500 Kodiak
Occupation
Kodiak Buckaroo

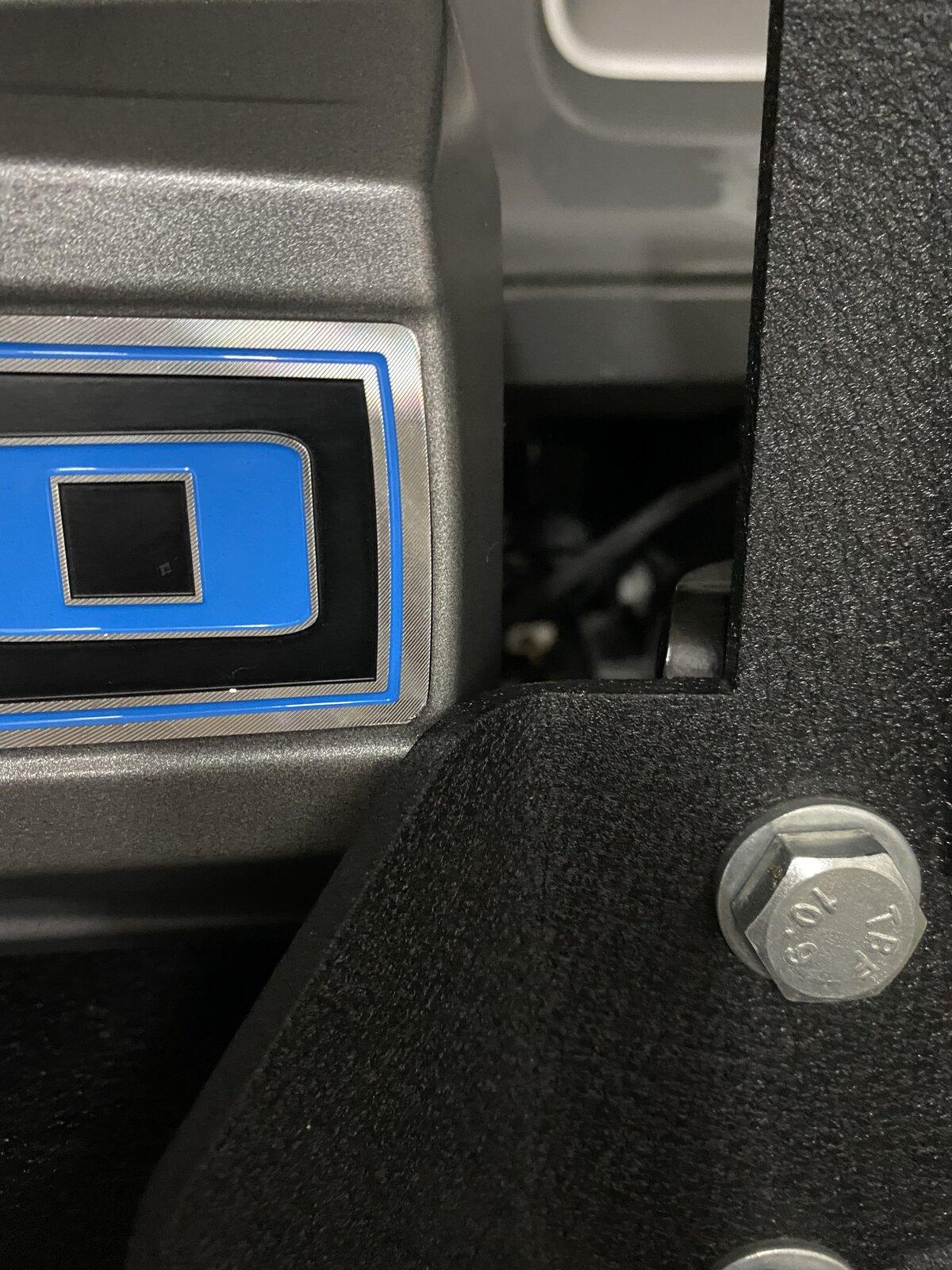

I've been PMing with a member here on the forum and his winch (Badlands) would not fit without cutting part of the bumper. Although I have 'hear' the Badlands case is a little larger than other winches in the same rated class. I'll certainly be interested in how it works for you.
Thanks,


hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter
I've been PMing with a member here on the forum and his winch (Badlands) would not fit without cutting part of the bumper. Although I have 'hear' the Badlands case is a little larger than other winches in the same rated class. I'll certainly be interested in how it works for you.
Thanks,
Well crap, that’s what I bought! Ugh
How much did he have to cut out?

Last edited:

Sponsored

hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter

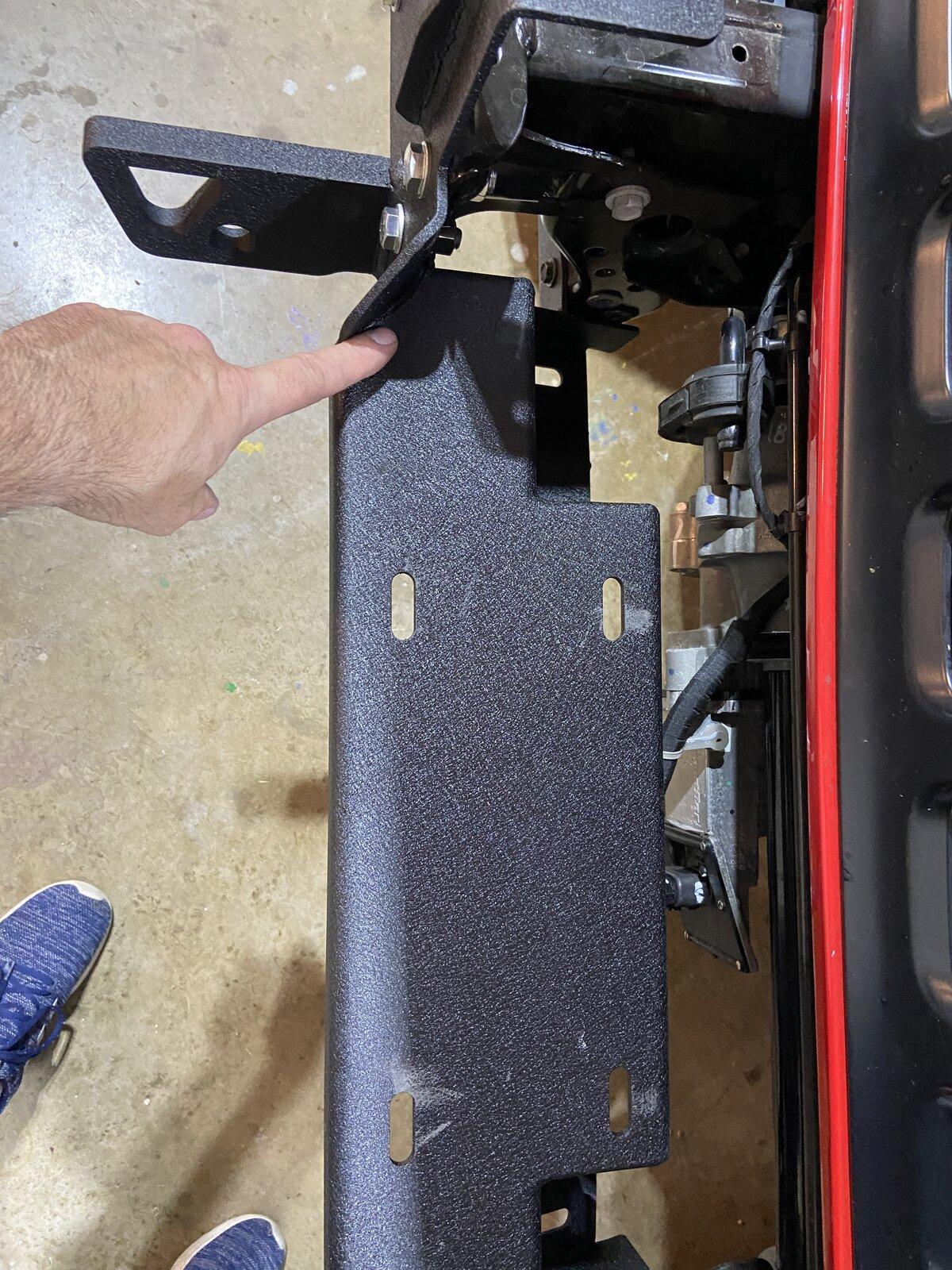

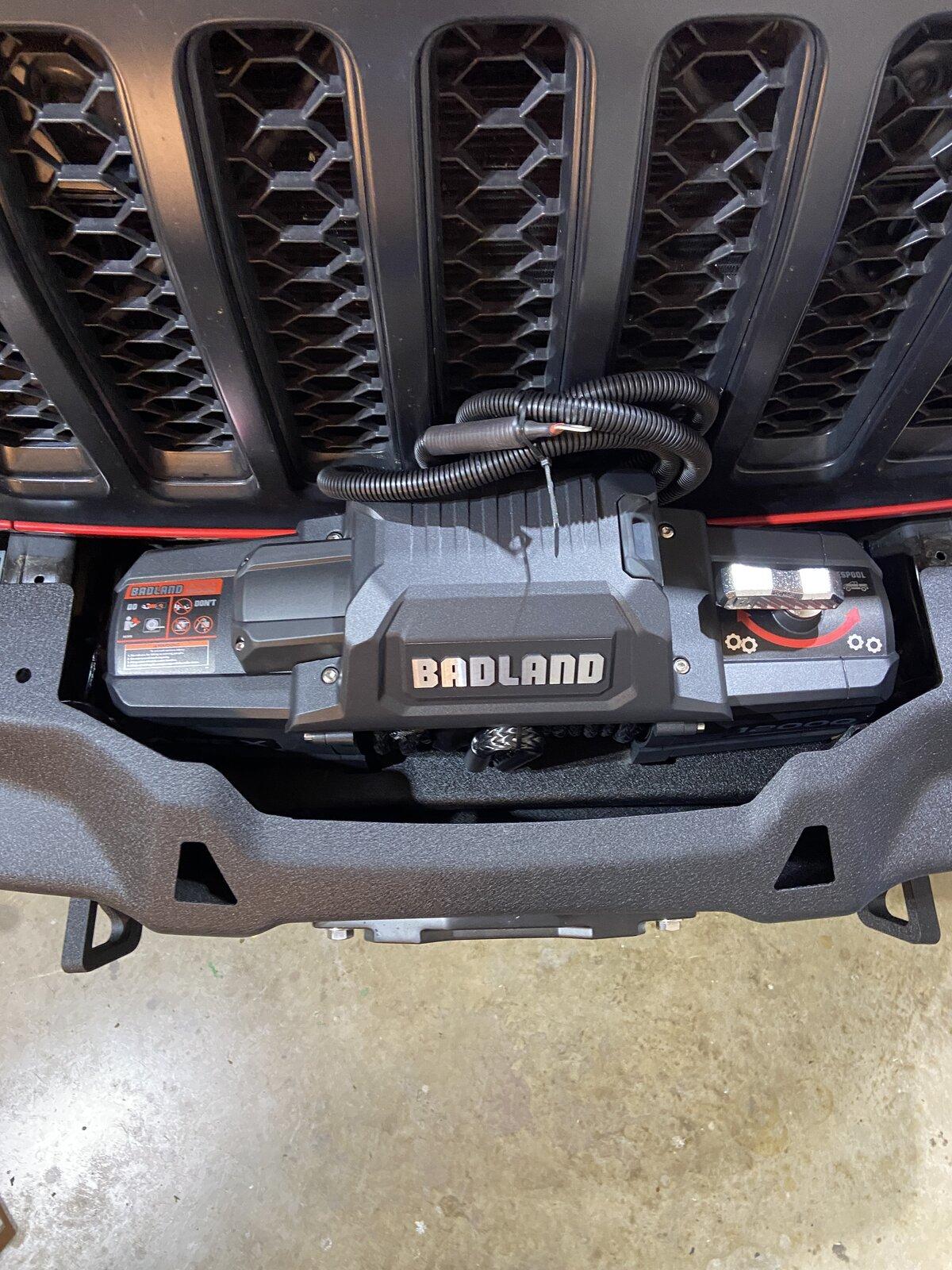

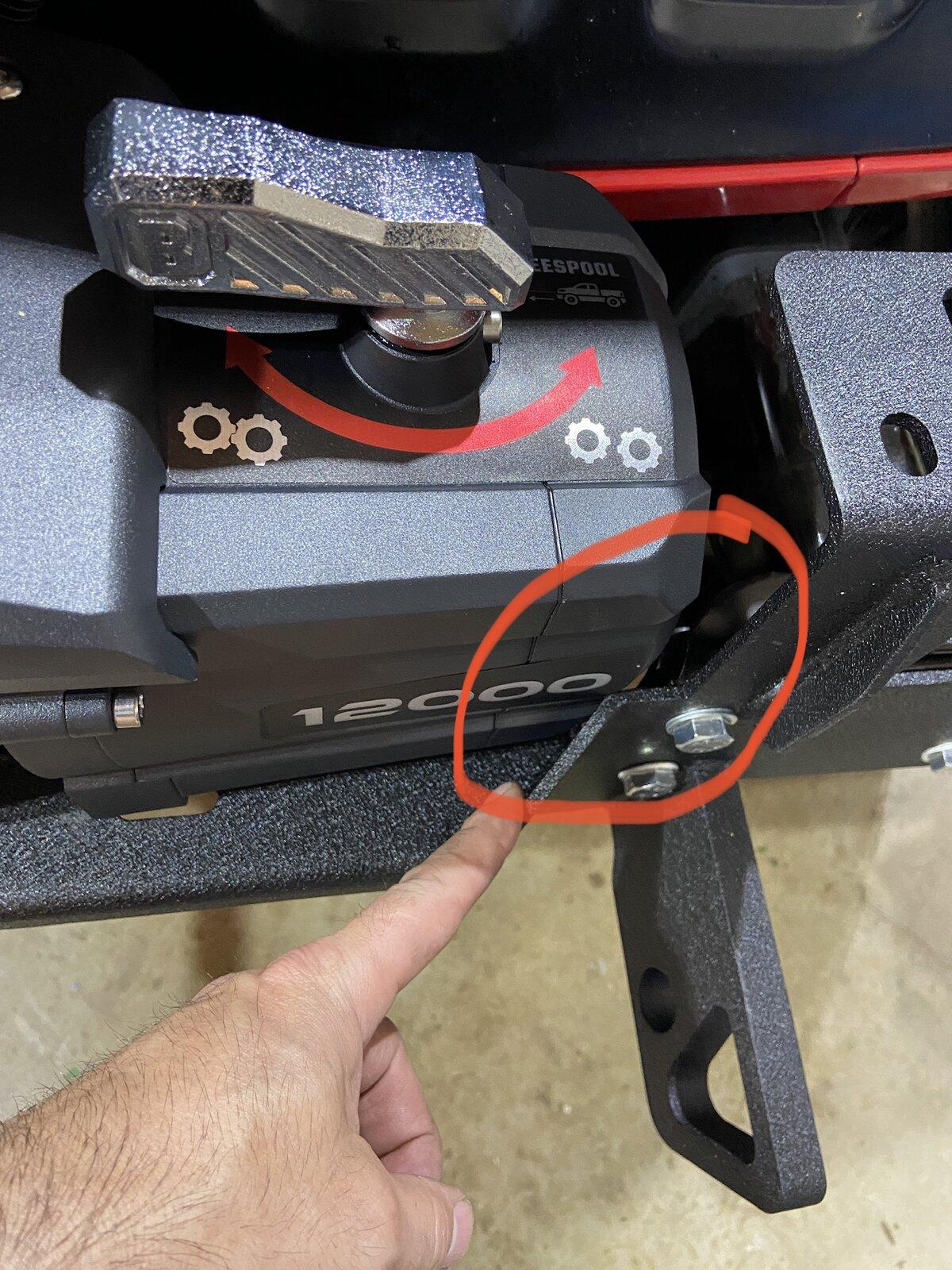

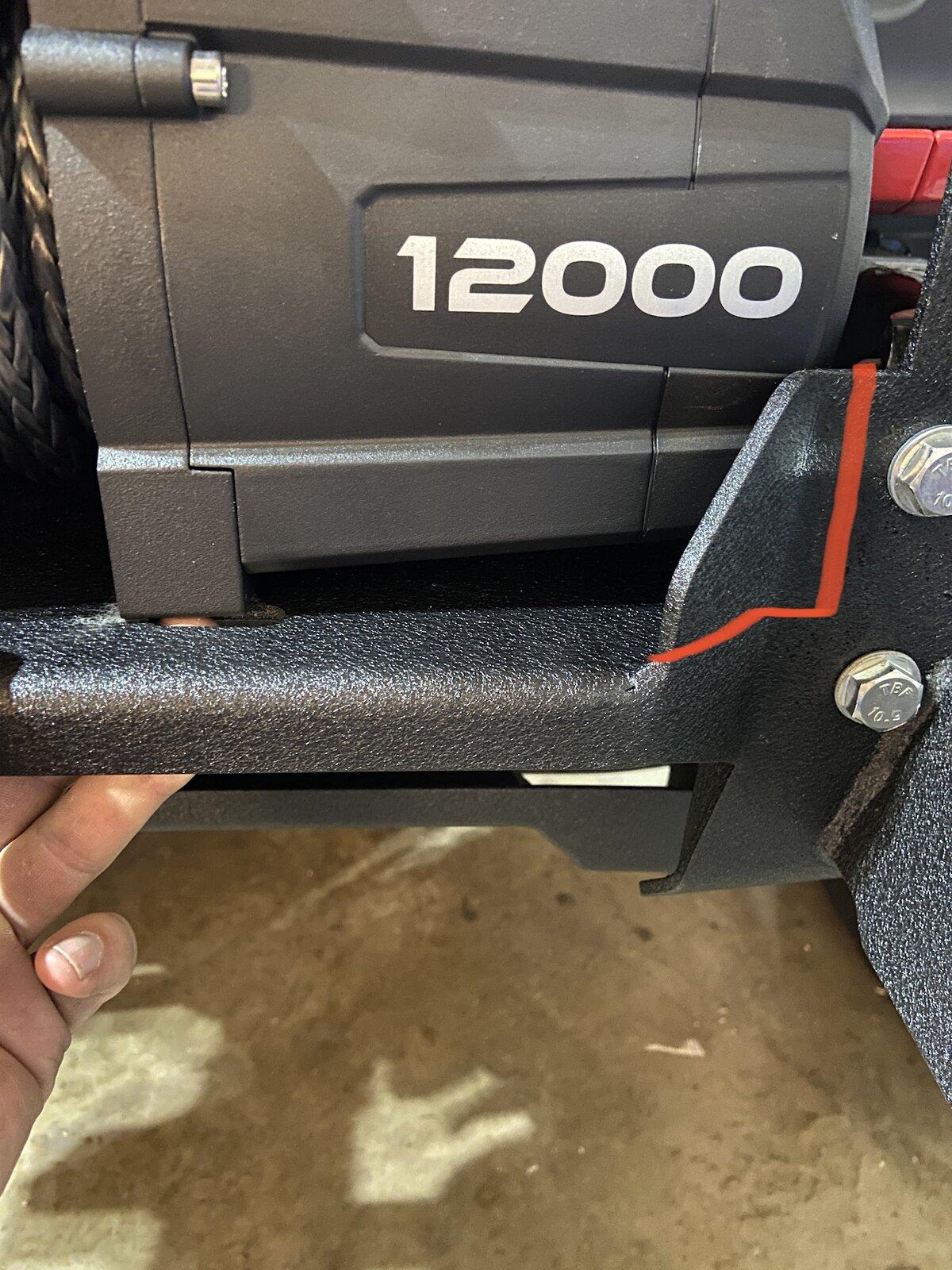

For those of you trying this bumper out (as there is scarce info out there on it) a badlands apex will not fit. The issue isn’t bumper clearance but rather winch plate clearance. The case of that badlands winch is just too big. You could cut the winch plate a bit but it’s right where it’s structural integrity is. I fear it would weaken it and bend/twist it over. It’s right against the grill so it definitely has to come forward 3/4 of an inch I would say. I’ll return this winch and try a warn 10,000lb and report back.
Jeep Gladiator Guardian Mid-width Front Bumper ? B8C63B3F-20F7-4A16-9DDF-410AEF4B6300
Jeep Gladiator Guardian Mid-width Front Bumper ? B8C63B3F-20F7-4A16-9DDF-410AEF4B6300
Jeep Gladiator Guardian Mid-width Front Bumper ? E45BCD5B-4F3B-4448-8049-8CA40A29EE44


Jeep Gladiator Guardian Mid-width Front Bumper ? AEF6F3BF-2D21-4EC5-A31F-5F8F8B70385A


Jeep Gladiator Guardian Mid-width Front Bumper ? 9B5CDE8A-4B40-4BA7-8C97-4F578B5BF126

Last edited:

hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter

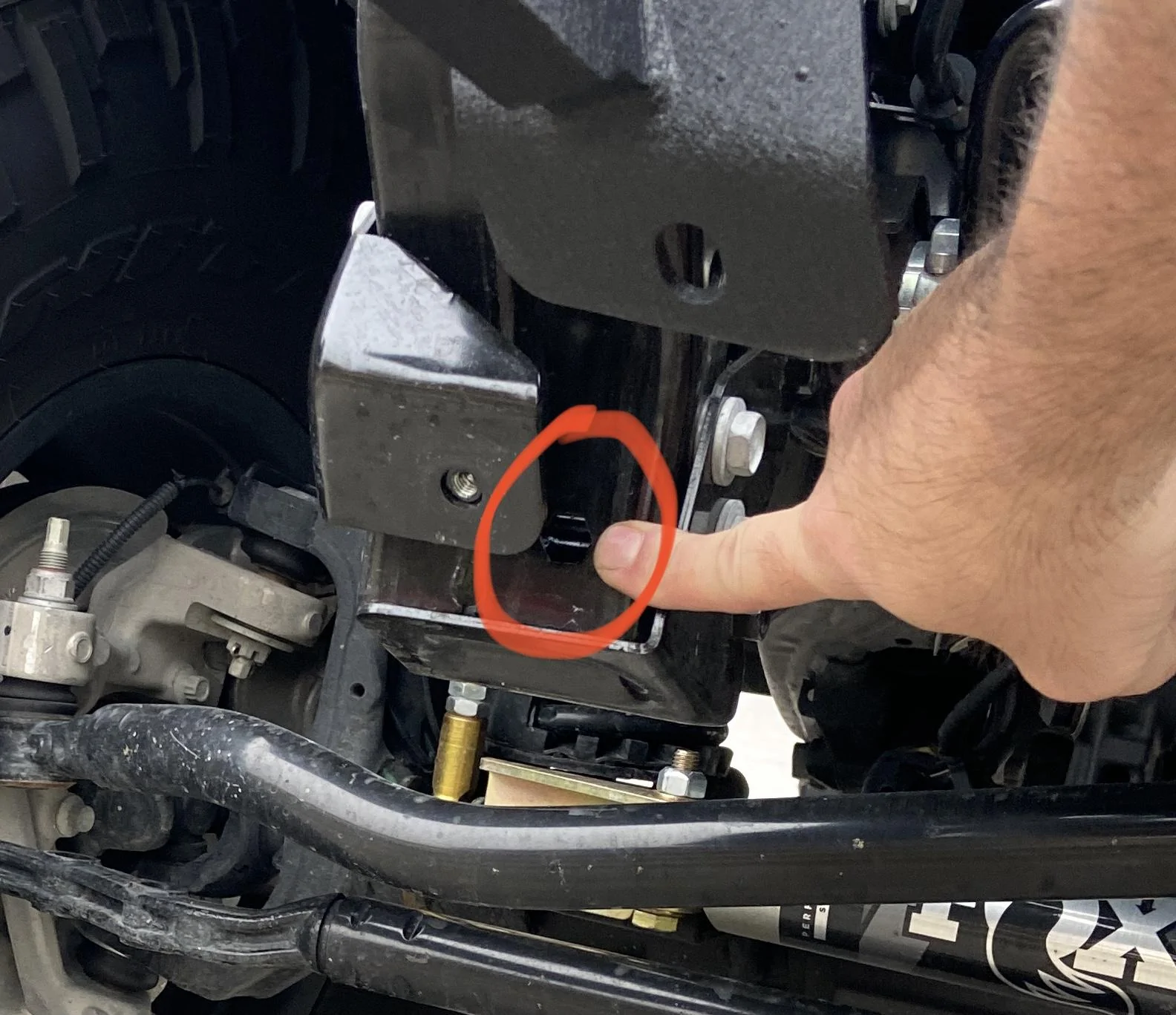

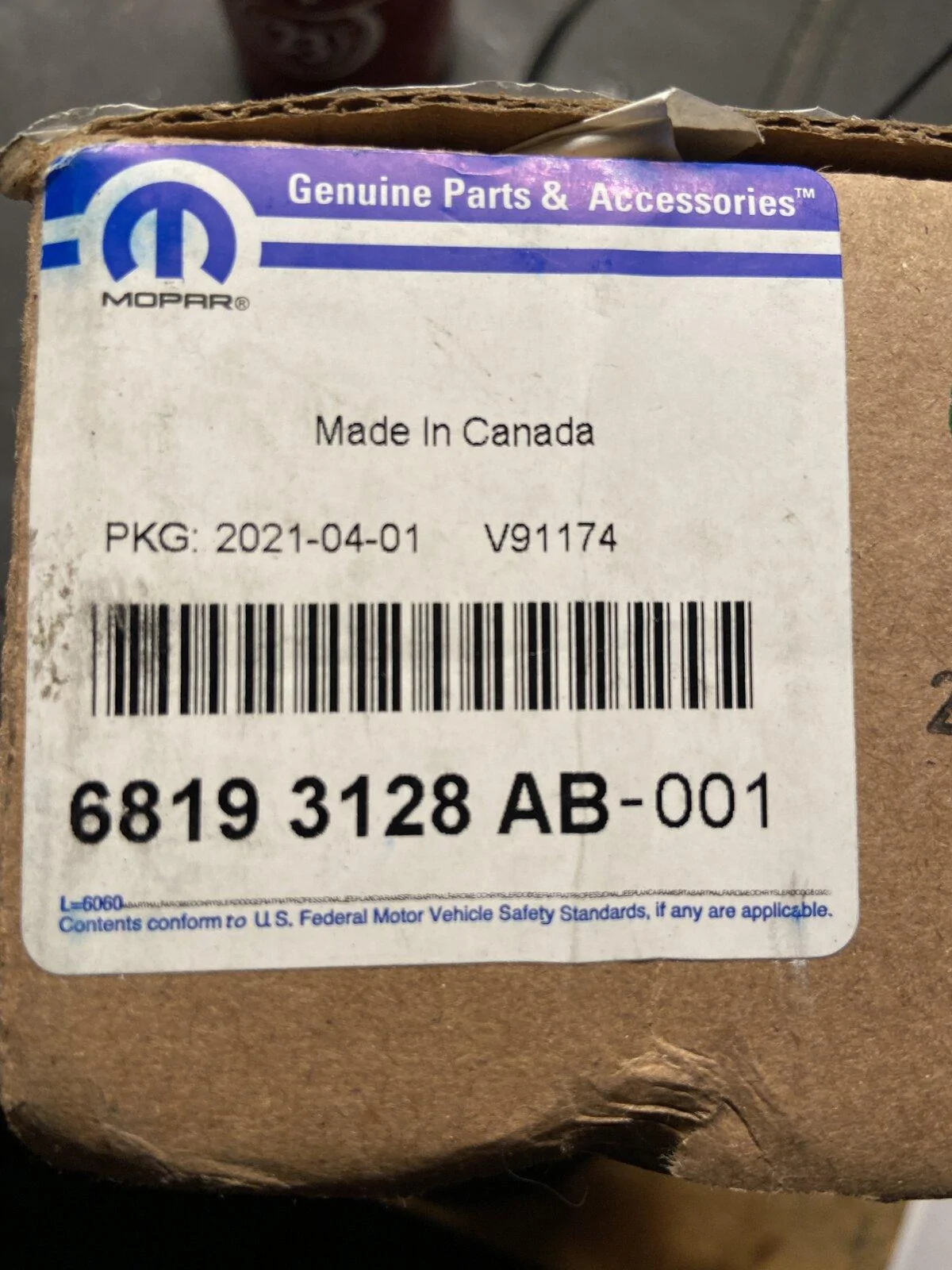

One more thing I found, on the rubicon model a nutsert is missing in order to mount the crossmember/skid plate. I guess the rubicon bumper doesn’t use that hole so they don’t bother installing one at the factory. The sport models with the ‘air dam’ seem to have it. My dealer was out of this m8 nutsert but found a dodge truck step rail mount kit with those exact ones in it. I had to buy the whole kit for 30 bucks but it fits.




  • Like
Reactions: mog

Shoebox

Well-Known Member
First Name
Kelly
Joined
Dec 2, 2020
Threads
13
Messages
132
Reaction score
118
Location
Carolina Beach, NC
Vehicle(s)
2021 Rubicon Diesel
One more thing I found, on the rubicon model a nutsert is missing in order to mount the crossmember/skid plate. I guess the rubicon bumper doesn’t use that hole so they don’t bother installing one at the factory. The sport models with the ‘air dam’ seem to have it. My dealer was out of this m8 nutsert but found a dodge truck step rail mount kit with those exact ones in it. I had to buy the whole kit for 30 bucks but it fits.
How does it look without the hoop? I've got the diesel, and don't want anything interfering with airflow when towing.


Sponsored

OP
OP
mog

mog

Well-Known Member
Joined
Mar 28, 2021
Threads
9
Messages
330
Reaction score
741
Location
Southern Oregon
Vehicle(s)
'21 Gladiator Rubicon, '09 C4500 Kodiak
Occupation
Kodiak Buckaroo
I received my Quadratec Stealth 10K winch today and it fits with 5/8" on either side (1 inch on the driver's side and 1/4 inch on the passenger if you center it perfectly). Very happy with the fit and finish of the bumper.


wchevron

Well-Known Member
First Name
Matt
Joined
Aug 28, 2020
Threads
37
Messages
433
Reaction score
716
Location
RI
Vehicle(s)
2021 JTR, 2020 JLU
Can you post some pics.


Shane P.

Active Member
First Name
Shane
Joined
Nov 28, 2018
Threads
4
Messages
29
Reaction score
30
Location
Milwaukee
Vehicle(s)
Dodge Charger
Does anyone have this with the front camera? Any issues blocking the view?

Thanks,
Shane


hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter

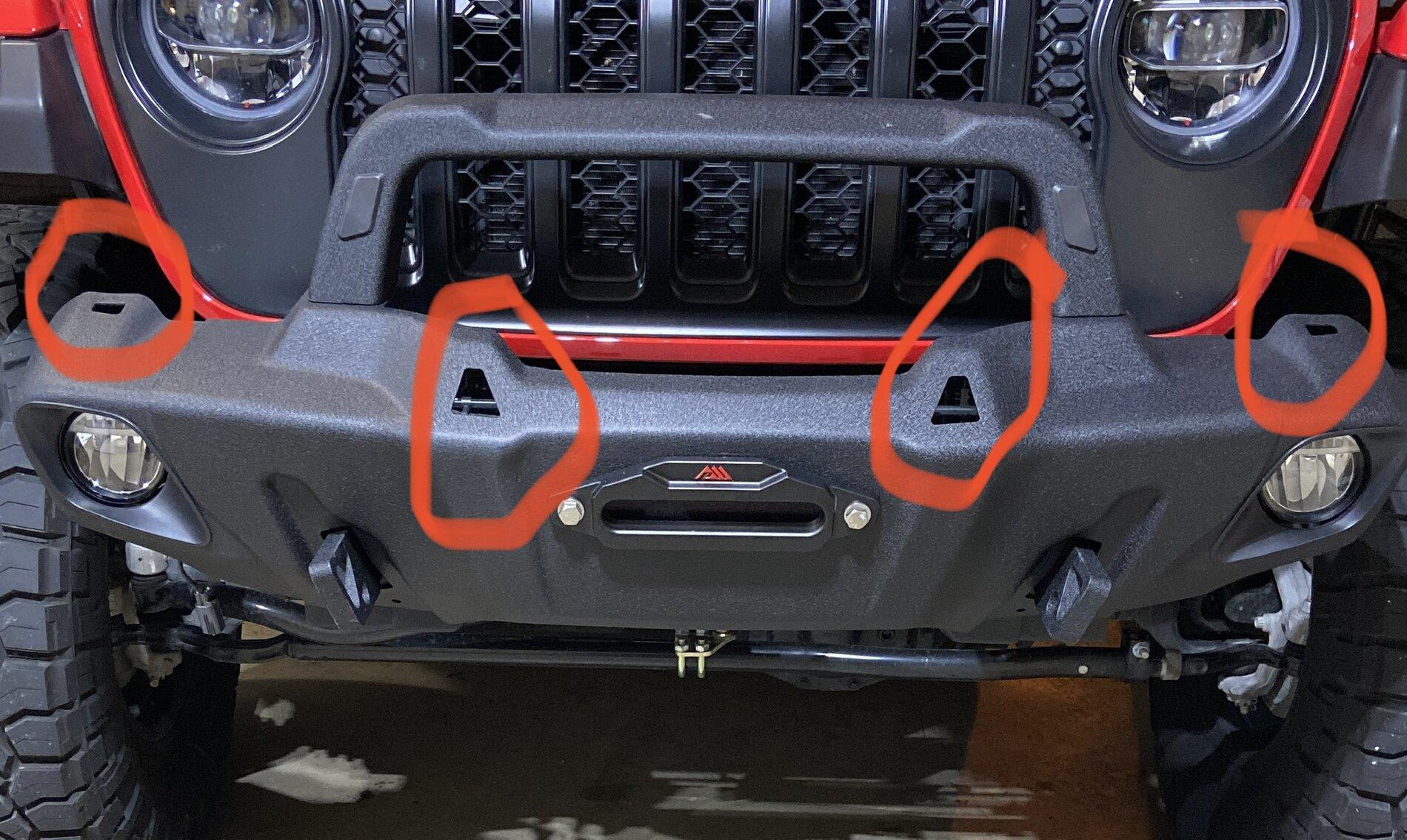

I'm missing these plastic insert parts. I've been emailing and calling vicious Offroad with no results yet.
Jeep Gladiator Guardian Mid-width Front Bumper ? D07C6DA9-254D-4D02-91E2-48E12EF11A8C


Kschend

Member
First Name
Kelly
Joined
Jan 16, 2022
Threads
0
Messages
5
Reaction score
2
Location
South Dakota
Vehicle(s)
Gladiator 3.0L eco diesel
Occupation
Shopper
I ordered this bumper in May and it arrived today. Just reading this post and I also bought the badlands apex 12,000synthetic winch. Started install of bumper this evening and can’t get first guard closest to bumper installed.

7/16. Finished install minus the winch last night looks great. Has anyone mounted a warn or 12,000 Quadratec stealth in this? I returned the Badlands apex there just isn’t enough room. Was able to borrow a nutsert tool and put two 10m’s easily in where my rubicon is missing them.
