Headlight Upgrade for Sport S W/ Max Tow

Klutch

Well-Known Member
Joined
May 25, 2019
Messages
420
Reaction score
403
Location
Colorado Springs
Vehicle(s)
1986 Jeep Comanche, 2000 Jeep Cherokee
I could use some help with a headlight upgrade. I have a 2020 Gladiator Sport S with Max Tow. I really like it, but sheesh, the headlights are like something stolen from a '42 Hudson. I was in a somewhat remote area after dark recently and I couldn't even tell the difference between the low-beams and high-beams.

I've been doing research, but the more I read, the more confused I become. Here are some guidelines as to what I'm looking for:

- Plug-in. I don't want to splice any wires

- Bolt-in. I don't want to do any cutting

- No halos. I just don't like them

- Light pattern is critical. I want something high quality with a really good pattern

- No flickering. I'm willing to pay more to avoid flickering headlights

- Brightness must be good, but not necessarily the highest numbers

I've seen reference to the Jeep factory LED headlights being very good. Is it possible to buy and install them on my JT? If so, what part number, where do I buy them and what's the price range?

The KC Gravity Pro headlights look really spiffy. I'm liking what I read and see, but the price is a bit painful. Is this what I have to spend for good-quality headlights that will plug-in and bolt-in? If that's the case, OK. I just don't want to spend $800 if I don't have to.

Thanks!



Advertisement





Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Messages
1,303
Reaction score
829
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland 2013 Nissan Leaf SV
Vehicle Showcase
1

saintpauljeff

Well-Known Member
First Name
Jeff
Joined
Dec 5, 2017
Messages
269
Reaction score
163
Location
Minneapolis, MN
Vehicle(s)
2020 Jeep Gladiator, 2003 BMW Z4 3.0i, 2015 Mitsubishi Outlander Sport
Occupation
Software Developer
Following. Been lurking on the side with the same goal, also not wanting to spend close to $1k for lights, but I don’t want just a bulb replacement either. Playing a long waiting game reading others’ experiences.

I share the same sentiment regarding halogen high setting- I kept thinking the setting wasn’t working because I couldn’t tell if the light changed LOL


Shackleton

Well-Known Member
First Name
Jeff
Joined
Jun 2, 2020
Messages
199
Reaction score
129
Location
Newbury, MA
Vehicle(s)
Gobi Gladiator Sport S Max Tow, Camry
There are a couple of other threads on here where guys have used plug and play bulbs. I’m not well versed in headlights but am certain the stock lights are very difficult to see with. I’m curious why not just get new bulbs? Why the whole enclosure? im curious about the pros and cons.
thanks in advance


JK4AER

Well-Known Member
Joined
Jul 14, 2019
Messages
69
Reaction score
28
Location
San Antonio, TX
Vehicle(s)
2020 JT Rubicon, 2003 TJ Rubicon
I upgraded my Rubicon factory headlights and foglights to SV.4 LED bulbs from Headlight Revolution. Plug and play (includes necessary driver/module), no issues so far after a month. Huge improvement over stock. Still need to figure out something simple for my DRL.


firehog

Well-Known Member
First Name
Randy
Joined
Jul 12, 2020
Messages
86
Reaction score
74
Location
Grants Pass, Oregon
Vehicle(s)
2020 Jeep Gladiator Sport S Max Tow; 2020 Chevy Silverado Duramax 3500
The reflectors are designed for halogen bulbs. LED bulbs are much brighter and if not designed for that particular reflector you can blind oncoming vehicles. Not a good thing for either driver. On my gladiator I went with quake LED headlights. But you don’t like halos. For what it’s worth they are better than stock but probably not the best or brightest. But they are very expensive and they don’t blind anybody so I’m happy. However I bought LED bulb replacements For my 2020 Chevy Silverado from xenon pro. They are way better than stock and they don’t Flickr and they don’t find anybody. Their customer service is top notch. I would highly recommend them but I’m sure there are others out there that make a replacement bulb that would work. Even these were $300! Everybody complains about the gladiator not having LED lights standard for how much they cost but I paid a lot more for my Chevy and still didn’t get LED lights. It’s stupid of all the safety features they put on these vehicles LED headlights should be standard because you got to see where you’re going!


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,194
Reaction score
4,960
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
There are a couple of other threads on here where guys have used plug and play bulbs. I’m not well versed in headlights but am certain the stock lights are very difficult to see with. I’m curious why not just get new bulbs? Why the whole enclosure? im curious about the pros and cons.
thanks in advance
Because the enclosure is made for the specific light put out by a given bulb. LED light output is drastically different, thus, a different enslosure. Only those that don't know better swap out only bulbs. Experts swap the whole thing and do it right.
See Danielsternlighting for details. But basically, LED is far more directional and needs different enclosures to get the maximum effect.
And don't go by the BS in marketing online or catalogs - what are they doing? Trying to sell products and make money so of course they'll tell you something to make a sale - yes, put our LED in any housing, save money! Bingo - just made another sale.
For OPTIMUM results, one should always change the whole thing and that's been talked about for YEARS in all sorts of forums - Ford, Chevy, Jeep of ALL sorts (including the Grand Cherokee and Cherokee places) and other sites.

OP
Klutch

Klutch

Well-Known Member
Joined
May 25, 2019
Messages
420
Reaction score
403
Location
Colorado Springs
Vehicle(s)
1986 Jeep Comanche, 2000 Jeep Cherokee
  • Thread starter
  • Thread Starter
  • #9
Thanks for the input.

Yeah, based on everything I've read and heard, replacing the lamps with LED lamps is not a good option. Many of them flicker and none of them provide a good pattern.

What really puzzles me is just how useless the factory headlights are. I have a 1970 Mustang Mach 1. I installed basic, halogen headlights from the local parts store and they are far superior to my Gladiator headlights.

OP
Klutch

Klutch

Well-Known Member
Joined
May 25, 2019
Messages
420
Reaction score
403
Location
Colorado Springs
Vehicle(s)
1986 Jeep Comanche, 2000 Jeep Cherokee
  • Thread starter
  • Thread Starter
  • #10
The factory headlight kit is available direct from Mopar, from any dealer, or from a multitude of resellers.
https://store.mopar.com/accessories...ies-headlamps/led_head_lights_82215136AE.html

I have the factory LED lights. If I did not, I would probably get the KC lights.
https://www.kchilites.com/gravity-led-pro-jeep-jl-jt-7-headlight-pair-pack-system-dot-compliant.html
Thanks. That link for the KC headlights is for 7-inch. Is that correct, or are the factory lights actually 9"? Sorry for the confusion, but based on my experience, actually measuring such things isn't always helpful. I can get an accurate measurement of something which often doesn't match the advertised size. (Like how long has it been since a 2x4 stud actually measured 2" x 4"?)

Looks like the KC Gravity pro is a good option. Apparently, they are a little better than the Mopar LED headlights and a little less expensive as well.


eaglerugby04

Well-Known Member
Joined
Oct 14, 2019
Messages
1,116
Reaction score
702
Location
Northern South Carolina
Vehicle(s)
Gator Rubicon Gladiator, Toyota Prius, Toyota Sienna
Occupation
Network Security
Thanks for the input.

Yeah, based on everything I've read and heard, replacing the lamps with LED lamps is not a good option. Many of them flicker and none of them provide a good pattern.

What really puzzles me is just how useless the factory headlights are. I have a 1970 Mustang Mach 1. I installed basic, halogen headlights from the local parts store and they are far superior to my Gladiator headlights.
yep beyond useless honestly. So bad worse I have ever seen.

Noticed you are from CO one thing to take into account is snow. The LEDs run cool enough that they will not melt snow/ice. Oracle is working on something for that if I remember right from a post a while ago.


Mac

Well-Known Member
Joined
Nov 30, 2017
Messages
329
Reaction score
162
Location
MA
Vehicle(s)
2020 JT Hydro Blue Max Tow
Led bulbs work well, there are a couple threads on the led replacement bulbs, I have them and they made a big difference, 100 plug and play no flicker.


JeffInFLA

Active Member
First Name
Jeff
Joined
Sep 22, 2020
Messages
41
Reaction score
37
Location
Spring Hill, Fl
Vehicle(s)
2020 Gladiator Sport S
Thanks for the input.

Yeah, based on everything I've read and heard, replacing the lamps with LED lamps is not a good option. Many of them flicker and none of them provide a good pattern.

What really puzzles me is just how useless the factory headlights are. I have a 1970 Mustang Mach 1. I installed basic, halogen headlights from the local parts store and they are far superior to my Gladiator headlights.
Check out Oracle Lights... I just swapped out my halogens with their hi-output LEDs - after a minor adjustment, I’m happy with them. The do have a pretty nice Bi-LED setup which has a halo but you wouldn’t have to wire it up.

I’ll probably end up with the Bi-LEDs sooner or later, but I’m happy with my LED swap.

OP
Klutch

Klutch

Well-Known Member
Joined
May 25, 2019
Messages
420
Reaction score
403
Location
Colorado Springs
Vehicle(s)
1986 Jeep Comanche, 2000 Jeep Cherokee
  • Thread starter
  • Thread Starter
  • #14
Check out Oracle Lights... I just swapped out my halogens with their hi-output LEDs - after a minor adjustment, I’m happy with them. The do have a pretty nice Bi-LED setup which has a halo but you wouldn’t have to wire it up.

I’ll probably end up with the Bi-LEDs sooner or later, but I’m happy with my LED swap.
Thanks. I did look at the Oracle headlights and I'm not really a fan. Nothing wrong with them. Just not my thing.


DeezJT

Well-Known Member
First Name
Dwight
Joined
Jun 21, 2020
Messages
280
Reaction score
169
Location
Moreno Valley
Vehicle(s)
2020 JT Max Tow
Occupation
I work for jeep parts

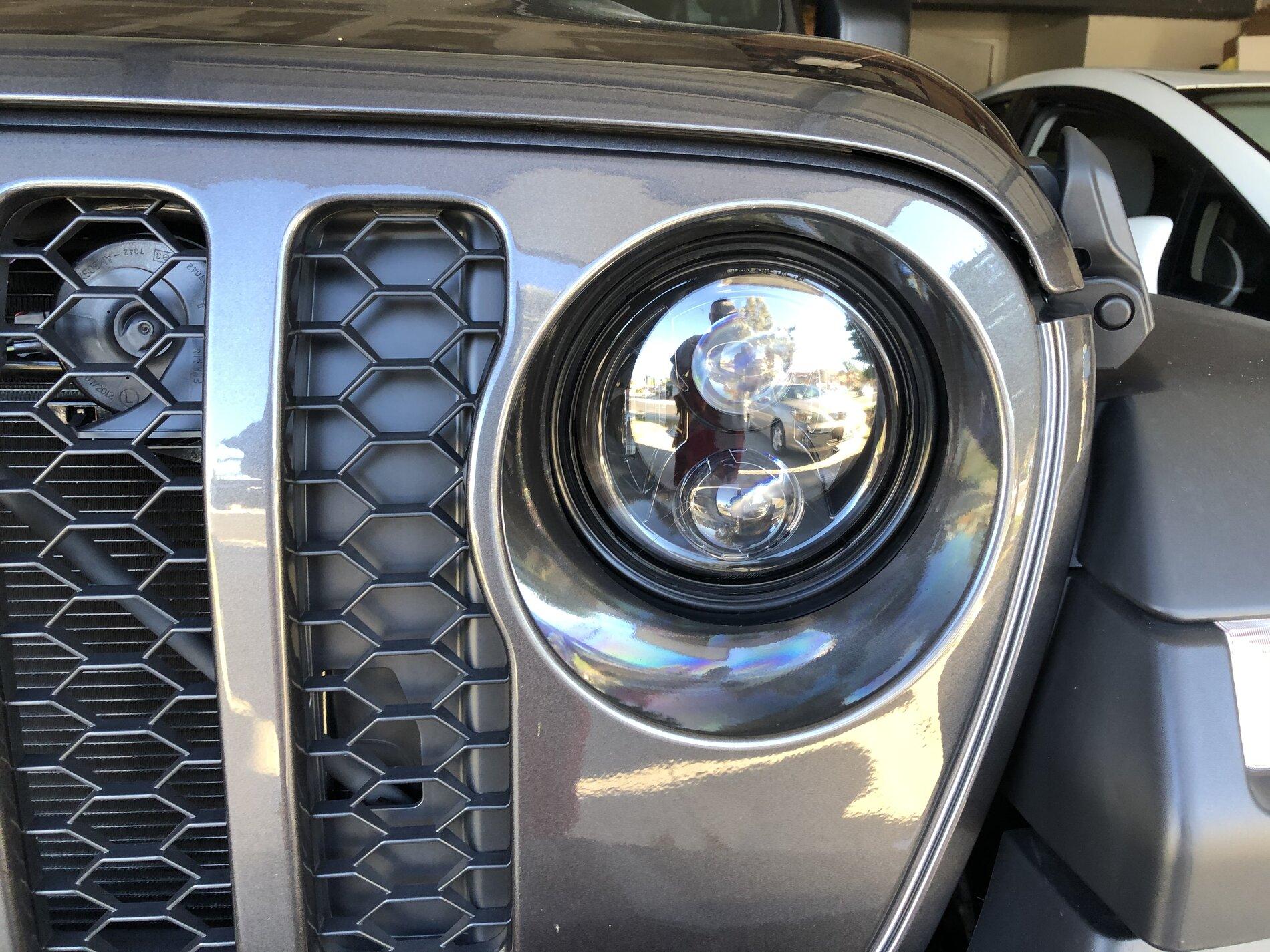

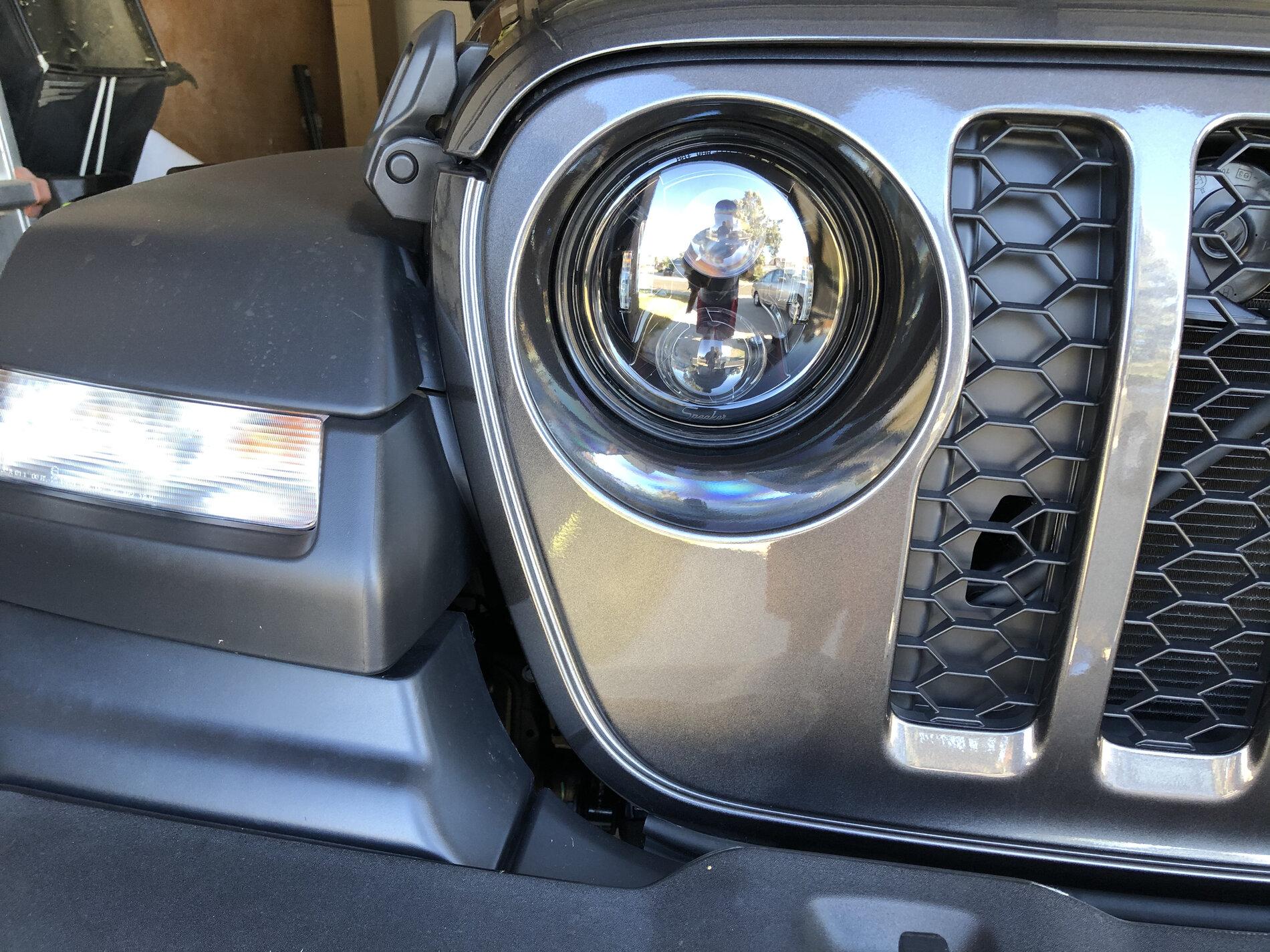

I too have a max tow. I have JW Speaker 8700 evo2 saved from my JK, same with the fog lights. No flicker and I even removed the anti flicker harness because it wouldn’t work with the oem harness unless u buy an adapter.

No flicker, and no bulb out message. Once I added the flashcal to change settings, I changed the headlights to led setting just because.

The fog lights though need resistors or they will not work.

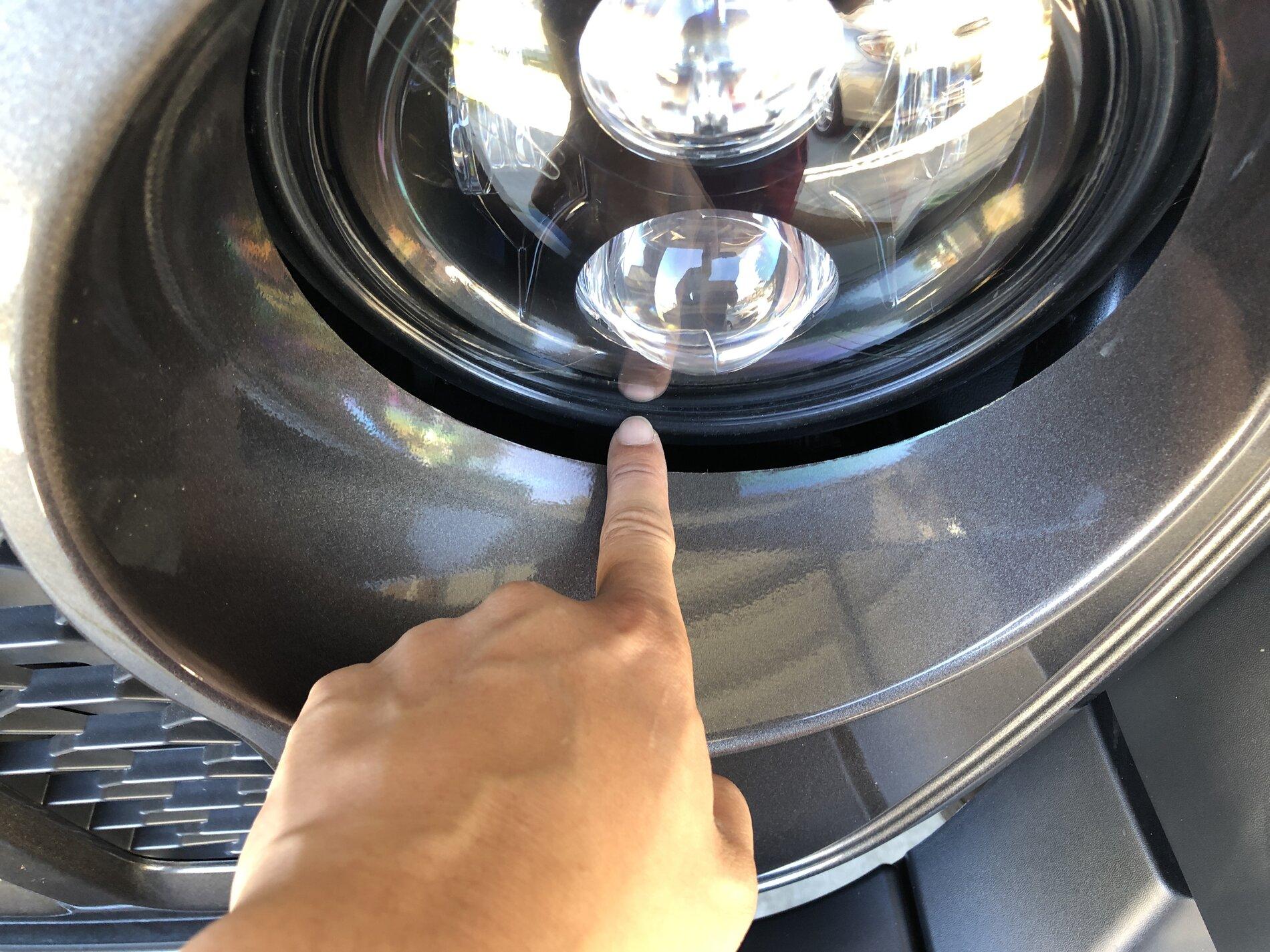

There is a slight gap to the grill BUT, I added spacers to fill in the gap.
