Help! Badlands apex spools in not out

JamesM

Member
First Name
James
Joined
Sep 11, 2021
Threads
7
Messages
21
Reaction score
7
Location
Nashville, TN
Vehicle(s)
2020 Gladiator Rubicon
Occupation
Self
I just finished installing a new canyon front bumper and harbor freight Badlands Apex 12,000 pound winch. Other than having to do a little drilling to get the winch to match up with the plate, installation was fine. The problem is that the motor seems to only run in one direction. When I press the button marked “in” on the remote, the line spools in as it should. When I press the button marked “out”, nothing happens. It will free spool out though. any suggestions?
Sponsored



Alans17

Well-Known Member
First Name
Alan
Joined
Oct 17, 2020
Threads
59
Messages
933
Reaction score
1,220
Location
DFW
Vehicle(s)
Gladiator Sport S Max Tow
Sounds like the wire is loose or disconnected


Jefe1018

Well-Known Member
Joined
Mar 4, 2020
Threads
38
Messages
2,431
Reaction score
3,934
Location
NV
Vehicle(s)
21 JT Rubi Ecodiesel
Build Thread
Link
What happens when you plug the remote in?


Alans17

Well-Known Member
First Name
Alan
Joined
Oct 17, 2020
Threads
59
Messages
933
Reaction score
1,220
Location
DFW
Vehicle(s)
Gladiator Sport S Max Tow

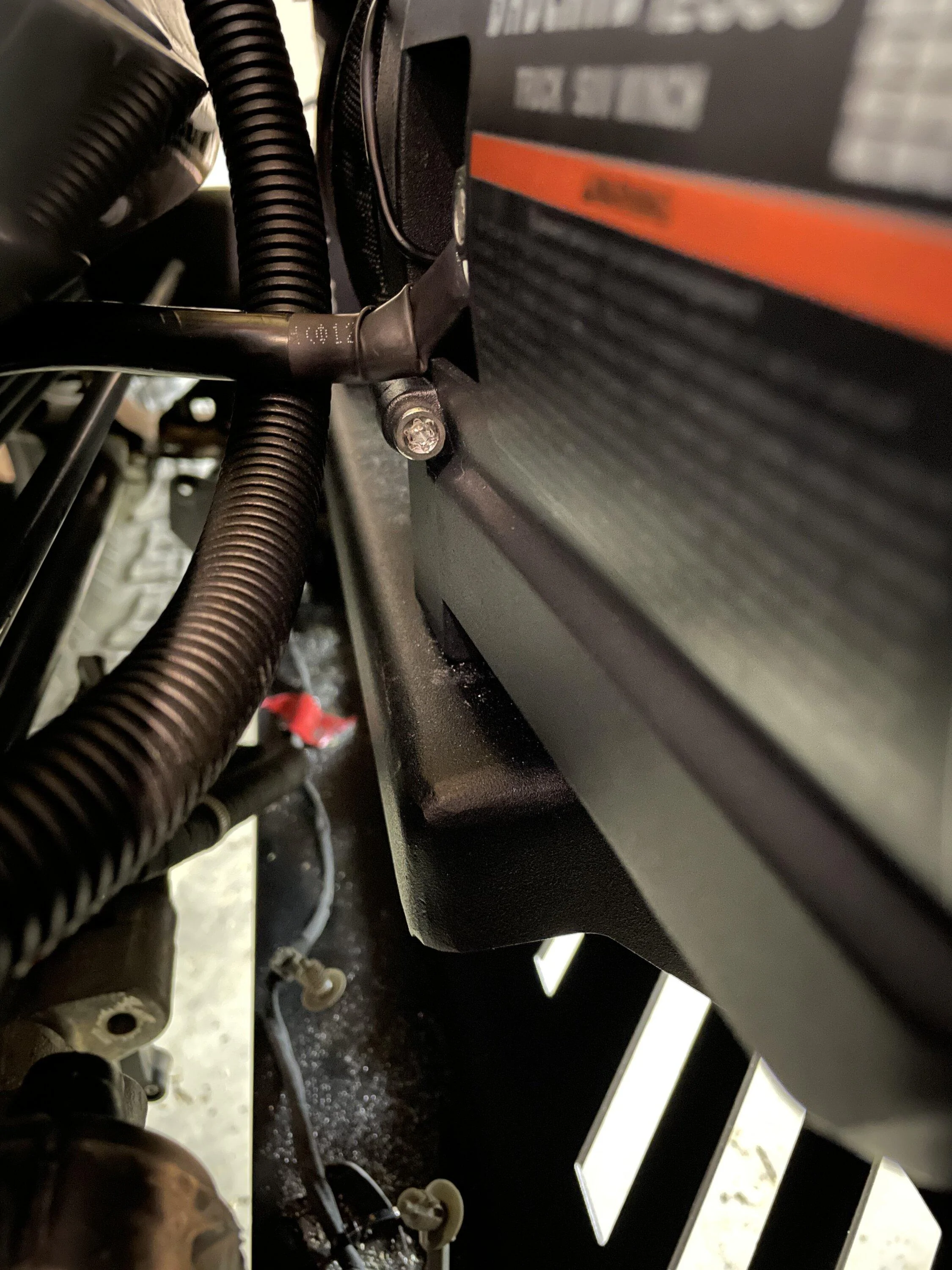

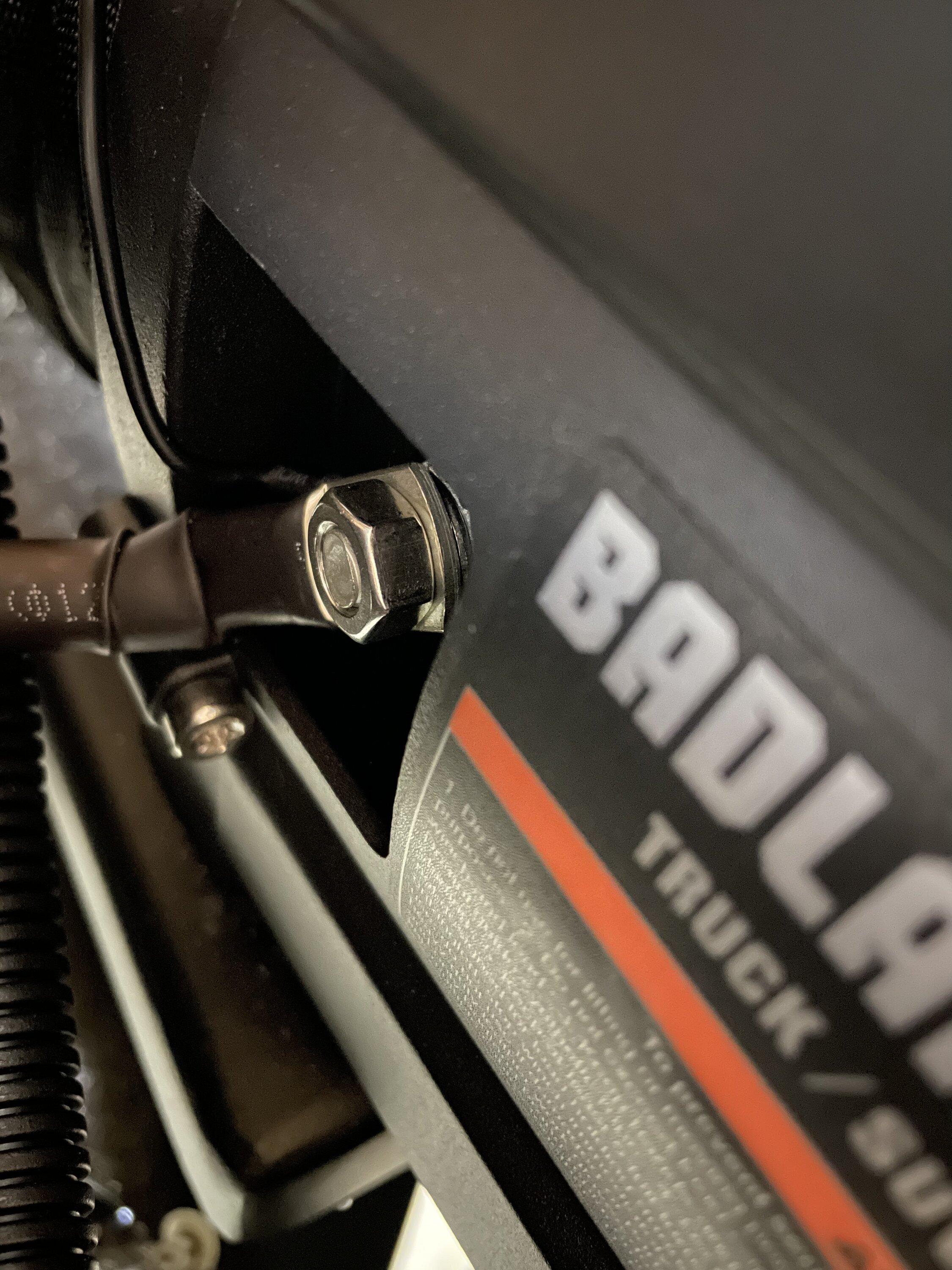

Can you reach the back of the base unit to take a picture of the connection s?


Sponsored

Lunentucker

Well-Known Member
Joined
Apr 24, 2022
Threads
184
Messages
4,715
Reaction score
11,632
Location
Virginia
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
People Work?
Just a heads-up. If you have to take it back to Harbor Freight they're going to scan your ID into their systems or you don't get to return it. Receipt matters not.

I returned something completely unopened and unmolested, and with the receipt in hand just three days after purchase (weekend) and we around and around over them being able to get a copy of my driver's license to have on file in their computer systems forever.

Finally got a nice young lady to take take it back with just the receipt on the third attempt.

I'll still shop there, but I'm not buying anything that might have to be returned.


Summitsearcher

Well-Known Member
First Name
John
Joined
Dec 21, 2020
Threads
39
Messages
1,314
Reaction score
2,308
Location
Northern Michigan
Vehicle(s)
2021 Stingrey JTR
Occupation
Retired
Vehicle Showcase
2
Check the blade connectors in the control box. I had to repair the yellow one if I remember right which had a bad crimp on it. I’m glad I tested before mounting. Good luck!


Alans17

Well-Known Member
First Name
Alan
Joined
Oct 17, 2020
Threads
59
Messages
933
Reaction score
1,220
Location
DFW
Vehicle(s)
Gladiator Sport S Max Tow
Oh! Looks like all the connections are internal as @Summitsearcher alluded to. Yeah, unfortunately it sounds like you’ll need to open the control box and peek inside.


Summitsearcher

Well-Known Member
First Name
John
Joined
Dec 21, 2020
Threads
39
Messages
1,314
Reaction score
2,308
Location
Northern Michigan
Vehicle(s)
2021 Stingrey JTR
Occupation
Retired
Vehicle Showcase
2
Oh! Looks like all the connections are internal as @Summitsearcher alluded to. Yeah, unfortunately it sounds like you’ll need to open the control box and peek inside.
Not a big deal to open it up. Pretty simple setup and the wiring is simple to understand.
