Help with installing a line out converter

drace99

Well-Known Member
First Name
Michael
Joined
Dec 4, 2018
Threads
11
Messages
79
Reaction score
30
Location
New Jersey
Vehicle(s)
2014 Chevrolet Corvette
I am installing a line out converter for my 10" powered sub. I was wondering if I can install it (tap into the rear speaker wire) in the pillar where the wires go up to the sound bar or does it have to be installed closer to the factory radio?
Sponsored



Jrog40

Member
Joined
Jan 24, 2023
Threads
3
Messages
21
Reaction score
23
Location
Tx
Vehicle(s)
Subaru wrx
Bump. I have the same question as op.


dinosaurkun

Active Member
First Name
dino
Joined
Aug 25, 2022
Threads
6
Messages
39
Reaction score
12
Location
Houston
Vehicle(s)
JTM-ordered
either sites are fine. the LOC just converts the signal from the speaker wire to RCA pre amp ones. whatever range is in the signal you tap is what the LOC will send out. so...go with what's easier for you to access with respect to your project.


Jrog40

Member
Joined
Jan 24, 2023
Threads
3
Messages
21
Reaction score
23
Location
Tx
Vehicle(s)
Subaru wrx
I would like to tap into the soundbar wires I just don't know how the wires are ran.


Sponsored

Cbhuss75

Member
First Name
Casey
Joined
Aug 1, 2023
Threads
1
Messages
5
Reaction score
0
Location
Oregon, USA
Vehicle(s)
2020 gladiator sport.
Are the signal wires in the b pillar green/yellow and green/grey? I don’t seem to be getting any signal from those?


cranbiz

Well-Known Member
First Name
Bob
Joined
Jun 28, 2023
Threads
6
Messages
690
Reaction score
1,025
Location
Wentworth, NC
Vehicle(s)
2021 JTR, 2017 WK2 Trailhawk, 2012 JK
Occupation
IT Analyst, Volunteer Firefighter

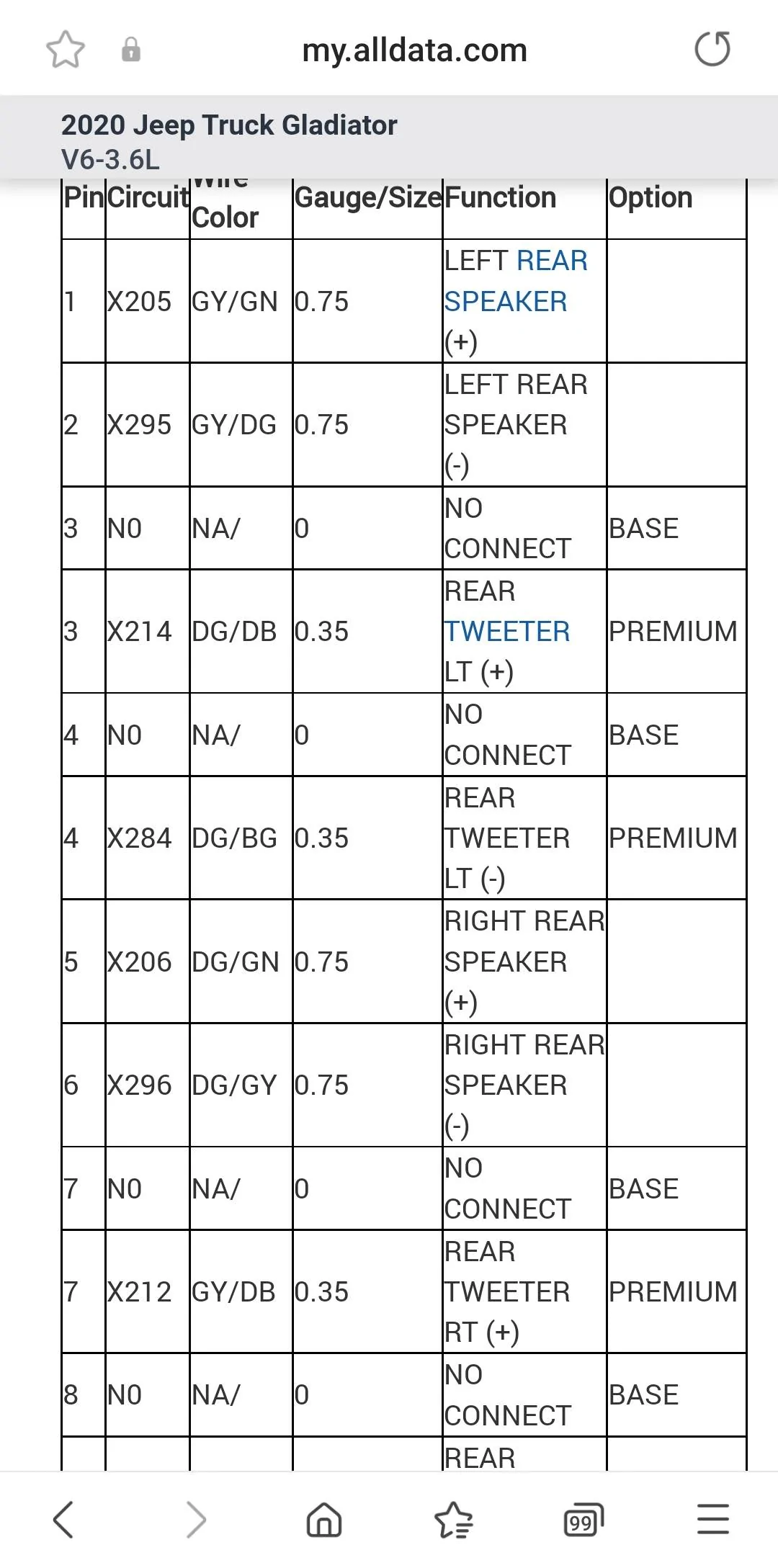

Left + is Grey/Green
Left - is Grey/ Dark Green
Right + is Dark Green/Green
Right - is Dark Green/Grey


Cbhuss75

Member
First Name
Casey
Joined
Aug 1, 2023
Threads
1
Messages
5
Reaction score
0
Location
Oregon, USA
Vehicle(s)
2020 gladiator sport.
Thanks! I’ll take a look and see if I can find them.


Average Oregonian

Well-Known Member
Joined
Jul 10, 2021
Threads
6
Messages
139
Reaction score
195
Location
Oregon
Vehicle(s)
2021 JTR
Have you looked at the PAC Audio adapters? They are plug-and-play, and they offer a sub-only option if you don’t plan to amplify the main stage. I would be nervous about bass rolloff when tapping a factory output.
