Homemade molle style panel for truck bed

Sespe

Well-Known Member
Joined
Sep 17, 2019
Threads
9
Messages
247
Reaction score
498
Location
California
Vehicle(s)
Sport S
Occupation
Retired Firefighter
Well, I actually like it! Can you post more details of the mounting?


mikesjt

Well-Known Member
First Name
Mike
Joined
May 26, 2019
Threads
14
Messages
176
Reaction score
289
Location
Dallas TX
Vehicle(s)
99 Wrangler TJ Sport
Vehicle Showcase
1
Looks great! I'm also interested in more details!

OP
OP

JT_Ollie

Well-Known Member
Joined
May 18, 2019
Threads
15
Messages
142
Reaction score
186
Location
32819
Vehicle(s)
LBB BMW M2, SG Jeep Gladiator

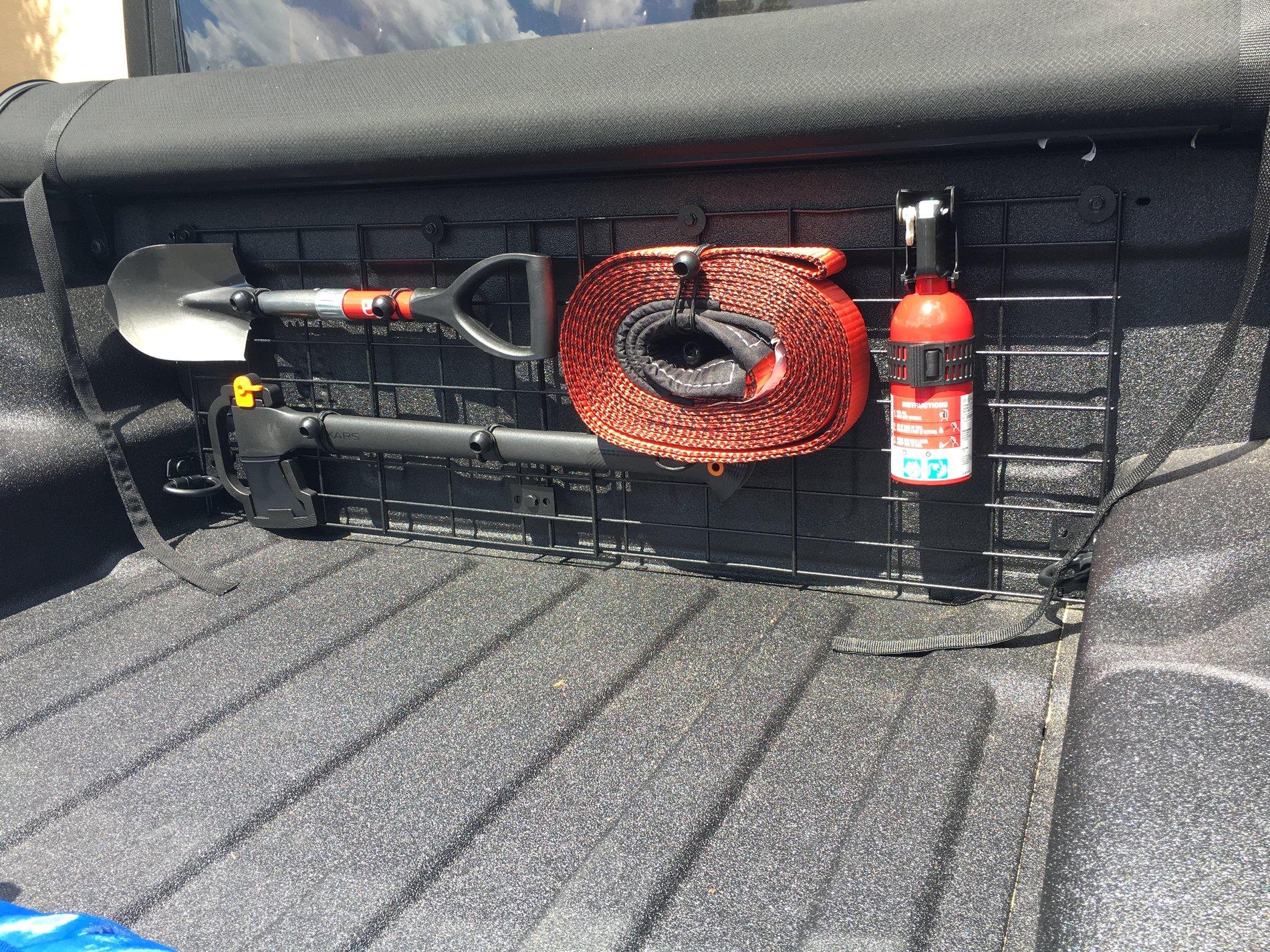

Had to explain, maybe I’ll make a quick video.

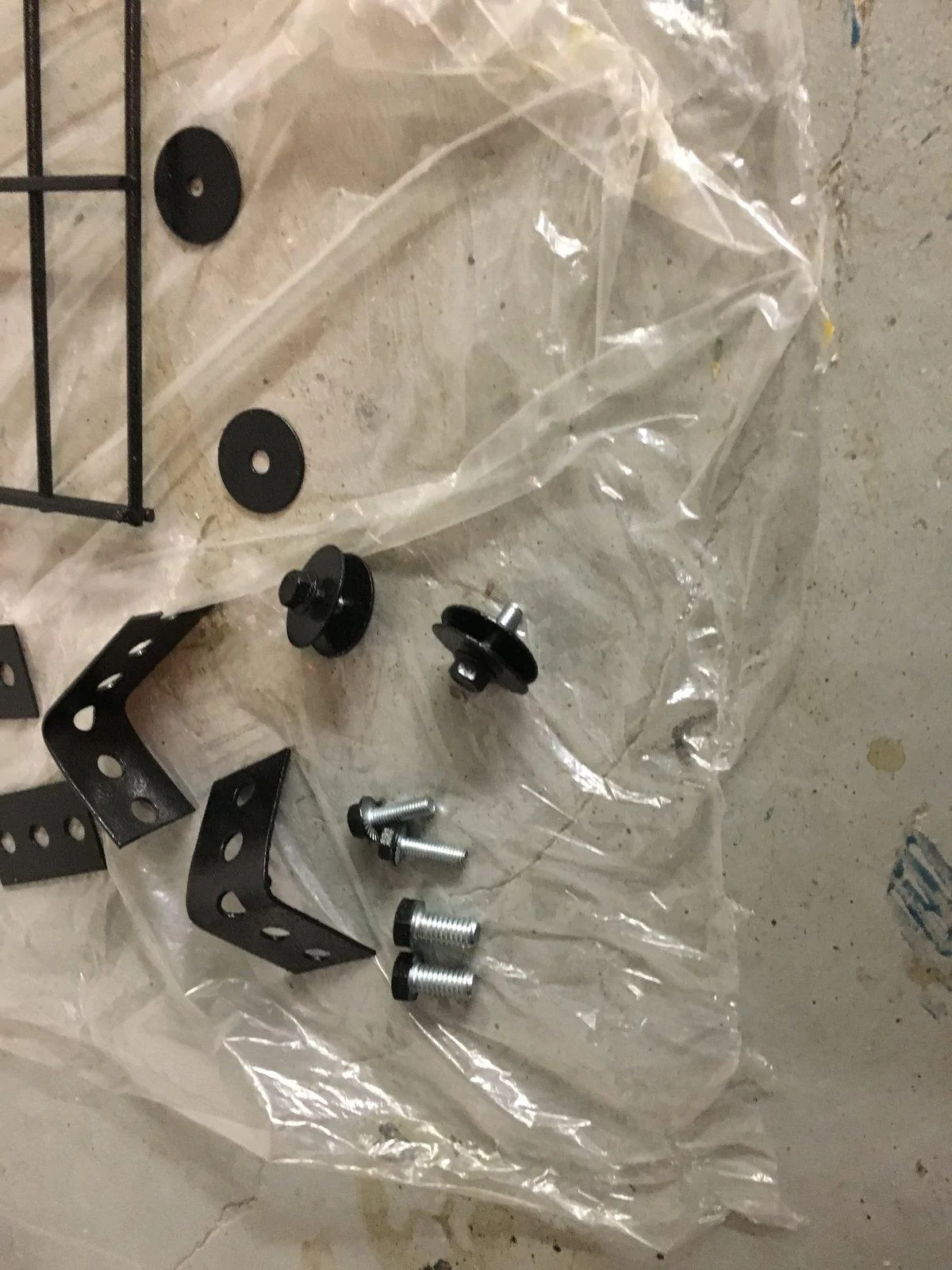

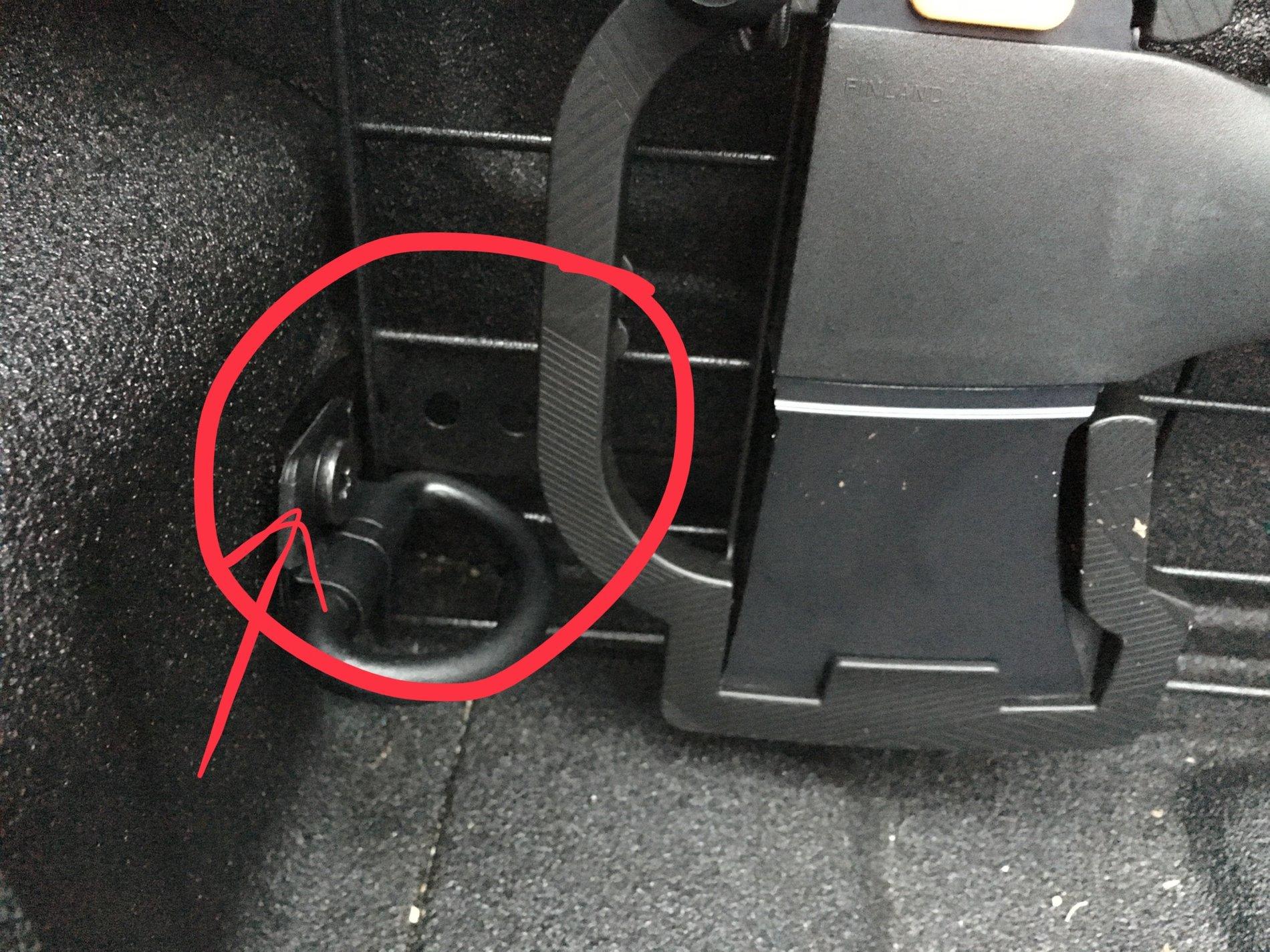

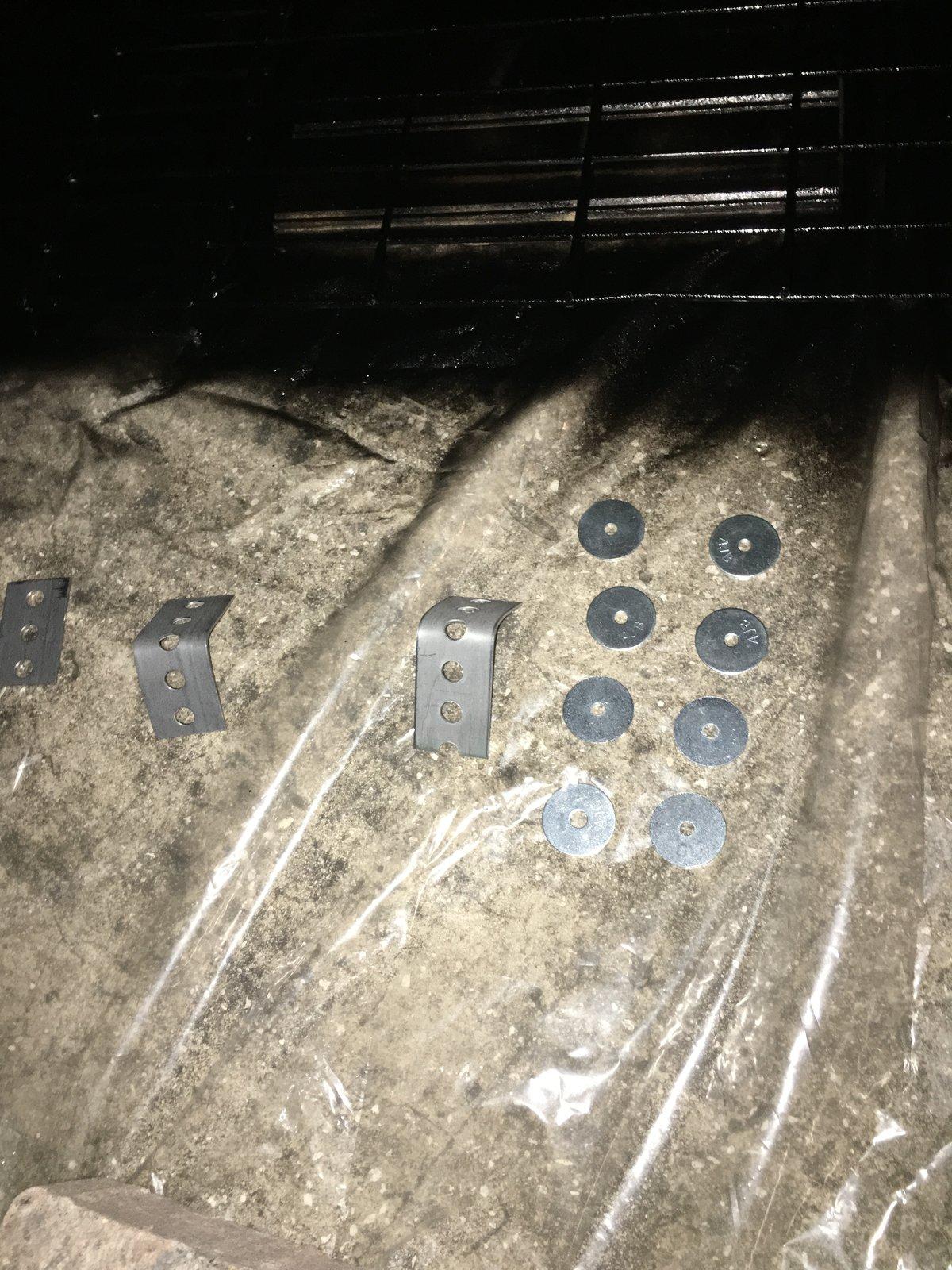

I bent a metal strip into a L shape, one hole goes where the factor tie down bolt goes. The other part goes between the grate to keep it from moving around.

I bolted two strips in the middle to tie the two panels together

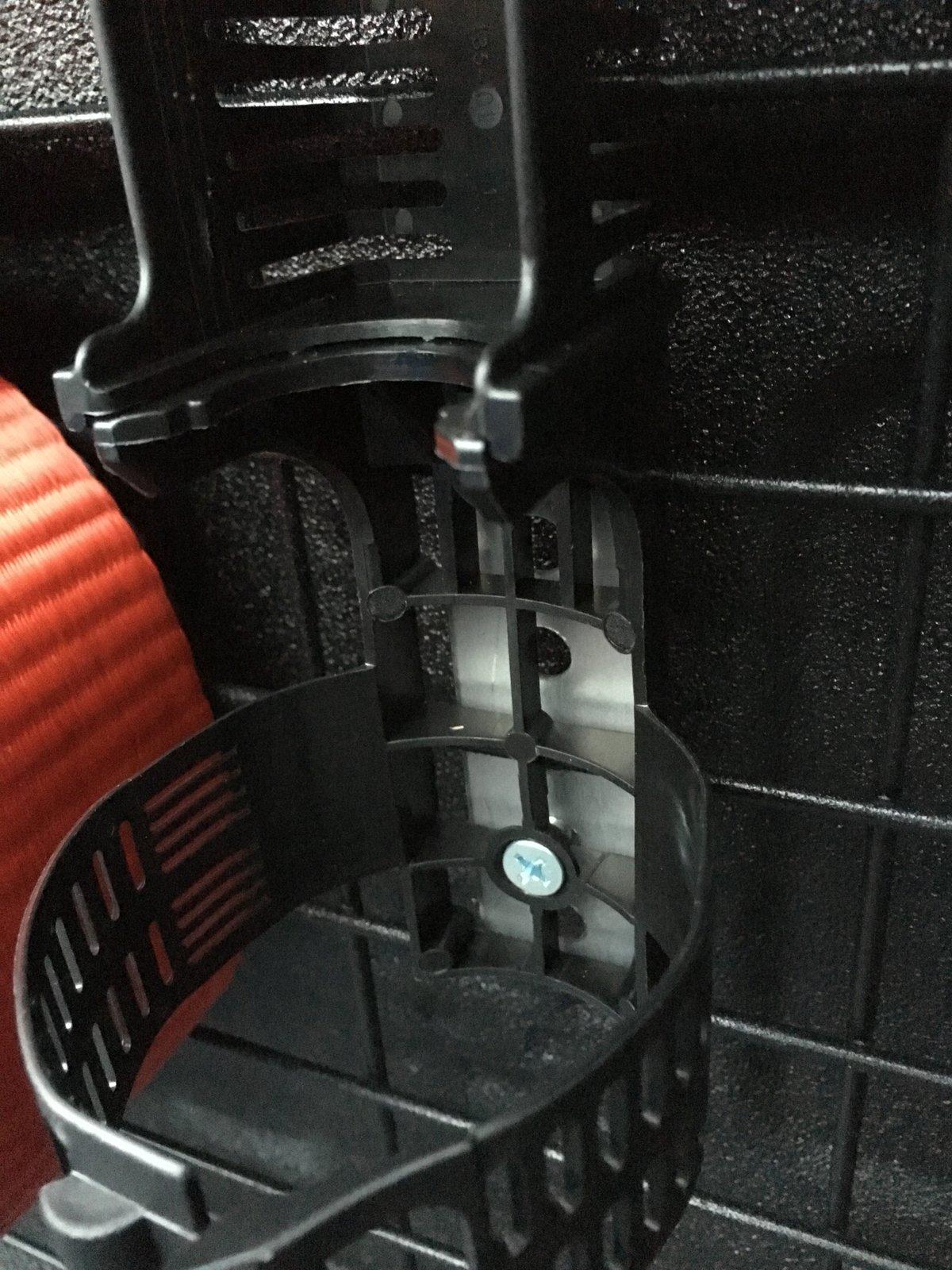

Used a strip to mount the fire extinguisher holder

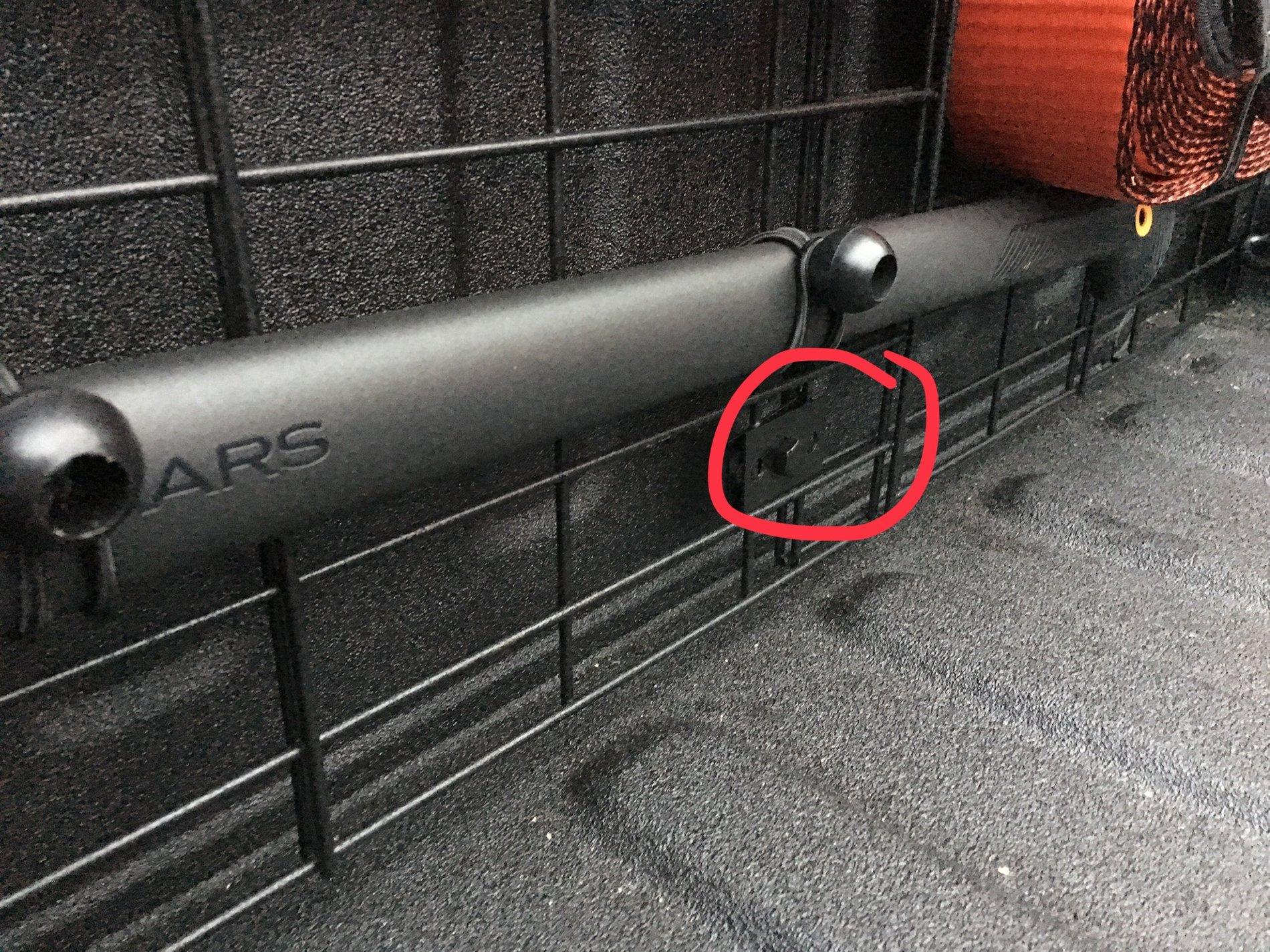

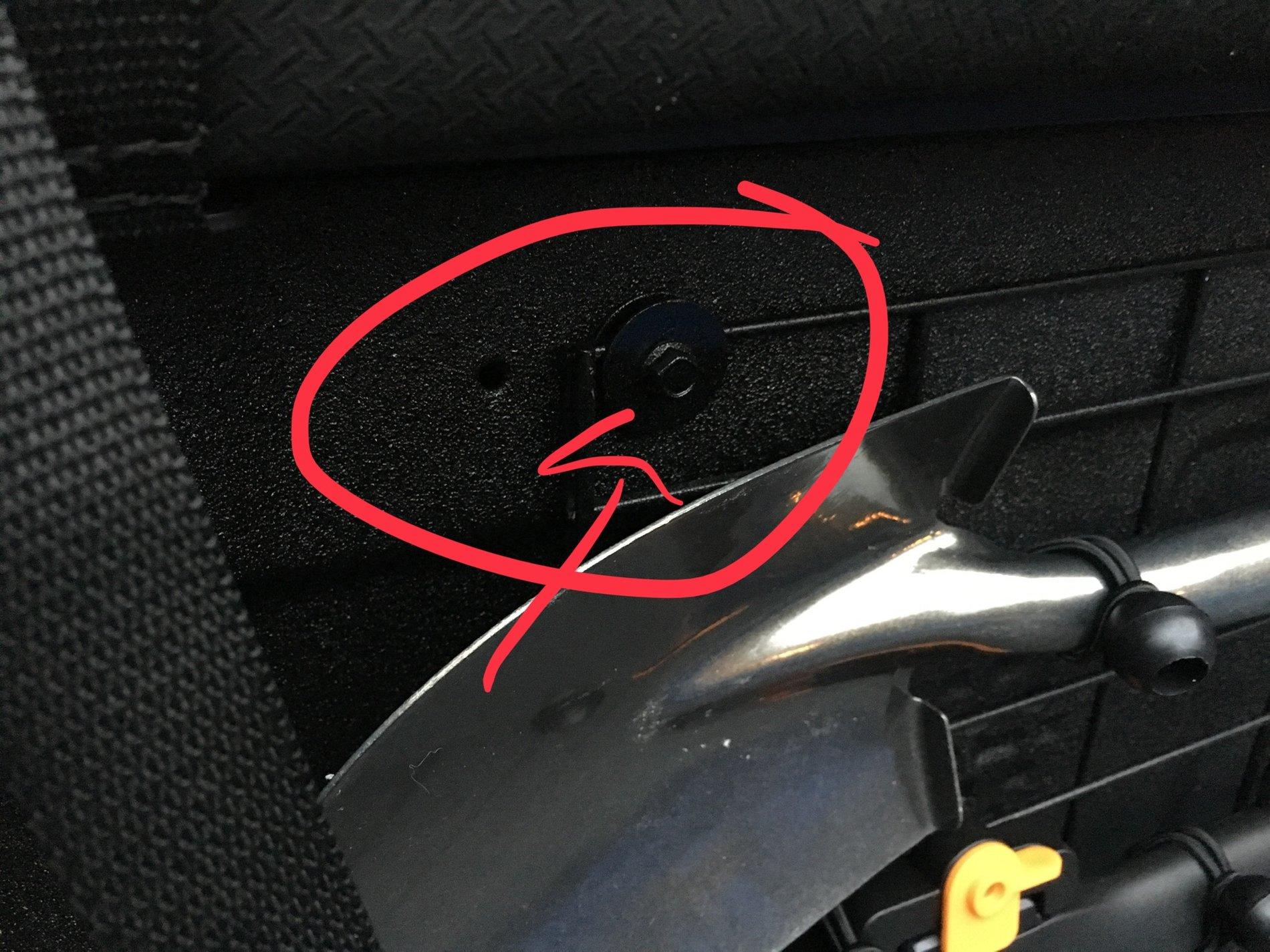

The shelving rests on the bolts. Four m6 bolts go into the factory holes for the trail rail. I used washer to hold the grate between

  • Like
Reactions: Sal
OP
OP

JT_Ollie

Well-Known Member
Joined
May 18, 2019
Threads
15
Messages
142
Reaction score
186
Location
32819
Vehicle(s)
LBB BMW M2, SG Jeep Gladiator

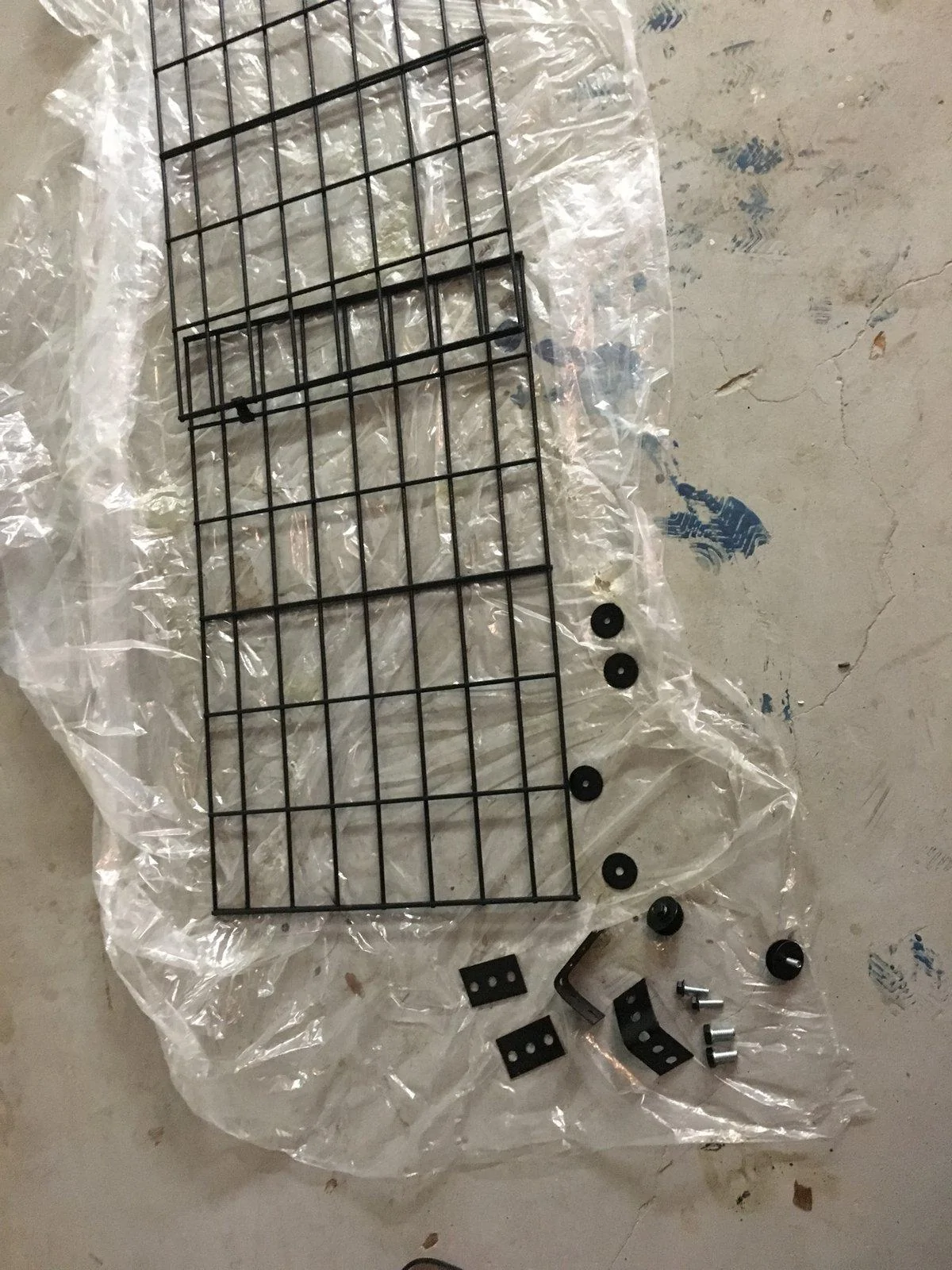

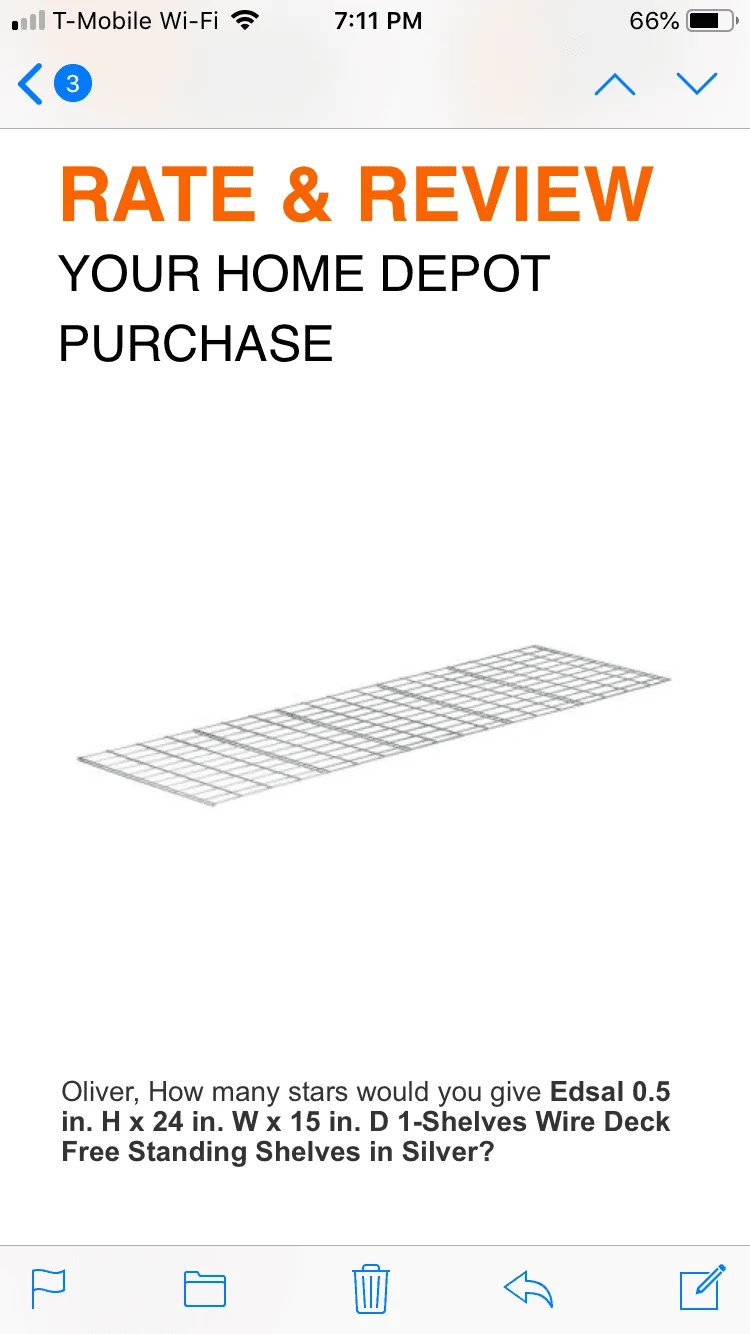

Here’s the shelving I bought, Home Depot 24” x 15” wire shelf



Sponsored

Sespe

Well-Known Member
Joined
Sep 17, 2019
Threads
9
Messages
247
Reaction score
498
Location
California
Vehicle(s)
Sport S
Occupation
Retired Firefighter
Makes sense, and gives me a lot of ideas. Thanks!


Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
73
Messages
838
Reaction score
640
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1
great job


WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,944
Reaction score
2,663
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3

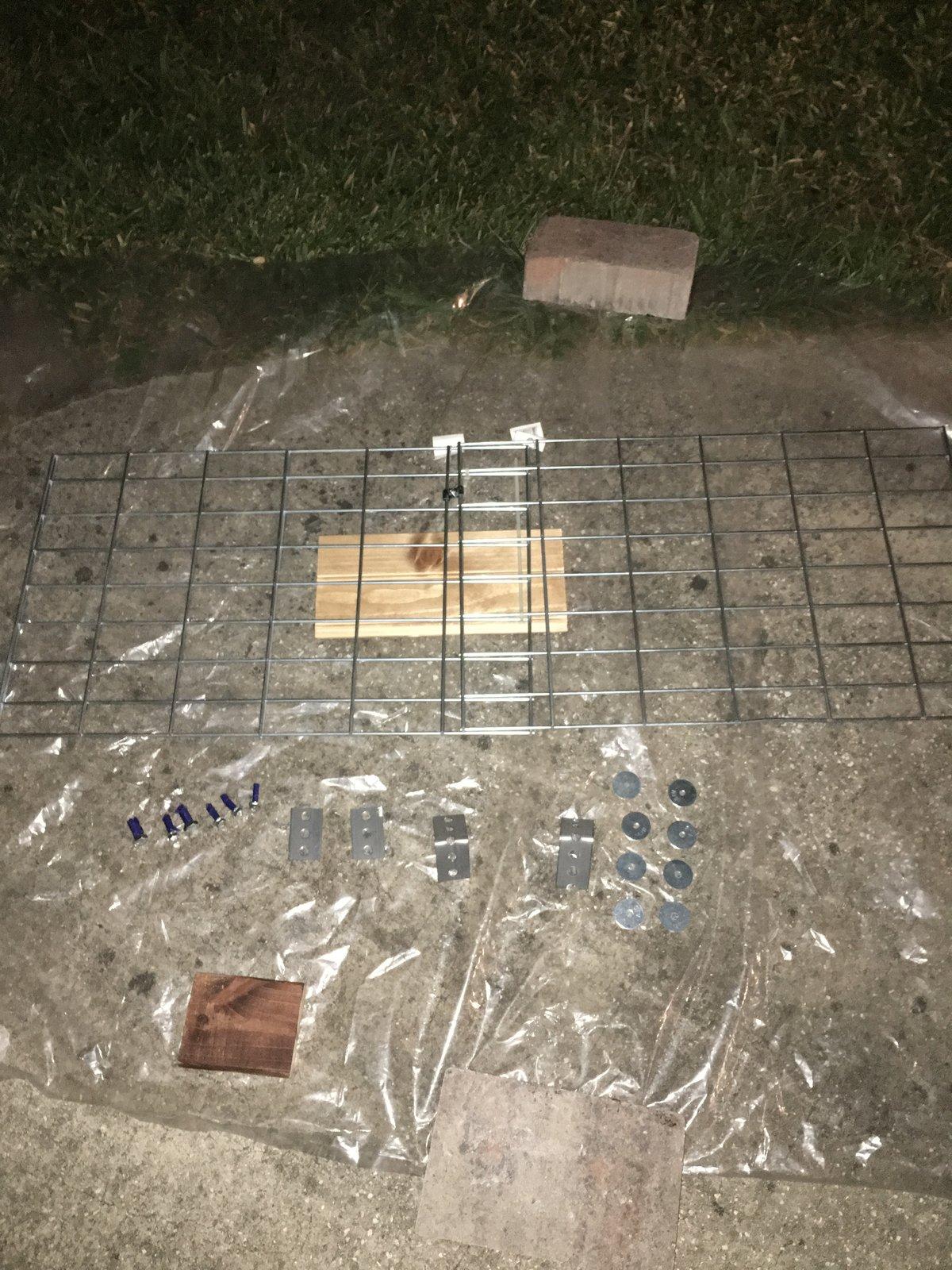

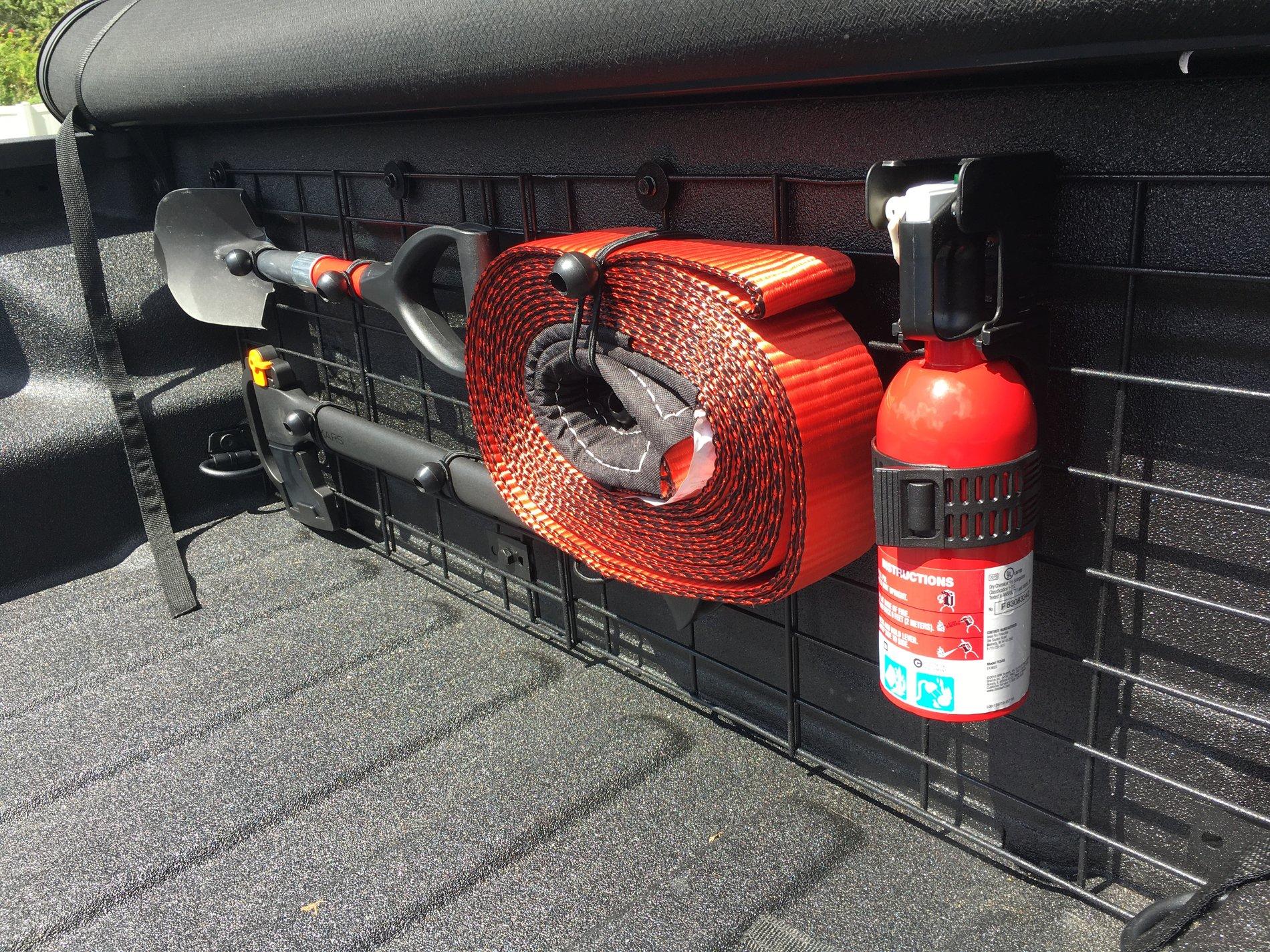

Cost me about $40 for the two panels, truck bed paint, and misc hardware. I think it came out great but doubt it would hold a high Jack.


That's a GREAT MacGyver!



I'm gonna think about this one for sure :ontheloo:


WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,944
Reaction score
2,663
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3

SgtMajTomahawk

Well-Known Member
First Name
Lawren
Joined
Feb 22, 2020
Threads
2
Messages
97
Reaction score
163
Location
Clearwater Fl
Vehicle(s)
2020 Jeep Gladiator
Wonder if you can cut one of those in half and put a square on each side behind the wheel well.


Sponsored

Roguesalt

Well-Known Member
First Name
Larry
Joined
Mar 27, 2020
Threads
20
Messages
176
Reaction score
107
Location
Fredericksburg, VA
Vehicle(s)
2020 Gladiator Sport S
Occupation
Thought Provoker
Vehicle Showcase
1
nice love DIY projects that work for a budget.


SwampNut

Well-Known Member
First Name
Carlos
Joined
Apr 20, 2020
Threads
21
Messages
1,588
Reaction score
1,567
Location
Peoria AZ
Vehicle(s)
2020 Gladiator Launch Edition
Occupation
Geek
Wonder if you can cut one of those in half and put a square on each side behind the wheel well.

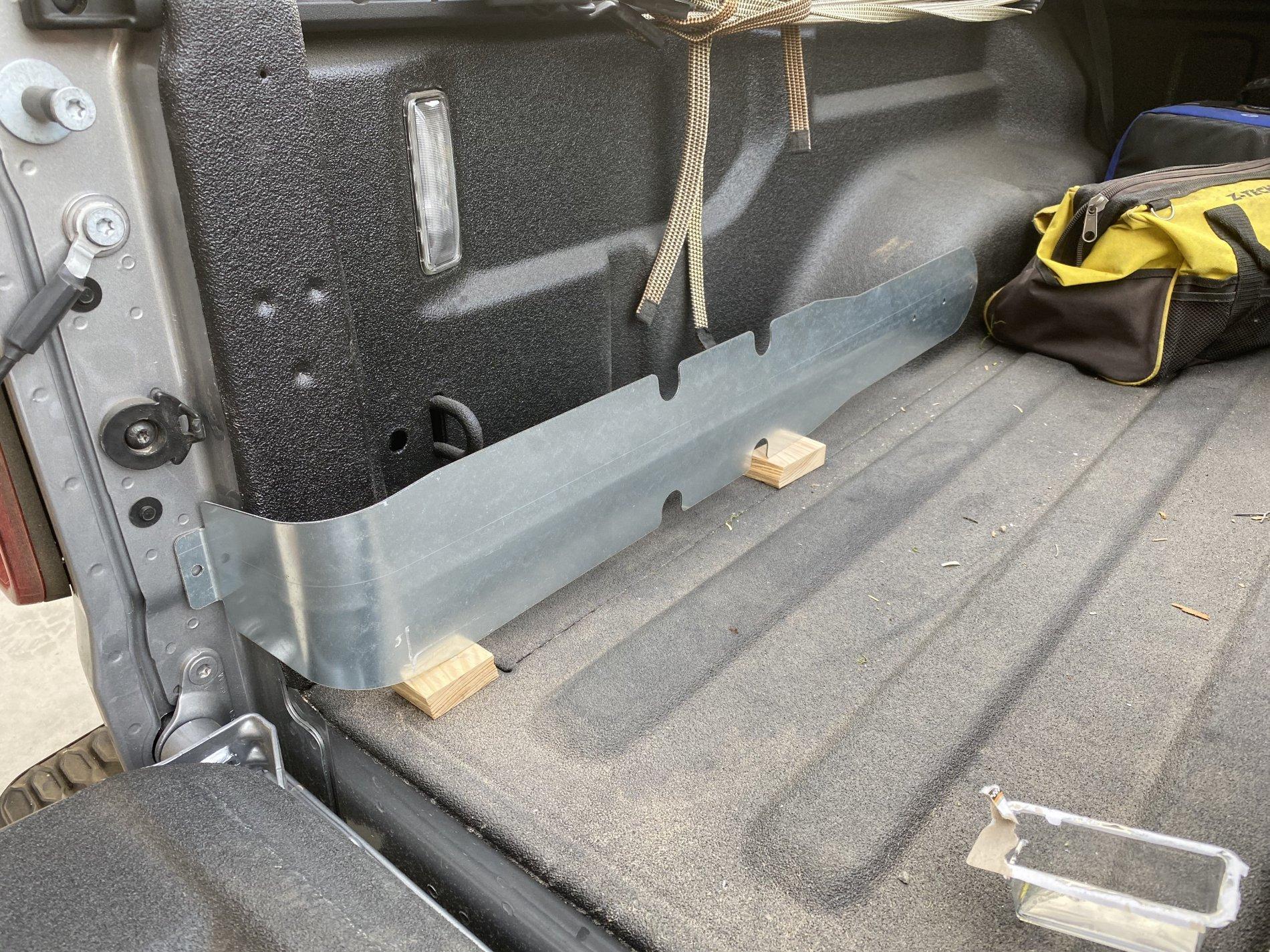

Certainly, and that's where you mount the MOLLE racks I've seen premade for sale. I had actually ordered one, but they weren't going to be making them for a month and I cancelled. I ended up doing this instead:

Jeep Gladiator Homemade molle style panel for truck bed IMG_6547


Len

Well-Known Member
First Name
Len
Joined
Aug 21, 2019
Threads
4
Messages
226
Reaction score
221
Location
Virginia
Vehicle(s)
Jeep
That's a GREAT MacGyver!

Jeep Gladiator Homemade molle style panel for truck bed IMG_6547


I'm gonna think about this one for sure :ontheloo:
I wonder if you use the heaver gauge stuff sold in the building materials section at HD or Lowe's, maybe that will hold a H-Jack?


Jabakkarabbit

Well-Known Member
First Name
Rich
Joined
Jan 10, 2020
Threads
7
Messages
71
Reaction score
79
Location
Rock Hill, SC
Vehicle(s)
2020 Jeep Gladiator Rubicon
Heading out in the morning to tackle this project.
