How can I get my axle back where it need to be?

Fluffhead

Active Member
First Name
Lloyd
Joined
Mar 6, 2021
Threads
5
Messages
27
Reaction score
6
Location
Central Alabama
Vehicle(s)
2021 Jeep Gladiator
Occupation
Truck driver

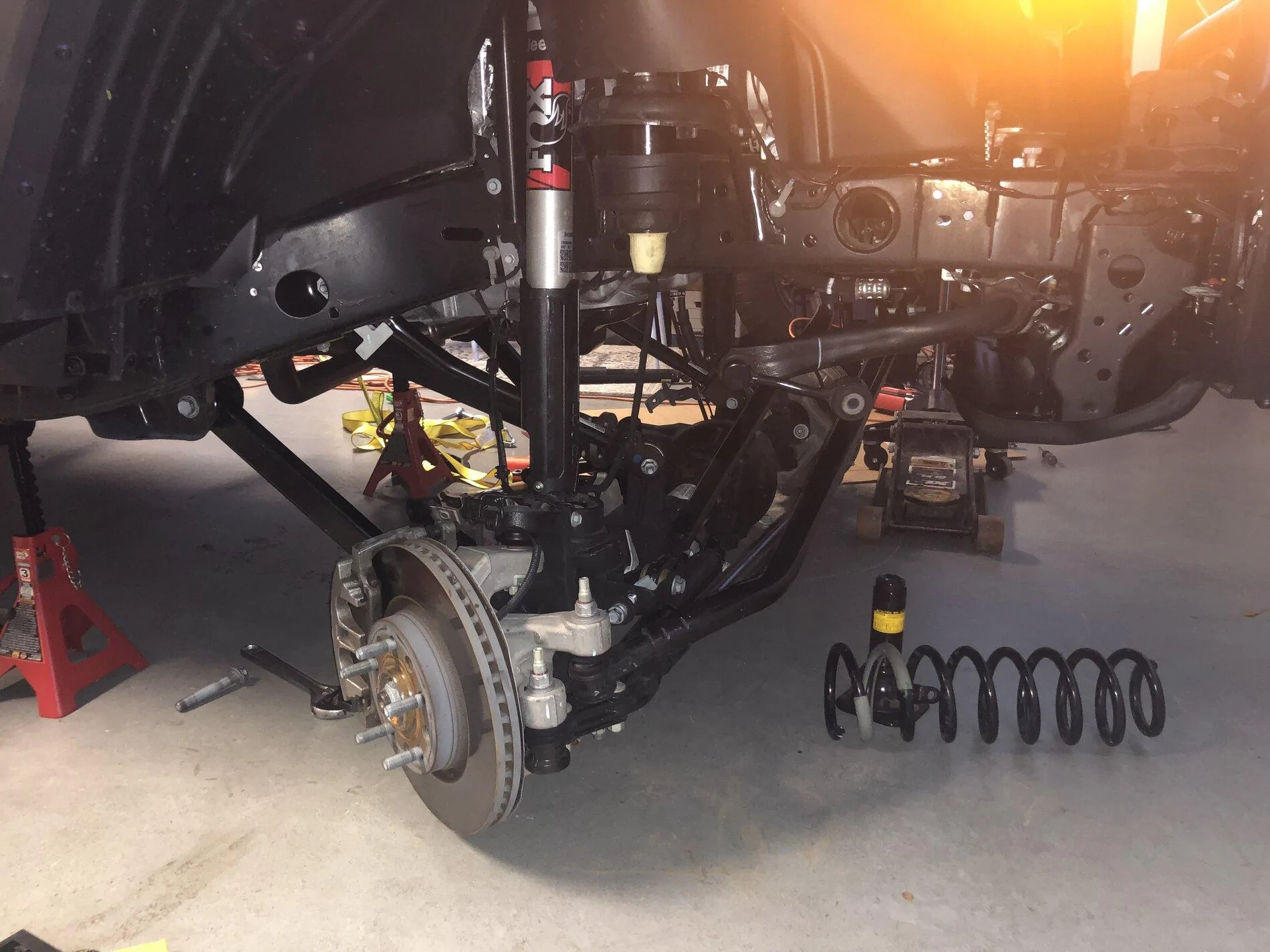

How’s it going everyone. I’m in the process of installing rubi suspension on my sport. I’m also swapping my lca’s for the MOPAR 2” lift kit ones. The problem is my axle has rolled/ shifted forward a little. I removed both the lca’s and it happened. Don’t think I should of done that. Now I can’t get the axle back where it needs to be.

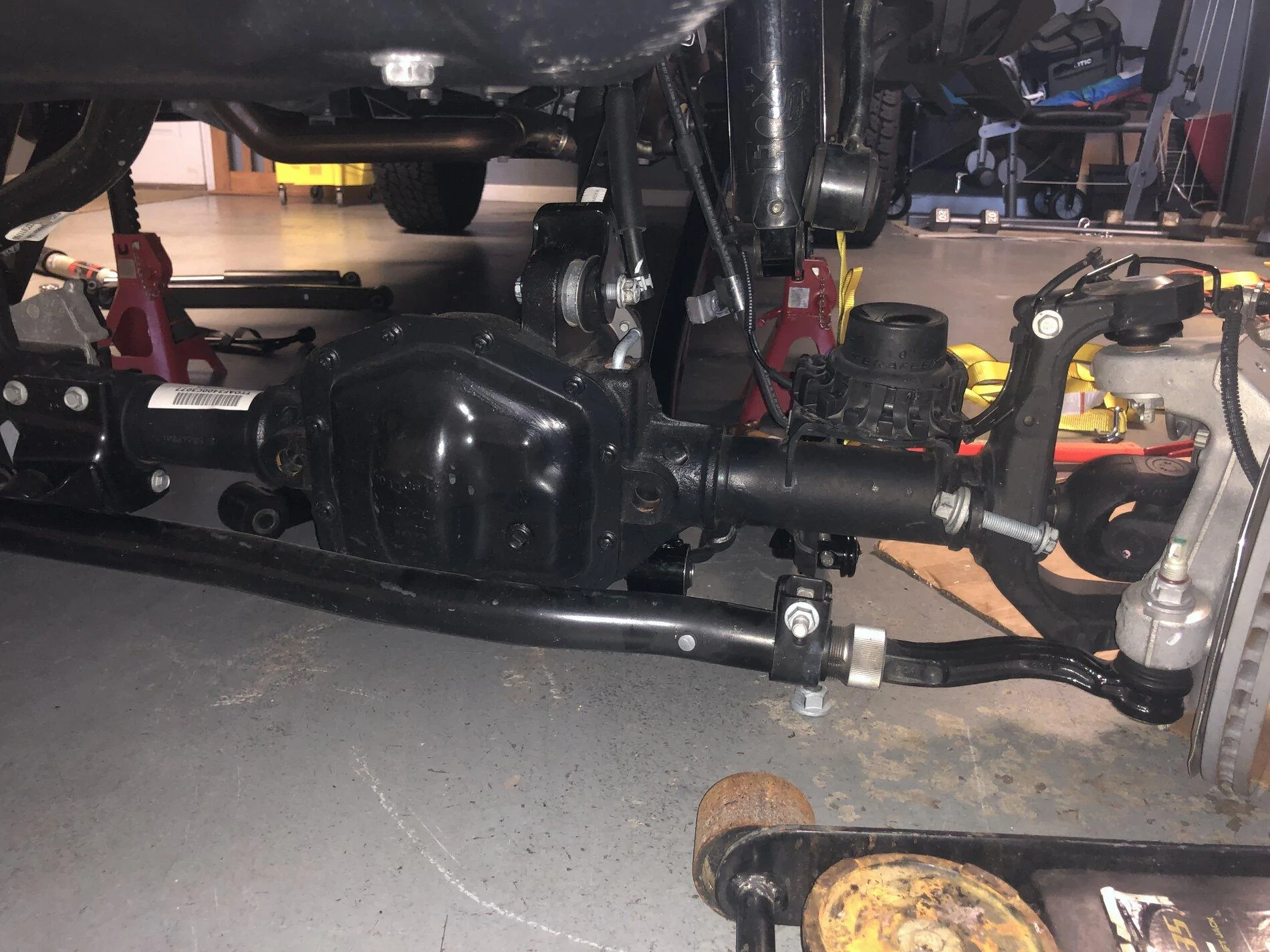

I have both tires off, Jeep on jack stands, and the axle is pretty much on the floor.
Hoping someone can point me in the right direction. Thanks







Sponsored



Sleighman

Well-Known Member
First Name
John
Joined
Jan 25, 2021
Threads
3
Messages
141
Reaction score
299
Location
Florida
Vehicle(s)
2021 Willys Gladiator
Occupation
Retired LEO
Vehicle Showcase
1
If this was on a rack I would say us a come a long to pull the axle but on jack stands I'm not sure if that would work.

OP
OP
Fluffhead

Fluffhead

Active Member
First Name
Lloyd
Joined
Mar 6, 2021
Threads
5
Messages
27
Reaction score
6
Location
Central Alabama
Vehicle(s)
2021 Jeep Gladiator
Occupation
Truck driver
If this was on a rack I would say us a come a long to pull the axle but on jack stands I'm not sure if that would work.

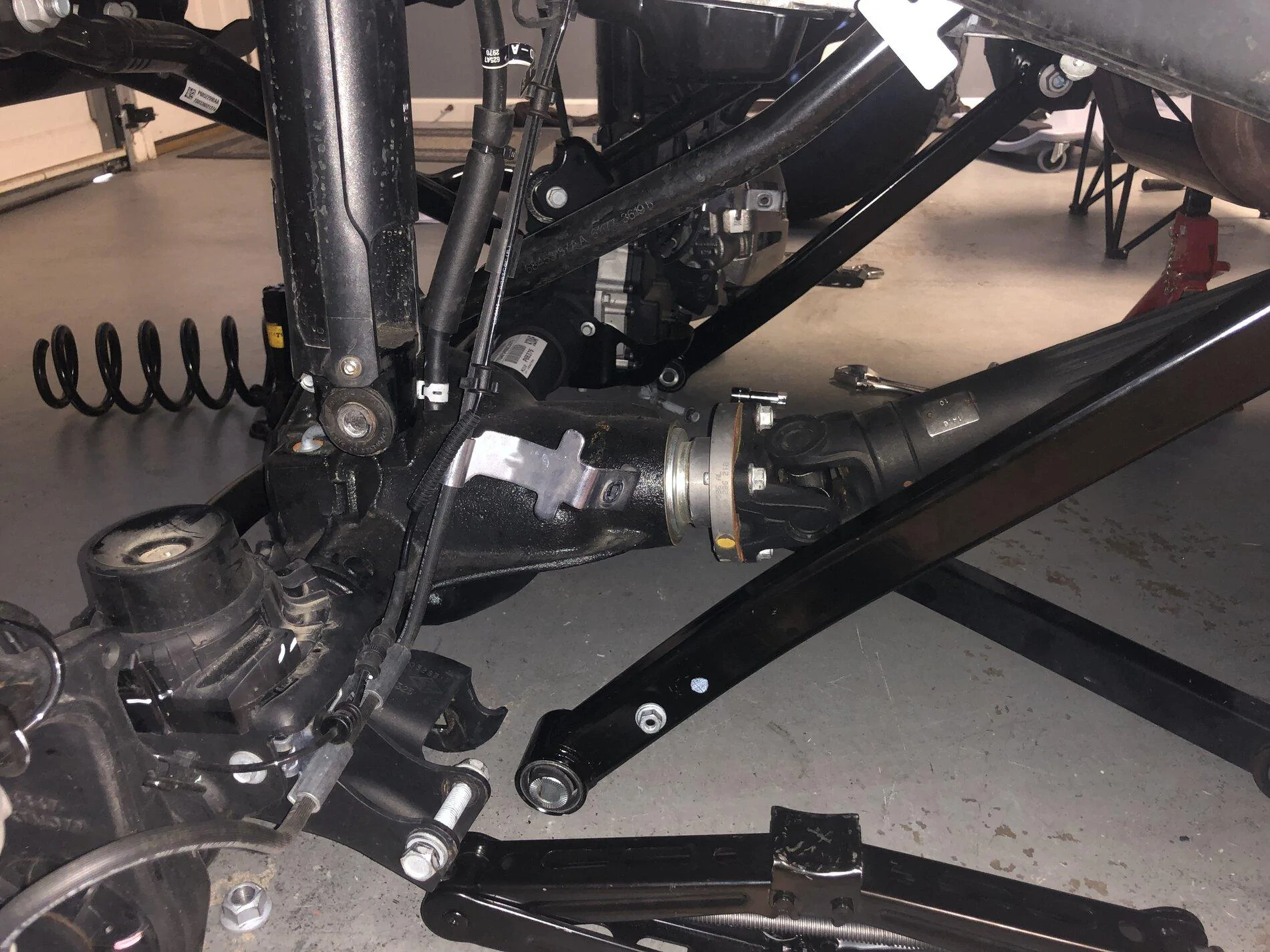

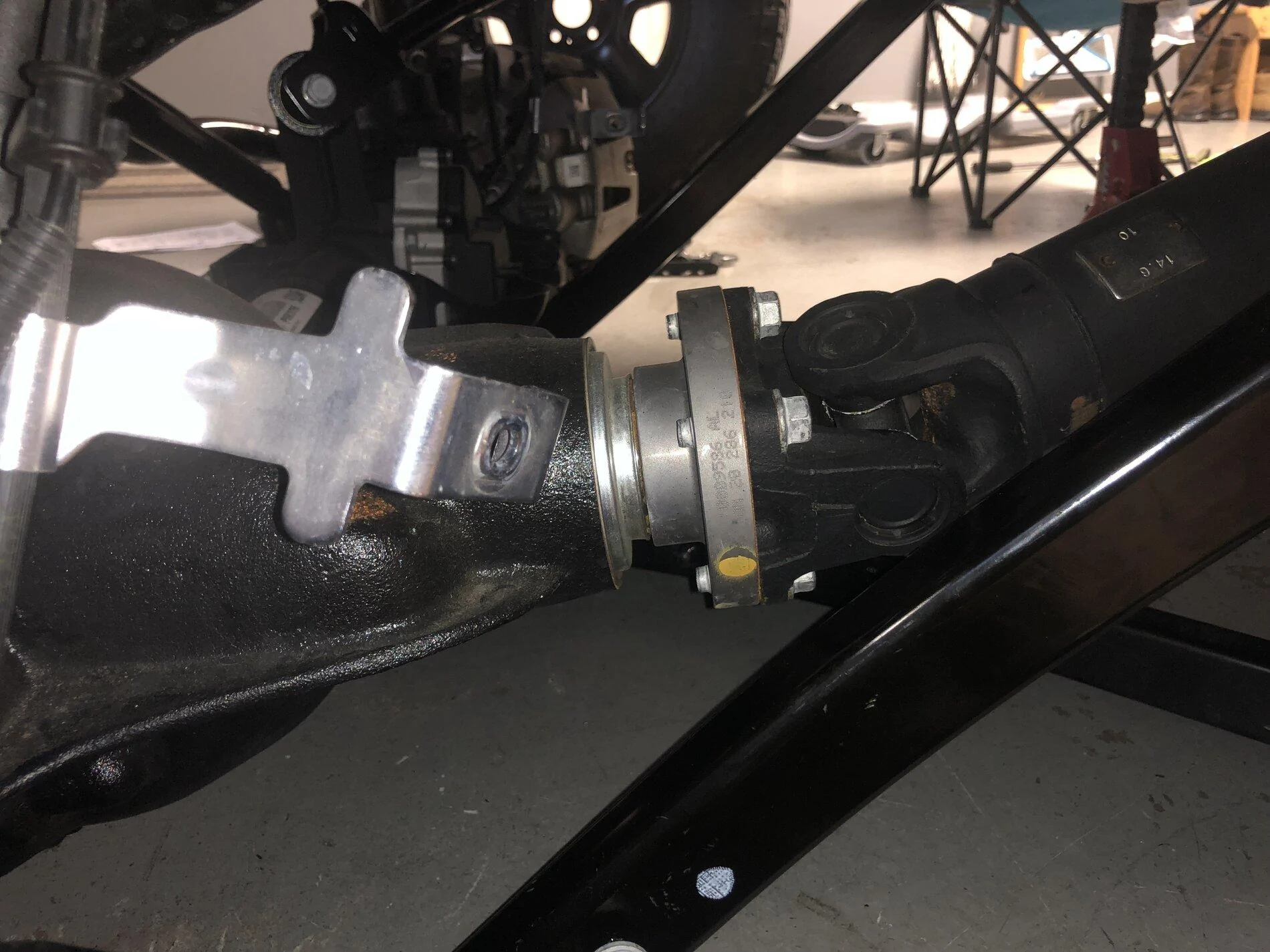

I tried a ratchet strap, it didn’t move much. Could I jack the drive shaft up? I feel like that would pull my axle back.


Sponsored

OP
OP
Fluffhead

Fluffhead

Active Member
First Name
Lloyd
Joined
Mar 6, 2021
Threads
5
Messages
27
Reaction score
6
Location
Central Alabama
Vehicle(s)
2021 Jeep Gladiator
Occupation
Truck driver
I would not apply a jack to the drive shaft.
I would not apply a jack to the drive shaft.

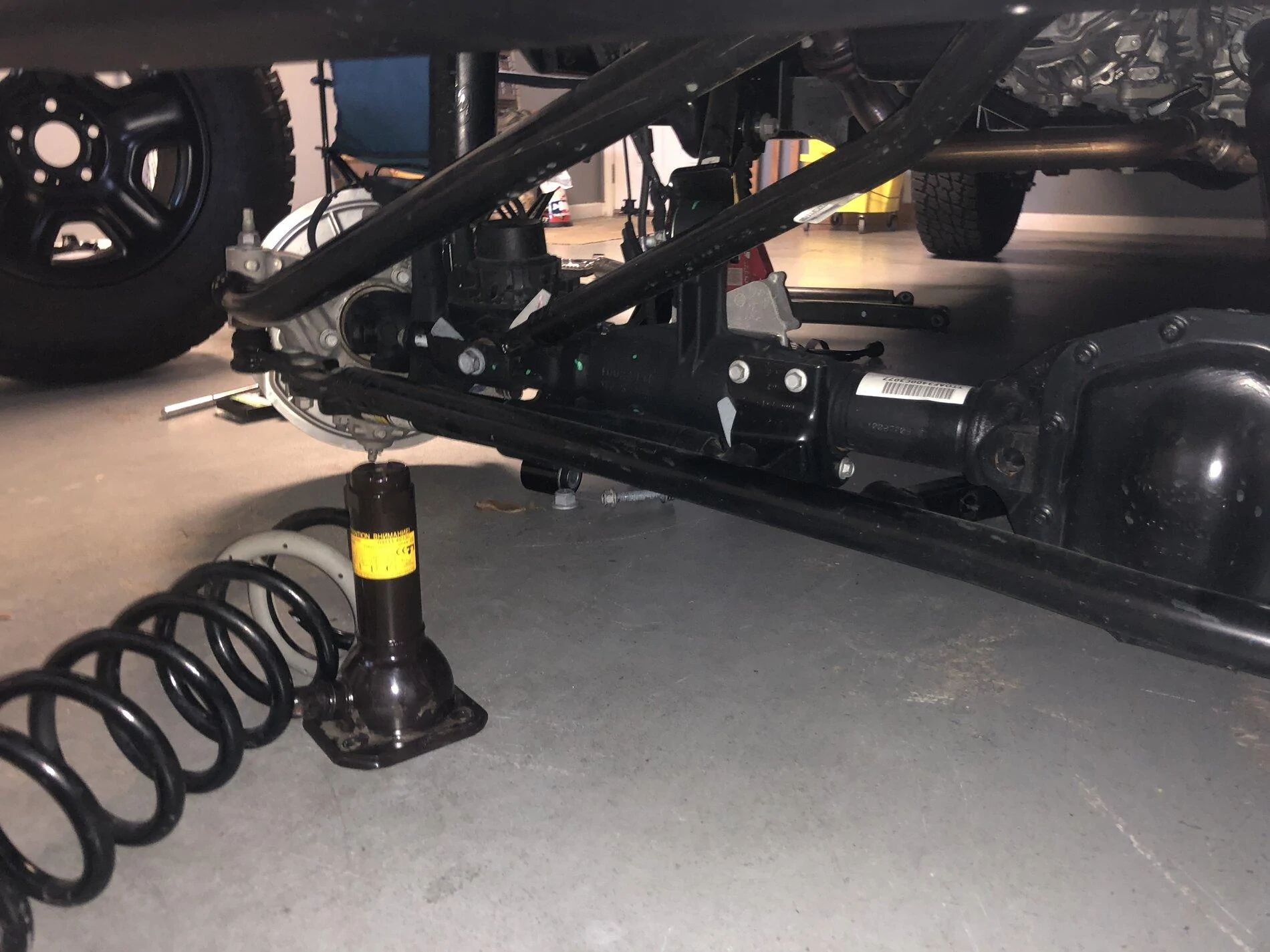

I need to rotate the axle back and it seem lifting the driveshaft will rotate it back. When I jack the pumpkin up, it doesn’t rotate back, just up. I’m at a loss.


Sleighman

Well-Known Member
First Name
John
Joined
Jan 25, 2021
Threads
3
Messages
141
Reaction score
299
Location
Florida
Vehicle(s)
2021 Willys Gladiator
Occupation
Retired LEO
Vehicle Showcase
1
I need to rotate the axle back and it seem lifting the driveshaft will rotate it back. When I jack the pumpkin up, it doesn’t rotate back, just up. I’m at a loss.
It's tricky for sure. The problem with jacking on the drive shaft is it is not designed to support weight like that. Your could mess up the drive shaft, u joint, Pinion etc..

If this was me I would disconnect everything. Get entire front assembly/axle on two floor jacks. Then move into position. The way it is now its bound up. Way to heavy to just move and twist. I know that sounds like a pain and it is but you got yourself in a real pickle.


CTFriel

Well-Known Member
First Name
Christopher
Joined
Jul 15, 2020
Threads
38
Messages
204
Reaction score
335
Location
North Carolina
Vehicle(s)
2020 JT Rubicon
Occupation
Civil Engineer
Put the bottle Jack on the pinion flange. Rotate it. It’s a Jeep they get beat on rocks. The flange can take it. Or put it on the Lower CA bracket and let err eat...

OP
OP
Fluffhead

Fluffhead

Active Member
First Name
Lloyd
Joined
Mar 6, 2021
Threads
5
Messages
27
Reaction score
6
Location
Central Alabama
Vehicle(s)
2021 Jeep Gladiator
Occupation
Truck driver
I just finished up. The rears were much easier.
On the front axle, I put a tire back on and was able to move the axle back to where I needed it.
I gained nearly 2” with this rubi eco swap. Thanks for y’all’s input.
