(Summary at the bottom: Overall rating: 8/10: Feel free to ask any questions!)

The day has arrived, I've lost my marbles and cut open my truck with an angle grinder!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9324.JPG


Now I have my reasons for this, as I'll explain bellow. It was so I could do this!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9345.JPG


------------------------------------------------------------------------------------

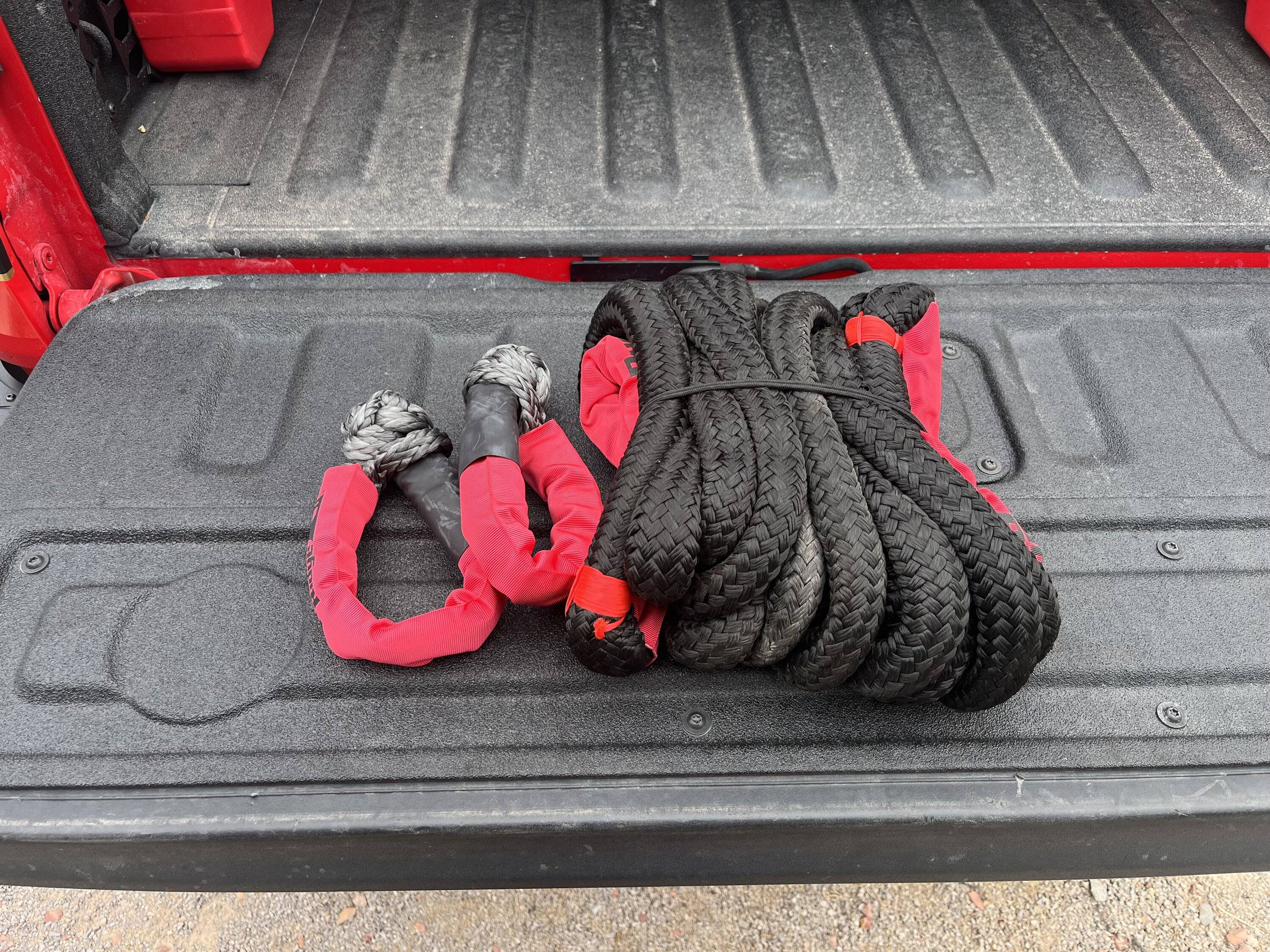

I have a small collection of recovery gear that I use semi-regularly, especially when the weather gets bad. 90% of the time, it's locals who take their street car/truck through the desert as a "shortcut" and get stuck in the soft sand. Because of this, my most used item is my kinetic rope. It's real easy to throw it on a soft shackle, and gently remove most stuck vehicles.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9239.JPG


BUT, since it's typically used during bad weather, it tends to get muddy. This was a problem as water soaks into it, and stinks up the cab/gets the back of the seat dirty when it would get stored in the interior storage bins. I wanted to move it to the bed for these reasons, BUT, without having to unbutton it from the typical "molle panel" mount storage.

Enter the Reaper Off-Road tailgate box.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9272.JPG


I liked this idea because it would give me storage space that wouldn't compromise interior comfort/space (overhead molle mounts), and it would leave me room on my bedside molle panels for "less used" gear, but gear that I want to carry off-road. Plus, this option leaves my recovery gear more accessible than both options, and will allow me to store gear right after it's been used without worrying about getting other items dirty with mud/bog water.

Biggest downside: You have to cut open your tailgate.

Lets begin.

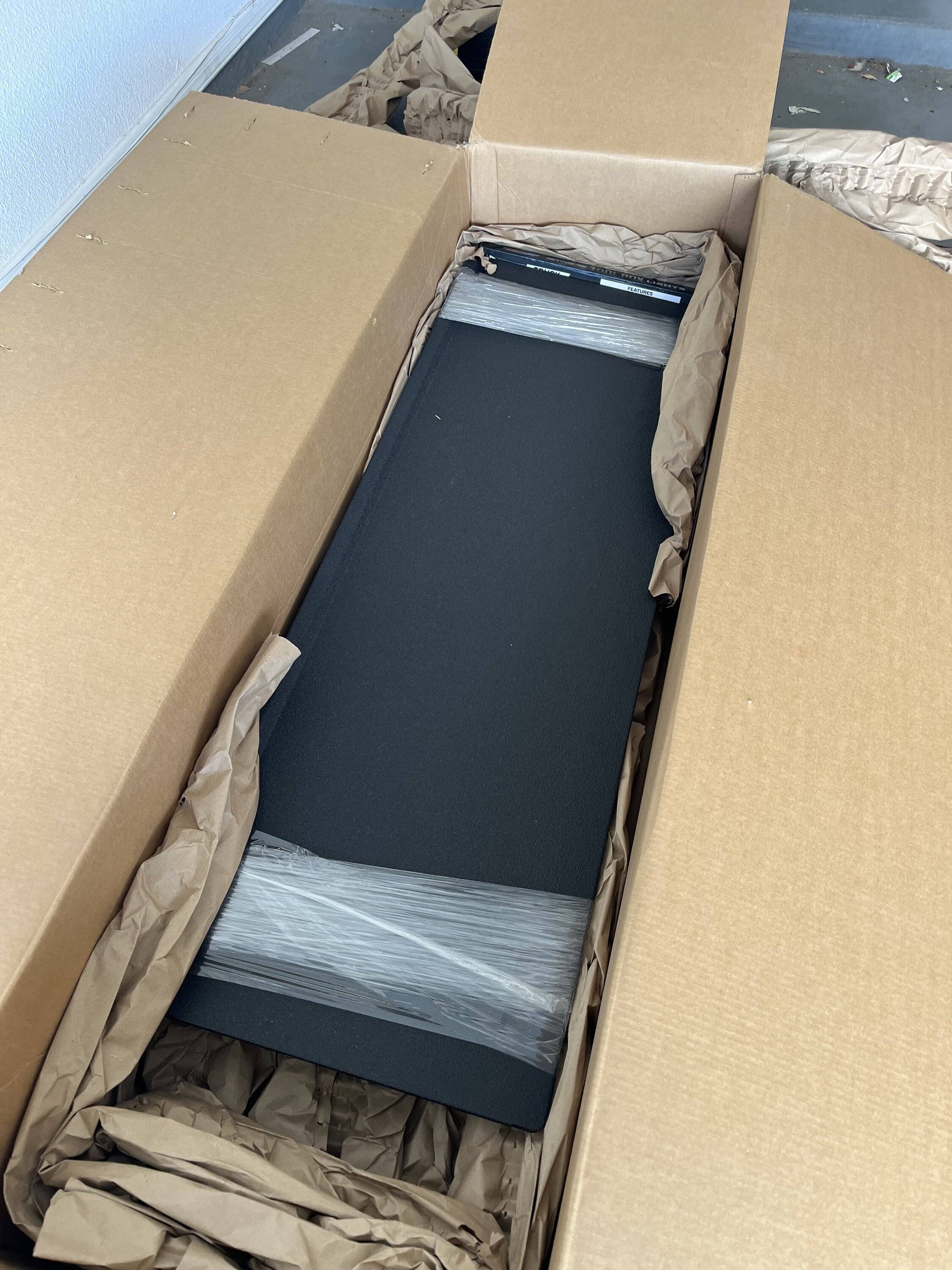

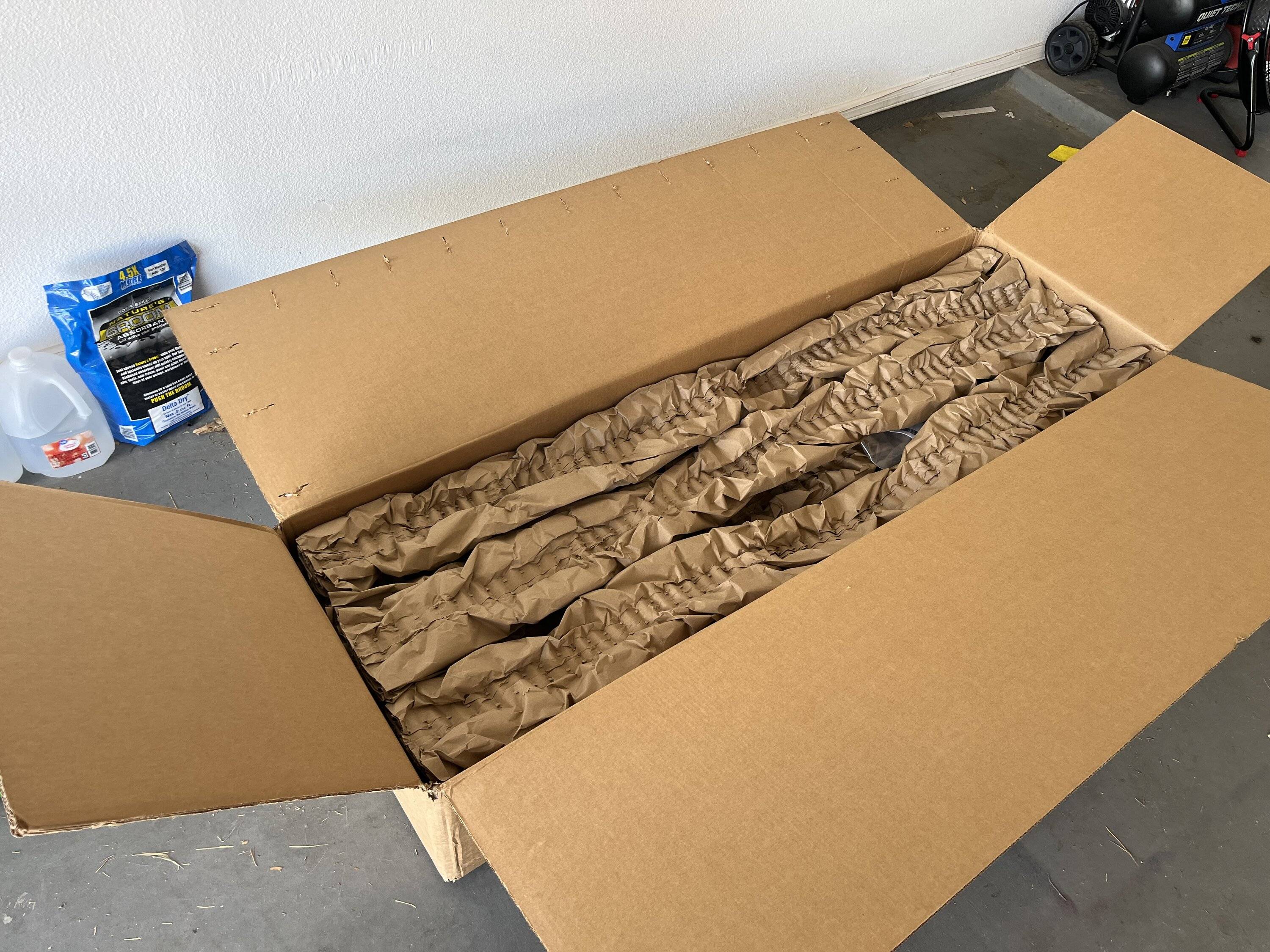

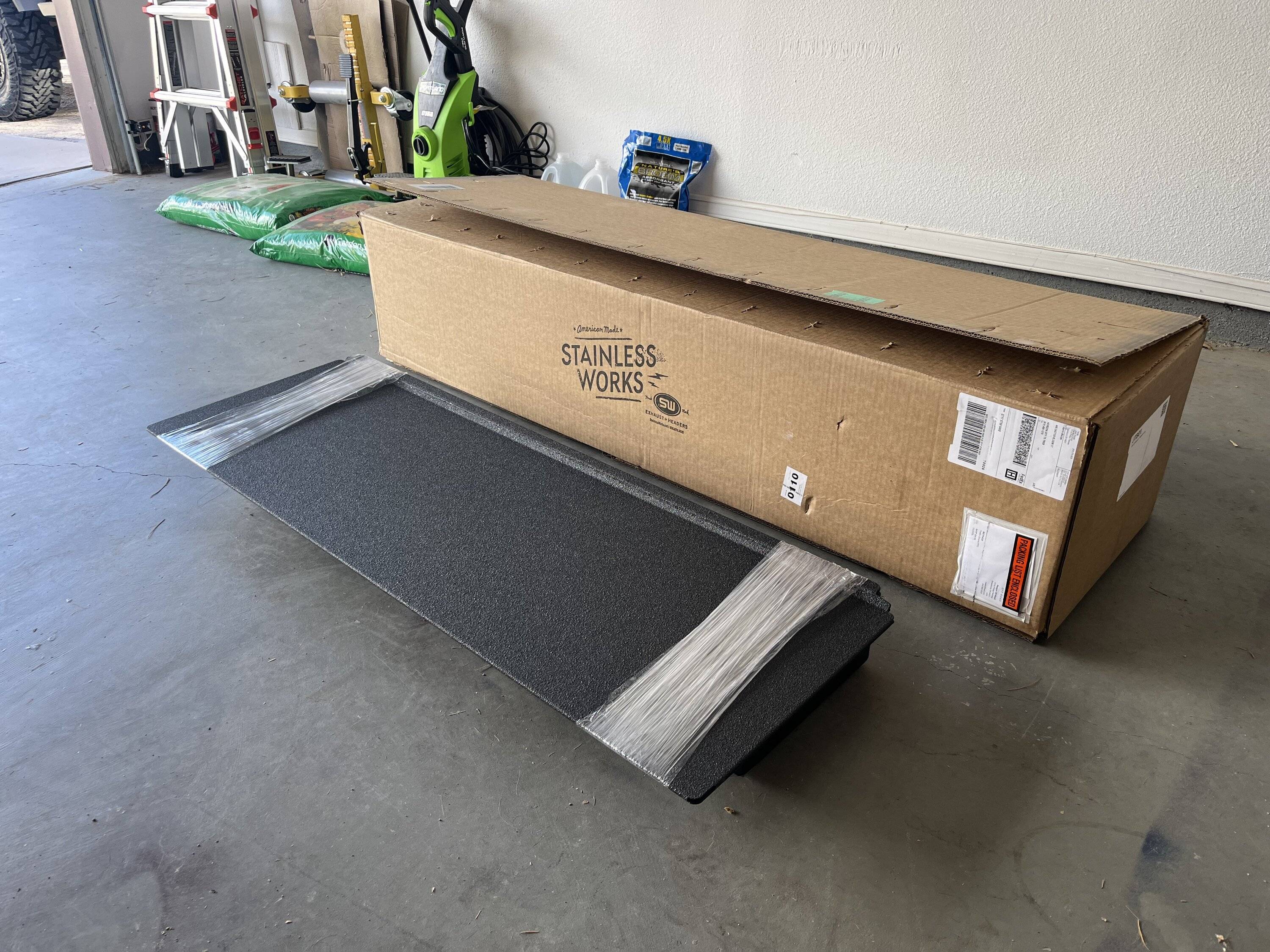

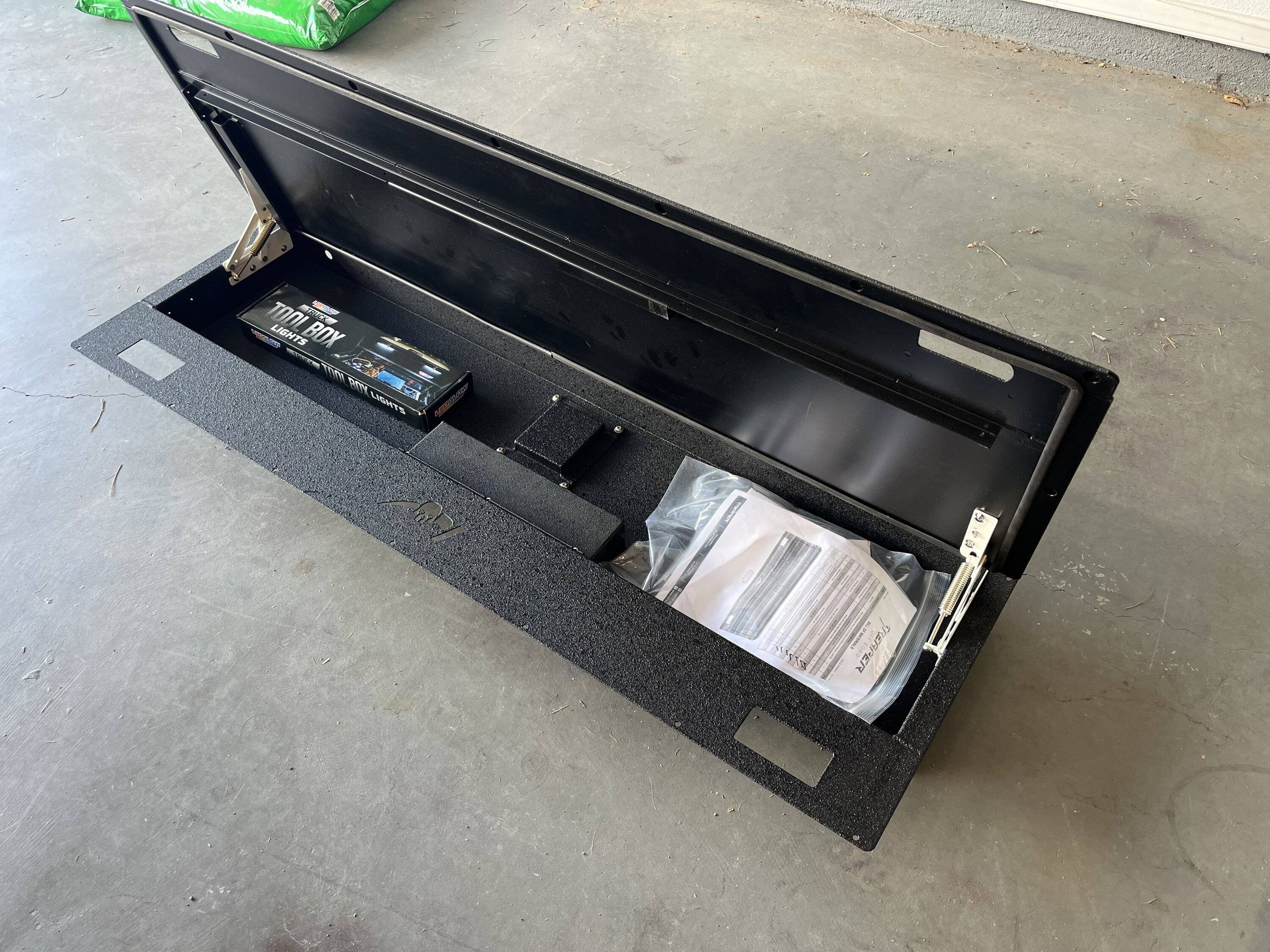

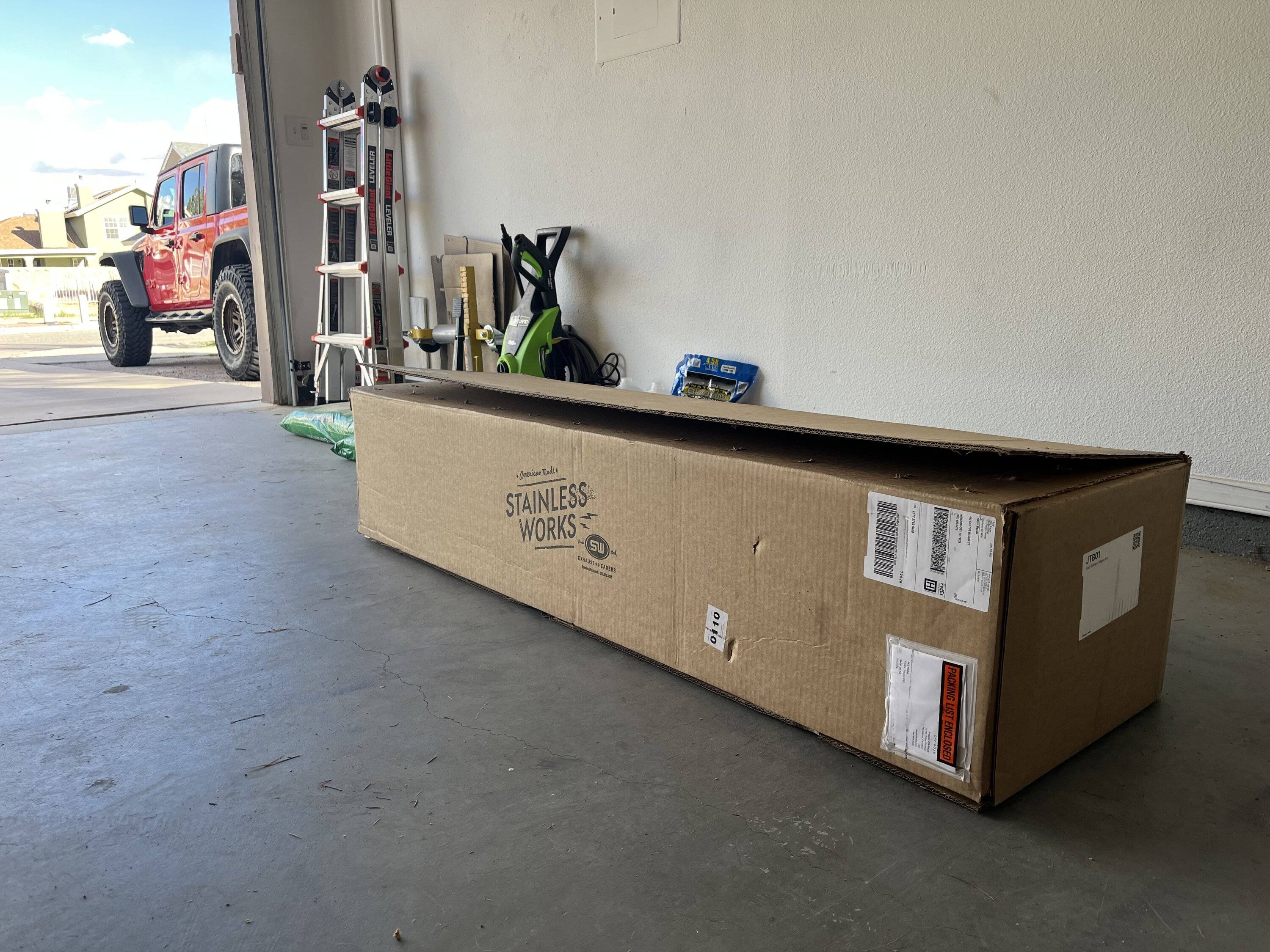

Between ordering the box and it's arrival, it took exactly 7 days. Very happy with how quickly that went, and the condition the box arrived in. It was well packed, with no missing parts or damage of any kind.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9259.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9260.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9264.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9265.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9268.JPG


Next part was sizing up the box to the truck. I wanted to get a rough idea in my head on how much I had to work with in regards to the cut profile. The reasons for this is this box uses self taping screws to secure it in place. I personally dislike self tapping screws, and opted to order my own hardware, stainless M5 button head bolts, that would be secured via RivetNuts. Thanks to the overhang on the box, I was sure that RivetNuts would work.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9277.JPG


I went ahead and put the box away, as it was delivered later in the day, so I would have to save the actual install for the next day. I took the opportunity to paint the "Accent color" plate for the logo. Painted "392 Bronze", to match my other accents for the truck.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9291.JPG

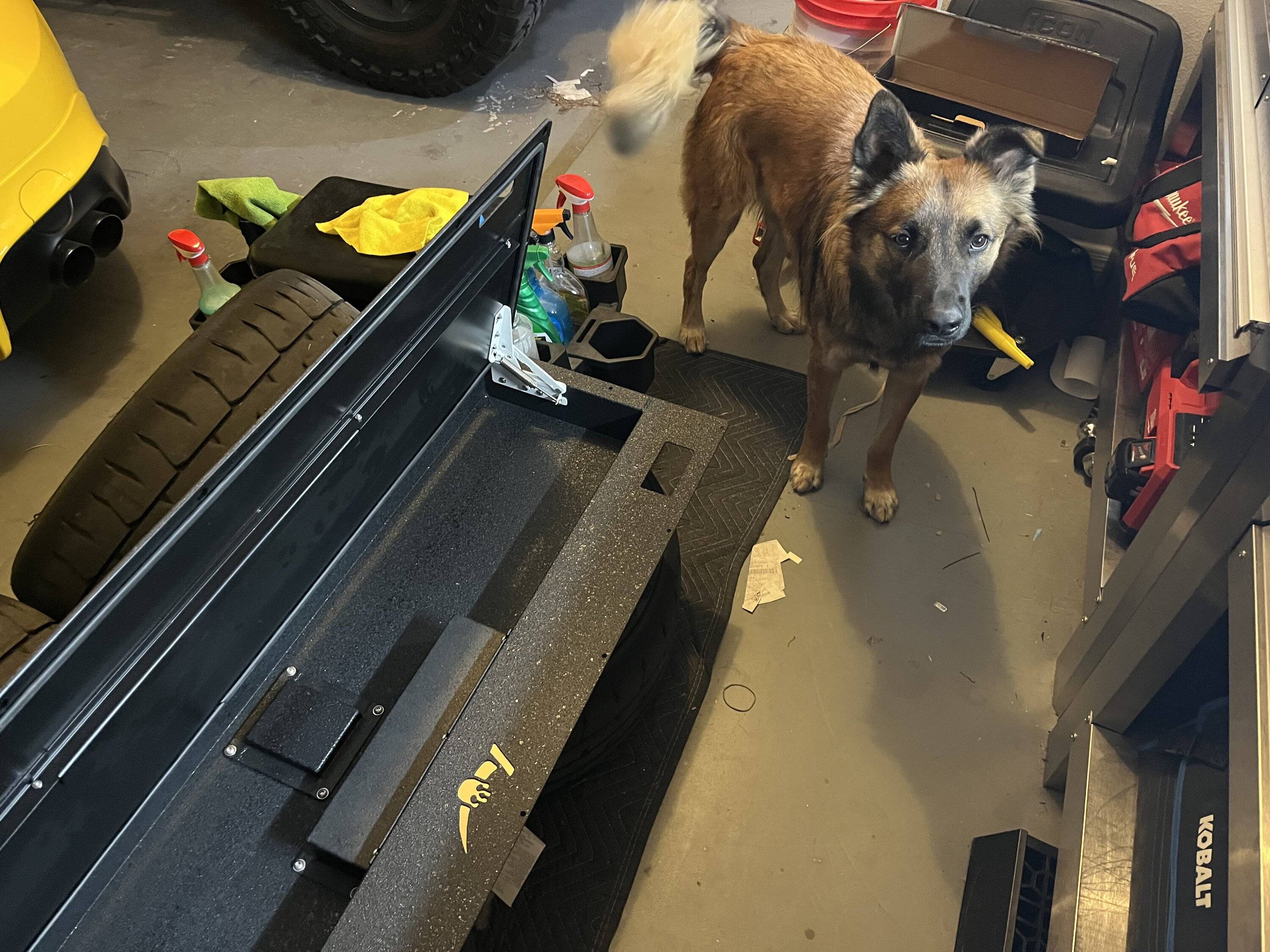

Decided to do early prep by assembling the latches and other parts beforehand. Had to use my track tires as a workbench because my actual workbench was too small for the box. I also pre-assembled the lights for the box.

Bandit, the shop supervisor, did an inspection, and approved.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9294.JPG

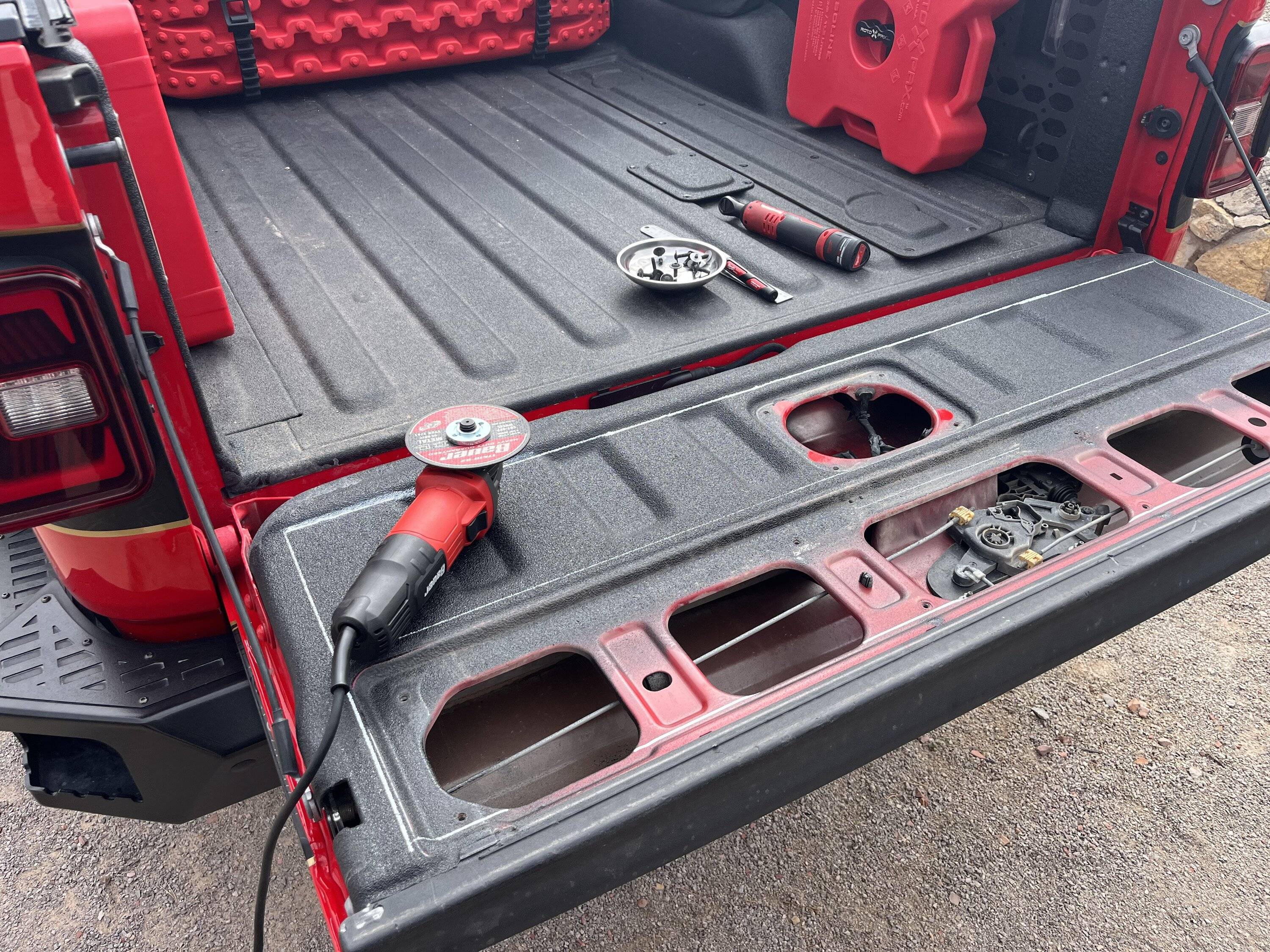

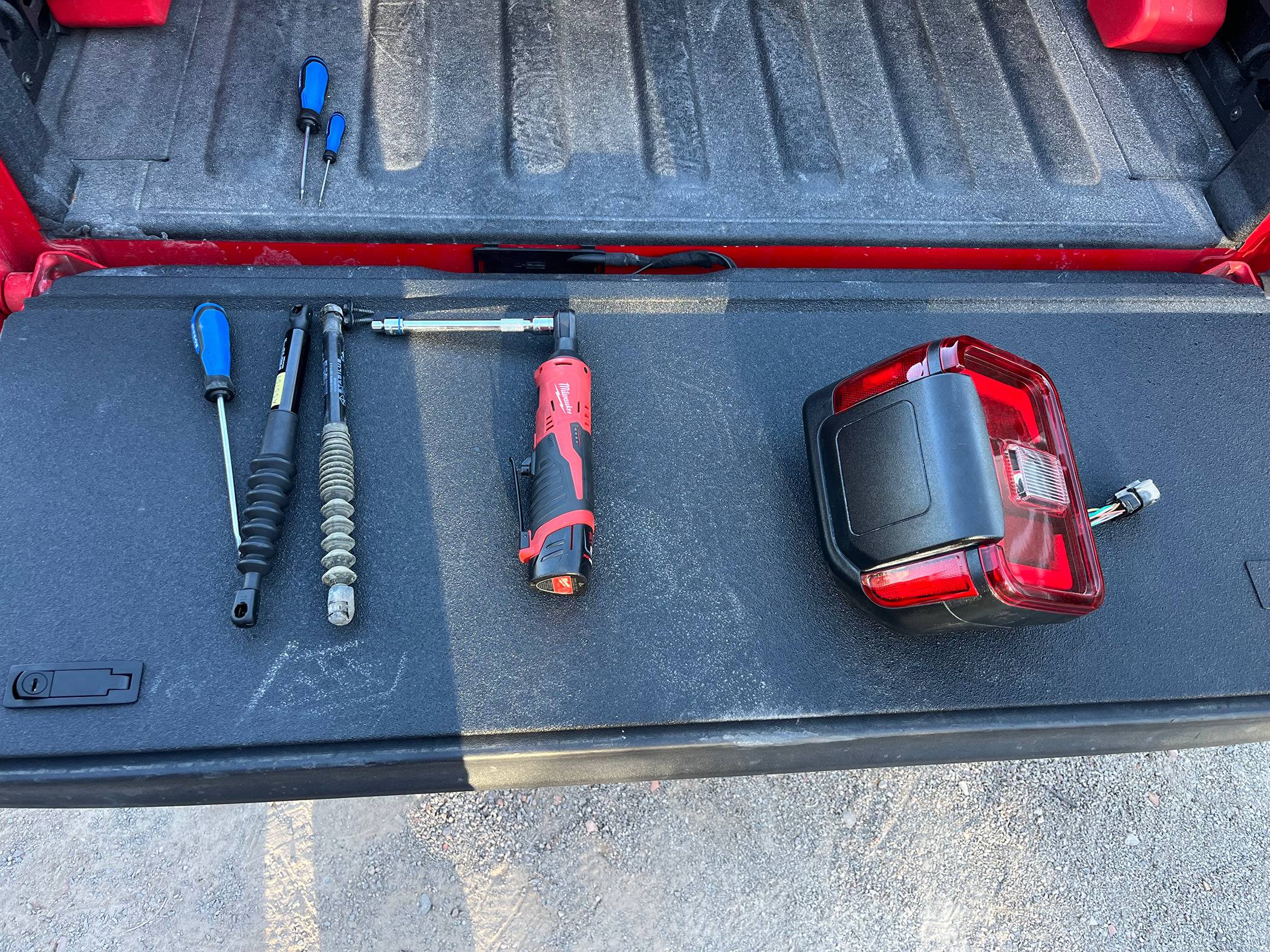

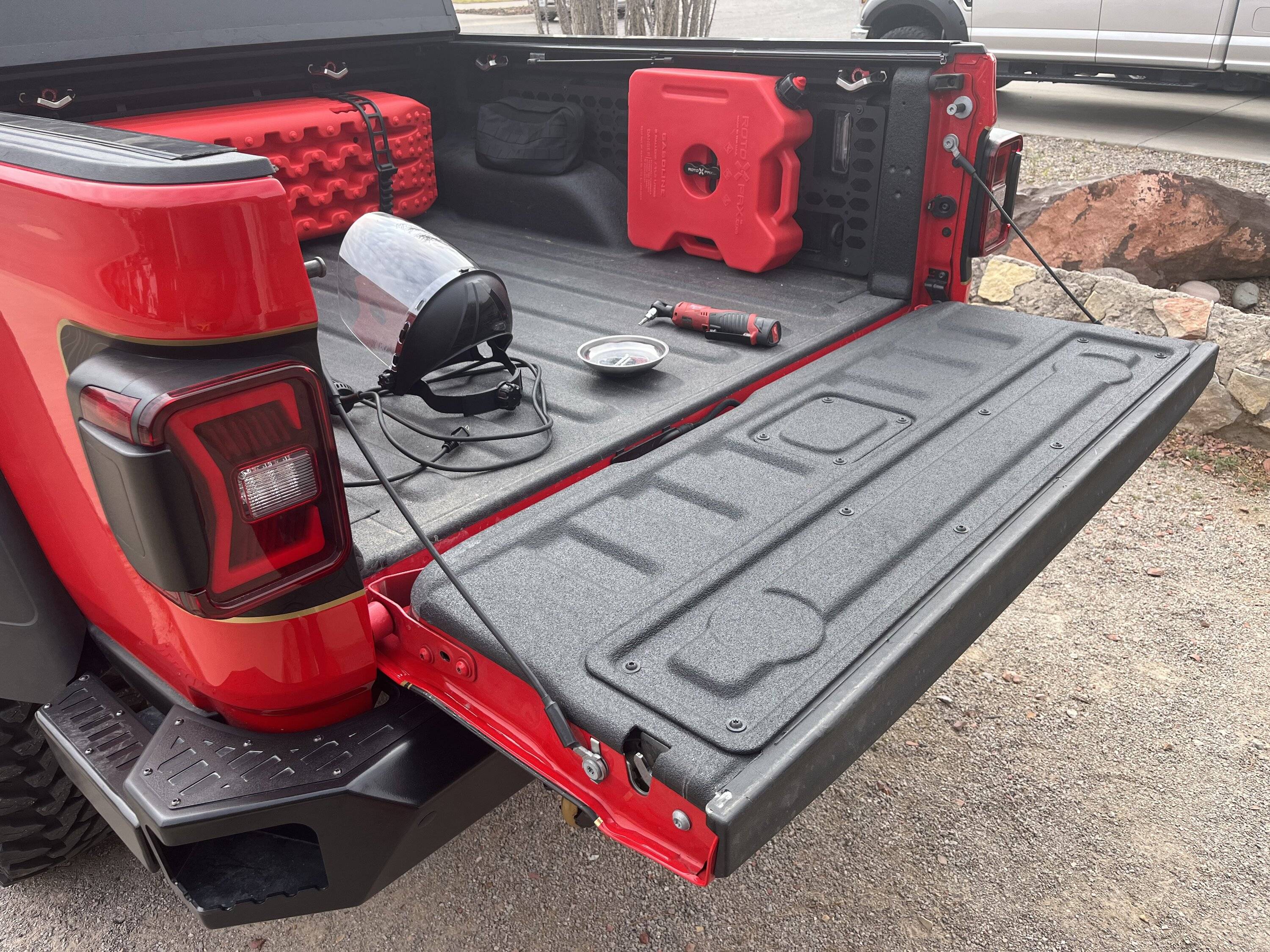

Next day was cutting day. I gathered my tools. A face shield and mask for the aluminum dust and bedliner. The cutoff wheel and ratchet for the box panels. A shop vac. And a paint marker for drawing the outline for the cut profile.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9296.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9309.JPG


My Milwaukee electric ratchet took off my panels in a snap.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9297.JPG

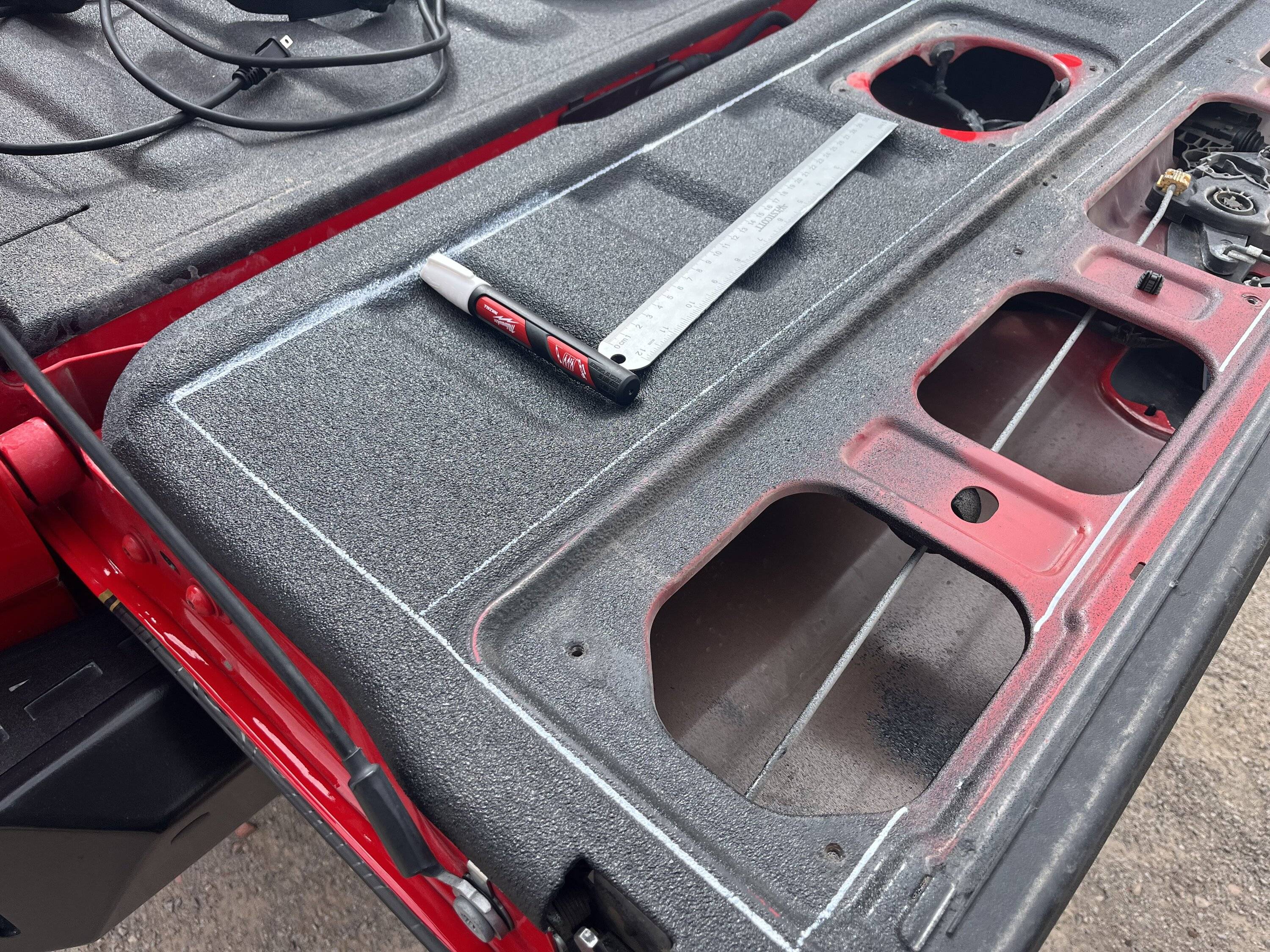

Now I just needed to outline my cut profile. I used a "Liquid Paint" pen, and a ruler as a straight edge. Outlined it per Reapers instructions, minus a few small changes. I opted to only mark the supports at the top of the tailgate vs the straight line Reaper wanted.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9302.JPG


No turning back here!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9306.JPG

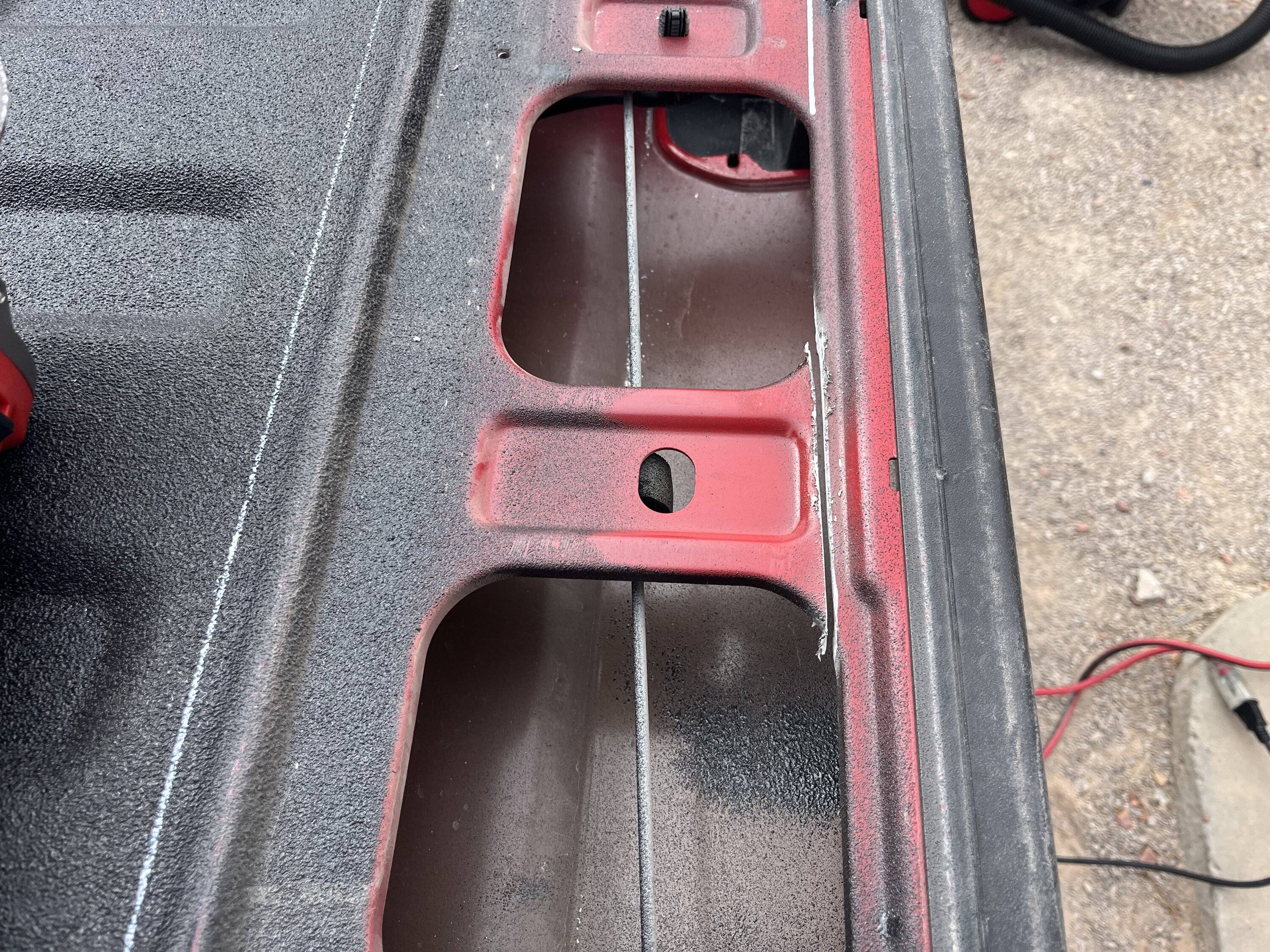

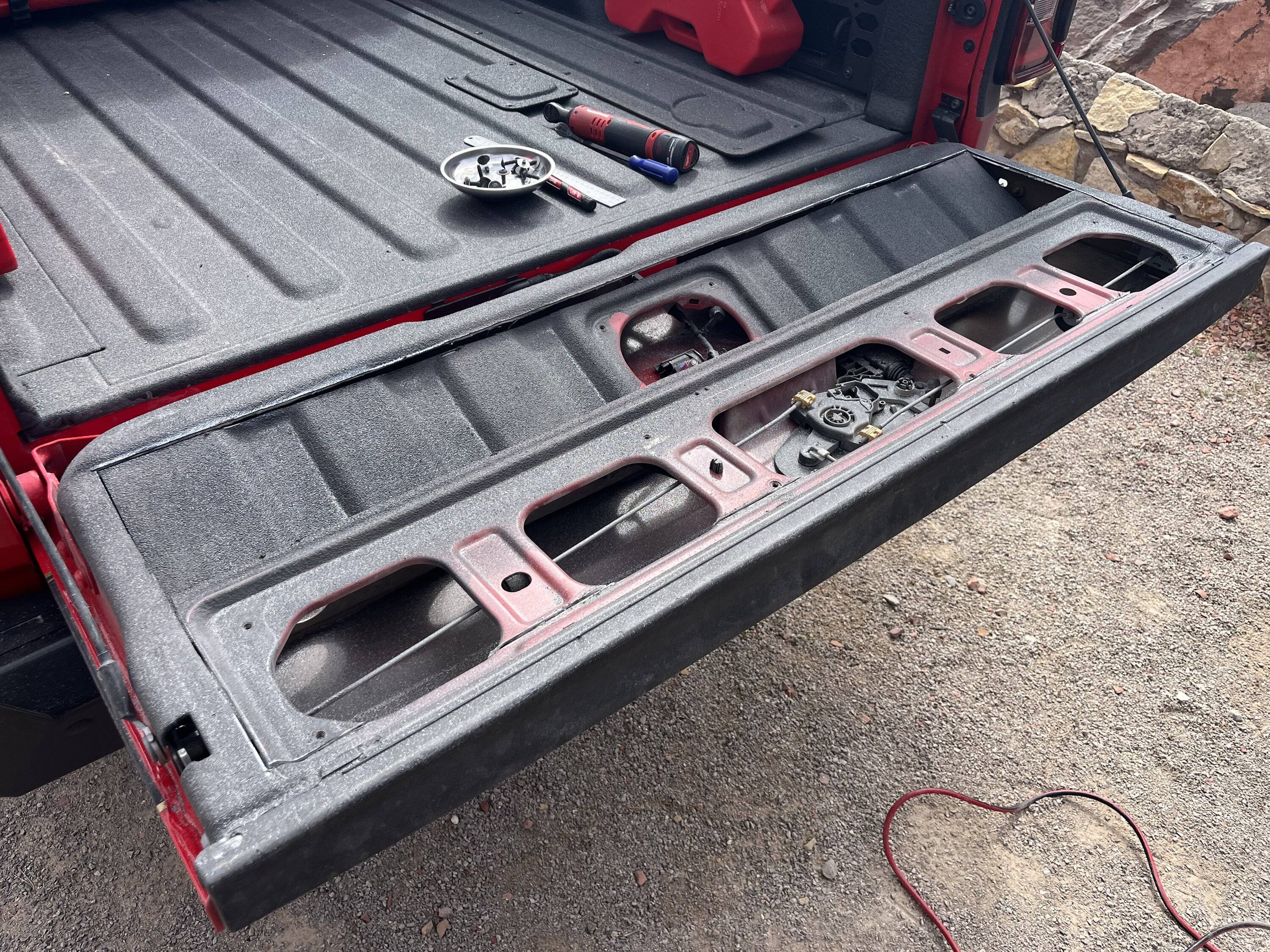

Time for the first cut! The aluminum was no match for 30,000 rpm, and cut smooth. It was very easy to maintain control of the cutoff tool and to not cut too deep. I opted to do all my cuts at once, and I even managed to keep my lines straight!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9307.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9308.JPG

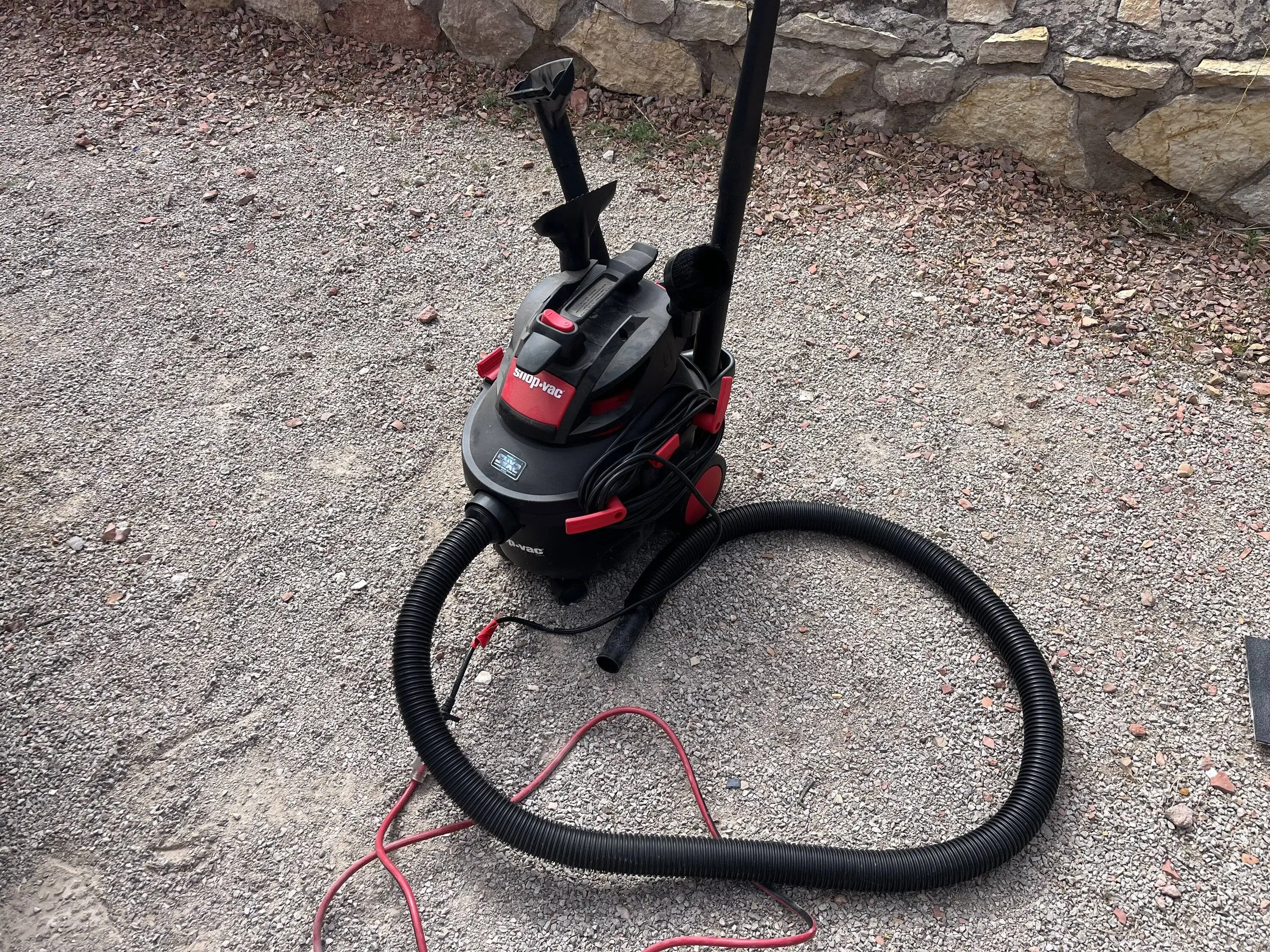

Pulled the top panel and used my shop vac to pull up all the aluminum shavings for the next step. I also grinded the edges smooth with a flap disk in between steps as necessary whenever I needed to reach into the tailgate in that area.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9311.JPG

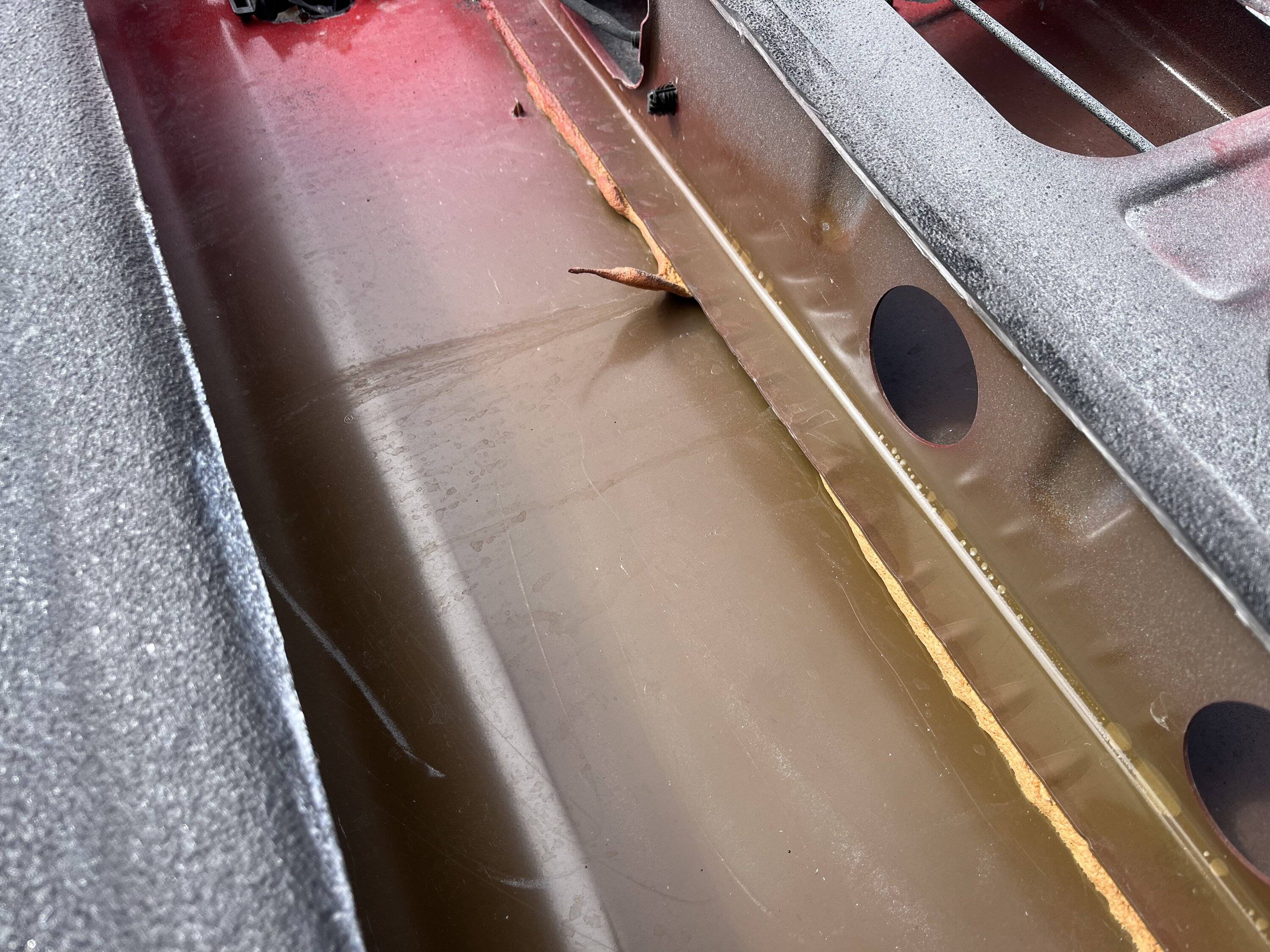

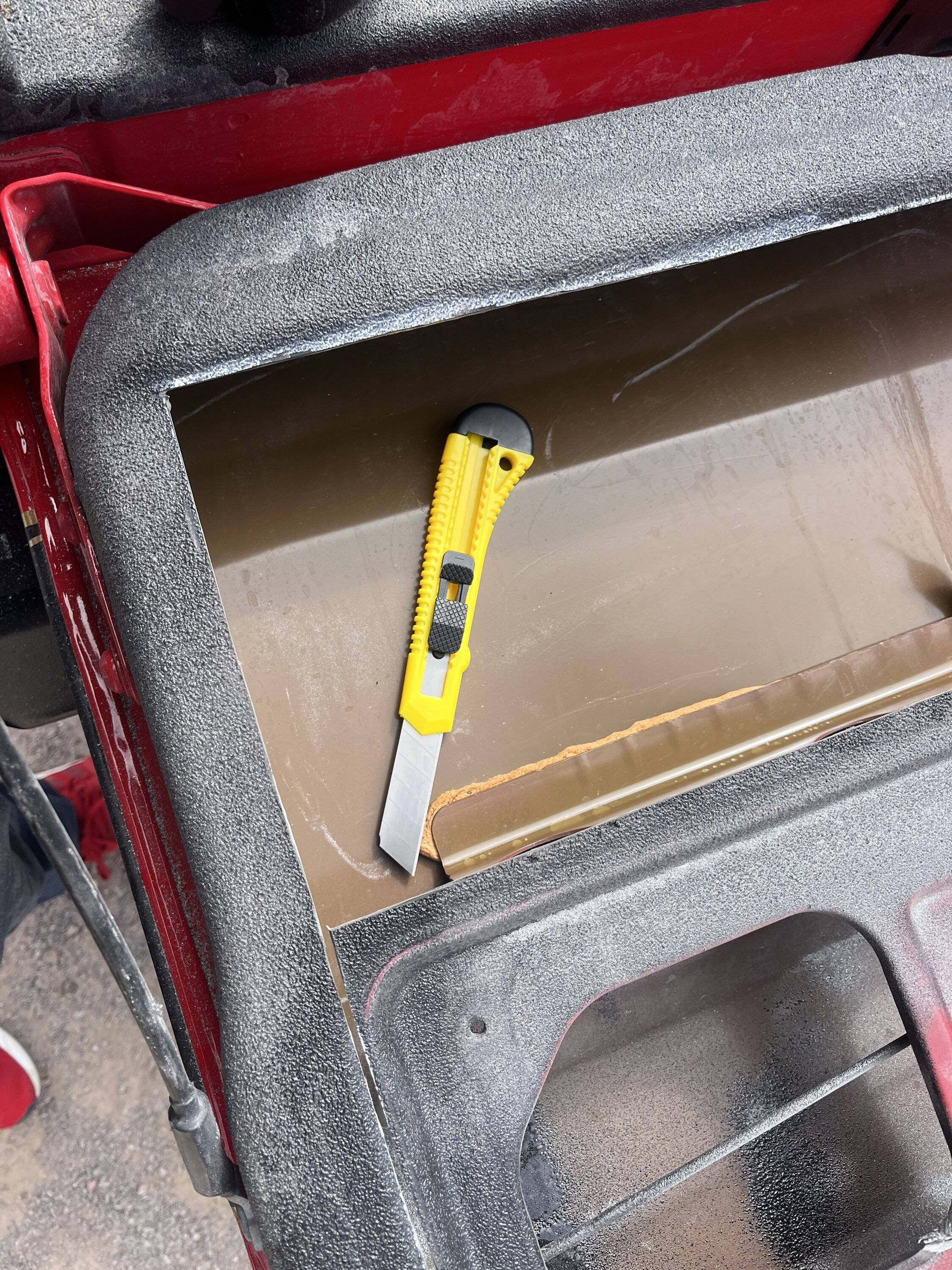

Next was to remove the foam sealant holding what was left of the tailgate skin. A flat blade knife made this easy.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9312.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9313.JPG

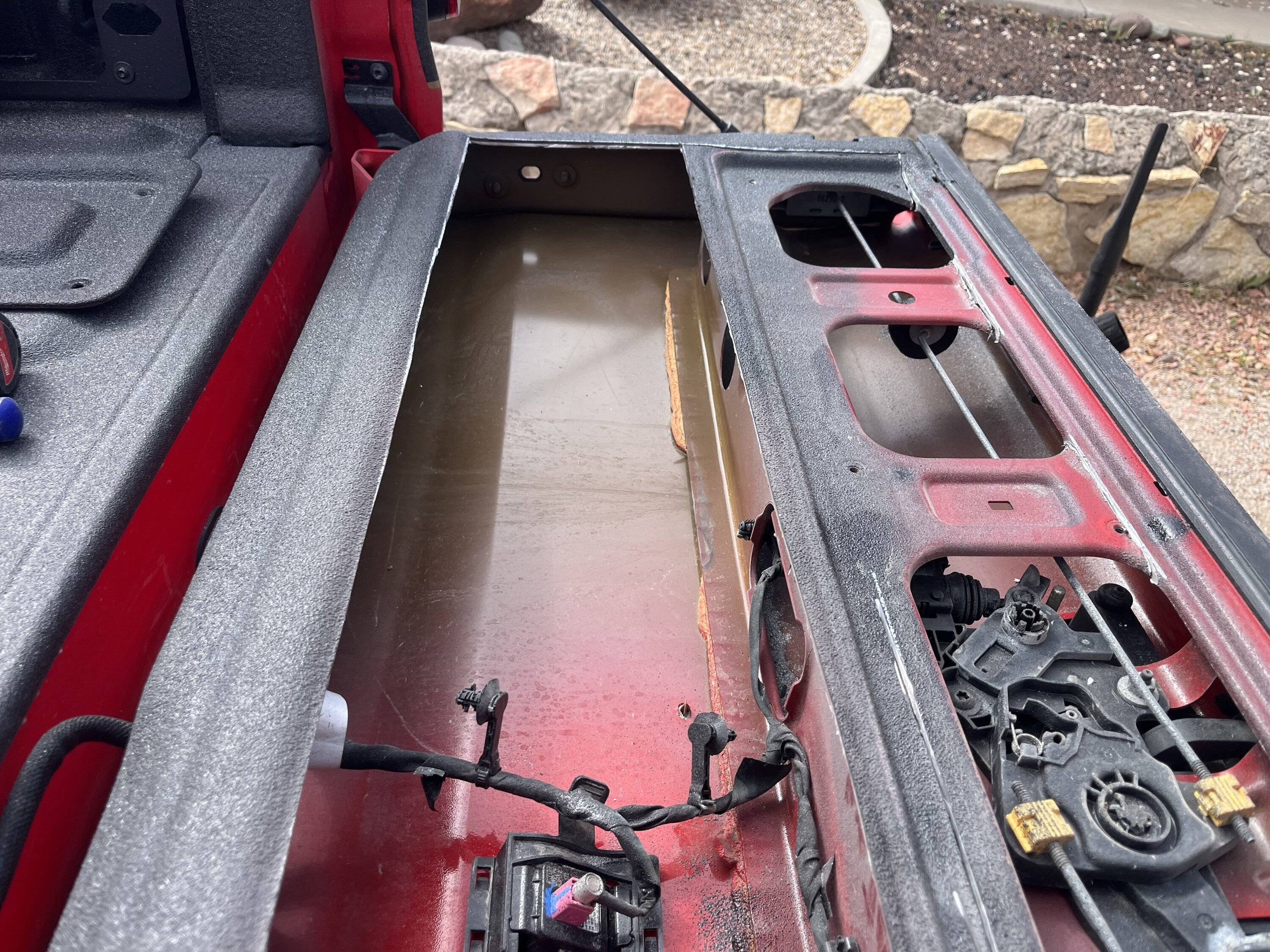

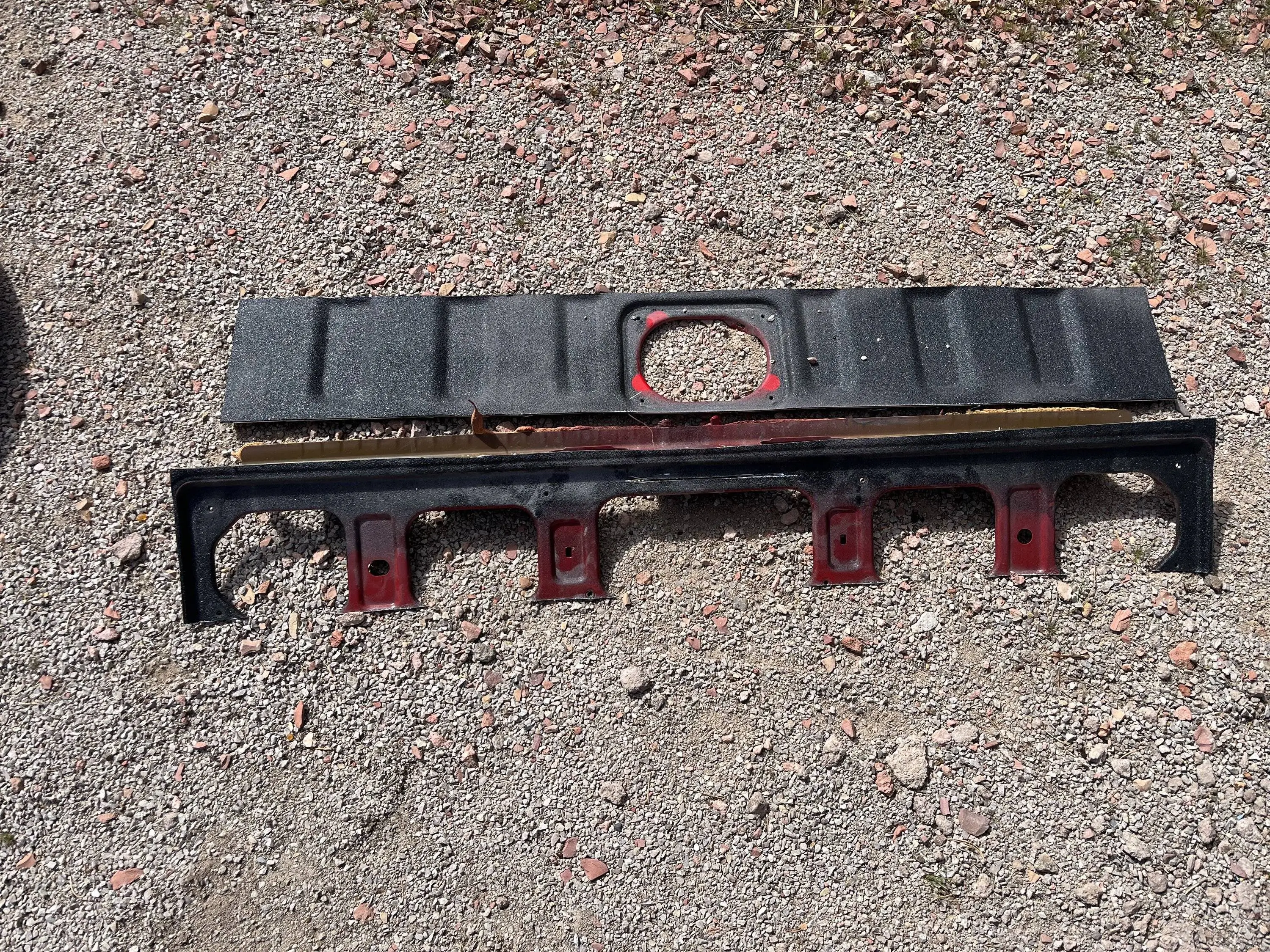

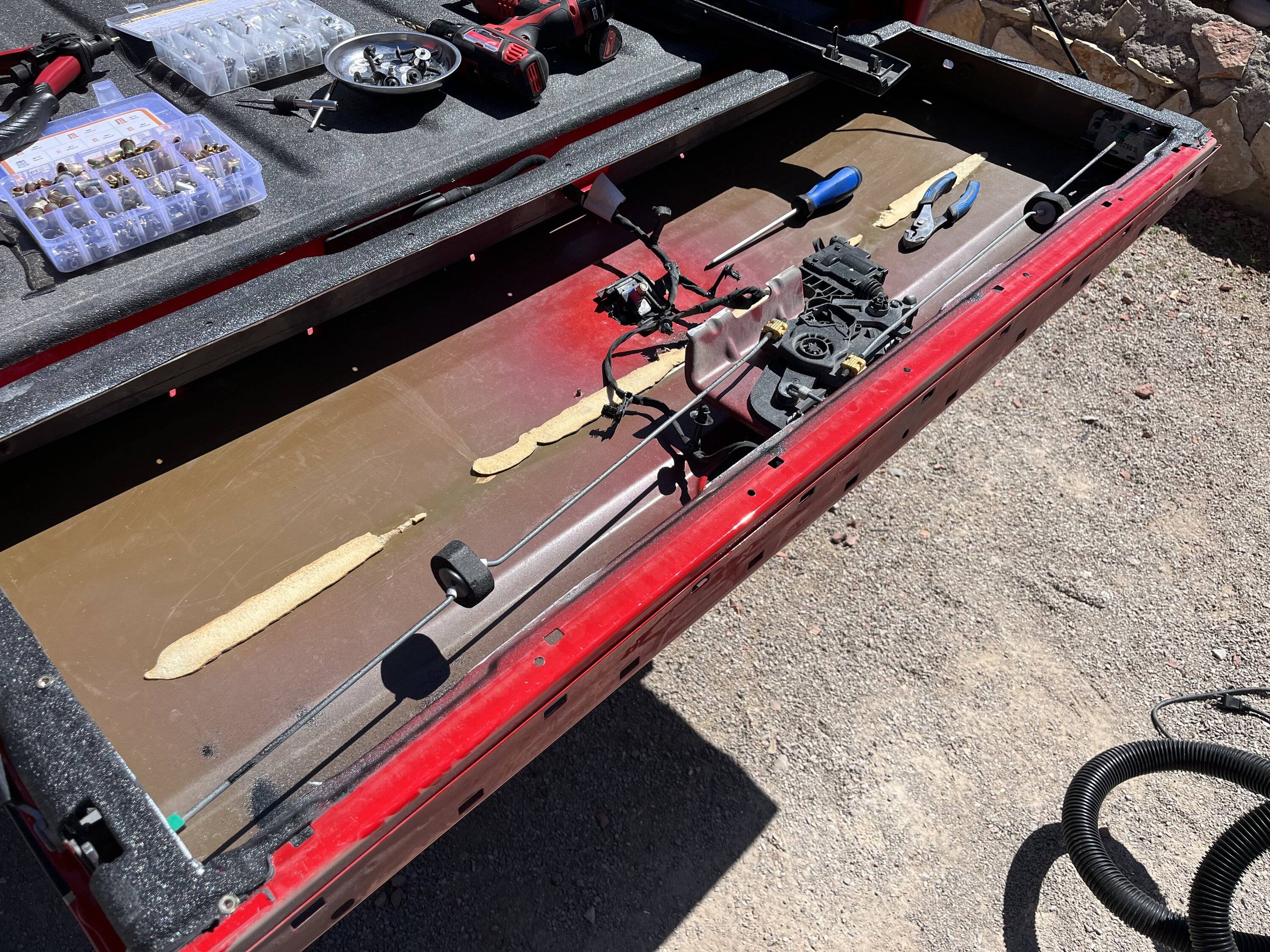

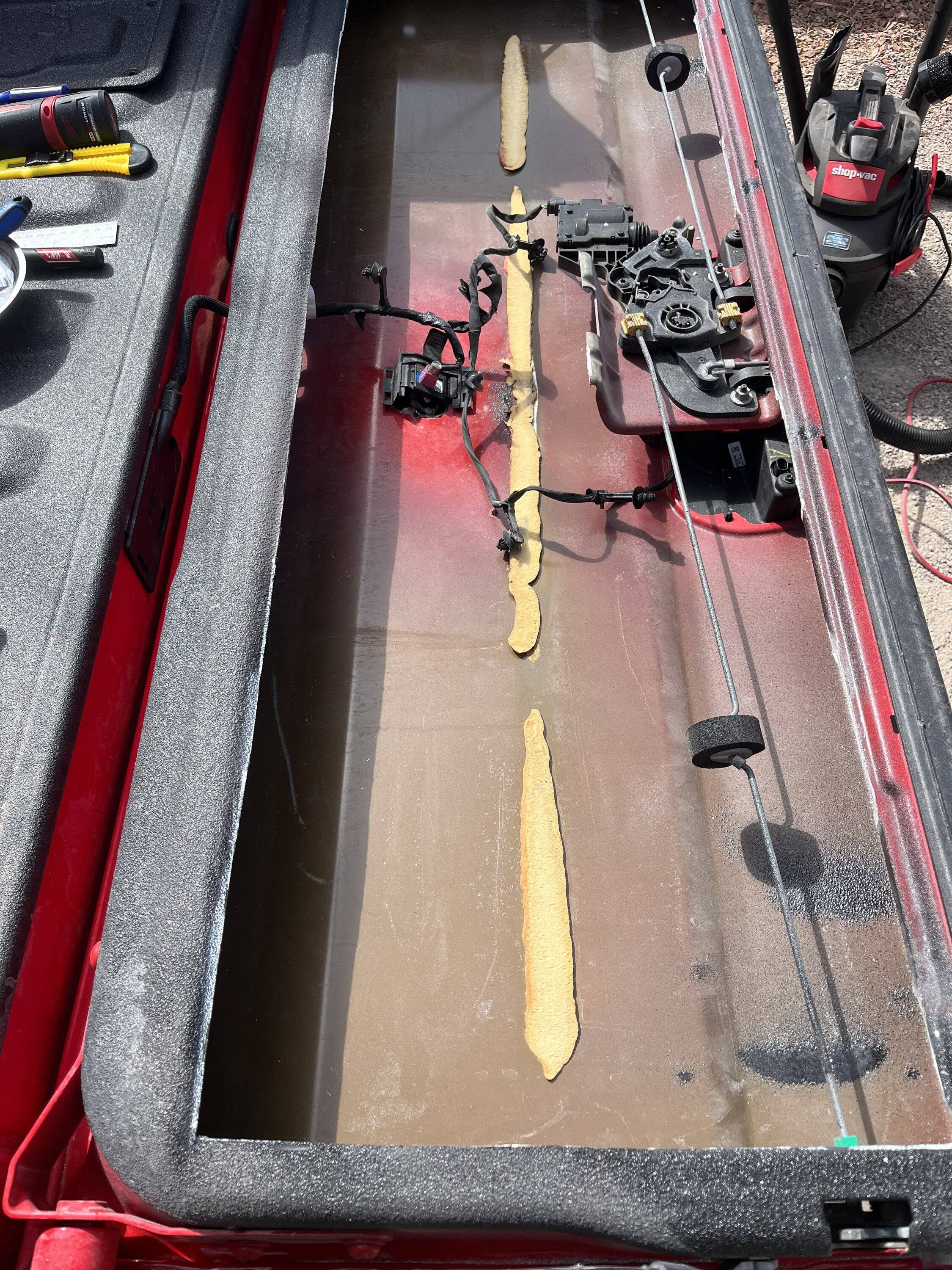

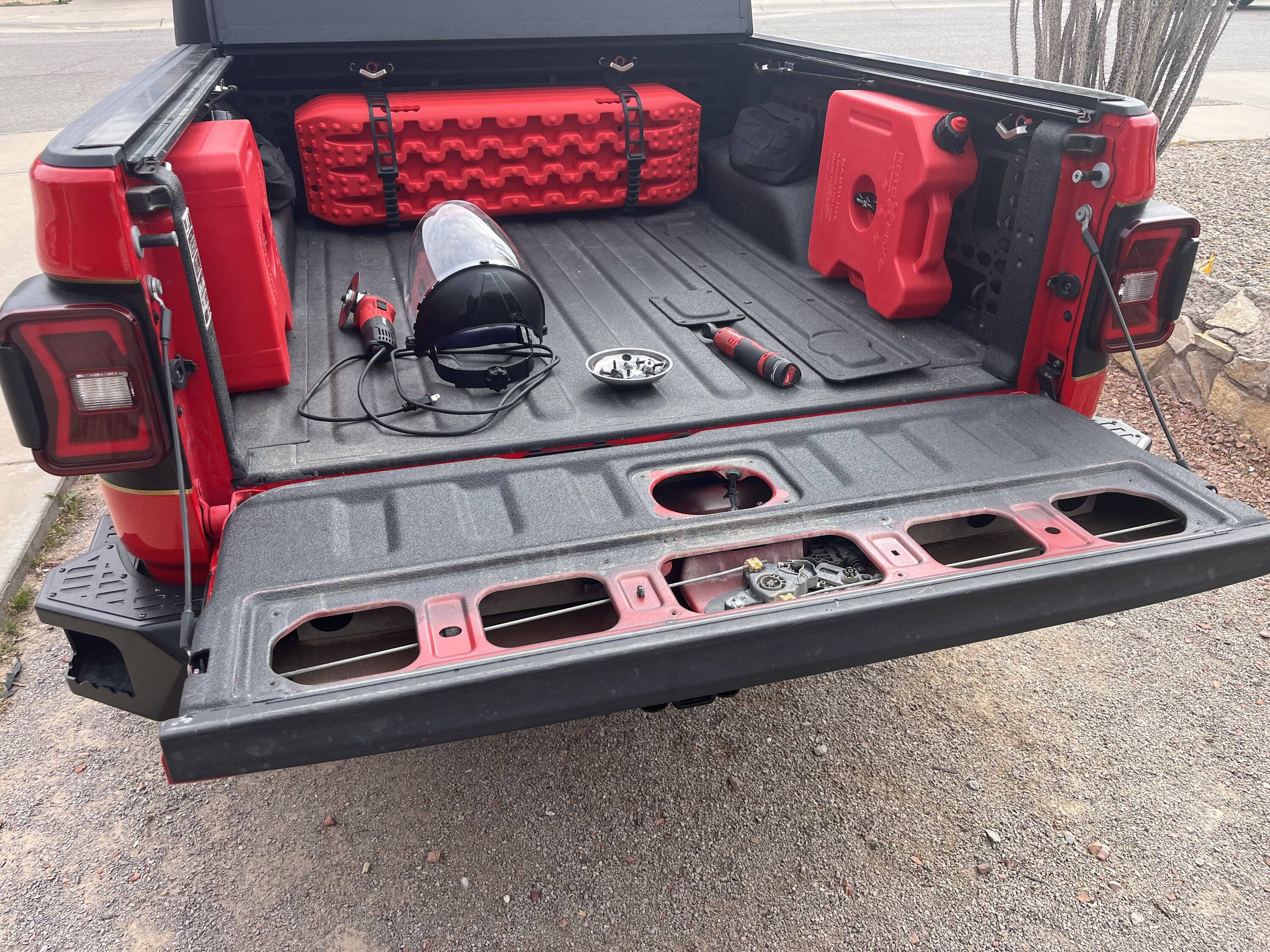

With the adhesive detached, I was finally able to skin the tailgate, behold the remains and my open tailgate box. I took this opportunity to grind my edges smooth. I also tucked the wires for the camera, lock mechanism, and taillight underneath the latch handle support.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9316.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9317.JPG


It was at this point I test fit the Reaper box. More or less dropped right in, minus some small interference with the prop rod, which was solved by dropping the front of the tailgate box in first , so I started marking and drilling my holes, using the box as a template.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9332.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9337.JPG

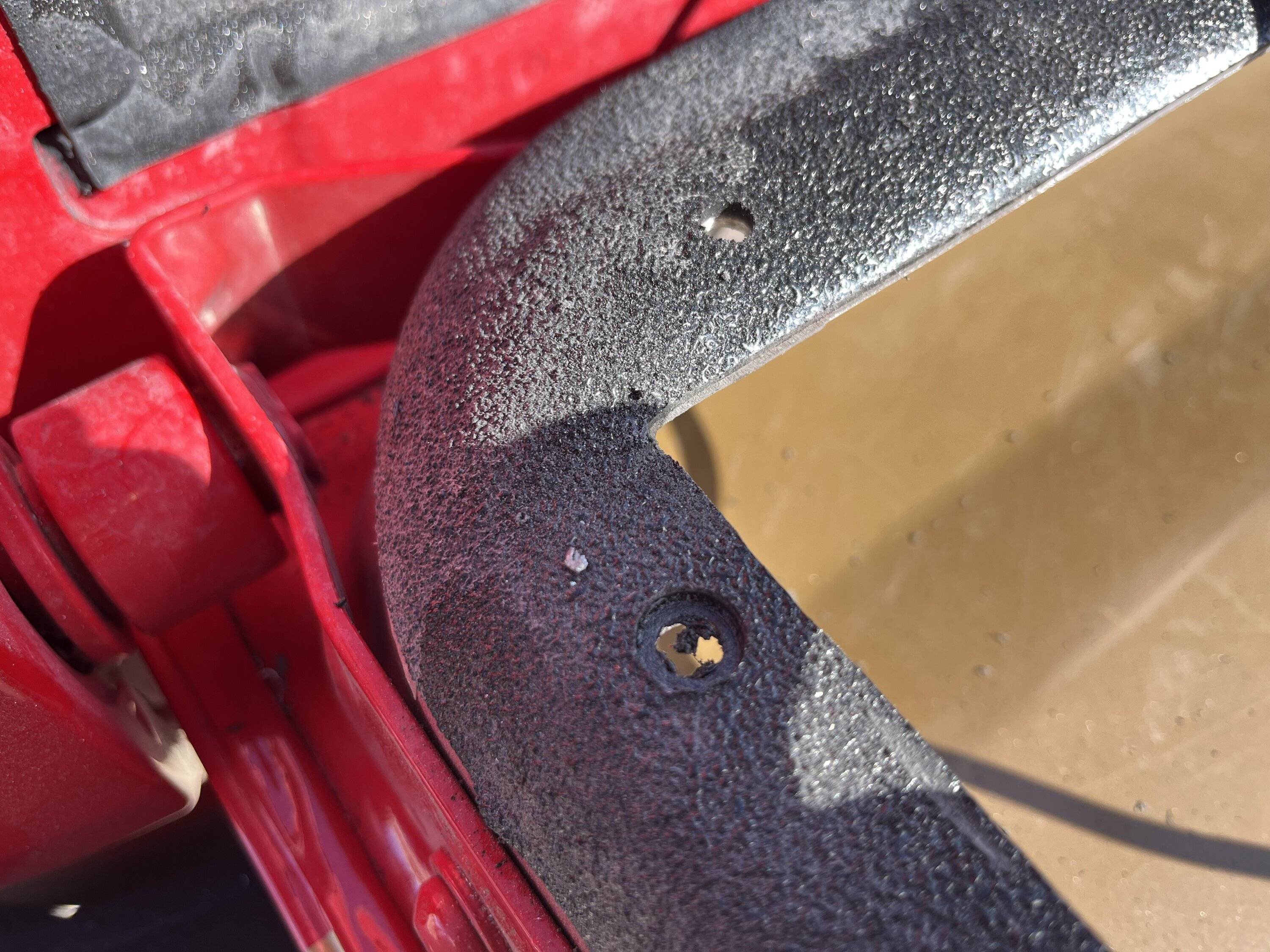

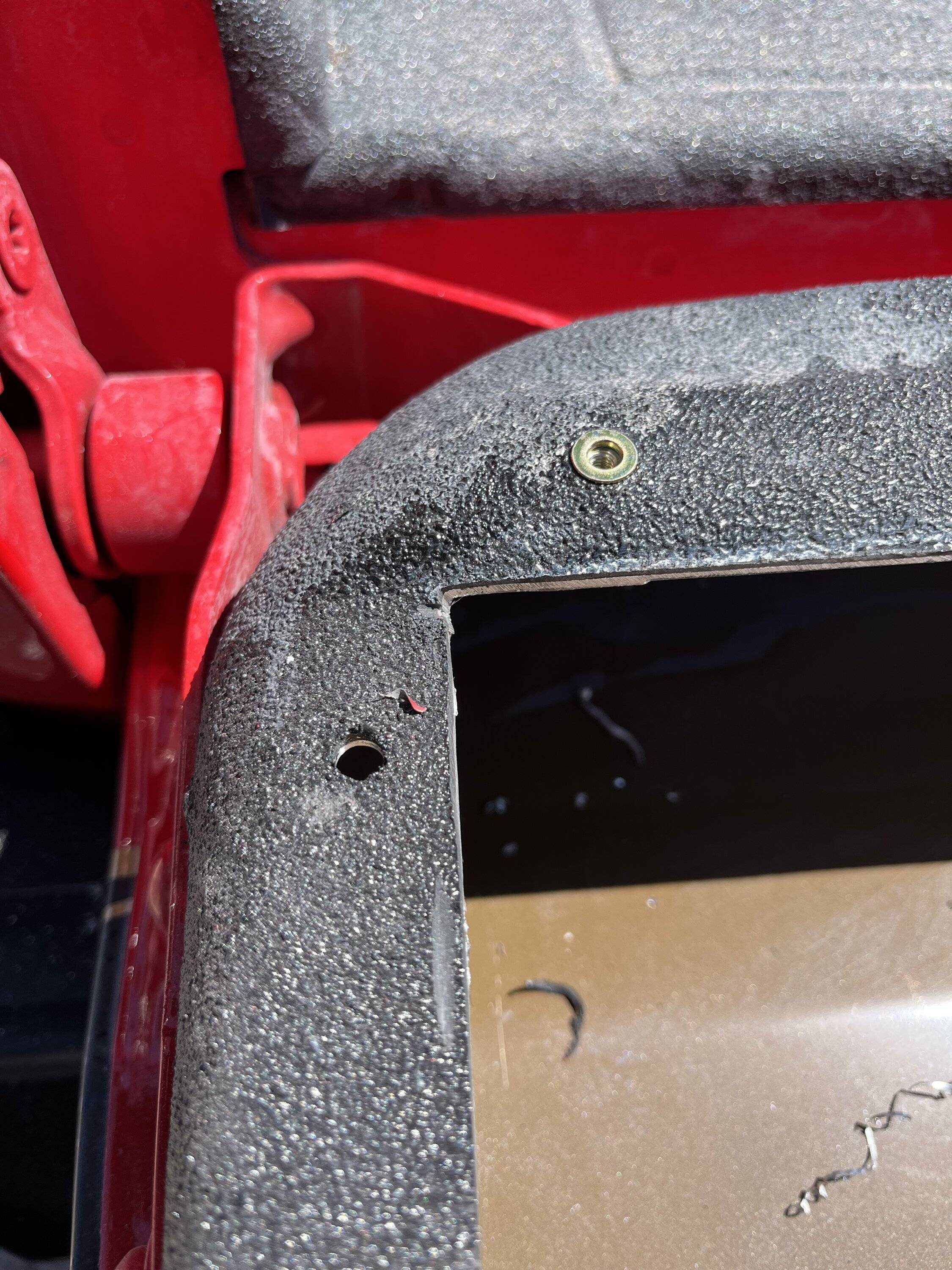

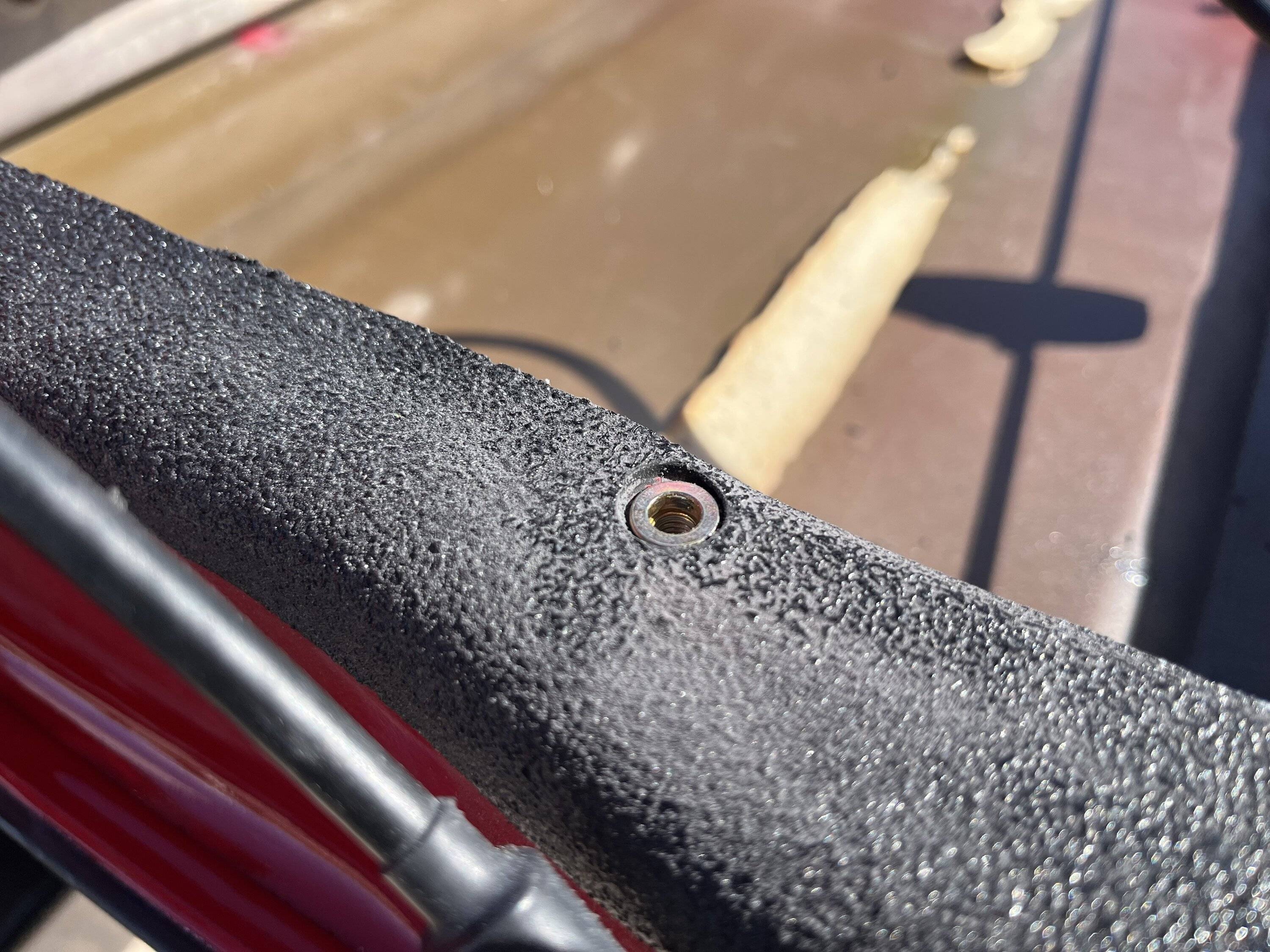

Here's where I had my only issue. Since I wanted to use RivNuts instead of self tapers, I had to remove the box one more time to install them. I thought it was going smoothly, but realized I had a problem. The RivNuts I had weren't able to seat properly due to the bedliner! It was too thick, and the RivNuts were not crushing on the back side of the sheetmetal! You could pop them out by hand. :swear:

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9321.JPG


Luckily I was able to think of a solution. I went into my toolbox and found my Dremel set. I attached a cylinder shapped sanding stone that was approximately the same size as my RivNuts. With the Dremel, I was able to sand down the bedliner until I hit the aluminum surface. With some washers on my RivNut tool, I was able to seat the RivNuts on the sheetmetal through the now counterbored holes, and able to get them to bite properly. I was able to continue with my install. Only took 1 hour to figure that out. 😜

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9327.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9326.JPG


Removed the plastic tailgate trim to install the rivets at the top of the bed.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9323.JPG

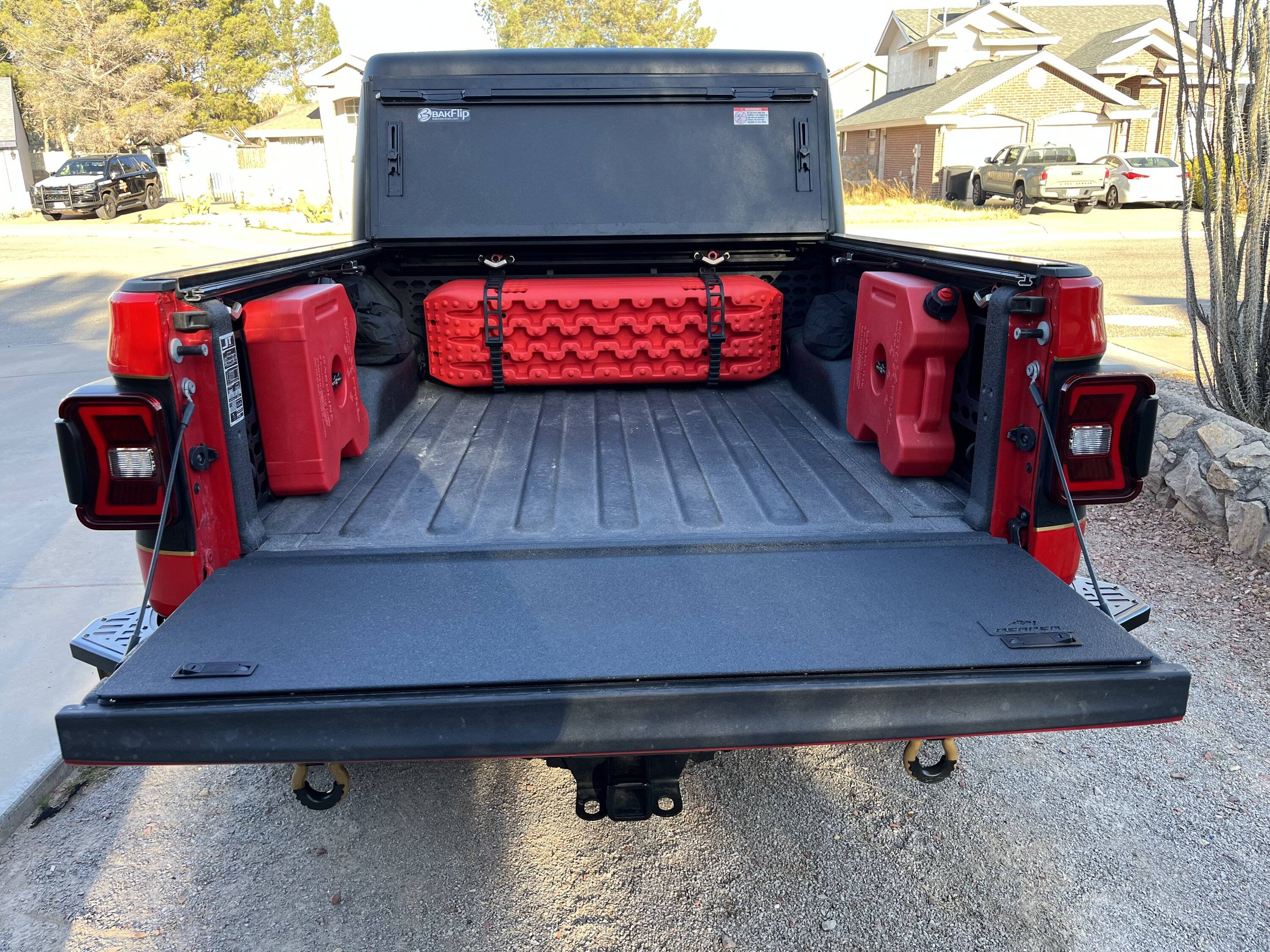

Counter bored and riveted all 20 something holes, and dropped the box in. Fit perfectly!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9336.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9337.JPG

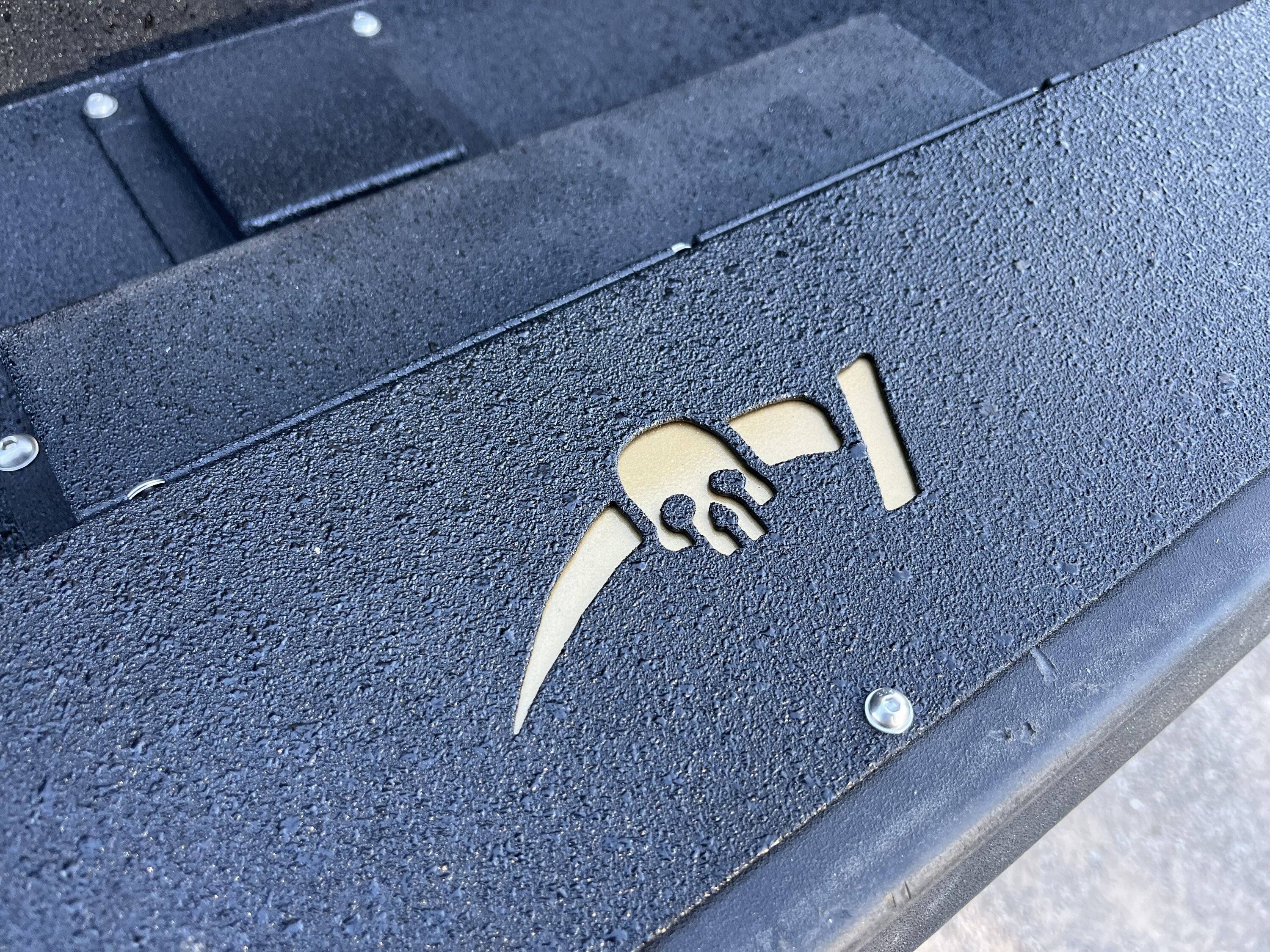

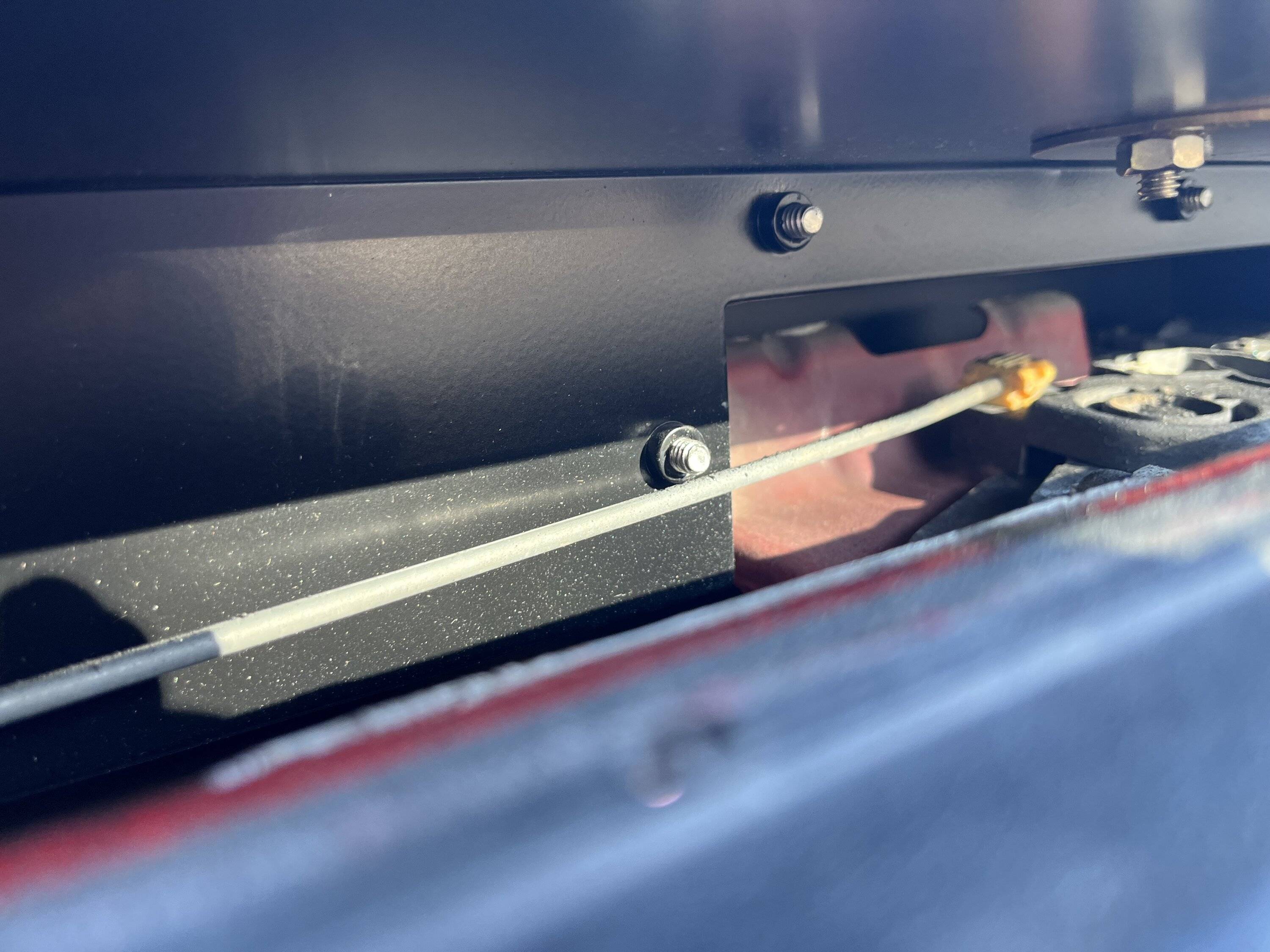

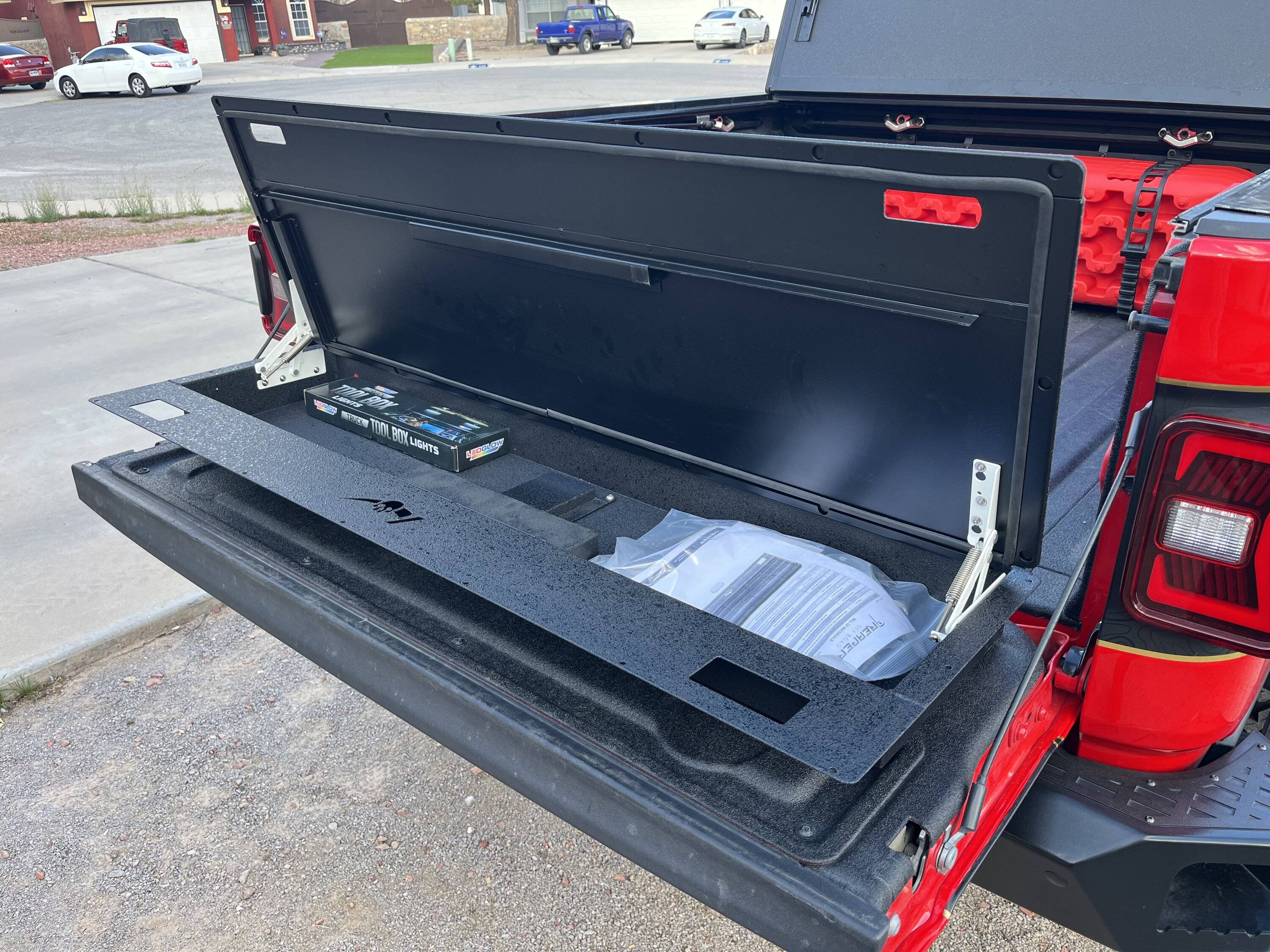

Some detail pics!

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9339.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9340.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9341.JPG

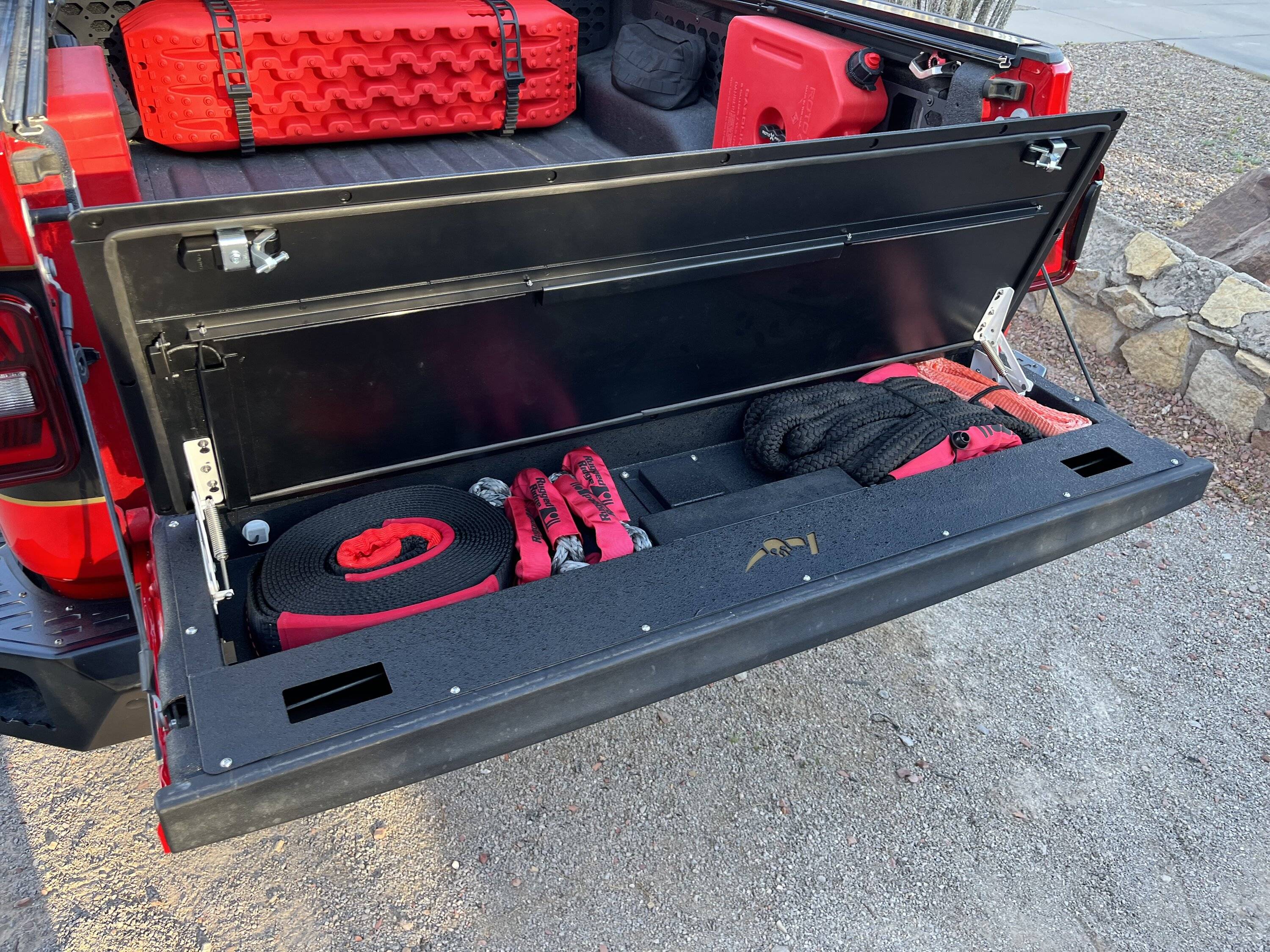

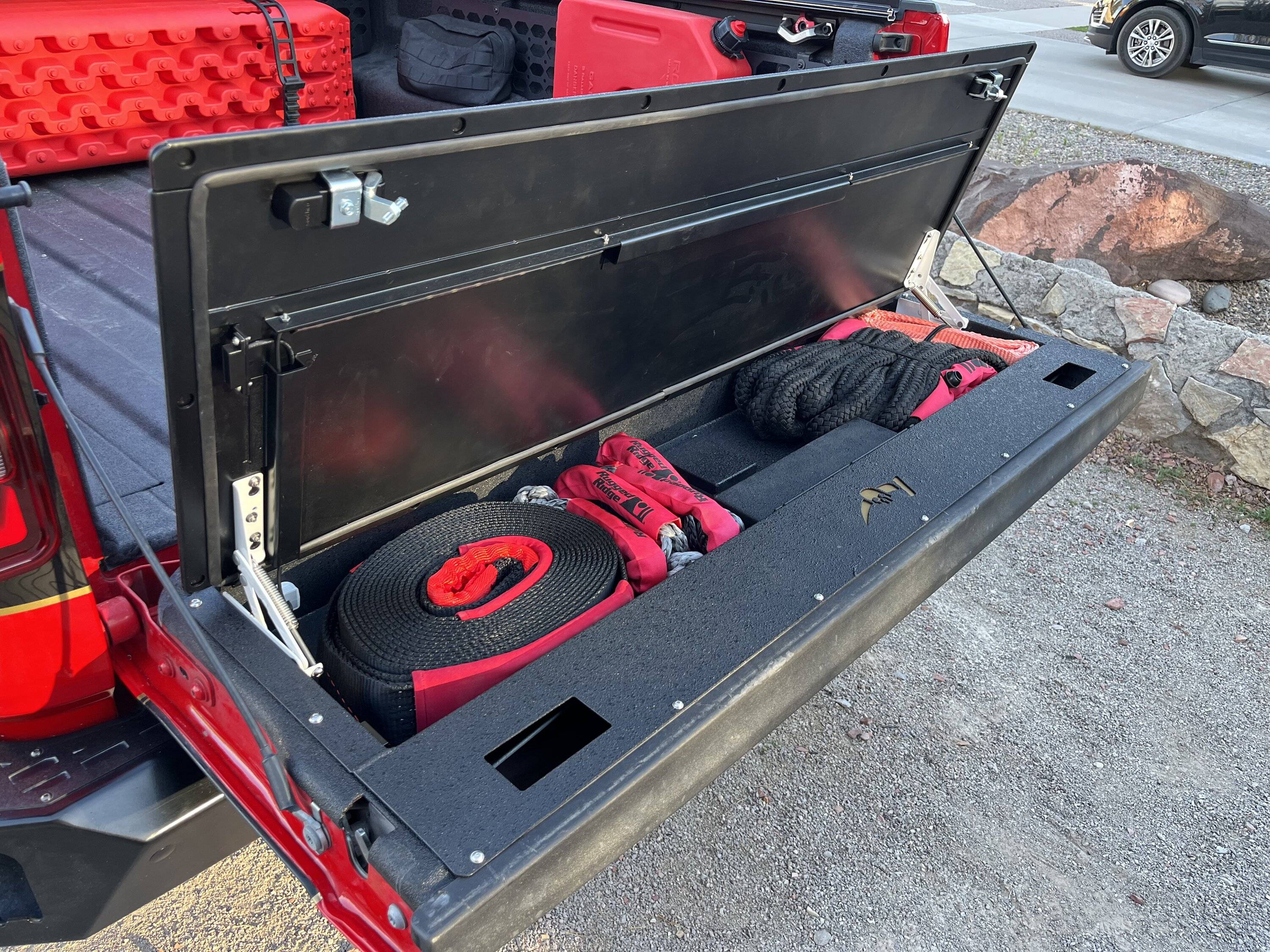

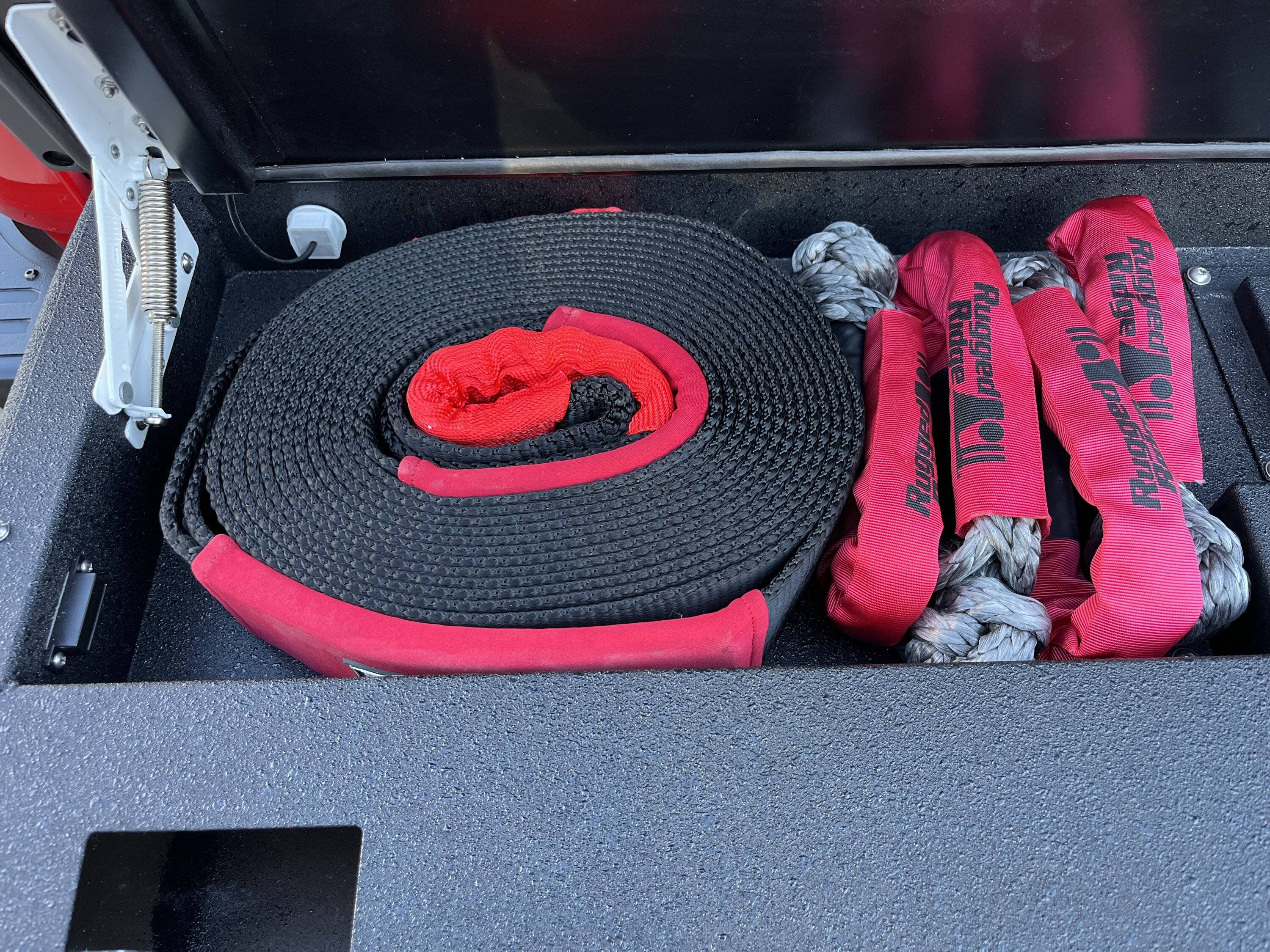

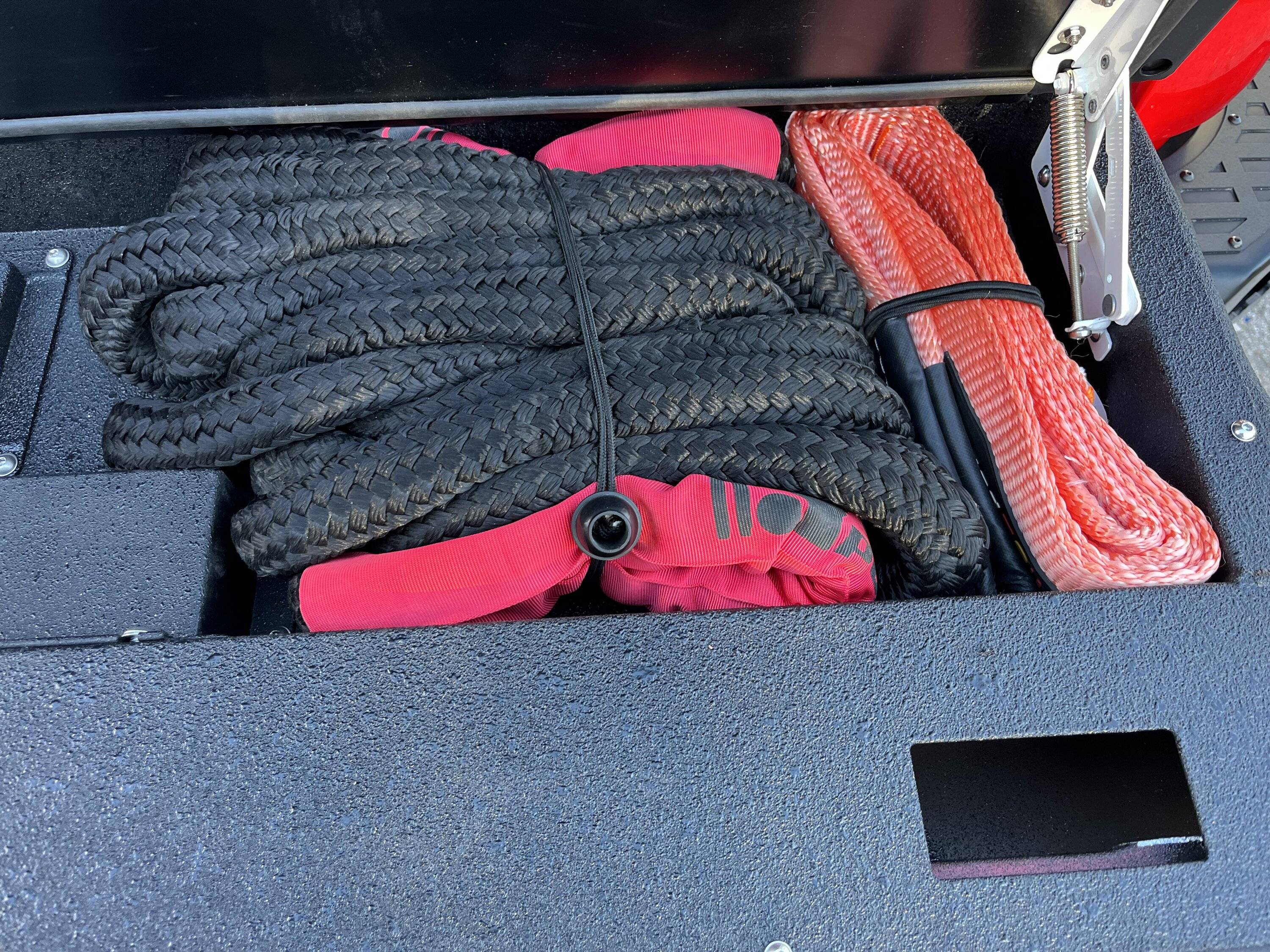

Took all my (soft) recovery gear from the back seat, and placed it in the box. Pretty much filled it up instantly, but it's such a perfect place for these things.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9346.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9347.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9349.JPG

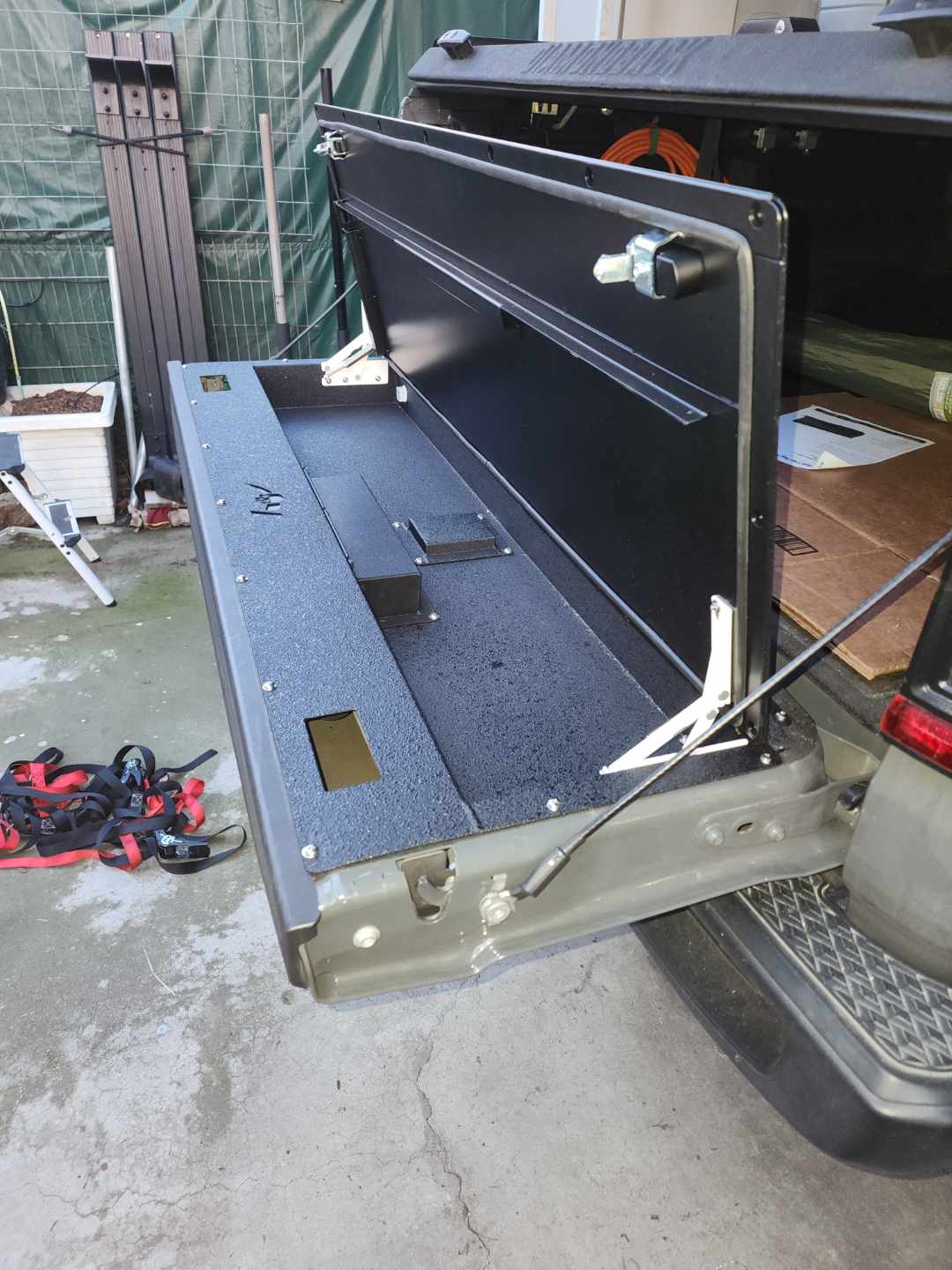

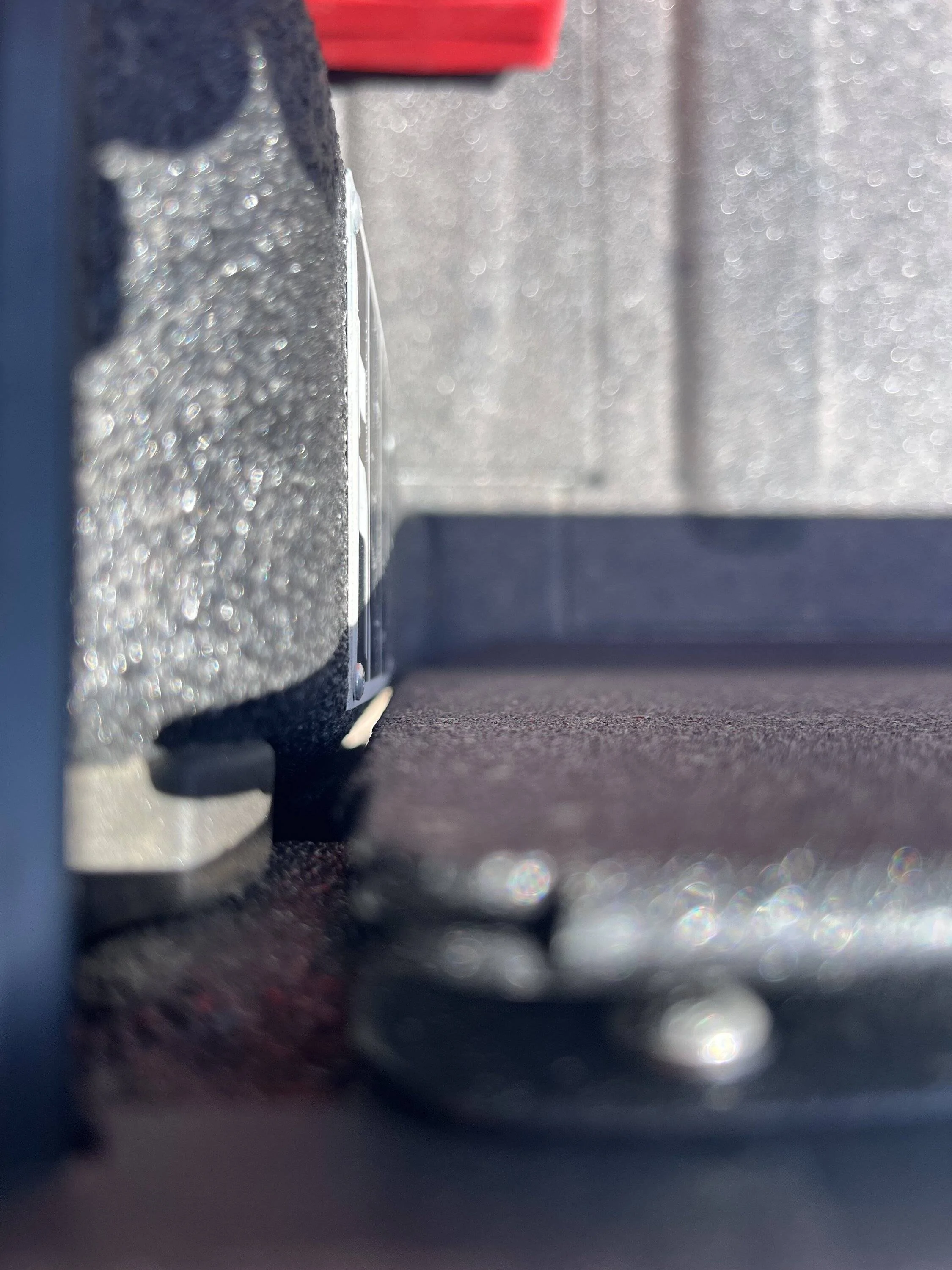

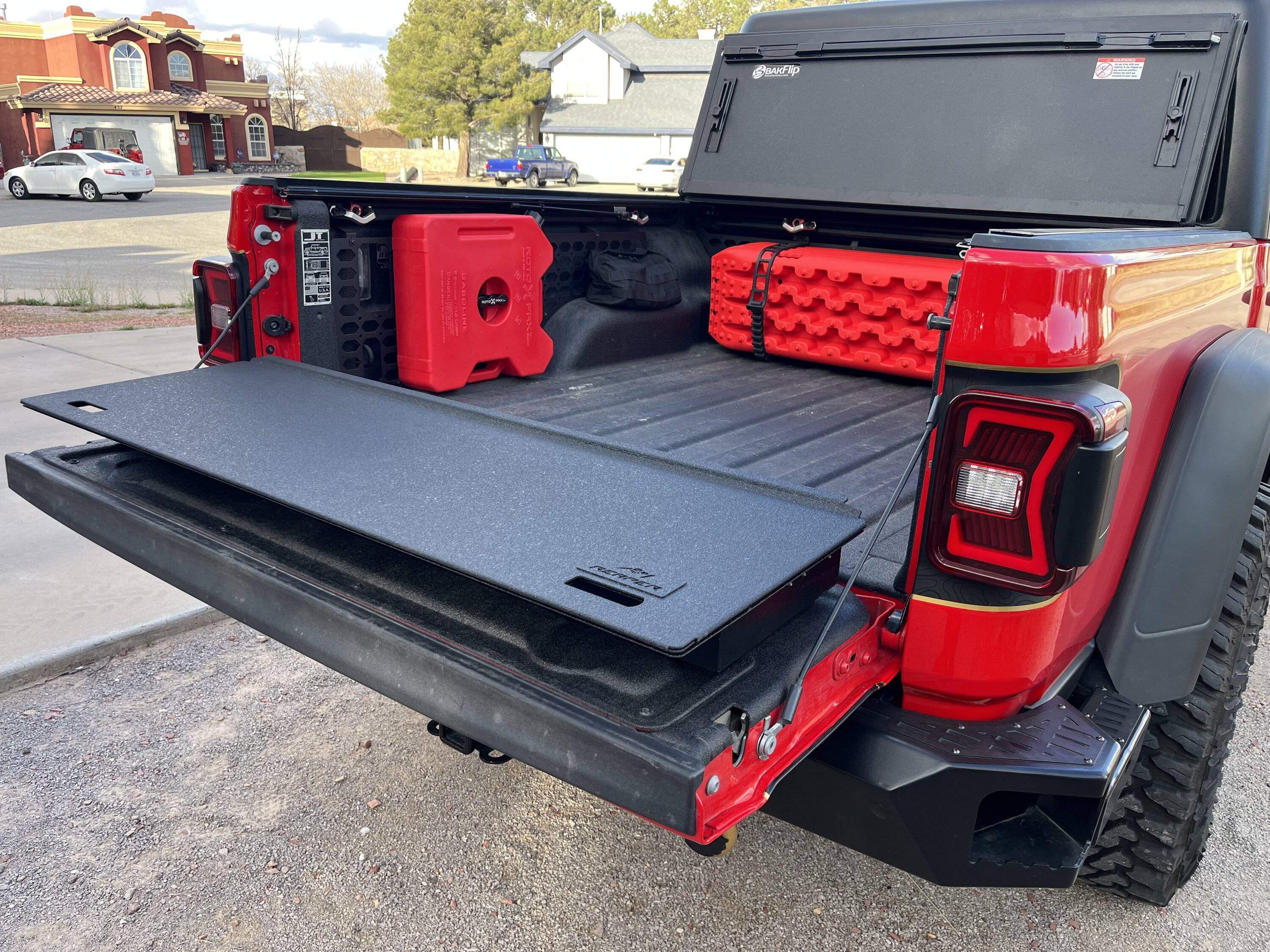

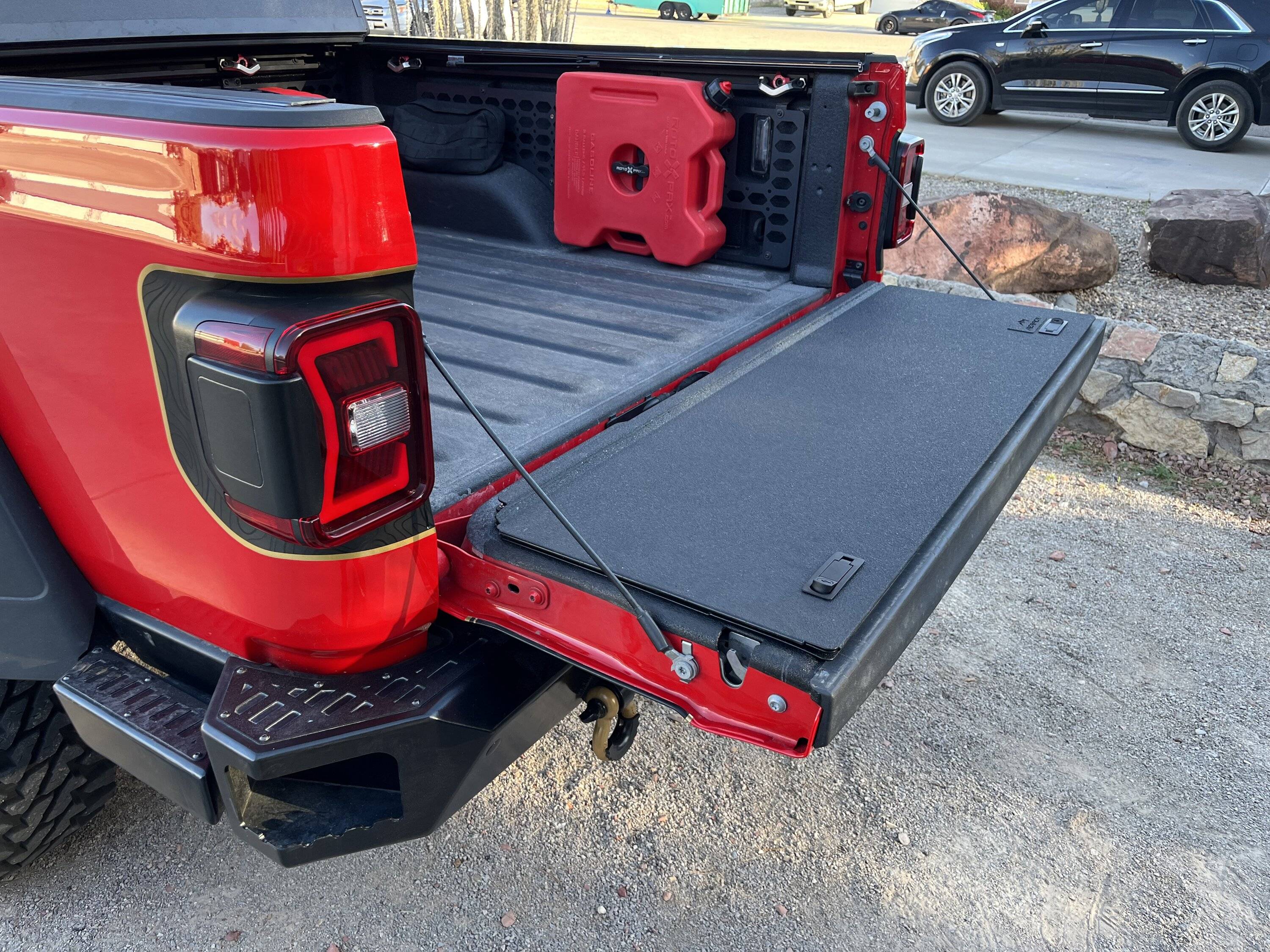

And the overall situation with the tailgate. It's VERY tight, but it does close nicely. I love how well the bedliner matches and blends into everything else.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9363.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9362.JPG




Notes:

The tailgate with gear, is much heavier, and the stock strut can't handle the weight, so I'll need to look into a stronger replacement.

Lost the structure behind the "Jeep" emblem. It is very easy to flex. I'm not sure if it will be a problem, but as long as you don't lean on it, it should be okay. I'm looking into polyethylene foam to fit on the inside of the box and the outer skin to provide more structure. There's a noisy "rattle" as the tailgate rod is free to shake when closing, will also add foam to the foam bumper on the passenger side to remedy that.

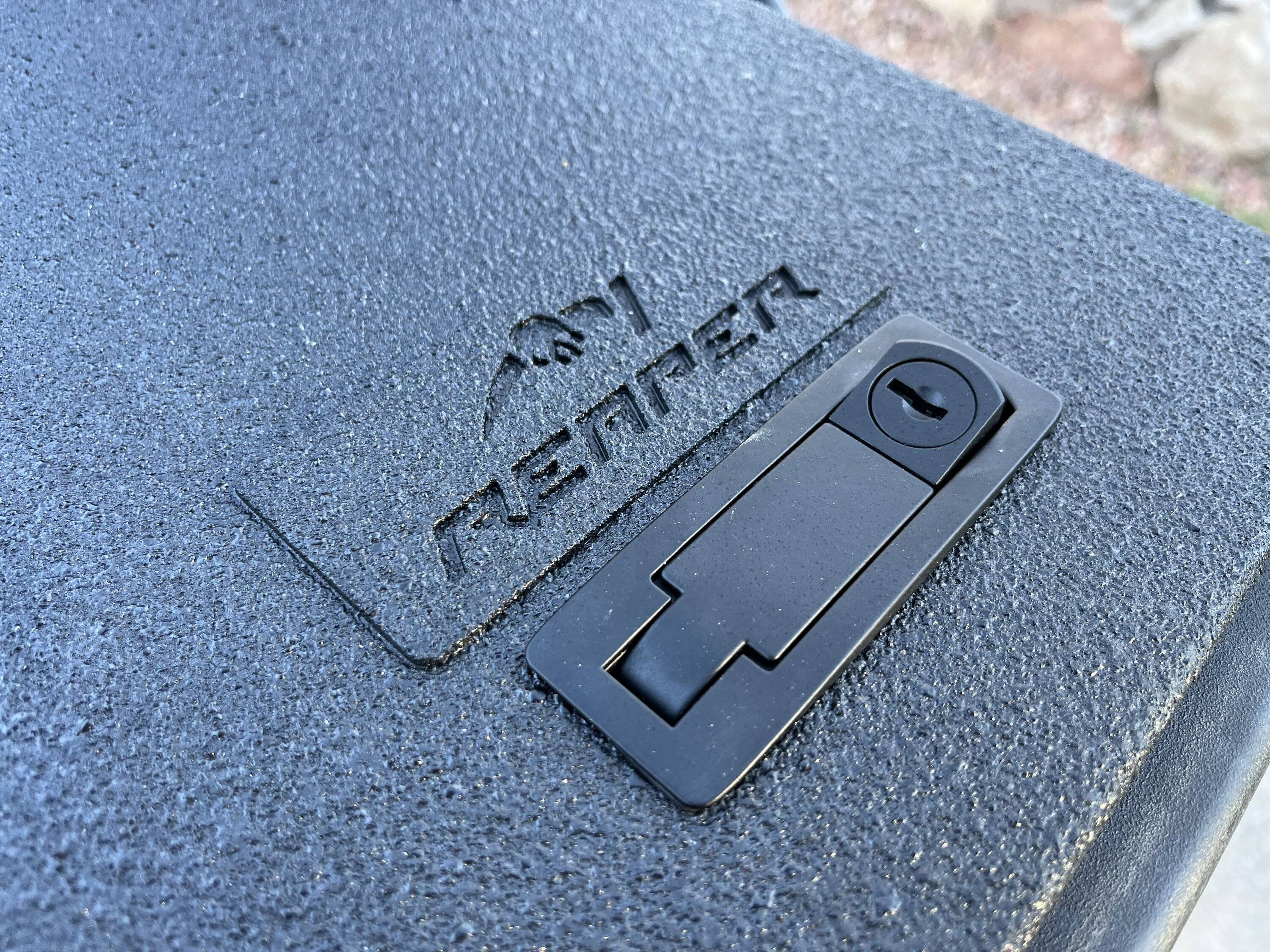

Personally, I don't need it to be keyed, so I took note of the company that makes the latches, SouthCo, and I might just order the non-key version of these latches, that also lay flat as well. Just personal preference.

OVERALL:

Rating: 8/10


I'm very happy with the way it turned out! There's some quirks that I need to sort, but I love the additional space! The cutting itself wasn't bad at all, it's just getting over the fact that I was cutting up my truck was the hardest part. Between the molle panels and this tailgate box, I have the under-seat storage available again, which I will most likely fill up with tools.

Would I do it again: Most likely, if I can sort out those quirks that I mentioned above. If I had to do it again, I would leave it for last on the storage mod list, for the following reason:

It's quite a bit of work and money for what is a small increase of storage. It's also semi-permanent, you'll need to replace the entire tailgate if you have any regrets or have any major issues.

-----------------------------------------------------------------------------

TLDR:


(3/10/2024)
While I'm happy with end result, this mod isn't for everyone. It's quite a bit of work and money for what is a small increase of storage. It's also semi-permanent, you'll need to replace the entire tailgate if you have any regrets or have any major issues.

Rating:

Part quality: 9/10, Install: 7/10, Cool factor: Freaking dig it!
Sponsored


Last edited:
OP
OP
Zero_Accel

Zero_Accel

Well-Known Member
First Name
Aaron
Joined
Oct 27, 2021
Threads
30
Messages
494
Reaction score
1,140
Location
El Paso, Texas
Vehicle(s)
2020 Jeep Gladiator Sport
Build Thread
Link
Occupation
Systems Engineer
Update 3/15/2024.

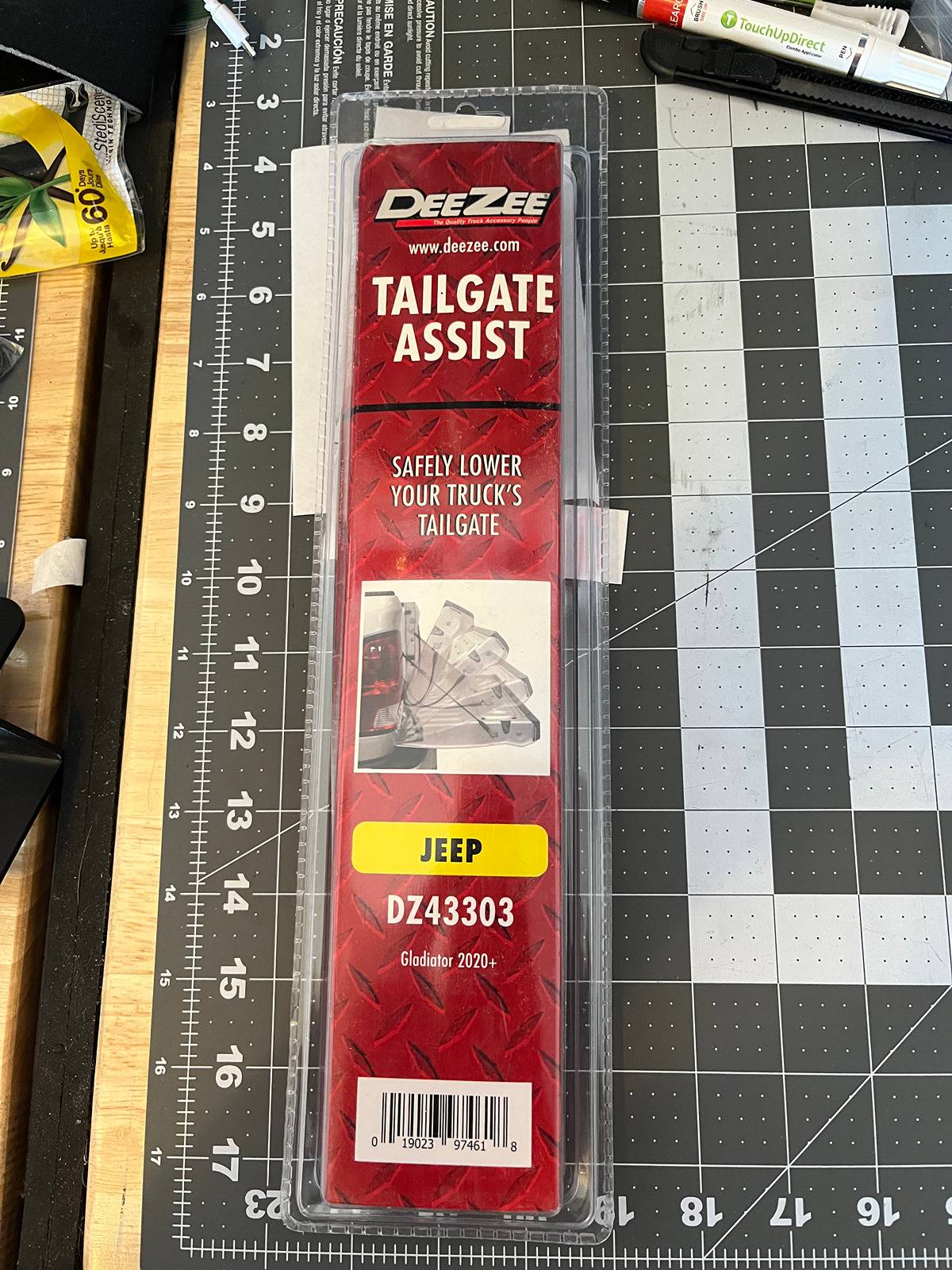

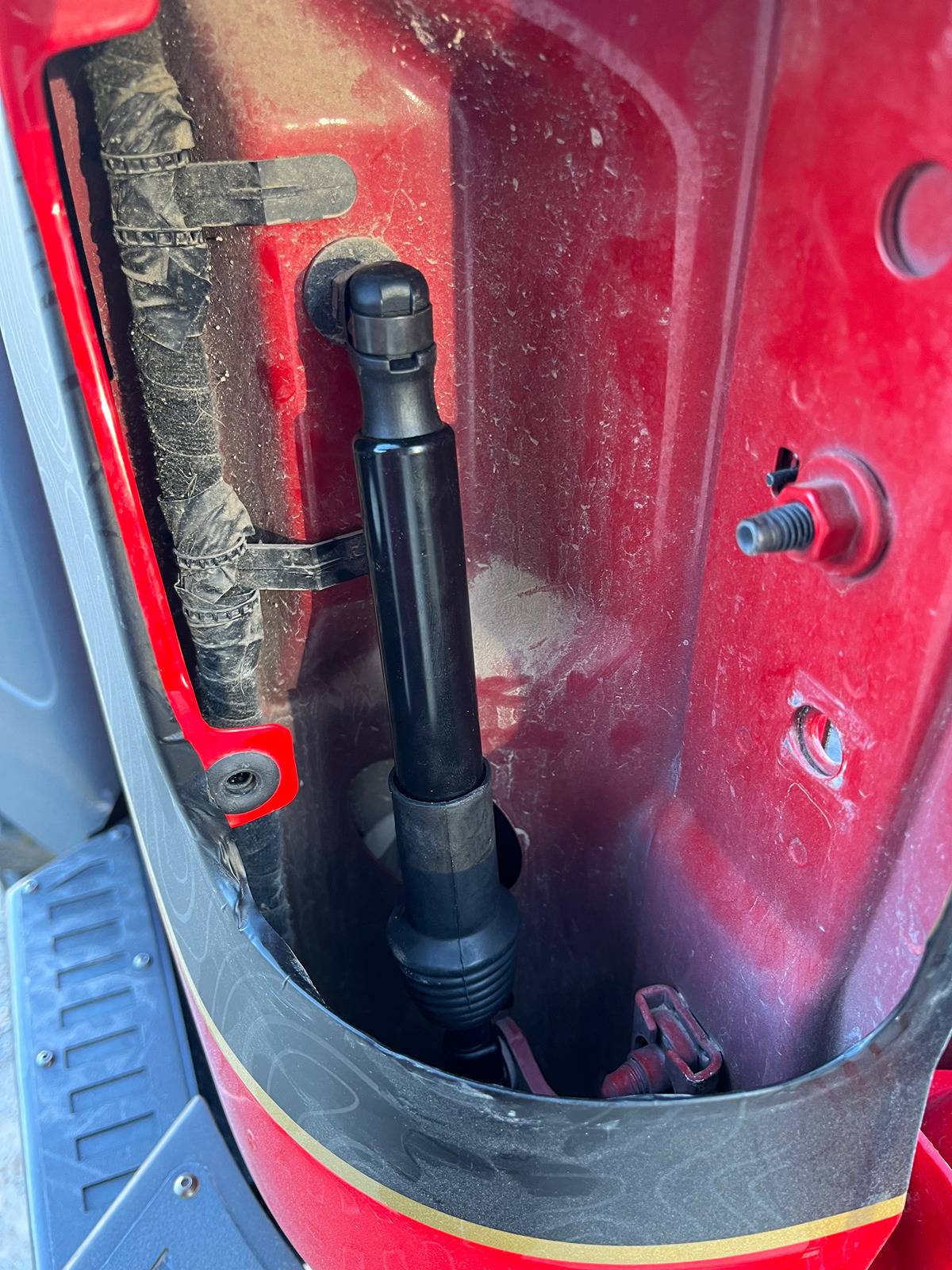

Fixed the tailgate hard dropping issue. For once, it was actually easy. I decided to try my luck with a drop in replacement, a DeeZee replacement strut, on the bet that it would be stronger.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9379.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9381.JPG

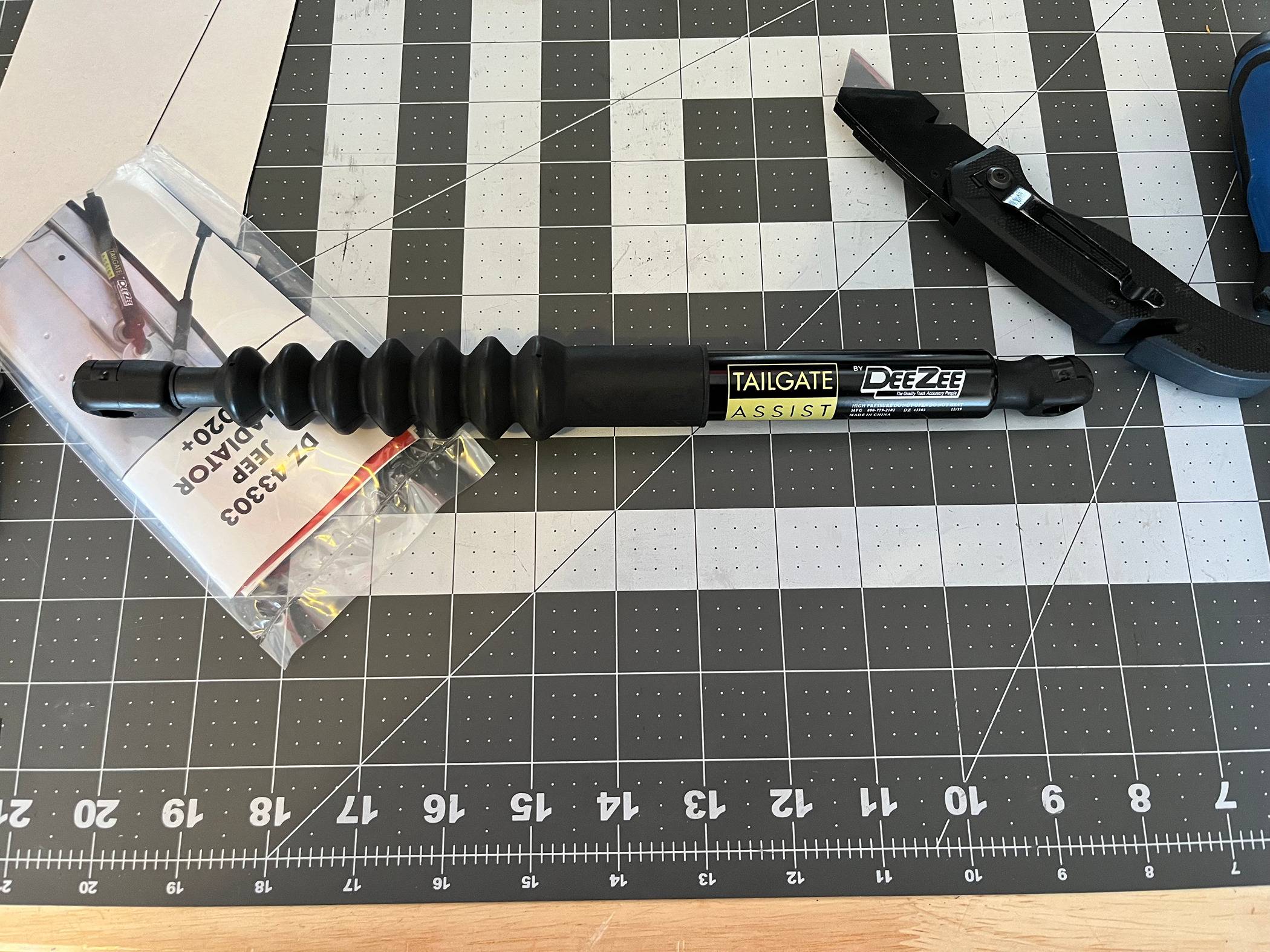

Took 5 minutes to install, and my flat working area is already being useful.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9383.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9385.JPG


And well sure enough, the DeeZee strut is stronger, it can handle the increased weight. Keeping it. Not bad for $40.



















Update 3/18/2024:

Fixed the floppy sheet-metal!

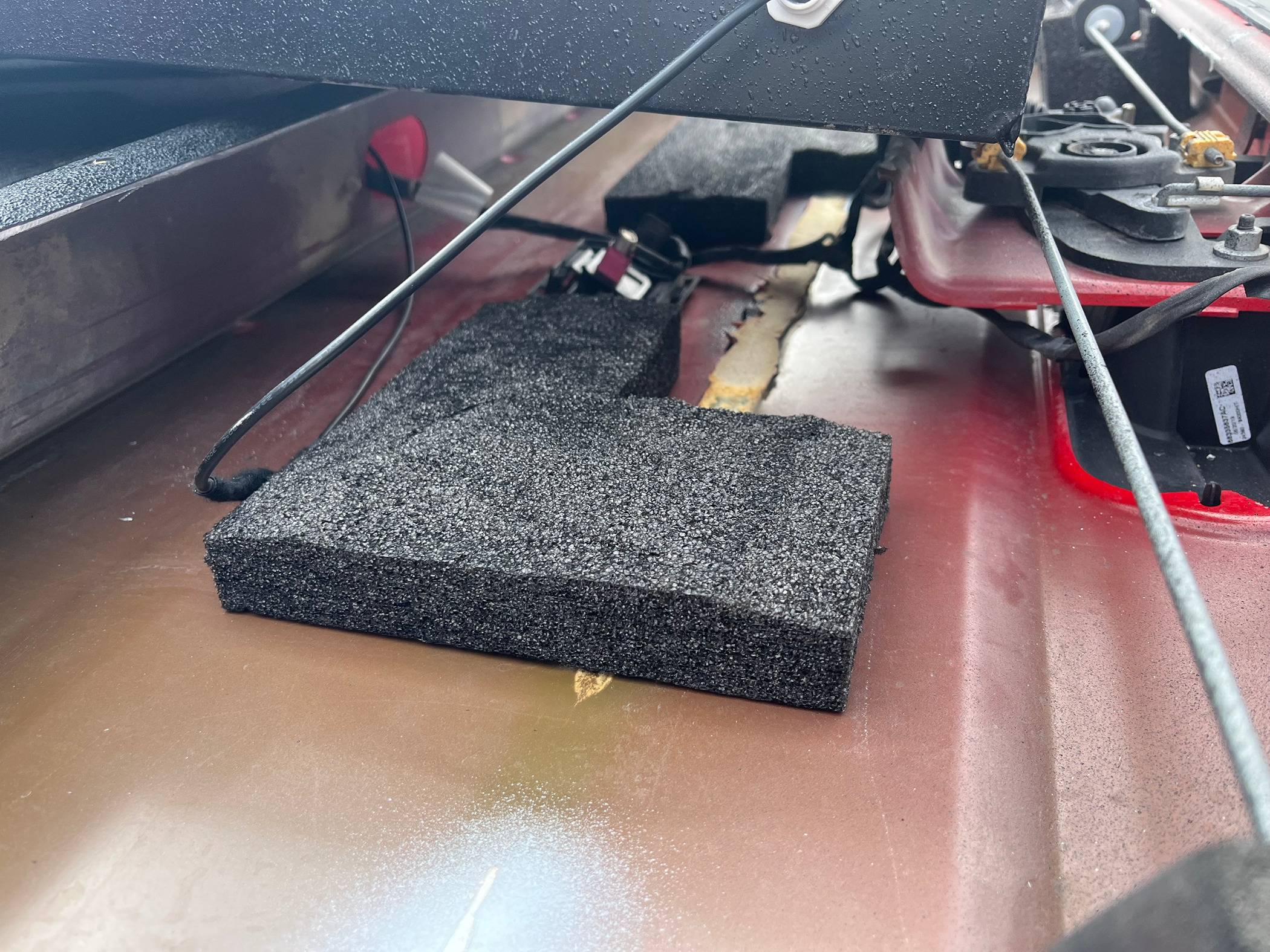

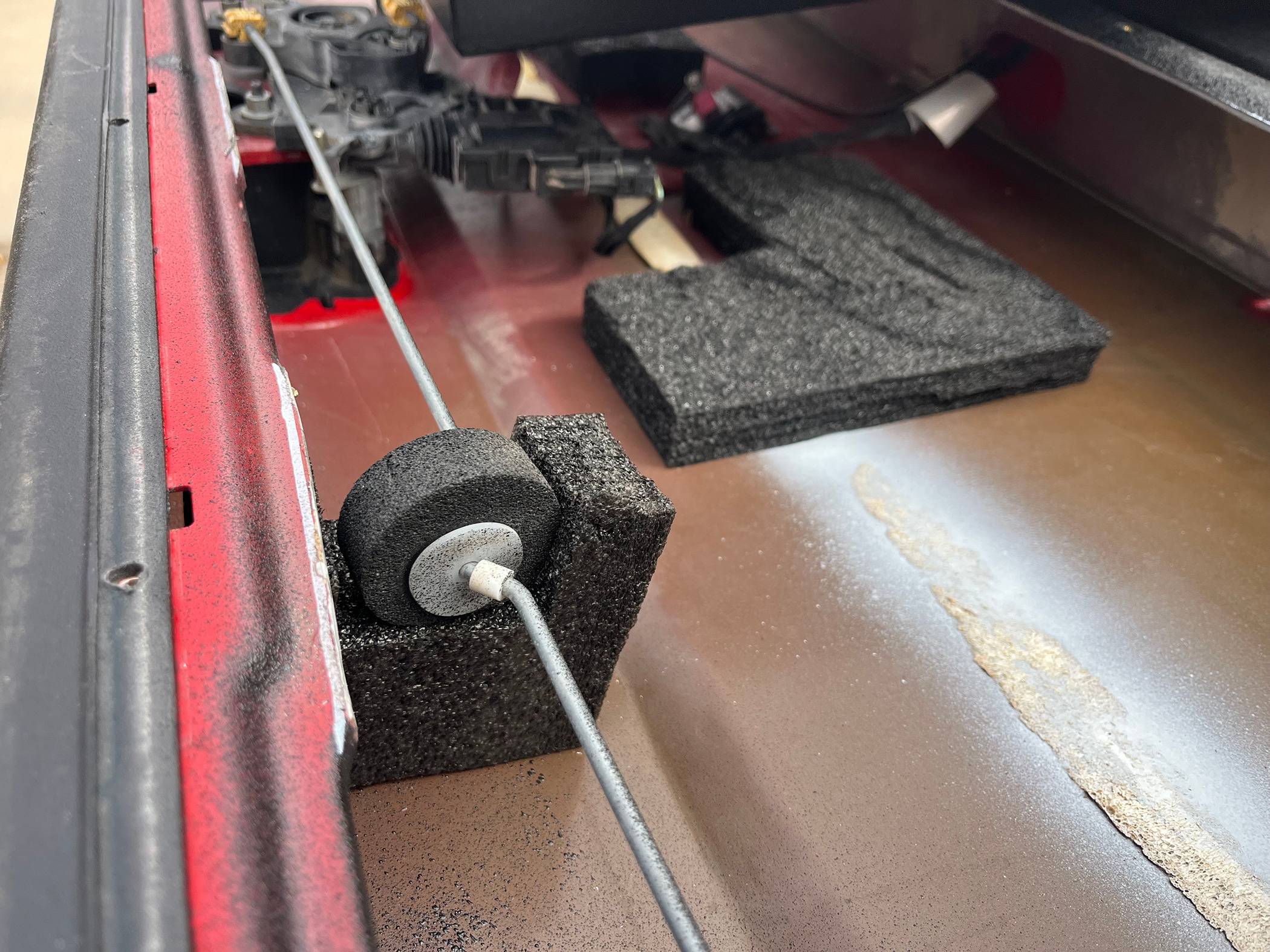

Cut and added 1.5 inch thick polyethylene foam. Did my best to shape it with the same flat blade I used to cut out the original support.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9399.JPG


Stuck it in the middle section with some double sided tape to hold it in place while I dropped the box in, and no more floppy tailgate! Tried to match the curve as best as I could. Only thing I would have done differently would be to just buy the 1 inch thick version, the 1.5 inch is a bit too much, and had to be trimmed down to that 1 inch thickness. Also threw in a piece to give my rattly prop-rod some support.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9403.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9404.JPG

Last edited:
OP
OP
Zero_Accel

Zero_Accel

Well-Known Member
First Name
Aaron
Joined
Oct 27, 2021
Threads
30
Messages
494
Reaction score
1,140
Location
El Paso, Texas
Vehicle(s)
2020 Jeep Gladiator Sport
Build Thread
Link
Occupation
Systems Engineer
Nice report. :like:

And congratulations to your shop supervisor, did a good job.
He's a great supervisor! Although most days he'd rather just sit on the couch instead.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9257.JPG


Sponsored

FloridaMan655321

Well-Known Member
First Name
Lieutenant
Joined
Nov 2, 2020
Threads
8
Messages
400
Reaction score
604
Location
Parts Unknown, Florida
Vehicle(s)
2021 Mojave, 1973 F-100 - both manual
Occupation
Lieutenant (not really)
It will be interesting to see how this holds up long term, would love to see a reply in 4-5 years.

My question, what rear bumper is that? Looks like it has that foot section like in GM trucks (which I really like).


Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,210
Reaction score
1,750
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1
I've been looking at this for the exact reasons you did... Great work, and looks awesome.

OP
OP
Zero_Accel

Zero_Accel

Well-Known Member
First Name
Aaron
Joined
Oct 27, 2021
Threads
30
Messages
494
Reaction score
1,140
Location
El Paso, Texas
Vehicle(s)
2020 Jeep Gladiator Sport
Build Thread
Link
Occupation
Systems Engineer
It will be interesting to see how this holds up long term, would love to see a reply in 4-5 years.

My question, what rear bumper is that? Looks like it has that foot section like in GM trucks (which I really like).

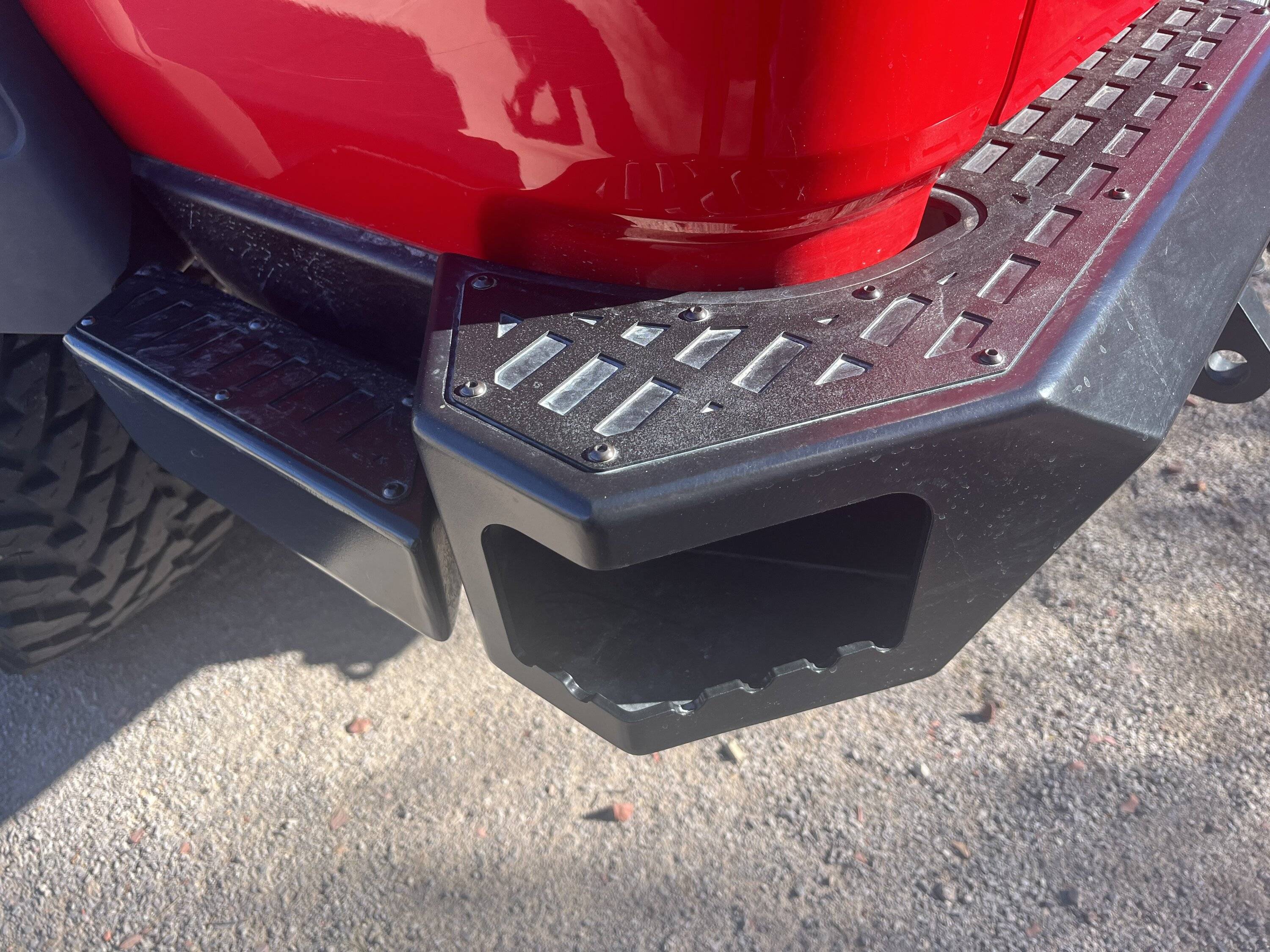

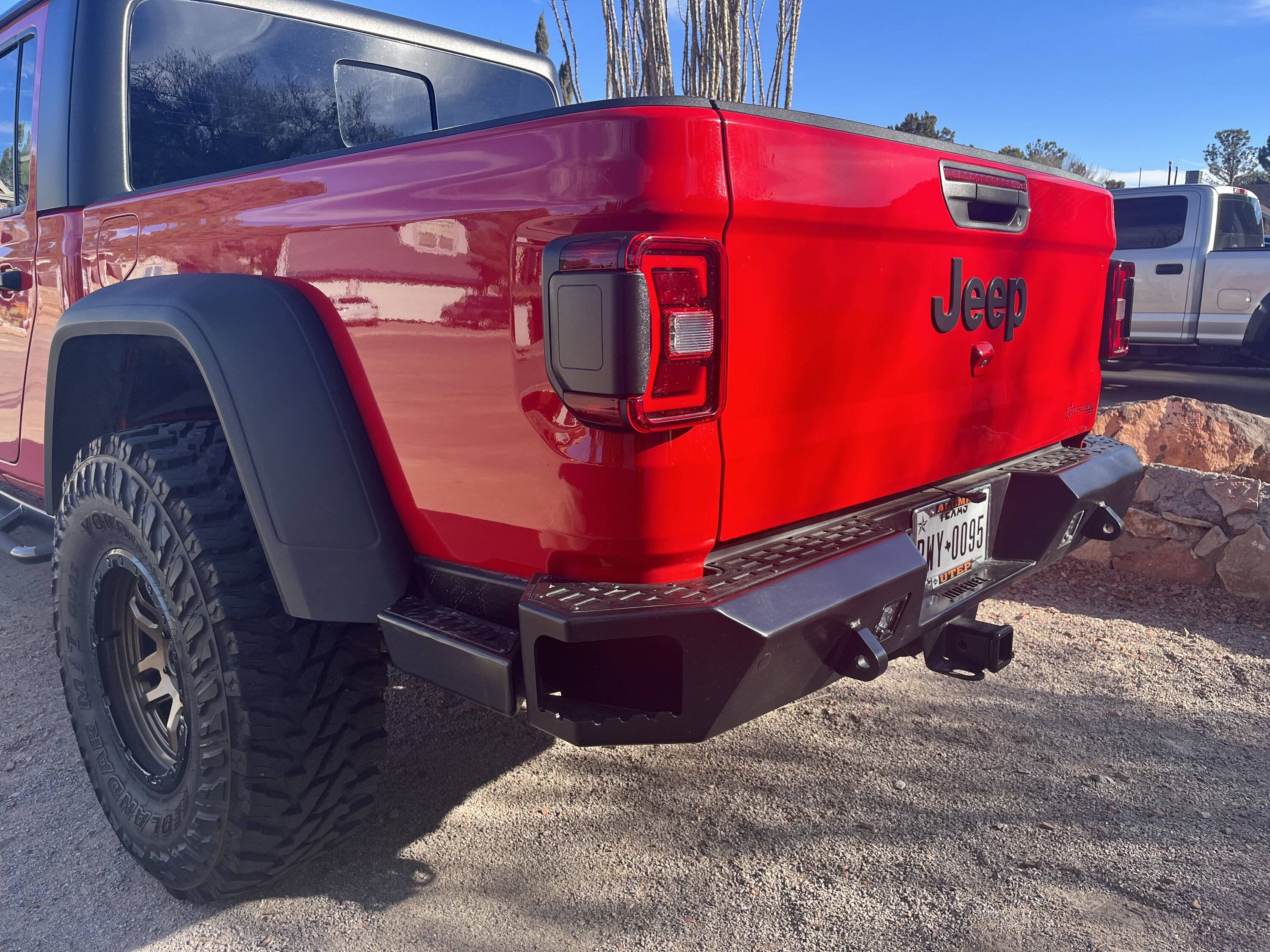

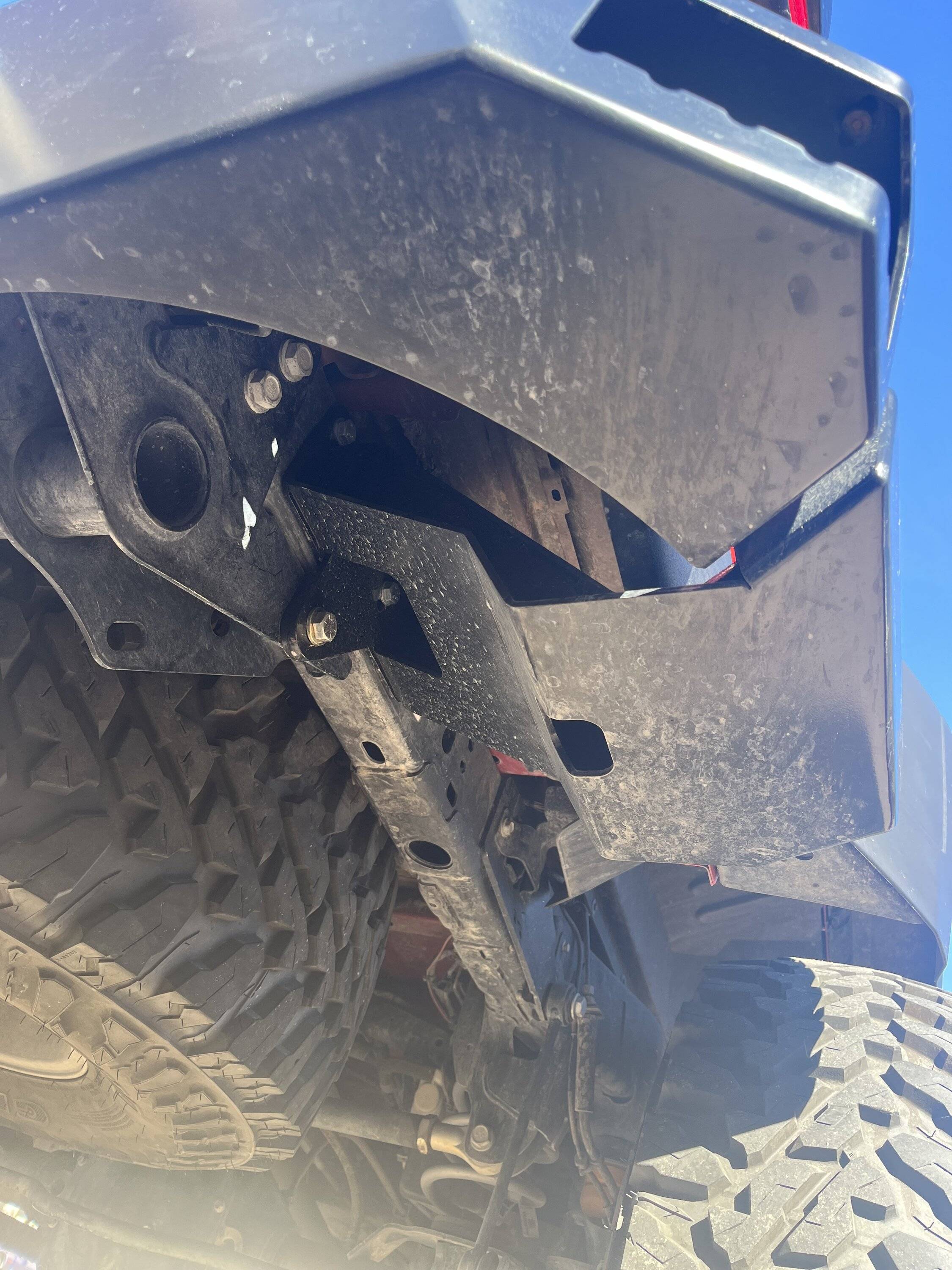

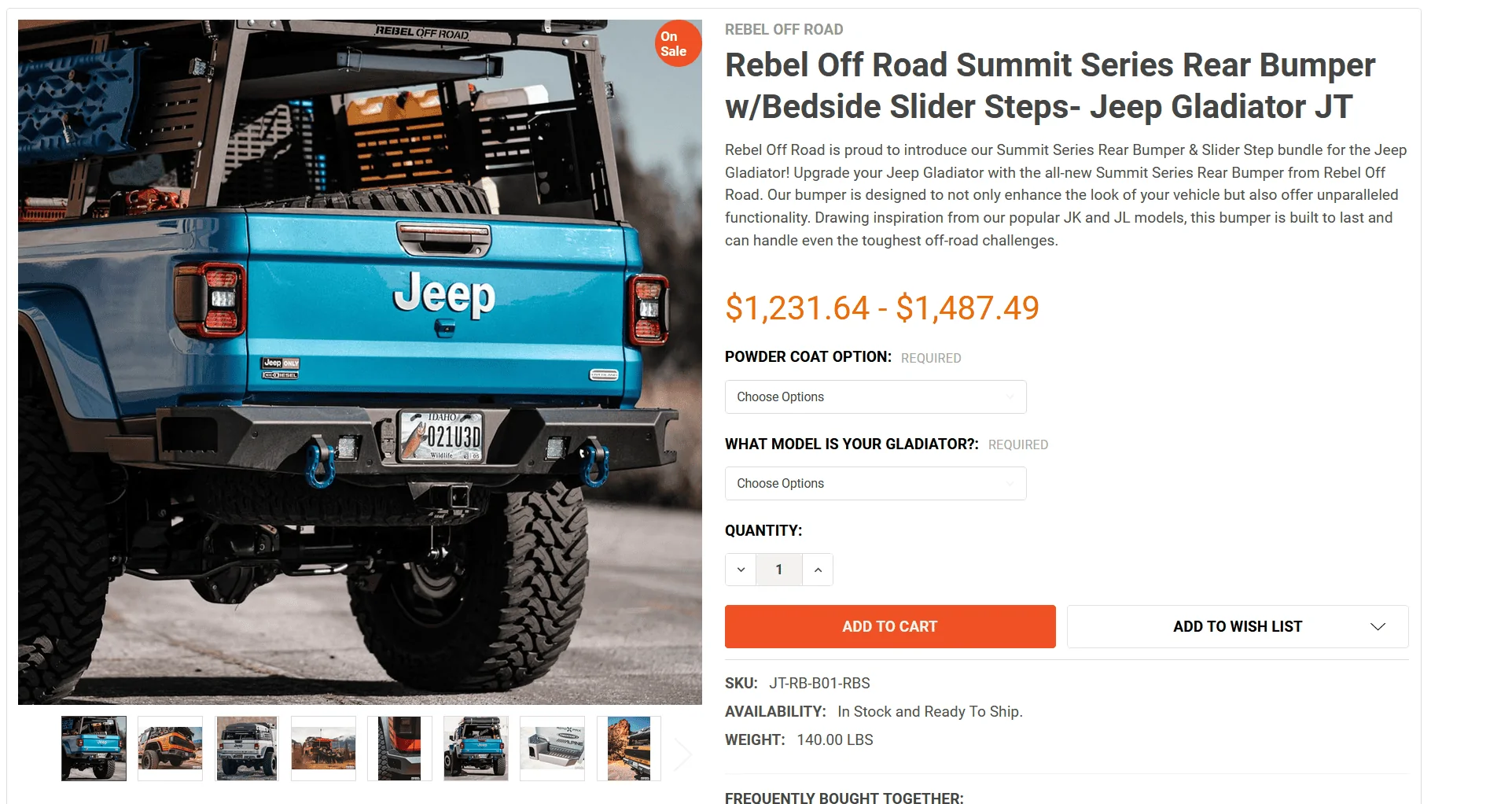

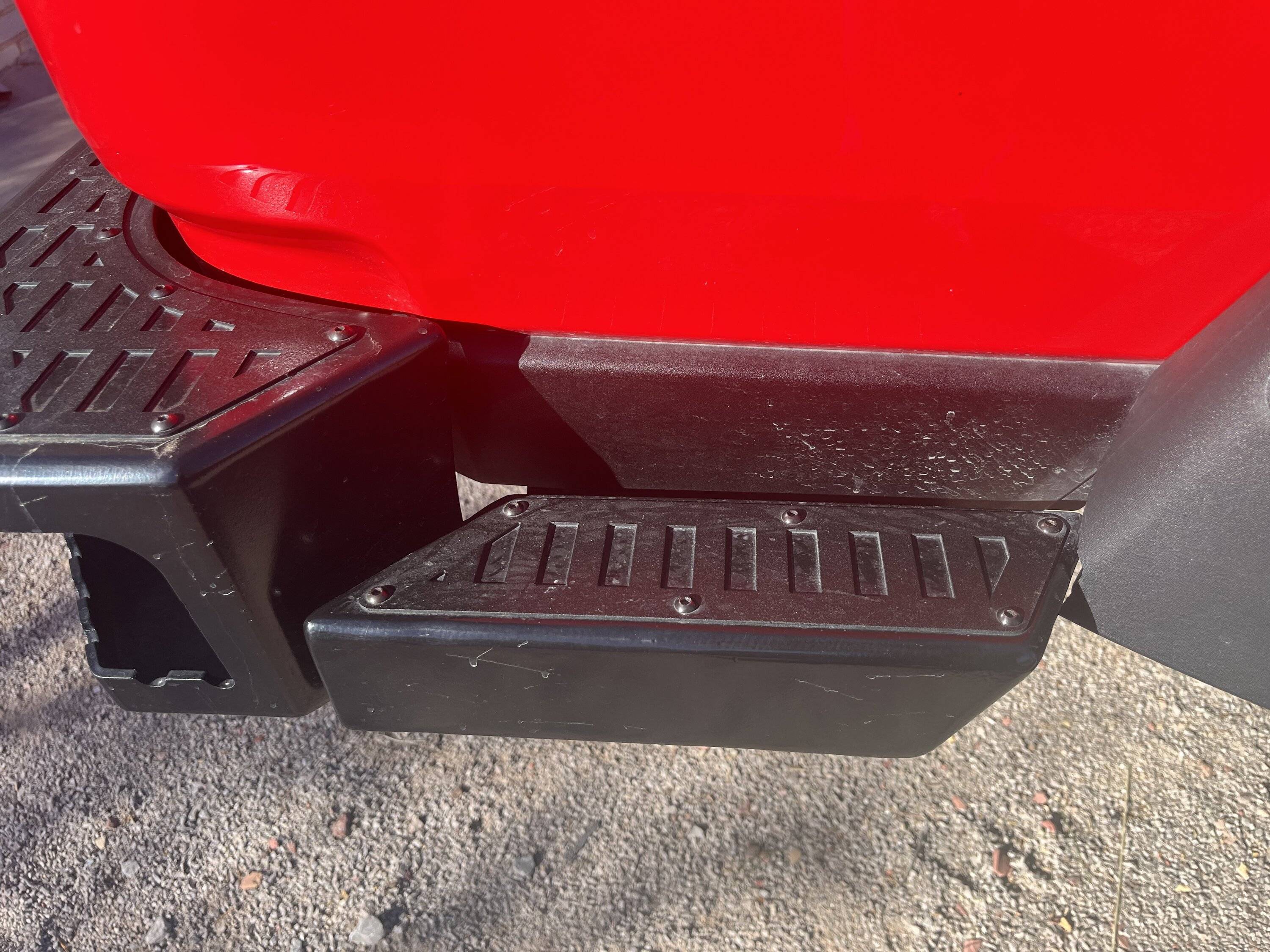

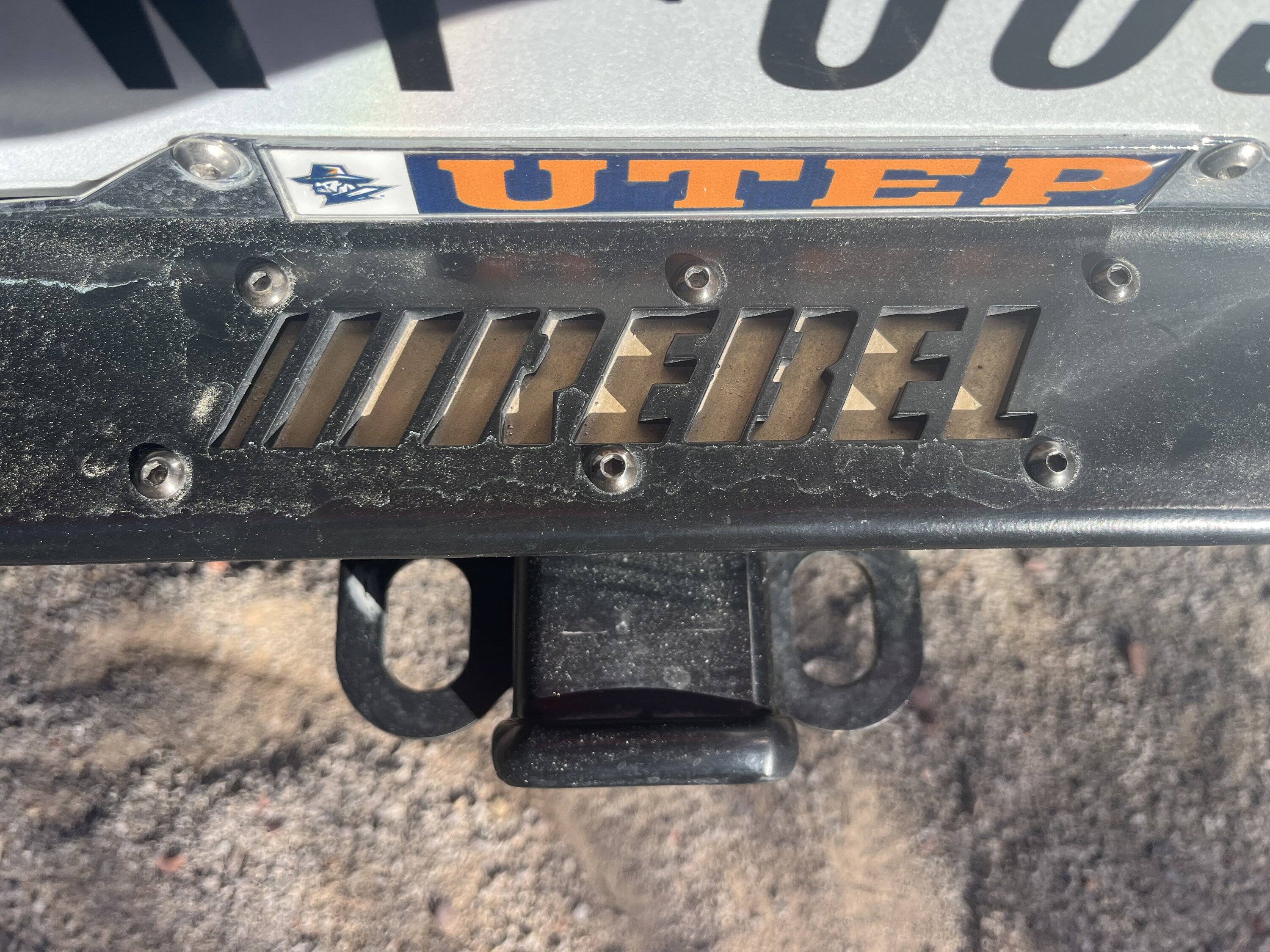

It's a Rebel Off-Road Summit rear bumper, with the optional slider steps. I bought mine in raw steel and had it powder-coated with Prismatic Powders "Poison Spyder Satin Black" to match my Poison Spyder bumper. Coated the grid "Grip Plates" and the plastic bed trim plates with Rustoleum Pro-Grade bedliner as well, gives me 2 very sturdy step points, and lets the plastic trim handle the abuse.

I have no issues getting into the bed, even with the 37" inch tires and 2.5" lift. It's also strong as hell, no worries about damaging it.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. Capture.PNG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_8988.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_8979.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_8980.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_8985.JPG


Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_8986.JPG


starrskream

Well-Known Member
First Name
E
Joined
Oct 2, 2023
Threads
43
Messages
300
Reaction score
380
Location
New york
Vehicle(s)
2023 Rubicon
Occupation
Manager
Nice work man!
I want to to do this but I haven’t even clocked 700 miles yet. May be a while lol.
Excellent tip on the rice nuts and bedliner. I’m gonna likely have to do that when I put the bottom fasteners in for my rough country molle panels .

Also, what is that info plate? That’s pretty cool.

OP
OP
Zero_Accel

Zero_Accel

Well-Known Member
First Name
Aaron
Joined
Oct 27, 2021
Threads
30
Messages
494
Reaction score
1,140
Location
El Paso, Texas
Vehicle(s)
2020 Jeep Gladiator Sport
Build Thread
Link
Occupation
Systems Engineer
Nice work man!
I want to to do this but I haven’t even clocked 700 miles yet. May be a while lol.
Excellent tip on the rice nuts and bedliner. I’m gonna likely have to do that when I put the bottom fasteners in for my rough country molle panels .

Also, what is that info plate? That’s pretty cool.

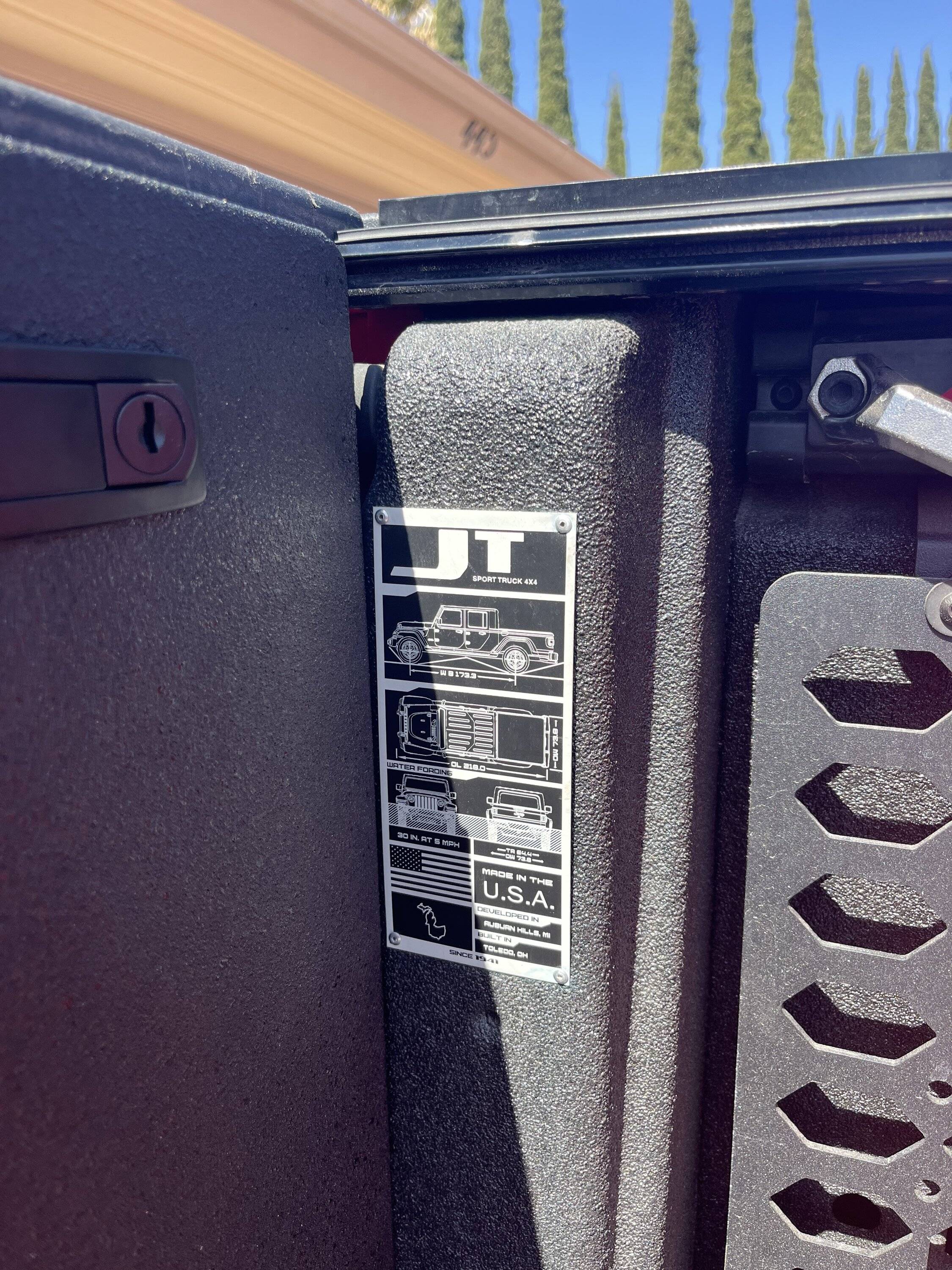

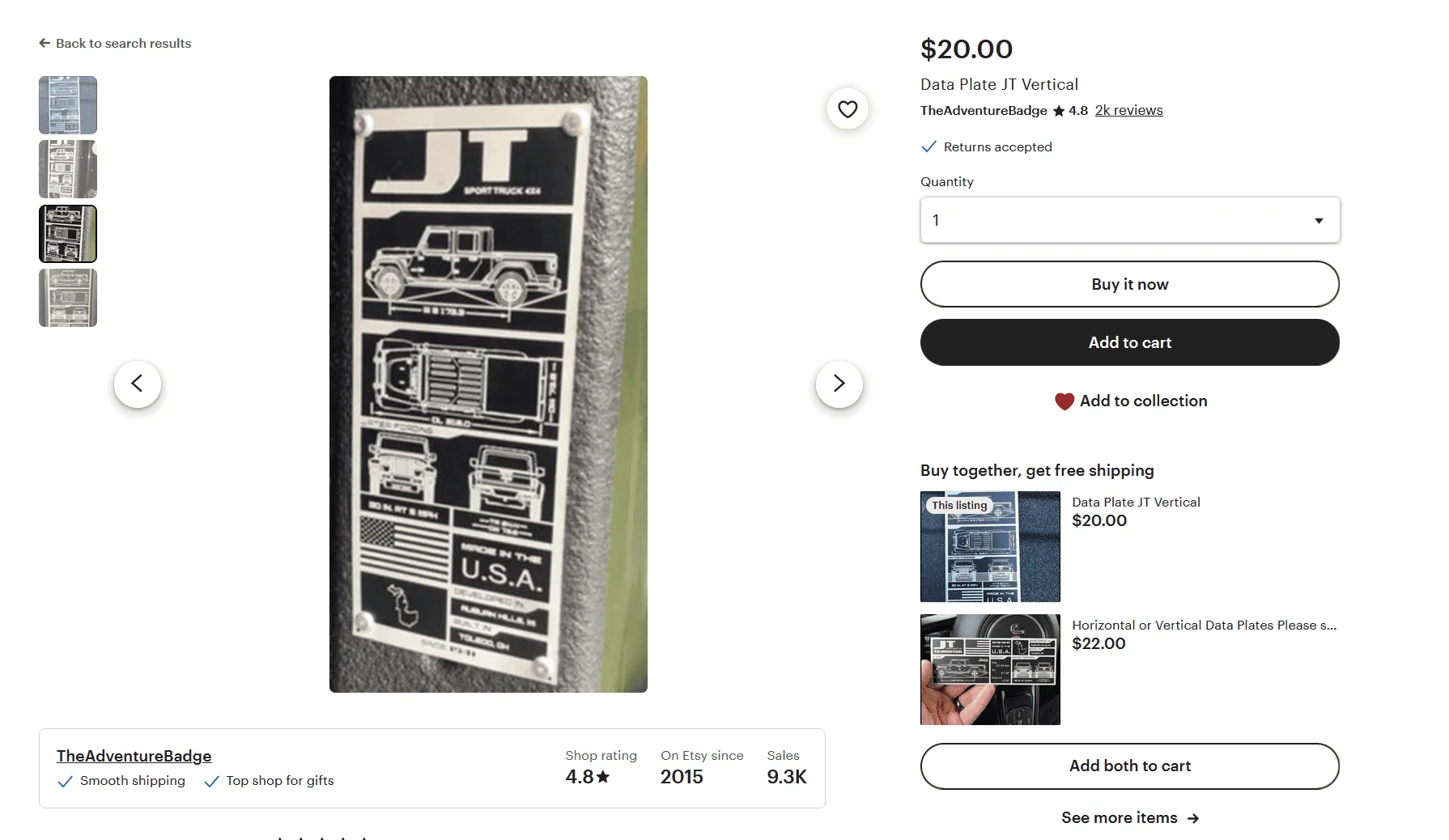

It's a Jeep Gladiator Data plate, got it from The Adventure Badge. I wanted the same dataplates that the JL's come with, so I riveted it to my bed.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. Capture.PNG


Sponsored

TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
80
Messages
2,350
Reaction score
2,293
Location
sun belt
Vehicle(s)
3.0 JT
Occupation
Solar & EV infrastructure
How much does this box weigh and is it water tight?

OP
OP
Zero_Accel

Zero_Accel

Well-Known Member
First Name
Aaron
Joined
Oct 27, 2021
Threads
30
Messages
494
Reaction score
1,140
Location
El Paso, Texas
Vehicle(s)
2020 Jeep Gladiator Sport
Build Thread
Link
Occupation
Systems Engineer
How much does this box weigh and is it water tight?
I can't say for sure, there wasn't a listing on the website, so I'll give you a rough number.

Given that it's "Aircraft grade Aluminum", I'm going to say it's Alloy 2024, the most common variant. It's usually 0.032 thick, with a density of 0.1 lbm/in^3. Now this box is roughly 47" *10.75" *3.25" in volume. Taking the volume * thickness of 6 sheets of AL2024 * density.

(1642 in^3) * (0.192 in) * (0.1 lbm/in^3) = 31.5 lbs.

Which feels about right, I was able to move it around very easily. Napkin math checks out.

As for water tightness, there's a gasket around the lid, if you adjust the clamps correctly, I don't think water intrusion will be an issue. It's that grey looking piece above latches.

Jeep Gladiator I cut a giant hole in my tailgate! Reaper Off-Road Tailgate Box install and write-up. IMG_9349.JPG

Last edited:

Waltzforzizi

Well-Known Member
First Name
Michael
Joined
Dec 4, 2020
Threads
6
Messages
61
Reaction score
106
Location
90805
Vehicle(s)
2021 Jeep Gladiator Willys

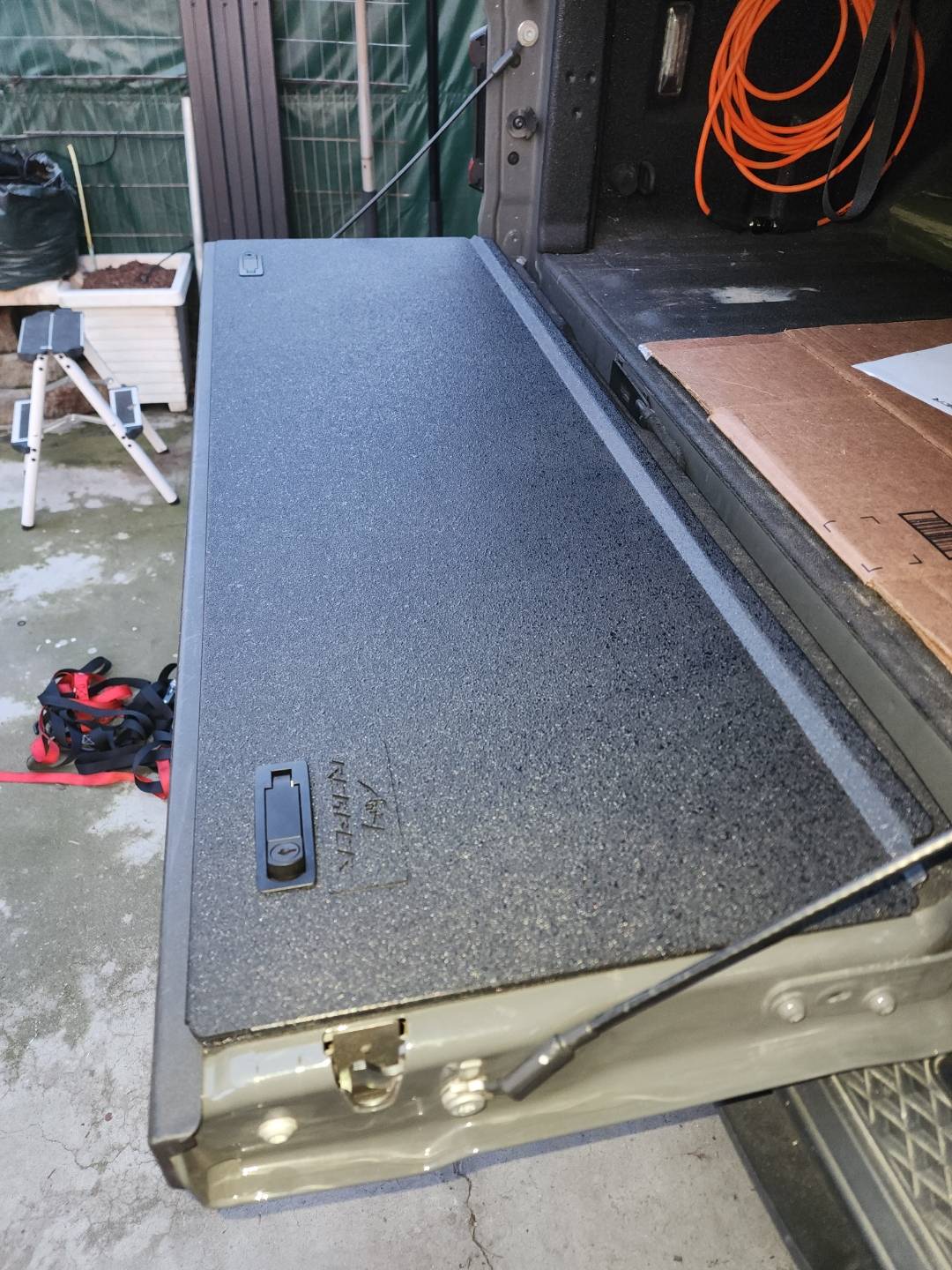

I did the same mod this past weekend. So far I like it, didn't feel the need to install the lights. Kit was on sale at extreme terrain, only took a week and half to get.








Top
