I'm getting old.

ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Threads
22
Messages
1,414
Reaction score
1,956
Location
NY
Vehicle(s)
15 jkur
We’ve been fighting this fight since the beginning.

Jeep Gladiator I'm getting old. AE7C5B38-8A9A-46F4-AF12-D81C1FD2A2F0
Sponsored



Ole Cowboy

Well-Known Member
First Name
Don
Joined
May 10, 2019
Threads
15
Messages
491
Reaction score
710
Location
Florida
Vehicle(s)
20 F 450, 17 JK Rubicon RECON, 21 Glady
Occupation
ReTired
We’ve been fighting this fight since the beginning.

Dunno if that is for real or not, but if you will look at those old cars back in those of pre-WWII you will note the TALL and skinny tire.

WHY? The answer is easy, not many roads were paved, in fact, most were not even improved dirt roads. When it rained they turned to MUD so how did get around on them? That is where the tall skinny wheel/tire combo came into play. The tires would spin down thru the mud till they hit dry dirt and when they did they gained traction and that is how you drove thru those muddy roads.

Its ALL about the Contact Patch!!!


Sponsored

Ian cj10

Well-Known Member
First Name
ian
Joined
Aug 12, 2017
Threads
4
Messages
307
Reaction score
356
Location
australia
Vehicle(s)
1984 cj10 pickup ,1983 sj cherokee with 6.2l chev diesel, 1974 cj6 ,1966 willys pick up 1970 dodge challenger 1974 cj5 project 2012 holden colorado
ive got 15's on everything but my colorado i went down to 16's for that & when i get my jt it'll get the smallest diameter rims i can put on it


TampaJLU

Well-Known Member
First Name
Adam
Joined
Apr 21, 2019
Threads
9
Messages
61
Reaction score
113
Location
Tampa, Florida
Vehicle(s)
2020 Gladiator 2017 BMW M4 2017 Z06
Am I the only one who likes the smaller rim bigger tire combo ?It seems all the nice looking rims are 20's and higher. Ugh!!! My hat brim is curved people.
Im doing 35x12.5x17 tires on 17 in wheels.


ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Threads
22
Messages
1,414
Reaction score
1,956
Location
NY
Vehicle(s)
15 jkur
Its ALL about the Contact Patch!!!
So about contact patch.

Being a horrible infovore I came across perhaps the most concise way of calculating the contact area for any given tire. Sad and shocking news; the size of the tire doesn't effect contact area in any way you'd think. :surprised::mad::swear:

So grab a big cup of coffee (or beer) and check this out.

First off from Boeing:
Calculating Tire Contact Area - http://www.boeing.com/assets/pdf/commercial/airports/faqs/calctirecontactarea.pdf

Calculating Tire Contact Area
The tire contact area for any aircraft tire is calculated by dividing the single wheel load by the tire inflation pressure. If the load is expressed in pounds, and the tire pressure in pounds per square inch, then the area is in inches squared. The same thing works with kilograms and kg/cm2 - the result will then be in square centimeters. The shape of the footprint area is usually understood to be a 1.6 ellipse (as referenced in the US Corps of Engineer's S-77-1 Report), wherein the major axis is 1.6 times the minor axis. The calculation to solve for the minor axis is .894 times the square root of the contact area. Note that the major axis runs parallel to the normal direction of motion of the aircraft, and the minor axis is perpendicular to the major axis.

Example: 777-300 Main Gear Tire Contact Area
For this case, use the maximum taxi weight of 662,000 lbs configuration of the 777-300 as shown in Figure 7.2 “Landing Gear Footprint - 777- 200/300” and Figure 7.3 “Maximum Pavement Loads - 777-200/300.” Figure 7.2 provides the main gear tire pressure of 215 PSI. Figure 7.3 shows the V(mg) per strut / maximum load at the static aft center of gravity for this airplane configuration of 313,900 pounds. Given that the 777-300 has six wheels per main gear as shown in Figure 7.2, to calculate the contact area first determine the load per tire (313,900 / 6 = 52,317) then to calculate the contact area, divide the load per tire by the PSI (52,317 / 215 = 243.3 in2 contact area). The footprint area is a 1.6 ellipse determined as follows: Minor axis is .894 x square root of the contact area (0.894 x sq root of 243.3 = 13.94 inches minor axis) Major axis is 1.6 x minor axis (1.6 x 13.94 = 22.30 inches major axis)


:computerrage:

To break this down into JT terms
JT Sport automatic - 4672 pounds, 245/75R17 @20/30/40psi
4672/4 = 1168lb/tire = 58.4"^2 / 38.93"^2 / 29.2"^2 total contact area

minor axis sqrt(58.4) = 7.64*.894 = 6.83"
major axis = 6.83" * 1.6 = 10.93"
contact patch @ 20psi = 10.93" x 6.83"

minor axis sqrt(38.93) = 6.24*.894 = 5.58"
major axis = 5.58" * 1.6 = 8.93"
contact patch @ 30psi = 8.93" x 5.58"

minor axis sqrt(29.2) = 5.40*.894 = 4.83"
major axis = 4.83" * 1.6 = 7.73"
contact patch @ 30psi = 7.73" x 4.83"

So despite Boeings rather fancy math to tell us the shape of the contact patch the real down and dirty math is contact area = load/inflation pressure.

There is some limiting parameters the chief of which is minor axis should be limited to wheel width, if the minor axis gets too wide then the tire will pull off the bead face of the wheel but this is countered by ply rating , if you put a higher load rated (stiffer sidewall) tire on you can run less pressure with less sidewall deformation but that's a different discussion.

But as we can see, your actual tire size or wheel and tire size doesn't drive your contact area or patch dimensions so much as your area/patch drives your wheel and tire size. :devil:


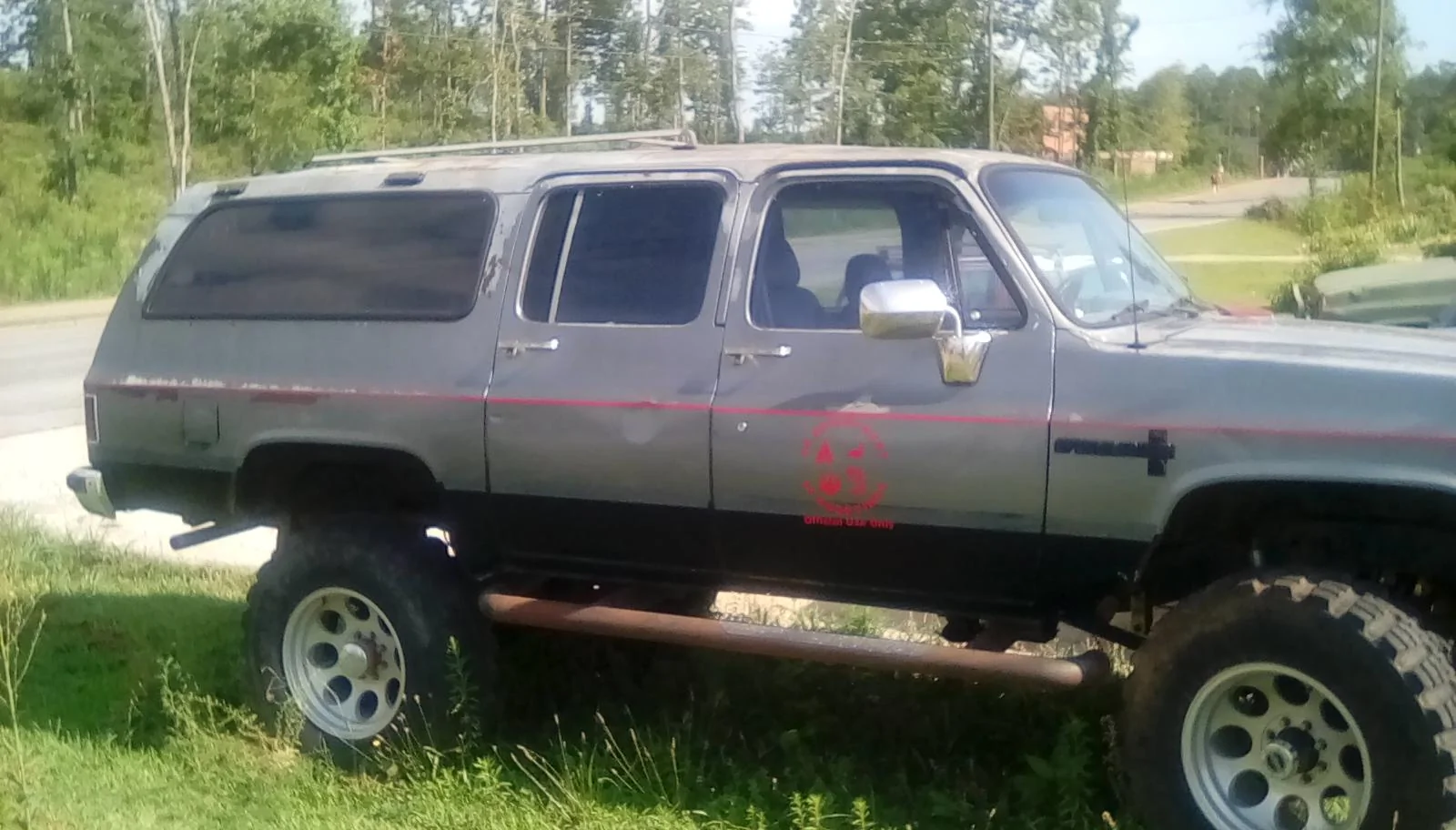

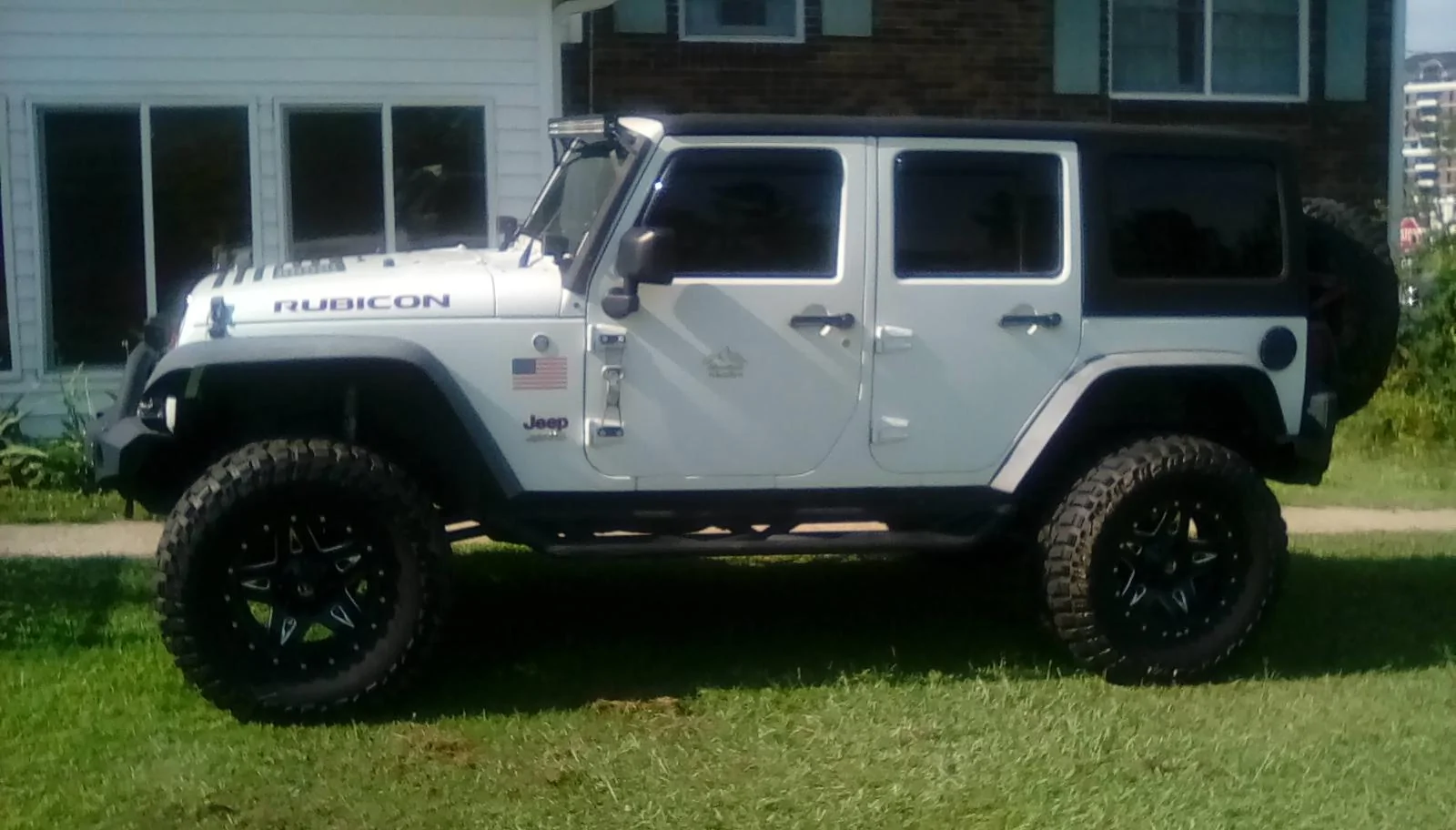

Attachments

Blown7

Well-Known Member
Joined
Oct 18, 2018
Threads
3
Messages
125
Reaction score
79
Location
CT
Vehicle(s)
1977 Hellcat powered CJ7..... 2007 Jeep SRT8...2018 Trackhawk
represents brims ranging from

@ColdSRT - as you’re aware, SRTs/Trackhawks come stock with 20’s...I doubt anyone’s suggesting to roll some 285/65/17s on them ;)[/QUOTE]

Anyone who really knows that big brakes need big rims.
My Trackhawk has almost 16 inch rotors..
I'll take big rims and brakes any day compared to small diameter rims.


Ole Cowboy

Well-Known Member
First Name
Don
Joined
May 10, 2019
Threads
15
Messages
491
Reaction score
710
Location
Florida
Vehicle(s)
20 F 450, 17 JK Rubicon RECON, 21 Glady
Occupation
ReTired
So about contact patch.

Being a horrible infovore I came across perhaps the most concise way of calculating the contact area for any given tire. Sad and shocking news; the size of the tire doesn't effect contact area in any way you'd think. :surprised::mad::swear:

So grab a big cup of coffee (or beer) and check this out.

First off from Boeing:
Calculating Tire Contact Area - http://www.boeing.com/assets/pdf/commercial/airports/faqs/calctirecontactarea.pdf

Calculating Tire Contact Area
The tire contact area for any aircraft tire is calculated by dividing the single wheel load by the tire inflation pressure. If the load is expressed in pounds, and the tire pressure in pounds per square inch, then the area is in inches squared. The same thing works with kilograms and kg/cm2 - the result will then be in square centimeters. The shape of the footprint area is usually understood to be a 1.6 ellipse (as referenced in the US Corps of Engineer's S-77-1 Report), wherein the major axis is 1.6 times the minor axis. The calculation to solve for the minor axis is .894 times the square root of the contact area. Note that the major axis runs parallel to the normal direction of motion of the aircraft, and the minor axis is perpendicular to the major axis.

Example: 777-300 Main Gear Tire Contact Area
For this case, use the maximum taxi weight of 662,000 lbs configuration of the 777-300 as shown in Figure 7.2 “Landing Gear Footprint - 777- 200/300” and Figure 7.3 “Maximum Pavement Loads - 777-200/300.” Figure 7.2 provides the main gear tire pressure of 215 PSI. Figure 7.3 shows the V(mg) per strut / maximum load at the static aft center of gravity for this airplane configuration of 313,900 pounds. Given that the 777-300 has six wheels per main gear as shown in Figure 7.2, to calculate the contact area first determine the load per tire (313,900 / 6 = 52,317) then to calculate the contact area, divide the load per tire by the PSI (52,317 / 215 = 243.3 in2 contact area). The footprint area is a 1.6 ellipse determined as follows: Minor axis is .894 x square root of the contact area (0.894 x sq root of 243.3 = 13.94 inches minor axis) Major axis is 1.6 x minor axis (1.6 x 13.94 = 22.30 inches major axis)

:computerrage:

To break this down into JT terms
JT Sport automatic - 4672 pounds, 245/75R17 @20/30/40psi
4672/4 = 1168lb/tire = 58.4"^2 / 38.93"^2 / 29.2"^2 total contact area

minor axis sqrt(58.4) = 7.64*.894 = 6.83"
major axis = 6.83" * 1.6 = 10.93"
contact patch @ 20psi = 10.93" x 6.83"

minor axis sqrt(38.93) = 6.24*.894 = 5.58"
major axis = 5.58" * 1.6 = 8.93"
contact patch @ 30psi = 8.93" x 5.58"

minor axis sqrt(29.2) = 5.40*.894 = 4.83"
major axis = 4.83" * 1.6 = 7.73"
contact patch @ 30psi = 7.73" x 4.83"

So despite Boeings rather fancy math to tell us the shape of the contact patch the real down and dirty math is contact area = load/inflation pressure.

There is some limiting parameters the chief of which is minor axis should be limited to wheel width, if the minor axis gets too wide then the tire will pull off the bead face of the wheel but this is countered by ply rating , if you put a higher load rated (stiffer sidewall) tire on you can run less pressure with less sidewall deformation but that's a different discussion.

But as we can see, your actual tire size or wheel and tire size doesn't drive your contact area or patch dimensions so much as your area/patch drives your wheel and tire size. :devil:
Downloaded, will try to get to it in the next couple of days, will respond ASAP...


Sponsored

OP
OP

Dallas91

Well-Known Member
First Name
Justin
Joined
Apr 9, 2019
Threads
8
Messages
94
Reaction score
170
Location
Illinois
Vehicle(s)
18 Silverado ltz
Anyone have a calculator I can borrow?


Lou3.6

Well-Known Member
First Name
Lou
Joined
Nov 24, 2018
Threads
6
Messages
1,036
Reaction score
701
Location
Eastern Washington State
Vehicle(s)
Jeep 2016 WK2 75th Anniversary edition
Occupation
retired Navy -- 1984 > 2004
Anyone have a calculator I can borrow?
If there ain't one on your computer -? - then it's about (over) time to UpGrade . . . NO ? :LOL: :like:

OP
OP

Dallas91

Well-Known Member
First Name
Justin
Joined
Apr 9, 2019
Threads
8
Messages
94
Reaction score
170
Location
Illinois
Vehicle(s)
18 Silverado ltz
Ok. ok... anyone have a computer with a calculator on it? I don't have either to figure it this equation.


nuut

New Member
First Name
Scott
Joined
Jun 19, 2019
Threads
1
Messages
4
Reaction score
0
Location
Appleton, WI
Vehicle(s)
2020 Jeep Gladiator Sport S
I bought my JT Sport S off the lot. My local dealer had installed 20’s with 35x12.50 Mickey Thompson Baja ATZ’s. Love the tires HATE the rim size. They are OK for casual trail riding but I found out yesterday that there isn’t enough rubber to air them down for traction on rock covered trails.


ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Threads
22
Messages
1,414
Reaction score
1,956
Location
NY
Vehicle(s)
15 jkur
I’ve done the math and going to some serious baller rims with low pros wouldn’t require regearing or hurt articulation as the OD would nearly the same.

Who’s ready to ride the donkey?

Jeep Gladiator I'm getting old. 98405061-E117-42CF-9AFE-0B3D73A96BBC


Jeep Gladiator I'm getting old. CBC611B7-31D9-47CA-8910-DD6B35D24AB8
