I wanted a non-permanent solution to carry bicycles in the bed of the truck. We have a hitch rack from the previous SUV, but I don't want salt and dust collecting on the bikes back there. What's the point of a truck if you don't put stuff in the bed?

Materials:

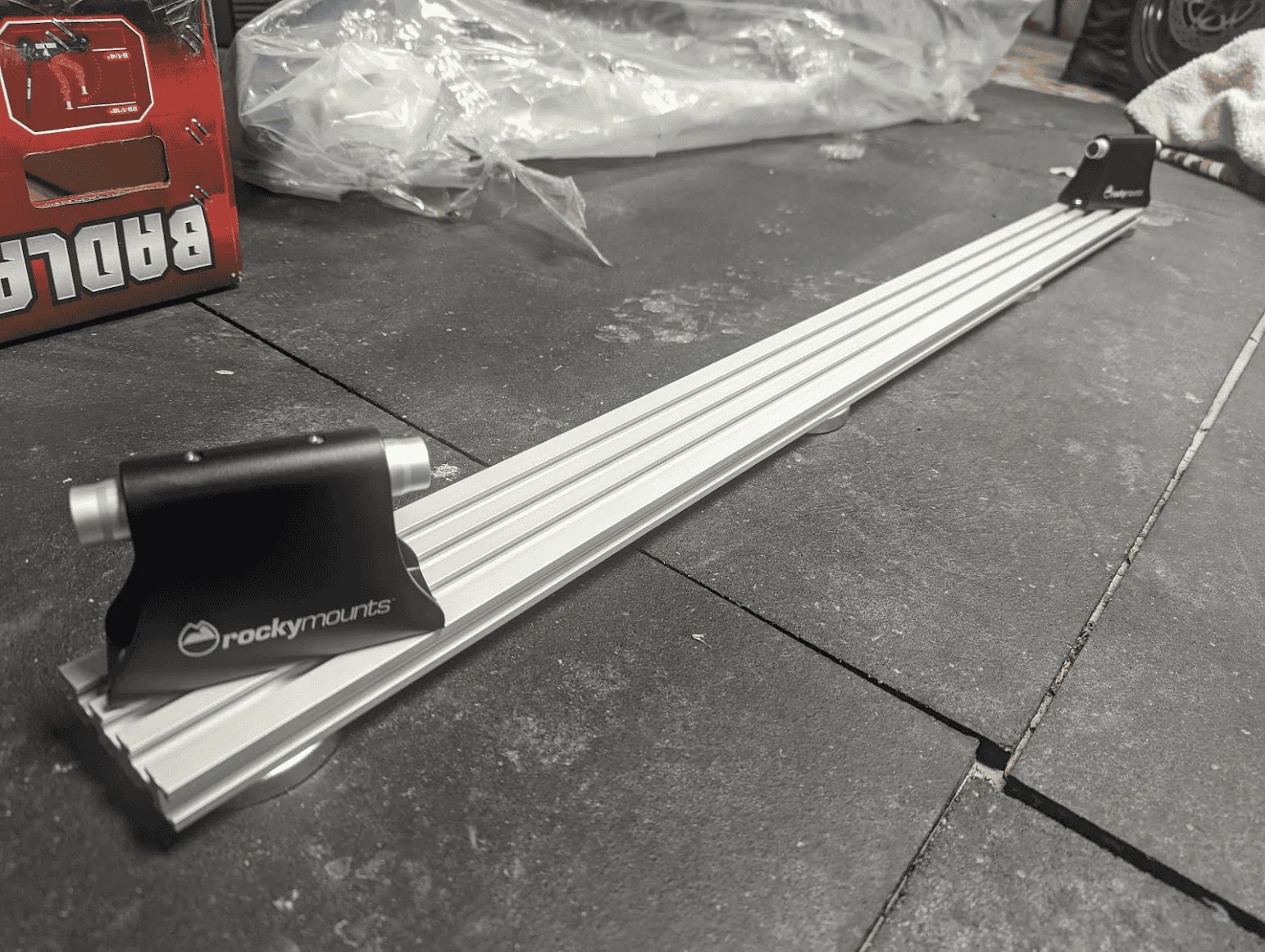

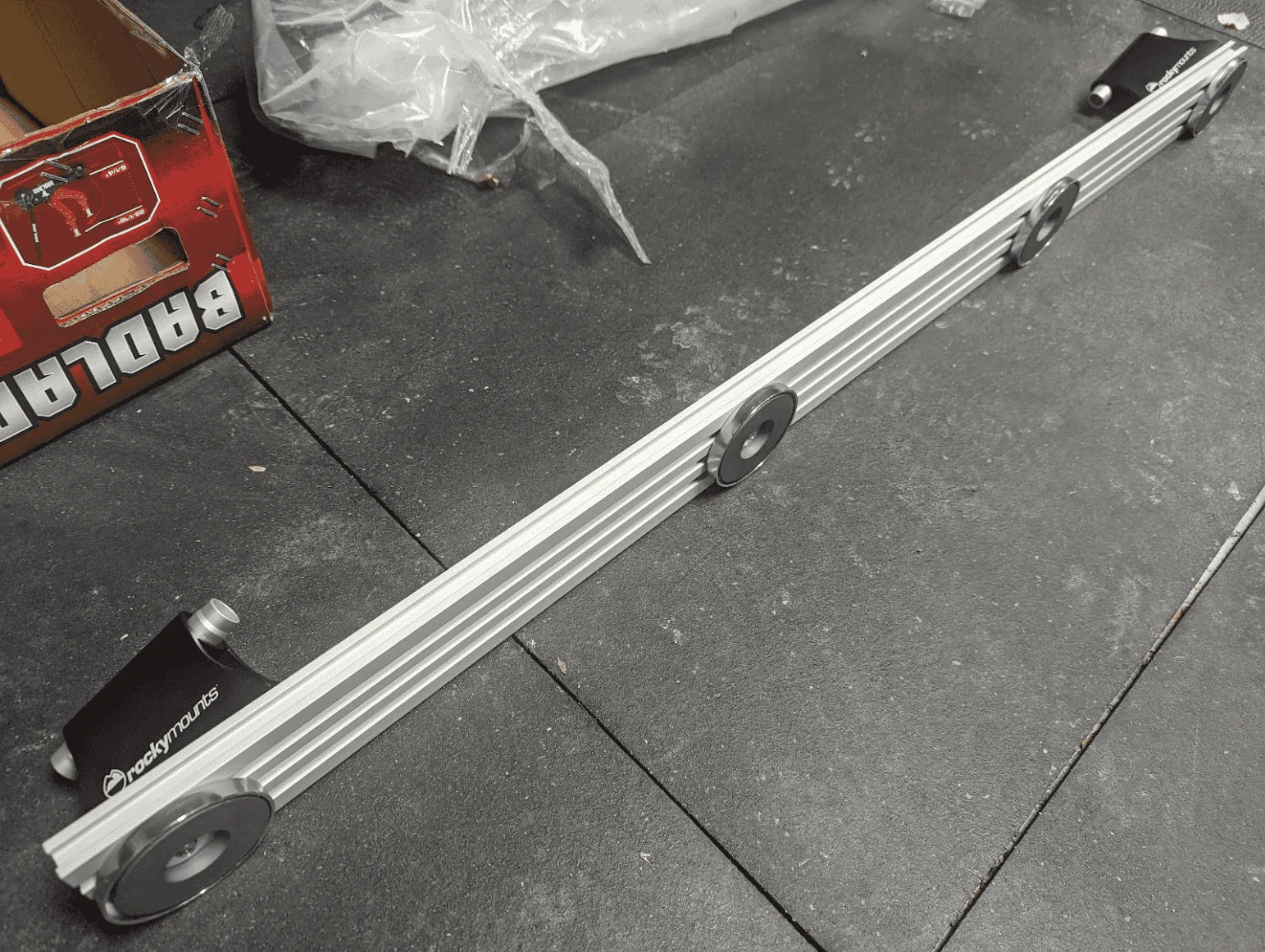

Assemble as shown, with the washers inside the center of the magnet (just to reinforce the thin stamped shell of the magnet), and adjust as needed to put the magnets on the ridged parts of the bed or between the ridges right at the end. I found the magnets are not thick enough to fully clear the ridges, but if you place it right at the end it works just fine. I angled the fork mounts so the bars can overlap without hitting.

Jeep Gladiator In-bed magnetic bicycle rack installed (Difficulty: 1/5) 1706148692843


Jeep Gladiator In-bed magnetic bicycle rack installed (Difficulty: 1/5) 1706148730254


Putting the fork side at the tailgate allows me to roll the rear tire into the bed and stand at the tailgate to attach the forks, rather than lean against the paint and lift the forks all the way to the cab. There's no reason the bike has to face forward in the bed, and I don't understand why most bicycle racks are built this way.

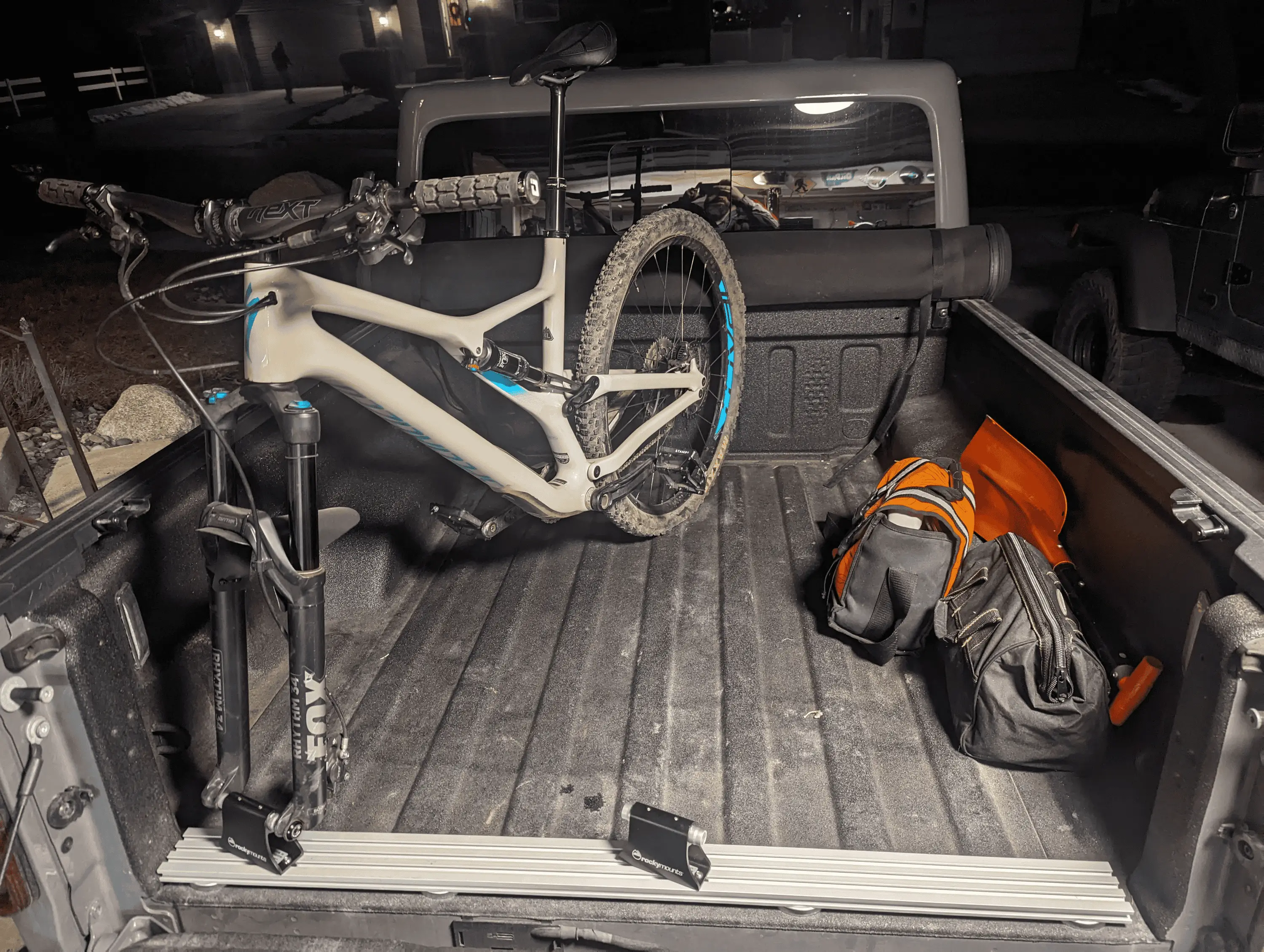

XL sized Stumpjumper on 29"s fits, it just has to be a little sideways due to the tonneau robbing me of a couple inches. There's enough room next to it for my wife's smaller Yeti Beti. Both our Framed fat bikes should fit even more easily. I repositioned the rail to be right at the end of the bed due to the size of my bike. Your mileage may vary, but it's easy to place the rail where you want it and where it fits for your bicycles.

Jeep Gladiator In-bed magnetic bicycle rack installed (Difficulty: 1/5) 1706148874554

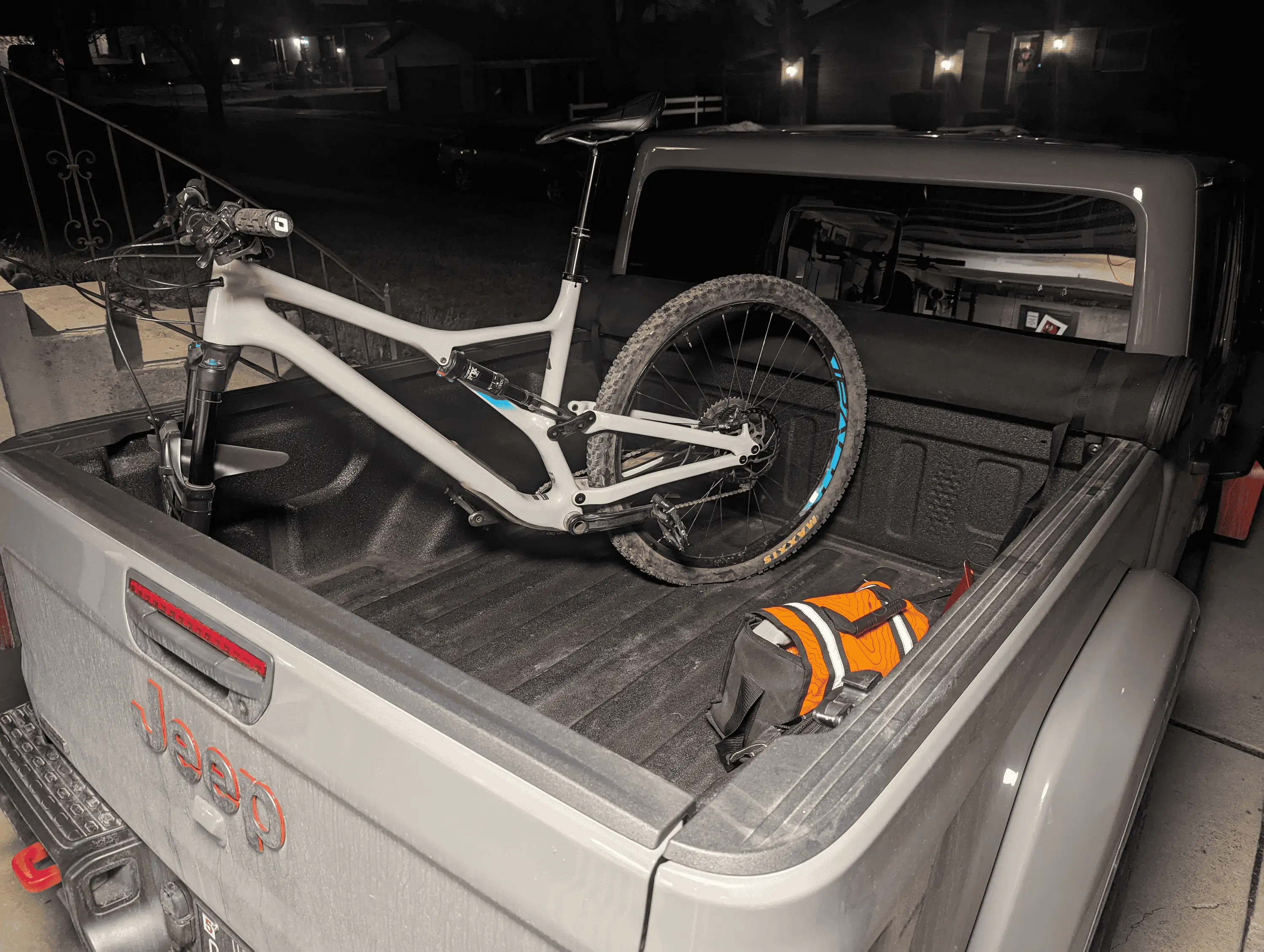

Tailgate up (pardon the flat tire, it's the off season):
