JBL 8 channel amp and Sound Ordinance powered sub. I called in sick to install it. Man oh man is it ever an upgrade. This is probably my favorite mod to date. I was gonna do an install post but Insane Audio has a great install help page with a BUNCH of short YouTube videos that covers everything so why reinvent the wheel?
https://insaneaudio.com/JL3001_VInstall/JL3001_VInstall.html
I put the sub behind the rear passenger seat and the amp I attached to a panel under and to the right of the glove box. There's a ground post under the front passenger seat right underneath the center console.
Lateral to the ground post is a grommet in the floor of the cab. I drilled through that and run the power cables through there and along the frame and up into the engine compartment.
I ran all new speaker wires because on the basic sound system the speakers run parallel and I wanted each speaker on a channel. I upgraded the dash speakers and the kicker panel speakers with the Metra speaker pods and 6 inch speakers. I also replaced the sound bar speakers with one 6 inch 3 ways speaker on each side.

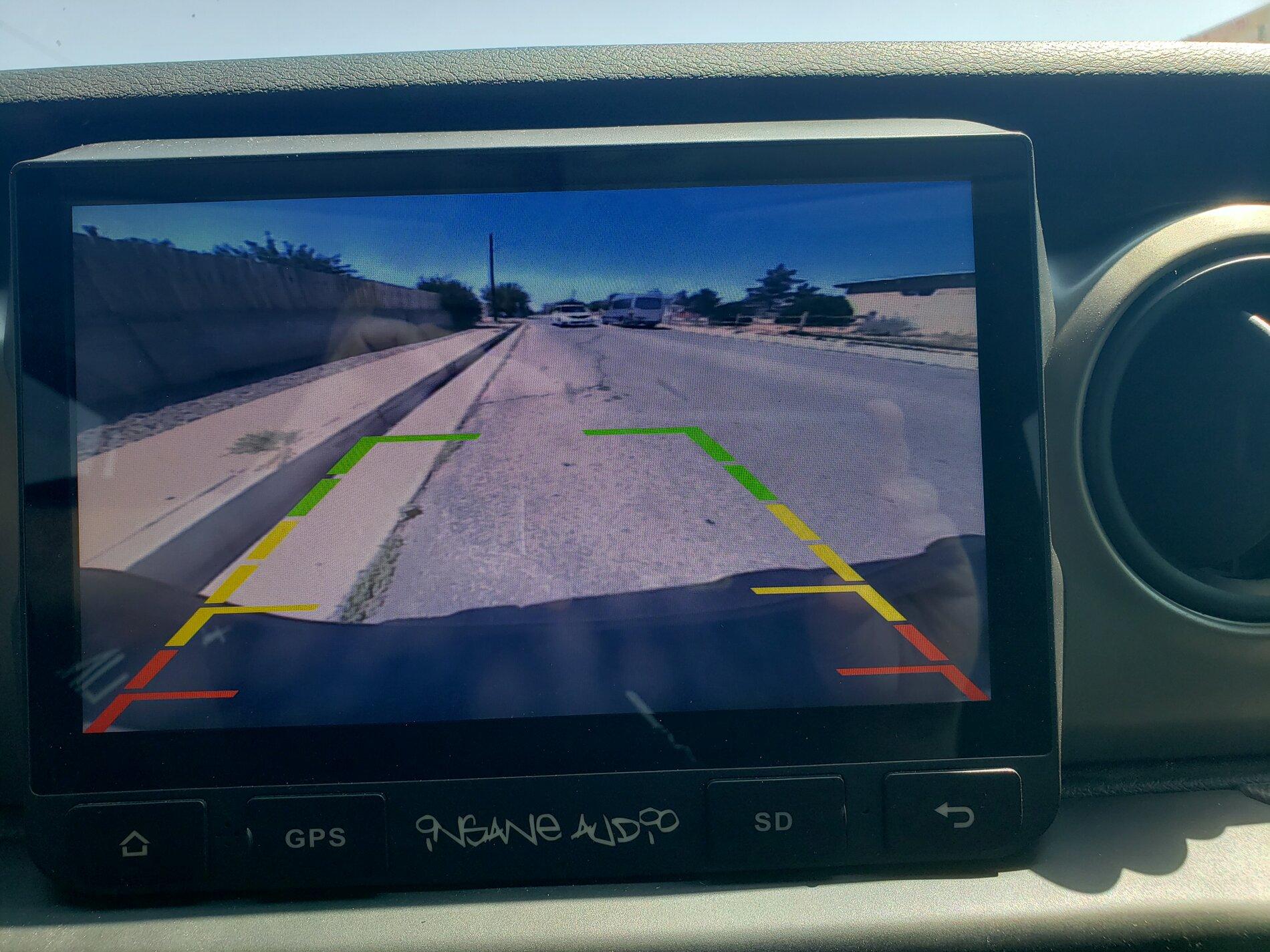

The JBL amp has an internal DSP that can program each channel out with a 31 band EQ. And then the JL3001. I don't even know where to start. It is like an IPAD mounted to your dash. It is absolutely amazing. It turns on instantly and the Nav is almost instant when turning it on. I can't wait to explore it's functions more.
https://insaneaudio.com/JL3001_VInstall/JL3001_VInstall.html
I put the sub behind the rear passenger seat and the amp I attached to a panel under and to the right of the glove box. There's a ground post under the front passenger seat right underneath the center console.
Lateral to the ground post is a grommet in the floor of the cab. I drilled through that and run the power cables through there and along the frame and up into the engine compartment.
I ran all new speaker wires because on the basic sound system the speakers run parallel and I wanted each speaker on a channel. I upgraded the dash speakers and the kicker panel speakers with the Metra speaker pods and 6 inch speakers. I also replaced the sound bar speakers with one 6 inch 3 ways speaker on each side.
The JBL amp has an internal DSP that can program each channel out with a 31 band EQ. And then the JL3001. I don't even know where to start. It is like an IPAD mounted to your dash. It is absolutely amazing. It turns on instantly and the Nav is almost instant when turning it on. I can't wait to explore it's functions more.
