Installed Mopar Splash Guards-Sport S Max Tow

tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
This past week I installed a set of Mopar splash guards. As some may know, the Sport S with Max Tow is apparently different when it comes to the rear fender liner goes. Brands like Weathertech state the their rear splash guards DO NOT work with the Sport S Max Tow, but do not really show/tell why. I even called and they didn't have an answer. Mopar doesn't state that that there is a different part for Max Tow, so I picked up a set from my local Jeep dealership. But, lo and behold, the rear was significantly different. The difference? The Max Tow version of the fender liner is "smoother" than the ones used for all other models. Why? Who knows. Maybe the same reason they fill in the gap between the fender and bumper for the Max Tow package. Anyway, now you know! I had to order the correct parts for the rear and got them exchanged a few days later.

So, installation is pretty straightforward. Unlike some youtube videos I have seen, the latest versions of these use plastic rivets instead of reusing the push fasteners and do require some drilling. I did have to buy a plastic rivet tool, got mine off of Amazon for $25. You can do it without, but I opted to do it with the correct tool.

The front set requires 1 new hole (1/4" drill) to be drilled. You remove the existing plastic rivets and one push in fastener. AS you can see, I have nerf bars and they DO NOT interfere. They are the Rough Country nerf bars (Identical to the N-Fab bars).

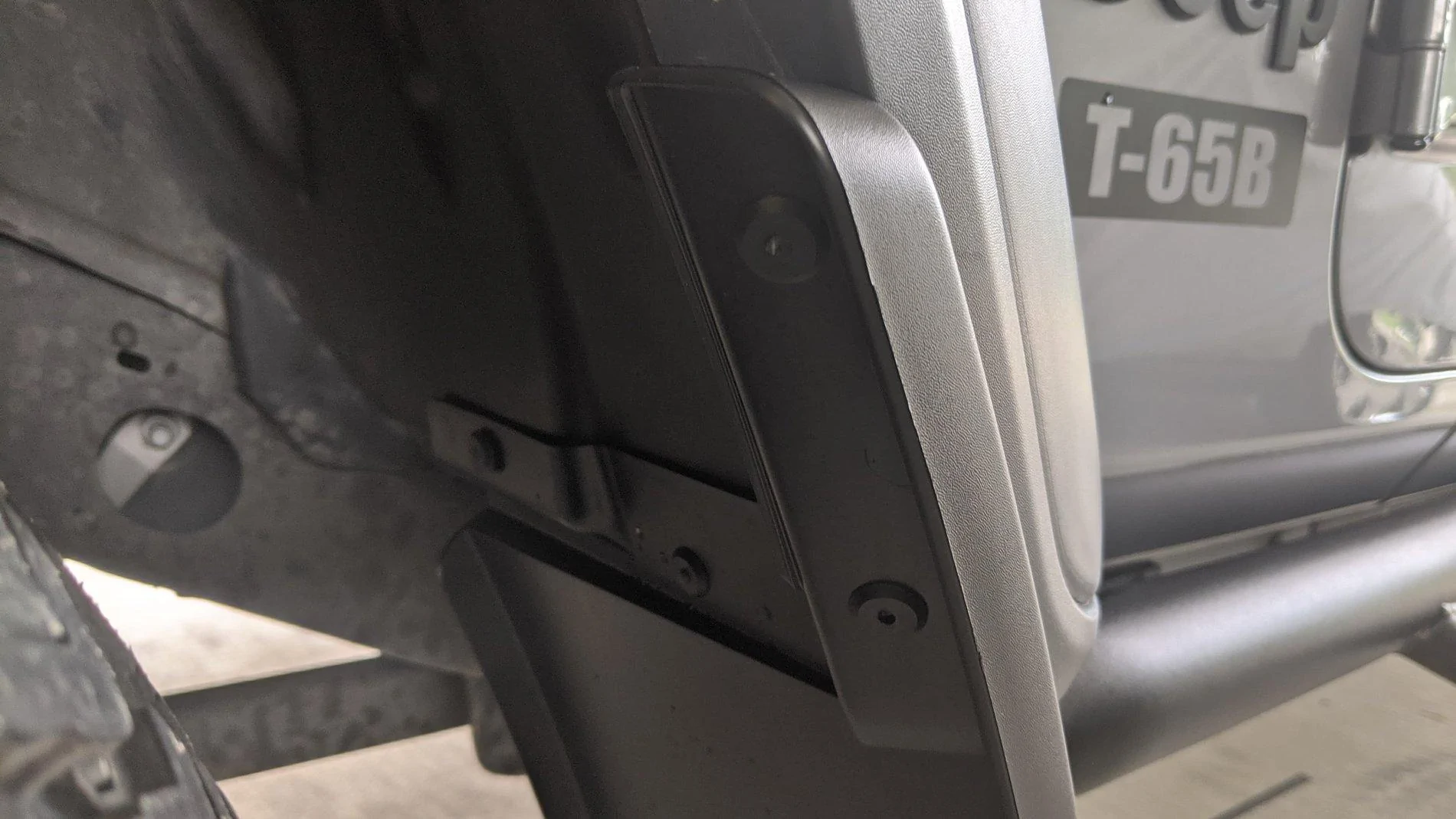

Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101506634_318448109156605_1960028430120980166_n

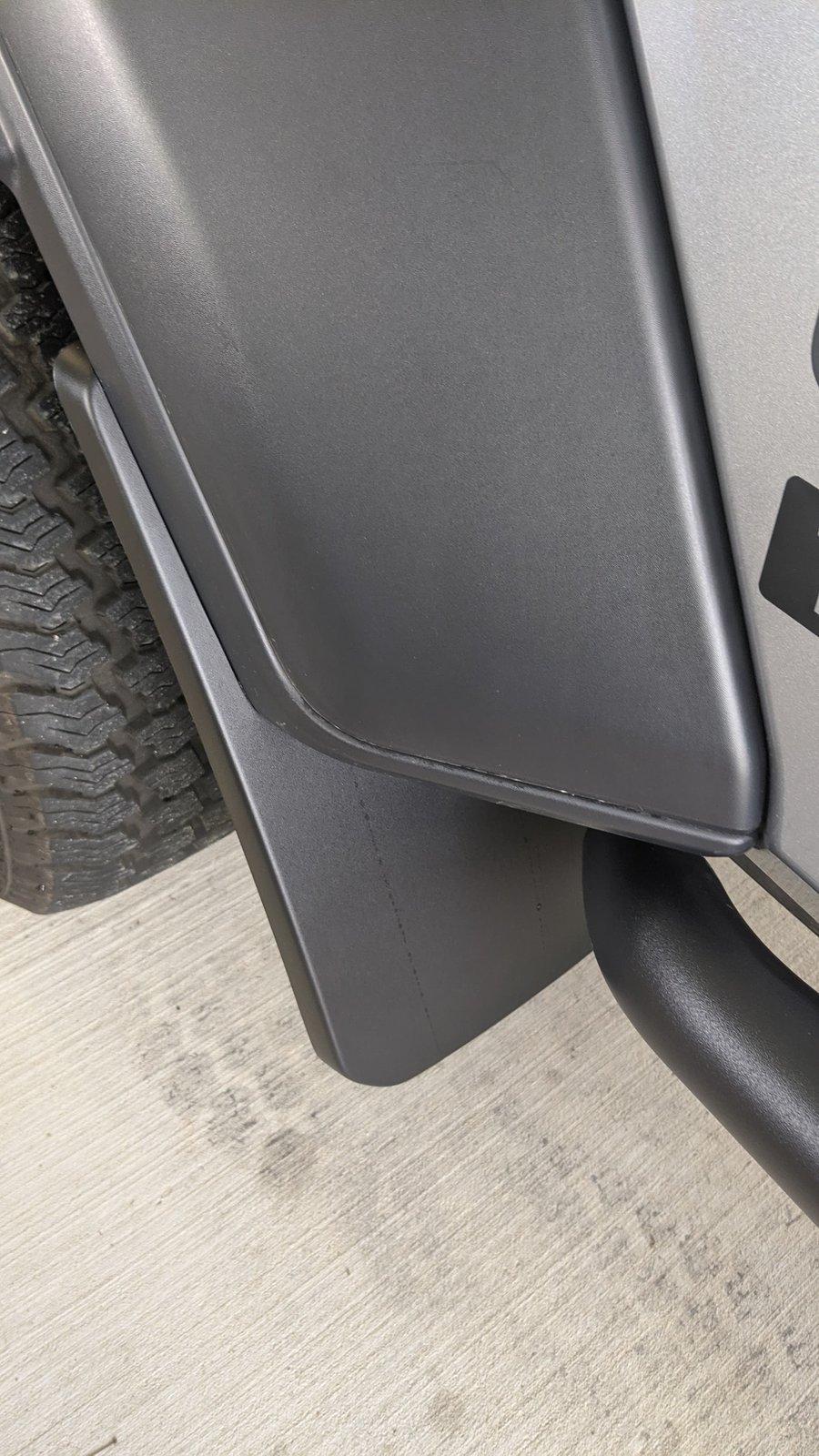

Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 103092371_277756186806145_8858284823406237059_n


The rear set requires 3 new holes (1/4" drill) and re-uses 1 hole. The single push fastener is replaced with a plastic rivet. As you can see the profile of the fender liner is pretty "smooth" or flat. All other models of the JT have a "hump" for lack of a better term hat occurs about halfway in towards the wheel well. It creats about a 1" stand off from the fender liner. In the image below the you can imagine that stand off right where the innermost rivet is.

Take note, that if you are using a standard drill and /or a rivet tool you will need to remove the rear wheel to get enough room to drill the the inner hole and use the rivet tool.

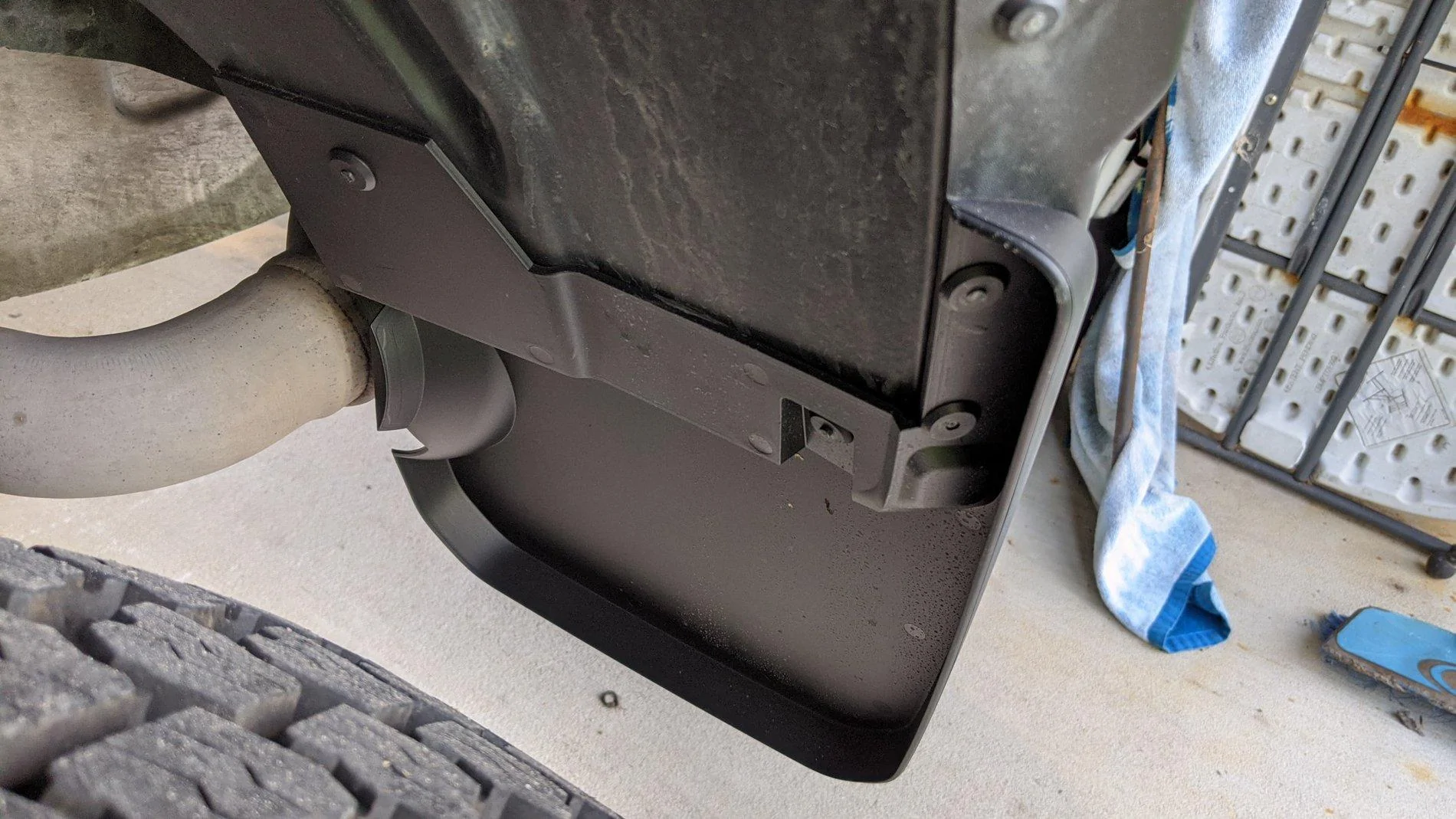

Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101349638_703135790483282_7109391434763192242_n

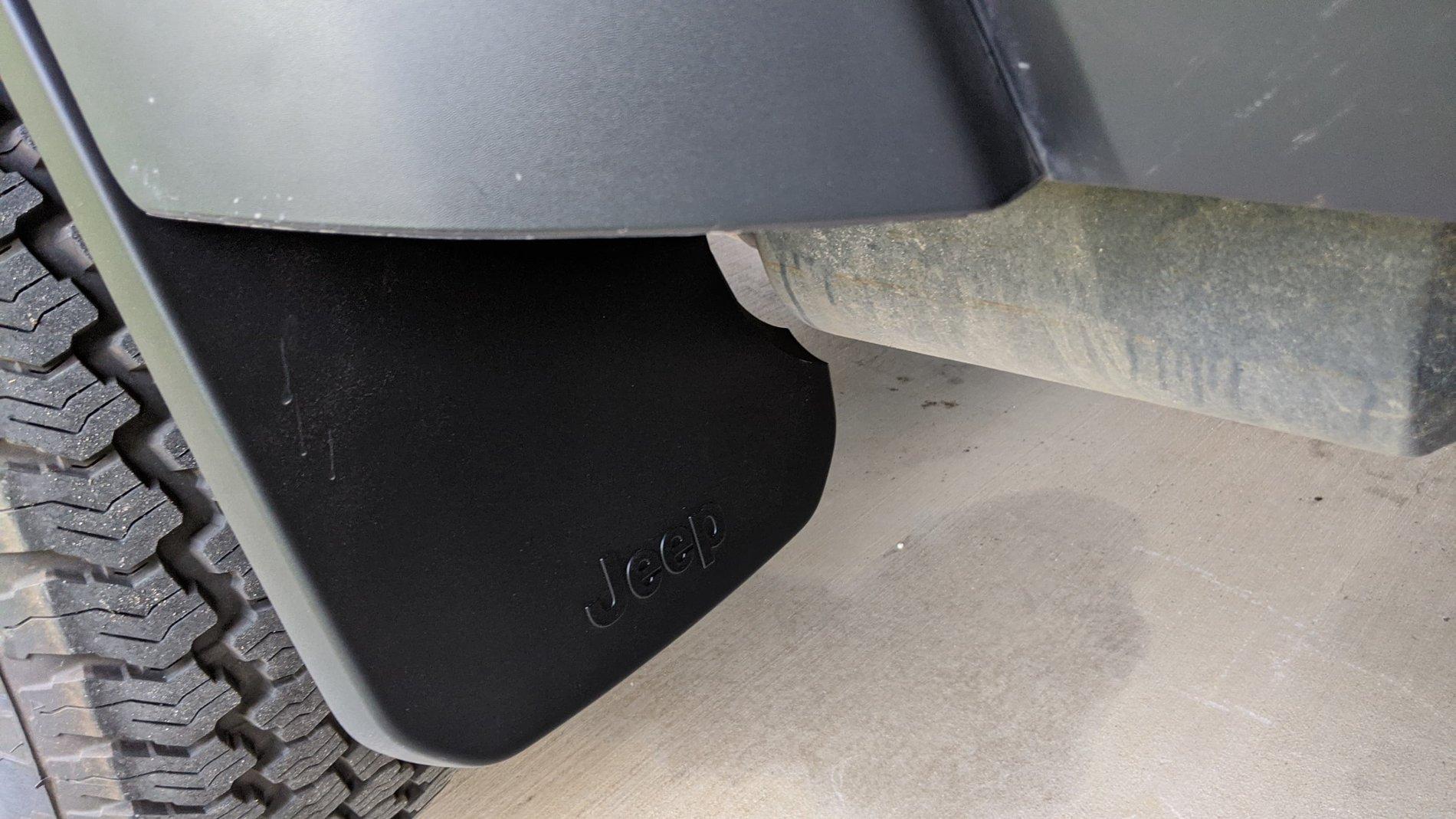

Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101369288_3281032245263940_7357327596388841783_n

I
Sponsored



JeepHouse

Well-Known Member
First Name
Scott
Joined
May 29, 2020
Threads
5
Messages
63
Reaction score
43
Location
Norwich CT
Vehicle(s)
2020 Jeep Gladiator Sport S
I just got rear splash guards from the dealership to told me MOPAR doesn't make one that fit front on Sport S w/ Max Tow. What part number did you get for the front?

OP
OP
tweak89

tweak89

Well-Known Member
First Name
Leroy
Joined
Jun 14, 2019
Threads
17
Messages
146
Reaction score
391
Location
Houston
Vehicle(s)
2020 Gladiator, 2002 Thunderbird
The part number for the front is a JL specific number (should be 82215332AB ). Only he rear is unique to the Gladiator.


mtudb24

Well-Known Member
First Name
Todd
Joined
Jul 26, 2020
Threads
72
Messages
664
Reaction score
1,071
Location
Michigan
Vehicle(s)
2021 Gladiator Sport S Max Tow
Occupation
Engineering Manager
Vehicle Showcase
1
This past week I installed a set of Mopar splash guards. As some may know, the Sport S with Max Tow is apparently different when it comes to the rear fender liner goes. Brands like Weathertech state the their rear splash guards DO NOT work with the Sport S Max Tow, but do not really show/tell why. I even called and they didn't have an answer. Mopar doesn't state that that there is a different part for Max Tow, so I picked up a set from my local Jeep dealership. But, lo and behold, the rear was significantly different. The difference? The Max Tow version of the fender liner is "smoother" than the ones used for all other models. Why? Who knows. Maybe the same reason they fill in the gap between the fender and bumper for the Max Tow package. Anyway, now you know! I had to order the correct parts for the rear and got them exchanged a few days later.

So, installation is pretty straightforward. Unlike some youtube videos I have seen, the latest versions of these use plastic rivets instead of reusing the push fasteners and do require some drilling. I did have to buy a plastic rivet tool, got mine off of Amazon for $25. You can do it without, but I opted to do it with the correct tool.

The front set requires 1 new hole (1/4" drill) to be drilled. You remove the existing plastic rivets and one push in fastener. AS you can see, I have nerf bars and they DO NOT interfere. They are the Rough Country nerf bars (Identical to the N-Fab bars).


Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101369288_3281032245263940_7357327596388841783_n


Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101369288_3281032245263940_7357327596388841783_n


The rear set requires 3 new holes (1/4" drill) and re-uses 1 hole. The single push fastener is replaced with a plastic rivet. As you can see the profile of the fender liner is pretty "smooth" or flat. All other models of the JT have a "hump" for lack of a better term hat occurs about halfway in towards the wheel well. It creats about a 1" stand off from the fender liner. In the image below the you can imagine that stand off right where the innermost rivet is.

Take note, that if you are using a standard drill and /or a rivet tool you will need to remove the rear wheel to get enough room to drill the the inner hole and use the rivet tool.
Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101369288_3281032245263940_7357327596388841783_n

Jeep Gladiator Installed Mopar Splash Guards-Sport S Max Tow 101369288_3281032245263940_7357327596388841783_n

I
Do you have any other side pics of how these look on your JT? I'm getting ready to order some but would like to see how "low" they set. i know the p/n for rear's for max tow are 82216377AB and the fronts are just the standard 82215332AB
Thanks
