So, the lack of either of these being available to my Mojave led me to develop a plan to build a phone holder that could:

1) Hold my phone in rough terrain solidly

2) Offer the ability to hold the phone horizontally or vertically.

3) Charge my phone wirelessly.

4) Do it all with ease and look factory.

Since i was already installing my Redarc tow control, this was an easy piggy back project.

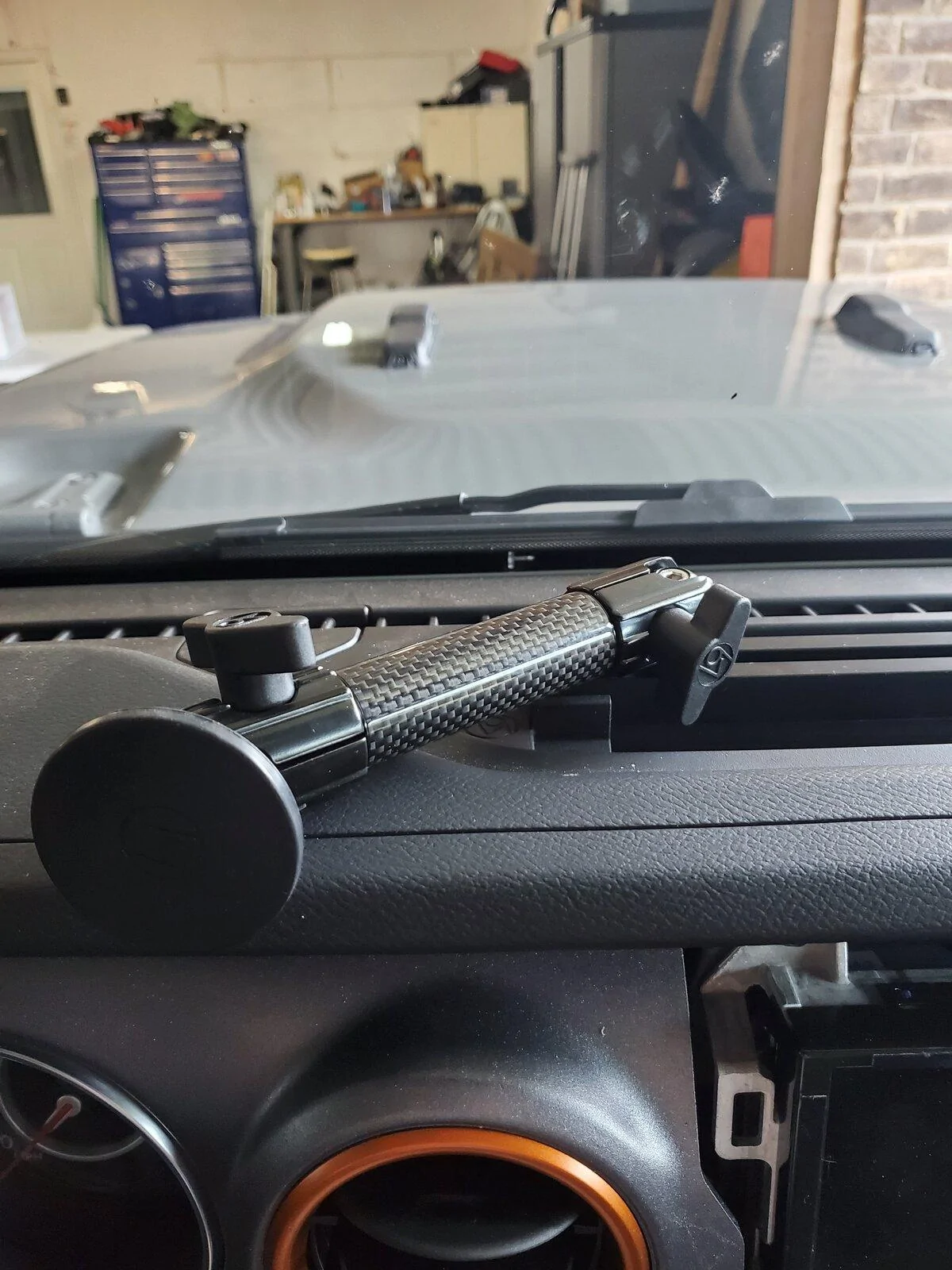

First, I installed a 67 Designs mount bracket and arm.
Jeep Gladiator Installed phone holder charger 20201108_114607

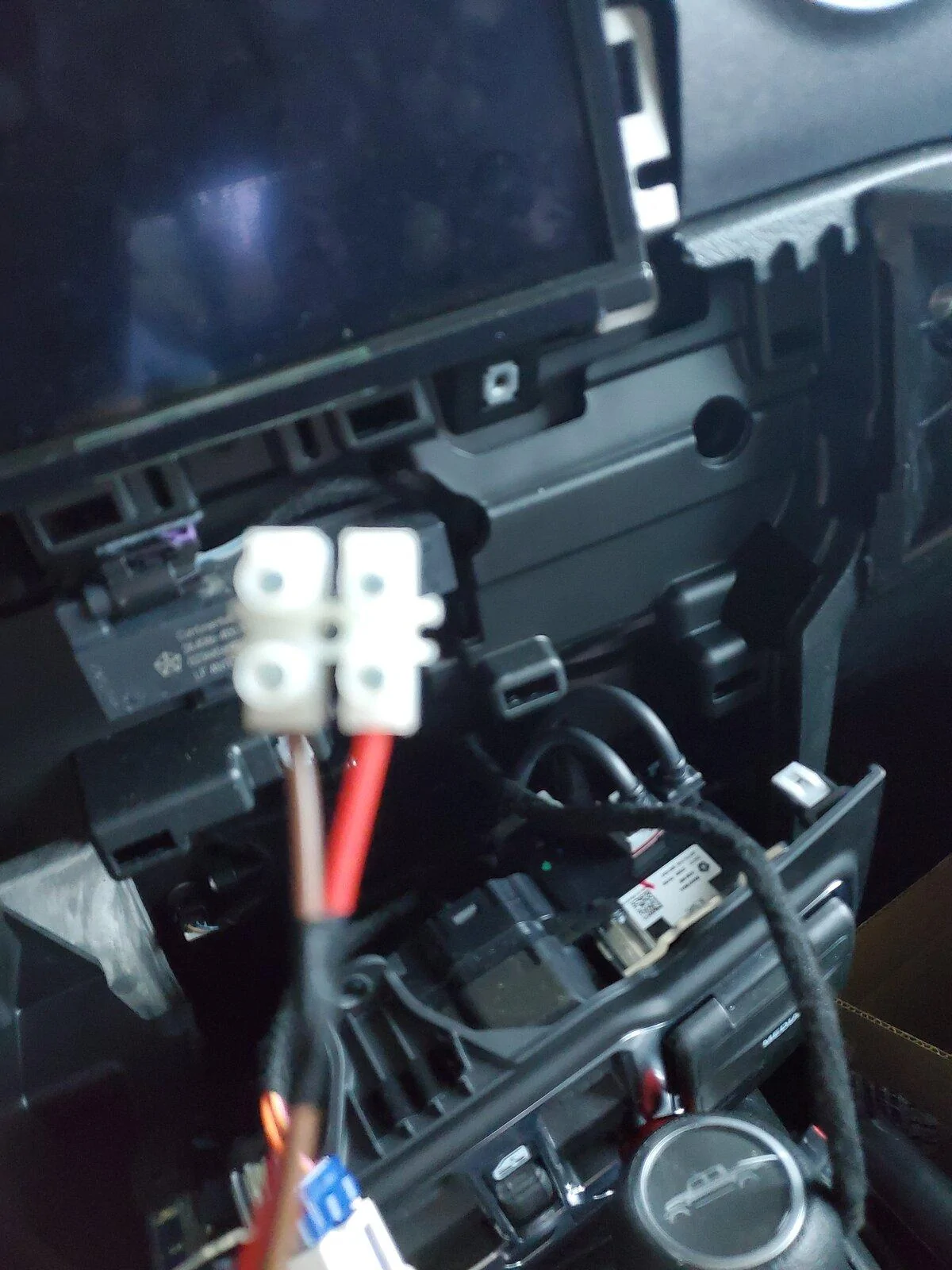

Second, I installed the plug in tap to the 12v outlet socket for power. Got it from Quadratec. (Word of advice, throw the sketchy white screw type wire adapter in the trash. Even if you solder the wires to.use it, it will eventually fail)
Jeep Gladiator Installed phone holder charger 20201108_114733

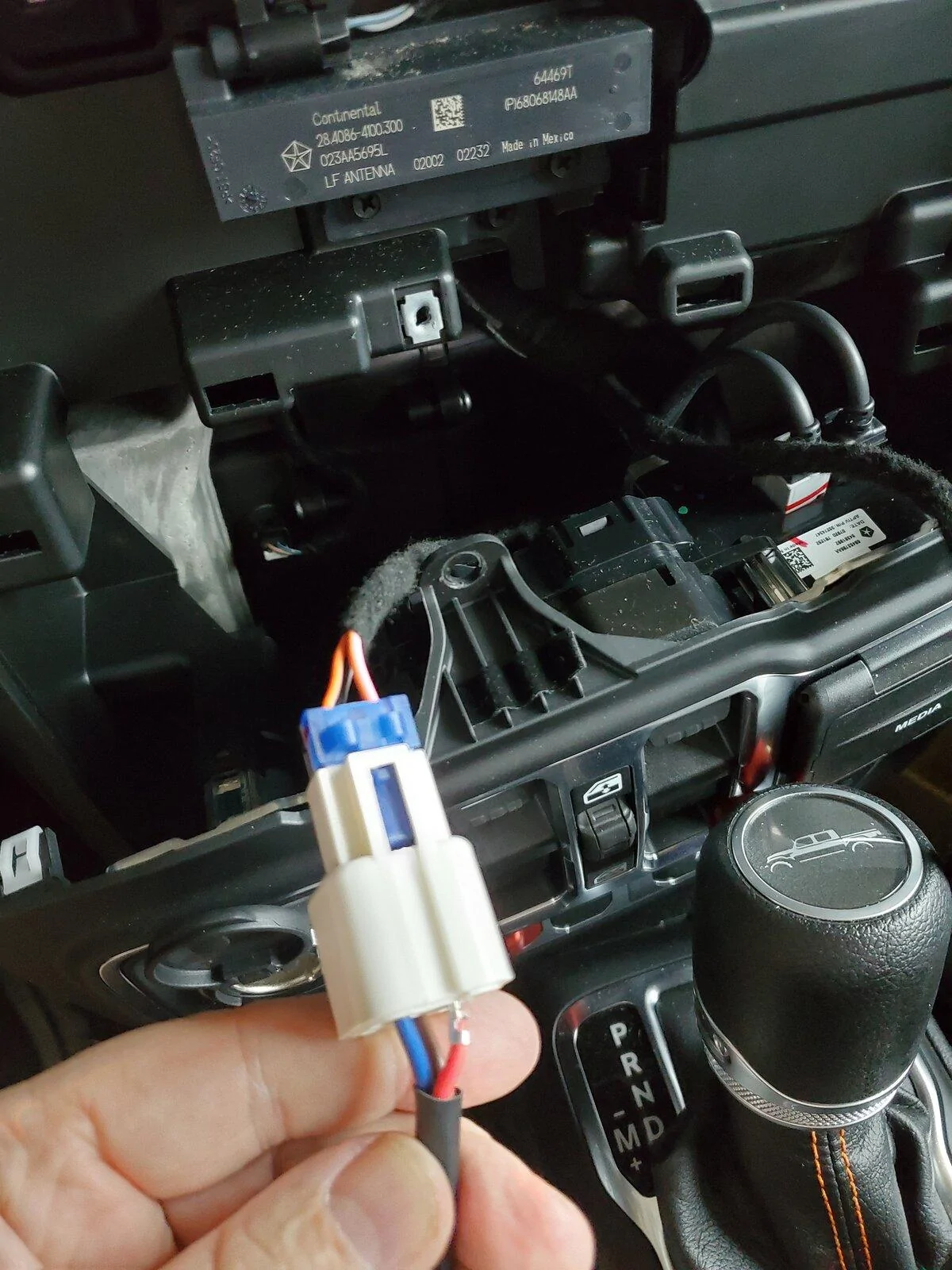

I soldered the wires together, and put an additional + and a - with sealed ends in case I decide to install another dash mount accessory in the future.
Jeep Gladiator Installed phone holder charger 20201108_114714

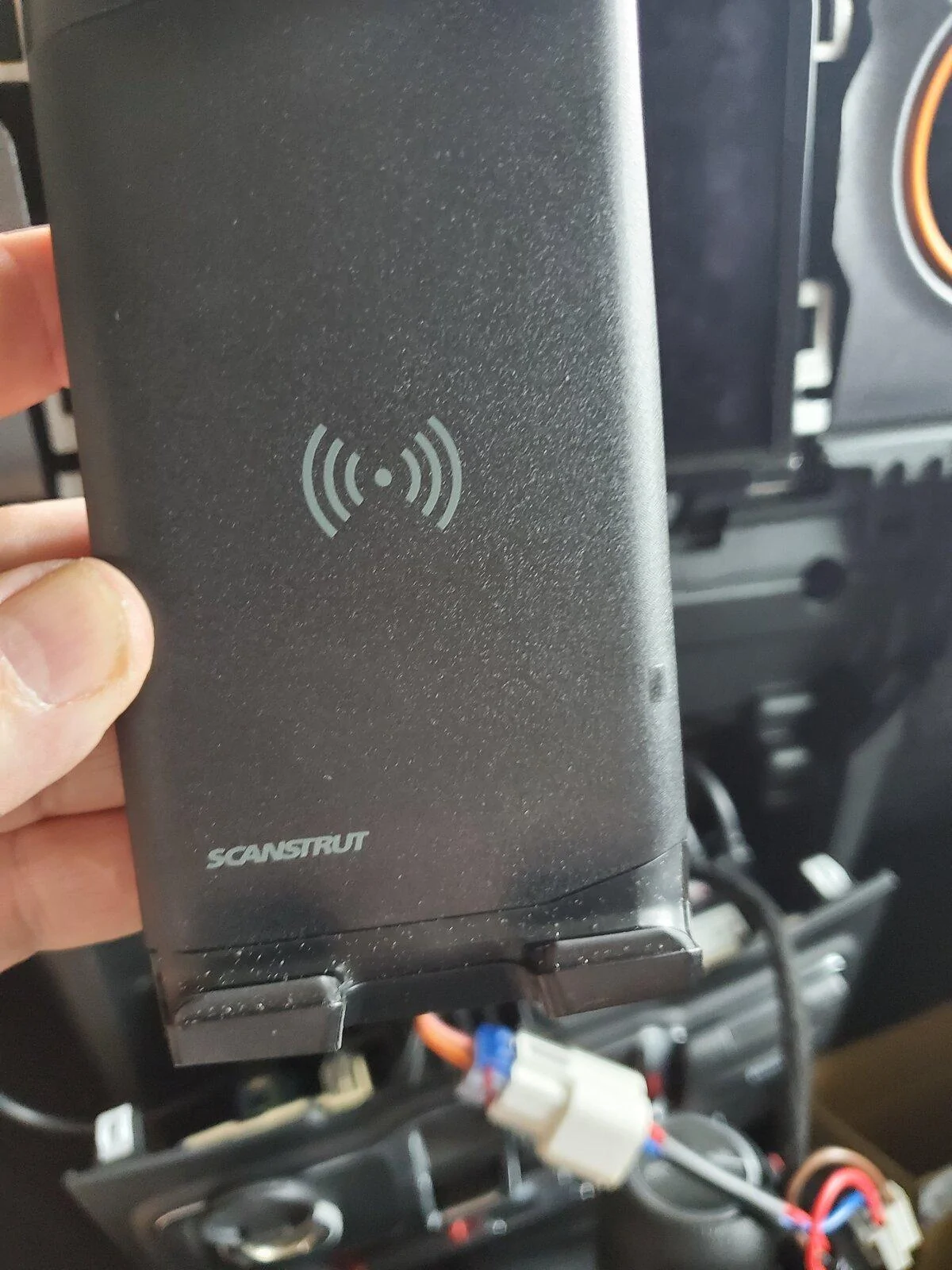

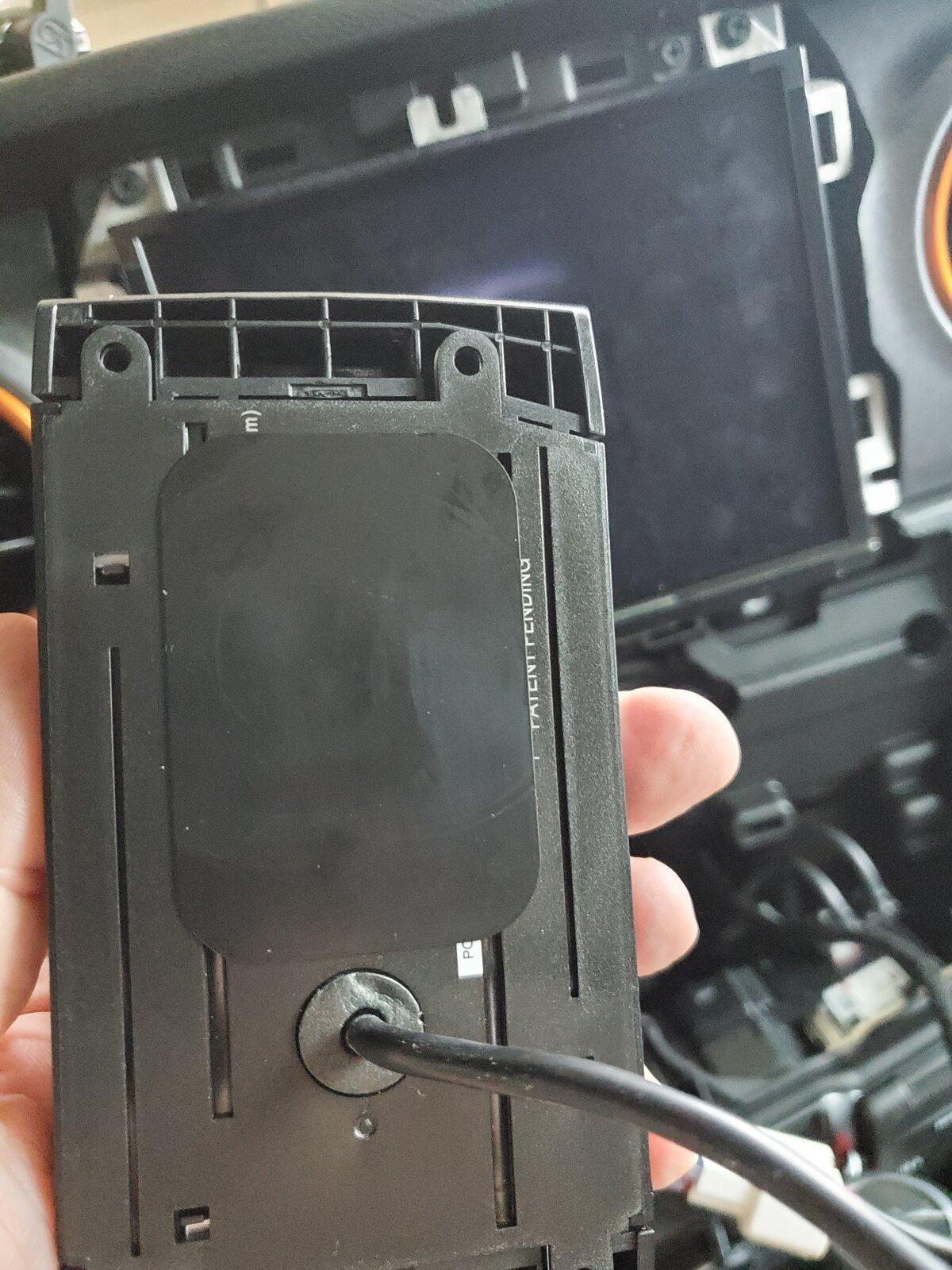

Next, i mounted the 67 ball mount to a Scanstrut wireless holder /charger.
This holder, we install in boats, and it performs well in all conditions.
Mounted it with JB Weld instant glue, it isn't going anywhere.
Jeep Gladiator Installed phone holder charger 20201108_114621
Jeep Gladiator Installed phone holder charger 20201108_114626

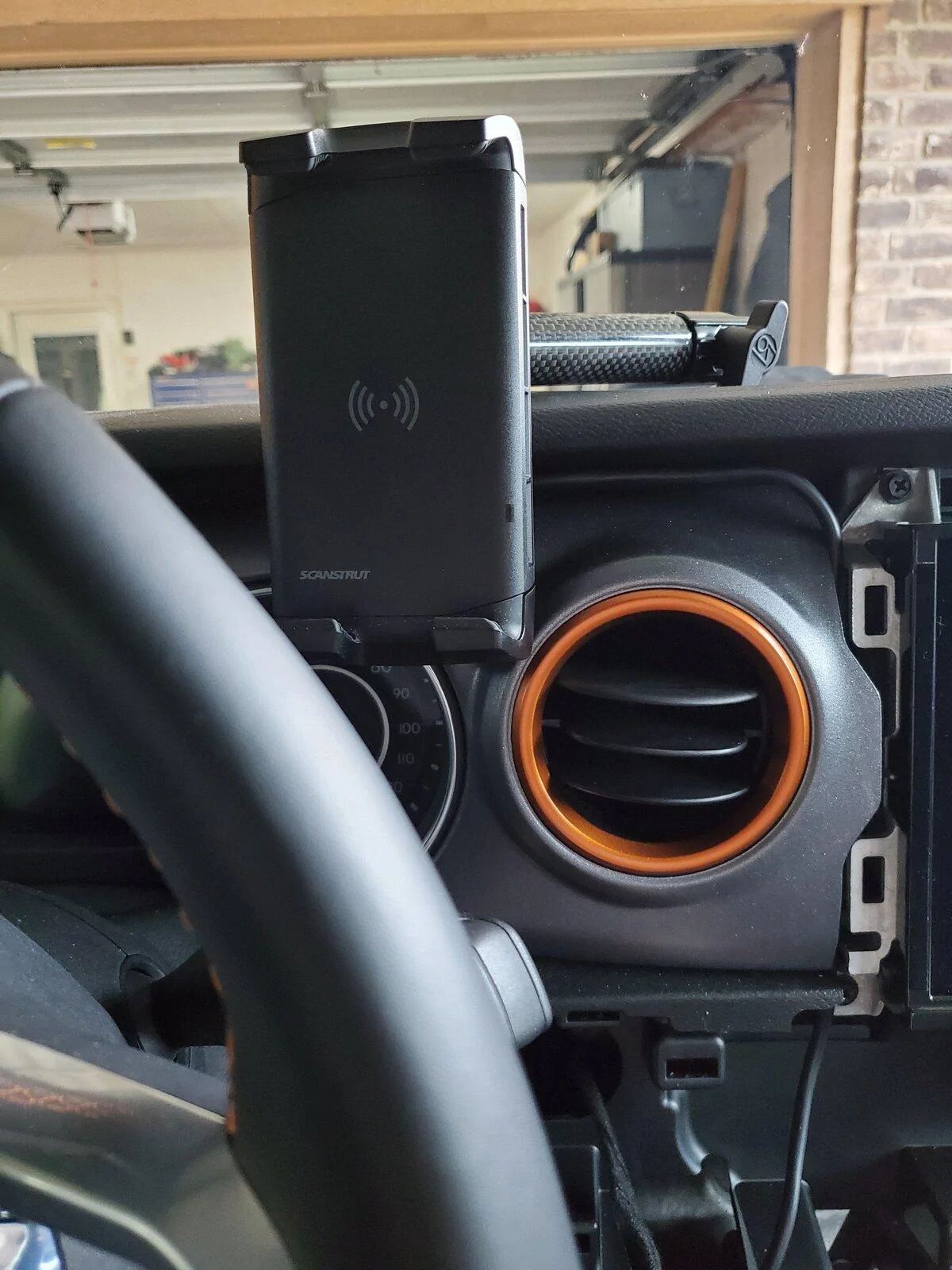

I notched the stereo bezel for the charger wire to have clearance and not be pinched.
Jeep Gladiator Installed phone holder charger 20201108_115009

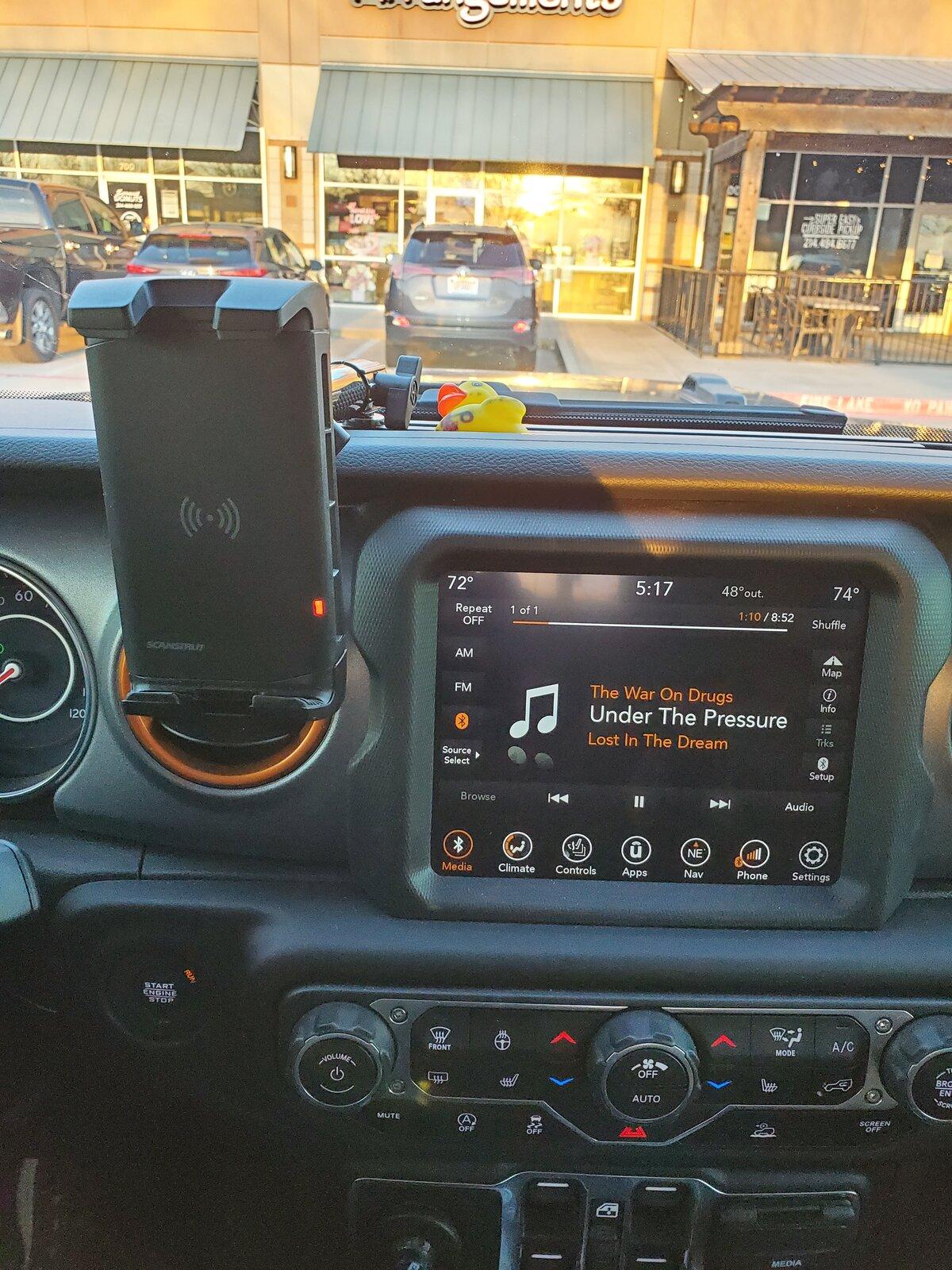

All buttoned up, works great. It takes 2 hands to pull the phone out of the jaws of the holder....just like I planned!
Jeep Gladiator Installed phone holder charger 20210109_171749


All in, 1/2 hour. 3 weeks later, it works amazing.
Sponsored



mstrav73

Well-Known Member
First Name
Matt
Joined
Nov 28, 2020
Threads
4
Messages
106
Reaction score
106
Location
Idaho
Vehicle(s)
Gladiator Mojave
well done, I like it


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Did you relocate your 12v outlet at the same time and use that location for the brake controller knob?


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I eliminated the 12v, and yes...the Redarc is in that spot.
OK so you got rid of it and used that cable to extend switched 12v up to your charger - got it.


Sponsored

OP
OP
XJhawk

XJhawk

Well-Known Member
First Name
Bob
Joined
Jun 17, 2020
Threads
3
Messages
131
Reaction score
231
Location
Federal Way, WA
Vehicle(s)
2020 Gladiator Mojave
Occupation
Sales Manager

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3

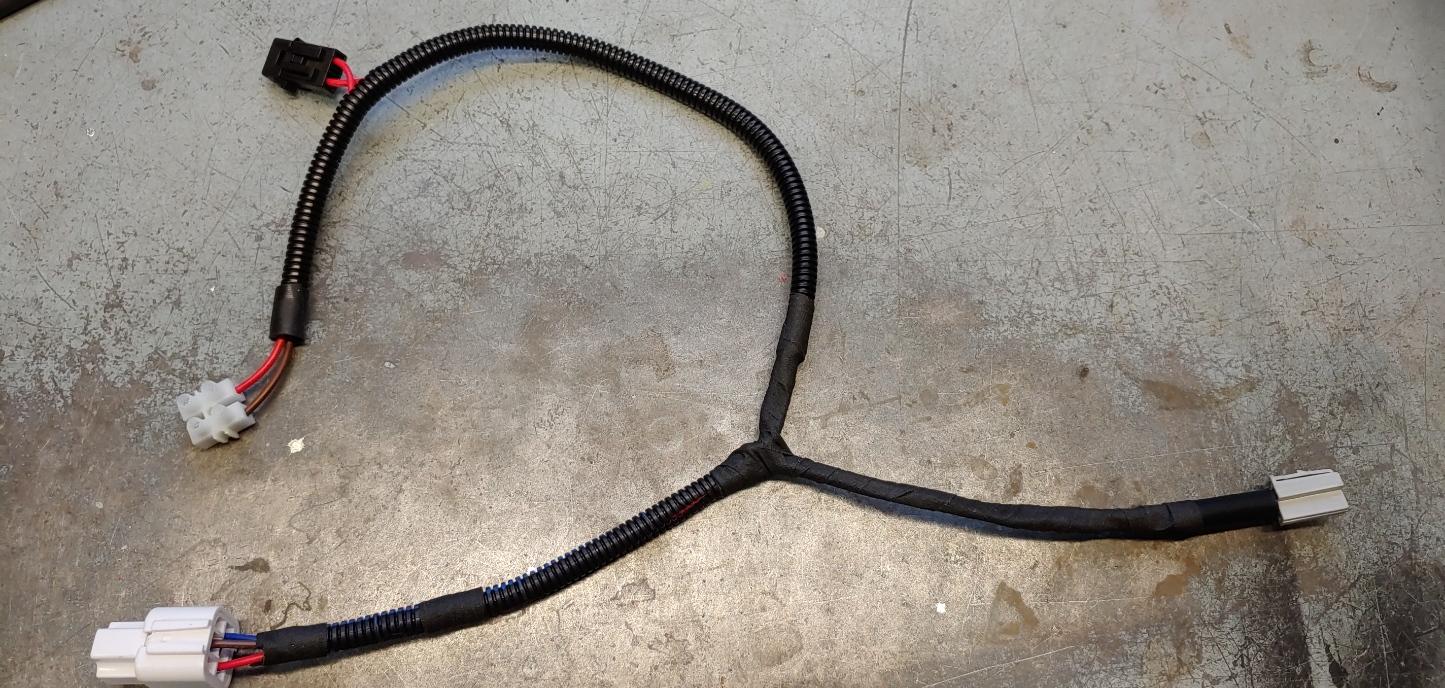

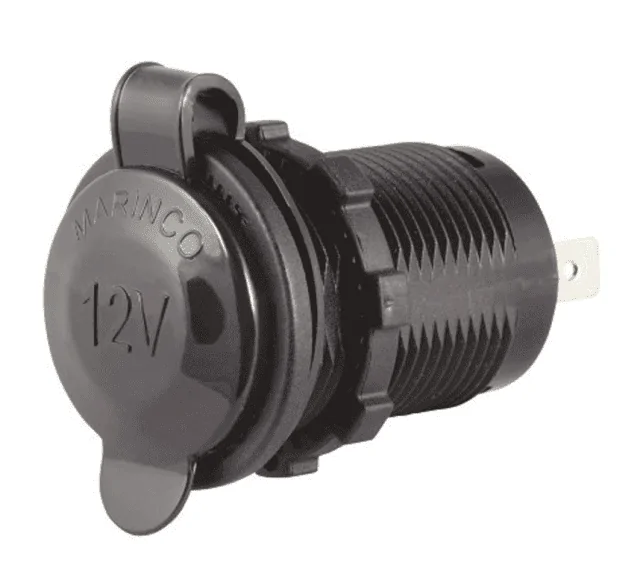

Yup - I ordered that cable to make an extension - still not sure where I'll put the 12volt outlet - I used that spot for the brake controller but have since decided I want the outlet, too. So now to figure out where to put that!
