Installing Mopar 82215351 Grille & Winch Guard

BigJim

Member
First Name
James
Joined
Nov 9, 2019
Threads
3
Messages
8
Reaction score
10
Location
Toronto
Vehicle(s)
Gladiator Rubicon
Santa dropped off a new Mopar 82215351 Grille & Winch Guard.

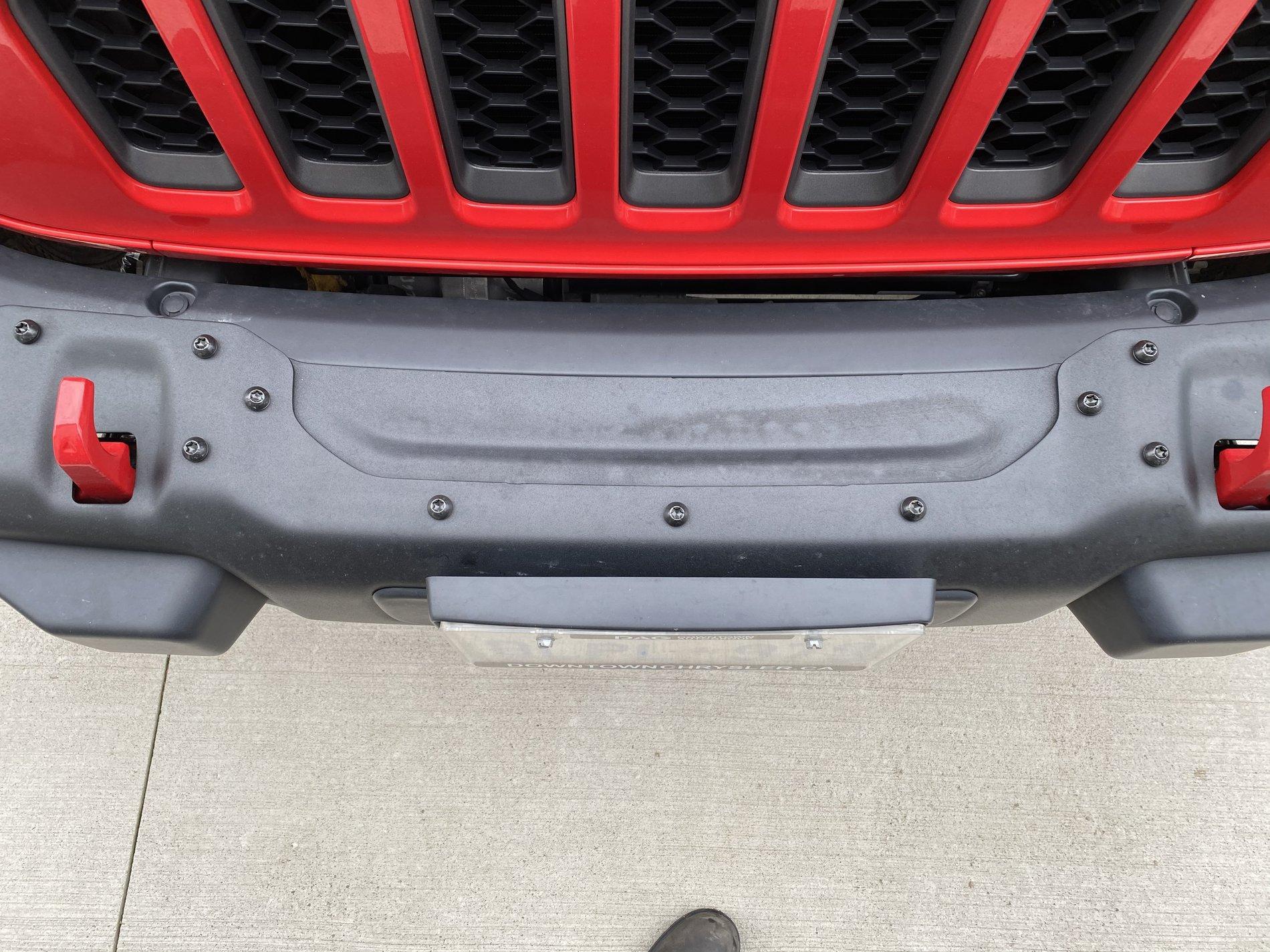

Before I installed it I noticed my bumper has an extra bolt on either side inside of the mounting points:

Has anyone installed on of these?

Do those bolts simply rest inside the “hole” of the bar?

The only reason for my concern is because the instructions show a different bolt arrangement on the bumper.
https://www.quadratec.com/sites/default/files/installation_instructions/82215351.pdf

Thanks for your help!
Sponsored



OMTBiker

Well-Known Member
First Name
Derek
Joined
Oct 20, 2019
Threads
27
Messages
474
Reaction score
647
Location
Ohio
Vehicle(s)
'21 JLUR, '21 JLU 80th | Past '20 JTR, '18 JLUR
The instructions do not show the other bolts, the mount flange and tube goes over them.


ColoradoGlad

Well-Known Member
Joined
Jun 28, 2019
Threads
13
Messages
247
Reaction score
335
Location
Colorado
Vehicle(s)
2022 Gladiator Rubicon
Great, thanks!

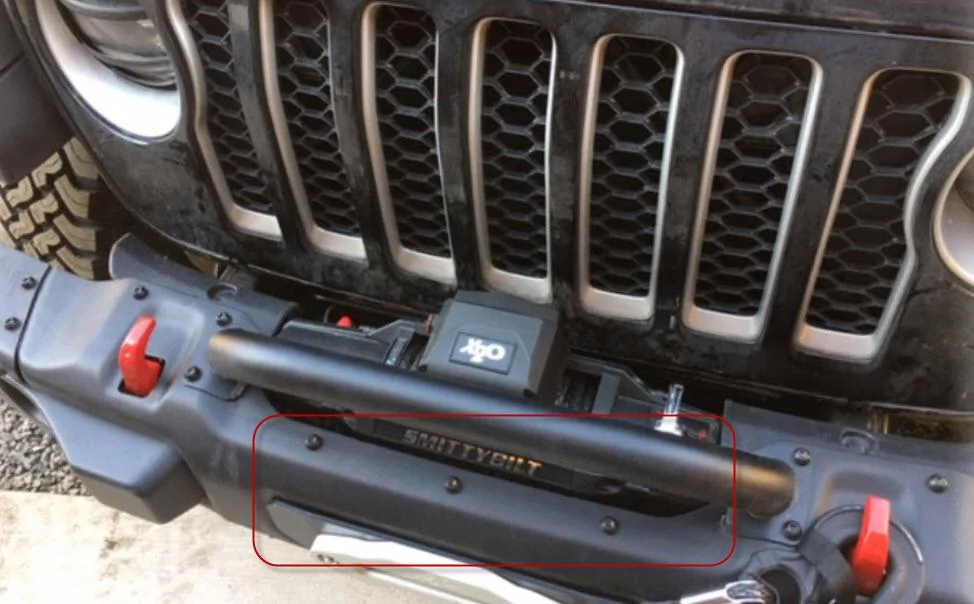

Also grab some nuts for the 3 bolts that go in the front of the bumper where the plate comes off..
Reinstall the bolts with nuts....
Looks much cleaner than 3 open holes..


Katch

Member
First Name
Steve
Joined
Mar 24, 2020
Threads
1
Messages
11
Reaction score
12
Location
Northern Virginia
Vehicle(s)
Green olive Rubicon, Walker Bay RIB and a couple Aprilias
Has anyone with the front camera installed one of these? I really like the grille/winch guards, but I want the camera to function for off-roading. It seems like the view would be blocked

Steve


Sponsored

OMTBiker

Well-Known Member
First Name
Derek
Joined
Oct 20, 2019
Threads
27
Messages
474
Reaction score
647
Location
Ohio
Vehicle(s)
'21 JLUR, '21 JLU 80th | Past '20 JTR, '18 JLUR

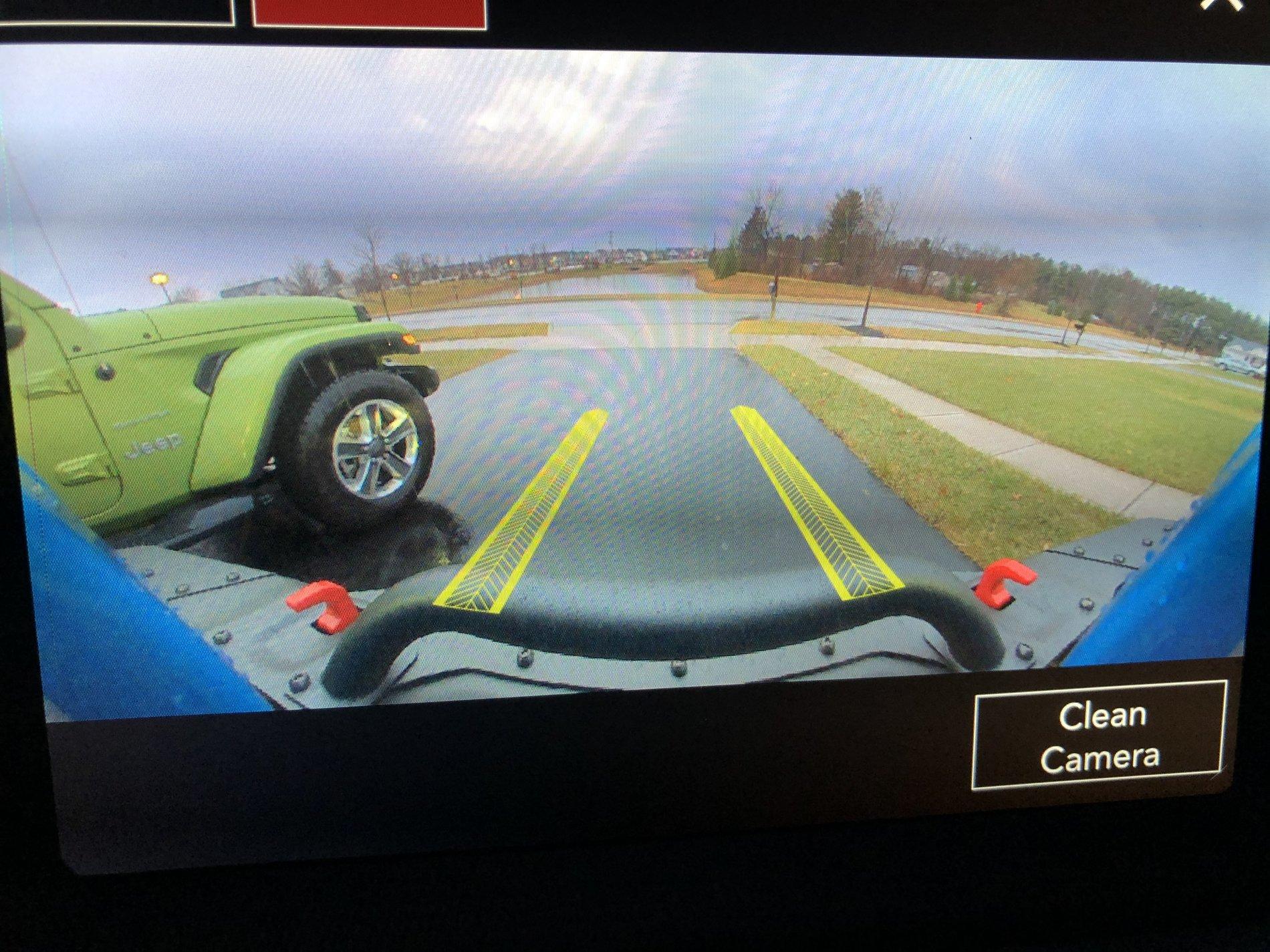

Yes, here is a photo with the Mopar guard.
