Got my module Installed and works as described.
Big thanks to @calipoontappa for finding this product and knowing the correct wiring color code.
Here is how I installed the module.

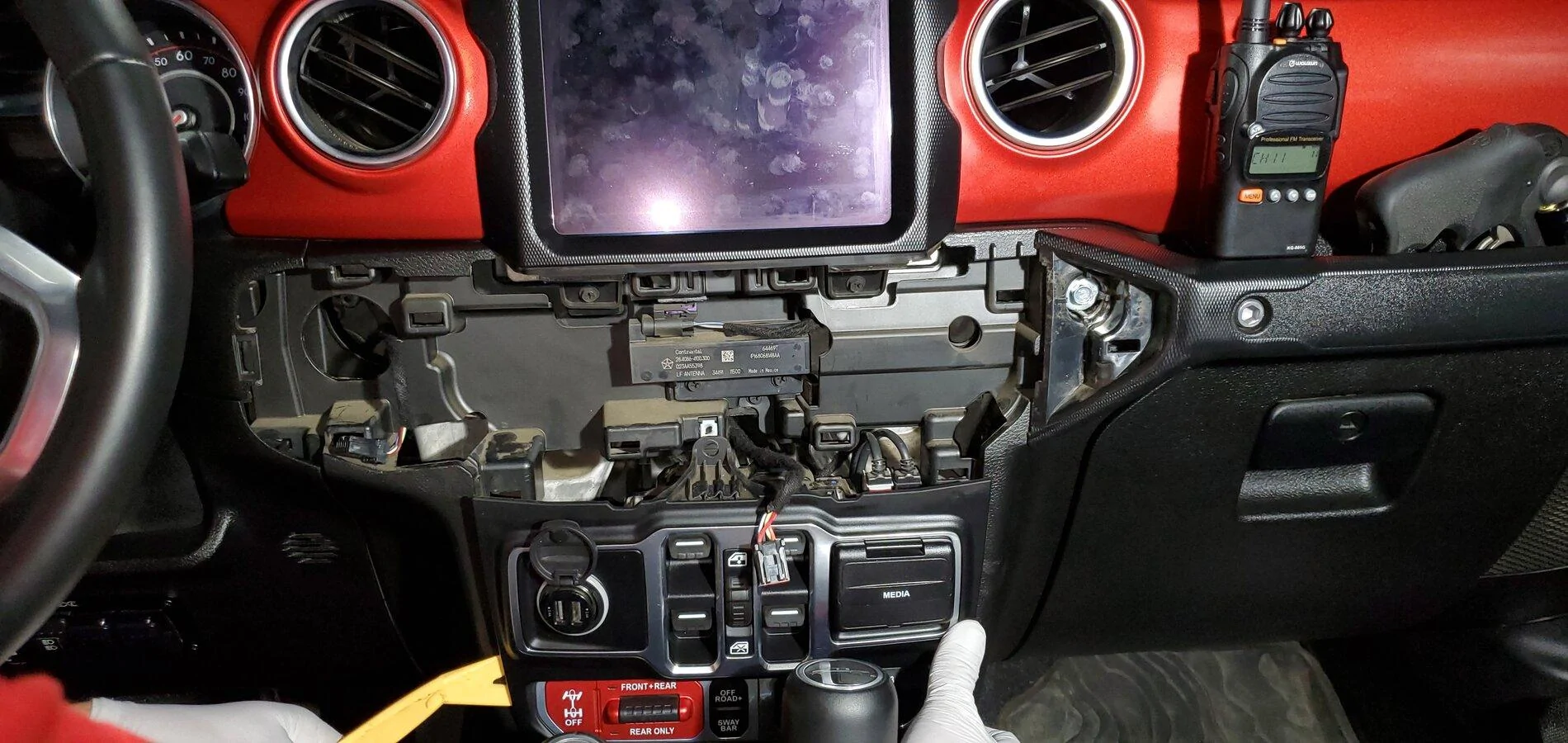

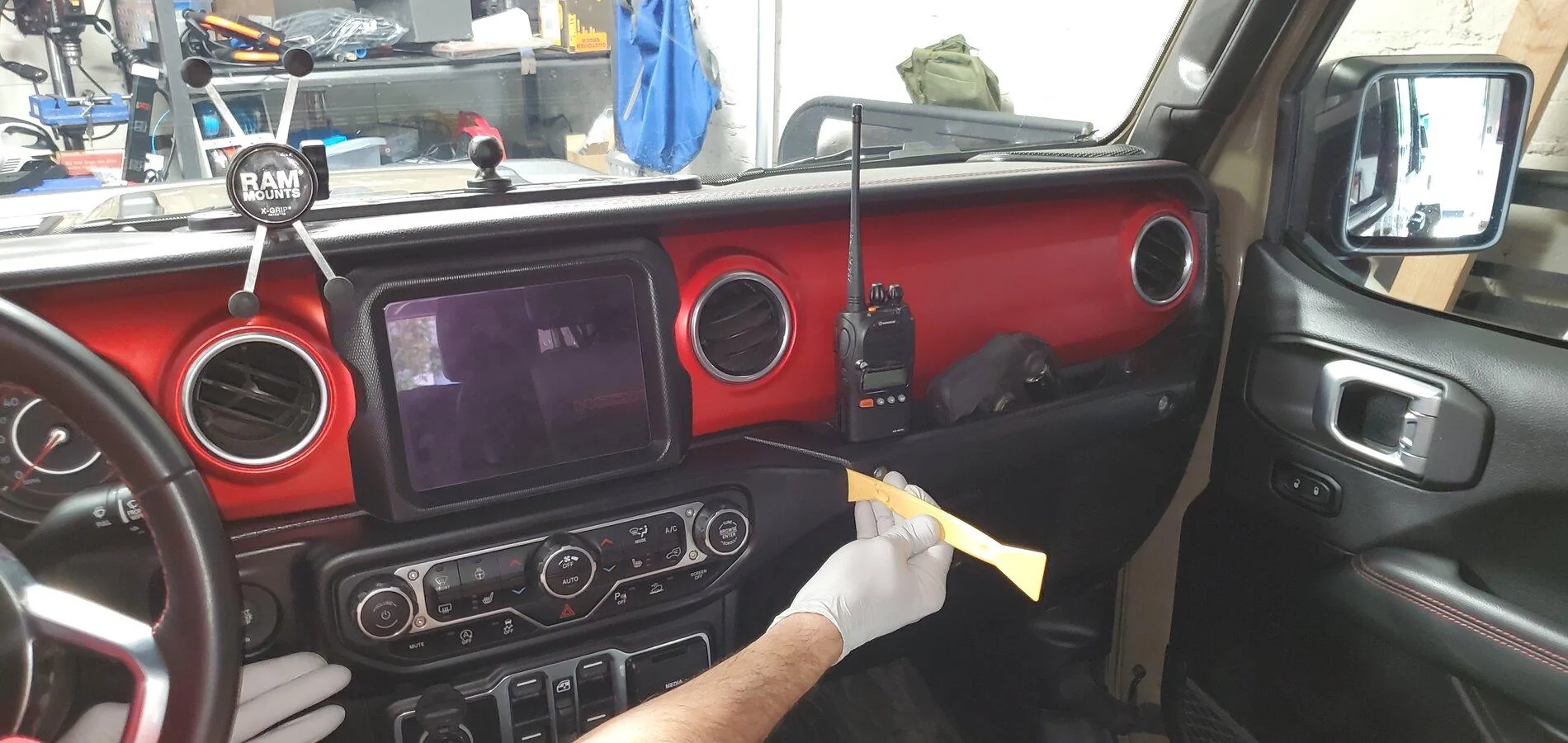

Starting with a pry tool. Pry off HVAC control unit.

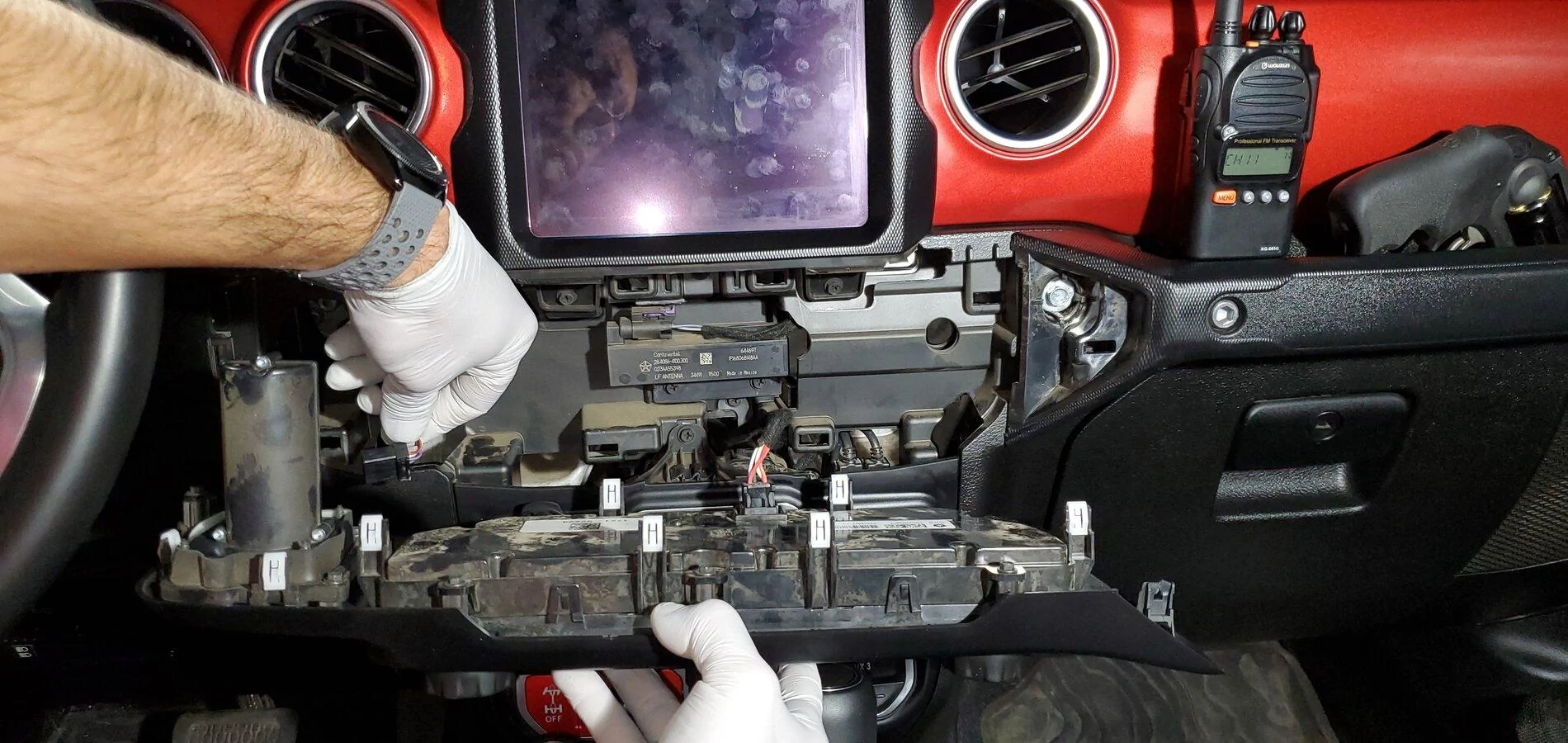

Next unplug the wire harness from the HVAC and start/stop button.

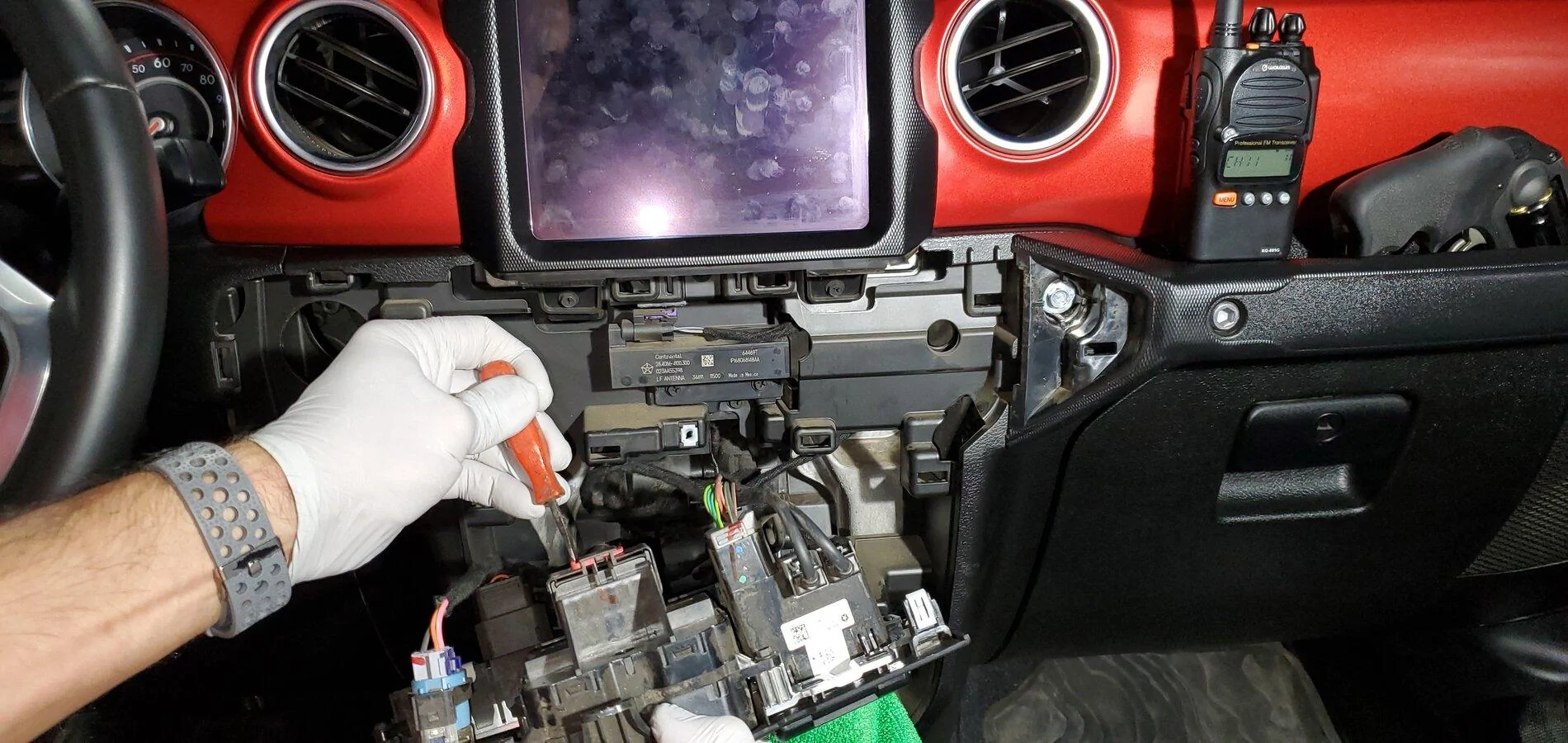

To get the window switches out unscrew the top Philips screw then pry the control unit out.

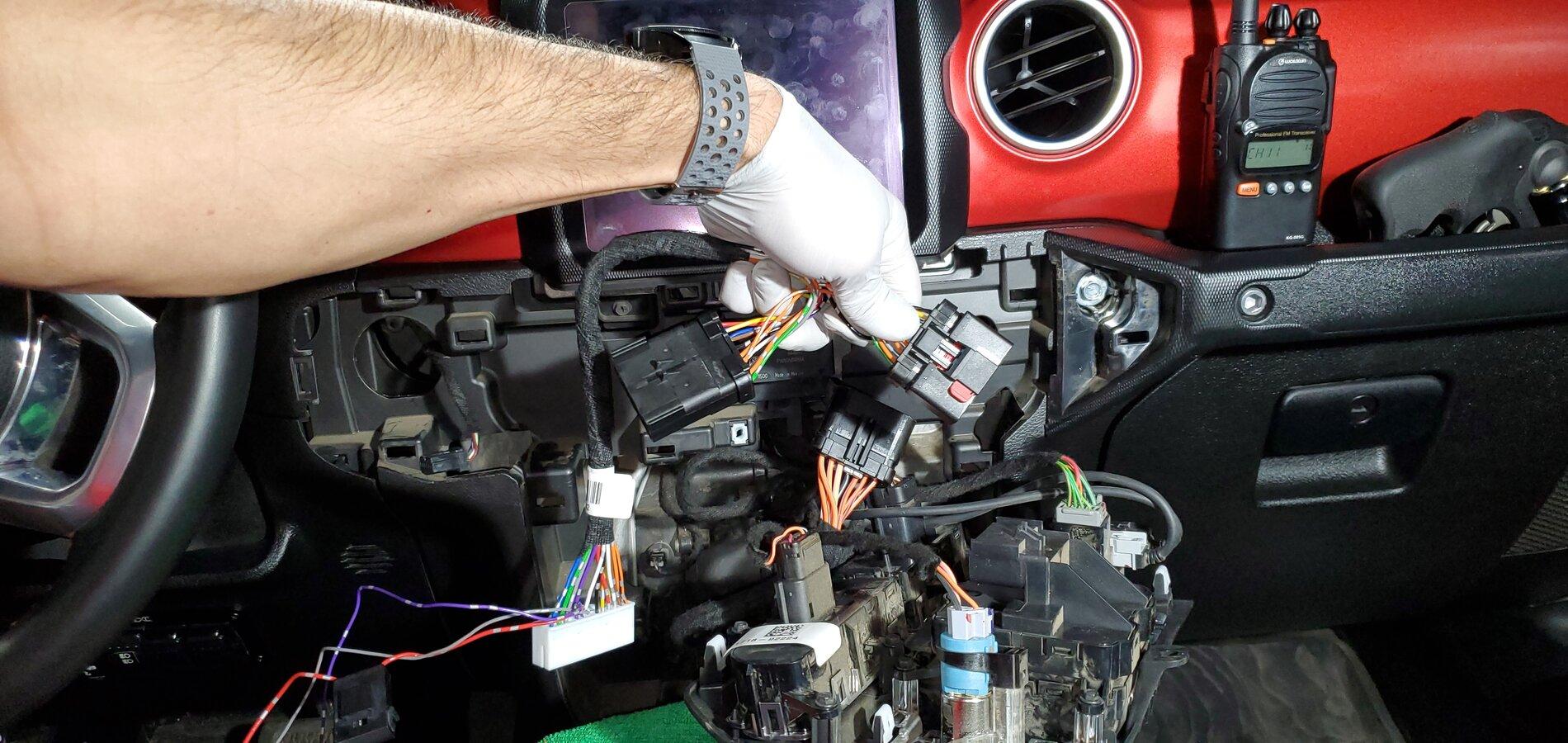

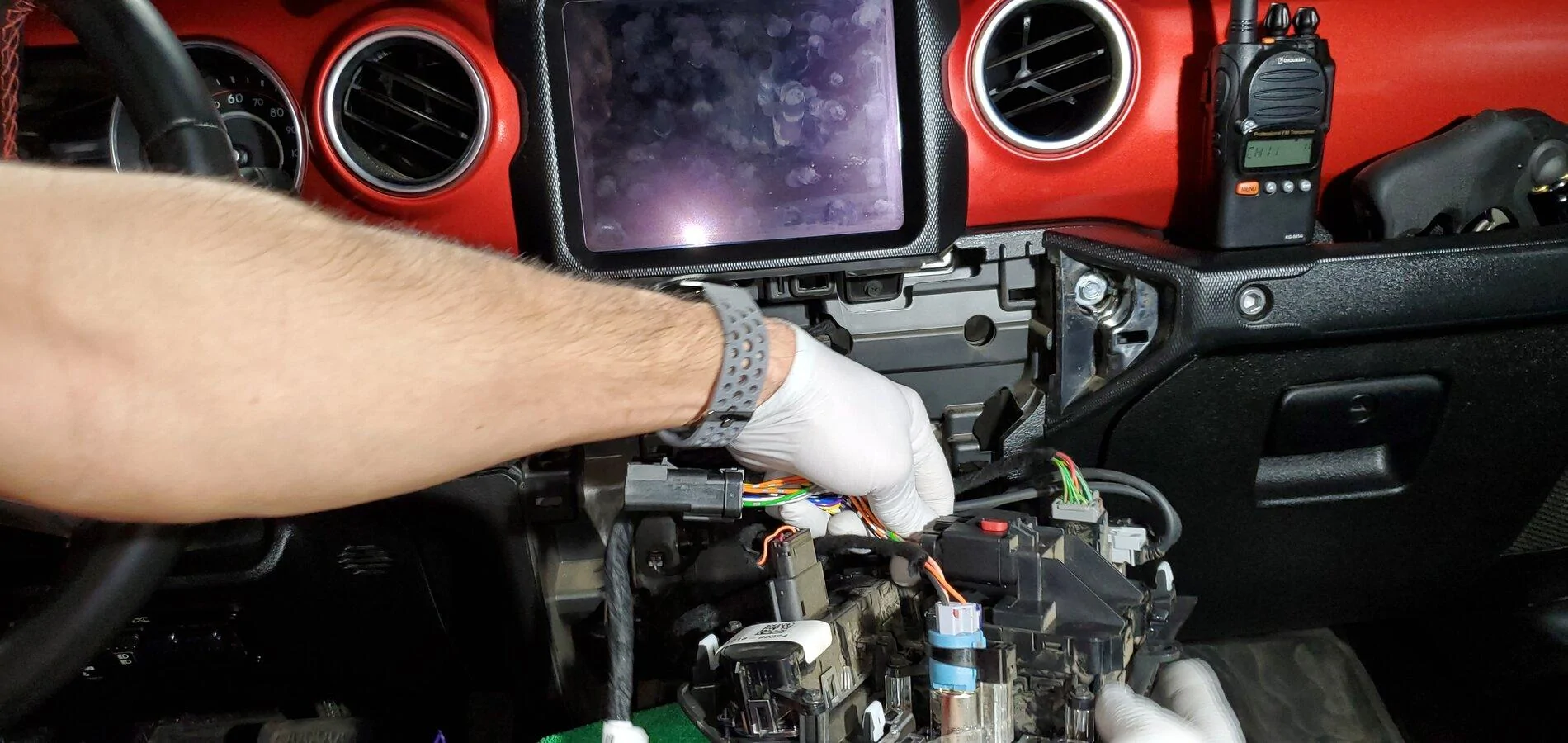

Once the factory control module is out use a flat head screwdriver and unclip the red tab on plug, remove plug then install the 3Wliners wiring harness in place. Also plug the factory plug into the 3Wliners harness.

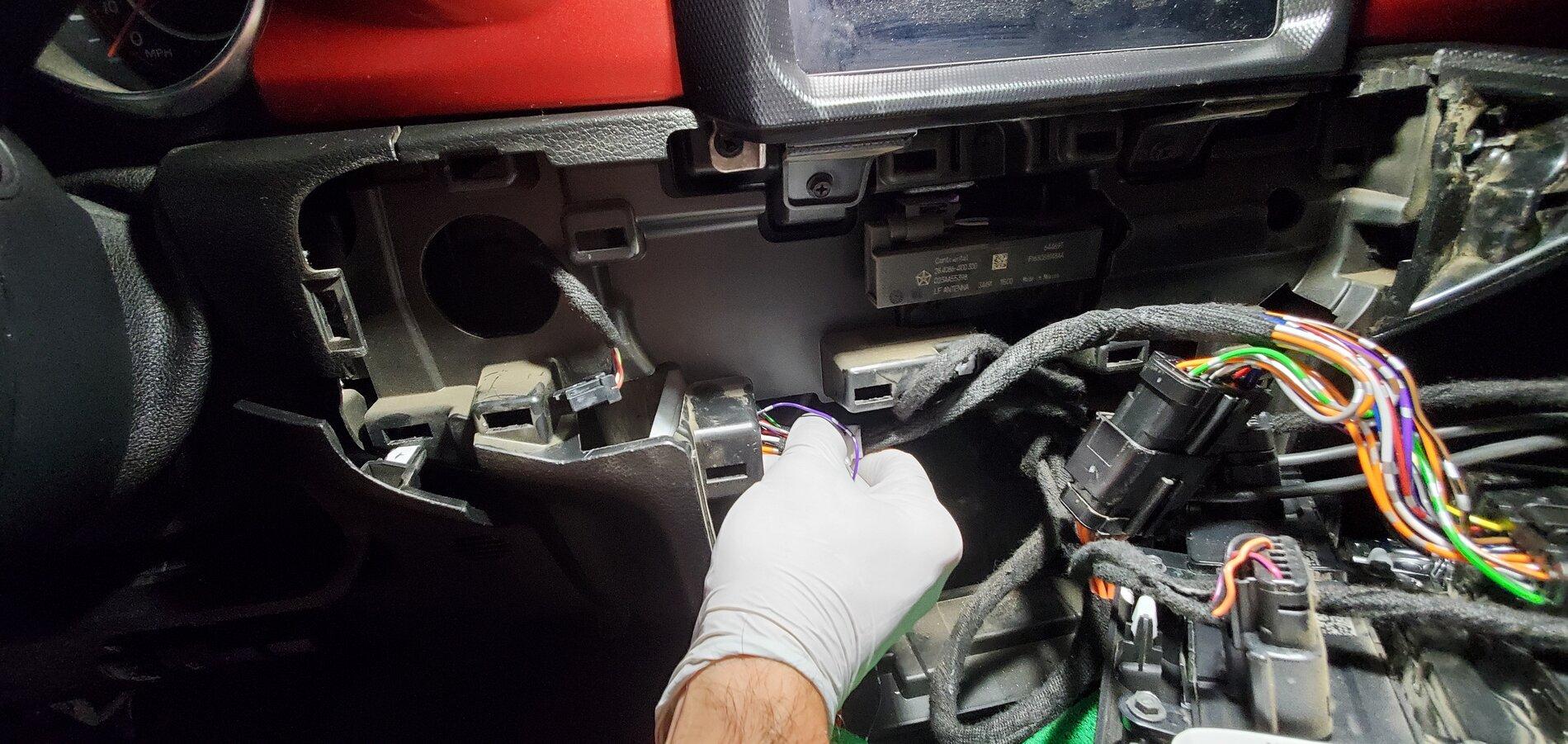

Once the harness is all plugged in routed the 3Wliners module plug, inline fuse, gray and purple wires to the left under where the Start/Stop button would be.³

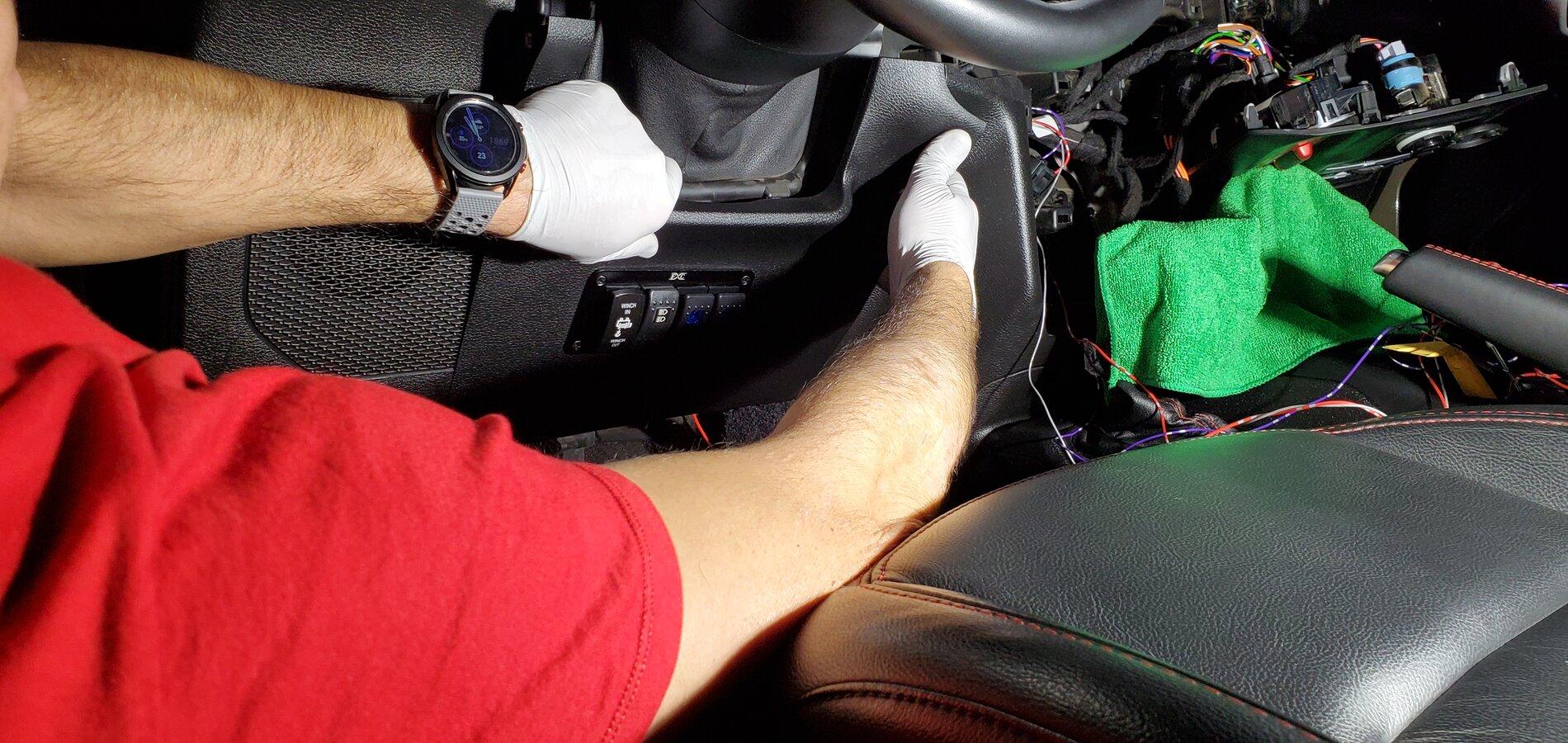

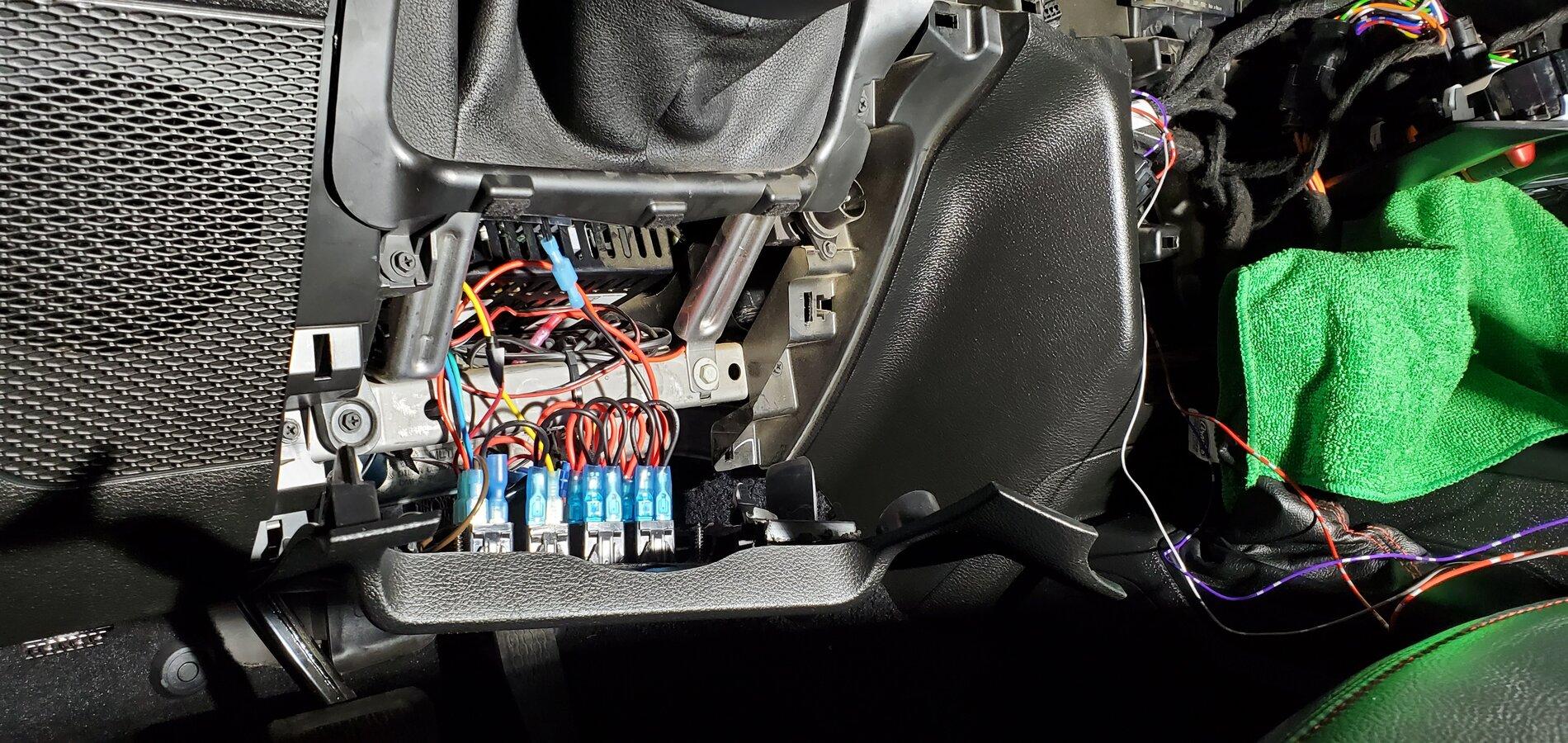

Remove the knee panel to access the space under the steering wheel. (My Jeep will be different from most because I installed a bank of switches in the same area, but for me the 3Wliners module still fits)

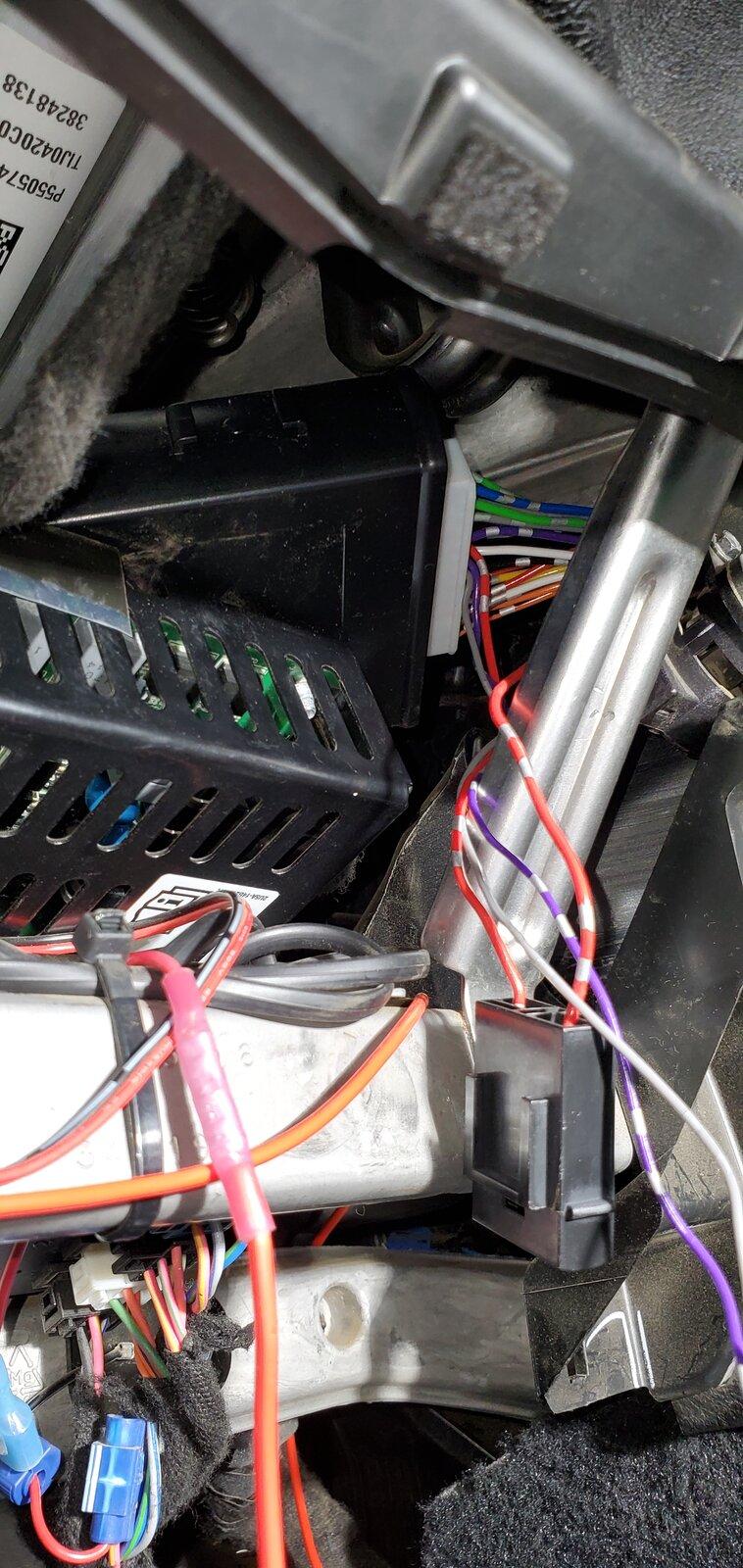

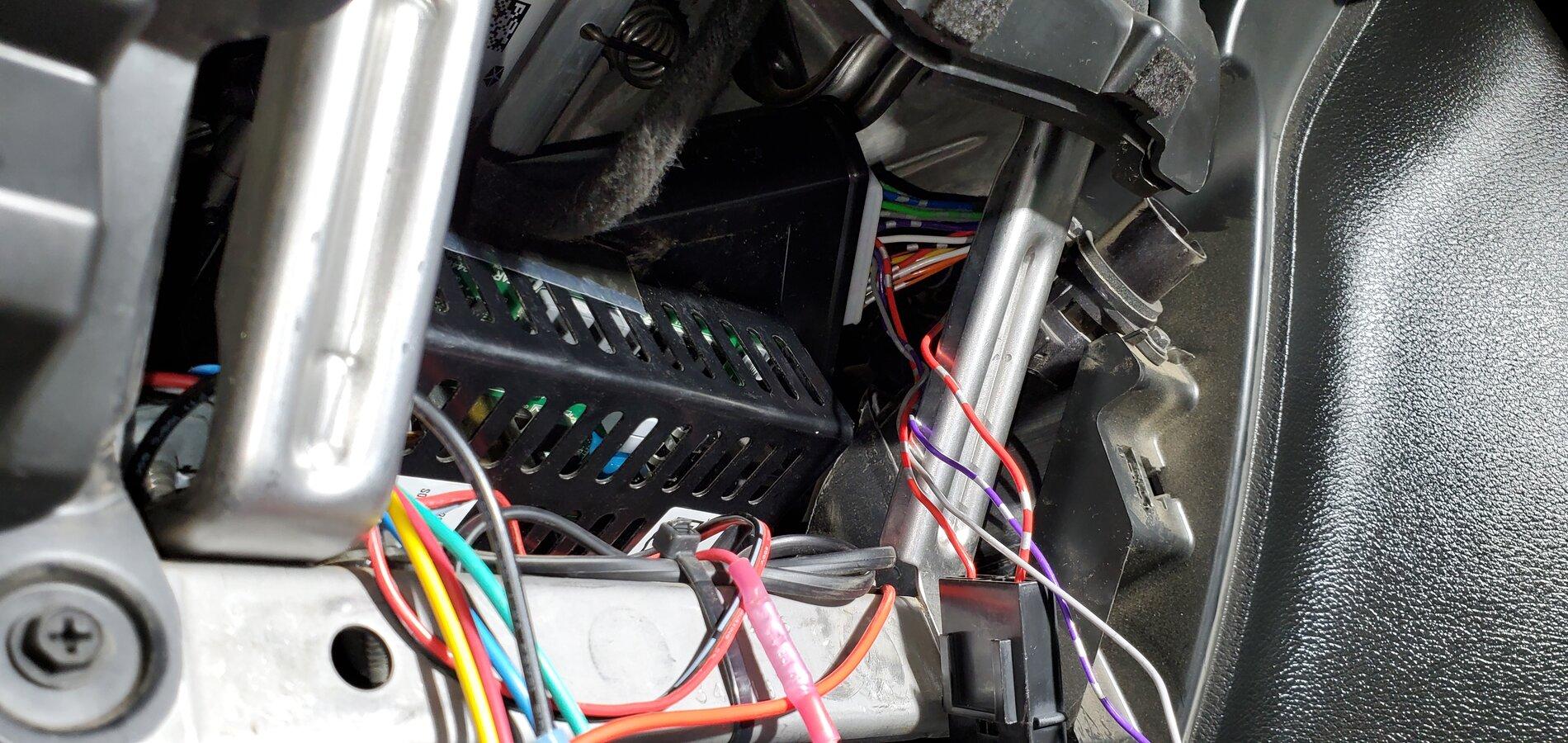

Plug in module and use the two sided foam tape they include to secure the module. Or use zip ties.

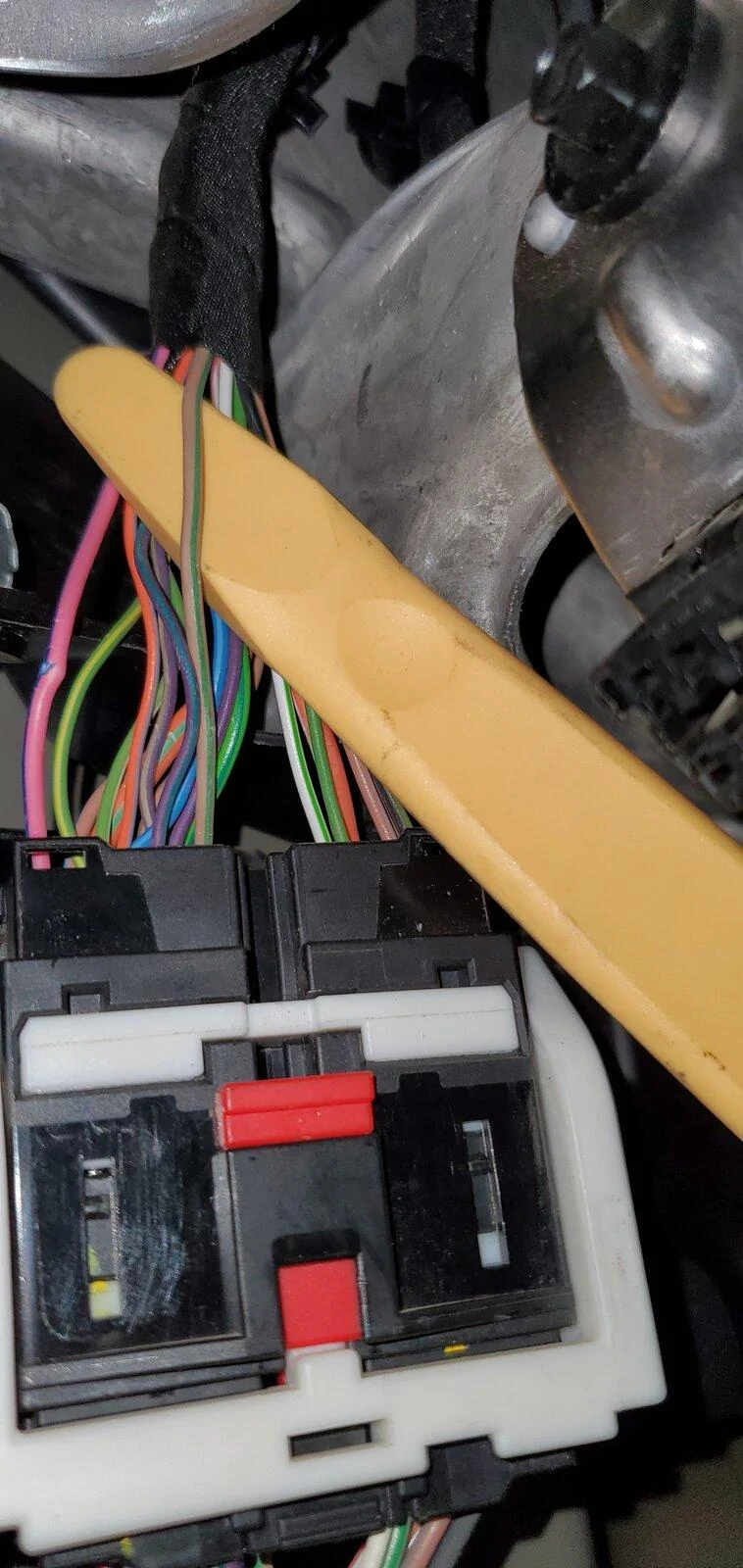

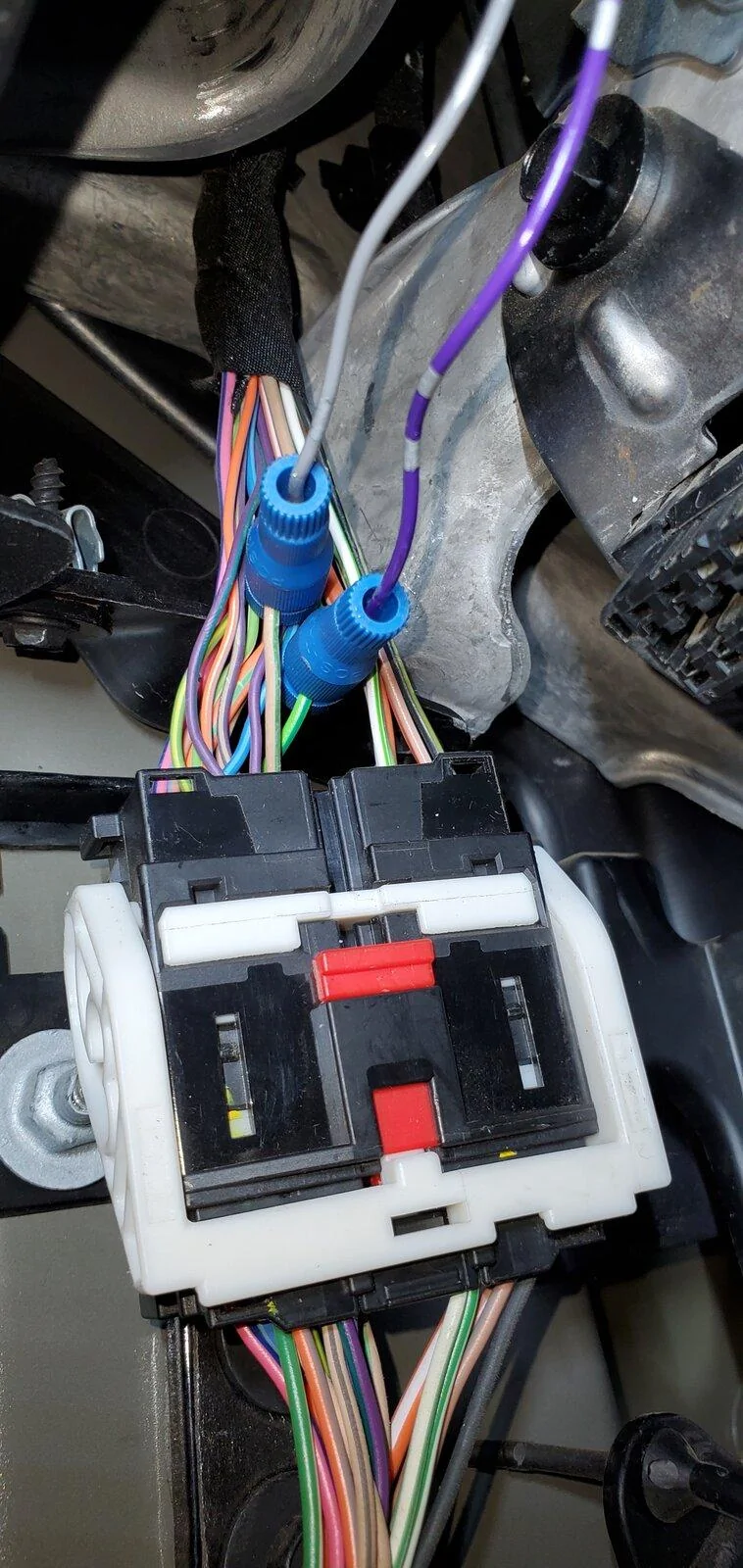

Here is where calipoontappa comes to the rescue. Run the gray and purple wires over to the Jeep door harness. Working with the top portion of the Jeep harness locate the BEIGE with GREEN stripe wire and tap the 3Wliners GRAY wire to this.
Next locate Jeep wire LIGHT GREEN with DARK GREEN stripe, tap 3Wliners PURPLE wire to this.
Last either locate a wire that has constant 12v power or go through the firewall and connect to the positive side of the battery. I went out the firewall on the drivers side and went across the back of the hood to the battery. Forgot to take a picture of that but it's self explanatory.
I tested all functions. ACC on, pressing window down let go and press down again rear windows go all the way down. Same for going up.
Press up, let go and press up again, windows go all the way up.
Remote control works by, press arm/lock then press a second time if any windows are down they will start to go up.
If the truck is already locked and you want to open all windows.
Press unlock, lock, then unlock again. All windows will open.
Hope this write up helps, Goodluck to everyone that bought or is going go buy a module.
