JT/JL Rubicon Axle Shaft Differences

Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,566
Reaction score
4,717
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link

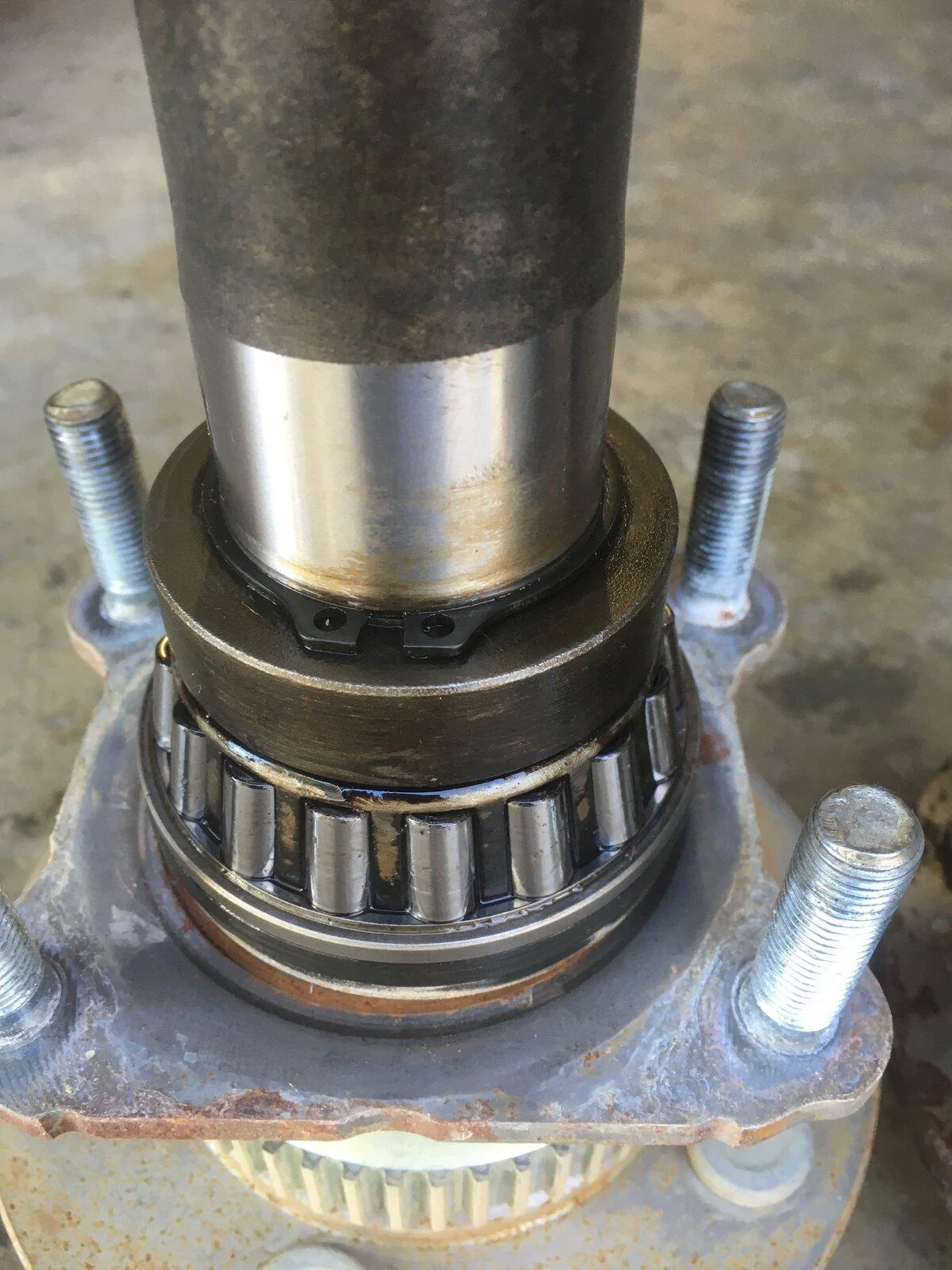

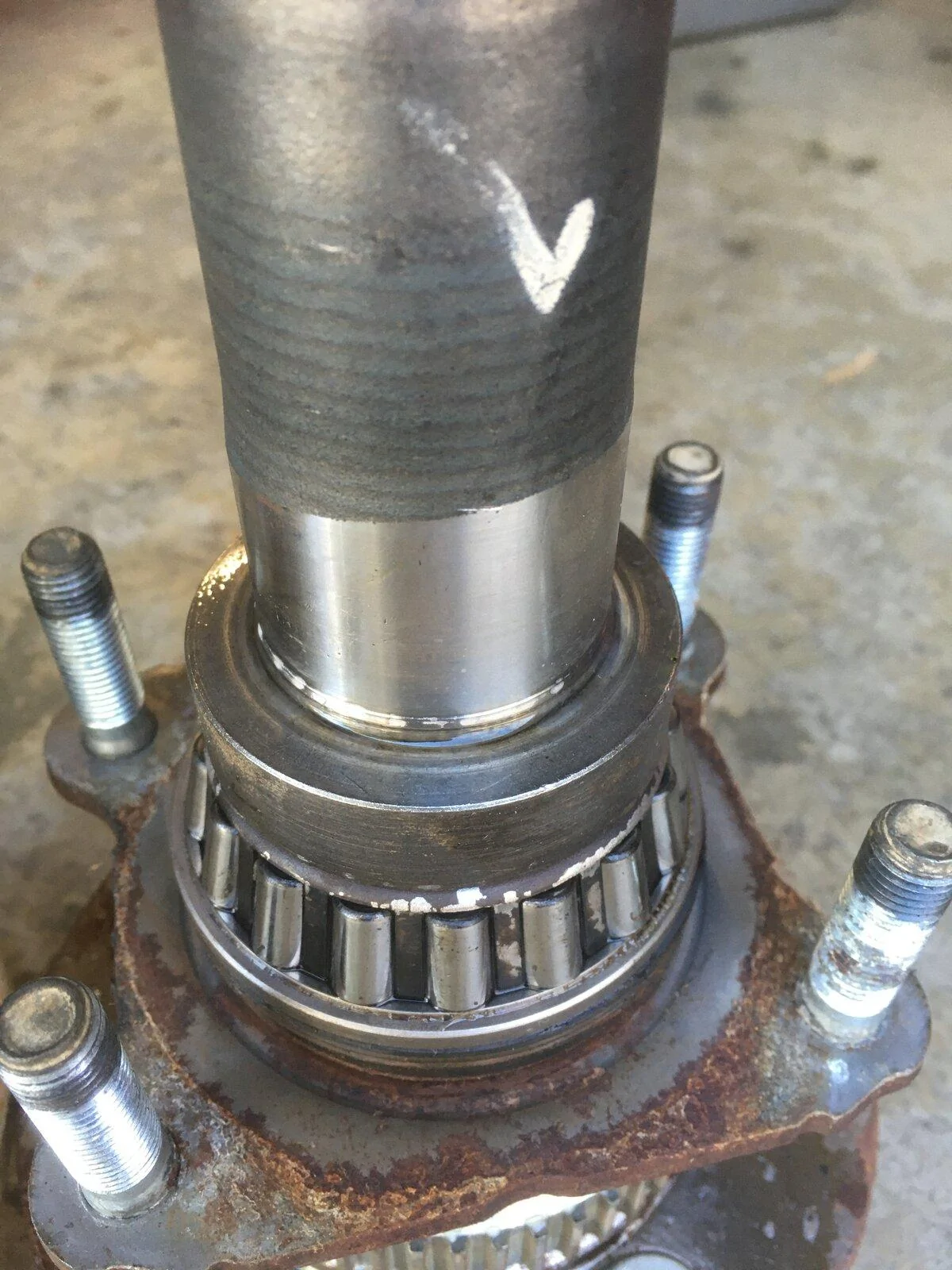

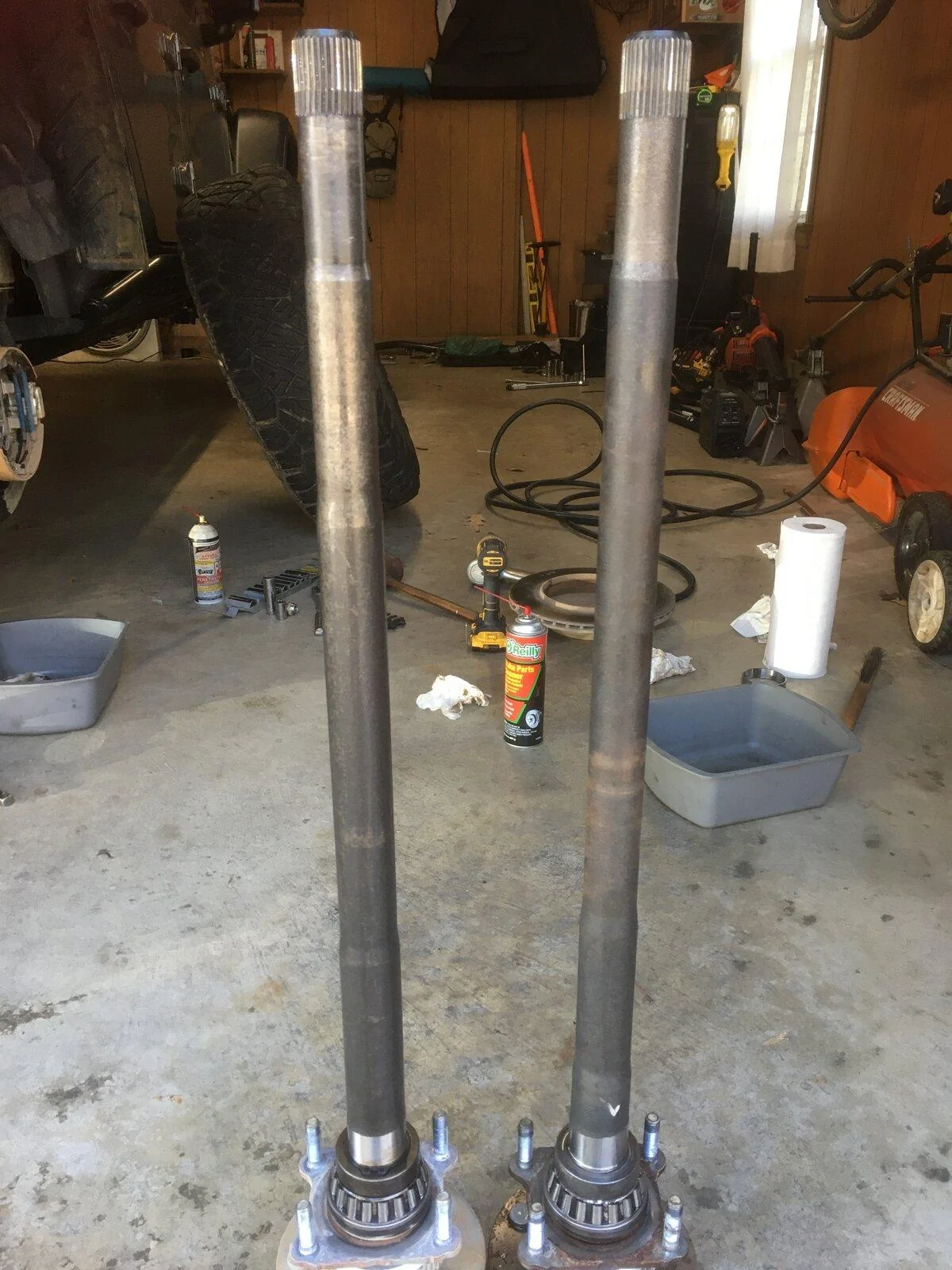

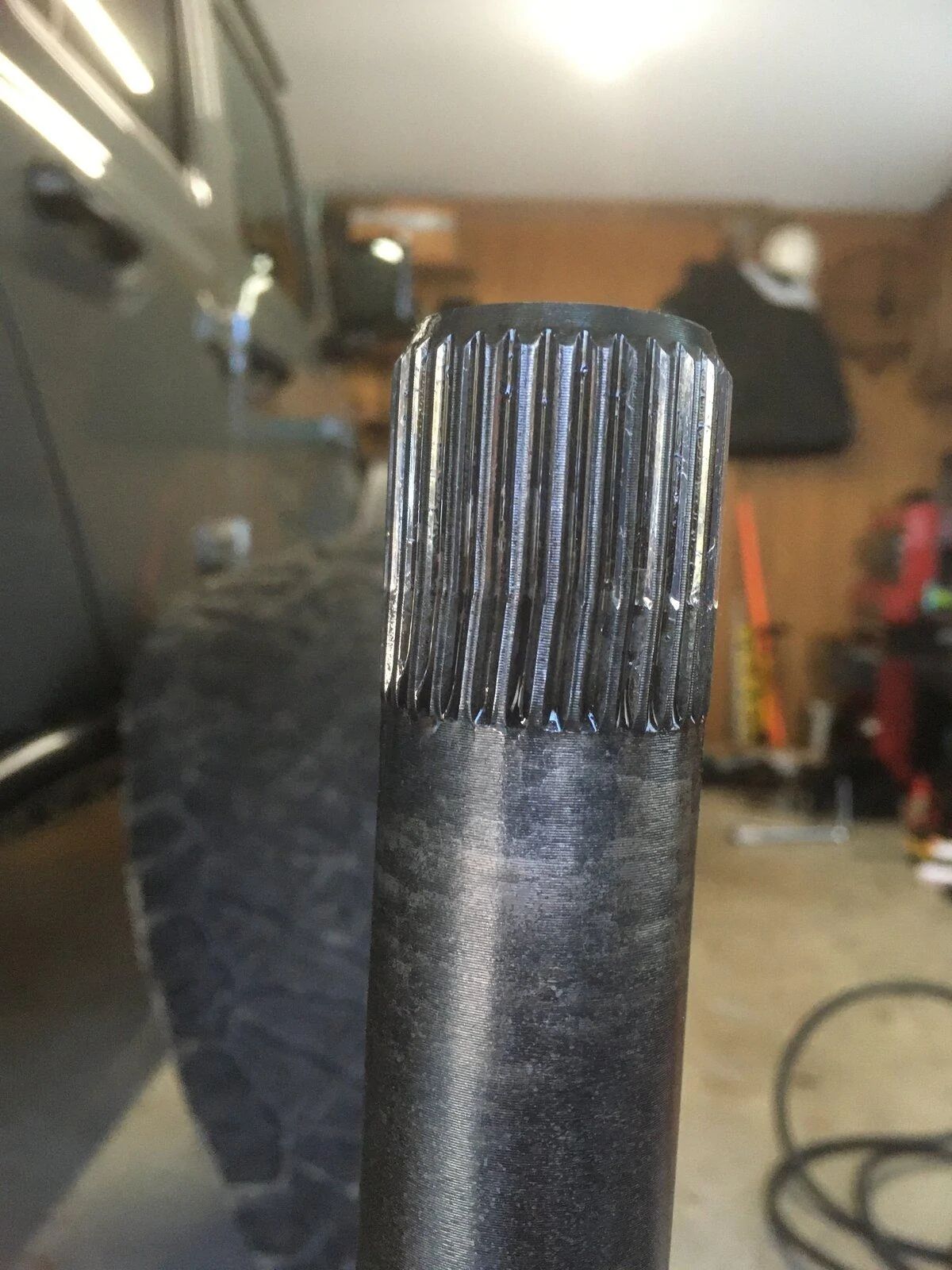

I bent a rear axle flange, and was donated a JL Rubi shaft as a temporary replacement. To my surprise, there were a few differences between the JT and JL shafts. First, the JT shaft has a snap ring just inside the bearing retainer, which the JL shaft (and most other D44s) doesn’t have. Second, the JT shaft is tapered differently, being thicker through the middle part of the shaft. Other than these two differences, they seem dimensionally identical. My shaft does show some spline twist...

Jeep Gladiator JT/JL Rubicon Axle Shaft Differences 7DF45A6F-C5B9-4D25-BCC1-707F57CCF23B


Jeep Gladiator JT/JL Rubicon Axle Shaft Differences 65047EEA-7A57-4045-ADCF-1A92F7D35B18


Jeep Gladiator JT/JL Rubicon Axle Shaft Differences 7305777B-FEB8-41B6-9321-3104DA0AC5F6


Jeep Gladiator JT/JL Rubicon Axle Shaft Differences 861244F4-B653-43F2-84F6-5FBF309ADCA1
Sponsored



CrazyCooter

Well-Known Member
First Name
Tony
Joined
Nov 1, 2020
Threads
11
Messages
2,119
Reaction score
2,256
Location
Far NorCal
Website
www.overlandvehicledynamics.com
Vehicle(s)
1991 JEEP YJ, 2021 JTR Ecodiesel
Occupation
Specialty Off Road Shop Owner
Thanks for posting the pics! I've done gear jobs on both models, but never at the same time so I could compare.

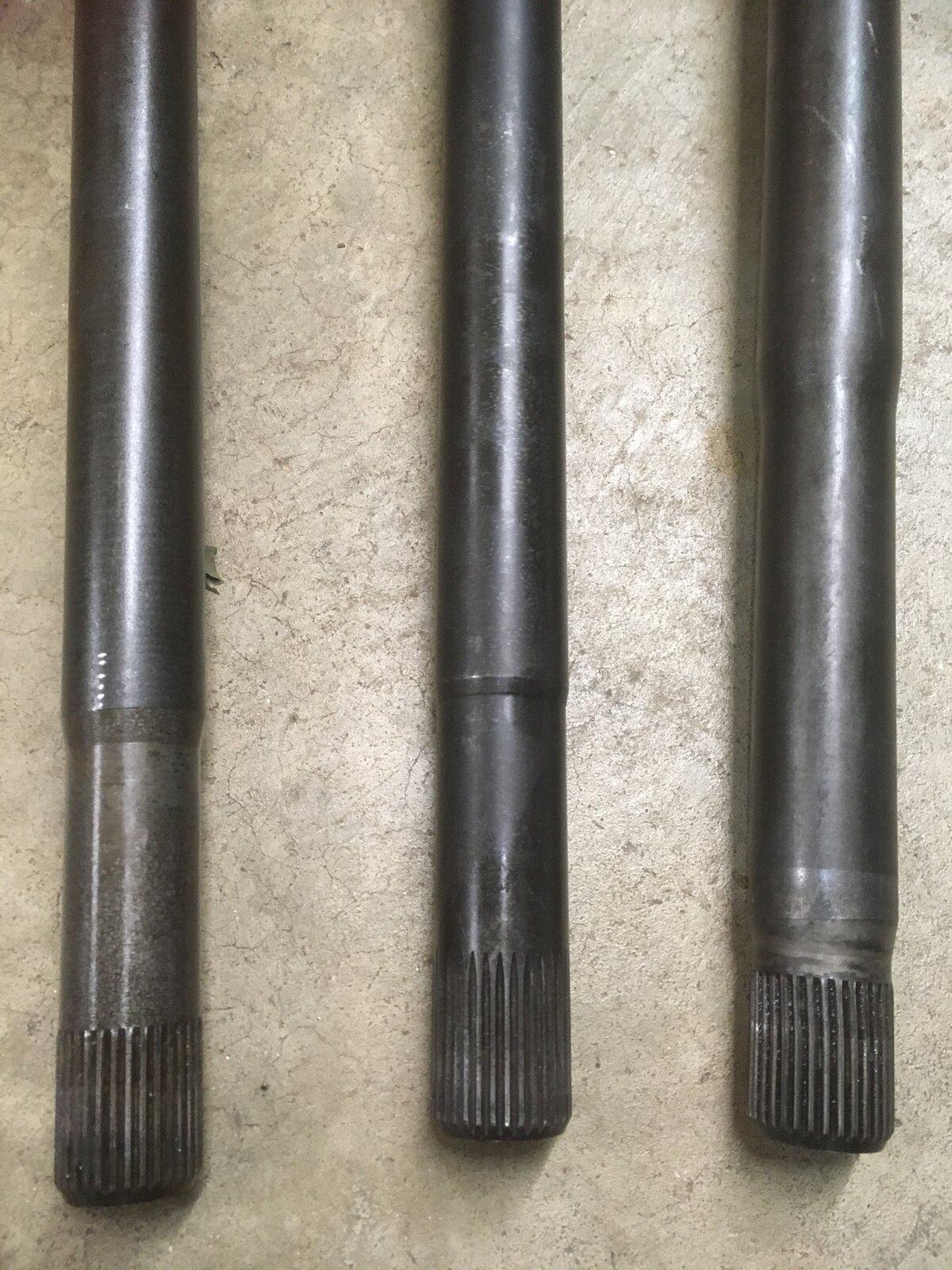

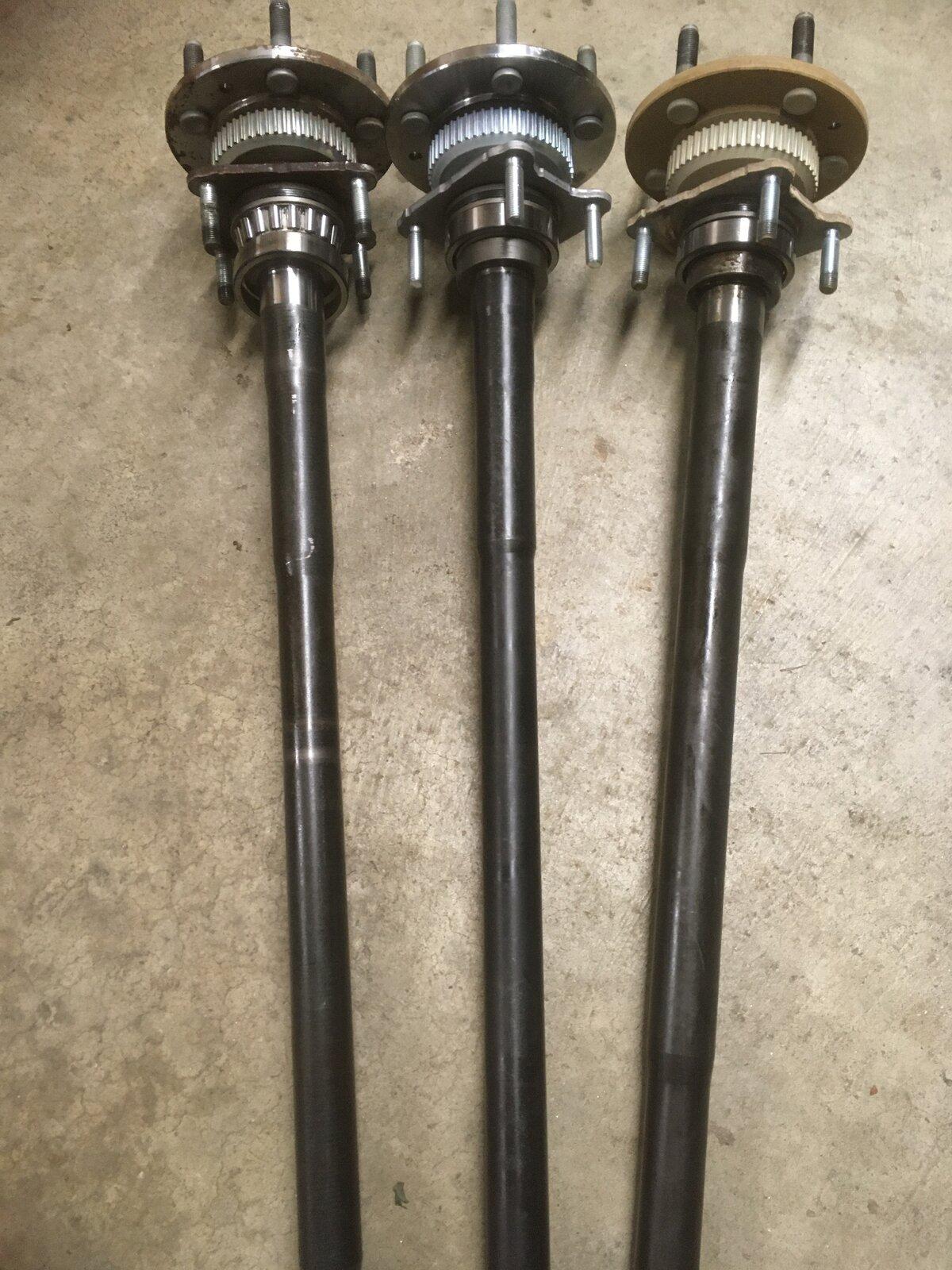

I did note the obvious diameter difference between the two and figured it was done to minimize bending due to the probable higher axle weight rating of the JT axle?
