    Here is the new frame and axles that will be used for the JT wrangler pickup.

    Some measurements posted (from later in thread):

    Rear axle length:
    67.9" (vs JK's 65.375")

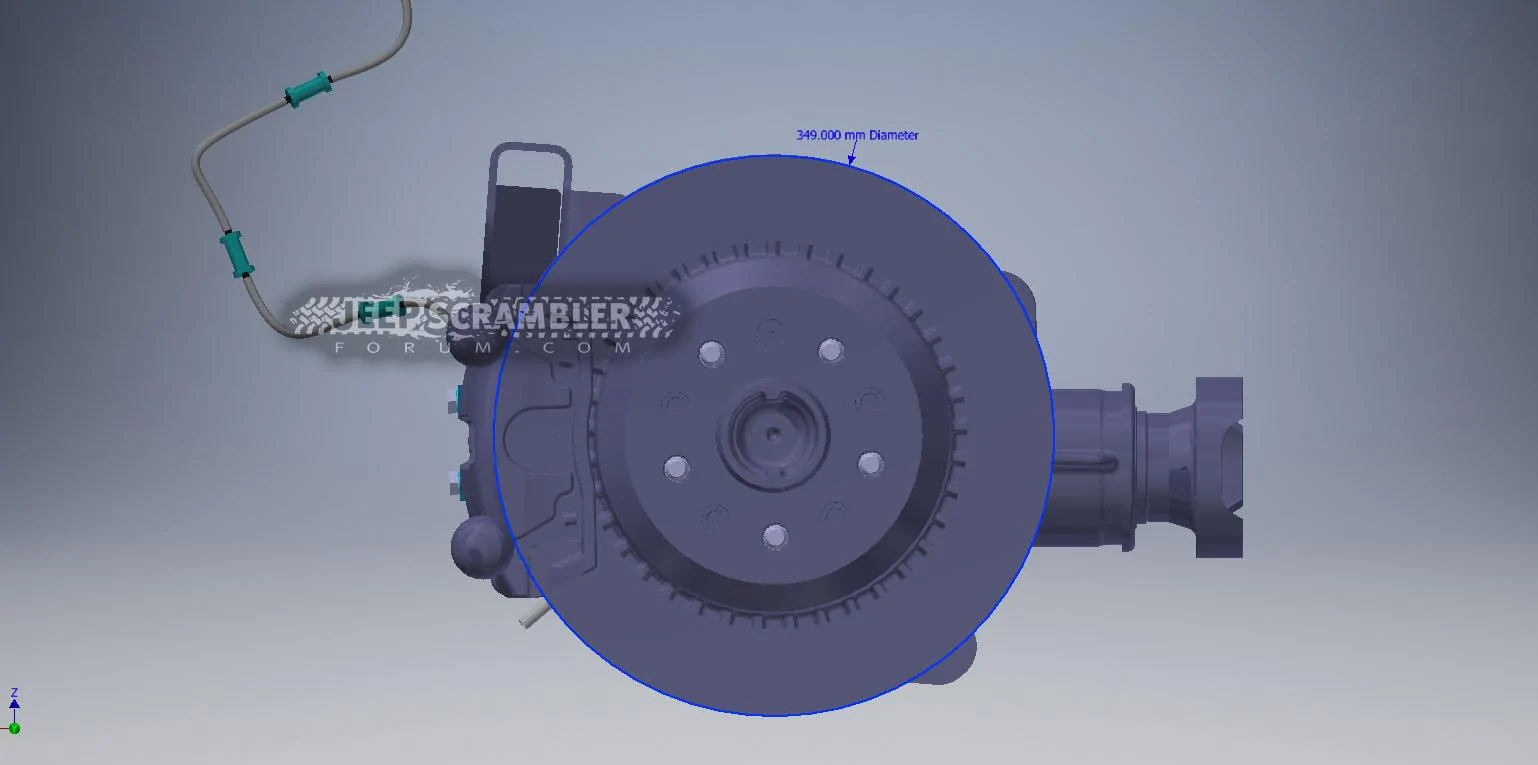

    Rear brake rotor size:
    13.74 in

    FRONT AXLE
    OD: 2.756"
    WALL THICKNESS: .285"

    REAR AXLE
    OD: 3.150"
    WALL THICKNESS: .236"


    (First image compares the JT frame with the JK Wrangler frame)

    2019-JT-Jeep-Scrambler-Pickup-Frame-Comparison-JKU-CAD.jpg 2019-JT-Jeep-Scrambler-Frame-CAD.jpg 2019-JT-Jeep-Scrambler-Axle-CAD.jpg 2019-Jeep-Scrambler-JT-Axle-CAD.jpg

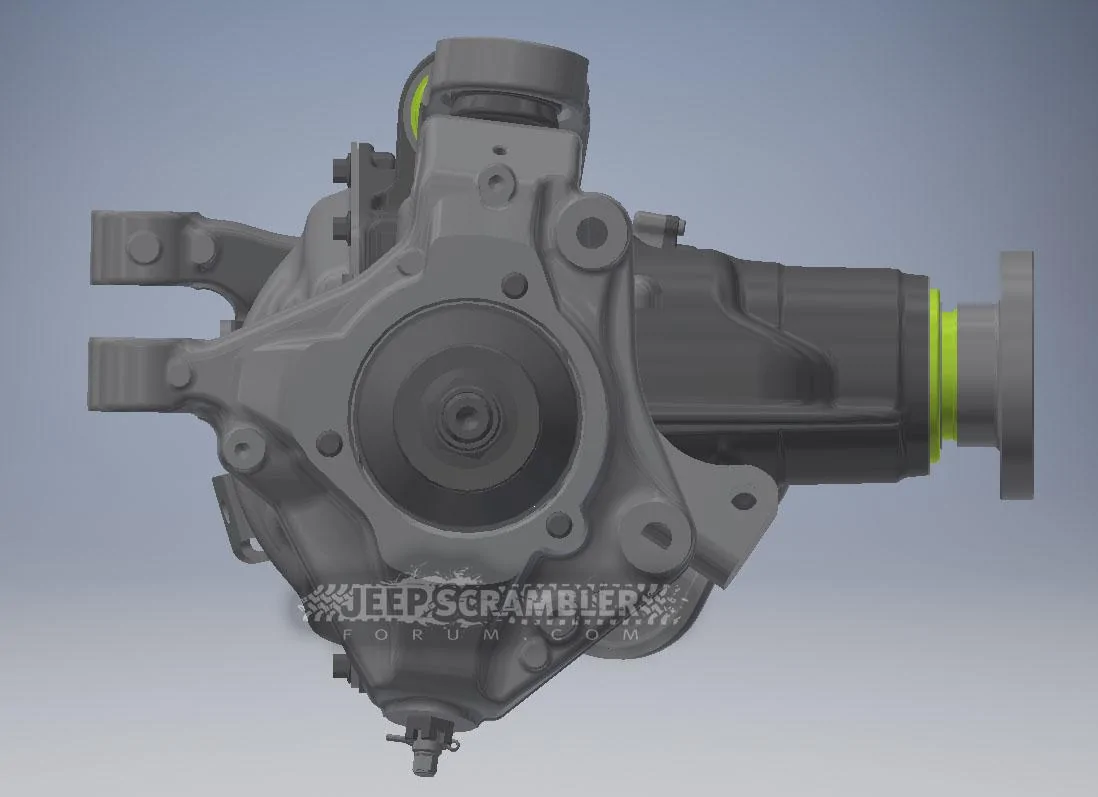

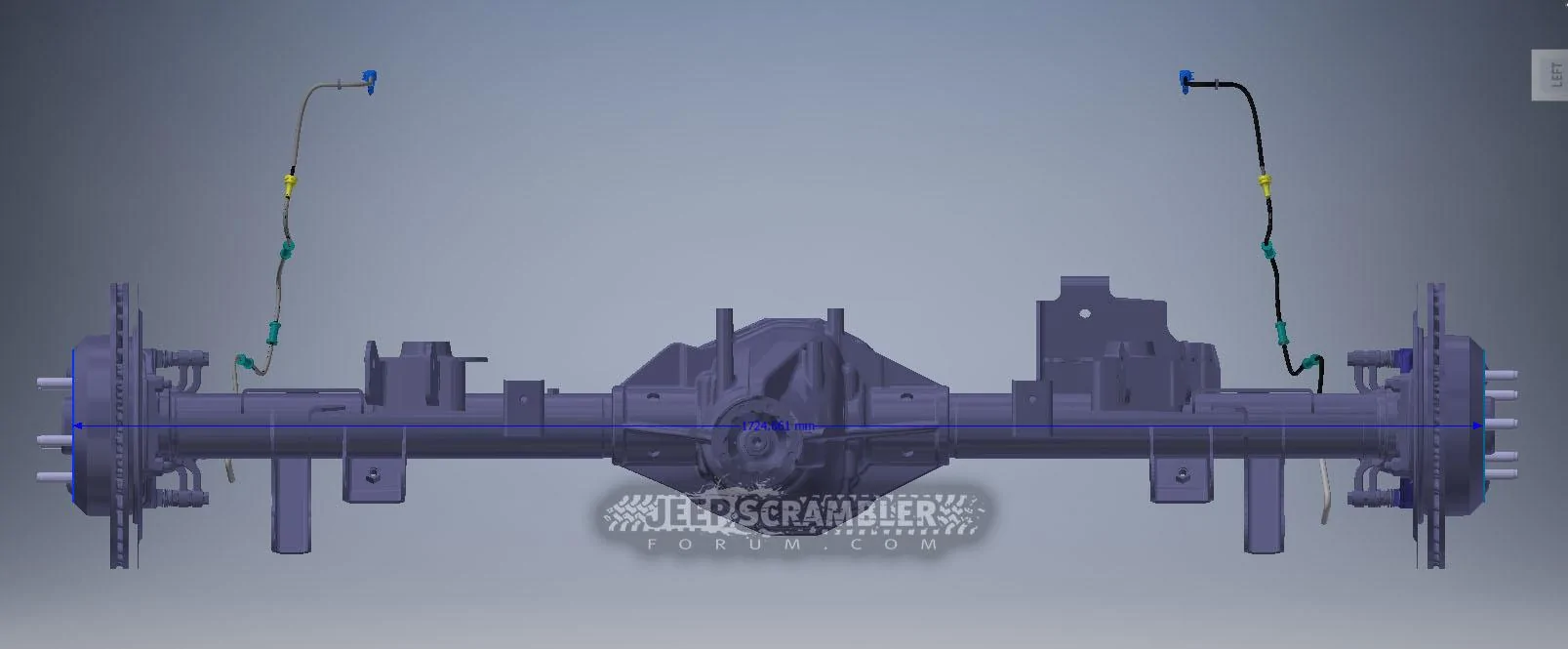

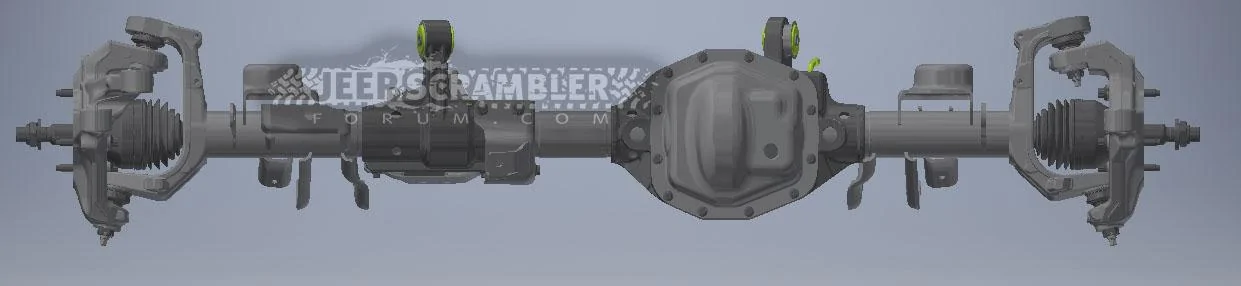

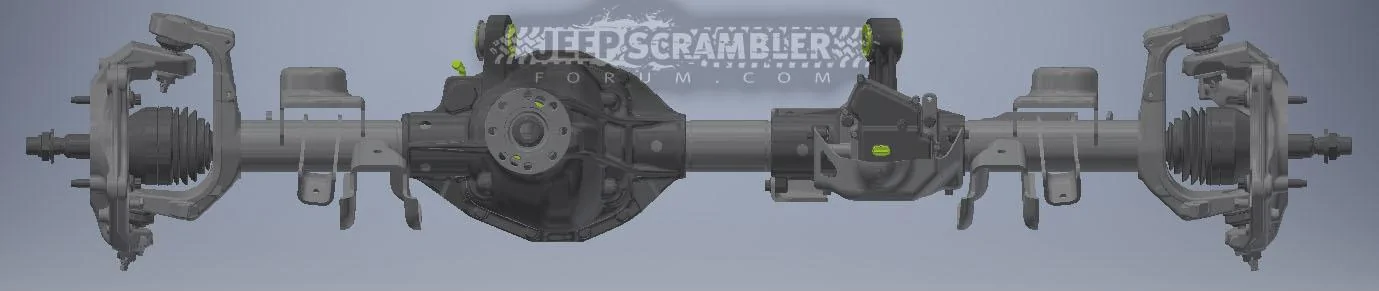

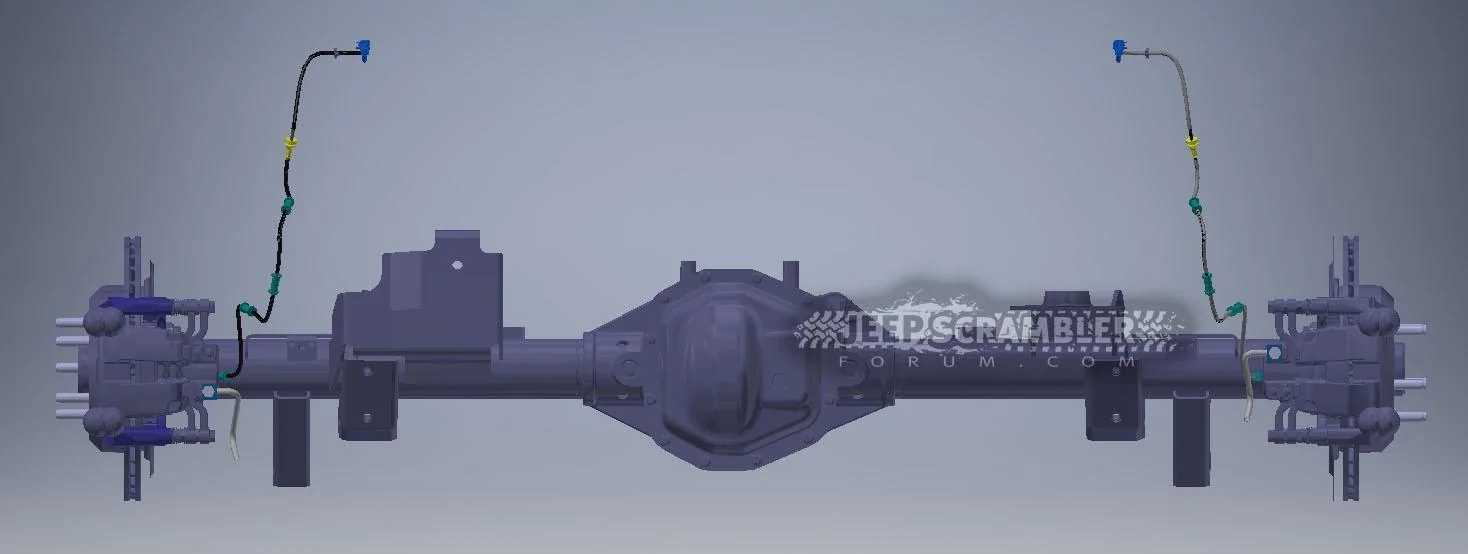

    More axle and brake rotor images/dimensions:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. digitalbliss

    digitalbliss Well-Known Member

    Vehicle(s):
    1979 CJ7
    Joined:
    May 26, 2017
    Location:
    North Alabama
    Posts:
    102
    Liked:
    37
    good ole Autocad and Inventor

    The Great Grape Ape likes this.
  3. Vegas_Sirk

    Vegas_Sirk Well-Known Member

    Vehicle(s):
    2013 JKU
    Joined:
    May 20, 2016
    Location:
    Boise, ID
    Posts:
    1,100
    Liked:
    827
    Garage Profiles:
    1
    Damn looks like the CAD files are out there.

  4. Ian cj10

    Ian cj10 Well-Known Member

    First Name:
    ian
    Vehicle(s):
    1984 cj10 pickup ,1983 sj cherokee with 6.2l chev diesel, 1974 cj6 ,1966 willys pick up 1970 dodge challenger 1974 cj5 project 2012 holden colorado
    Joined:
    Aug 12, 2017
    Location:
    australia
    Posts:
    268
    Liked:
    244
    cool what is known about those 2 frame designs is 1 the 2 door & the other the 4 door or is it a jl frame & a jt frame

  5. digitalbliss

    digitalbliss Well-Known Member

    Vehicle(s):
    1979 CJ7
    Joined:
    May 26, 2017
    Location:
    North Alabama
    Posts:
    102
    Liked:
    37
    Look at the tab name of the AutoCAD drawing at the top left of the first picture. It says "frame Line Skillet 2D compare to JK"

  6. Ian cj10

    Ian cj10 Well-Known Member

    First Name:
    ian
    Vehicle(s):
    1984 cj10 pickup ,1983 sj cherokee with 6.2l chev diesel, 1974 cj6 ,1966 willys pick up 1970 dodge challenger 1974 cj5 project 2012 holden colorado
    Joined:
    Aug 12, 2017
    Location:
    australia
    Posts:
    268
    Liked:
    244
    ah thanks didnt think to look there not used to tech just a lowly earthmover

  7. digitalbliss

    digitalbliss Well-Known Member

    Vehicle(s):
    1979 CJ7
    Joined:
    May 26, 2017
    Location:
    North Alabama
    Posts:
    102
    Liked:
    37
    Haha, I understand. I use the software every day so it's like second nature to me.

  8. The Great Grape Ape

    The Great Grape Ape Well-Known Member

    Vehicle(s):
    2015 JKU AspenX 5spd , 2015 JK Sport 6spd
    Joined:
    Mar 30, 2017
    Location:
    Canadian Rockies
    Posts:
    633
    Liked:
    201
    Definitely the new 12-bolt Axle/Diff, too bad the file name doesn't help decode/guess the model name from Dana.

    I was hoping some filename with a Dxx combo or 2 digit combo in there would give a hint, but it seems like a generic number string that starts with FC... and containing AAW and random numbers. If it was AAM then that could've been American Axle, but it's not, and Dana is definitely the JL supplier.

    Dang, super curious about that Diff, especially since they haven't had a 12-bolt since the D28, and this refresh should add strengh over the D44 but not weigh as much as a D60.

  9. Asami

    Asami New Member

    Vehicle(s):
    Chevy Colorado
    Joined:
    Aug 19, 2017
    Location:
    Littleton
    Posts:
    1
    Liked:
    0
    Can we make any educated guesses on the wheelbase, length and bed size based on this?

  10. MrDinkMan

    MrDinkMan Active Member

    Vehicle(s):
    Durango
    Joined:
    May 9, 2016
    Location:
    OC
    Posts:
    35
    Liked:
    9
    Looks like the JT frame is about 15-20% longer.

  11. peterjford

    peterjford Member

    First Name:
    Peter
    Vehicle(s):
    1943 Ford GPW (needs restoration), 1988 Jeep YJ (needs engine), 1999 Jeep XJ (Purple Is The New Chrome), 2007 Chevrolet Suburban (Mom's kid hauler)
    Joined:
    Jan 31, 2017
    Location:
    Orange County CA
    Posts:
    11
    Liked:
    9
    Garage Profiles:
    1
    How high will the bed have to be to clear the coil suspension? Not that it really matters since I will probably lift it, but still curious.

  12. bilash31

    bilash31 Active Member

    Vehicle(s):
    JKU
    Joined:
    May 17, 2017
    Location:
    PA
    Posts:
    36
    Liked:
    20
    Ok. So thinking out loud here based on specific comments above. Correct me if you think I am wrong. File name is "2D vs JK." I don't work in the auto industry so standard abbreviations may be set. But does this mean there is confirmation of a 2 door JT? Thus far, as far as I know, it's only speculation since only a 4 door mule has been spotted. Wondering because 2D could be 2 door or 2 dimensional (plane view in drawing). Will JT have different frames for 2 and 4 door. Thoughts?

  13. JeepinOutfitters

    JeepinOutfitters Well-Known Member

    Vehicle(s):
    1995 XJ, 2016 JKUR Hard Rock
    Joined:
    Mar 2, 2017
    Location:
    Lewisville, TX
    Posts:
    76
    Liked:
    42
    Occupation:
    Outfitting Jeeps for adventures.
    Well there's definitive proof that there's a 'mystery' housing on the RH side of the axle housing. Are we going back to the days of an axle disconnect??

    The front axle is fitted with CV-jointed axle shafts, which someone in another thread had said was specific to the Selec-Trac full-time 4WD system, which itself was limited to the Sahara edition. Does this mean that the JT will have both a Sahara edition and the availability of Selec-Trac? Or will the JT always be equipped with the CV axle shafts?

    It also seems as if all we've seen so far for front axles is that mystery 12-bolt axle. Does this mean that all JLs and JTs will be equipped with the same front axle? No more D30 vs D44? (the axle in the CAD image appears to be missing the Rubicon locker fitting...)

    Another interesting note: the rear discs are vented, pointing to them being larger than the current JK's discs. Why though, does the far rotor appear larger than the near rotor?
