Jumperless aux battery/PCR bypass

jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
11
Messages
443
Reaction score
405
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
I was looking at the fuse descriptions on the underside of the PDC cover and saw this - F42 PCR CTRL FEED (ESS)*. Removing this fuse defeats the cold start aux battery test and allows the aux battery to be disconnected without generating any errors.

Unplugging the PCR has always been an alternative to using an N1 N2 fused jumper, both methods defeat the aux battery pass/fail test that occurs prior to a cold start. Unlike using a jumper, unplugging the PCR doesn't require any additional parts, it's just not easy to get to the PCR plug. Removing the F42 fuse accomplishes the same thing as unplugging the PCR, both actions prevent the PCR from activating and separating the batteries.

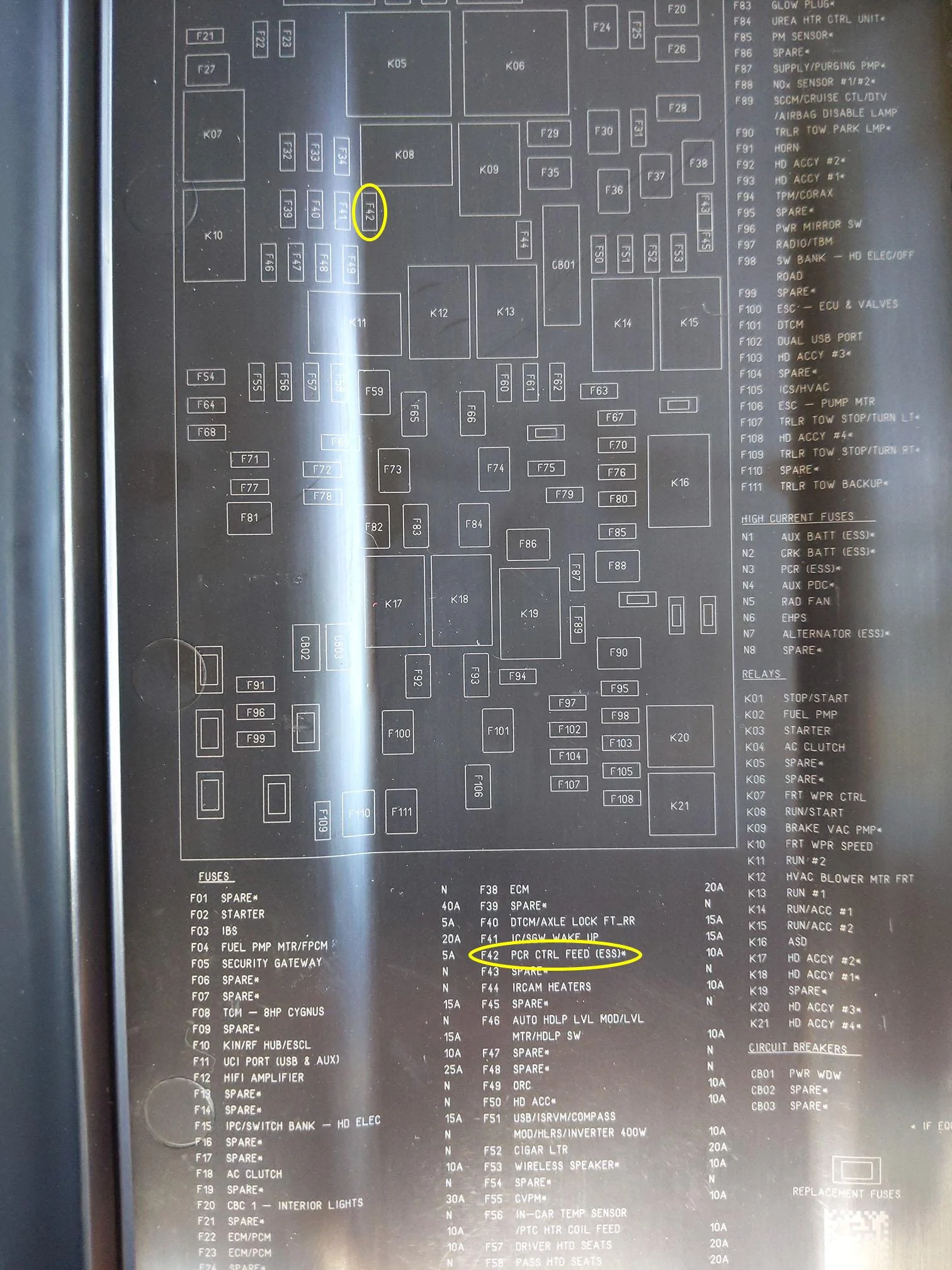

Here's the underside of the PDC cover showing the description and location of the fuse.



Here's the fuse location with the fuse removed.

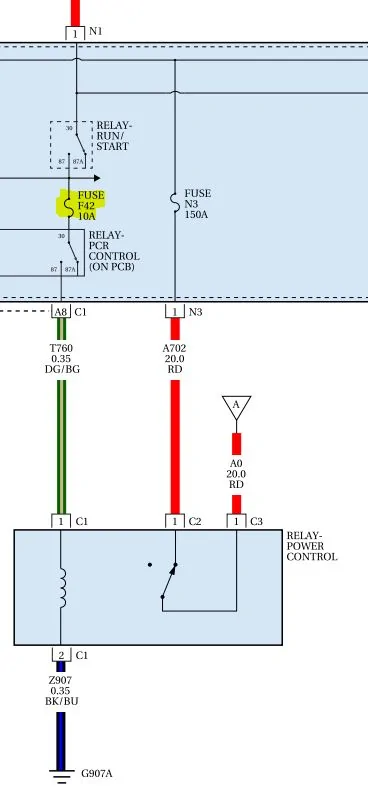

Here's the schematic showing the fuse in the circuit.



CJXJJT

Well-Known Member
First Name
Mike
Joined
Sep 27, 2021
Threads
1
Messages
47
Reaction score
75
Location
Idaho
Vehicle(s)
51 CJ3A, 71 CJ5, 72 CJ6, 93 XJ, 21 JT
Occupation
Machinist
Not being a smartass, school me here, why would I want to do this?

OP
OP
jebiruph

jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
11
Messages
443
Reaction score
405
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
Not being a smartass, school me here, why would I want to do this?
The aux battery gets blamed for many issues and people talk about wanting to eliminated it, pulling the fuse lets you disconnect it with any errors.



dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
44
Messages
2,733
Reaction score
3,046
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Does this mean that if one battery fails it is more likely to bring the other battery down?

Would a reasonable mod to go with this is simply remove the Aux battery and turn off ESS with a Tazer or AlfaOBD??


Lunentucker

Well-Known Member
Joined
Apr 24, 2022
Threads
17
Messages
461
Reaction score
1,030
Location
Virginia
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
People Work?
The best mod is to eliminate the aux altogether. You can replace it with a Genesis dual battery setup or you can just do away with it.

Yes. The aux will die and drain the main battery, leaving you high and dry.

Opinion


exfil offroad

Well-Known Member
First Name
Josh
Joined
Feb 27, 2021
Threads
8
Messages
145
Reaction score
86
Location
Arizona
Vehicle(s)
21 Gladiator-Willys /18 Wrangler JLU-Rubicon
I was looking at the fuse descriptions on the underside of the PDC cover and saw this - F42 PCR CTRL FEED (ESS)*. Removing this fuse defeats the cold start aux battery test and allows the aux battery to be disconnected without generating any errors.

Unplugging the PCR has always been an alternative to using an N1 N2 fused jumper, both methods defeat the aux battery pass/fail test that occurs prior to a cold start. Unlike using a jumper, unplugging the PCR doesn't require any additional parts, it's just not easy to get to the PCR plug. Removing the F42 fuse accomplishes the same thing as unplugging the PCR, both actions prevent the PCR from activating and separating the batteries.

Here's the underside of the PDC cover showing the description and location of the fuse.



Here's the fuse location with the fuse removed.



Here's the schematic showing the fuse in the circuit.
Do you have the AUX buttons? If so does your vehicle not disabled those buttons when you do this?

OP
OP
jebiruph

jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
11
Messages
443
Reaction score
405
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
Do you have the AUX buttons? If so does your vehicle not disabled those buttons when you do this?
I don't and it wouldn't. AUX button disabling is based on the main battery status, not the aux battery.



exfil offroad

Well-Known Member
First Name
Josh
Joined
Feb 27, 2021
Threads
8
Messages
145
Reaction score
86
Location
Arizona
Vehicle(s)
21 Gladiator-Willys /18 Wrangler JLU-Rubicon
I don't and it wouldn't. AUX button disabling is based on the main battery status, not the aux battery.
actually the auxiliary battery causes the aux buttons to not be available when charging. So when that system acts up the AUX buttons are disabled.

OP
OP
jebiruph

jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
11
Messages
443
Reaction score
405
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
actually the auxiliary battery causes the aux buttons to not be available when charging. So when that system acts up the AUX buttons are disabled.
It's based on the main battery status as reported by the battery sensor. The aux battery doesn't have a battery sensor, so there is no way to know if it's charging or not.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
113
Messages
17,073
Reaction score
18,779
Location
Runnells, Iowa
Vehicle(s)
'20 JTO, '21 WK2, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
actually the auxiliary battery causes the aux buttons to not be available when charging. So when that system acts up the AUX buttons are disabled.
It's based on detected voltage -


Aux Switch Bank Module (ASBM) Battery Minimum Voltage: 11.8 V


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
113
Messages
17,073
Reaction score
18,779
Location
Runnells, Iowa
Vehicle(s)
'20 JTO, '21 WK2, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Not being a smartass, school me here, why would I want to do this?
No real reason if things are working correct and for the vast majority, there's not going to be any issue.
But this is the internet, so things look worse and appear to happen to everyone. Neither is the case.
Mine is fine. I have no plans to disable or bypass anything.
If for some odd reason I would be one of the minority that have any issues, I'd know how to resolve it without trouble.
The problem is that all battery issues get lumped together and blamed on the same things, even though that's like saying because you have a temperature of 102 your illness is always the same.
Batteries fail for many reasons. And as I've found, a failed battery doesn't always mean disaster.
This sort of thing is mostly going to be of interest to a very few people.


Whoever came up with the aux battery idea in the first place needs to put on medication
It's not just Jeep and for the vast majority, it works fine. Only a few have issues, they just happen to be the most vocal because they are pissed off.
I resolve the issues and move on.

Again, it's the internet.

This system has been used in other vehicles for years.
