For those of you running an aftermarket bumper without front skid plate you may have noticed, as we have, that there are sections of exposed frame that protrude down past the bumper and almost looks like something is missing. We have been looking into a solution to fill this space and would like to get some feedback on this concept we are working on.

Here you can see an example of a JL with an aftermarket front bumper.

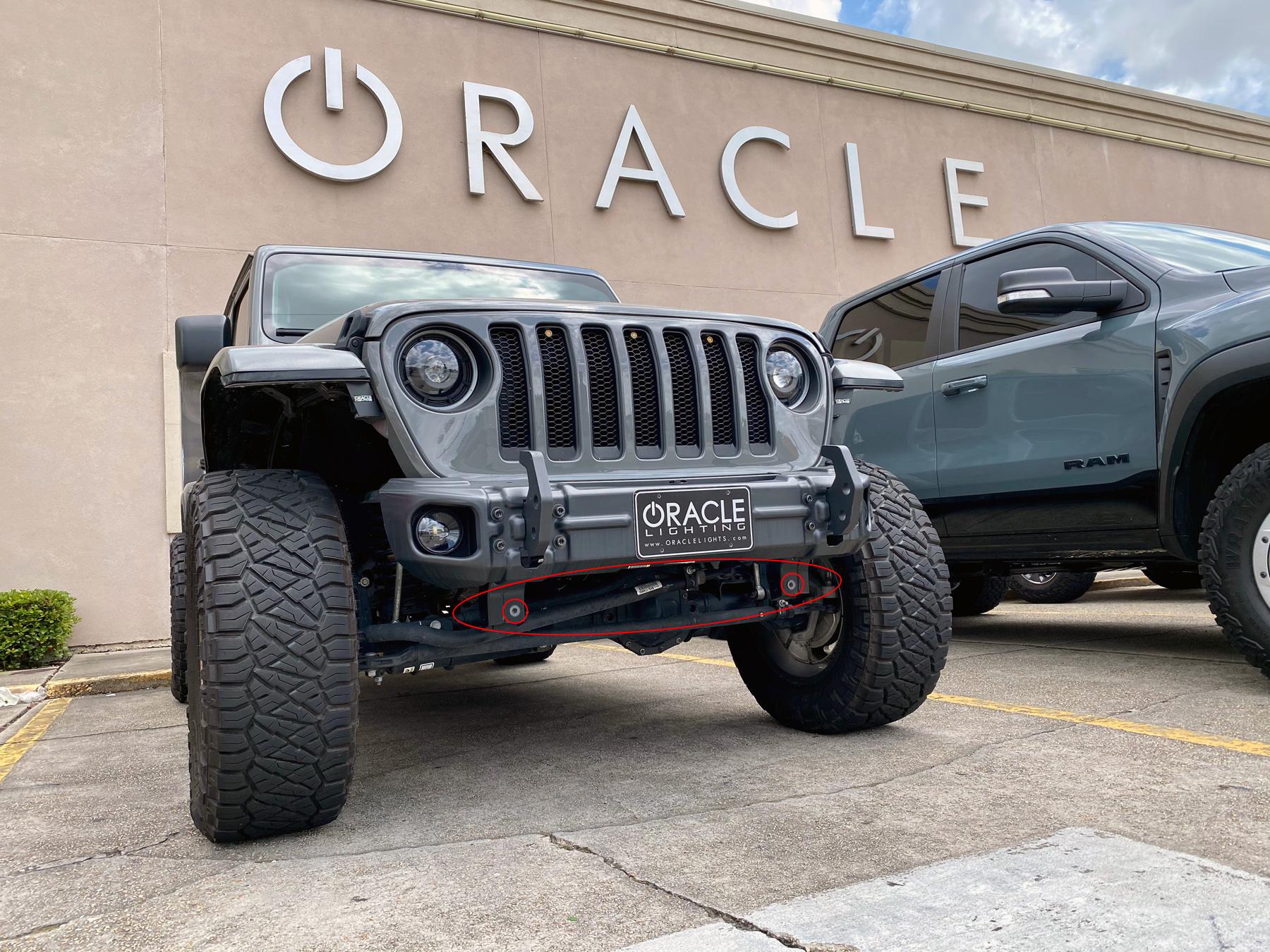

Here is the frame section (complete with threaded inserts) we are referring to.


The position of the light is optimal for lighting the road. For instance, a roof mounted (A-pillar mounted, hood mounted, etc) bar needs to point downward in order to light the road. Because it is pointing downward the projection distance is overall limited. The projection distance from this lower position is optimized so it can be a fixed mount which projects directly down the road for optimal distance and functionality.

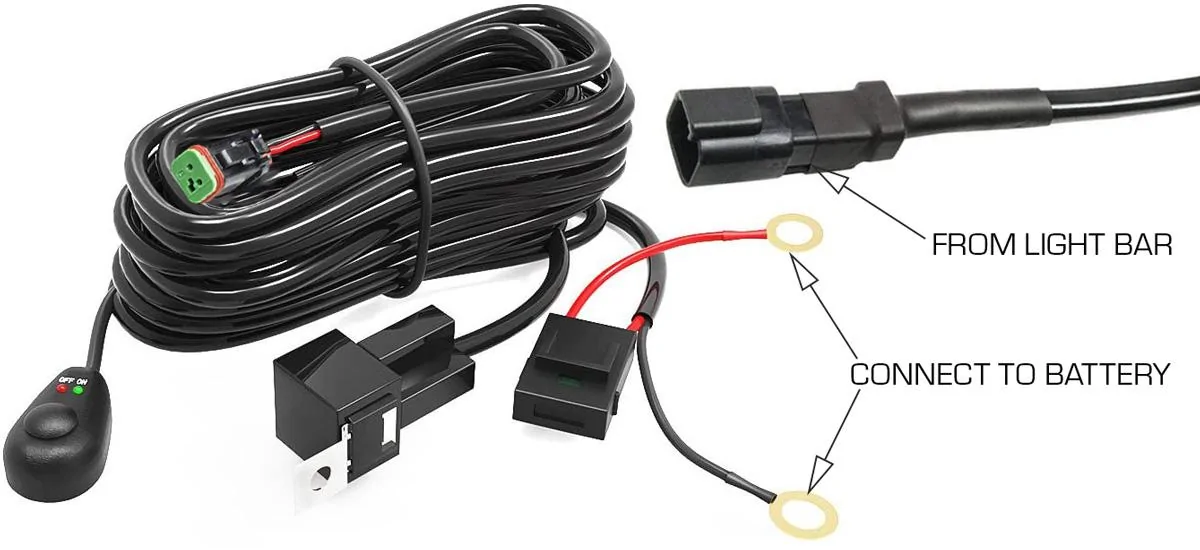

Installation would be very easy for this design. Mounting involves simply bolting the skid plate into the existing threaded inserts in the frame. Wiring would also be simplified with a wiring harness designed for the Wrangler/ Gladiator which would be very close to a plug and play solution which would include a switch module and can work with the factory AUX switches.


The LED light modules would be made up of individual 30W 2" LED emitters. These ORACLE exclusive LED emitters are extremely powerful and have a very nice blacked-out appearance. The benefit of individual modules opposed to a single light bar is:

1) Preserved more steel plate for increased durability and functionality of the skid plate.
2) Modules can be replaced if damage (rock chip, etc) were to happen opposed to a full light bar which would ruin the entire unit.

These 30W LED modules produce approximately 2,200Lm each giving the setup a total of 15,500 Lumens.

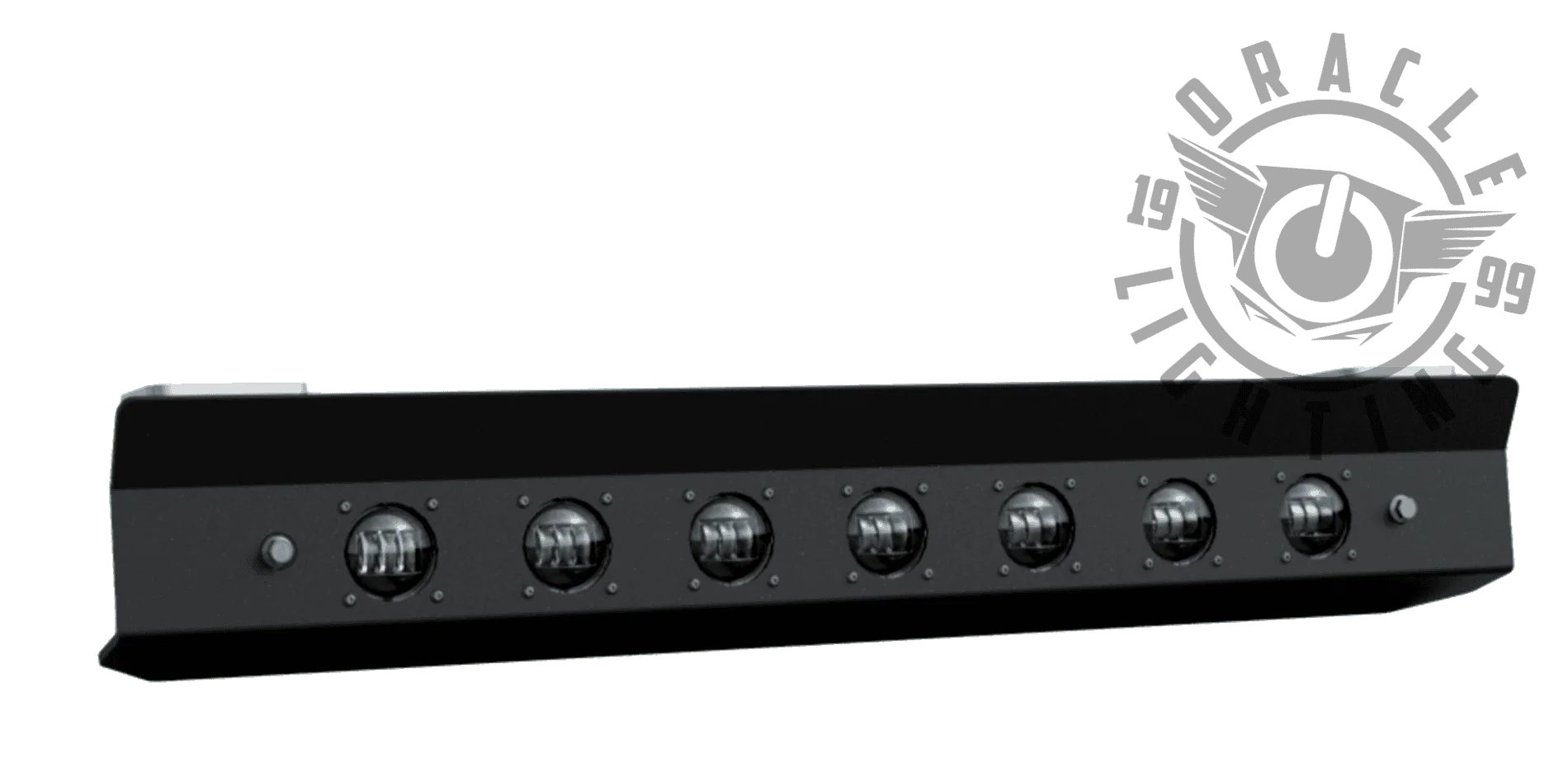

Here are renderings demonstrating what the LED Skid Plate would look like installed:






Pricing is not worked out just yet, we are still working on some of the details for the material cost.

Interested in your thoughts and comments!





Advertisement


Last edited:

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Messages
546
Reaction score
603
Location
PA
Vehicle(s)
2010 Toyota Prius, '88 RHD YJ
Occupation
Railroad Division Supervisor
Vehicle Showcase
1
^^^Read: "Send more money to Oracle for another groupbuy for another lighting solution" 🤣🤣

But seriously, I like it. Would work great in rain/snow being low.
I'll be following this.


Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Messages
546
Reaction score
603
Location
PA
Vehicle(s)
2010 Toyota Prius, '88 RHD YJ
Occupation
Railroad Division Supervisor
Vehicle Showcase
1

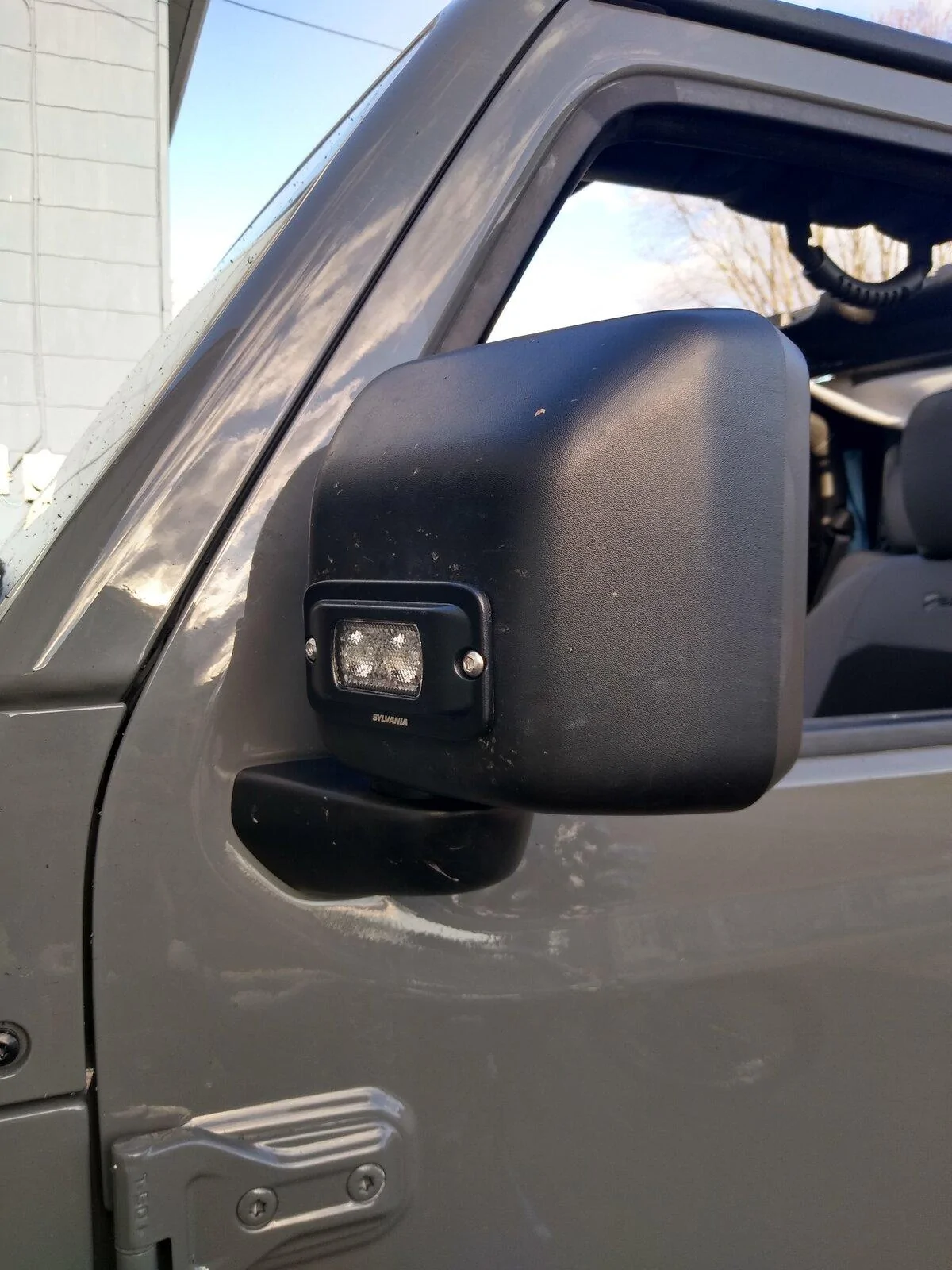

@ORACLElights Hey, since you guys seem to always be searching for ideas (which usually turn out awesome), have you considered developing replacement mirrors (or at least the outer cover) with LEDs in them. Here's an example of mine, I installed a set of flush mounts lights into. They work awesome, and I have mine wired to my high beams, since I don't have the Aux switch package (yet).



Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Messages
2,730
Reaction score
3,165
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
Would it be functional as a true skid plate, and work with the Rubicon sway bar disconnect motor (flipped or in the stock position)?

OP
ORACLElights

ORACLElights

Peak Sponsor (Level 2)
Joined
Dec 29, 2019
Messages
547
Reaction score
825
Location
Metairie, LA
Website
www.oraclelights.com
Vehicle(s)
Jeep Gladiator
Occupation
Automotive LED Manufacturer
  • Thread starter
  • Thread Starter
  • #7
@ORACLElights Hey, since you guys seem to always be searching for ideas (which usually turn out awesome), have you considered developing replacement mirrors (or at least the outer cover) with LEDs in them. Here's an example of mine, I installed a set of flush mounts lights into. They work awesome, and I have mine wired to my high beams, since I don't have the Aux switch package (yet).

Of course! We originated the mirror lights on the JK back in the day :)

We were going back and forth on the orientation of the LEDs which looked best on the JL & JT.



We are about to restart this project so we will be making a new thread on this soon!

Last edited:
OP
ORACLElights

ORACLElights

Peak Sponsor (Level 2)
Joined
Dec 29, 2019
Messages
547
Reaction score
825
Location
Metairie, LA
Website
www.oraclelights.com
Vehicle(s)
Jeep Gladiator
Occupation
Automotive LED Manufacturer
  • Thread starter
  • Thread Starter
  • #8
Would it be functional as a true skid plate, and work with the Rubicon sway bar disconnect motor (flipped or in the stock position)?
Yes it would be a true functional skid plate. As for the Rubicon sway bar disconnect, we just picked up a new Gladiator Rubicon for R&D so we will be checking into this soon.


mx5red

Well-Known Member
First Name
Paul
Joined
May 7, 2020
Messages
194
Reaction score
143
Location
San Diego
Vehicle(s)
2020 Firecracker JTR; 2020 DGC JLUR; 2008 M3 (sold)
@ORACLElights Hey, since you guys seem to always be searching for ideas (which usually turn out awesome), have you considered developing replacement mirrors (or at least the outer cover) with LEDs in them. Here's an example of mine, I installed a set of flush mounts lights into. They work awesome, and I have mine wired to my high beams, since I don't have the Aux switch package (yet).

Good work.
Did you take the mirror apart, or just cut into the back? How much room is in there or how deep is it?


jjmstang

Well-Known Member
Joined
Aug 26, 2019
Messages
126
Reaction score
71
Location
Maryland
Vehicle(s)
2020 Gladiator LE
@ORACLElights Hey, since you guys seem to always be searching for ideas (which usually turn out awesome), have you considered developing replacement mirrors (or at least the outer cover) with LEDs in them. Here's an example of mine, I installed a set of flush mounts lights into. They work awesome, and I have mine wired to my high beams, since I don't have the Aux switch package (yet).

CAn you give the part number/s for the products you used ?


Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Messages
546
Reaction score
603
Location
PA
Vehicle(s)
2010 Toyota Prius, '88 RHD YJ
Occupation
Railroad Division Supervisor
Vehicle Showcase
1

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Messages
546
Reaction score
603
Location
PA
Vehicle(s)
2010 Toyota Prius, '88 RHD YJ
Occupation
Railroad Division Supervisor
Vehicle Showcase
1
Good work.
Did you take the mirror apart, or just cut into the back? How much room is in there or how deep is it?
Both. The front facing cover just pops off (you can see the tabs if look in the gap behind the glass) exposing the framework for the mirror. I had to shave down some of the plastic webbing to clear the heat sinks on the lights after cutting the holes and mounting the lights. I ran the wires into the door panel, and tapped into the door handle ambient light. Inside the door jamb on the body side I cut the wire for the light, and ran an extension to the high beam wire on each side of the JT. That way I didn't have to make up another plug, and I just use the OEM door harness plug.

I absolutely love the added light, and it seems perfectly aimed, continuing the light beam spread across the shoulder of the road from one side to the other.

I'm gonna miss them when it gets warm enough to take the doors off, though...


eaglerugby04

Well-Known Member
Joined
Oct 14, 2019
Messages
1,471
Reaction score
958
Location
Northern South Carolina
Vehicle(s)
Gator Rubicon Gladiator, Toyota Prius, Toyota Sienna
Occupation
Network Security

Oracle Designs

Peak Sponsor (Level 2)
Joined
Jul 14, 2020
Messages
12
Reaction score
112
Location
Metairie, Louisiana
Vehicle(s)
Jeep Wrangler
Occupation
Industrial Designer

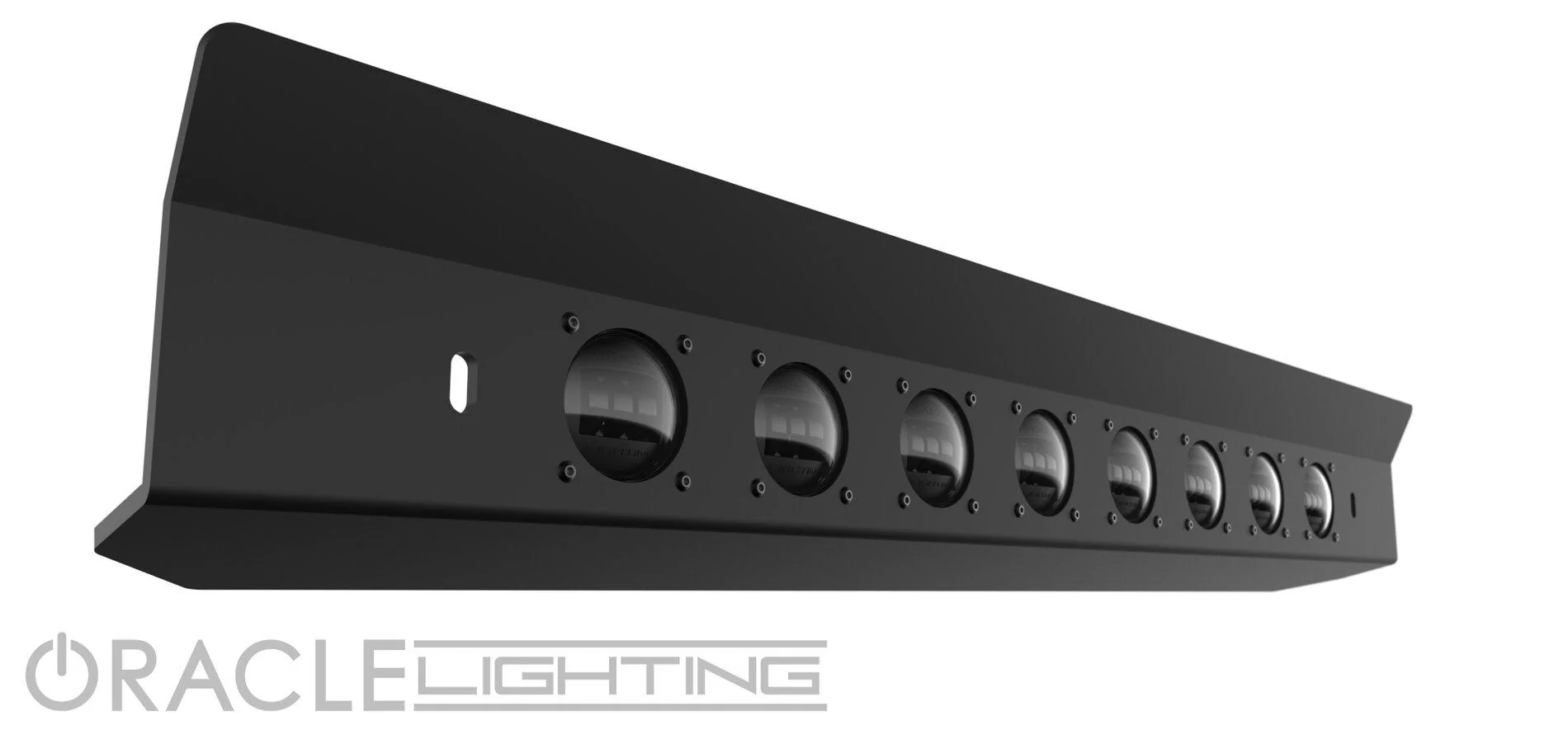

Made some updates for the skid plate lighting concept. During development, we have decided that the design will be compatible with both JT and JL Jeep models. From the previous model shown, we are now able to fit 8 lighting units instead of 7. Meaning more light output. In addition to the lights, we confirmed that we are going to use amber/yellow lighting. More details to come in the near future.
