LED Tail Light with BSM vs LED without BSM Connector/Harness Differences?

DocMcStuffins

Well-Known Member
Joined
Feb 20, 2021
Messages
61
Reaction score
58
Location
Central California
Vehicle(s)
2021 Gladiator Rubicon Diesel
I have a 2021 JTRD with the LED and BSM (Blind Spot Monitoring System), and was trying to plug in the Curt 59864 flat-tow wiring harness which is supposed to be plug-and-play. Unfortunately it looks like my plug is different?

I was wondering if anyone knew if there was a difference between the wiring harness/plugs for the LED Tail Lights with BSM vs LED without BSM??? Can you please post pictures of the LED w/o BSM connectors?

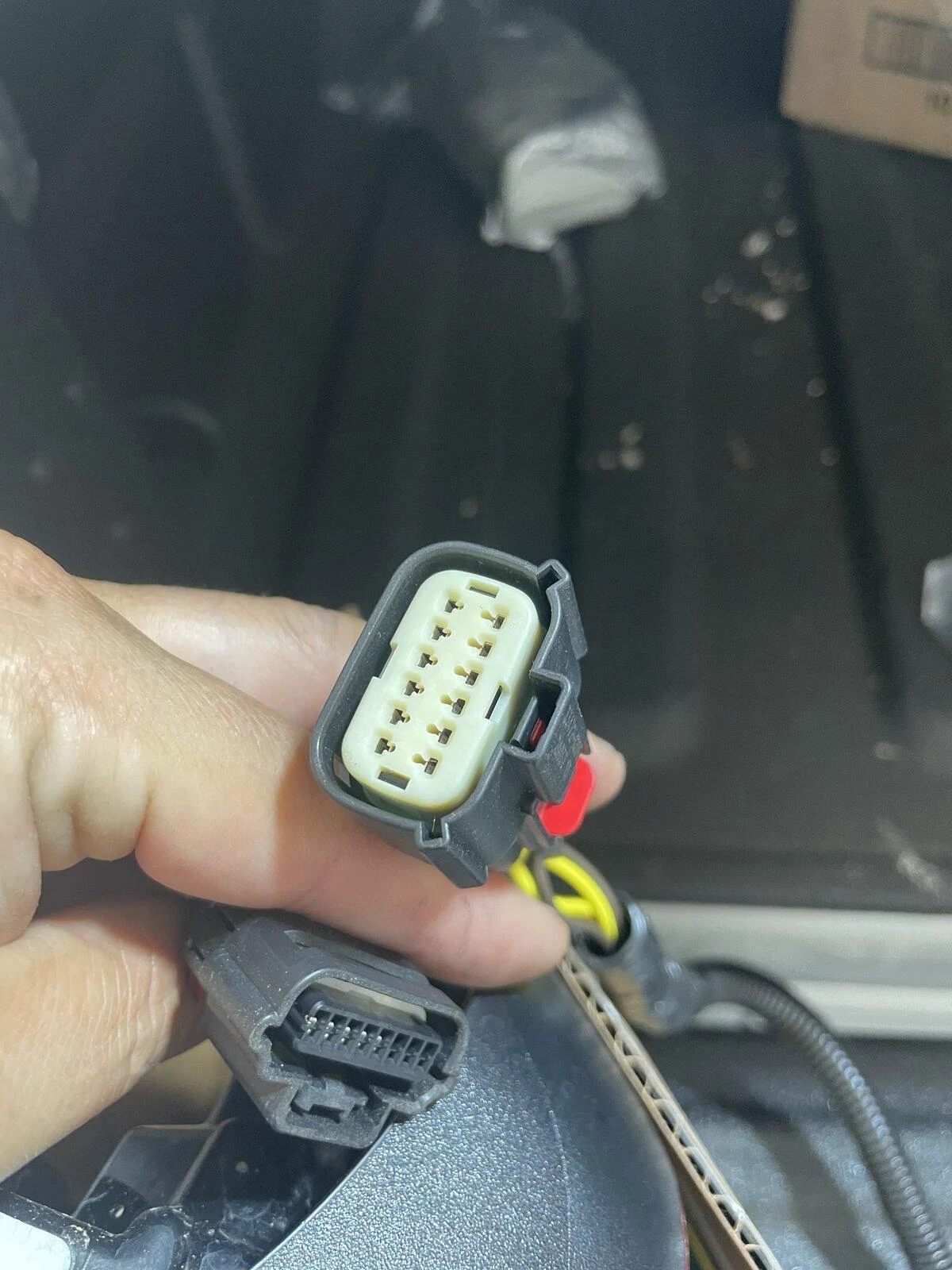

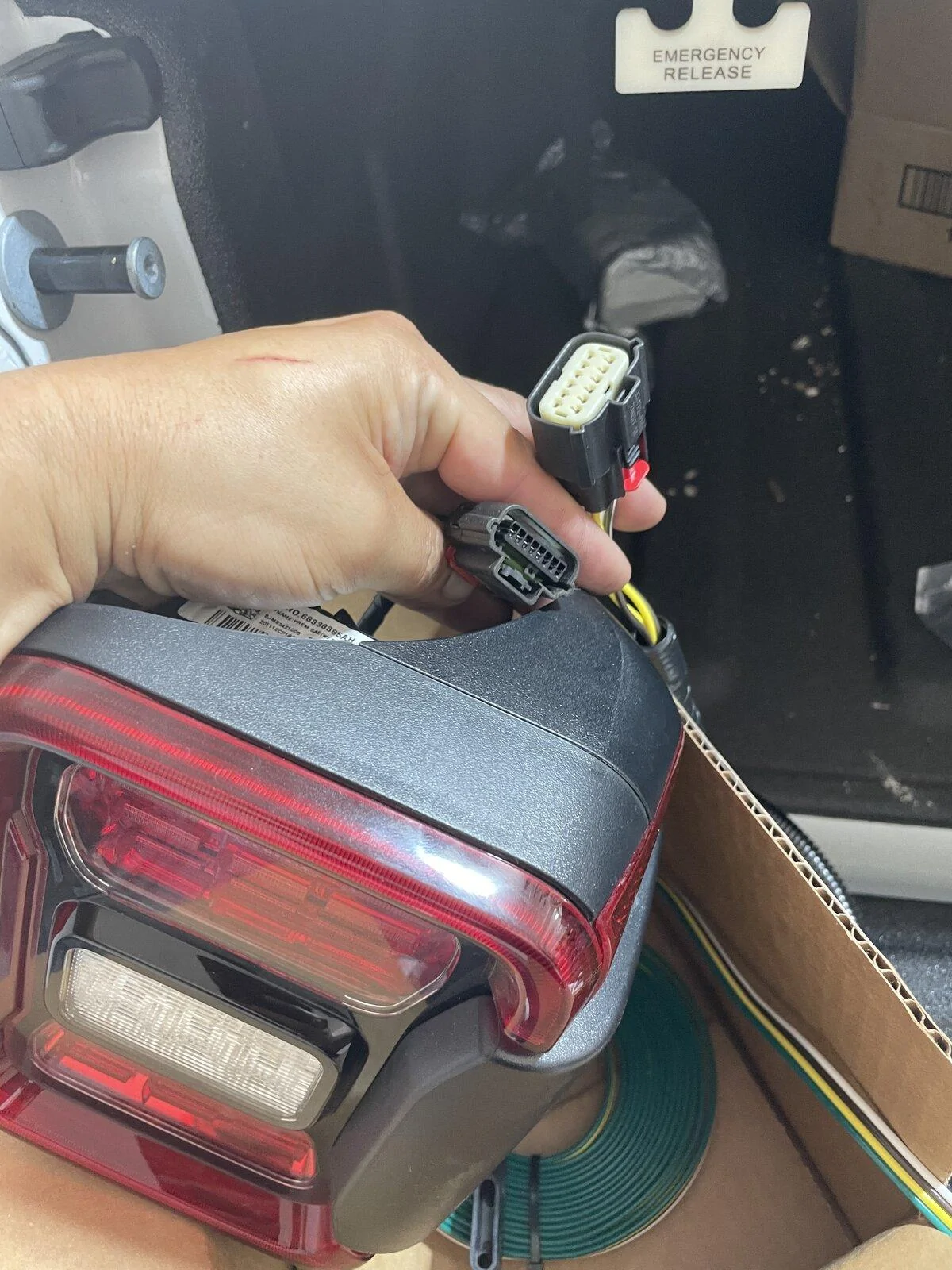

Attached is a picture of my LED Tail light connector vs the Curt connector- mine is the black connector which only has 1 row vs the Curt which has 2 rows:








Advertisement



Spur

Well-Known Member
First Name
Steve
Joined
Jan 4, 2021
Messages
79
Reaction score
90
Location
NC
Vehicle(s)
Overland
Occupation
Retired
Call the manufacturer, they ought to know.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Messages
2,036
Reaction score
1,479
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
You will need to contact Curt. They show the 58964 as compatible with all 2020/21 Gladiator models. I'm guessing it is only compatible with standard bulb taillights, not LED lights.

OP
DocMcStuffins

DocMcStuffins

Well-Known Member
Joined
Feb 20, 2021
Messages
61
Reaction score
58
Location
Central California
Vehicle(s)
2021 Gladiator Rubicon Diesel
  • Thread starter
  • Thread Starter
  • #5
You will need to contact Curt. They show the 58964 as compatible with all 2020/21 Gladiator models. I'm guessing it is only compatible with standard bulb taillights, not LED lights.
I tried emailing/contacting them thru their website but no reply yet. On Amazon- others with LED lights says theirs have worked with the 58964 without issue. If they don't reply, maybe I can just ask the Jeep Dealership/Service Department if they know if there are any differences.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Messages
2,036
Reaction score
1,479
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
I tried emailing/contacting them thru their website but no reply yet. On Amazon- others with LED lights says theirs have worked with the 58964 without issue. If they don't reply, maybe I can just ask the Jeep Dealership/Service Department if they know if there are any differences.
Maybe you got a different harness in a 58964 package.


Kevin_D

Well-Known Member
First Name
Kevin
Joined
Oct 18, 2020
Messages
905
Reaction score
1,002
Location
Inland Northwest
Vehicle(s)
2021 Sport S, 1971 J4000, a bunch of other stuff
Your setup is going to weigh well over 5,000lbs. with fuel. Heck, it’s over 5,000 without fuel.
Please be sure your tow rig is rated to handle it.
Be safe.

Kevin


IamAlan

Well-Known Member
Joined
Jan 3, 2021
Messages
588
Reaction score
1,176
Location
Ohio
Vehicle(s)
2021 Snazzberry Willys
I tried emailing/contacting them thru their website but no reply yet. On Amazon- others with LED lights says theirs have worked with the 58964 without issue. If they don't reply, maybe I can just ask the Jeep Dealership/Service Department if they know if there are any differences.
I'd call them. They're swamped and short handed.

CURT
Phone: (877) 287-8634

Product Support: EXT. 2

Customer Service: EXT. 3


ORACLElights

Peak Sponsor (Level 2)
Joined
Dec 29, 2019
Messages
660
Reaction score
1,172
Location
Metairie, LA
Website
www.oraclelights.com
Vehicle(s)
Jeep Gladiator
Occupation
Automotive LED Manufacturer
Hello, we can chime in here. All the Gladiators use the same tail light connector its a 12 Pin Molex MX-150 connector.

What you have in your hand in the photo if the sensor connector. Plug that back in and unplug the main tail light harness.

Here, if you fast forward to 1:20 here you can see what we are referring to;

Last edited:

AggieJeep

Well-Known Member
First Name
Mark
Joined
Apr 3, 2019
Messages
400
Reaction score
573
Location
Houston, TX
Vehicle(s)
2020 Gladiator Firecracker Red LE, 2012 JKUR Call of Duty, 1967 M715 (military Gladiator)
Vehicle Showcase
1
:LOL:

It’s ok, OP. We’ve all been there, missing something obvious. Can I get an Amen?

OP
DocMcStuffins

DocMcStuffins

Well-Known Member
Joined
Feb 20, 2021
Messages
61
Reaction score
58
Location
Central California
Vehicle(s)
2021 Gladiator Rubicon Diesel
  • Thread starter
  • Thread Starter
  • #11
Hello, we can chrome in here. All the Gladiators use the same tail light connector its a 12 Pin Molex MX-150 connector.

What you have in your hand in the photo if the sensor connector. Plug that back in and unplug the main tail light harness.

Here, if you fast forward to 1:20 here you can see what we are referring to;
Ohhhhh... AWESOME!!! Thank you!

OP
DocMcStuffins

DocMcStuffins

Well-Known Member
Joined
Feb 20, 2021
Messages
61
Reaction score
58
Location
Central California
Vehicle(s)
2021 Gladiator Rubicon Diesel
  • Thread starter
  • Thread Starter
  • #12
Your setup is going to weigh well over 5,000lbs. with fuel. Heck, it’s over 5,000 without fuel.
Please be sure your tow rig is rated to handle it.
Be safe.

Kevin
Monaco Coach with 10000 lb towing capacity. I'm good, thanks for the lookout though!
