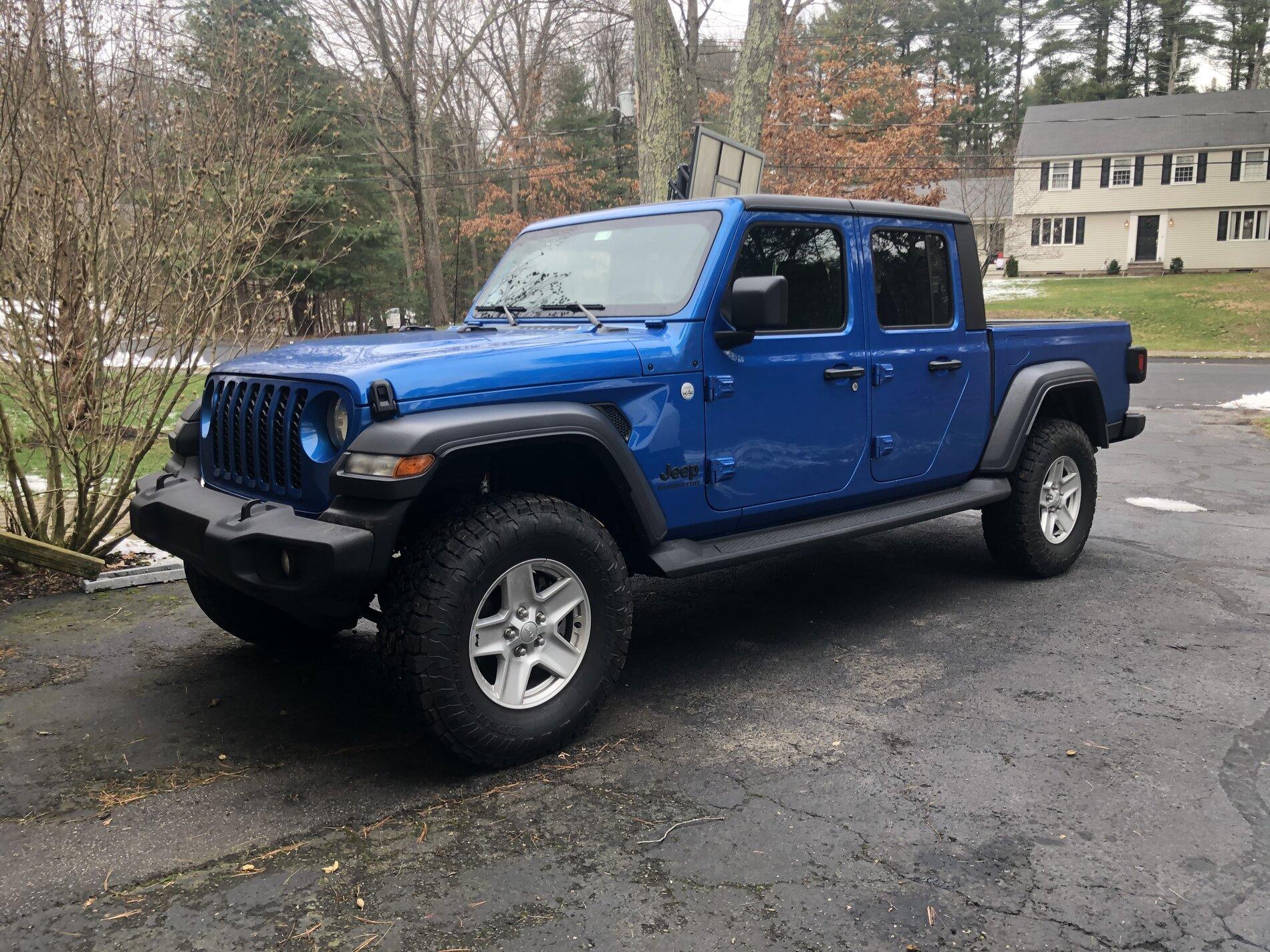

Pretty much finished the suspension work on my sport s max tow. Happy with it.
I installed Daystar 1.5” front spacers and .75” rear spacers. Front springs from a Rubicon LE, 340 and 343. Front and rear Rubicon Fox shocks. Mopar lower control arms from the Mopar 2” lift, you can buy them new for $112 for the pair.
Sits 2.5” higher in the front and .75” higher in the rear, handles very well a bit firmer ride.
This is with 285/75/17s on stock wheels.




Oak4627

Active Member
First Name
Mike
Joined
Sep 23, 2020
Threads
2
Messages
26
Reaction score
37
Location
Mesa, AZ
Vehicle(s)
2020 Jeep Gladiator, 2015 Jeep Grand Cherokee
Looks great!!
This is the exact setup I am going to putting on soon. I am going to wait until I have some cash for tire and rims so I can do it all at once.

  • Like
Reactions: Mac

Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
114
Messages
3,813
Reaction score
4,132
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
Pretty much finished the suspension work on my sport s max tow. Happy with it.
I installed Daystar 1.5” front spacers and .75” rear spacers. Front springs from a Rubicon LE, 340 and 343. Front and rear Rubicon Fox shocks. Mopar lower control arms from the Mopar 2” lift, you can buy them new for $112 for the pair.
Sits 2.5” higher in the front and .75” higher in the rear, handles very well a bit firmer ride.
This is with 285/75/17s on stock wheels.

Looks good Mac, now you need some bigger tires


rigger 17

Active Member
First Name
Richard
Joined
Jul 14, 2019
Threads
1
Messages
36
Reaction score
15
Location
shelby , michigan
Vehicle(s)
gladiator
Your looks good > That's the setup i am planning to . The only thing i may do is the Mojave front takeoff springs . I have heard that they give more lift but i am not sure if its been done yet . Any thoughts .

OP
OP
Mac

Mac

Well-Known Member
Joined
Nov 30, 2017
Threads
29
Messages
2,114
Reaction score
2,180
Location
MA
Vehicle(s)
2020 JT Hydro Blue Max Tow

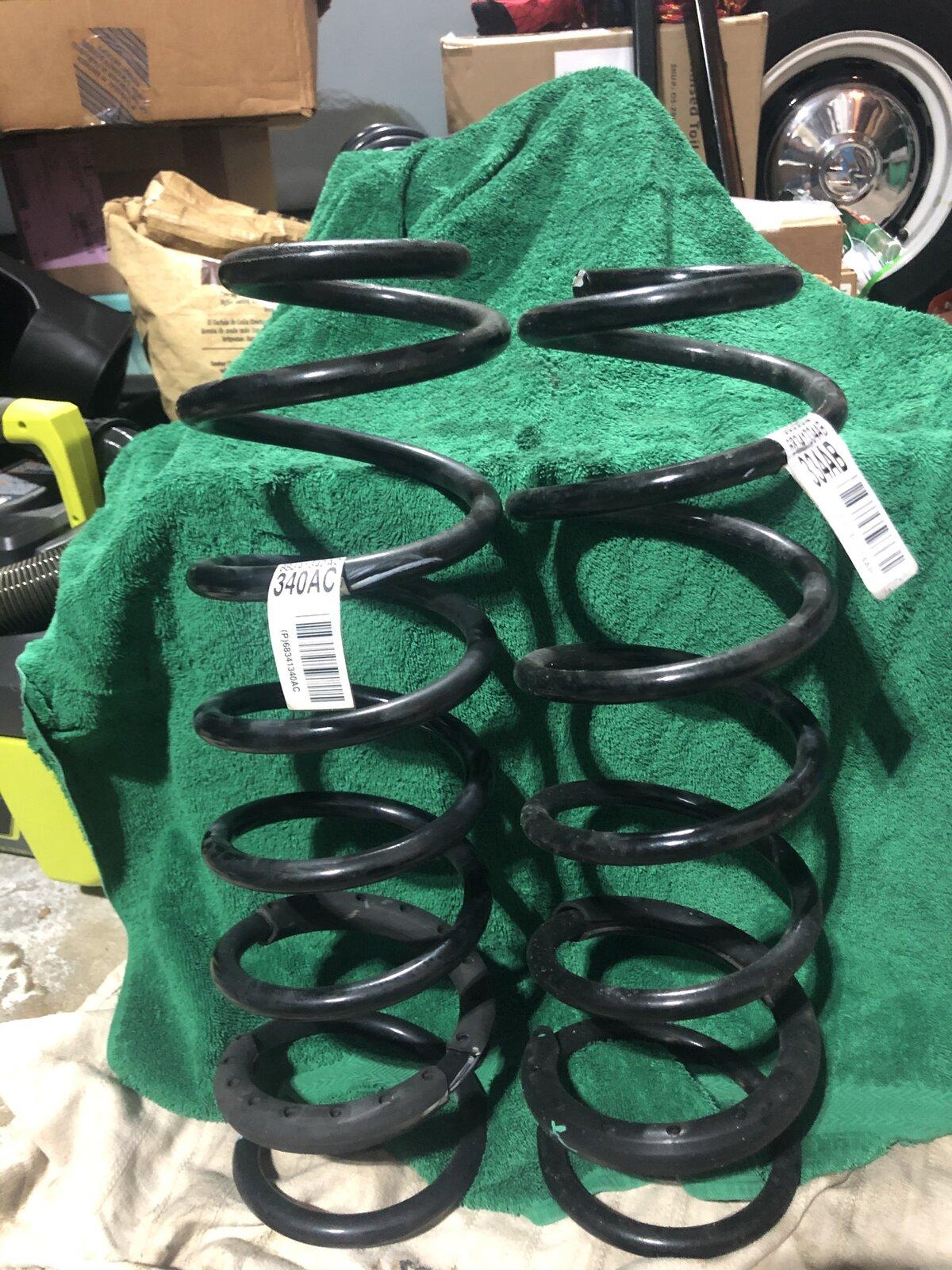

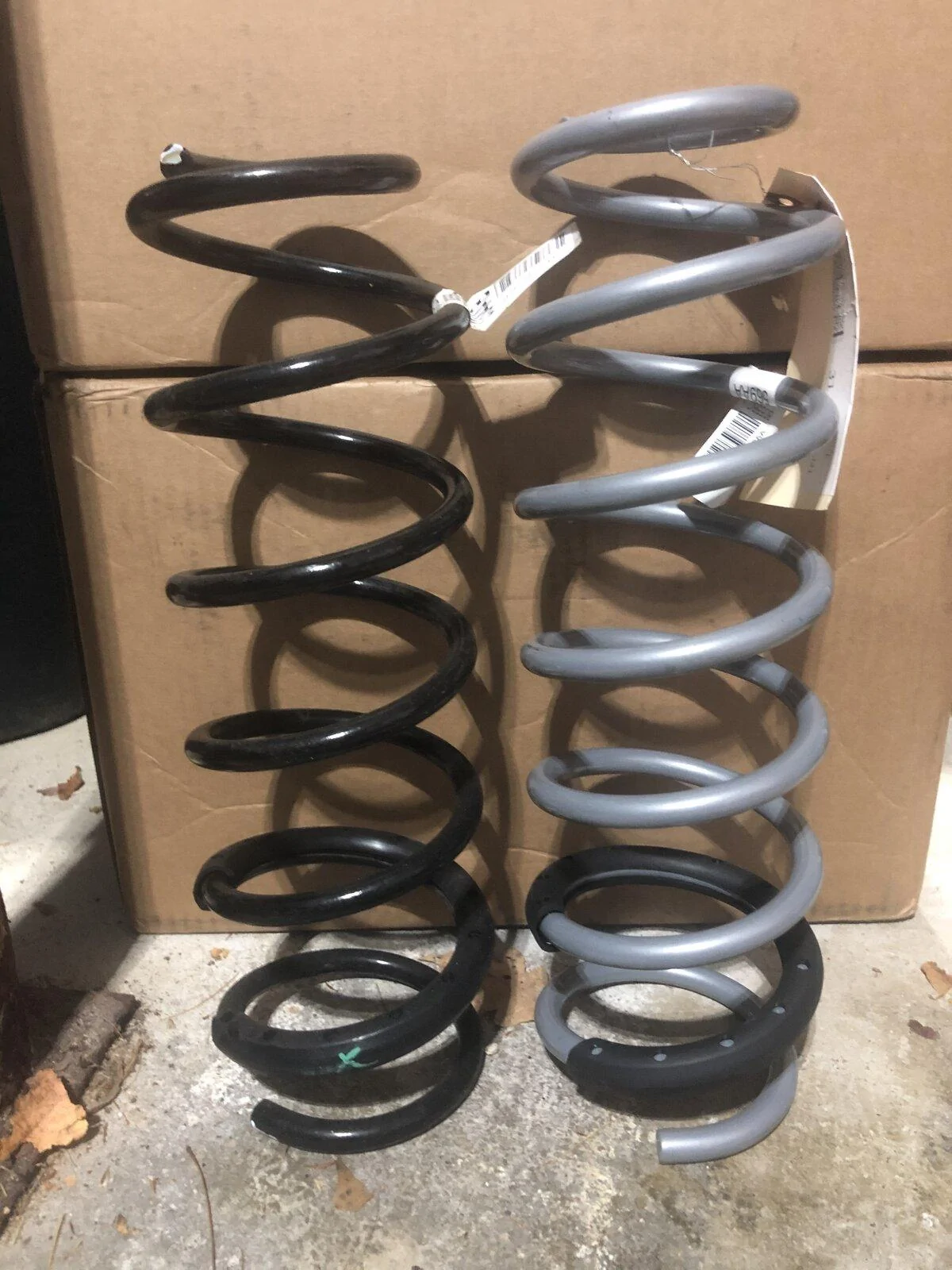

Funny, I bought a set of Mojave springs new, they they got all chipped up in shipping sent them back and got another set and it was the same thing so I gave up and got a set of Rubicon take off local. Picture of the Mojave spring next to my stock sport spring and Rubicon spring next to my sport spring. The Mojave and Rubicon springs are thicker, heavier and a little taller. The Mojave’s are grey.
