Lifts for ecodiesel

AngryIrishman

Well-Known Member
First Name
Paul
Joined
Jun 11, 2019
Threads
39
Messages
168
Reaction score
109
Location
Pittsburgh PA
Vehicle(s)
2012 FJ Cruiser
Occupation
Defense Contractor
The only thing keeping me from buying an ecodiesel is the lack of lift kits available. Has anyone received feedback from any of the companies (Clayton, Metalcloak, etc) that plan on producing? I'm aware of the Mopar variety but would rather go with a kit from aftermarket.
Sponsored



JayKrup

Well-Known Member
First Name
Jay
Joined
Aug 27, 2019
Threads
10
Messages
85
Reaction score
58
Location
Tennessee
Vehicle(s)
2018 JLU Sahara
AEV will becoming out with one in the near future. That is what they told me when I called


kooltoys

Well-Known Member
First Name
Tony
Joined
Dec 19, 2020
Threads
18
Messages
426
Reaction score
283
Location
Central Florida
Vehicle(s)
21 JTD, 90 300zx TT, 07 Nightrain, MB 3.0L Diesel
Occupation
AV Design/Programming
The only thing keeping me from buying an ecodiesel is the lack of lift kits available. Has anyone received feedback from any of the companies (Clayton, Metalcloak, etc) that plan on producing? I'm aware of the Mopar variety but would rather go with a kit from aftermarket.
they are all similiar, worse case is you are changing springs at some point. be more concerned with control arms and steering geometry.
leveling spacers on stock shocks sucks, I picked up a RC spring lift dirt cheap with shocks, control arms, links and track bar. thinking metalcloak or teraflex springs later but I will see how this rides and adjust.. has to be better then this spacer kit ride

update: ecodiesel on Front- 3.5" teraflex springs with RC control arms, trackbar, shocks
Rear- teraflex springs and trackbar relocation kit, still need rear shocks. Ride is better then the stock High Altitude sport suspension. truck is slightly leaning to the passenger side 1/2", letting thing settle before making adjustments


Last edited:

Fixerupper

Member
Joined
Aug 2, 2020
Threads
3
Messages
24
Reaction score
53
Location
Fnham, IL
Vehicle(s)
Trackhawk, 21EdGladRub
Occupation
fixerupper
I have the Rock Krawler x factor kit on order. Most of the parts have arrived. Just waiting on front springs and a couple more boxes


Sponsored

OP
OP
AngryIrishman

AngryIrishman

Well-Known Member
First Name
Paul
Joined
Jun 11, 2019
Threads
39
Messages
168
Reaction score
109
Location
Pittsburgh PA
Vehicle(s)
2012 FJ Cruiser
Occupation
Defense Contractor
My JTRD is due in about 4 weeks. I ordered a spacer lift ($100) to get my 37s under it until the aftermarket catches up.
I'll likely go this route. Can you share which kit?


CrazyCooter

Well-Known Member
First Name
Tony
Joined
Nov 1, 2020
Threads
10
Messages
1,892
Reaction score
1,959
Location
Far NorCal
Website
www.overlandvehicledynamics.com
Vehicle(s)
1991 JEEP YJ, 2021 JTR Ecodiesel
Occupation
Specialty Off Road Shop Owner
I'll likely go this route. Can you share which kit?
I got the 1.5" front with shock extensions combined with .75" rear spacers. Figured I have enough stuff laying around the shop to make bumpstop spscers if needed.


Alteredspeed

Active Member
First Name
Mike
Joined
Dec 5, 2020
Threads
6
Messages
26
Reaction score
7
Location
Ny
Vehicle(s)
2021 Gladiator Overland
Occupation
Supervisor
Rock Krawler will have there’s some soon. I have been in contact with them weekly. There’s also the Mopar option.


guarnibl

Well-Known Member
Joined
Apr 3, 2017
Threads
1
Messages
326
Reaction score
229
Location
Scottsdale, AZ / Sarasota, FL
Vehicle(s)
'21 JLUR 392 XR, '21 JTR, '21 JLR, '09 JK
The Mopar kit is a good option if you can get your hands on it. It's not very expensive. Long term it wouldn't be the kit I would want though. But at like $1500... hard to argue being a test customer.


Sponsored

OP
OP
AngryIrishman

AngryIrishman

Well-Known Member
First Name
Paul
Joined
Jun 11, 2019
Threads
39
Messages
168
Reaction score
109
Location
Pittsburgh PA
Vehicle(s)
2012 FJ Cruiser
Occupation
Defense Contractor
The repsonse from Metalcloak regarding when a lift would be available for the diesel: We are actually using our current kit on the JT diesel due to our coils be designed already for a heavier Jeep the added 400 lbs of the diesel works very well with that. Jeep did distribute that load pretty evenly from front to back, so sagging also will not be an issue. Feel free to let us know if you have any other questions?


ssteve

Well-Known Member
First Name
Steve
Joined
Nov 4, 2020
Threads
23
Messages
164
Reaction score
137
Location
Comifornia
Vehicle(s)
camaro, audi Q, cj2a, ram
Makes sense. A lot of people talk about the 400lbs like its all in the motor when its not. Say even 300lbs of it was up front, that's what guys put up there with bumpers and gear.


The repsonse from Metalcloak regarding when a lift would be available for the diesel: We are actually using our current kit on the JT diesel due to our coils be designed already for a heavier Jeep the added 400 lbs of the diesel works very well with that. Jeep did distribute that load pretty evenly from front to back, so sagging also will not be an issue. Feel free to let us know if you have any other questions?


kooltoys

Well-Known Member
First Name
Tony
Joined
Dec 19, 2020
Threads
18
Messages
426
Reaction score
283
Location
Central Florida
Vehicle(s)
21 JTD, 90 300zx TT, 07 Nightrain, MB 3.0L Diesel
Occupation
AV Design/Programming
just installed teraflex 3.5" front springs yesterday, look and ride seem to be what I want.. Rears go on Monday. will see then if I need spacer front or back. I have a steel front bumper and winch.
So far these are the best riding that I have tried..


aztec1382

Well-Known Member
First Name
sam
Joined
Jul 9, 2020
Threads
6
Messages
76
Reaction score
57
Location
california
Vehicle(s)
jk
Occupation
finance
There are some differences
Gas tank is on the opposite side of the gas version.

Theres also part of the exhaust that makes it really difficult to change out the passenger upper control arm bolt.

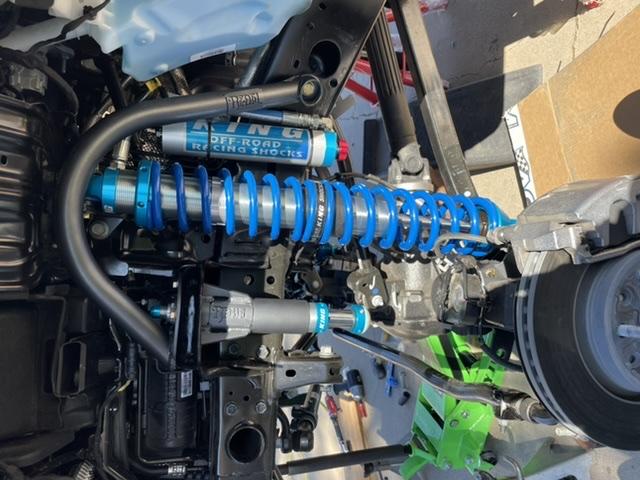

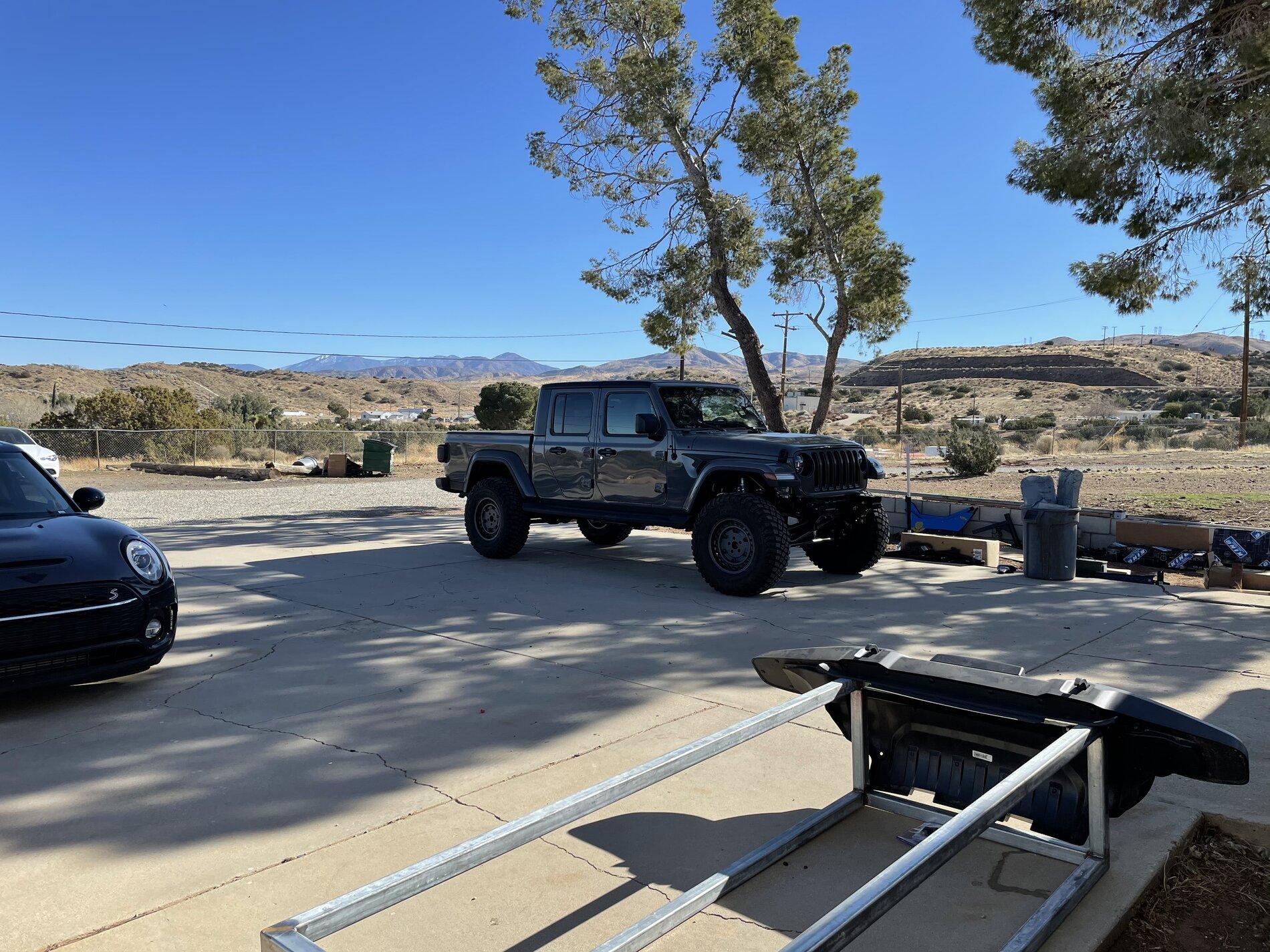

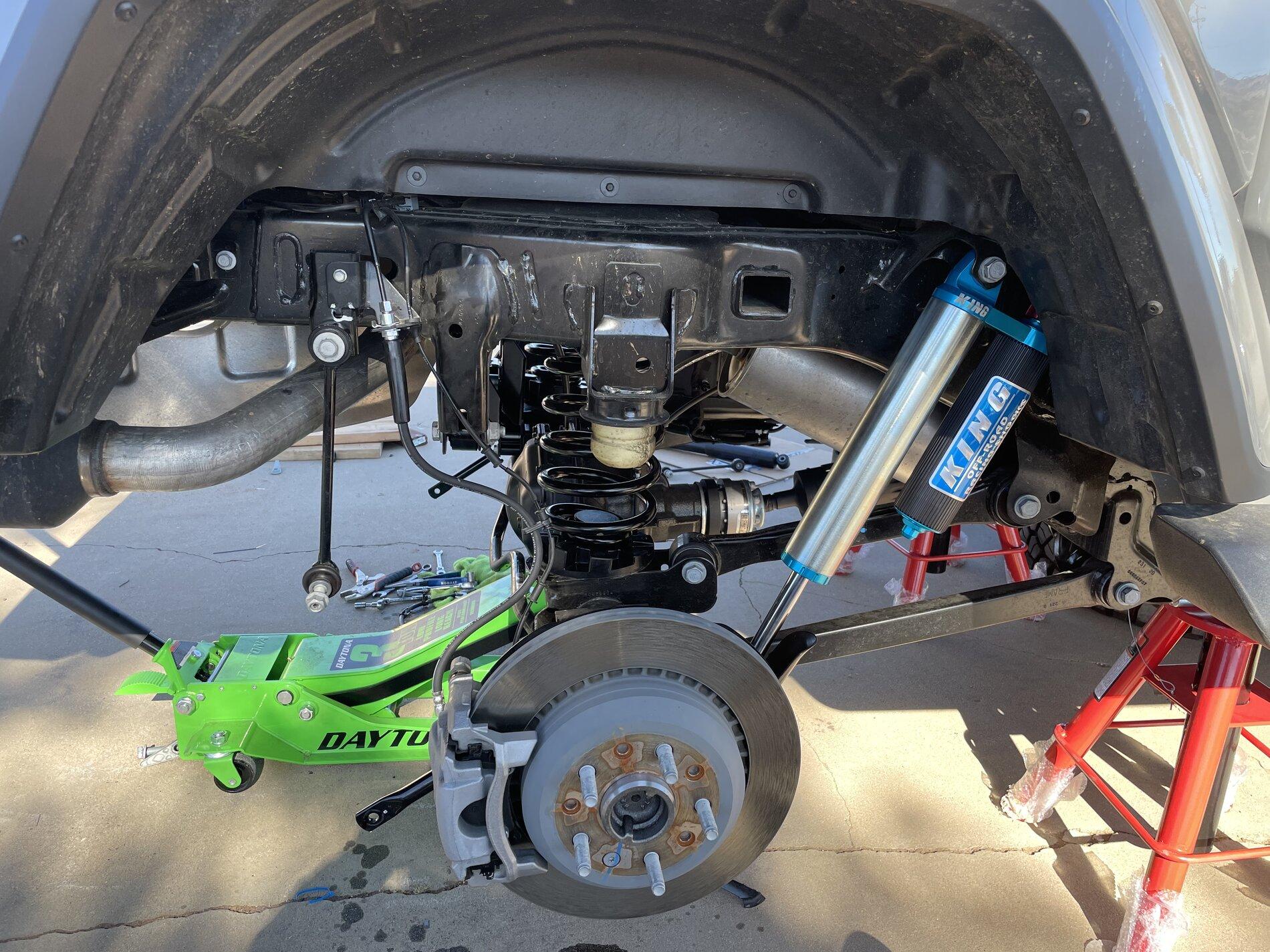

just installed a rebel off road coilover kit
On my sisters diesel

Jeep Gladiator Lifts for ecodiesel 4F610890-0ADD-4750-ABAF-8A6974FC1185

Jeep Gladiator Lifts for ecodiesel BE31BD0E-035F-4595-A71B-87B3D5CD4300

Jeep Gladiator Lifts for ecodiesel 83B618DA-F6AA-4678-8535-DD67F4B9F241




ThePhotoBus

Well-Known Member
First Name
Ryan
Joined
Dec 22, 2020
Threads
18
Messages
60
Reaction score
47
Location
Escondido, CA
Vehicle(s)
2021 Jeep Gladiator Rubicon Diesel, 2003 Tacoma Off-road DC, 2014 Subaru Forester
There are some differences
Gas tank is on the opposite side of the gas version.

Theres also part of the exhaust that makes it really difficult to change out the passenger upper control arm bolt.

just installed a rebel off road coilover kit
On my sisters diesel

Jeep Gladiator Lifts for ecodiesel AE608250-EFA6-4EF7-8B31-C5AD6F30280A

Jeep Gladiator Lifts for ecodiesel AE608250-EFA6-4EF7-8B31-C5AD6F30280A
Jeep Gladiator Lifts for ecodiesel AE608250-EFA6-4EF7-8B31-C5AD6F30280A

Jeep Gladiator Lifts for ecodiesel AE608250-EFA6-4EF7-8B31-C5AD6F30280A


Jeep Gladiator Lifts for ecodiesel AE608250-EFA6-4EF7-8B31-C5AD6F30280A
Which Rebel kit did you install? That looks great! Any other feedback on the kit?
