Looking for part number - interior trim e-brake bezel

[saintpauljeff]

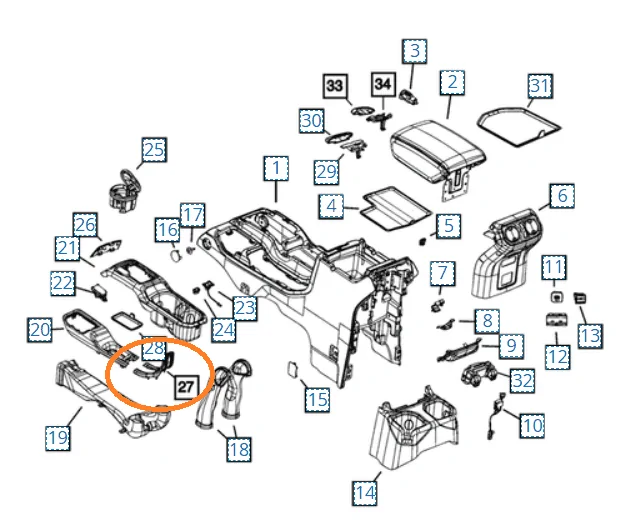

In this diagram its marked by #27 the trim piece/bezel that goes around the e-brake handle

bank card fell down into the e-brake cavity and I broke the bezel taking it off in order to retrieve the card

TIA

EDIT- appears the part number is #6KG06TX7AB but I can't tell if that part contains both pieces of the trim? Or did Jeep modify the part and now there is a singular part where it used to be two pieces

Sponsored



[BigRed97]

I went through this, it ONLY comes as part of the whole console base assy.(it's plastic welded from the factory)
That diagram is flawed/inaccurate

I order that part and recieved the part labeled #20 in the pic.
After some back and forth the picture was found to be wrong

I'm not spending the money for a whole console base. So it's staying broken for now



[saintpauljeff]

I went through this, it ONLY comes as part of the whole console base assy.(it's plastic welded from the factory)
That diagram is flawed/inaccurate

I order that part and recieved the part labeled #20 in the pic.
After some back and forth the picture was found to be wrong

I'm not spending the money for a whole console base. So it's staying broken for now

I’m having a dealer replace mine, presumably under warranty (brought the JT in last week). They’re giving me a call this week when the part arrives.

Seems silly the way they fabricate that part as one whole piece...



[BigRed97]

Mine won't be warranty, I ripped it off...assuming it came off... I dropped my bank card down there and was in a rush...serves me right lol



[saintpauljeff]

Mine won't be warranty, I ripped it off...assuming it came off... I dropped my bank card down there and was in a rush...serves me right lol

Exactly what I did, had to retrieve a card. I just placed the bezel back on and told the service dept it just broke. If they try to charge me I’ll just fix it myself instead.



[BigRed97]

Good luck let me know if that works



[saintpauljeff]

Good luck let me know if that works

well, on my invoice from last week they got the $255.30 part listed with 0.00 amount due so I'm halfway home



[saintpauljeff]

Good luck let me know if that works

Success! Albeit it was a 2.5 hour wait, but I just hooked my work laptop into their WiFi and the time went quickly.



[BigRed97]

Awesome, I'll give it a shot



[madduck]

hey jeff, can you tell me where you got that exploded pic please?
i'm trying to get some of the trim lose that is over/around the trans tunnel. i cant figure out what order to pull things apart. a few pics may help me.

thanks much.
cheers, j-



[saintpauljeff]

hey jeff, can you tell me where you got that exploded pic please?
i'm trying to get some of the trim lose that is over/around the trans tunnel. i cant figure out what order to pull things apart. a few pics may help me.

thanks much.
cheers, j-

I think I used a couple sites when I was hunting for the part needed, and this was one of them that has part diagrams built in to their part search

https://www.moparautopartsdirect.co...-sport-s--3-6l-v6-gas/interior-trim--consoles



[madduck]

thanks for that link Sir.



[Arterius2]

Anyone got an update on this?
I just broke mine as well...



[saintpauljeff]

Anyone got an update on this?
I just broke mine as well...

Update was I was able to get a warranty claim and it was replaced for free. I considered it my mulligan on my first Jeep. Give it a try with your local dealer. My understanding is that you’ve got to take apart the console to replace the part yourself, so it wouldn’t be impossible, but better to try and get it replaced under warranty first.



[Arterius2]

Update was I was able to get a warranty claim and it was replaced for free. I considered it my mulligan on my first Jeep. Give it a try with your local dealer. My understanding is that you’ve got to take apart the console to replace the part yourself, so it wouldn’t be impossible, but better to try and get it replaced under warranty first.

Man... you got lucky.
I tried that with my dealer, he just laughed at me and said I will need to pay out of pocket..
