Low Voltage at Outlet

[PW45]

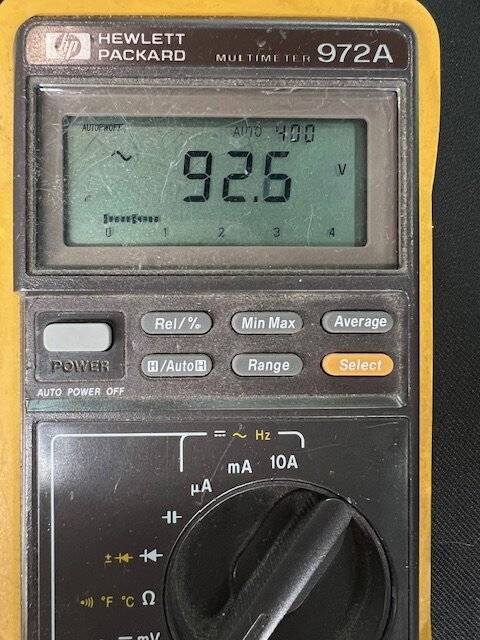

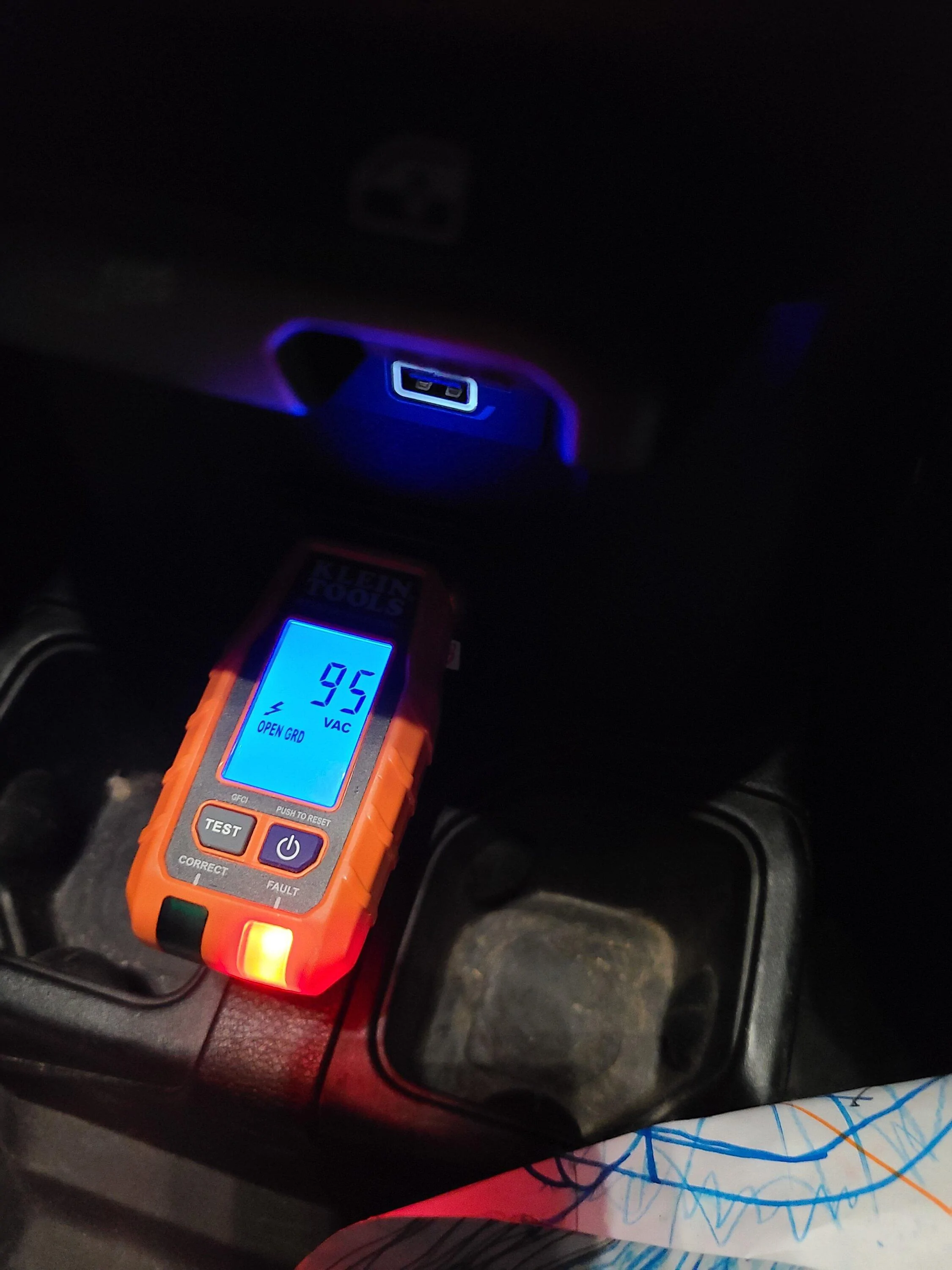

voltage output on my 115VAC outlet in the back seat is 95 volts! This is definitely a problem. Any one else check their voltage levels? I've barely used the outlet so I'm sure I didn't blow the inverter. thoughts?

Sponsored



[Kevin_D]

I don't imagine the output of the 400W inverter is a sine wave: it probably looks more like a square wave. Your meter won't read accurately unless it's measuring a sine wave.

Kevin



[Mr._Bill]

Mine works, so I never measured the voltage. I use it to charge the battery pack I connect the fridge to while traveling.



[Hootbro]

I don't imagine the output of the 400W inverter is a sine wave: it probably looks more like a square wave. Your meter won't read accurately unless it's measuring a sine wave.

Kevin

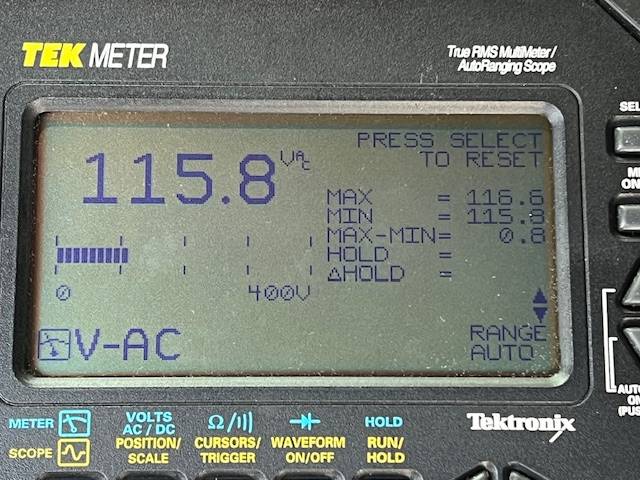

What this guy said. Need a true RMS spec multi-meter. That Klein meter shown is just measuring the peak to peak voltage and averaging a result and assuming it is sinusoidal.

That being said, what is shown is about what I would expect with that device.



[PW45]

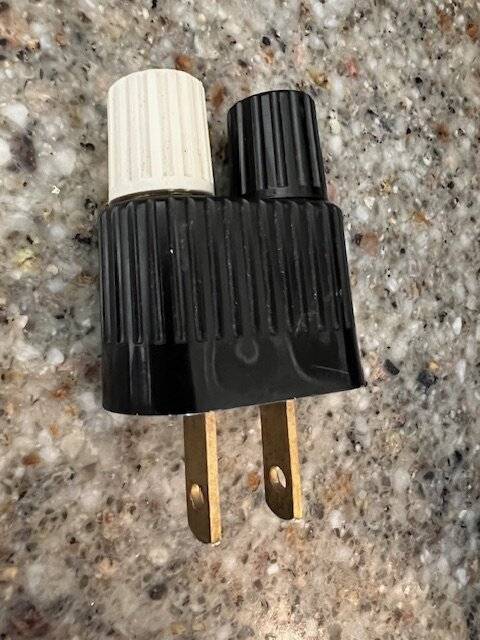

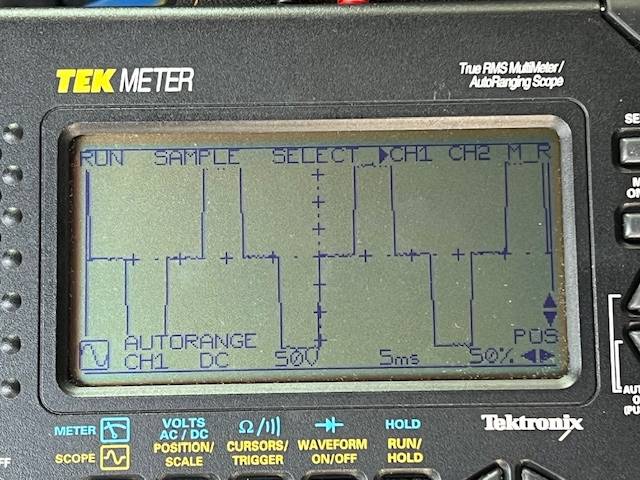

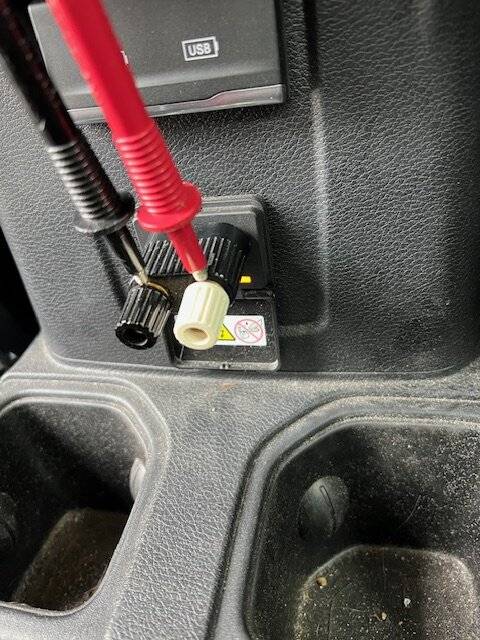

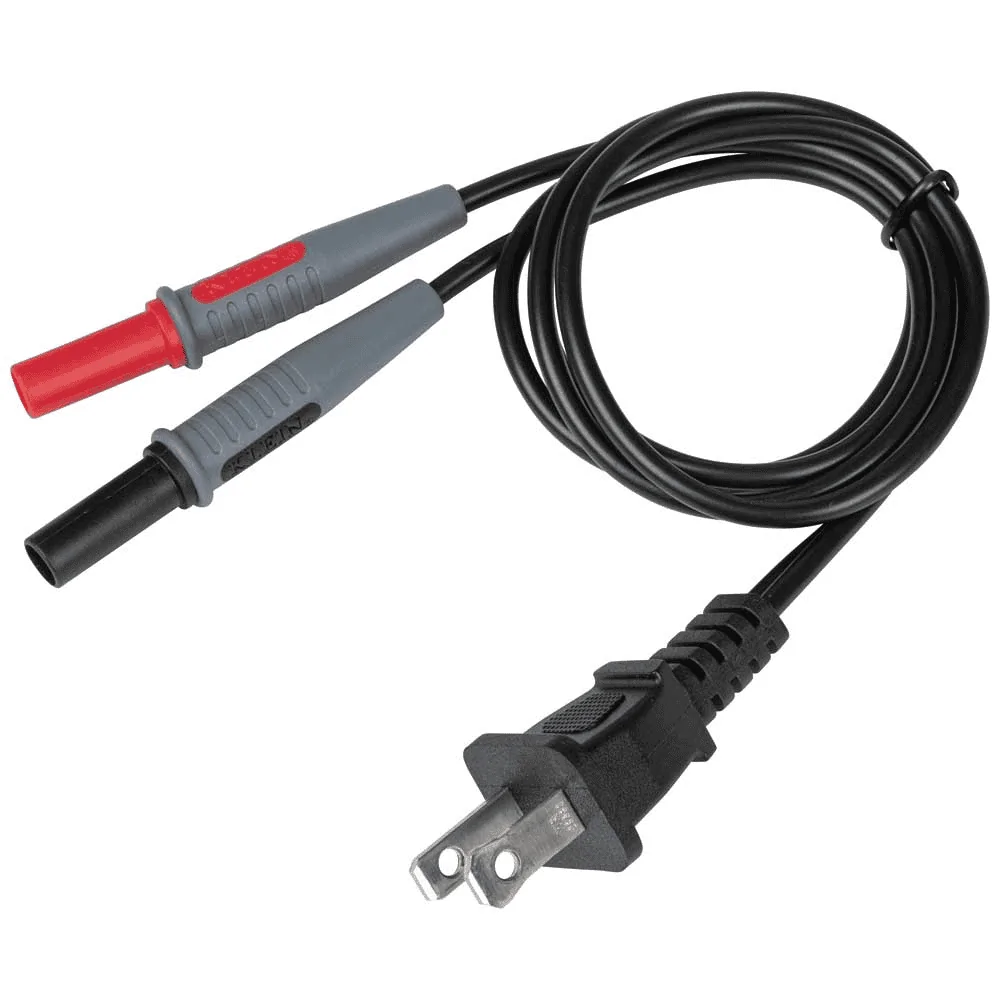

duh, that makes perfect sense. My multimeter leads are too big to fit in the plugs. Anyone have an oscilloscope then can hook to the outlet and post a screen shot of the waveform?
