Maximus-3 compressor mount install.

[Mile High Punk'n]

I spent the weekend installing a complete onboard air system on the gladiator. Here’s a list of the parts I used:

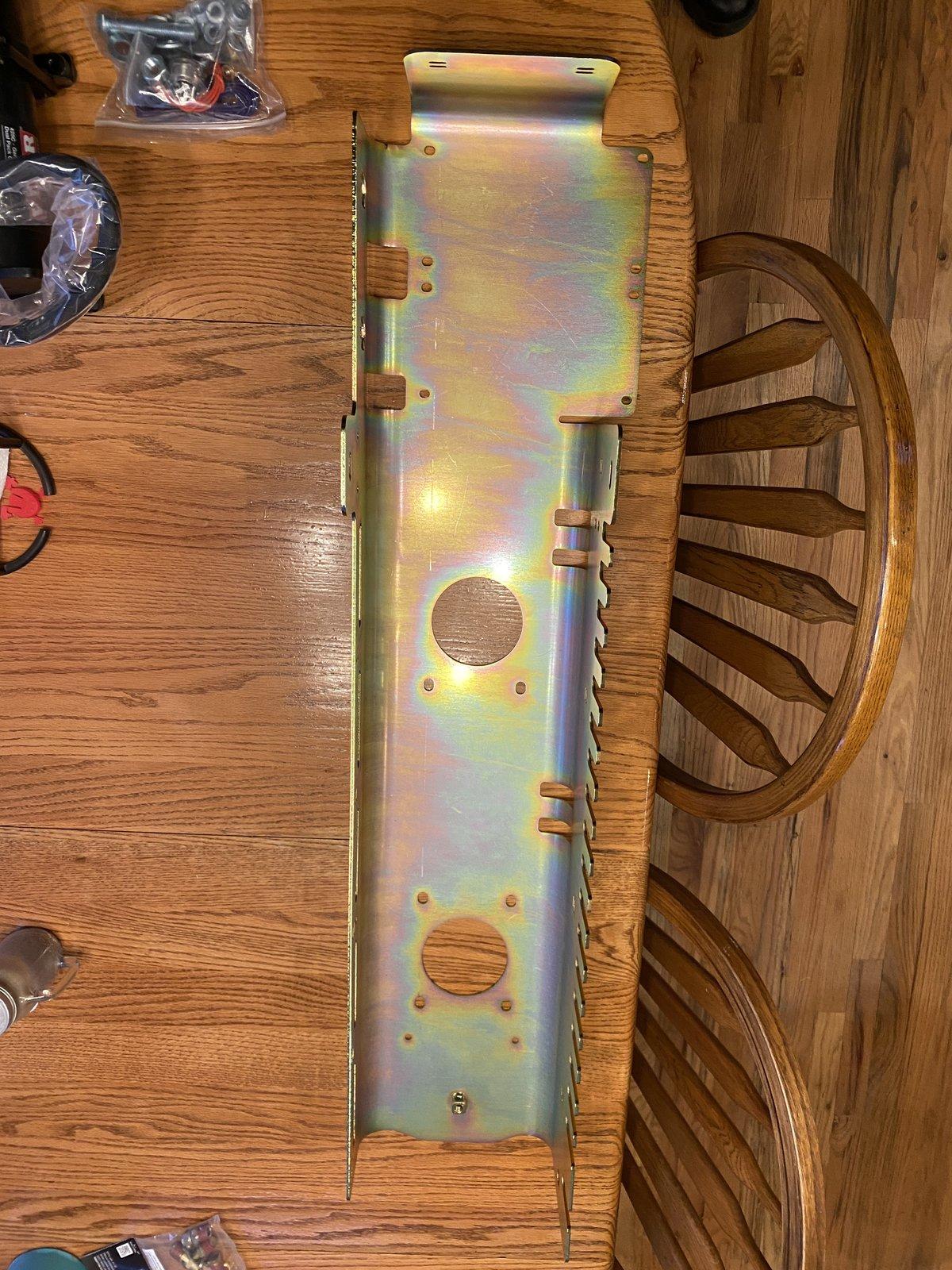

Maximus-3 compressor and tank mount

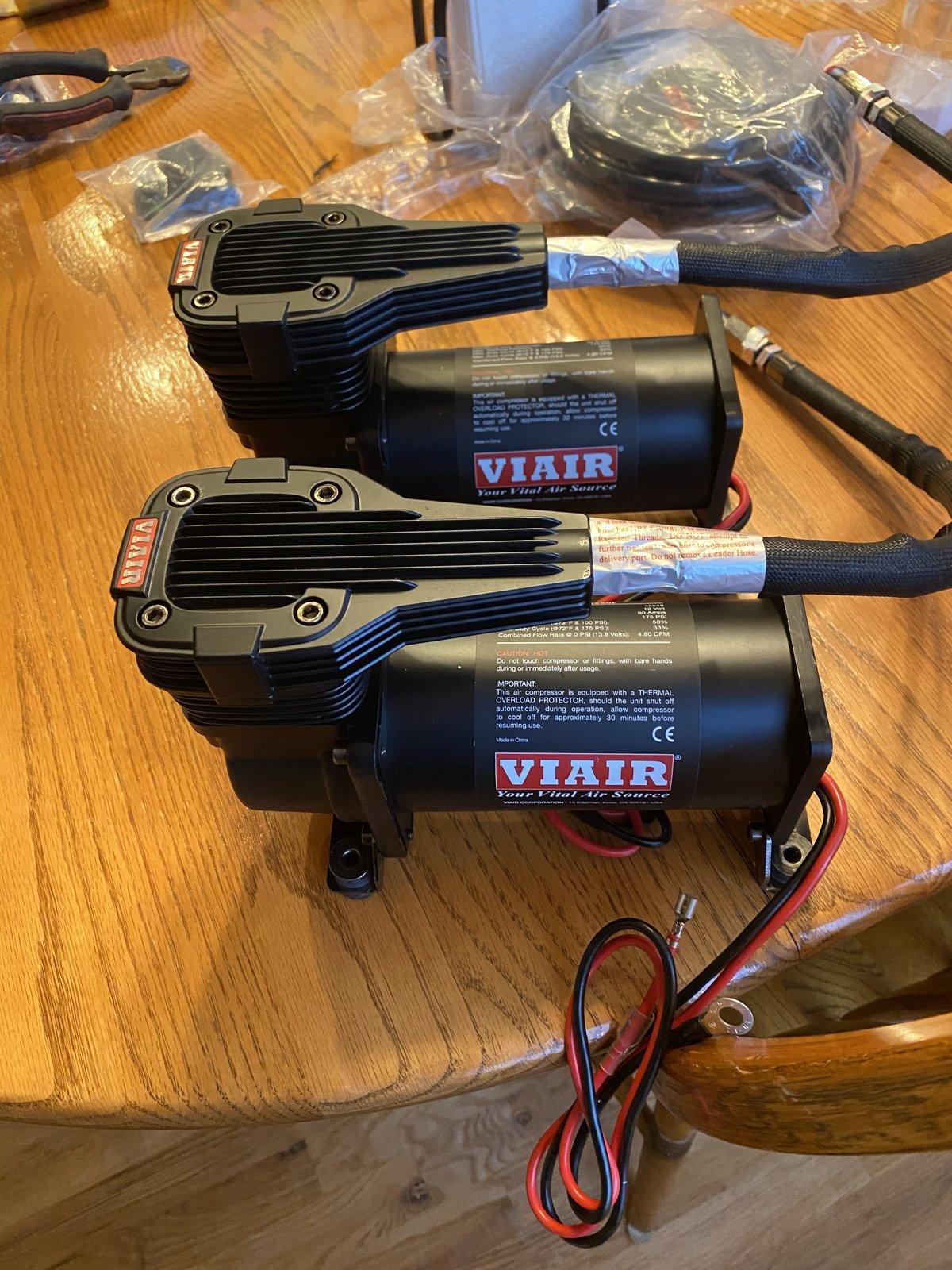

Viair 425 gen 2 dual compressors

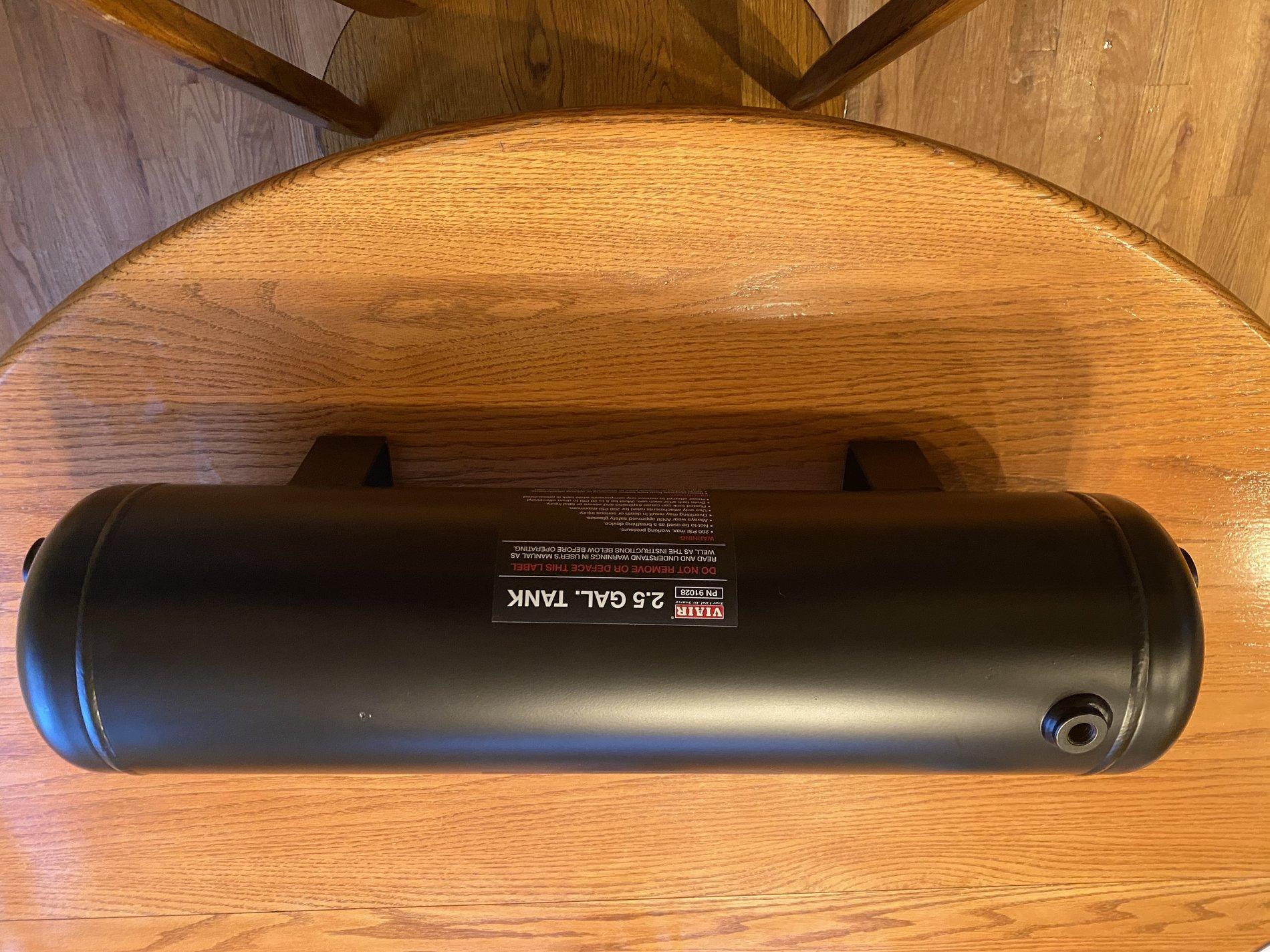

Viair 2.5 gallon 200 psi tank
Up-down air tire inflation system
Kleinn JL220 air horn kit

Sponsored



[Mile High Punk'n]

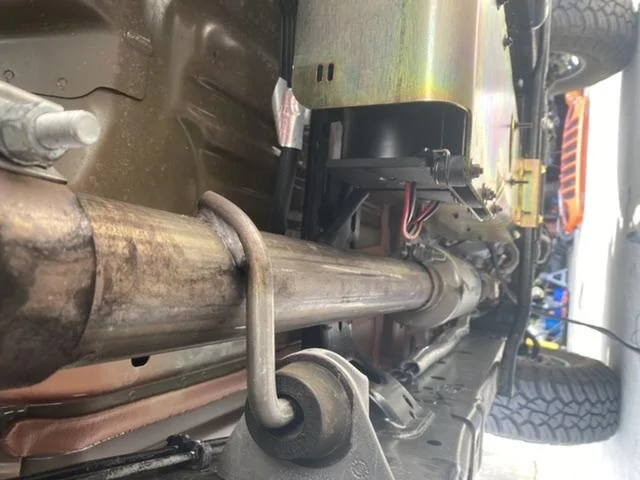

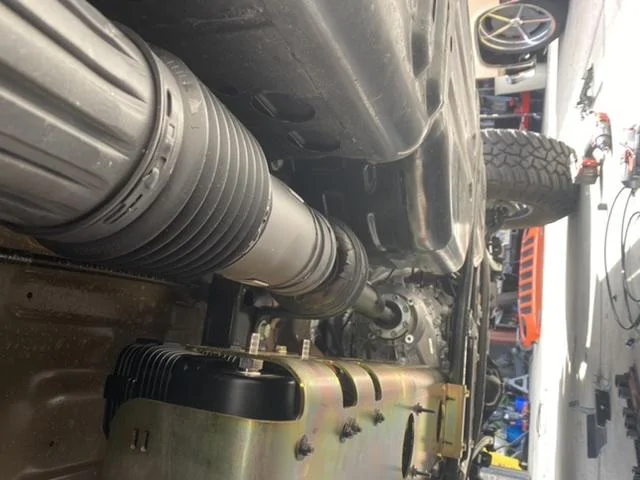

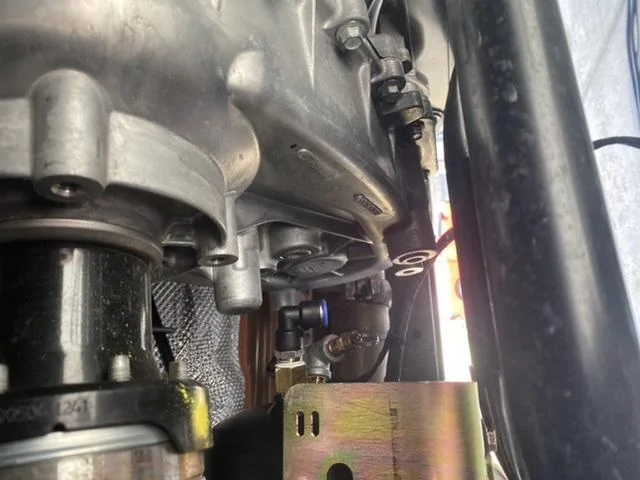

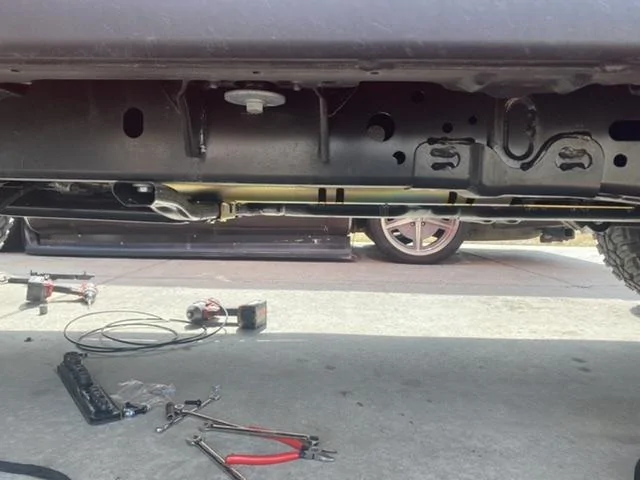

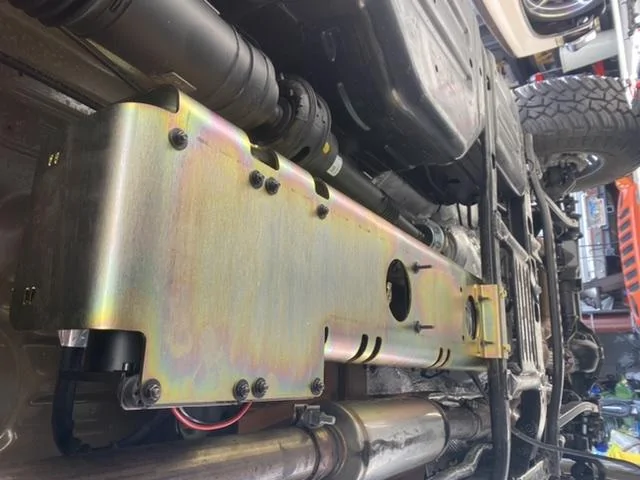

The actual air system mount took a couple of hours to get setup and installed. The install does not require any drilling and is very straight forward. The rear of the mount bolts to a bracket that gets added to a frame crossmember and the front sets on top of the t-cast skid. It’s a tight fit, but I don’t think there will be any problems. Maximus-3 did send me a heat shield for the exhaust that I will be installing soon also.



[Mile High Punk'n]

If anyone has any specific questions or wants a picture I haven’t posted, just let me know



[HTXGladiator]

how did you get a hold of this already? I've been casing the website for months looking for it. Hell, i went as soon as i saw your post, and it's still not on there!



[Mile High Punk'n]

how did you get a hold of this already? I've been casing the website for months looking for it. Hell, i went as soon as i saw your post, and it's still not on there!

Give joe a call at Maximus-3. They’re thinking about changing the direction that the compressors mount on the skid, but I think they have a few of this design



[Nate]

Just curious... why not run the pumps length ways with the truck. Seems like they could have taken advantage of the extra room length ways and not have the intake/s hanging out. That and all wire would be captured inside the belly pan.



[Mile High Punk'n]

Just curious... why not run the pumps length ways with the truck. Seems like they could have taken advantage of the extra room length ways and not have the intake/s hanging out. That and all wire would be captured inside the belly pan.

I believe the next version will have them mounted that way.



[Nate]

I believe the next version will have them mounted that way.

Thanks,

They will have my money soon enough if they do, was my only complaint with the design layout. Save me the time from fabrication.

One other thing.... the fasteners sticking out of the bottom could make for some interesting strikes on obstacles.



[Mile High Punk'n]

Thanks,

They will have my money soon enough if they do, was my only complaint with the design layout. Save me the time from fabrication.

One other thing.... the fasteners sticking out of the bottom could make for some interesting strikes on obstacles.

I’m going to cut those off or flip them over before we hit a trail



[Nate]

I’m going to cut those off or flip them over before we hit a trail

Awesome. Also any chance to add a video of the horns when you're done. I'm seriously considering this myself. I have a mischievous streak when it come to honking the horn at people or friends when they least expect. LOL



[Mile High Punk'n]

Awesome. Also any chance to add a video of the horns when you're done. I'm seriously considering this myself. I have a mischievous streak when it come to honking the horn at people or friends when they least expect. LOL

cant get the video to load. Shoot me a pm and I can email or text it to you.



[Mile High Punk'n]

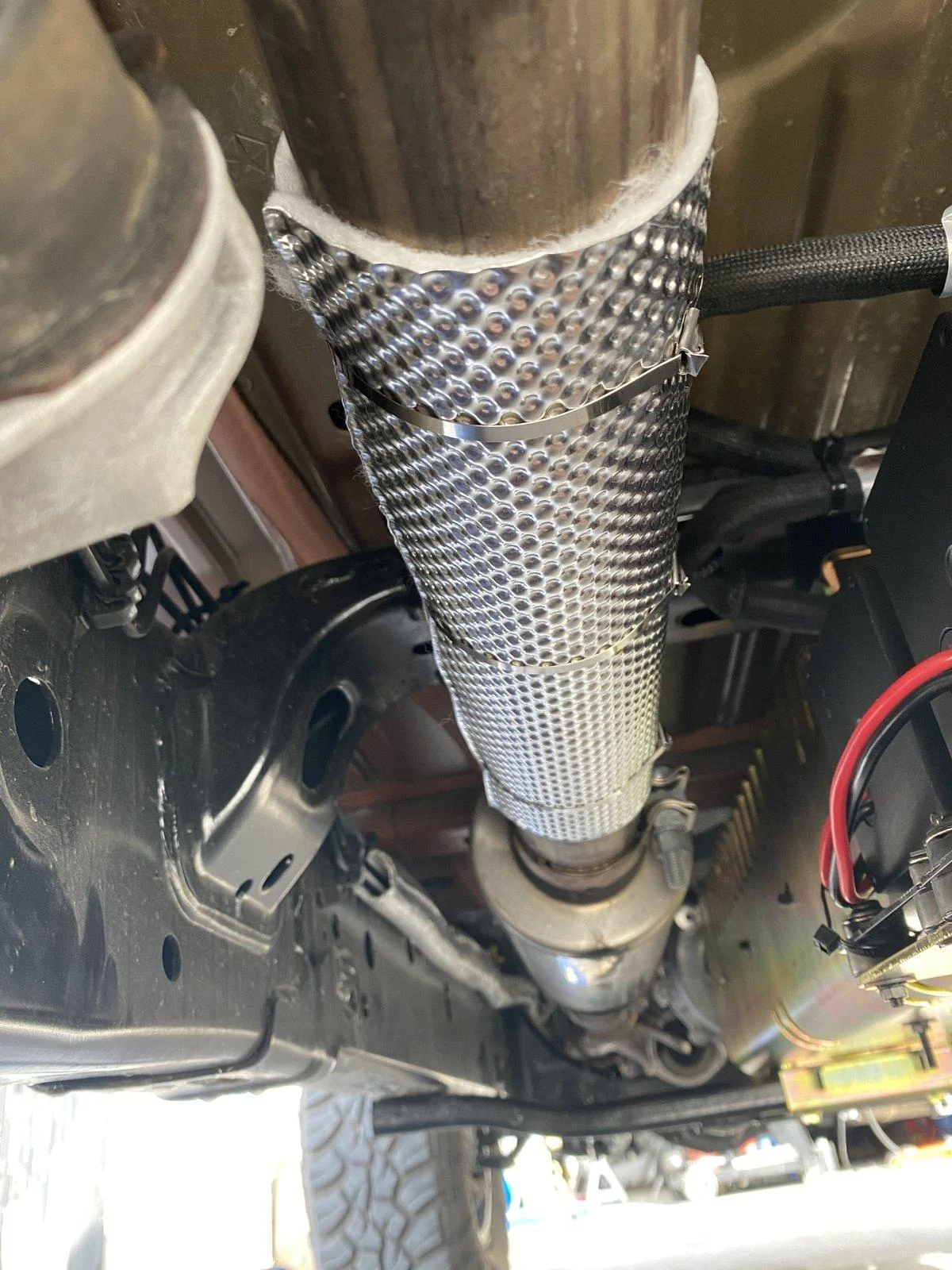

Just got the supplied heat wrap installed on the exhaust. Keep in mind I have MBRP SS exhaust, so yours may not look quite like this



[#HuckleberryJeep]

Curious. Where did you mount the horns?



[Mile High Punk'n]

Curious. Where did you mount the horns?

I don’t have a picture, but they are a direct bolt in. They go right in front of the gas tank



[#HuckleberryJeep]

I don’t have a picture, but they are a direct bolt in. They go right in front of the gas tank

Awesome! Would love to see some pics of that if you get a chance. Are they pretty hidden/protected there?
