I've been mulling over installing KC LED lights on my front bumper. Made up some heavy stock paper shapes to simulate the lights, then took a shot of the front and the trail cam view. First off: You could fit three of the smaller LZR lights (4") on the bumper at the existing three empty holes. Not sure they'd fit with the small winch hoop I have, but that's removable. As for the large SlimLites (6"): Even three won't fit. You can do two. Or three on a fabricated bracket attached at those existing holes. And once you fab up a bracket, you can fit four LZR lights, if you prefer. Here are a few pics ...

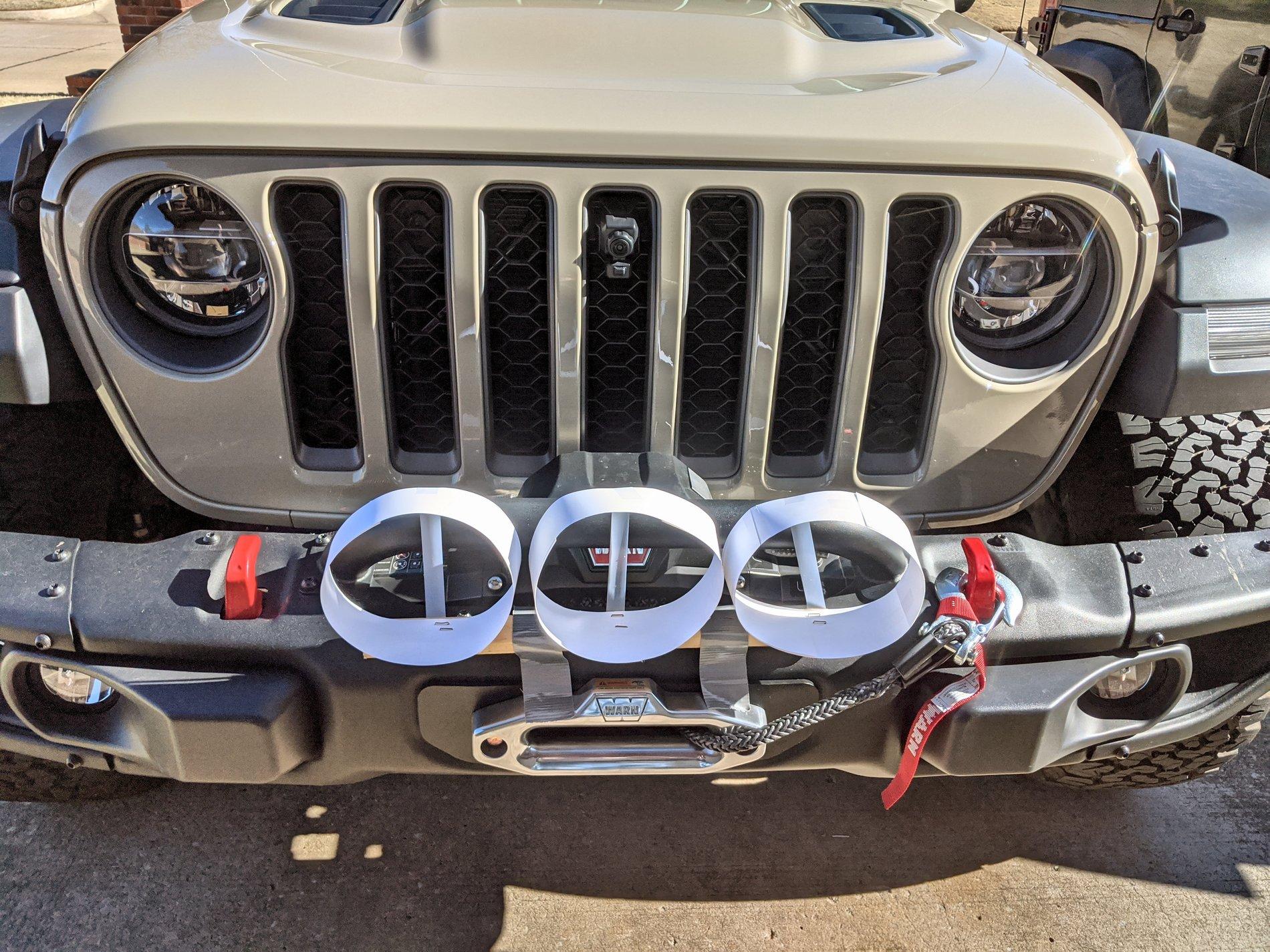

Simulated SlimLites ...
Gladiator, Jan 20, CP_122442, Three Mock SlimLites (Front View).jpg

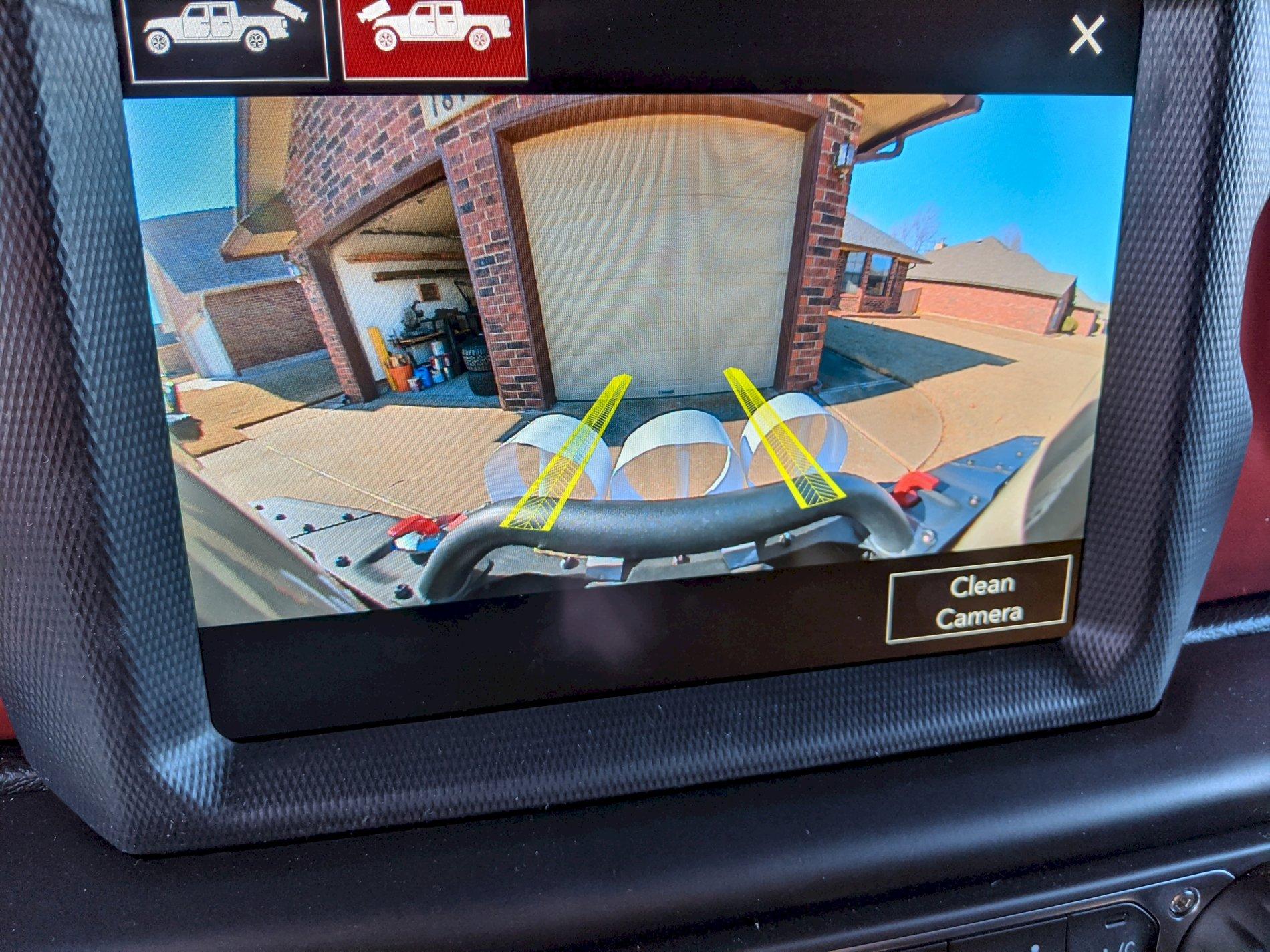

TrailCam view with SlimLites ...
Gladiator, Jan 20, CP_122630, Three Mock SlimLites (Trail Cam View).jpg

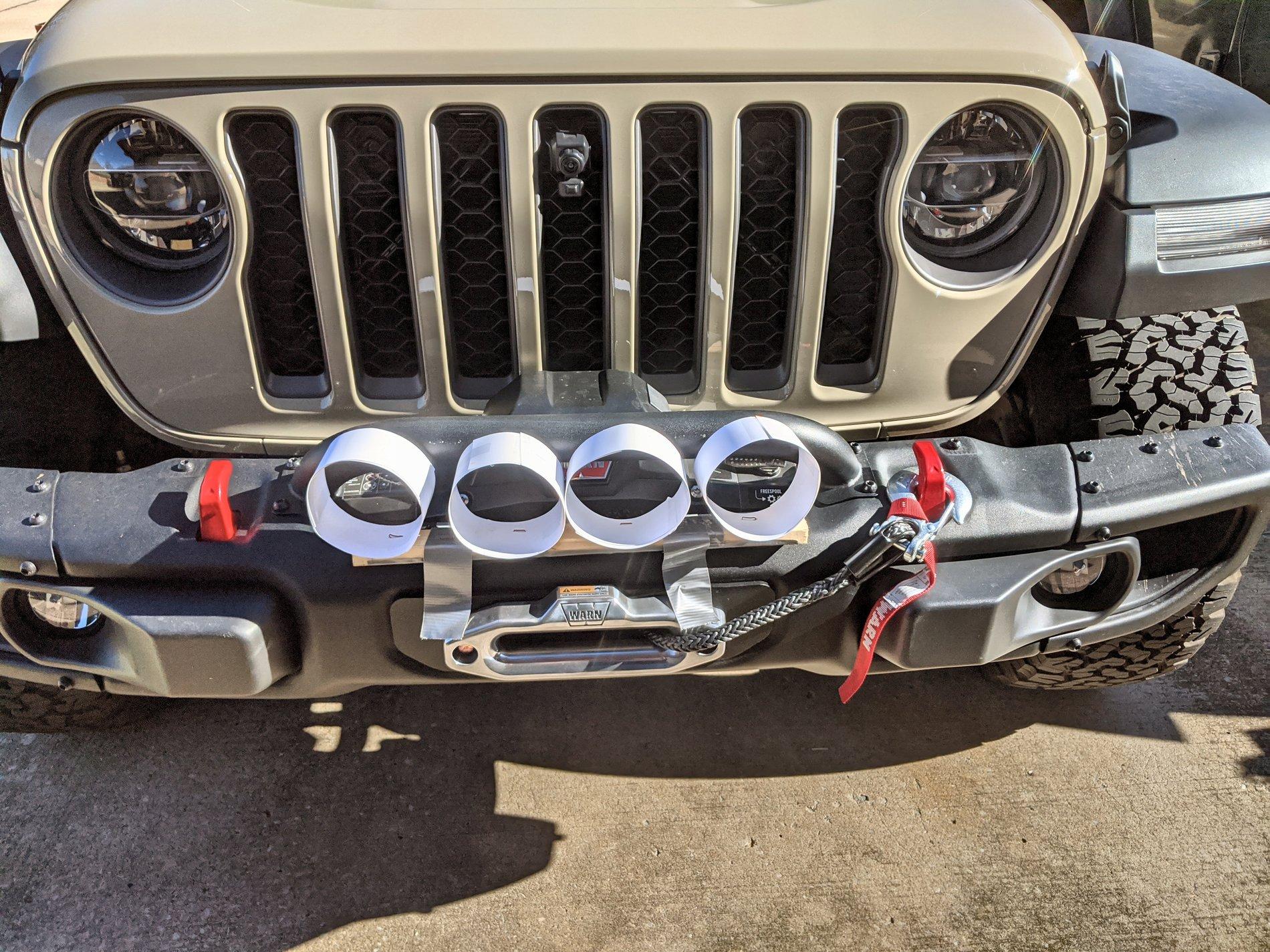

LZR lights ...
Gladiator, Jan 20, CP_124322, Three Mock LZR Lites (Front View).jpg

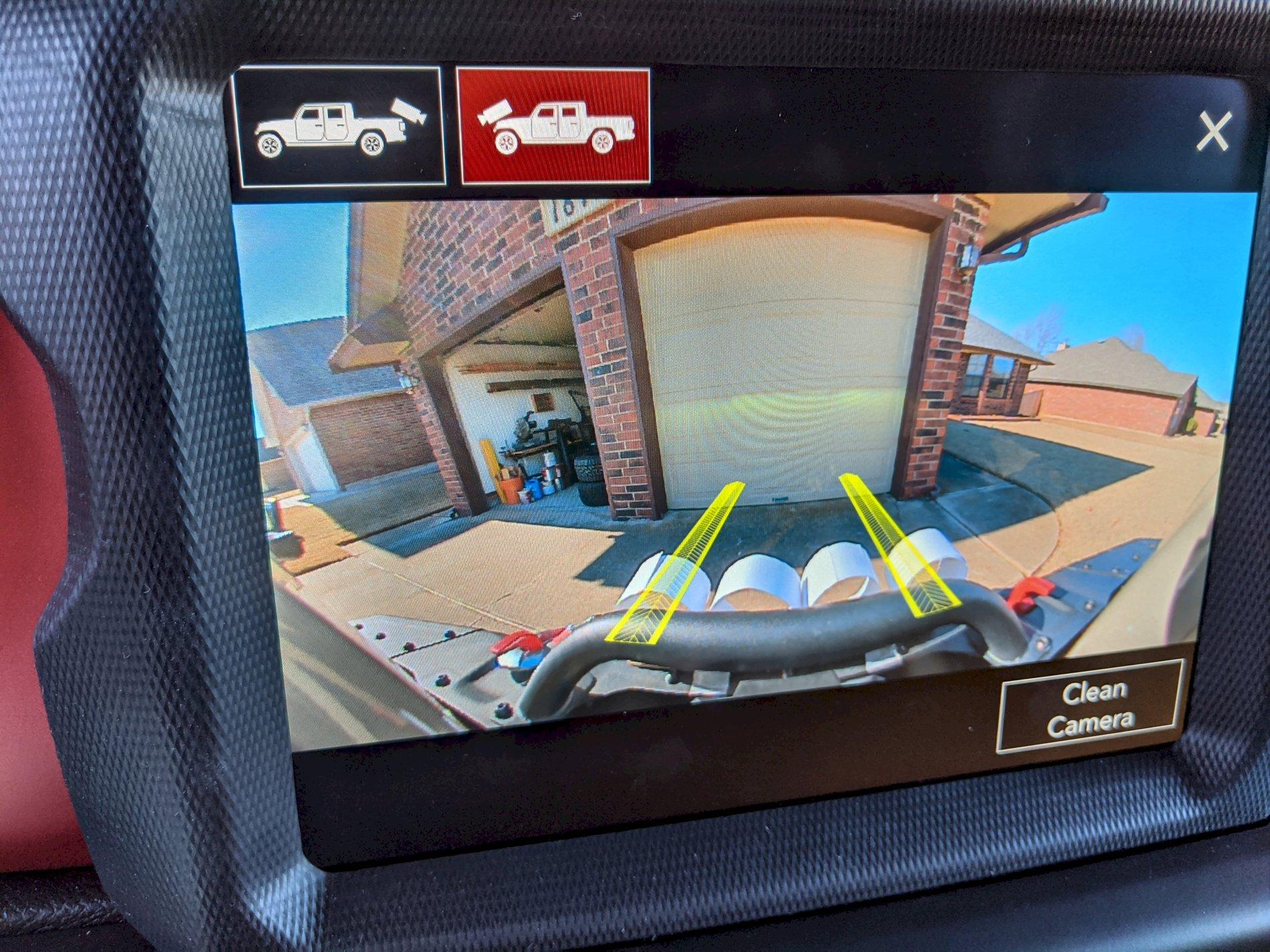

TrailCam view ...
Gladiator, Jan 20, CP_124354, Three Mock LZR Lites (Trail Cam View).jpg
