Mopar door off mirrors and brackets

Crazy mike

Member
First Name
MIchael
Joined
Feb 14, 2021
Messages
7
Reaction score
0
Location
Chicago
Vehicle(s)
Gladiator overland
Occupation
Union Bricklayer/welder
I’m looking to see if any has the mopar door off side mirrors part
Part #82215331AB
No one has any instructions on how the install , any help would be great





Advertisement



Garemlin

Well-Known Member
Joined
Nov 4, 2017
Messages
377
Reaction score
433
Location
Delaware
Vehicle(s)
Ford F150
I ran across those about a month ago. I haven't been able to find anything about them or anyone who has them. Wonder if they ever became available.

OP
Crazy mike

Crazy mike

Member
First Name
MIchael
Joined
Feb 14, 2021
Messages
7
Reaction score
0
Location
Chicago
Vehicle(s)
Gladiator overland
Occupation
Union Bricklayer/welder
  • Thread starter
  • Thread Starter
  • #3
I ran across those about a month ago. I haven't been able to find anything about them or anyone who has them. Wonder if they ever became available.

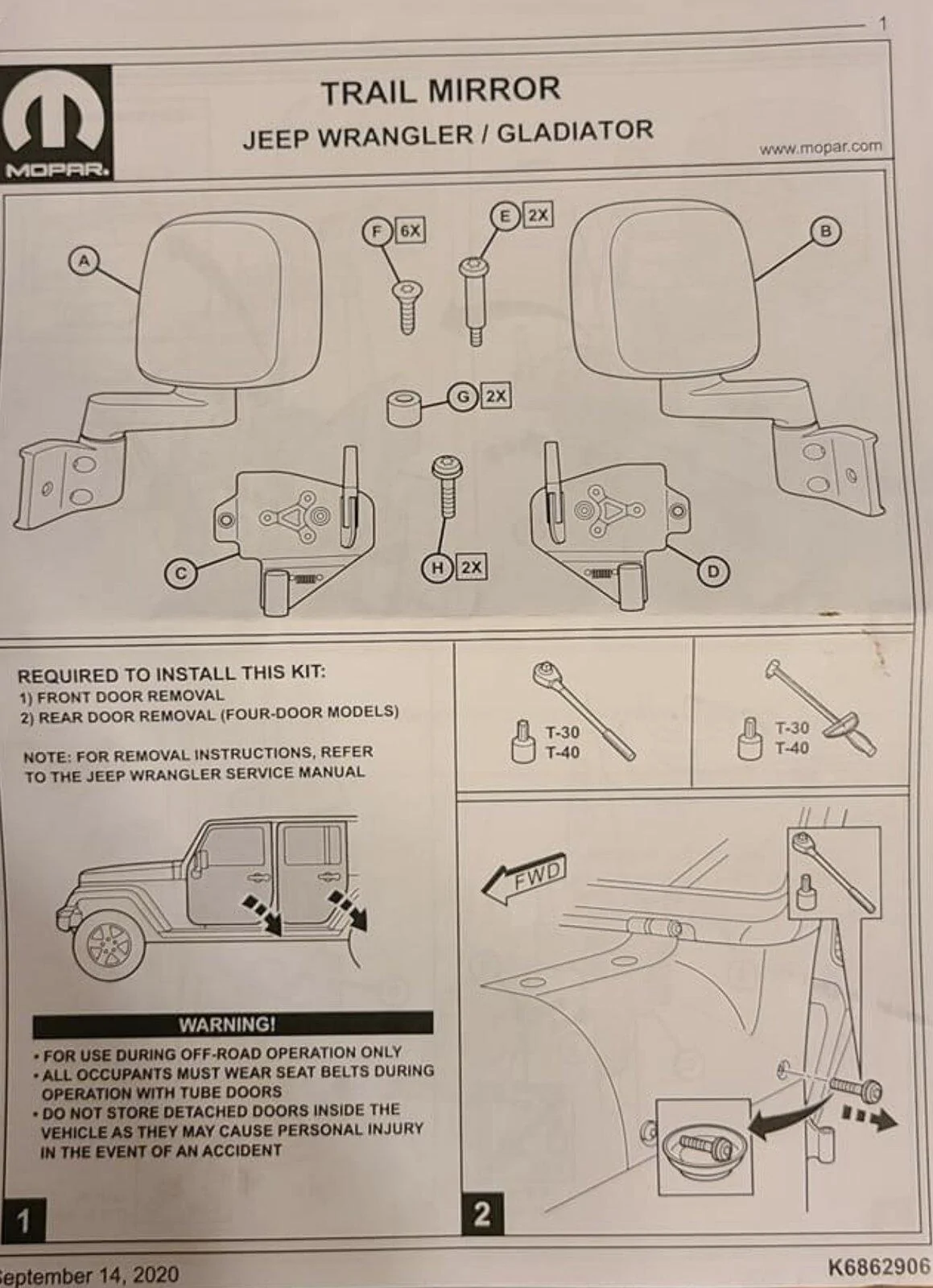

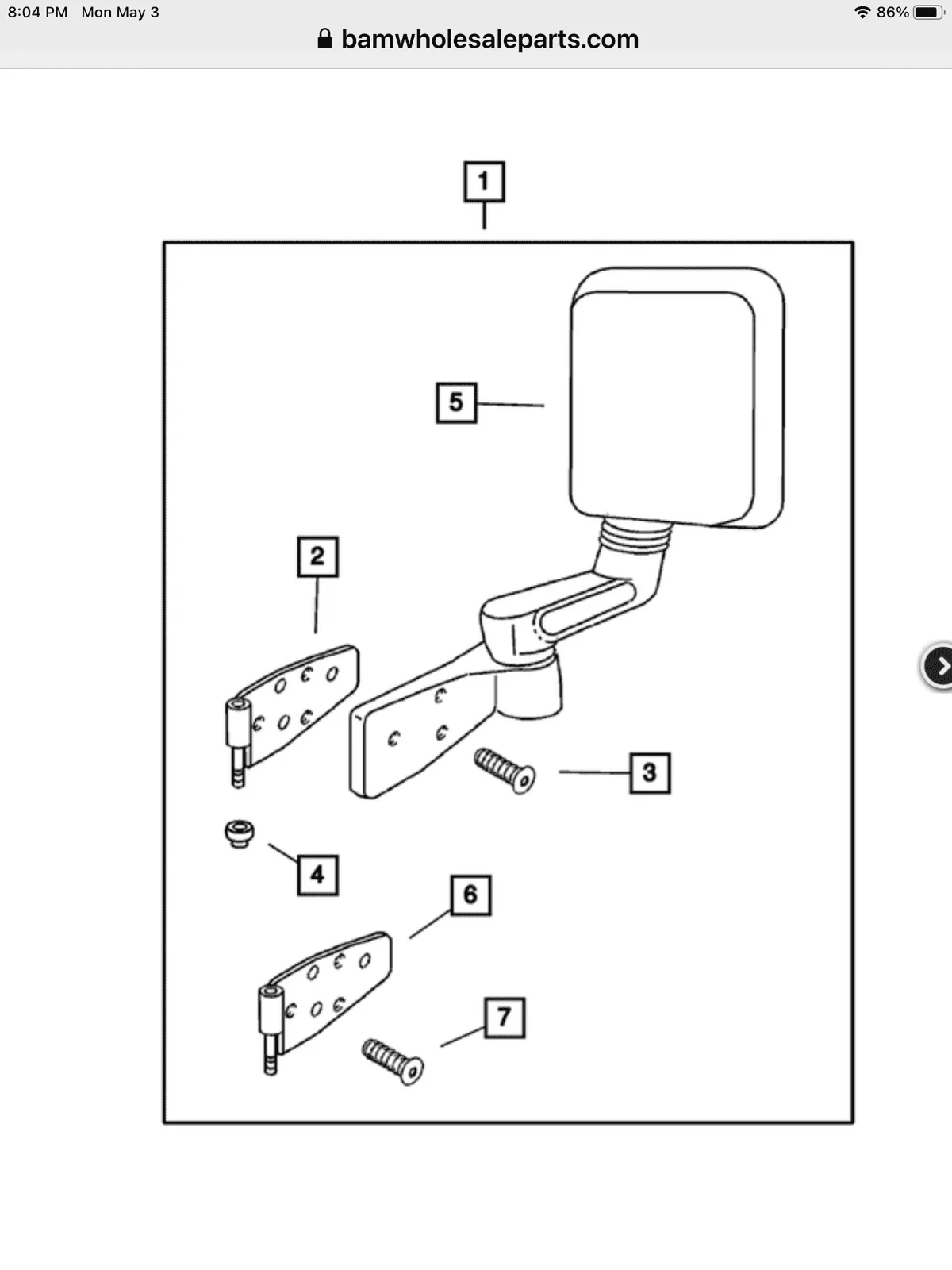

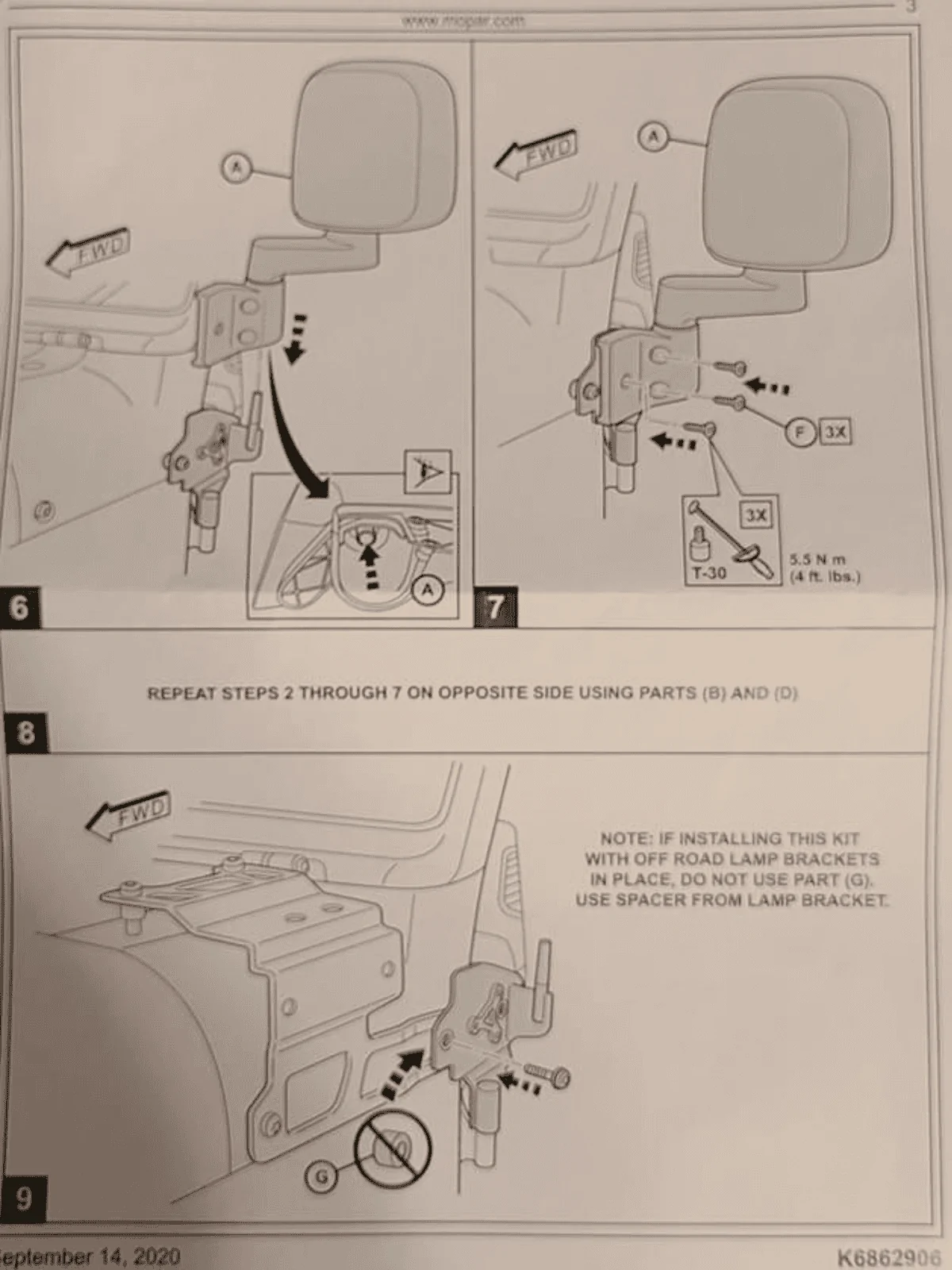

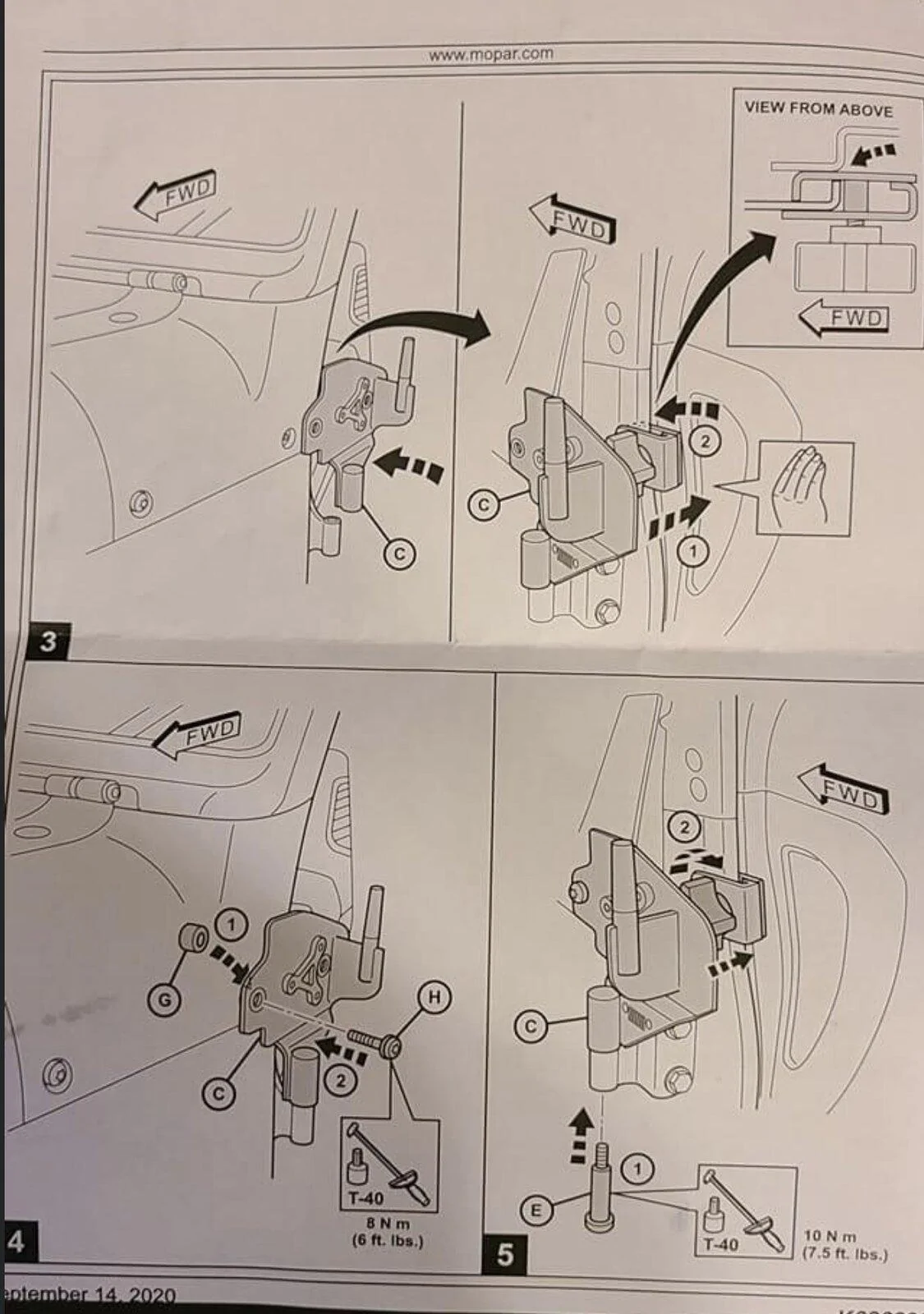

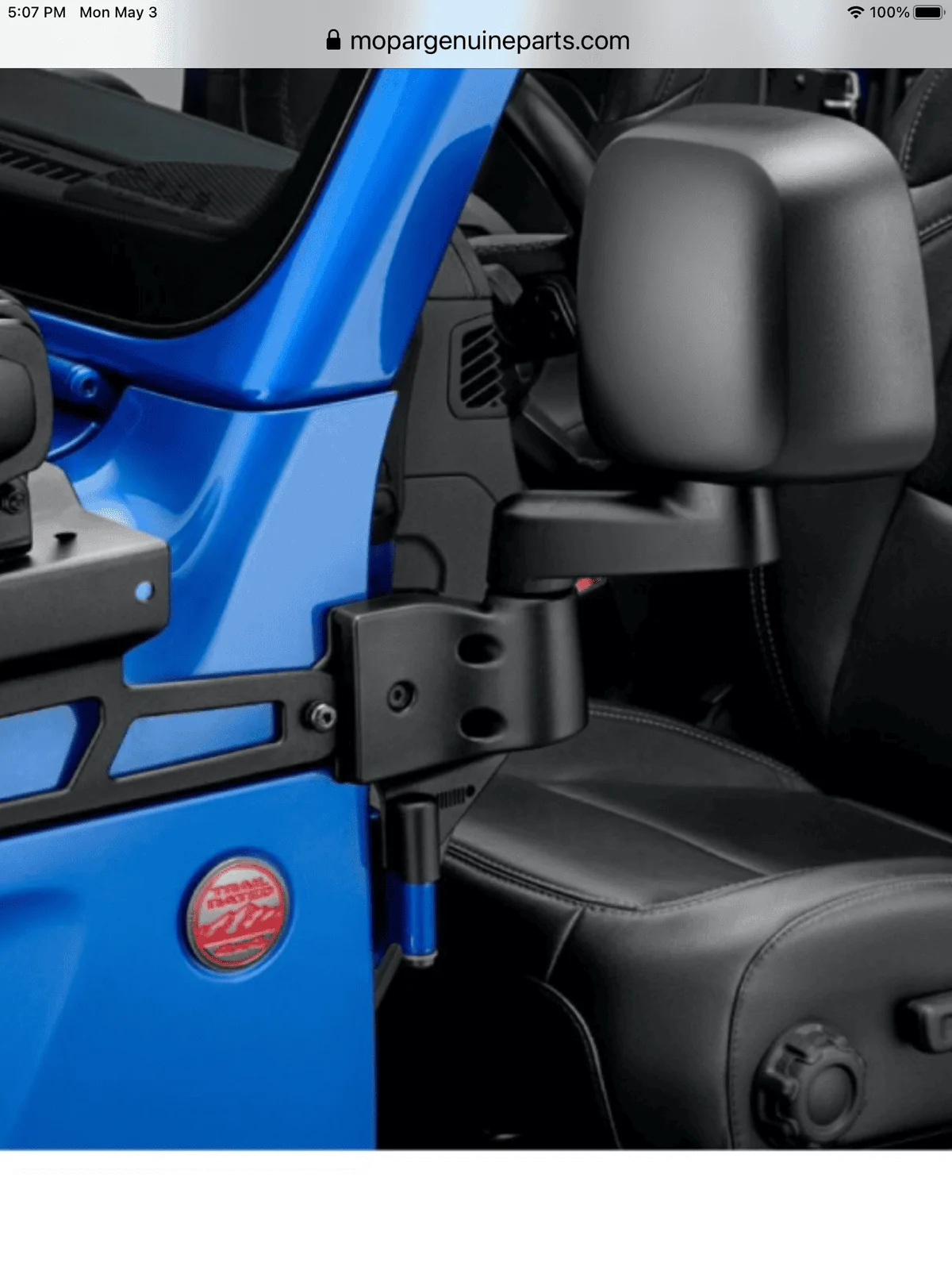

They are just had a guy sent me the instructions on Facebook! The picture from Mopar site looks nothing like the instructions









eaglerugby04

Well-Known Member
Joined
Oct 14, 2019
Messages
1,562
Reaction score
1,027
Location
Northern South Carolina
Vehicle(s)
Gator Rubicon Gladiator, Toyota Prius, Toyota Sienna
Occupation
Network Security
wow thanks for sharing that. Looks like yet another PIA option from Mopar. Based on the pictures I would have assumed that somehow these would use some kind of more permanent mount and disconnect system. All the effort and bolting that would be required to use these just seems not worth it, especially at this price.


BBETTS1024

Active Member
First Name
BRANDON
Joined
Sep 22, 2020
Messages
29
Reaction score
26
Location
REHOBOTH BEACH
Vehicle(s)
2018 WRANGLER
Occupation
SALES MANAGER
wow thanks for sharing that. Looks like yet another PIA option from Mopar. Based on the pictures I would have assumed that somehow these would use some kind of more permanent mount and disconnect system. All the effort and bolting that would be required to use these just seems not worth it, especially at this price.
They are attached at the door hinge. Everything attaches with a T40. We did a Jeep in the showroom with them, very easy to install with a small drill ( I keep one behind my back seat on the regular). Once on they are on they are very stable like you can rock the whole rig by the mirror. I have CMM mirrors but I really like the size and looks of these. The first time you assemble them and put them on takes about 10-15 min per door however after the first install once assembled they only took about 2-4 min to attach per mirror. If I didn't have tube doors I would have these for sure.


eaglerugby04

Well-Known Member
Joined
Oct 14, 2019
Messages
1,562
Reaction score
1,027
Location
Northern South Carolina
Vehicle(s)
Gator Rubicon Gladiator, Toyota Prius, Toyota Sienna
Occupation
Network Security
They are attached at the door hinge. Everything attaches with a T40. We did a Jeep in the showroom with them, very easy to install with a small drill ( I keep one behind my back seat on the regular). Once on they are on they are very stable like you can rock the whole rig by the mirror. I have CMM mirrors but I really like the size and looks of these. The first time you assemble them and put them on takes about 10-15 min per door however after the first install once assembled they only took about 2-4 min to attach per mirror. If I didn't have tube doors I would have these for sure.
I really like the size of them and that they are stable. I get they use the standard size bit, but its just one of those things where I don't keep any of the bolts in my doors since I will sometimes put them back on for a storm and they are off the next morning. I just feel like for the price and the construction I wish they were a little more permanent or versatile (tube doors, soft doors, and maybe even replace the main ones like the one description even stated at one point similar to quadratech mirror movers)


drBassman

Well-Known Member
First Name
Ryan
Joined
Aug 11, 2019
Messages
258
Reaction score
329
Location
NW Missouri
Vehicle(s)
2020 Jeep Gladiator; 2005 VW Passat TDI; Previous: 1978 CJ5; 1997 TJ Sport.

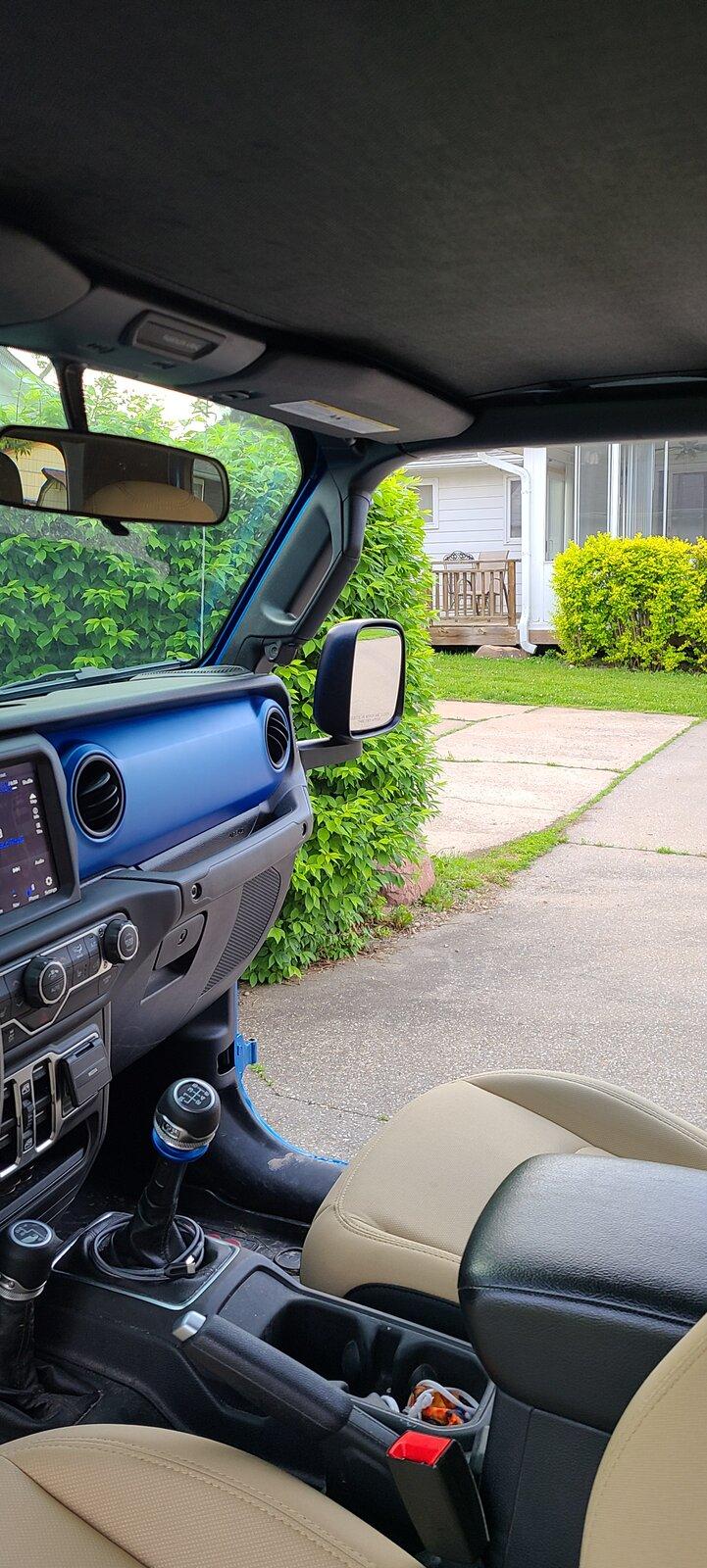

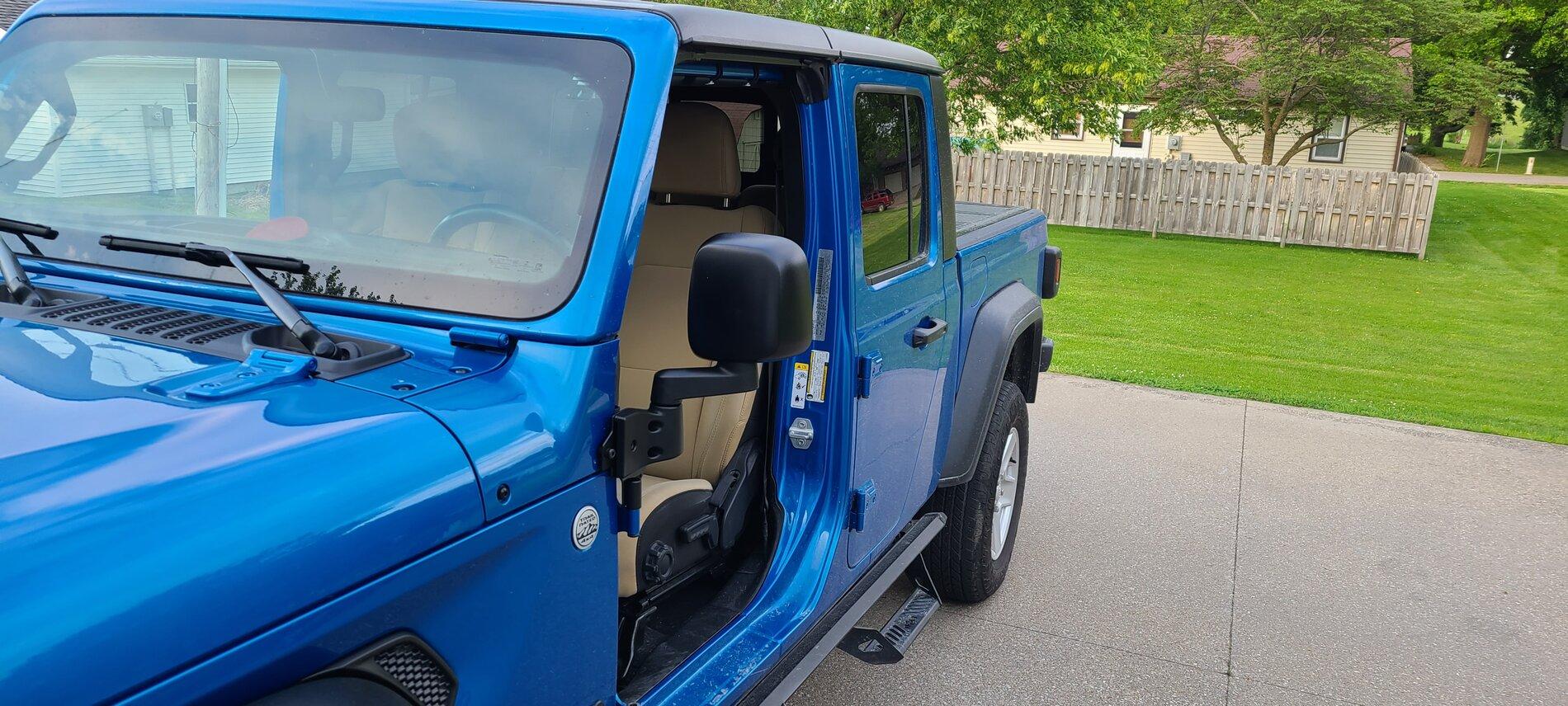

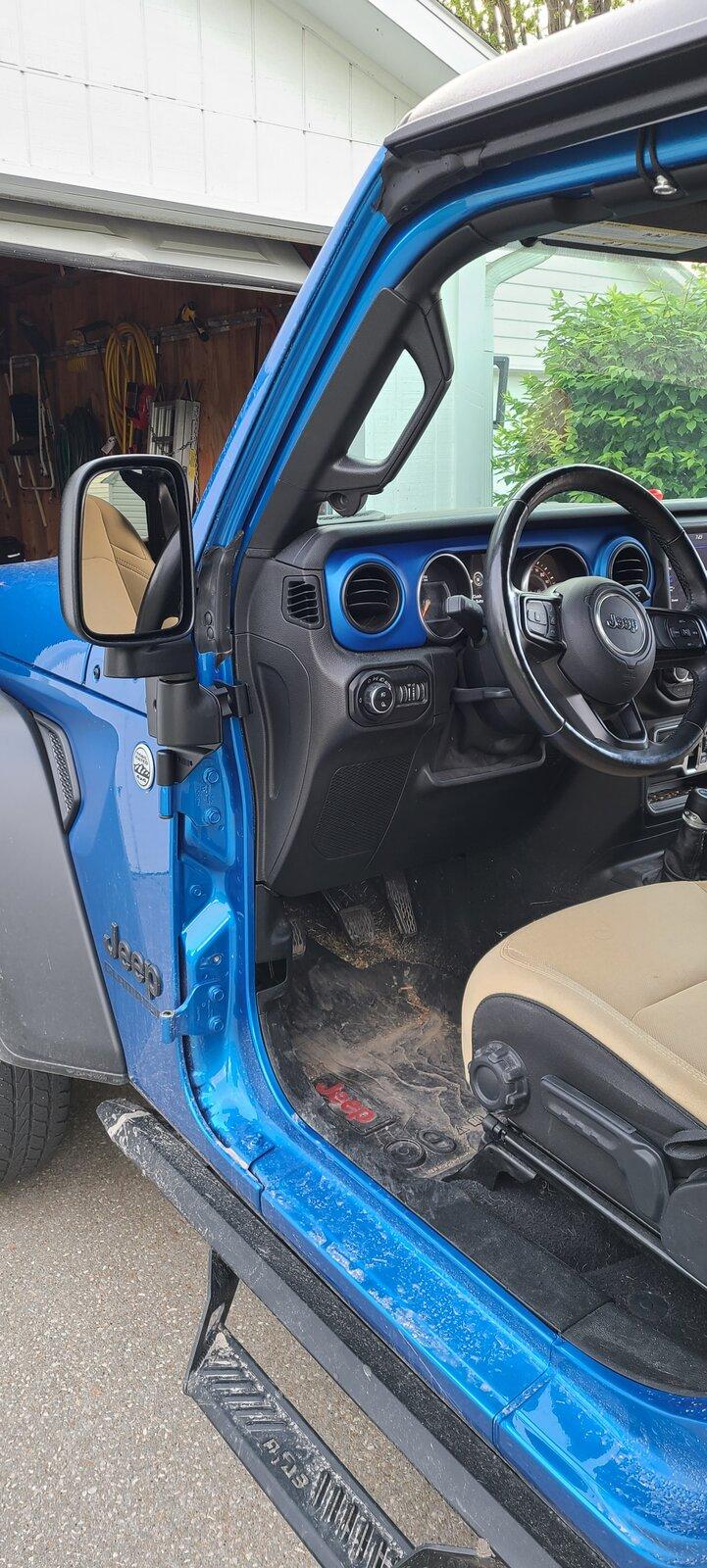

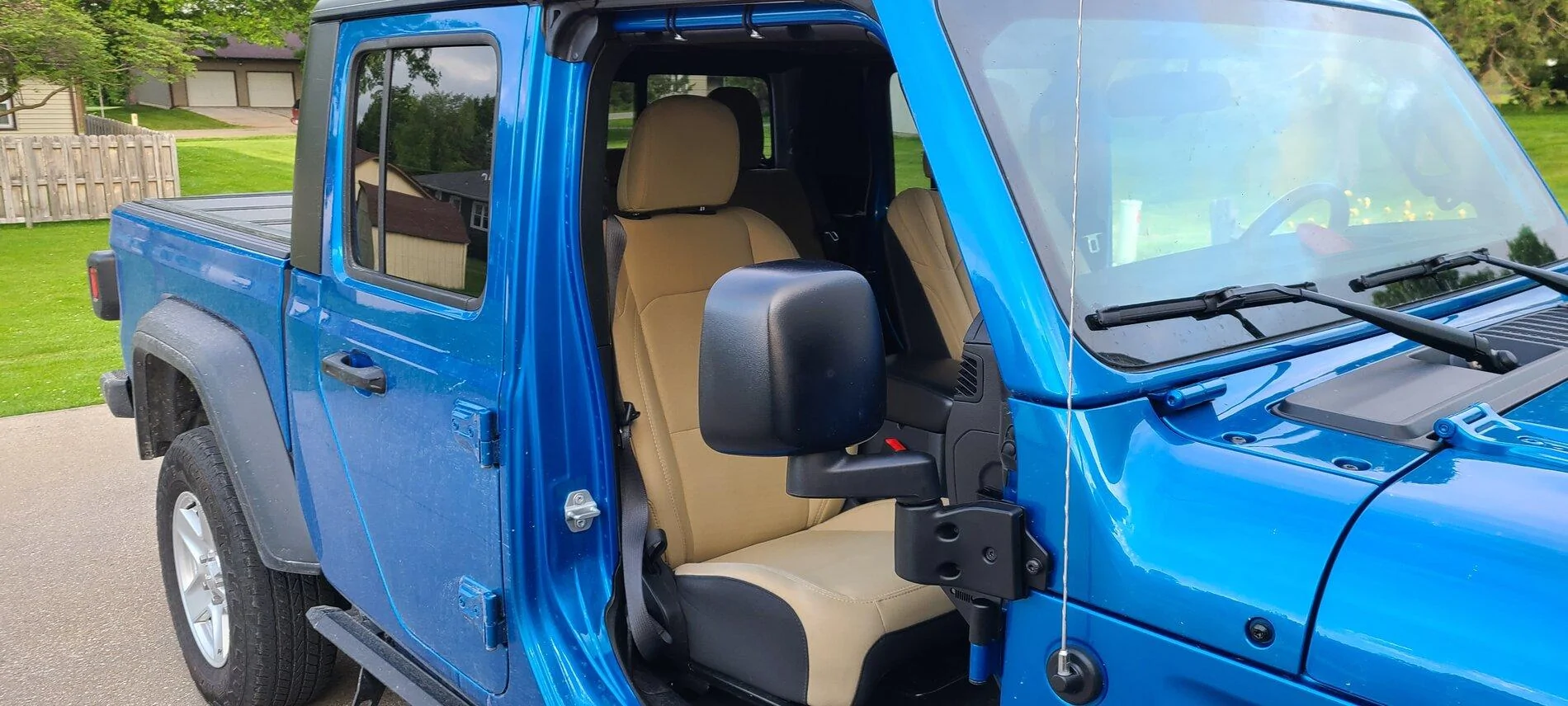

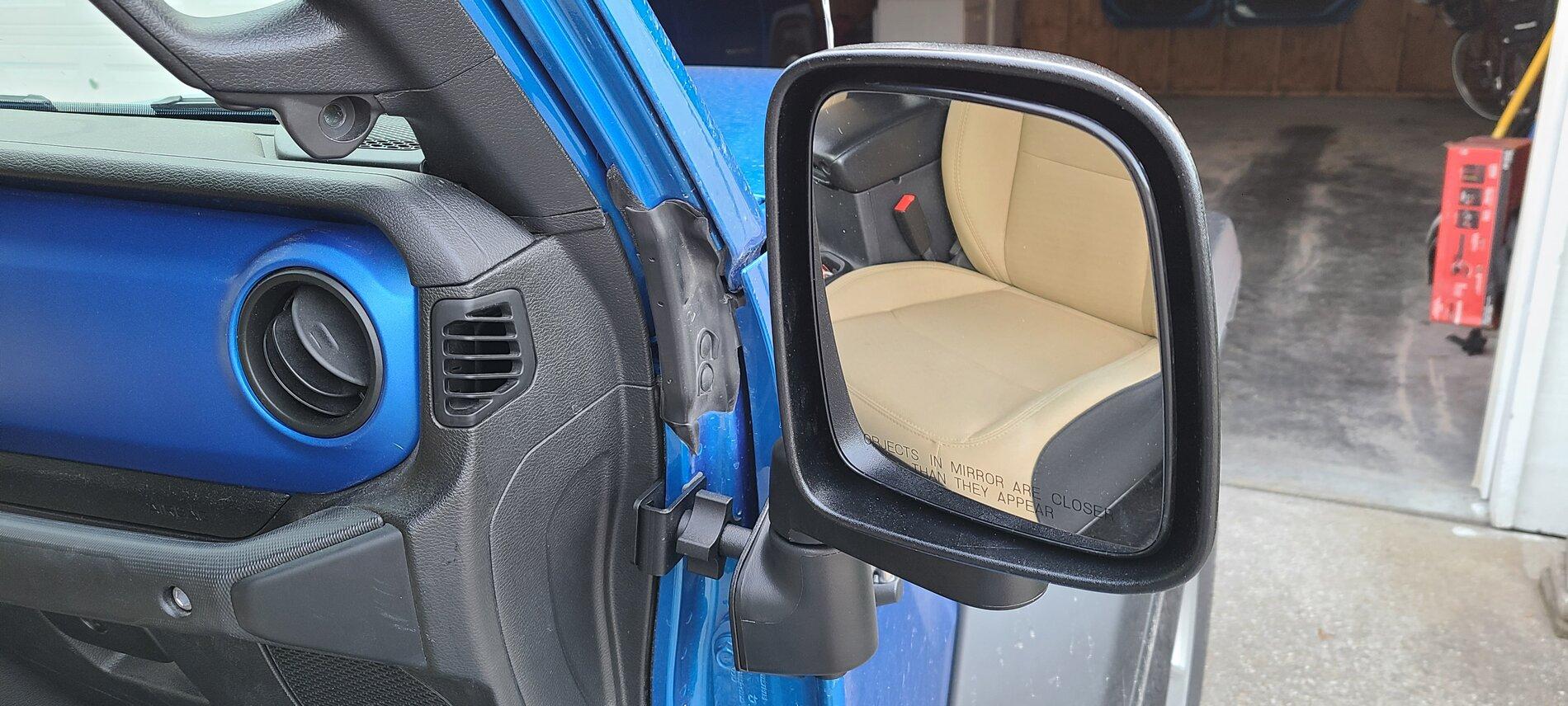

Here they are on my JTS. I ordered them from @AllMoparParts.com and I had them one week later! The astute will observe that I already have CMM brackets installed. For me, the round, convex CMM mirrors were too small. I only drove around the block with them. I went out on the highway & took them up to 70mph -- they are rock solid, but add a little wind noise that is tolerable. My first impression is that, I like them better than the CMM mirrors.
