Mopar Lift Kit Question

LoJac963

Well-Known Member
Joined
Apr 17, 2020
Messages
147
Reaction score
101
Location
Arizona
Vehicle(s)
2020 Jeep Gladiator Rubicon
Hoping someone can help me as I'm in the middle of this install.

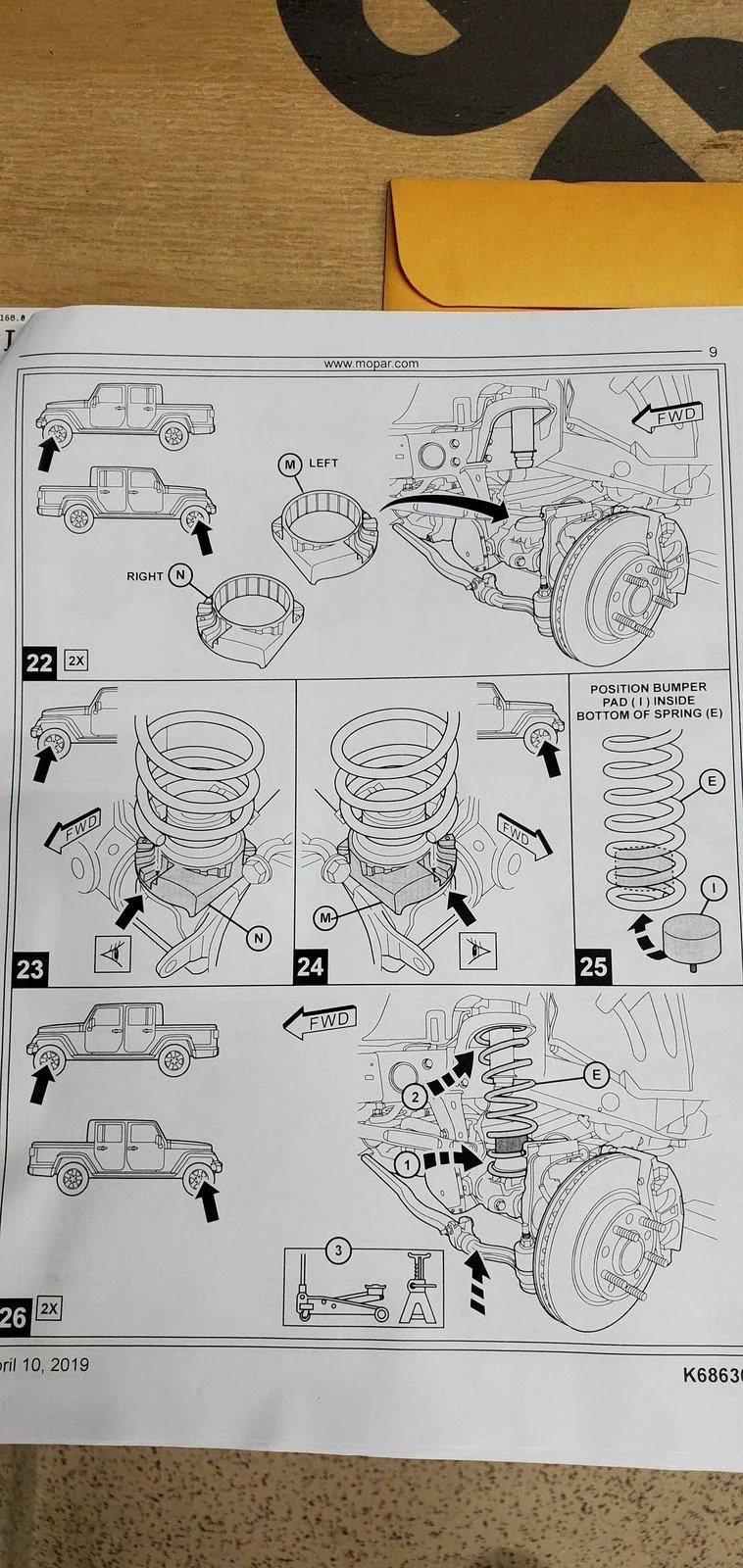

You can see on the instructions, step 22 shows N being Right or Passenger and M being Left or Driver side. Each of those parts even have L and R molded into them.

However, moving to step 23, it shows N going on the driver side and M going on the passenger side which is opposite of step 22. Am I crazy or do those directly contradict each other?

I have the parts installed currently as step 22 says since it specifically says right and left and I matched up part numbers from the inventory sheet to double check everything. Any thoughts?

Thanks in advance!
