Sponsored

Mopar lift question alignment

cwieland

Well-Known Member
First Name
Con
Joined
Jul 31, 2019
Threads
20
Messages
58
Reaction score
12
Location
Southern California
Vehicle(s)
Gladiator

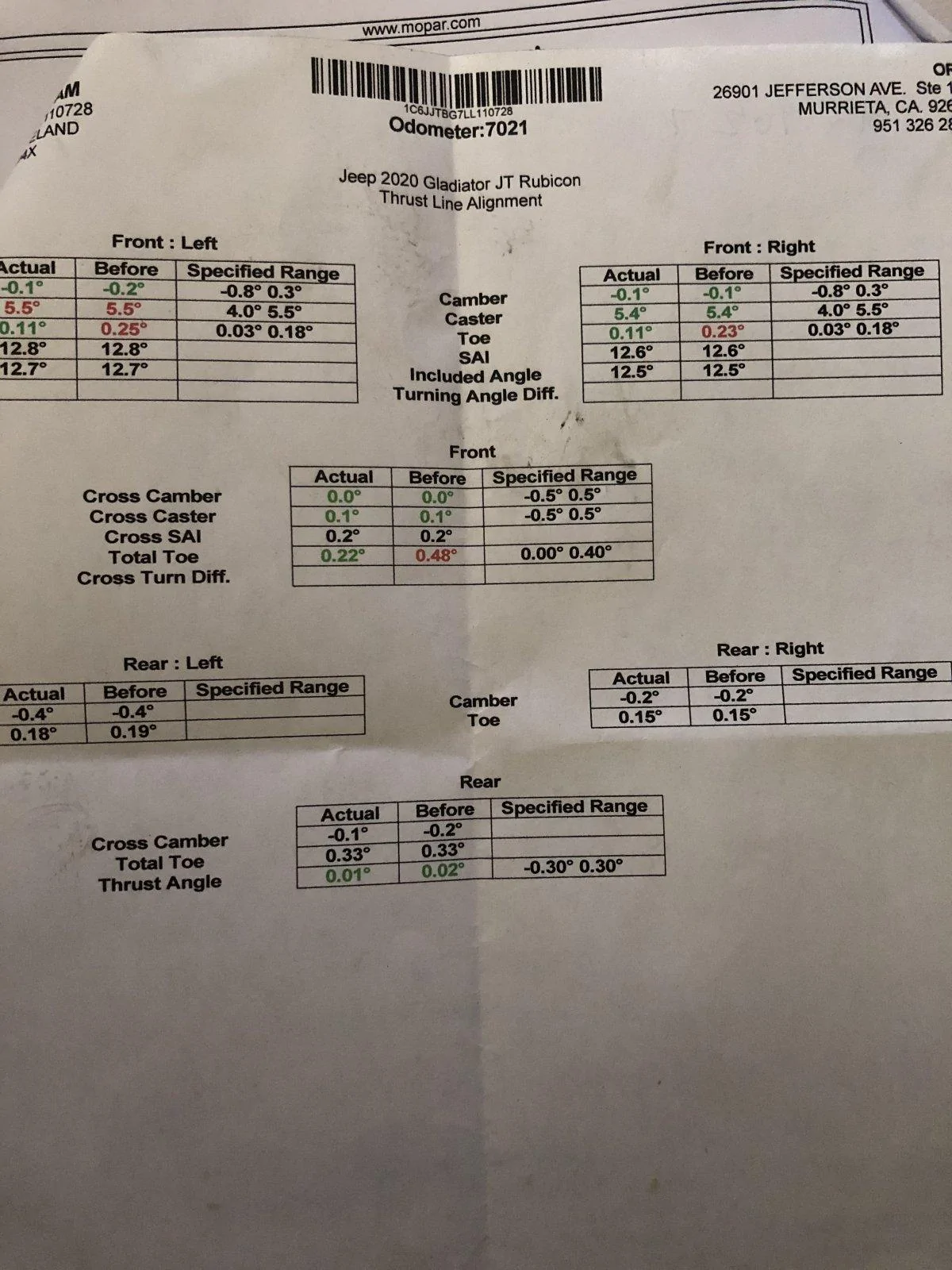

I installed the Mopar lift and took it to a local shop for alignment. The specs they use are different than the Mopar specs, the biggest being they use positive toe vs the Mopar spec for negative toe. Unless the lift radically changed the toe it was very positive before the alignment though
Jeep Gladiator Mopar lift question alignment IMG_2019.JPG
Jeep Gladiator Mopar lift question alignment vbaNFov8Tbed9riBHsWhtA
. They claim to do dozens of these lifts and this is the "hot' setup. Does anyone understanding vehicle geometry better than me have any thoughts or comments.
Sponsored



Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link

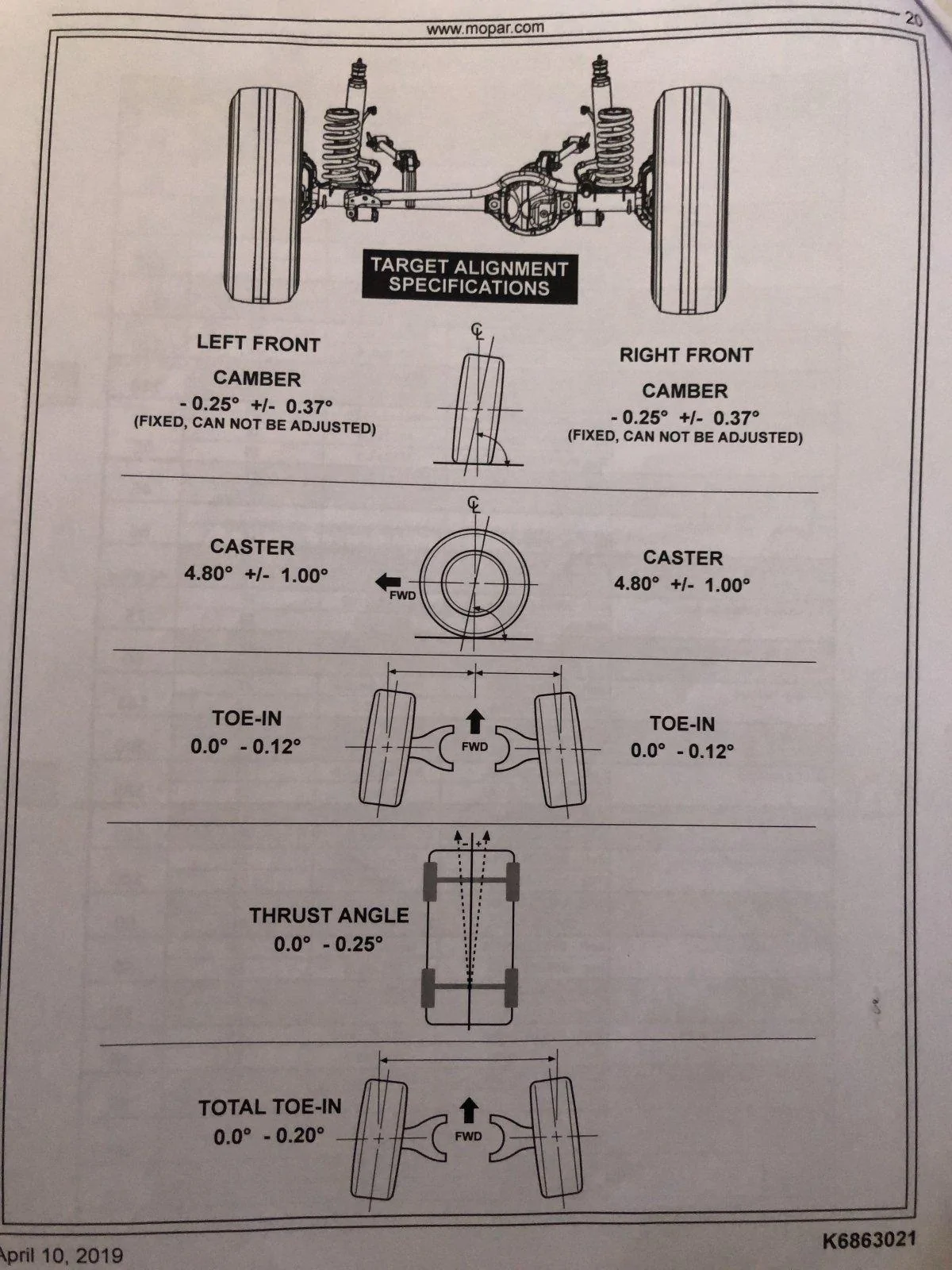

That Mopar diagram is showing a range, using a dash between the acceptable parameters. It is not a “negative” symbol. Yours was positive before, but a little too much. They dialed it back into spec.

Joined
Mar 5, 2020
Threads
4
Messages
1,954
Reaction score
2,403
Location
Lake Martin, Alabama
Vehicle(s)
2020 Jeep Gladiator Rubicon
Vehicle Showcase
1
I do find it weird how their spec sheet shows the first two as +/- , but the others only show a "-" between them... Strange. Maybe a typo... They could be meaning 0.0Âş to 0.12Âş toe-in, but I'm not sure...


Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
I do find it weird how their spec sheet shows the first two as +/- , but the others only show a "-" between them... Strange. Maybe a typo... They could be meaning 0.0Âş to 0.12Âş toe-in, but I'm not sure...
Yeah, 0.0 to 0.12. It’s an acceptable range.

OP
OP
cwieland

cwieland

Well-Known Member
First Name
Con
Joined
Jul 31, 2019
Threads
20
Messages
58
Reaction score
12
Location
Southern California
Vehicle(s)
Gladiator
The picture is showing negative tow, wheels pointing in. The wheels would be pointing out for positive tow unless I'm not understanding.


Sponsored

Joined
Mar 5, 2020
Threads
4
Messages
1,954
Reaction score
2,403
Location
Lake Martin, Alabama
Vehicle(s)
2020 Jeep Gladiator Rubicon
Vehicle Showcase
1
The picture is showing negative tow, wheels pointing in. The wheels would be pointing out for positive tow unless I'm not understanding.
I wouldn't go by the pictures... I'd go by the numbers.


Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
The picture is showing negative tow, wheels pointing in. The wheels would be pointing out for positive tow unless I'm not understanding.
The front of the tires “pointing in” is positive toe-in.

Jeep Gladiator Mopar lift question alignment F5294B99-3617-4466-8569-A2C5A2BA5A00

Last edited:

LoJac963

Well-Known Member
Joined
Apr 17, 2020
Threads
12
Messages
280
Reaction score
239
Location
Arizona
Vehicle(s)
2020 Jeep Gladiator Rubicon
It would have been interesting to see the specs prior to the lift. Mine was wandering all over the place, installing the Fox steering stab took a lot of it out but I'm concerned about doing the Mopar lift.


Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
It would have been interesting to see the specs prior to the lift. Mine was wandering all over the place, installing the Fox steering stab took a lot of it out but I'm concerned about doing the Mopar lift.
The toe-in would have been the same. It’s not affected by the lift.
Sponsored






Top
