Just installed take off Mopar rubicon rear bumper in my overland. 2 bolts and nurserts attach bottom to frame/ hitch. Can’t find part numbers. Wondering if same as for skid plate on steel front bumper? Help





Advertisement


OP

jmdusza01

Active Member
First Name
Justin
Joined
Nov 30, 2020
Messages
38
Reaction score
1
Location
Maryland
Vehicle(s)
2021 Jeep Gladiator Overland
Occupation
RN
  • Thread starter
  • Thread Starter
  • #2
FYI nutsert # is 6511076AA


darksidedesign

Well-Known Member
First Name
Preston
Joined
Oct 5, 2019
Messages
183
Reaction score
392
Location
Utah
Vehicle(s)
2020 Jeep Gladiator Mojave in Gator
Occupation
Graphic Designer / Illustrator
I’m in the process of doing the same thing. Were you able to get everything you needed? What part numbers and where’d you get them? Any tips would be much appreciated.

OP

jmdusza01

Active Member
First Name
Justin
Joined
Nov 30, 2020
Messages
38
Reaction score
1
Location
Maryland
Vehicle(s)
2021 Jeep Gladiator Overland
Occupation
RN
  • Thread starter
  • Thread Starter
  • #4
Just installed take off Mopar rubicon rear bumper in my overland. 2 bolts and nurserts attach bottom to frame/ hitch. Can’t find part numbers. Wondering if same as for skid plate on steel front bumper? Help
It is same part

Joined
May 16, 2020
Messages
19
Reaction score
7
Location
Texas
Vehicle(s)
2020 Gladiator
Build Thread
Link
Just installed take off Mopar rubicon rear bumper in my overland. 2 bolts and nurserts attach bottom to frame/ hitch. Can’t find part numbers. Wondering if same as for skid plate on steel front bumper? Help
Here's what I used.
  • Screws x2 - 6512896AA
  • Rivnut x 2 - 6511076AA
Ordered mine from https://www.bamwholesaleparts.com


darksidedesign

Well-Known Member
First Name
Preston
Joined
Oct 5, 2019
Messages
183
Reaction score
392
Location
Utah
Vehicle(s)
2020 Jeep Gladiator Mojave in Gator
Occupation
Graphic Designer / Illustrator
Ok. Someone HELP! I thought I had everything To mount these sensors to the steel bumper.

I have ordered these brackets that push through from the outside of the bumper.


The sensor clicks into this bracket from the back.

But I cannot find the piece that secures the bracket to the bumper from the back side. I saw a video on YouTube of someone replacing the sensors on a JL bumper. The piece looked like this...



I found that part on Quadratec. It’s made for the JL steel rear bumper. I CANNOT find the JT equivalent.

Someone that has done this, PLEASE HELP! I’m stuck!


TexasTJ

Well-Known Member
Joined
Jun 6, 2020
Messages
200
Reaction score
263
Location
TX
Vehicle(s)
TJ
Ok. Someone HELP! I thought I had everything To mount these sensors to the steel bumper.

I have ordered these brackets that push through from the outside of the bumper.


The sensor clicks into this bracket from the back.

But I cannot find the piece that secures the bracket to the bumper from the back side. I saw a video on YouTube of someone replacing the sensors on a JL bumper. The piece looked like this...



I found that part on Quadratec. It’s made for the JL steel rear bumper. I CANNOT find the JT equivalent.

Someone that has done this, PLEASE HELP! I’m stuck!

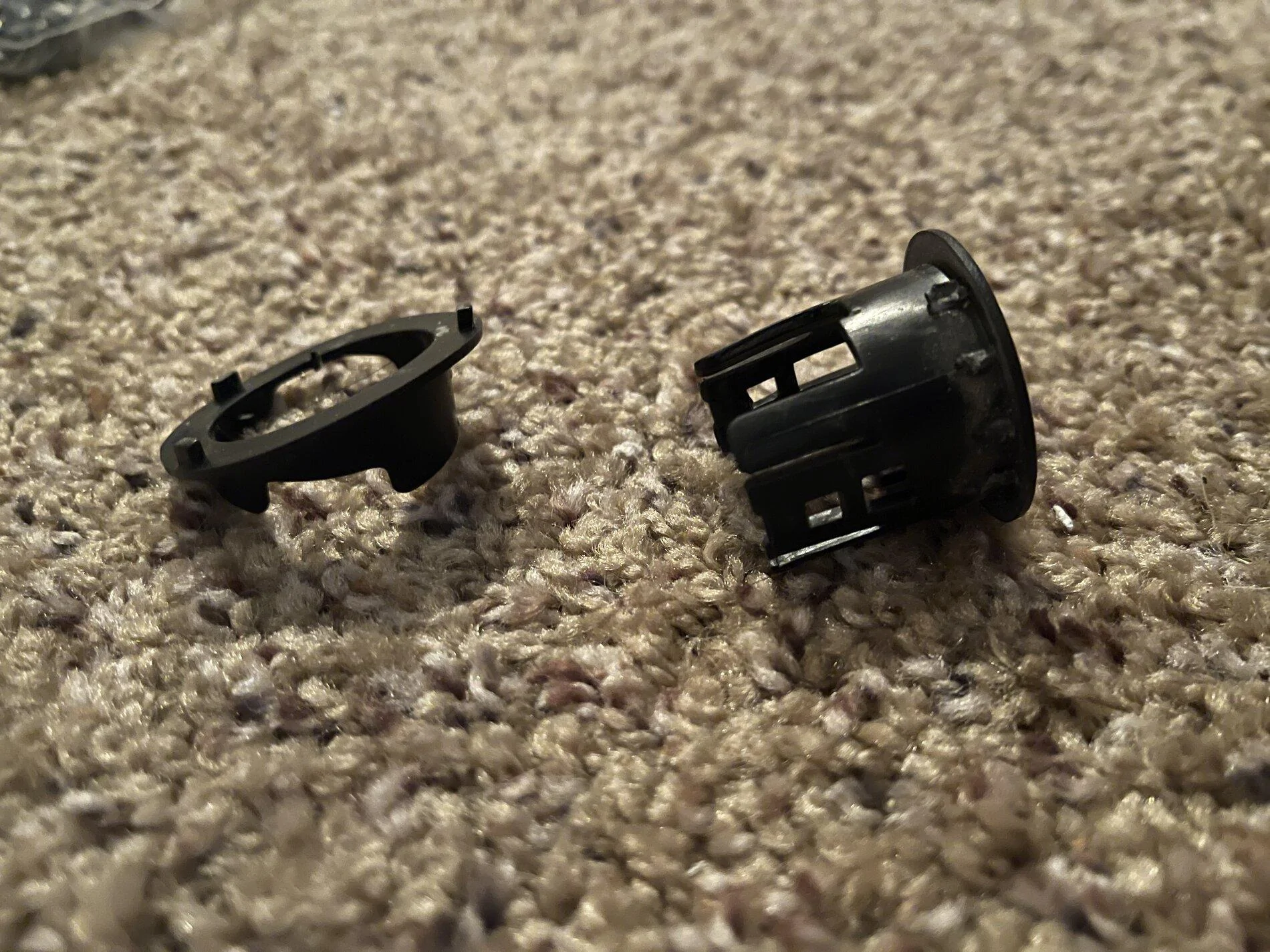

Sorry, I don’t see a part number on them. This is what they look like though.




OP

jmdusza01

Active Member
First Name
Justin
Joined
Nov 30, 2020
Messages
38
Reaction score
1
Location
Maryland
Vehicle(s)
2021 Jeep Gladiator Overland
Occupation
RN
  • Thread starter
  • Thread Starter
  • #9
Ok. Someone HELP! I thought I had everything To mount these sensors to the steel bumper.

I have ordered these brackets that push through from the outside of the bumper.


The sensor clicks into this bracket from the back.

But I cannot find the piece that secures the bracket to the bumper from the back side. I saw a video on YouTube of someone replacing the sensors on a JL bumper. The piece looked like this...



I found that part on Quadratec. It’s made for the JL steel rear bumper. I CANNOT find the JT equivalent.

Someone that has done this, PLEASE HELP! I’m stuck!
I ordered offvquadratec. It is the same

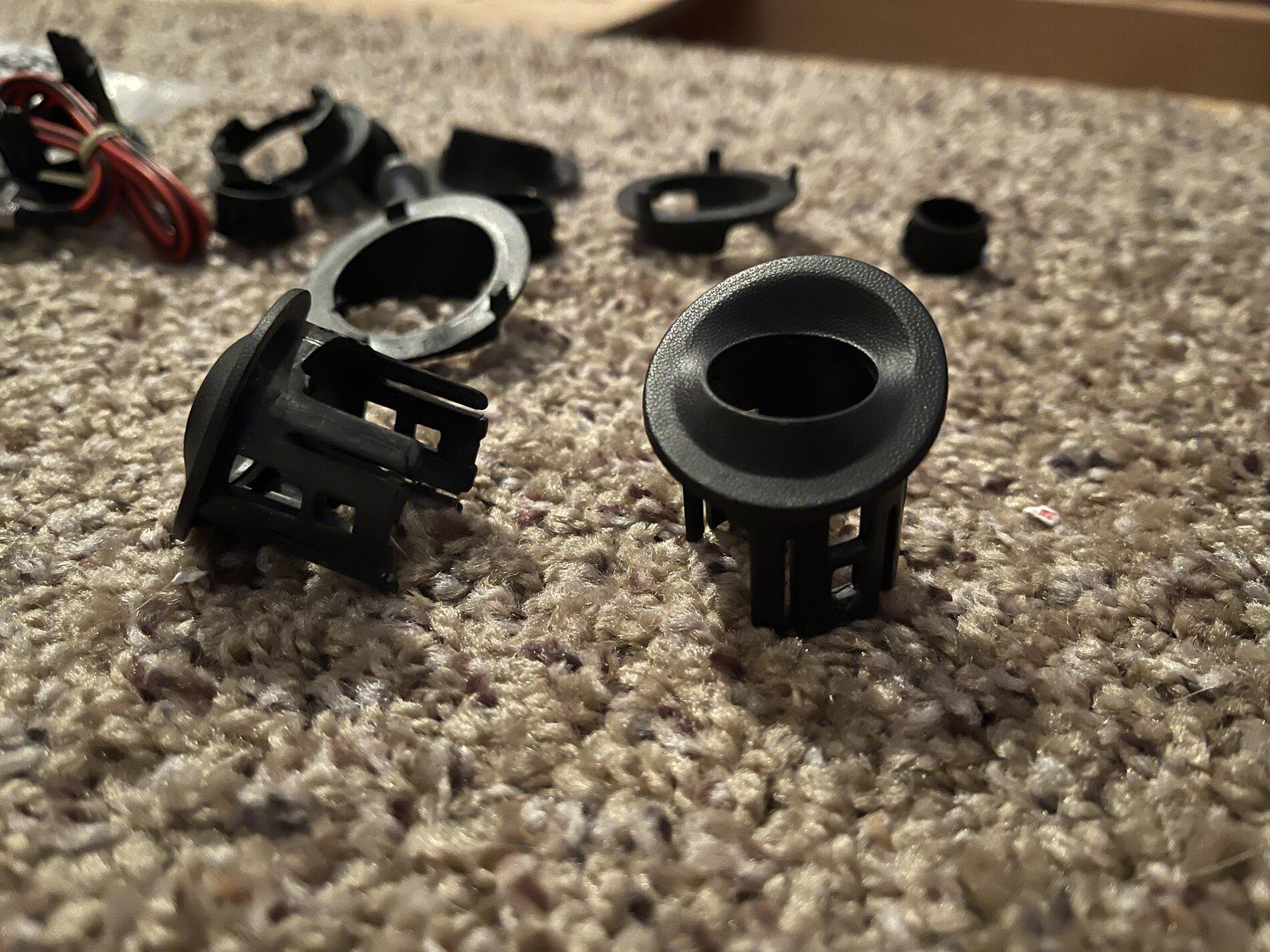

Sorry, I don’t see a part number on them. This is what they look like though.



quadratec has them
