    Well, I didn't have the patience to order and wait, so I found the truck that I wanted on a lot. The only thing missing was the Trail Rail kit in the bed! I pre-ordered the Mopar kit a while back and it finally arrived. Installation was simple, but there is one part that can be tricky, so I thought I'd write this to possibly help others.

    Mopar Trail Rail Cargo Management System Install
    Mopar PN: 82215956
    Price: $370 or so
    Difficulty: 2/10
    Time: 30min

    Kit Contents:

    The kits includes a rail for each side of the bed (these are identical) and one for the front of the bed. The rails on the sides are around 52" long and the rail at the front is around 48" long. The kit also includes all hardware (12x T30 torx bolt and two nutserts).

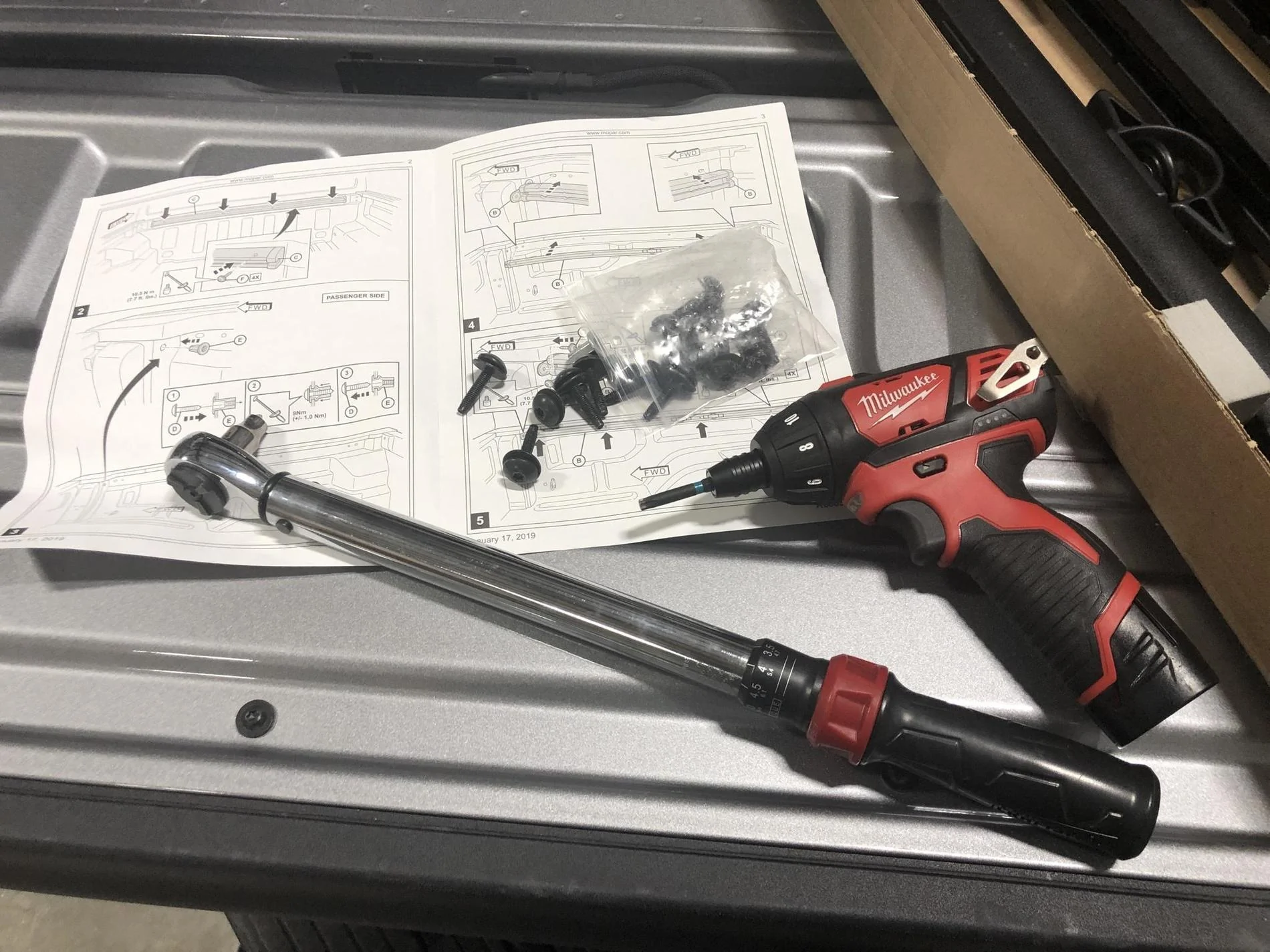

    Tools Needed:

    - T30 torx socket
    - Torque wrench
    - M6x1.0 bolt (length not critical, but I'd suggest over 30mm if possible)
    - M6x1.0 nut
    - M6 washer(s)
    - Socket for M6 bolt
    - Wrench for M6 nut


    * The italicized tools are not called for in the official install guide, but I found that I needed them to install the nutserts. More on that below.


    Procedure:

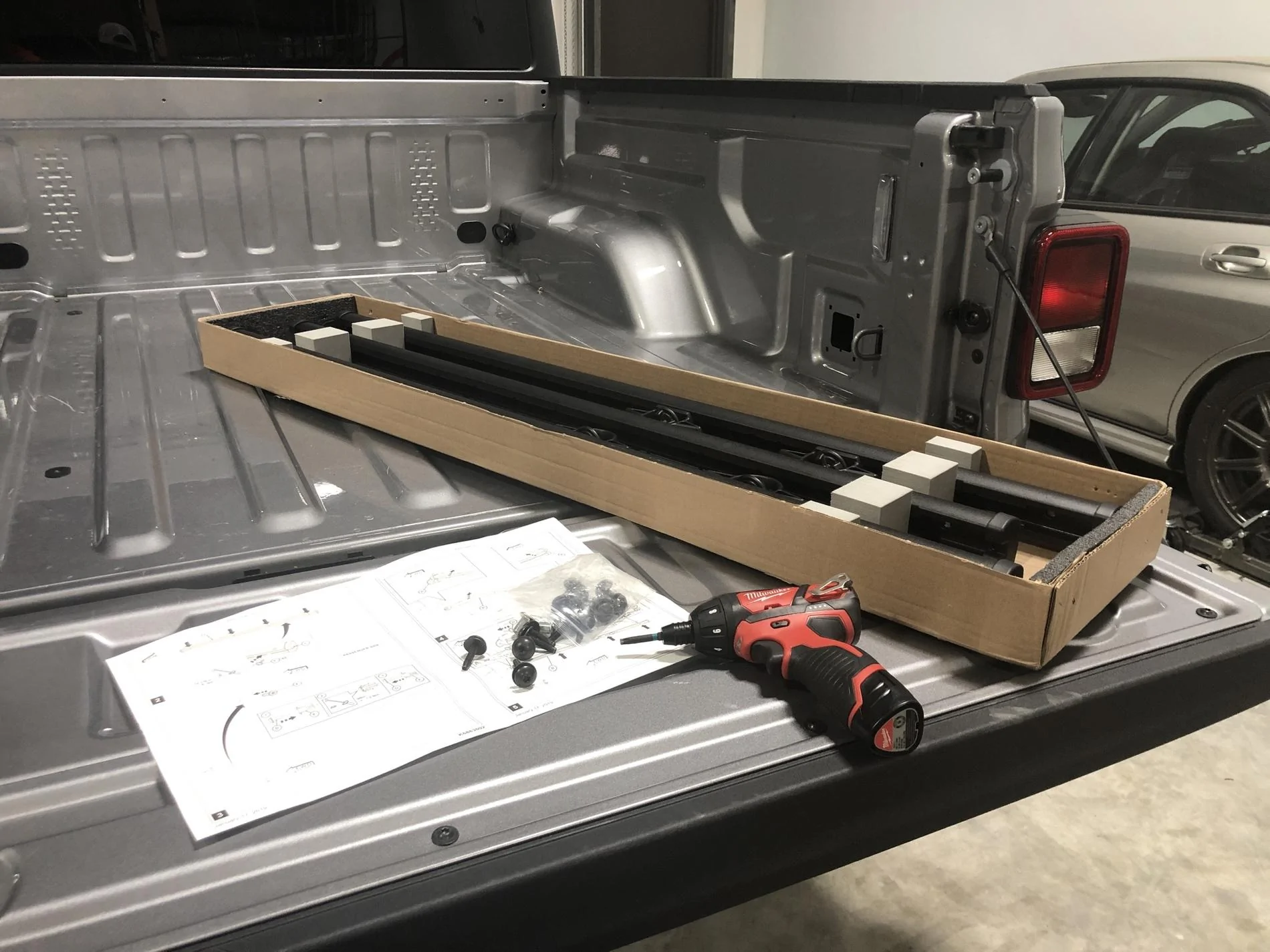

    Initial impressions are that I always like receiving something that's packaged well and this fits the bill. No bells and whistles, but the pre-cut foam inserts did their job well. Removing one of the rails led to another surprise - these things are beefy! I was relieve to see this, as I'm hoping to mount my low-rise bed rack directly to the rail for reasons both obvious and not (I'll address that in a different post).

    1.) The first and only remotely complicated step in the installation is to install the nutsert that Mopar includes in the kit on each side. This fills the hexagonal cutout in the pillar at the rear of the bed, near the tailgate. I don't understand why they didn't just install a threaded insert from the factory like the other holes, but whatever.


    The nutsert that they include is cleverly hexagonal as well and fits snuggly into the cutout in the truck.


    That's where the fun stops though - these things kinda suck. Instructions say to use one of the included fasteners to install the nutsert. Basically, you tighten it down, it bunches up the sleeve and locks the nutsert into place (see illustration above). That's great, if the nutsert doesn't just deform and spin inside of it's hexagonal cutout, which is what both sides did on my truck. Womp womp. Now the nutsert is stuck in place but also spinning and useless.

    It's possible that this could be avoided by using a washer or two between the bolt and the nutsert, to reduce the friction between them. If this had crossed my mind before I did both using my method, I'd have tried it. Hopefully I'm missing something basic here and one of you can provide an easier solution!

    Luckily, I've had some experience with these things and know that they don't need to somehow lock into the panel to work. In fact, most are round. The idea is to keep the insert from spinning and 'pull' the threaded portion back out towards you, sandwiching the panel. We can accomplish this with a nut, bolt and washer in the configuration below. This is M6x1.0 hardware as noted in the tools section.


    2.) With the bolt threaded all the way into the insert, we push the insert into place (or install in place, if you get stuck like me). Next, use a socket to hold the end of the bolt and keep it and the insert from spinning in place. Then, tighten the nut against the insert and keep going, making sure to keep the flange of the nutsert flat against the panel. This should require firm force, but nothing near your body weight. as you tighten the nut down, the bolt will be pulled towards you, along with the threaded portion of the insert. This creates the sandwich we need to lock it into place. When the effort required increased, I called it good.



    3.) With that, we can proceed with the rest of the very simple installation. Each rail has four T30 torx fasteners and the instructions call for a Torque in the neighborhood of 10NM. This is pretty important, as they rails are meant to hold a pretty decent weight. Under torquing can mean that the rail isn't transferring the load into the bedside wall as intended. Too much torque (very easy to do) and you might over-stretch the fastener, causing or initiating early failure. Anyway, if you have a torque wrench, use it. if not, use this as an excuse to buy one.









    Piece of cake!

    Matt

    Godfadr, JohnManc, Lynn_F and 10 others like this.
  2. misplacetexan

    misplacetexan Member

    First Name:
    Xavier
    Vehicle(s):
    2020 Jeep Gladiator Billet Silver Sport S/Max Tow Package
    Joined:
    Jul 21, 2019
    Location:
    Baytown, Texas
    Posts:
    22
    Liked:
    22
    Occupation:
    Law enforcement
    Thanks for the write up, hints, and pictures. Just ordered my rail system this morning.

  3. bgenlvtex

    bgenlvtex Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2020 JTR
    Joined:
    Jun 8, 2019
    Location:
    Texas/Alaska
    Posts:
    704
    Liked:
    773
    Where did you order your rails from?

  4. misplacetexan

    misplacetexan Member

    First Name:
    Xavier
    Vehicle(s):
    2020 Jeep Gladiator Billet Silver Sport S/Max Tow Package
    Joined:
    Jul 21, 2019
    Location:
    Baytown, Texas
    Posts:
    22
    Liked:
    22
    Occupation:
    Law enforcement
    Ordered through dealership, Bayway Dodge, Jeep, in the Houston area. $322.04 including tax ($350 - 15%). Used 15% online dealership coupon.

  5. bgenlvtex

    bgenlvtex Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2020 JTR
    Joined:
    Jun 8, 2019
    Location:
    Texas/Alaska
    Posts:
    704
    Liked:
    773
    Thanks

  6. rvillano8188

    rvillano8188 Well-Known Member

    First Name:
    Rob
    Vehicle(s):
    2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
    Joined:
    May 20, 2019
    Location:
    Long Island, NY
    Posts:
    472
    Liked:
    478
    Occupation:
    Financial Services
    Did you end up getting a cargo management system also(under seat locking storage). Trying to figure out if I should just order the trail rail system w/ cargo Mgmt for $1k on my build or add it over time.

  7. chrcal14

    chrcal14 Well-Known Member

    Vehicle(s):
    2020 JT Rubicon
    Joined:
    Nov 15, 2018
    Location:
    Western PA
    Posts:
    634
    Liked:
    815
    Thank you for this... I didn't order the trail rail as I didn't want the under seat box, since without it you get the divider wall thingy and the seat works as a lid, leaving more open space for storage, and maybe room for a dual ARB Compressor in the future.

    But I'd have liked the actual trail rails. :like:

  8. LongTimeListener

    LongTimeListener Well-Known Member

    Vehicle(s):
    JTR
    Joined:
    Jul 8, 2019
    Location:
    Arizona
    Posts:
    364
    Liked:
    494
    Outstanding write-up. Jeep's fascination with nutzerts sucks. I"m not in the market for this because I plan to install a hard tonneau cover, but I can certainly see its usefulness.

    ohiobrad likes this.
  9. Phineus1941

    Phineus1941 Member

    First Name:
    Carmen
    Vehicle(s):
    2020 Jeep Gladiator
    Joined:
    Jul 25, 2019
    Location:
    St Marks Florida
    Posts:
    20
    Liked:
    3
    thanks for the write up...did you see the ridiculous price of the under seat storage box....$900, I think I will pass. But the rails seem like they would be useful

  10. misplacetexan

    misplacetexan Member

    First Name:
    Xavier
    Vehicle(s):
    2020 Jeep Gladiator Billet Silver Sport S/Max Tow Package
    Joined:
    Jul 21, 2019
    Location:
    Baytown, Texas
    Posts:
    22
    Liked:
    22
    Occupation:
    Law enforcement
    Thanks for the write up. Just installed my rail system yesterday. Took about three hours for installation. Most of time involved clearing the bed-liner out of threads and other places.

  11. Rubidozer

    Rubidozer Well-Known Member

    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Aug 1, 2019
    Location:
    North Carolina
    Posts:
    73
    Liked:
    41
    Nice. Looks exactly like my truck.
    Wow. Still getting used to saying TRUCK when mentioning my Jeep.

  12. Rubidozer

    Rubidozer Well-Known Member

    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Aug 1, 2019
    Location:
    North Carolina
    Posts:
    73
    Liked:
    41
    48F5C7BF-07A0-46C7-8B80-9F229F552040.jpeg That was irritating...
    Same problem with the nutserts.
    Here’s a pic of my bolt-nut-device using the bolt from the rail kit. Worked like a champ.

    JohnManc likes this.
  13. basicGlad

    basicGlad Well-Known Member

    First Name:
    GBP
    Vehicle(s):
    miata, vw bugg, subaru
    Joined:
    Jul 14, 2019
    Location:
    new england
    Posts:
    196
    Liked:
    101
    do you think this could be installed after an aftermarket line-x bed liner instilation?

  14. misplacetexan

    misplacetexan Member

    First Name:
    Xavier
    Vehicle(s):
    2020 Jeep Gladiator Billet Silver Sport S/Max Tow Package
    Joined:
    Jul 21, 2019
    Location:
    Baytown, Texas
    Posts:
    22
    Liked:
    22
    Occupation:
    Law enforcement
    My Gladiator had the factory bed liner installed. Pretty sure Line X will cover the threaded holes if you ask.

  15. Rubidozer

    Rubidozer Well-Known Member

    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Aug 1, 2019
    Location:
    North Carolina
    Posts:
    73
    Liked:
    41
    Yes. I installed my rail kit after my Line-x was applied.
