Motobilt Crusher install

[paclives777]

I bought a motobilt crusher stubby. Came with a box of various bolts nuts etc. I can’t find any install directions anywhere. Someone assist me with what is what with all the hardware?

Sponsored



[j.o.y.ride]

I got that one. Whats the question? Also you will likely have to drill out some of the mount holes on the Jeep side. Common.

You will have 8 nuts that go on the pre-installed bolts. You will have 2 flag nuts that go on the lower horn with 2 bolts where you can't access the nut side too well.



[paclives777]

Not sure what all the hardware is/where it goes etc. no instructions were supplied. Not keen on drilling hoes in a 50k vehicle either

I got that one. Whats the question? Also you will likely have to drill out some of the mount holes on the Jeep side. Common.



[j.o.y.ride]

Not sure what all the hardware is/where it goes etc. no instructions were supplied. Not keen on drilling hoes in a 50k vehicle either

You may not need to drill, but it's pretty common to need to. It's not making any new holes, it's making existing holes a little larger.

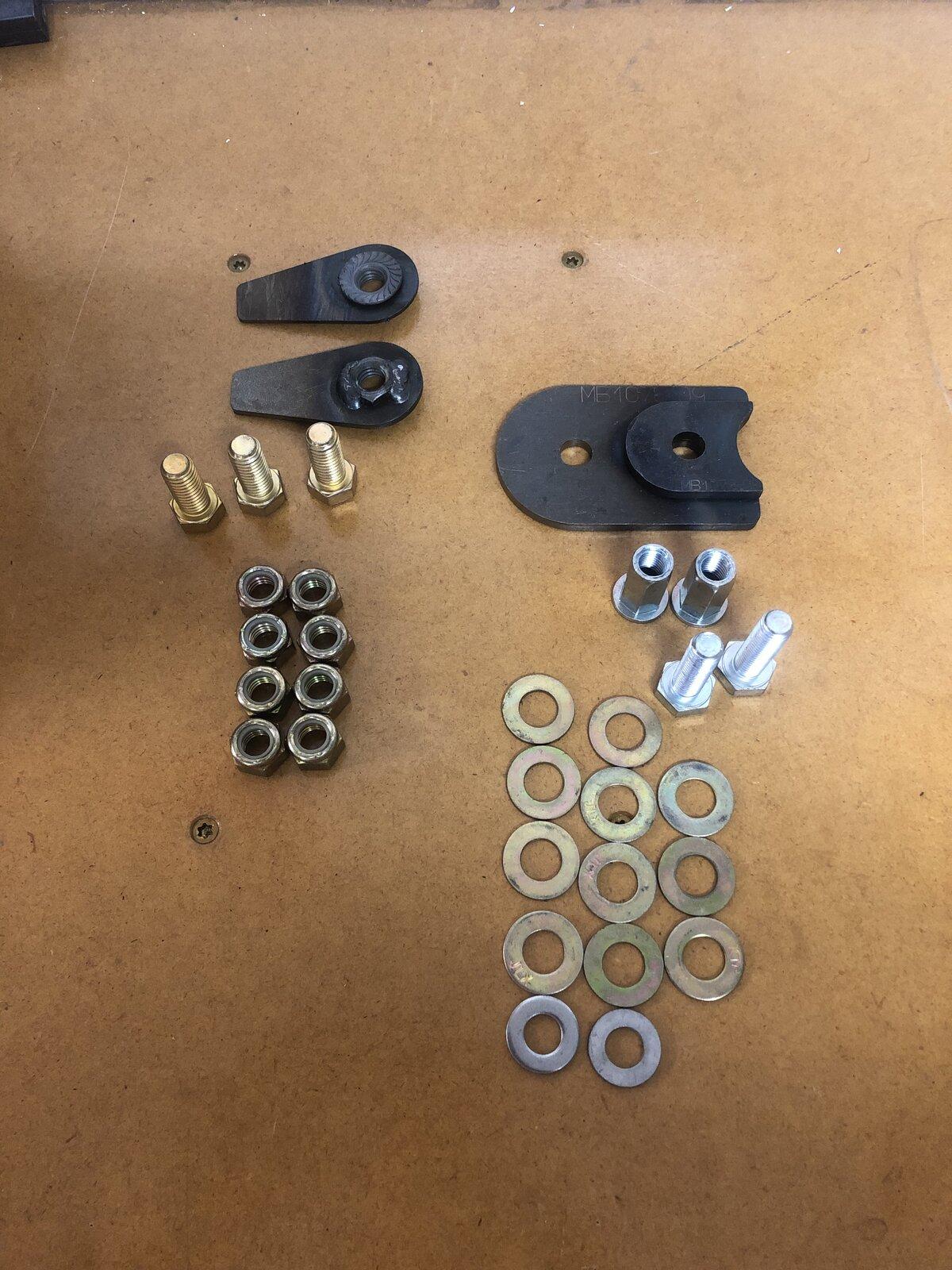

See my edited post of the hardware.



[paclives777]

You may not need to drill, but it's pretty common to need to. It's not making any new holes, it's making existing holes a little larger.

See my edited post of the hardware.

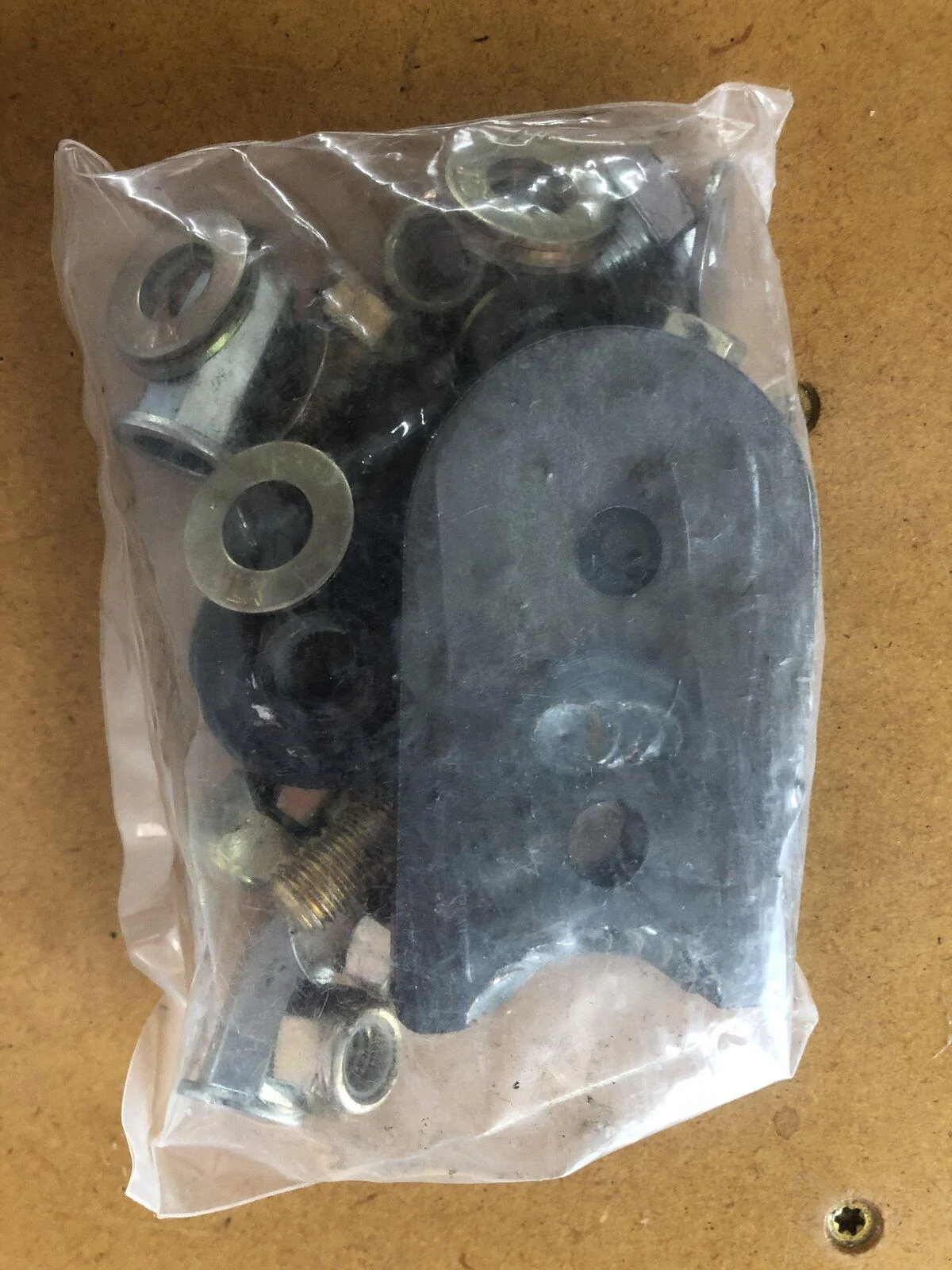

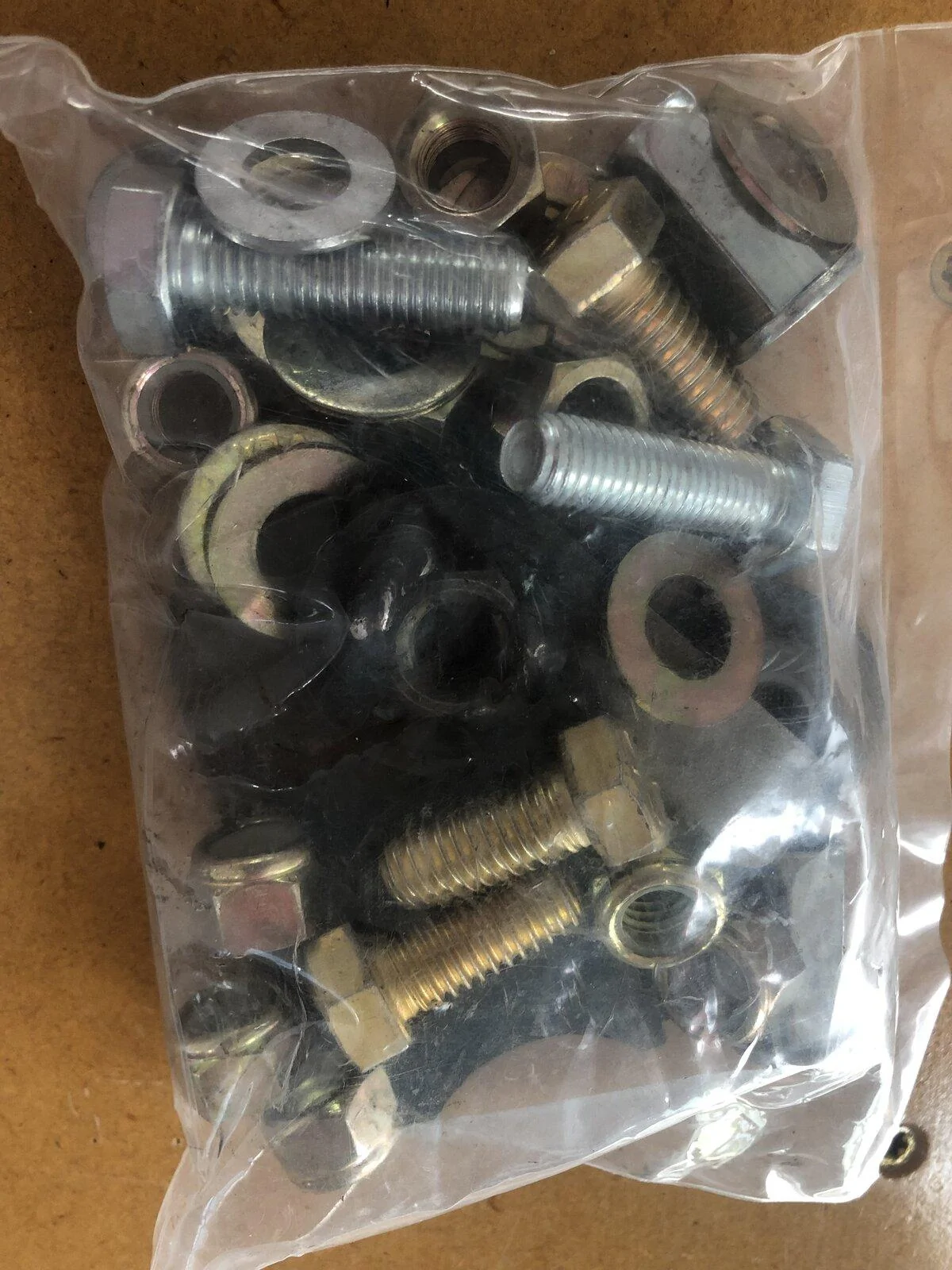

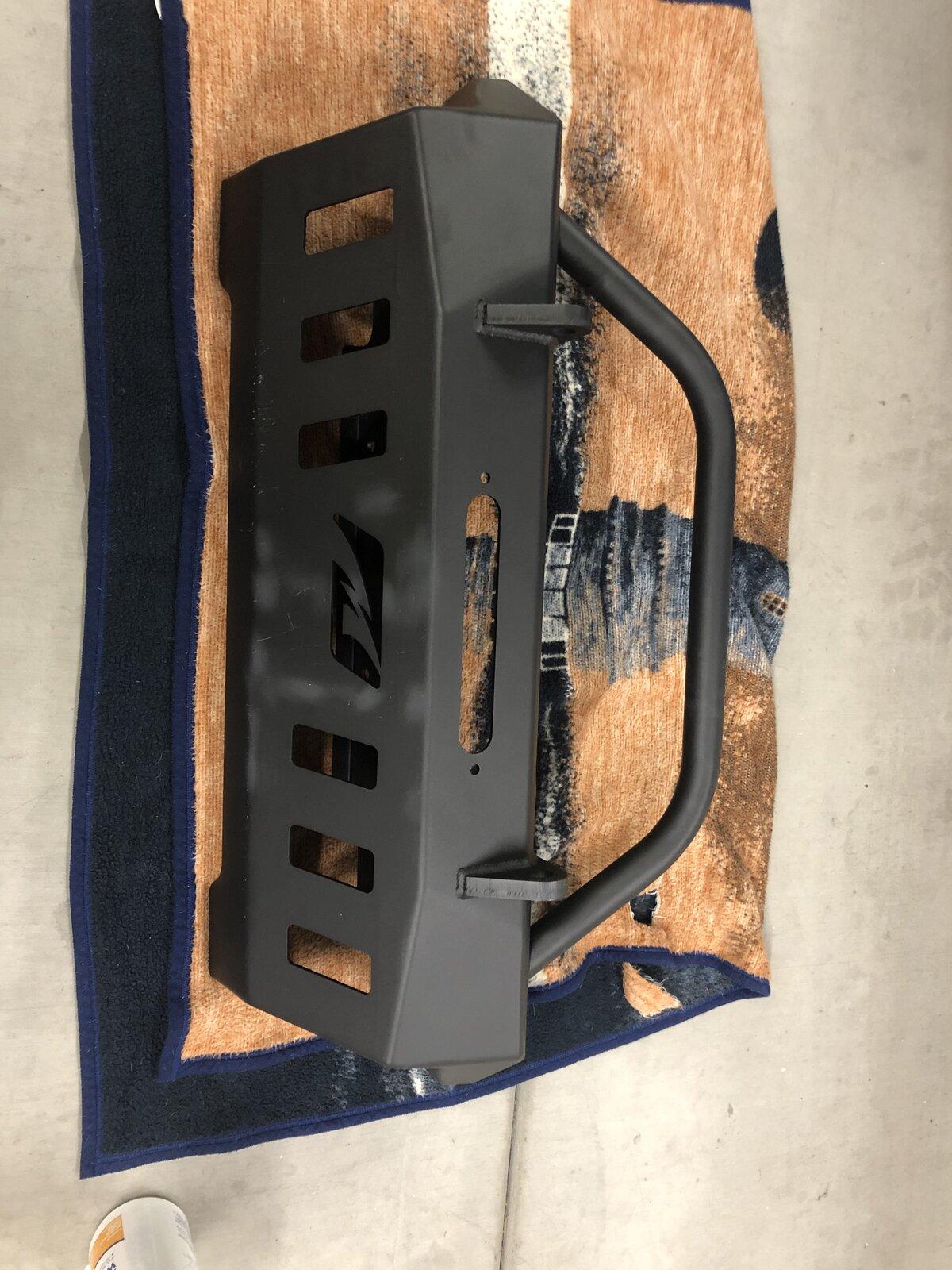

Looks to me like the dumb ass powder coated coated the winch plate to the bumper also. See pics for hardware. I big flat plate in there. Bunch if various other stuff



[j.o.y.ride]

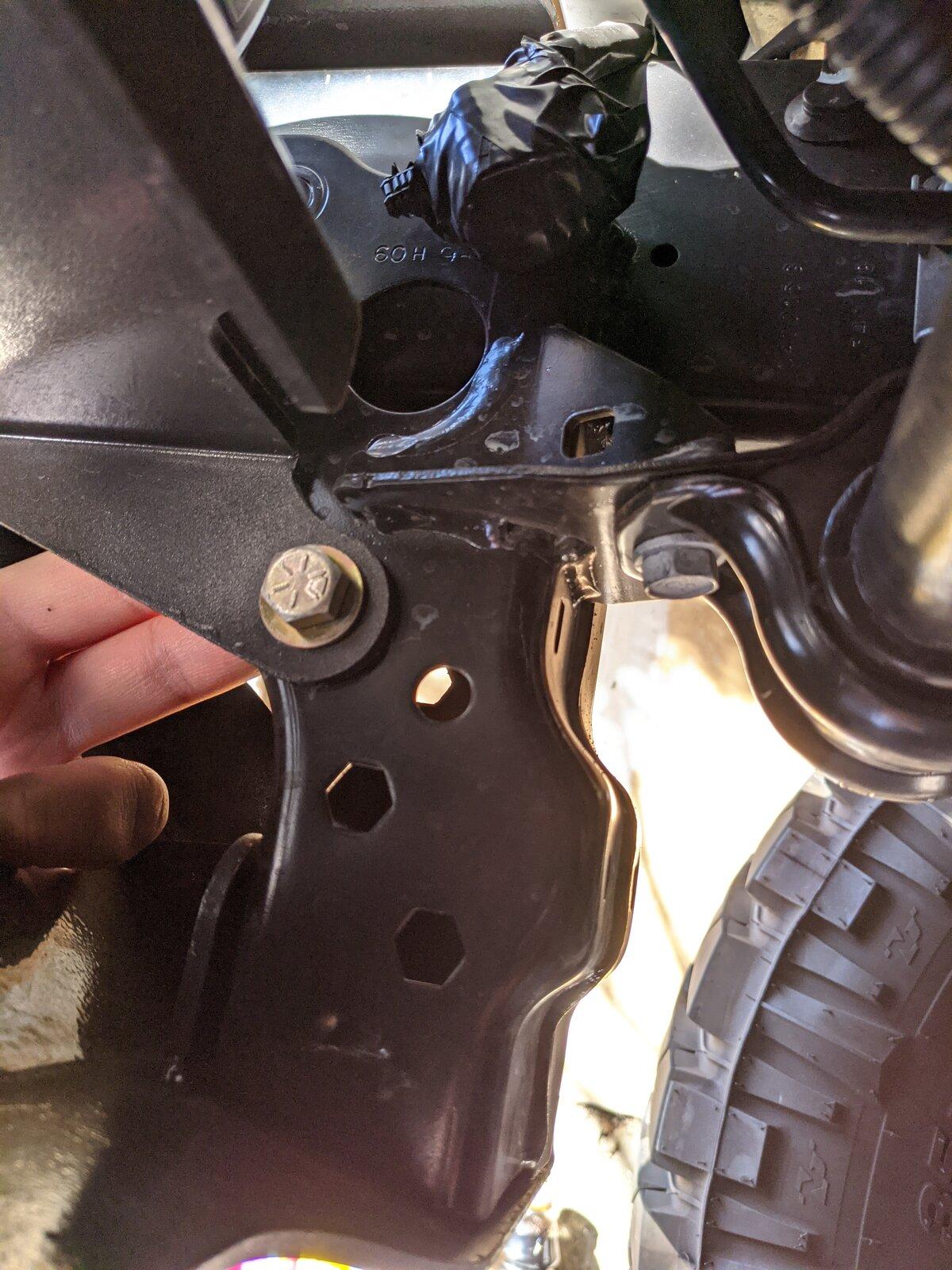

This is where the flag nuts go



[j.o.y.ride]

Take out 8 nuts, put on the 8 bolts

Take out two gold bolts, 2 gold washers, and the 2 big flat flag nuts. Those go where I showed

Then layout whatever is left and lemme see



[paclives777]

That’s everything



[j.o.y.ride]

That’s everything

8 washers, 8 nuts go on 8 posts from bumper.

2 flag nuts, 2 gold bolts, 2 washers go in pic above.

Leftover gold bolts, washer, and the big ass piece are the adaptors for various winch fairleads.

I don't recognize the silver screws but looks like winch mount hardware



[j.o.y.ride]

Looks to me like the dumb ass powder coated coated the winch plate to the bumper also. See pics for hardware. I big flat plate in there. Bunch if various other stuff

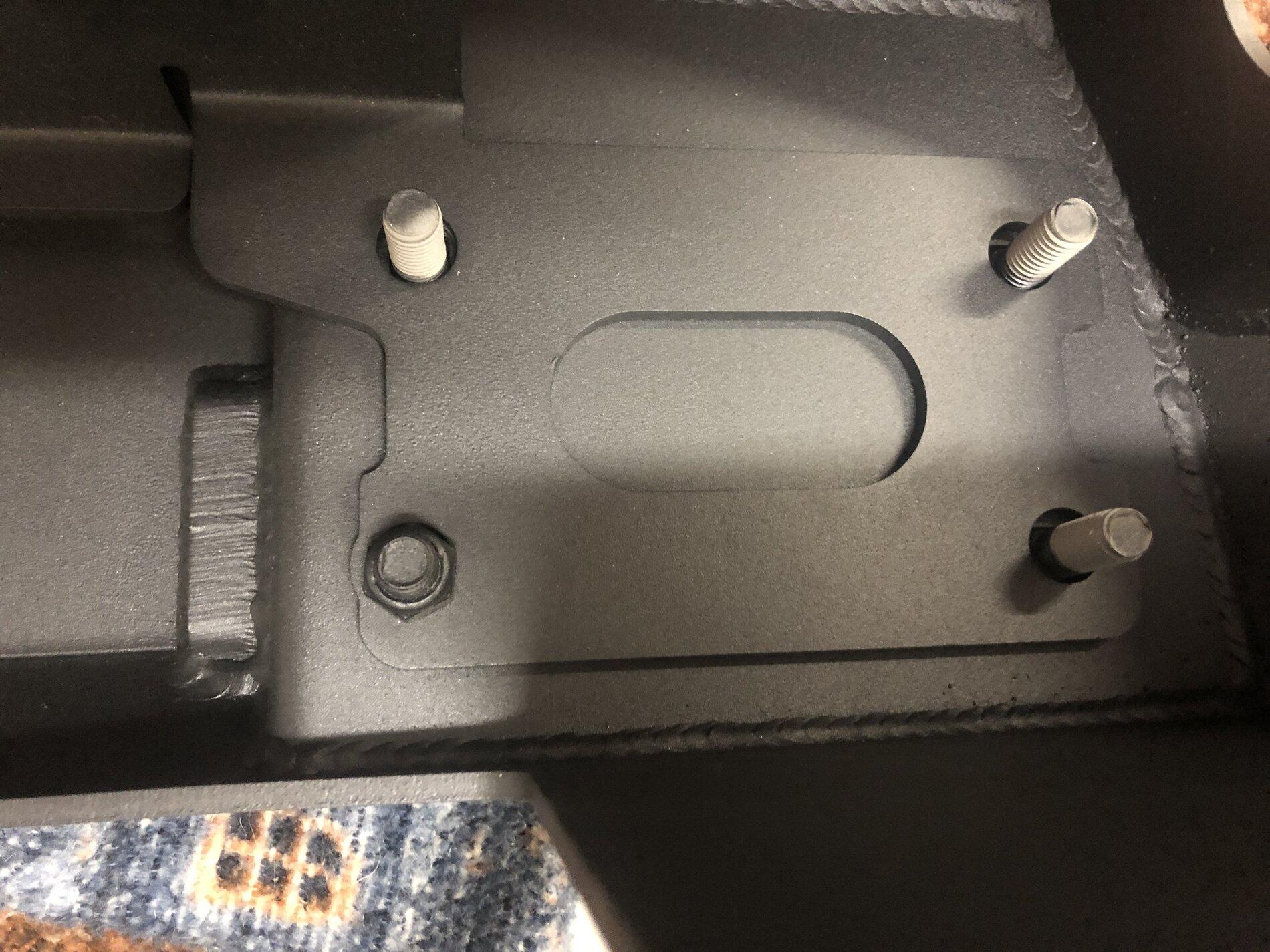

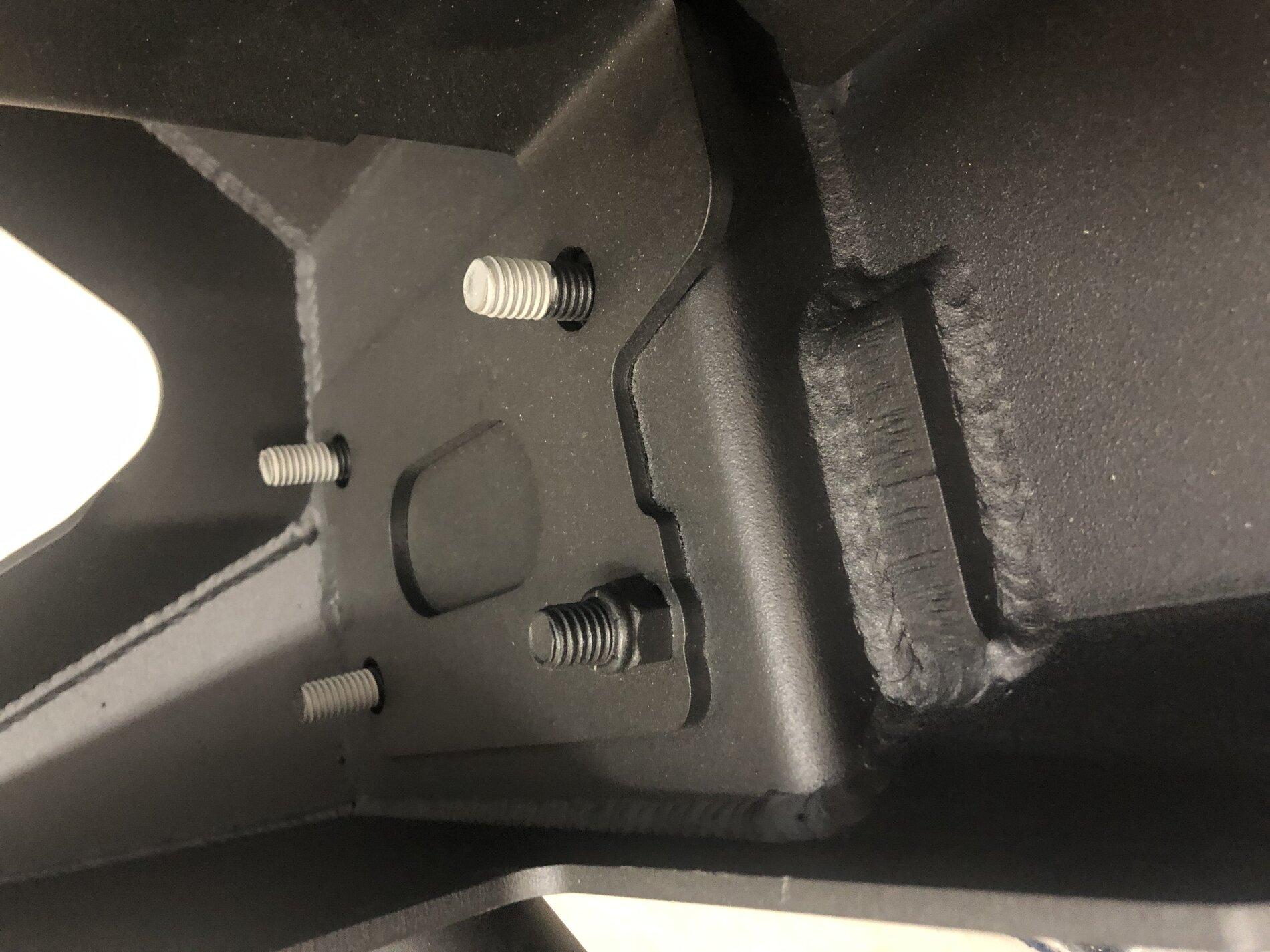

These bolts should not be there connecting the winch plate to the bumper. Take those off. It won't sit flush if those are there.

PM me if you need
