My $10.00 Tonneau cover lock

Rav34653

Well-Known Member
First Name
Al
Joined
May 17, 2019
Threads
6
Messages
98
Reaction score
89
Location
Spain
Vehicle(s)
Pinto
Vehicle Showcase
1

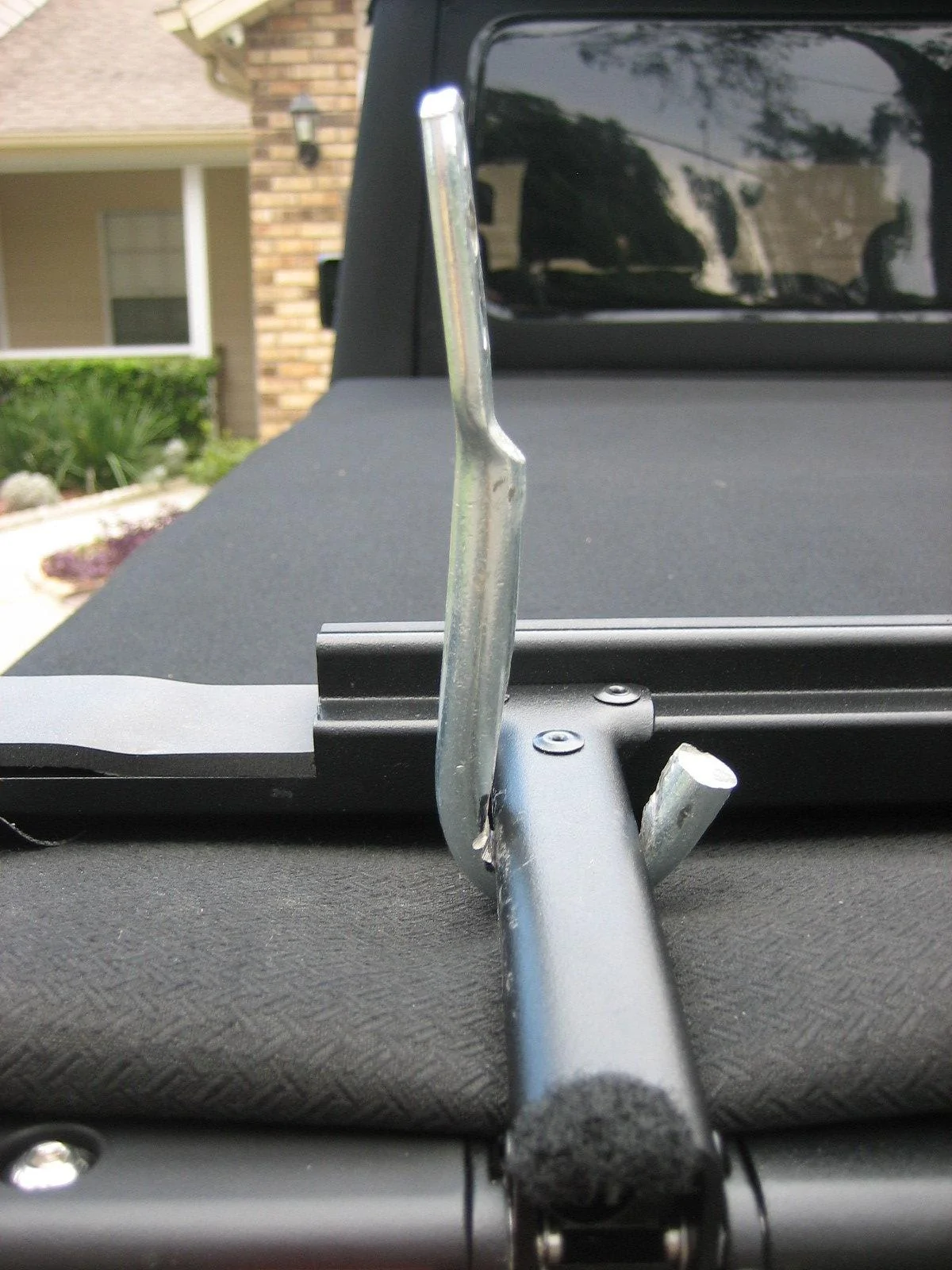

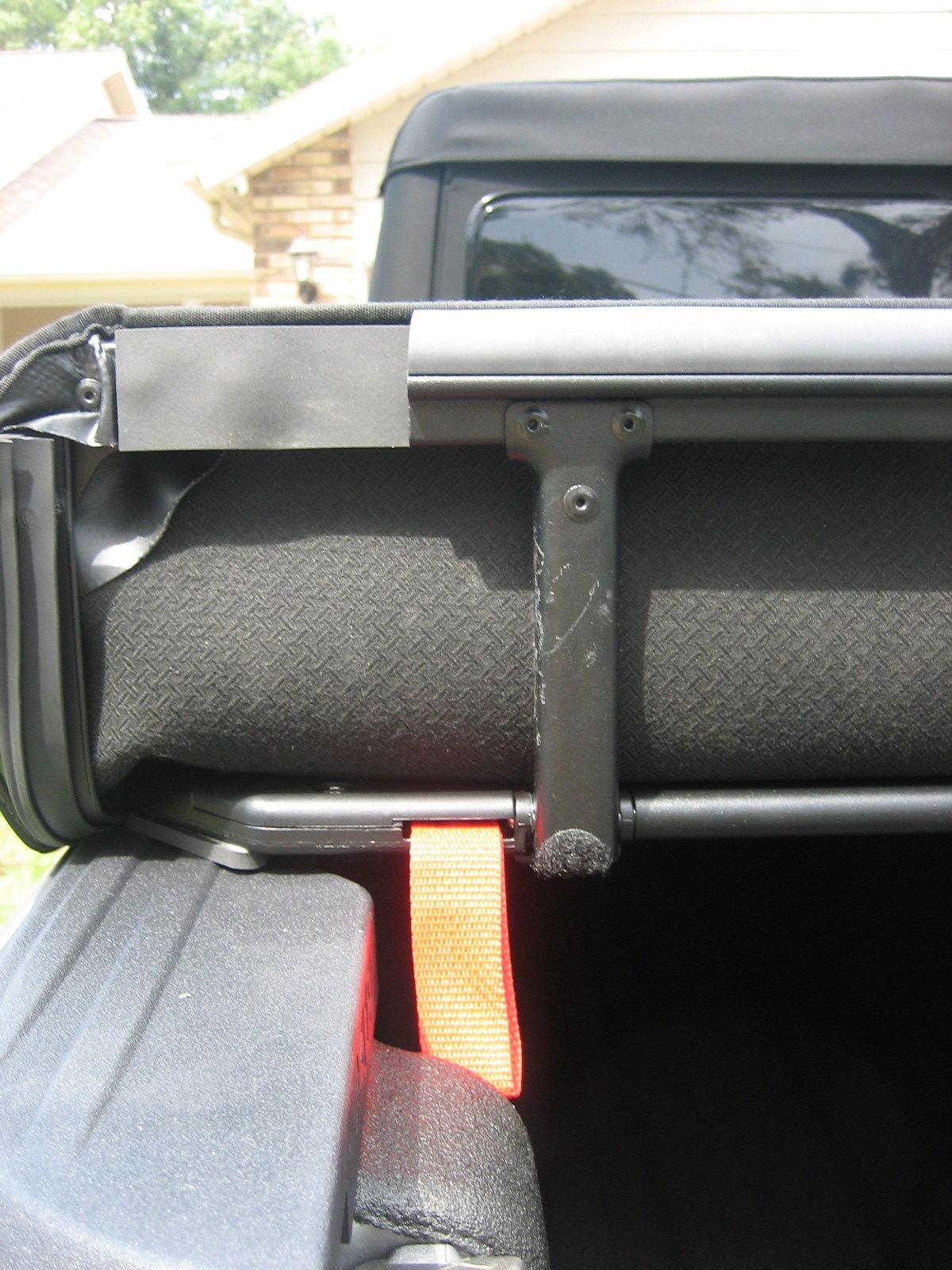

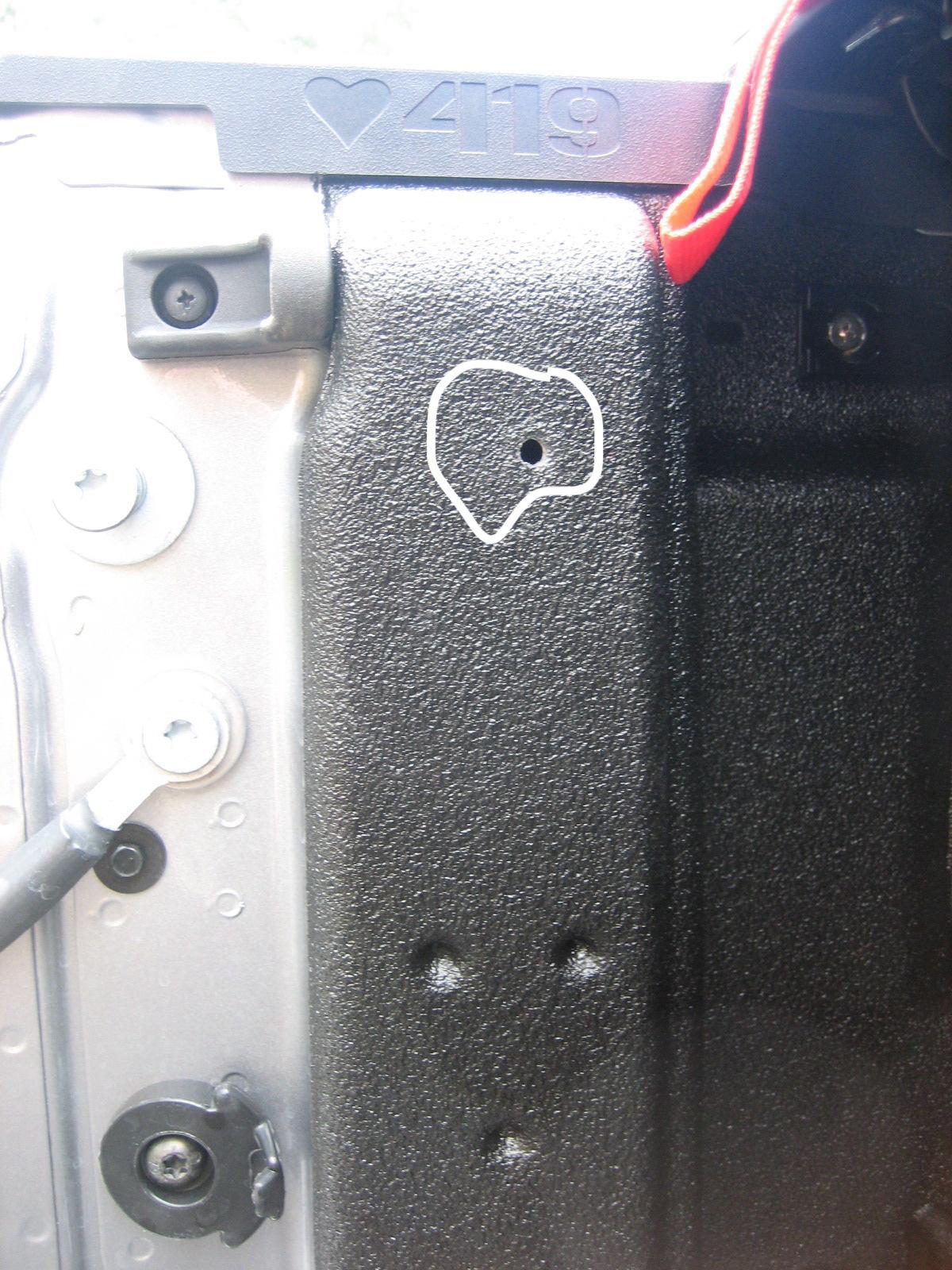

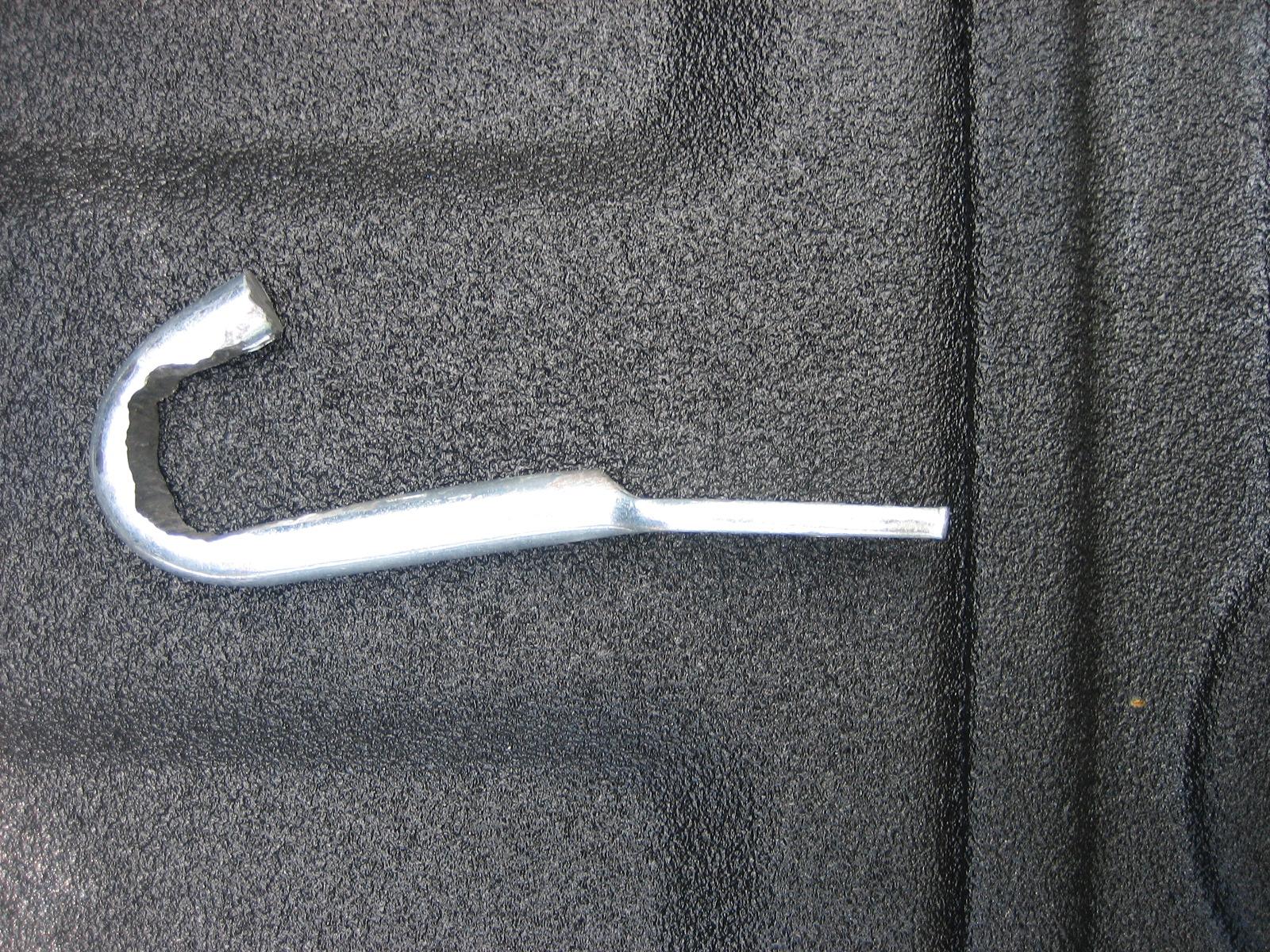

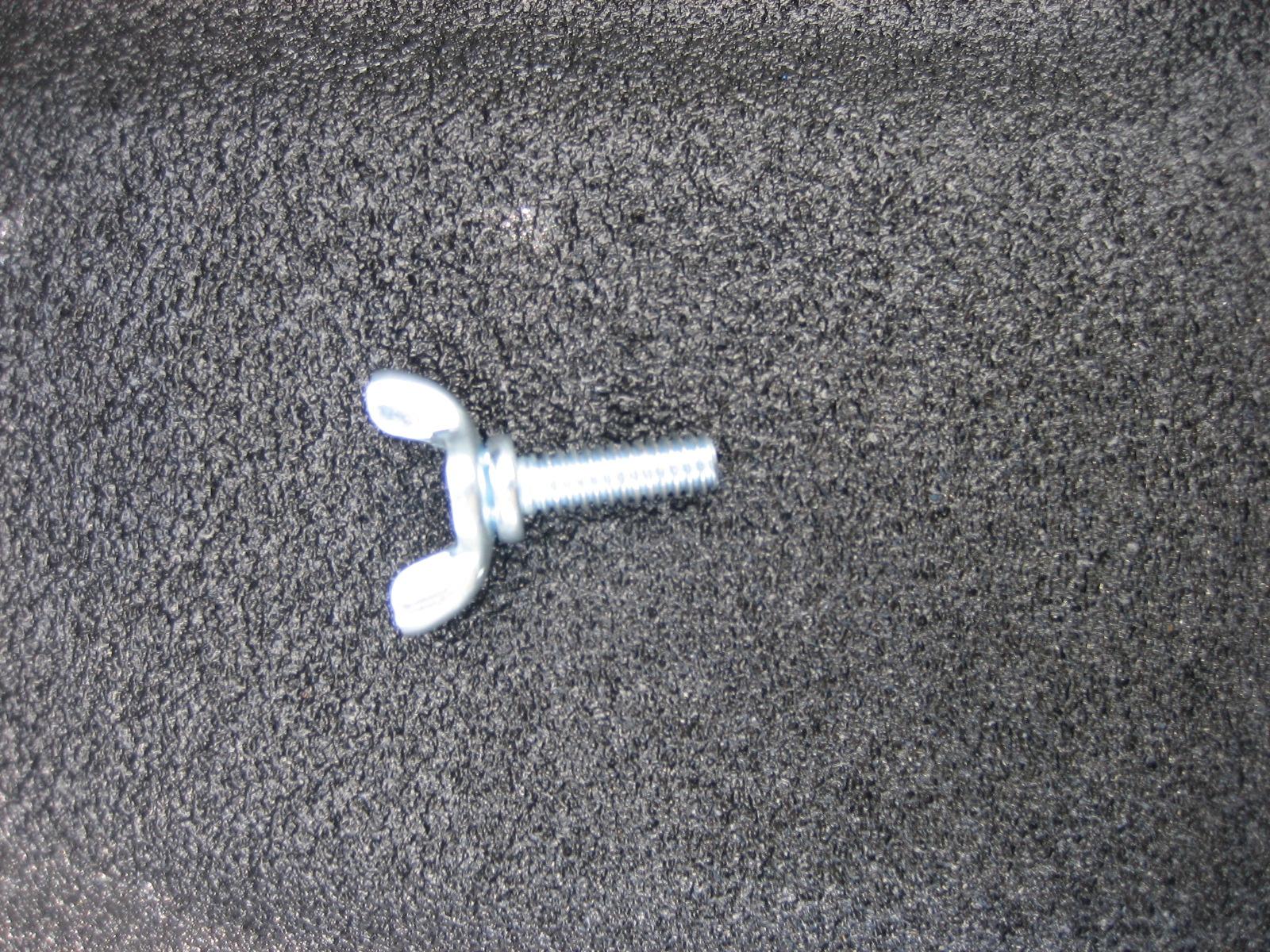

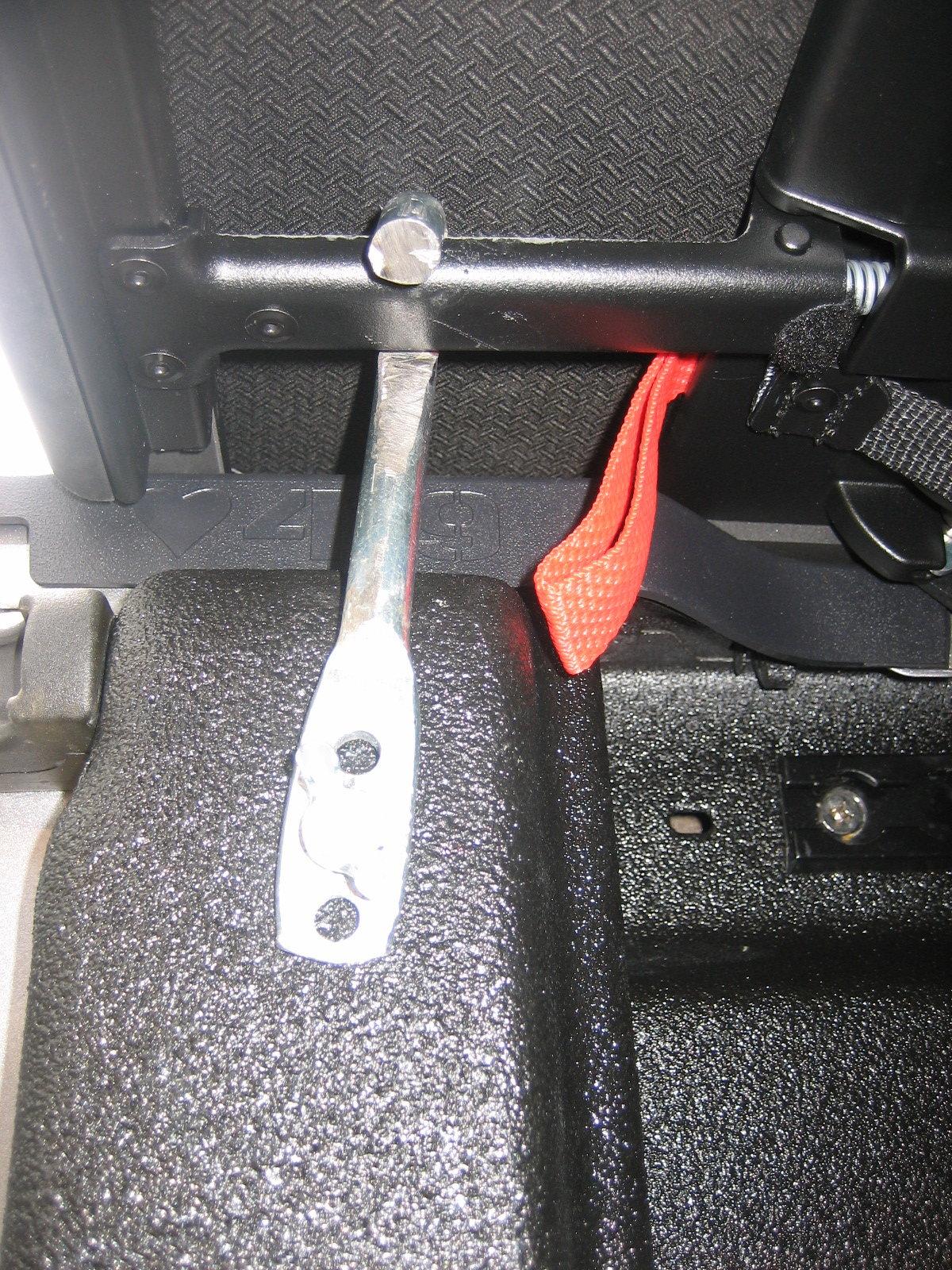

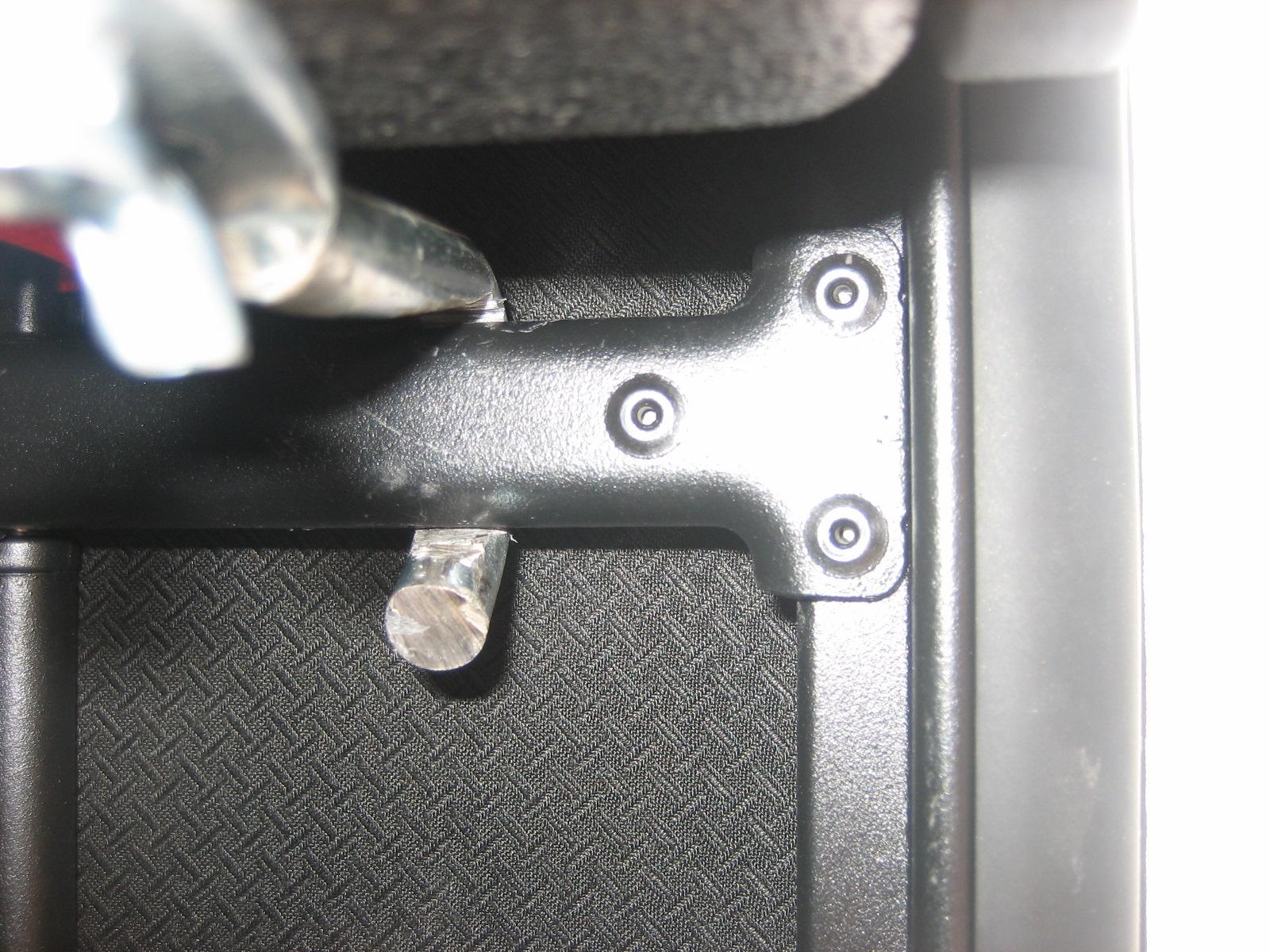

I taped a hole in the bed side rail with a 1/4-20 tap.( don't know what that hole is used for) I bought two 5 1/2 inch rope hooks and two 1/4-20 wing bolts form Home Depot. The hooks I bought had more of a V bend then a U bend I wanted so I did grind the inside of the hook to help fit the 1 inch wide bar on the Tonneau cover better. After placing the hook on the tonneau in the closed position the hole needs to marked and drilled in the hook in the exact location of the hole on the side rail, This may not be the easiest best way, but for the few times I may need to protect the contents in the bed it should work well for me















Sponsored


Last edited:

Hawkeyes3312

Well-Known Member
First Name
Derek
Joined
Jul 17, 2019
Threads
55
Messages
454
Reaction score
670
Location
Iowa City, Iowa
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
I like it... I went the route of the member with the bike straps. Your setup is more solid.
