Figured I'd start this to keep a record of my build. Some of you may remember my first build, which worked great and we used the heck out of it. I wanted to get a small enclosed trailer for something more secure, weatherproof, and to make it easier to load/unload (or eliminate that part of it, actually).

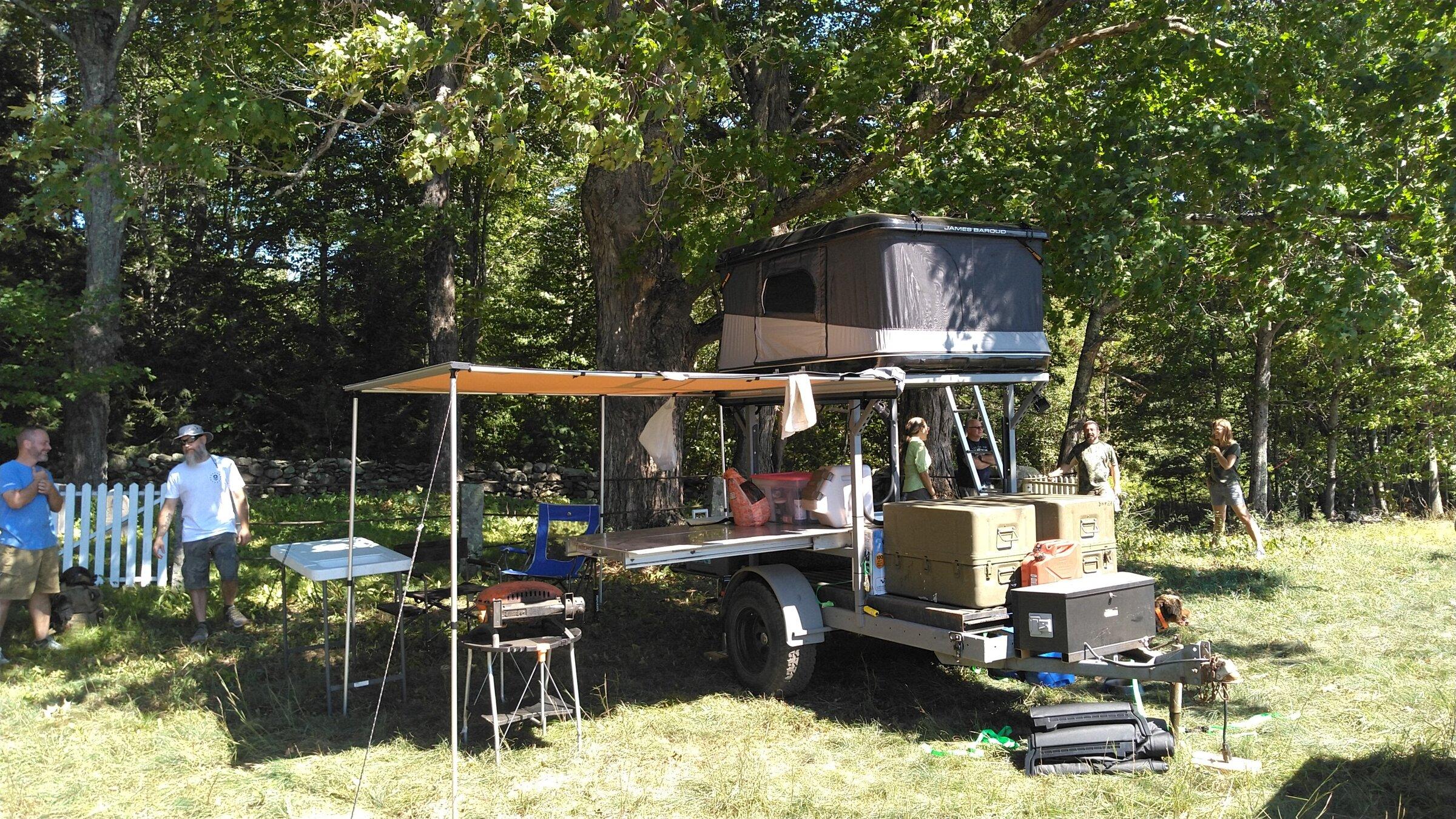

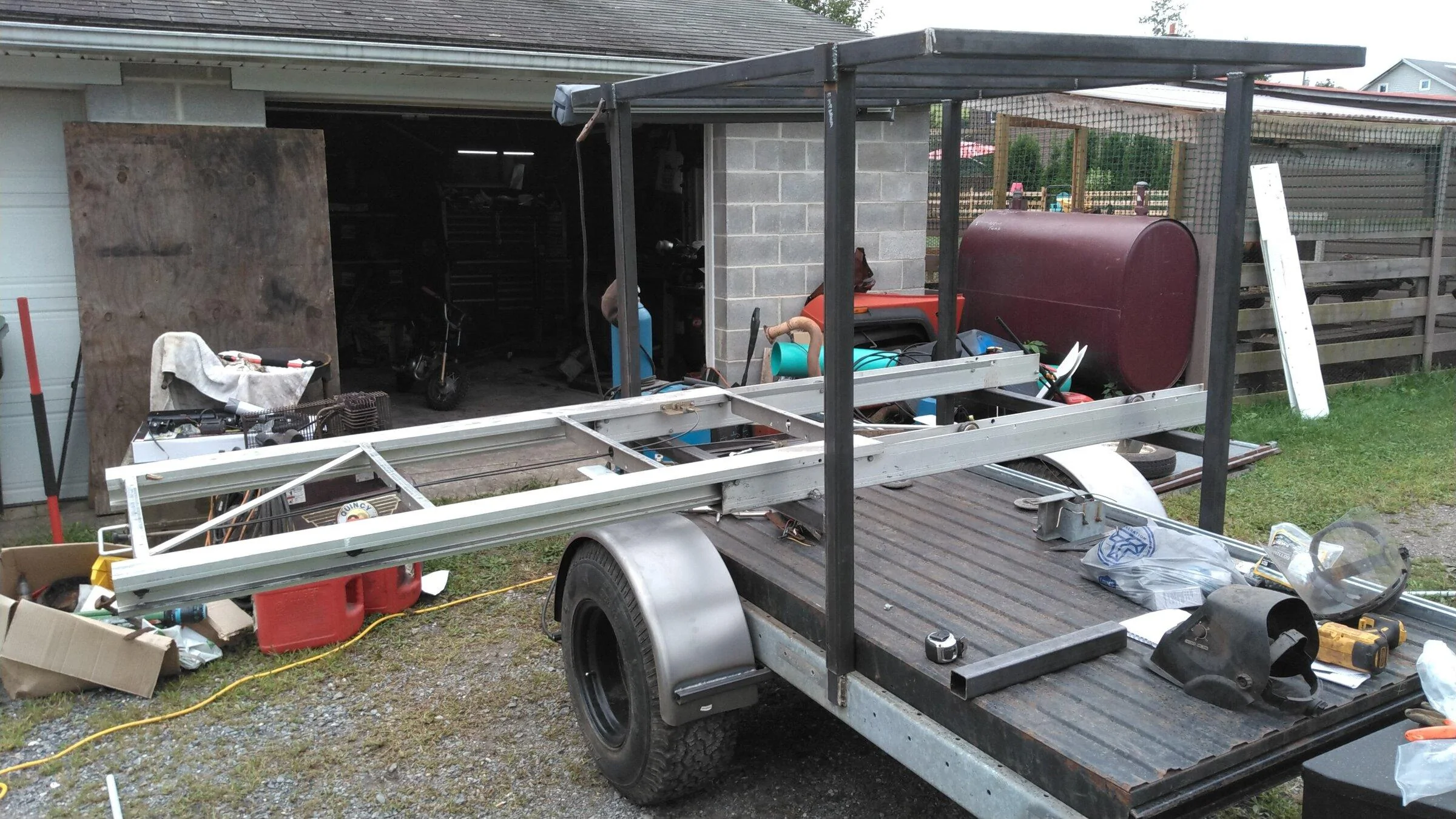

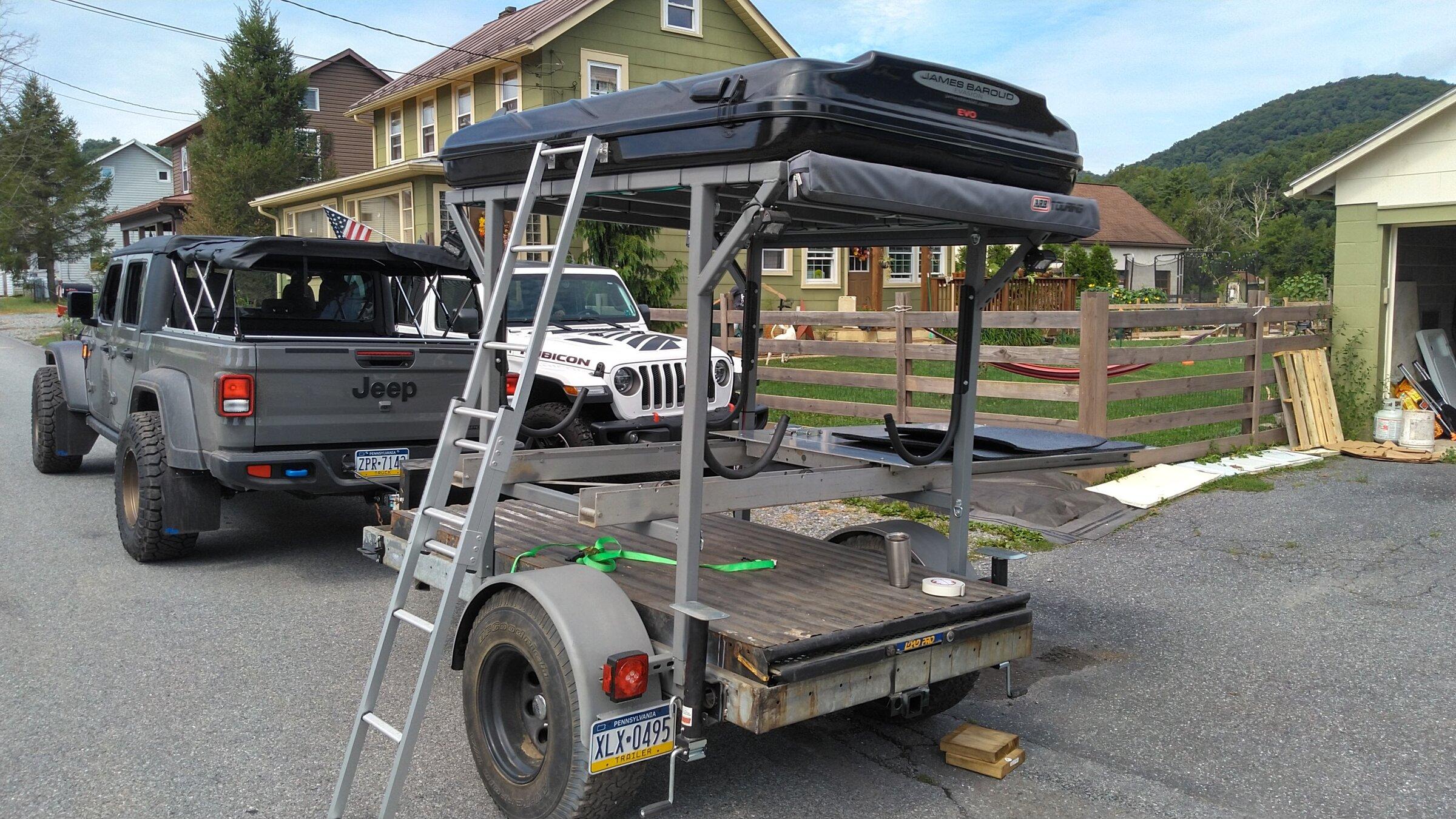

This is the first build. It worked good but it was a pain to unbox everything wherever we went.

Jeep Gladiator My DIY Overlanding & Camping Trailer KIMG1858.JPG


Jeep Gladiator My DIY Overlanding & Camping Trailer KIMG1822.JPG


Jeep Gladiator My DIY Overlanding & Camping Trailer KIMG1871.JPG




Sponsored


OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

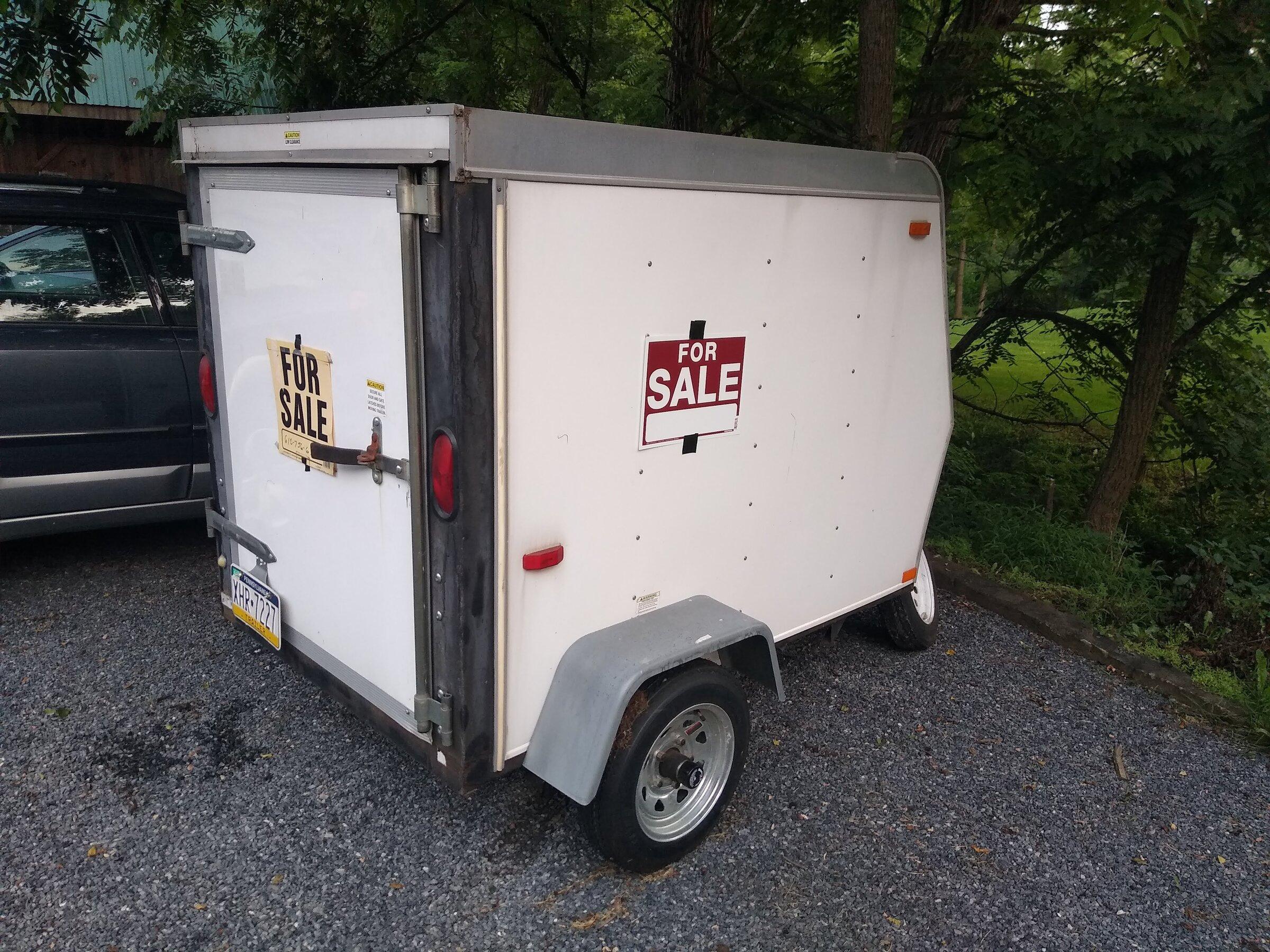

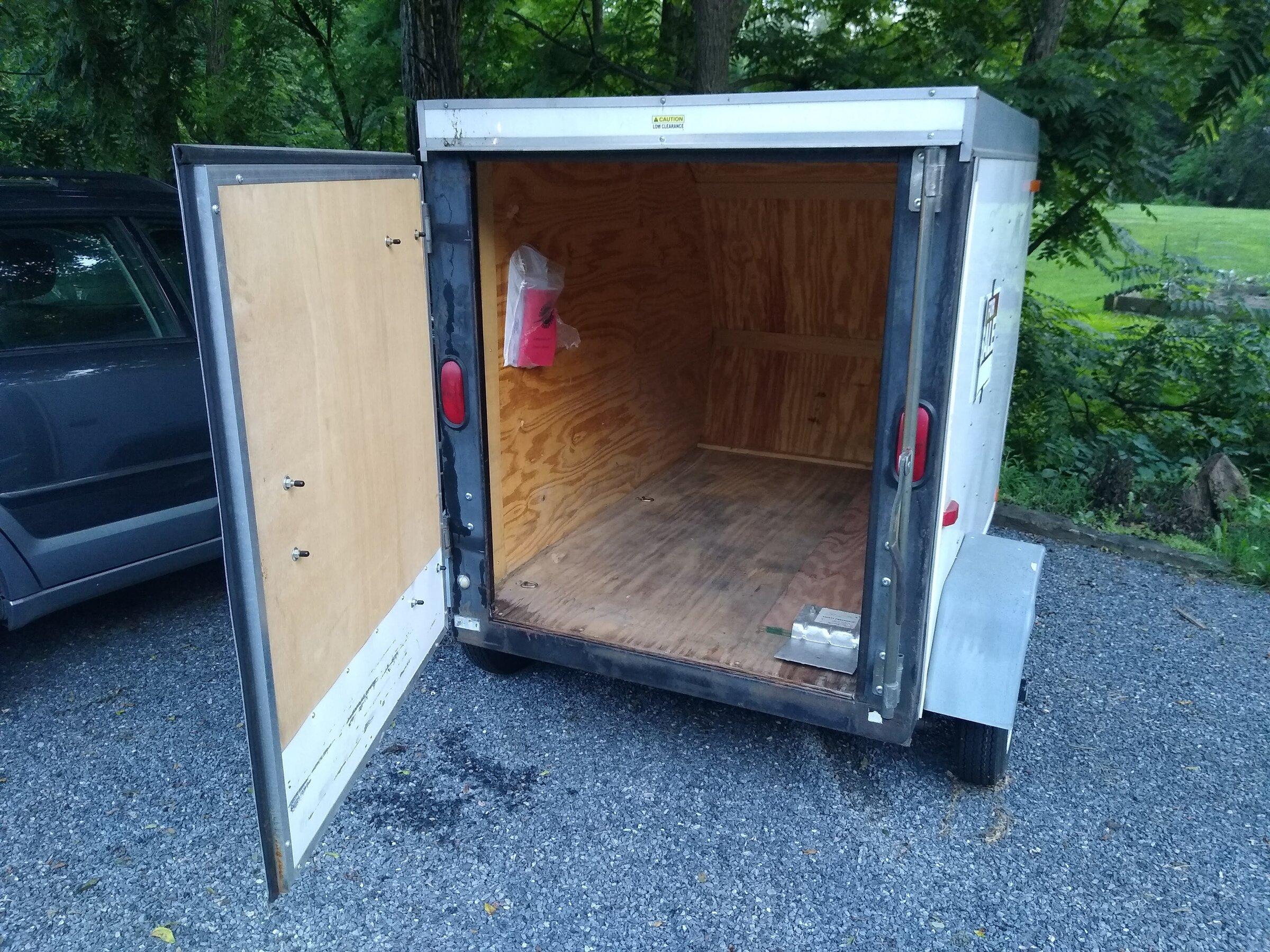

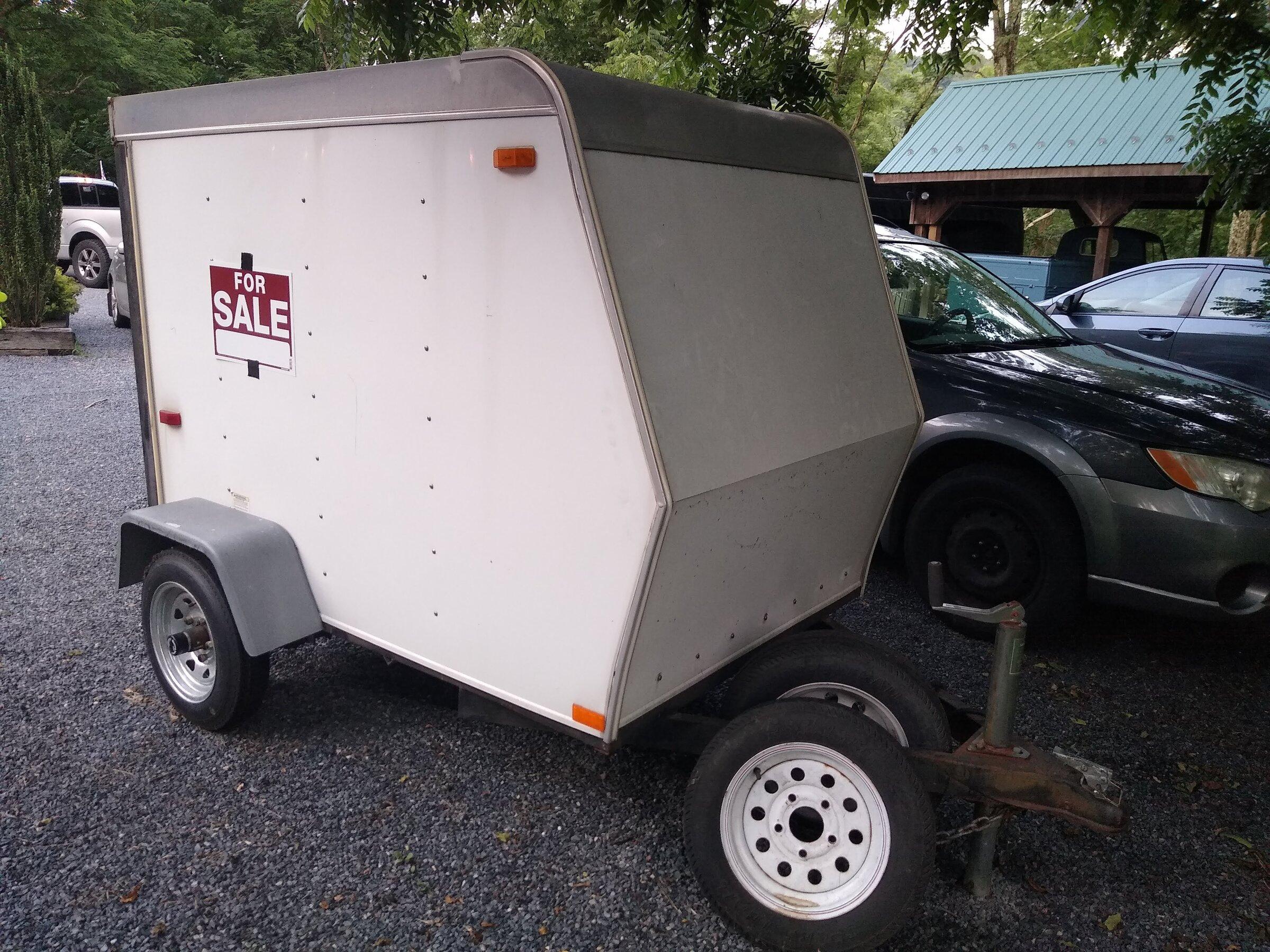

Then I found this 4x6 Homesteader trailer, and my brain started working... My plan was to keep weight down to a minimum, while still having everything we'd need for at least a week out in the mountains, or wherever we were headed. I knew I wanted solar with backup battery bank, water, shower/hot water, and an awning to keep us dry and/or shaded.






OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

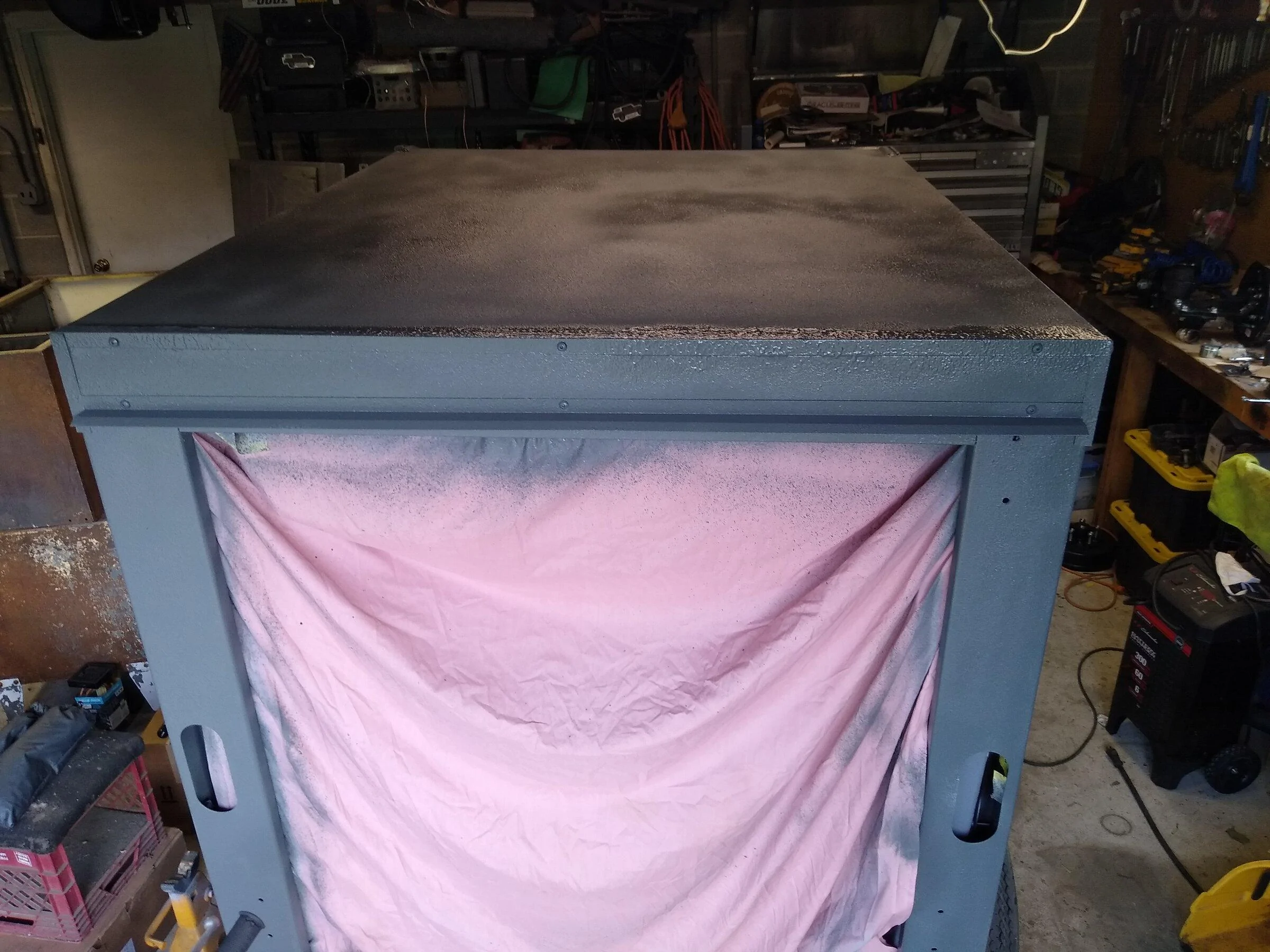

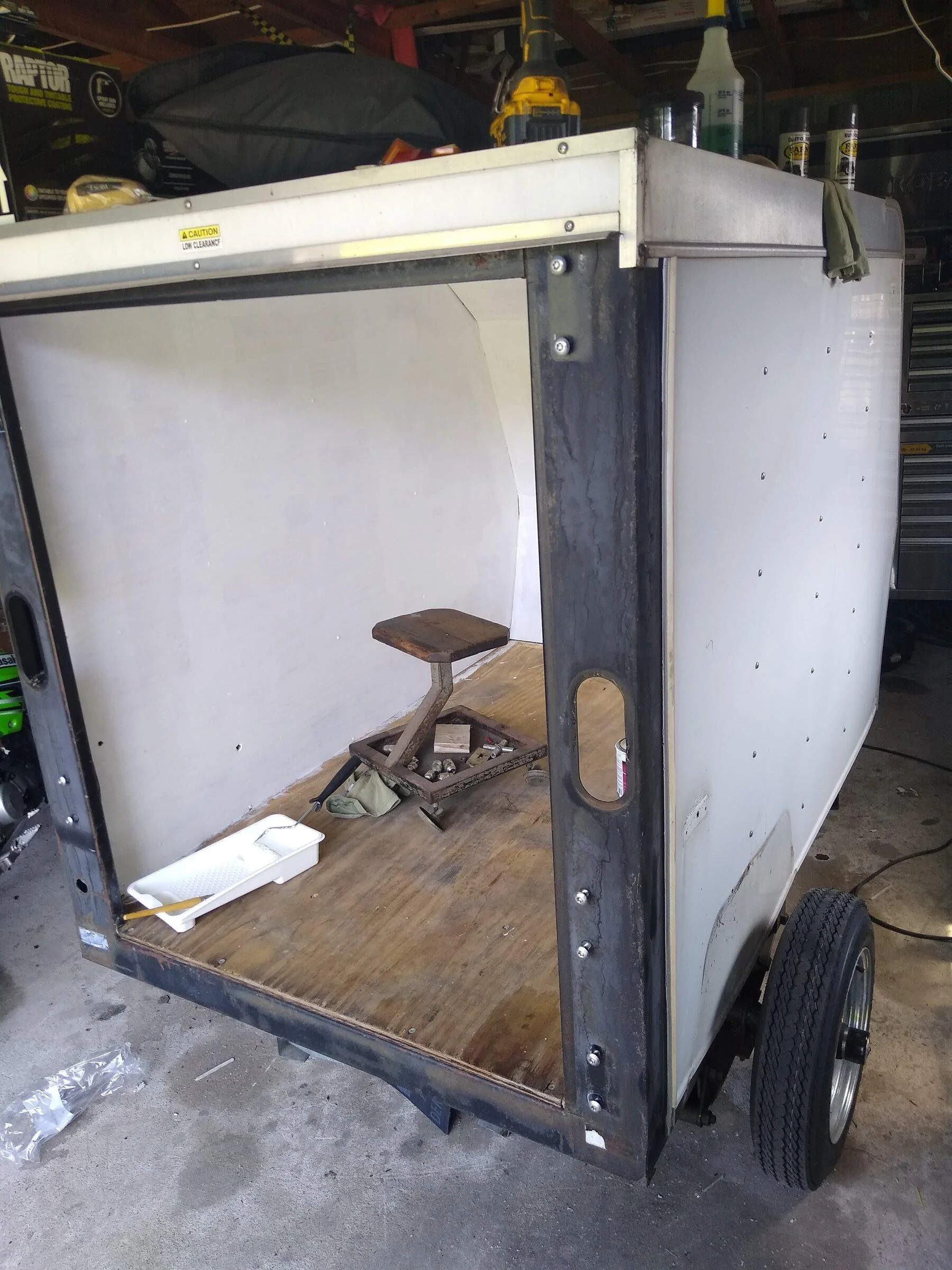

After some planning, I decided to spray it with "Raptor" liner. I got the tinted kit, because I wanted subdued that wasn't too flashy. I also primer the interior in white to help brighten it up.





The Crusader

Well-Known Member
First Name
Donald
Joined
Dec 19, 2020
Threads
8
Messages
378
Reaction score
531
Location
Texas
Vehicle(s)
Sting gray JTSD.
Occupation
Field Engineer
That looks like a good platform to start with. I'd upsize tires for ground clearance. If the rear deck isn't very solid, I'd weld on some skid plates. I'd put fold out window platforms on the side and mount a stove on one for a fold out stove. Mount a propane tank at the front of the trailer. A cart full of firewood or other heavy gear will roll out a back ramp easily. Use those interior walls and ceiling to mount stuff. Extra fire extinguisher. Solar panels and batteries. RTT and awning are no brainers. Concentrate on a low COG where possible.

OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1
That looks like a good platform to start with. I'd upsize tires for ground clearance. If the rear deck isn't very solid, I'd weld on some skid plates. I'd put fold out window platforms on the side and mount a stove on one for a fold out stove. Mount a propane tank at the front of the trailer. A cart full of firewood or other heavy gear will roll out a back ramp easily. Use those interior walls and ceiling to mount stuff. Extra fire extinguisher. Solar panels and batteries. RTT and awning are no brainers. Concentrate on a low COG where possible.
Thank you, all great ideas, and you're way ahead of me. Those pictures are from a few months ago, and it's come a long way since then. Stay tuned!


Sponsored

NC_Overland

Well-Known Member
First Name
John
Joined
Feb 21, 2020
Threads
17
Messages
1,680
Reaction score
1,910
Location
Raleigh, NC
Vehicle(s)
2020 JT Overland
Do you need to do any additional re-enforcement for a rooftop tent on a trailer like that?

OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

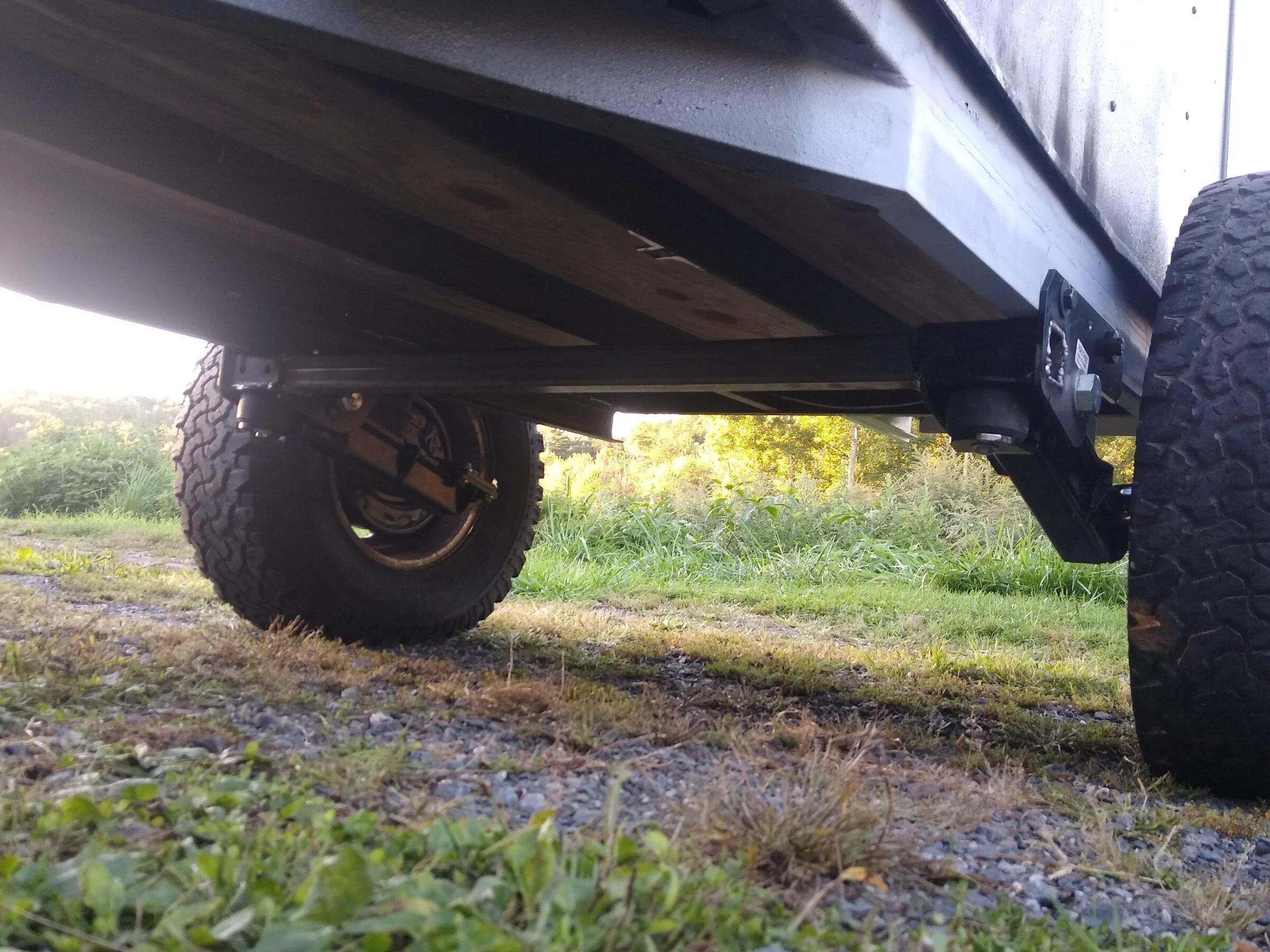

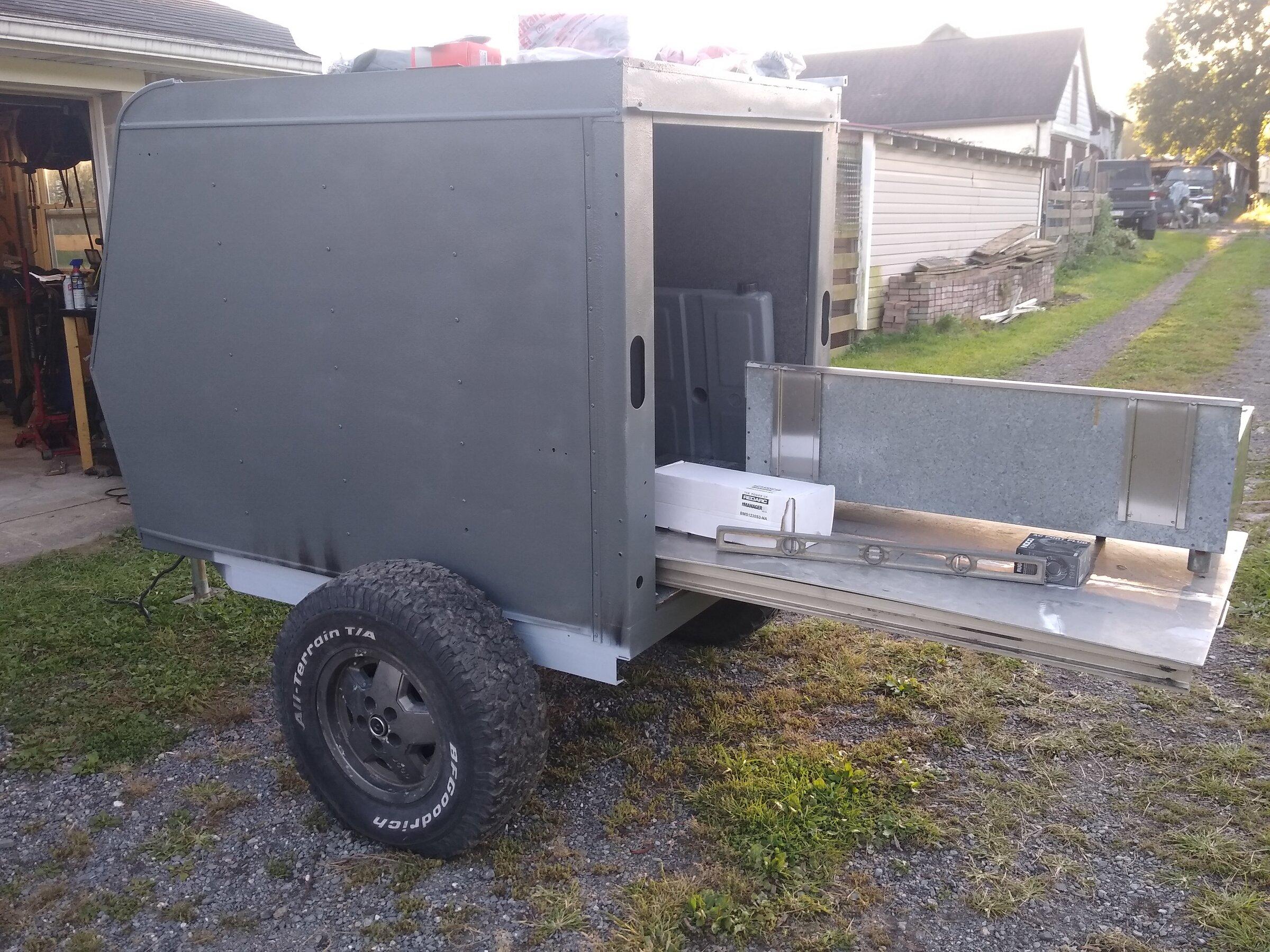

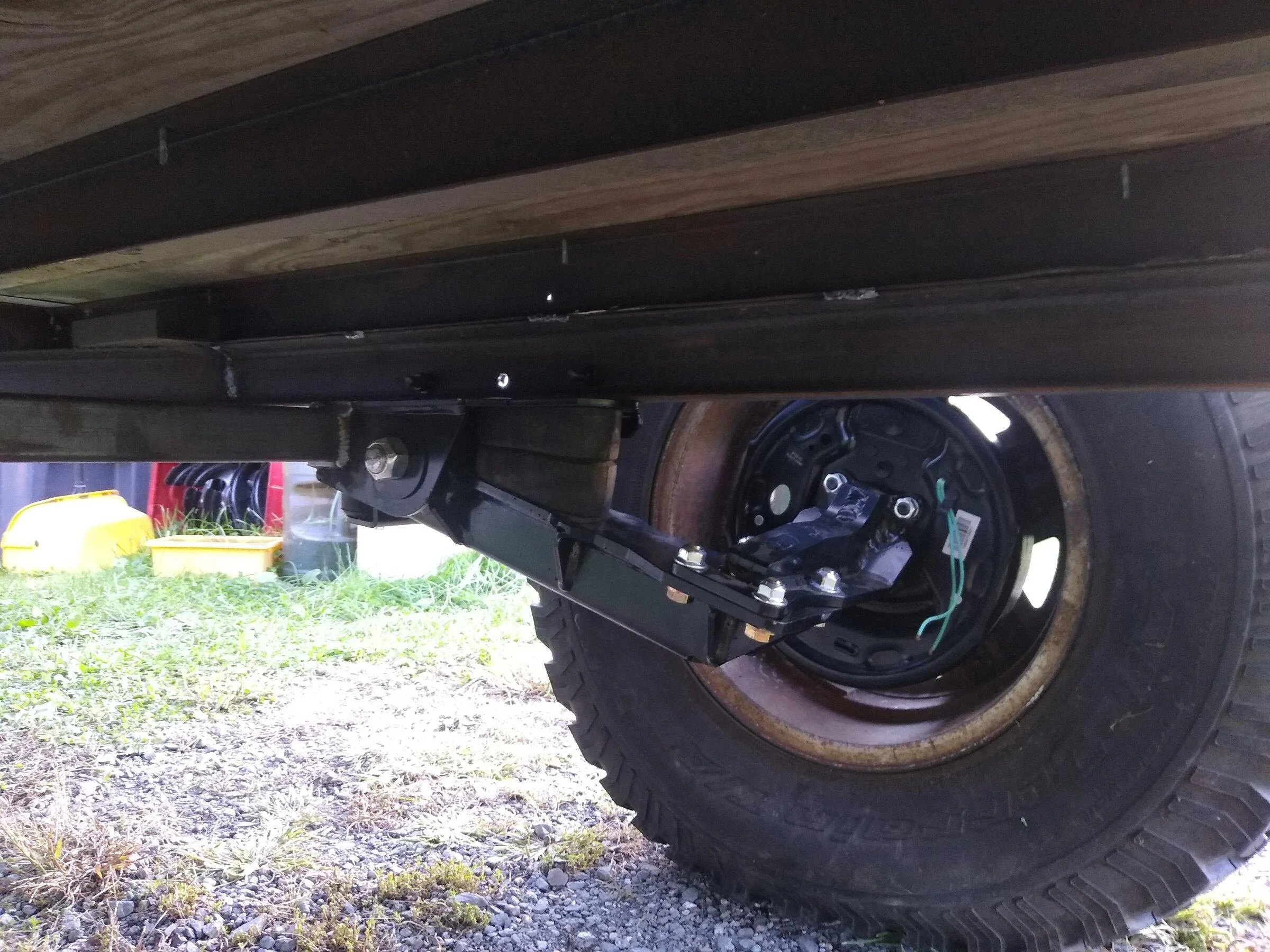

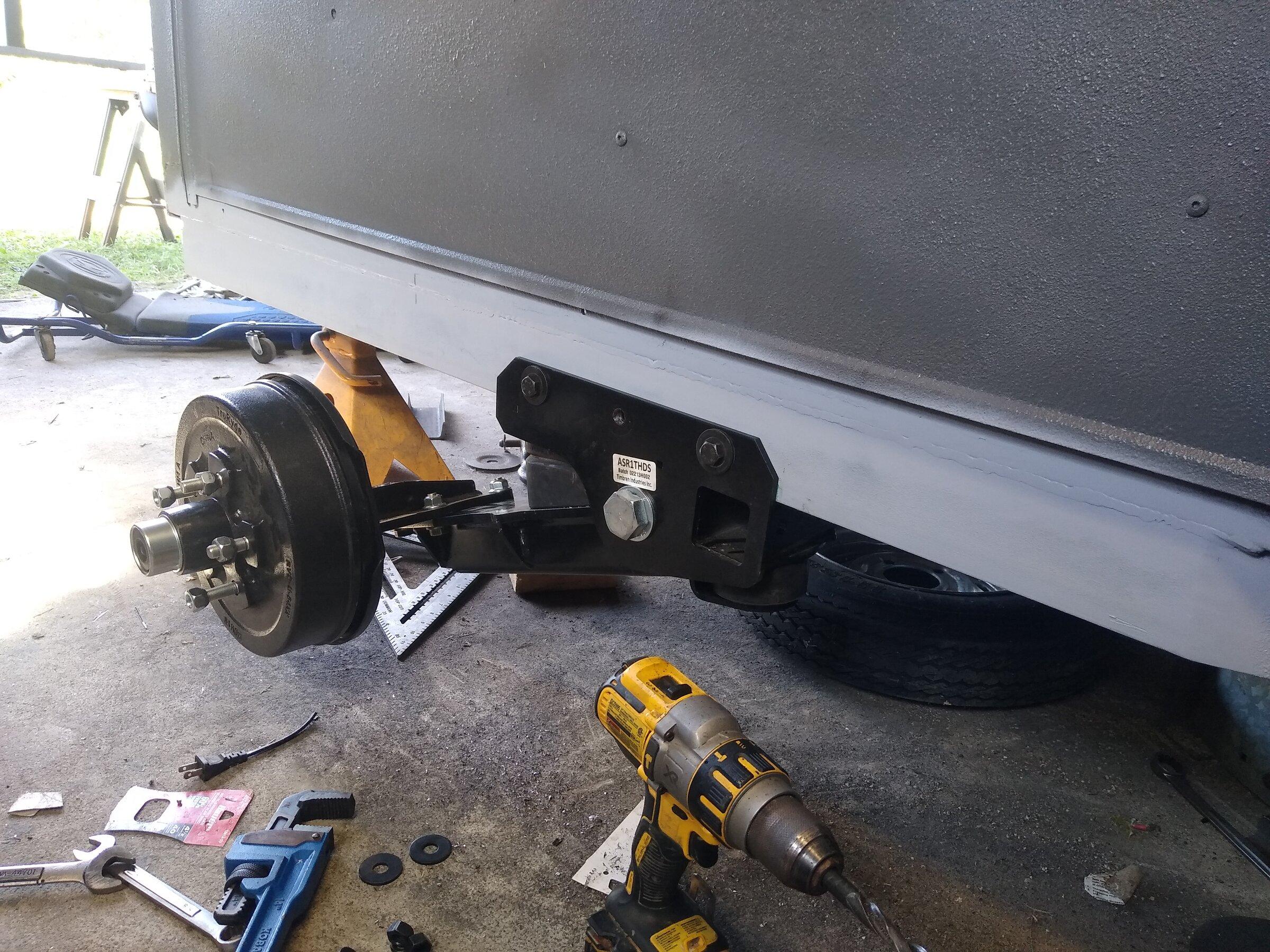

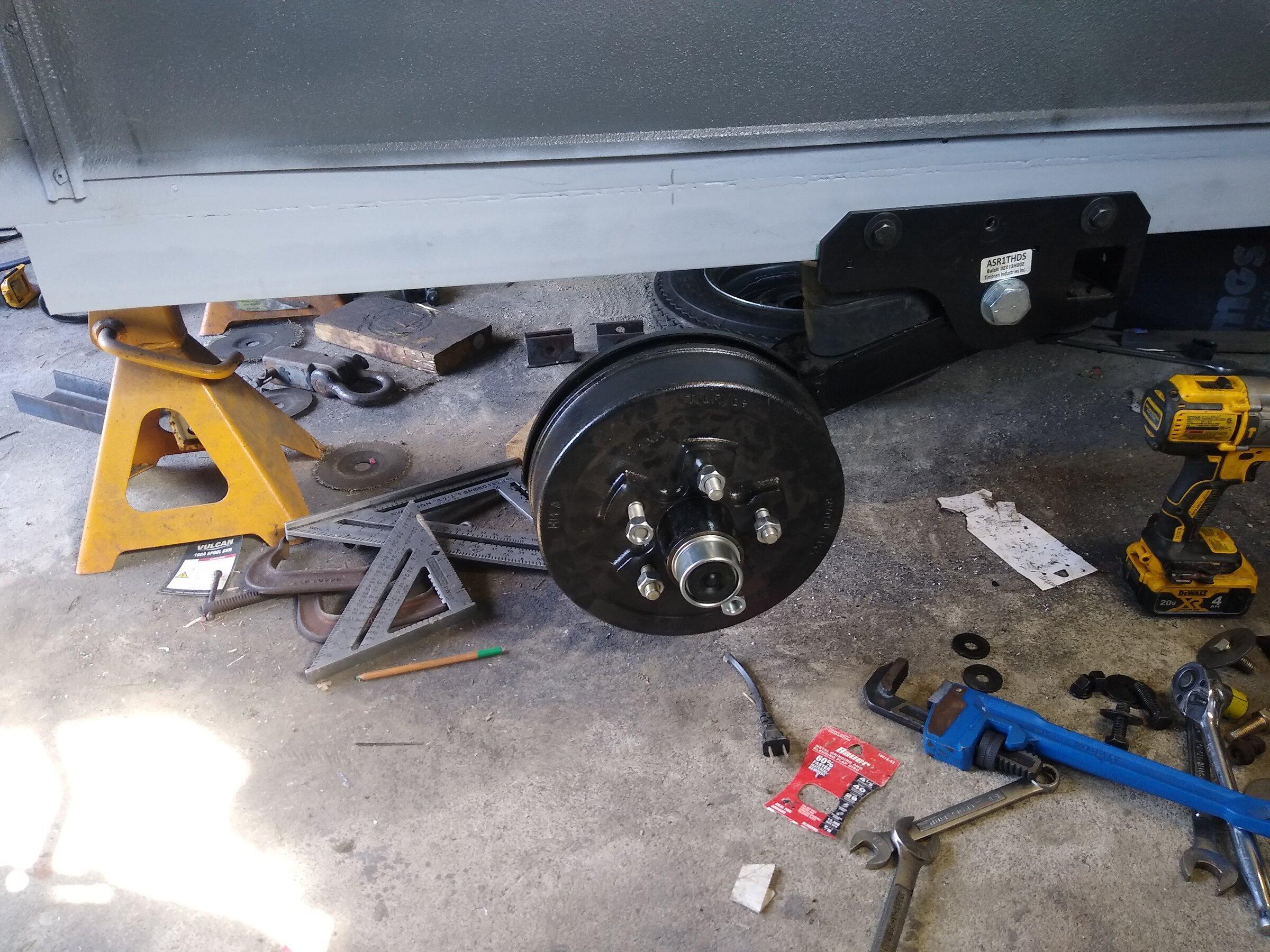

Next came the modifications. I knew I wanted a Timbren axle-less suspension setup since my previous trailer. I ordered one of their HD long spindle 2,200lb kits with brakes, and found some YJ wheels to go with them. Since the frame on the little trailer was "lacking" to put it nicely, I extended the 3" C-Channel from the tongue all the way around the base of the trailer, and mounted the suspension to that.

Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211001_145010147


Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211001_145017866

Last edited:
OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

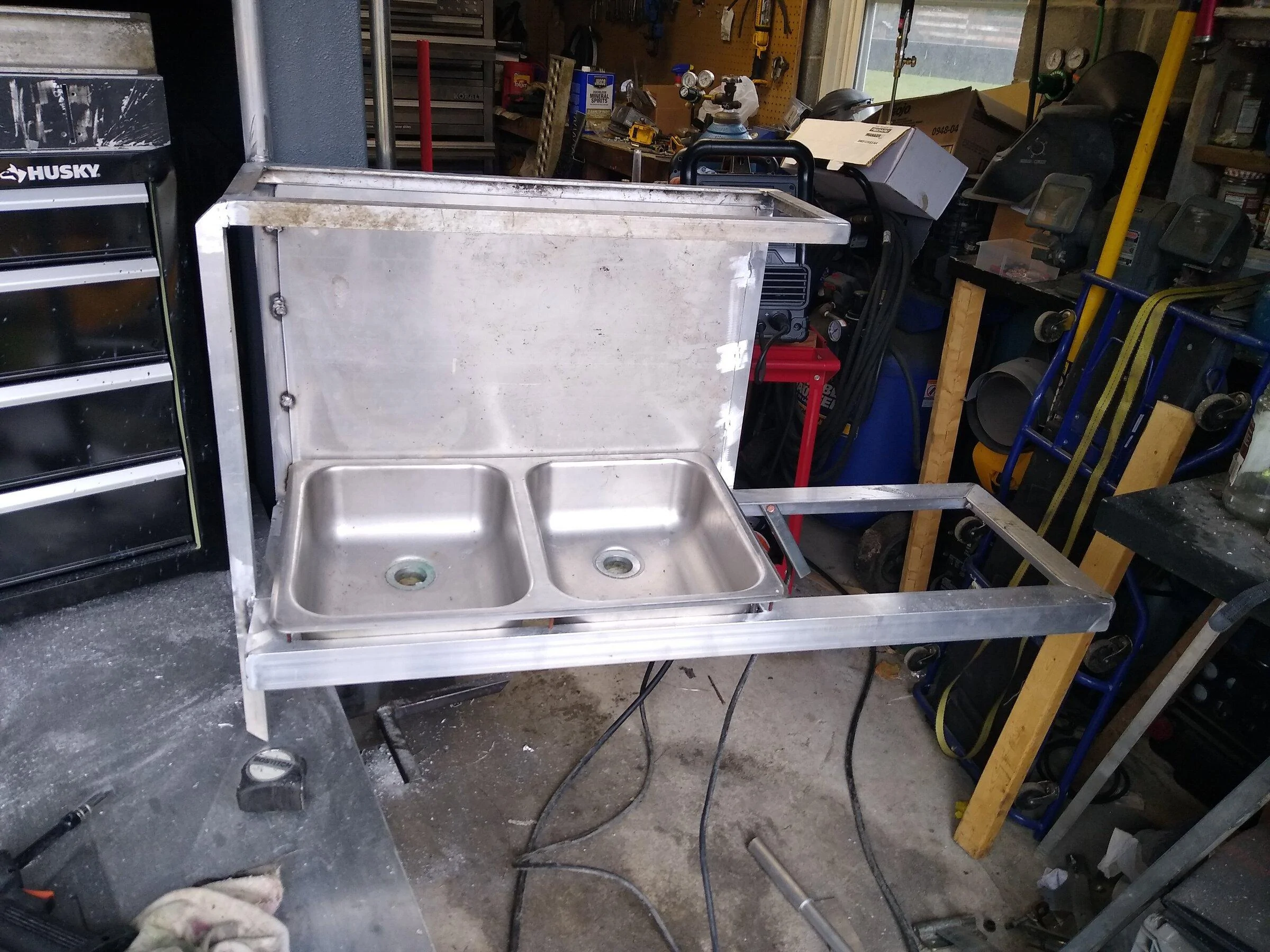

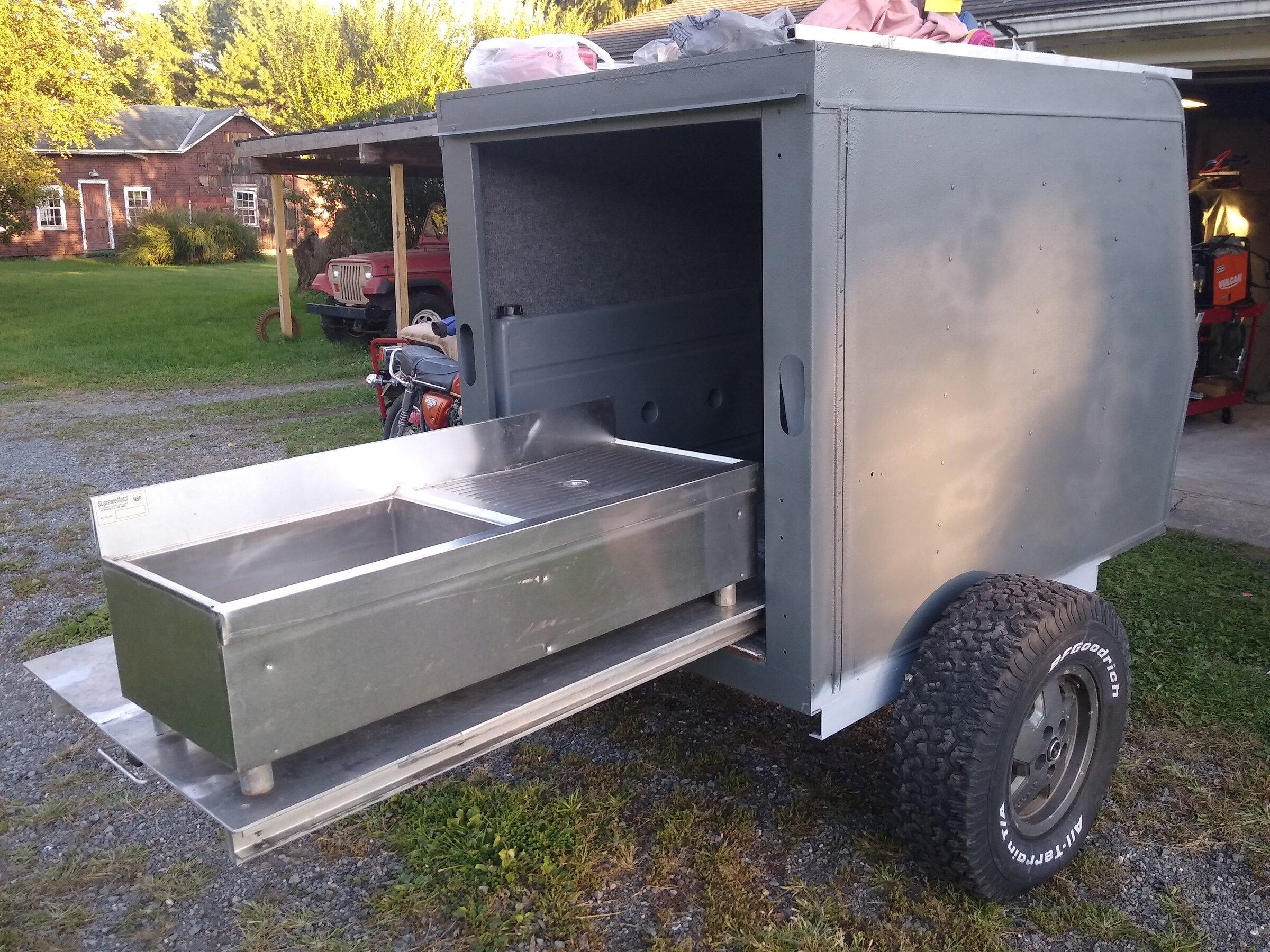

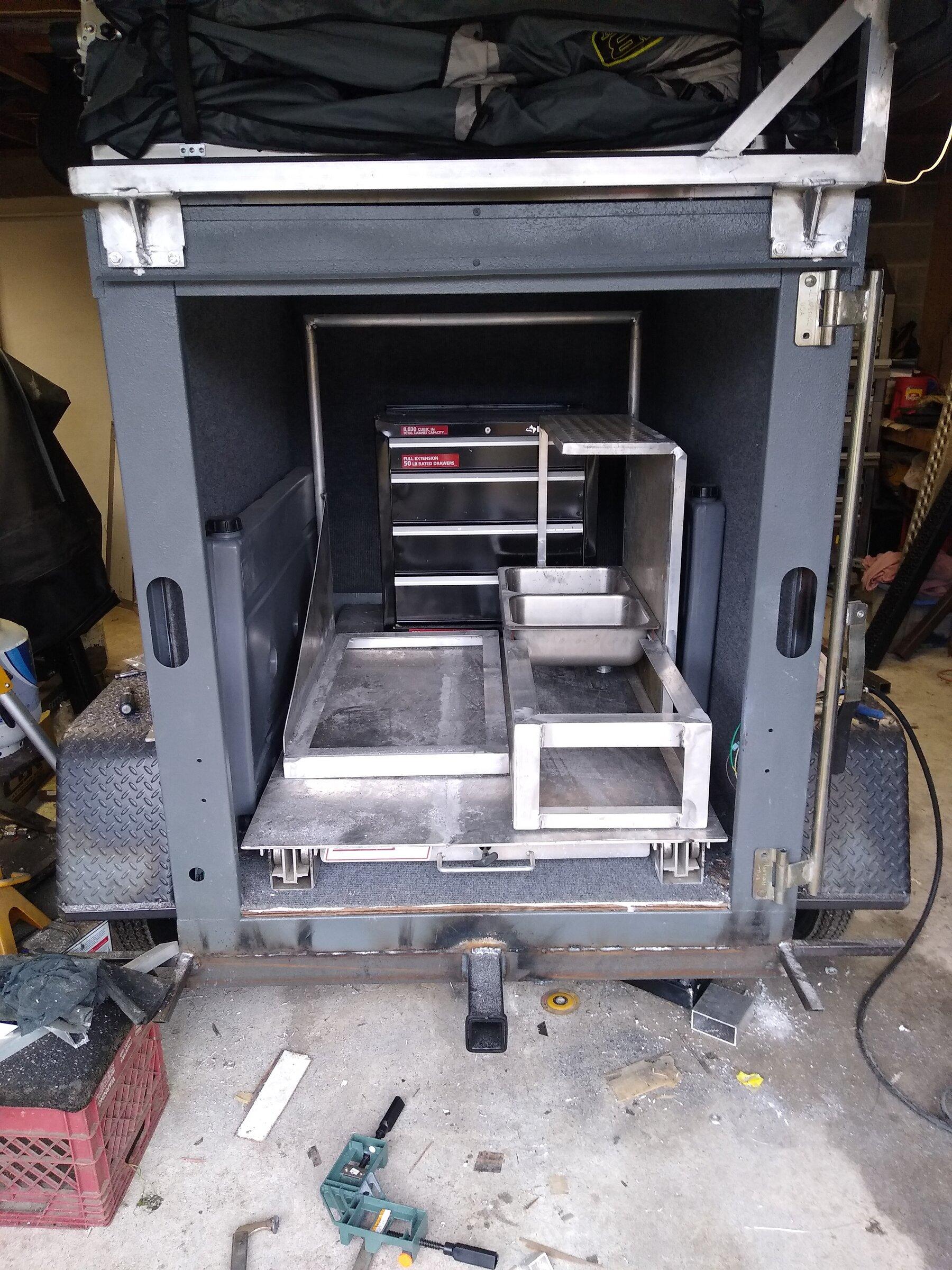

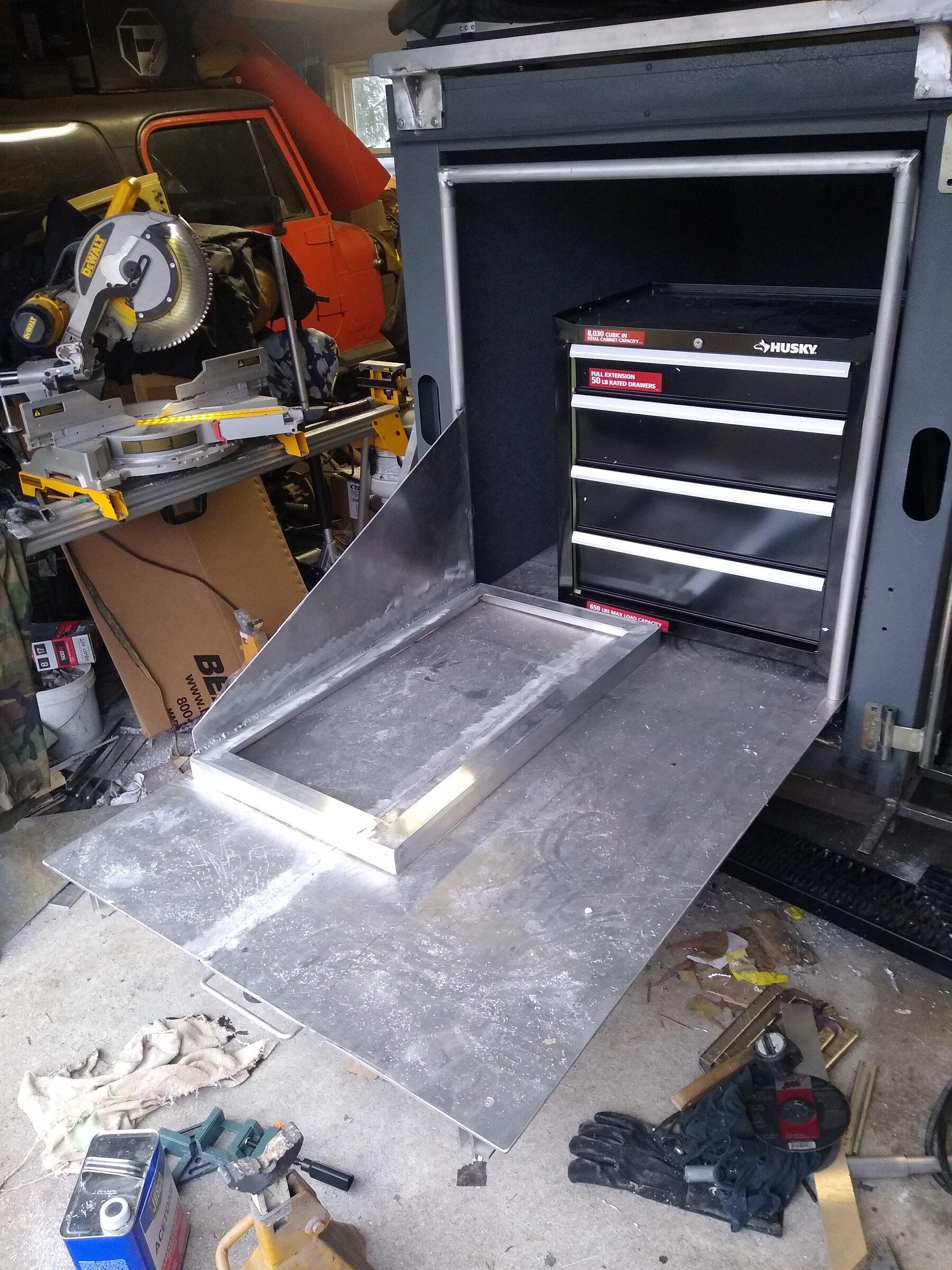

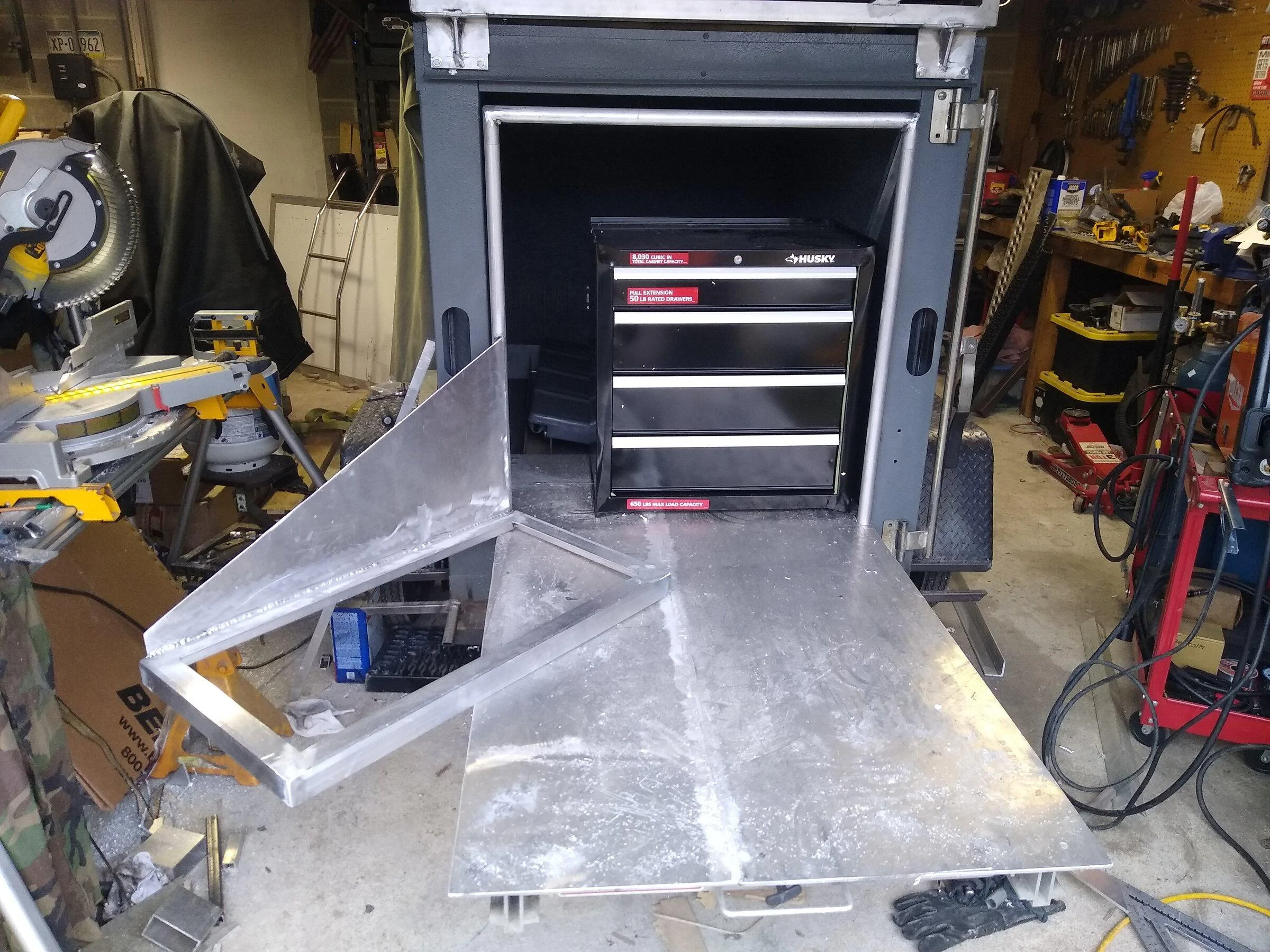

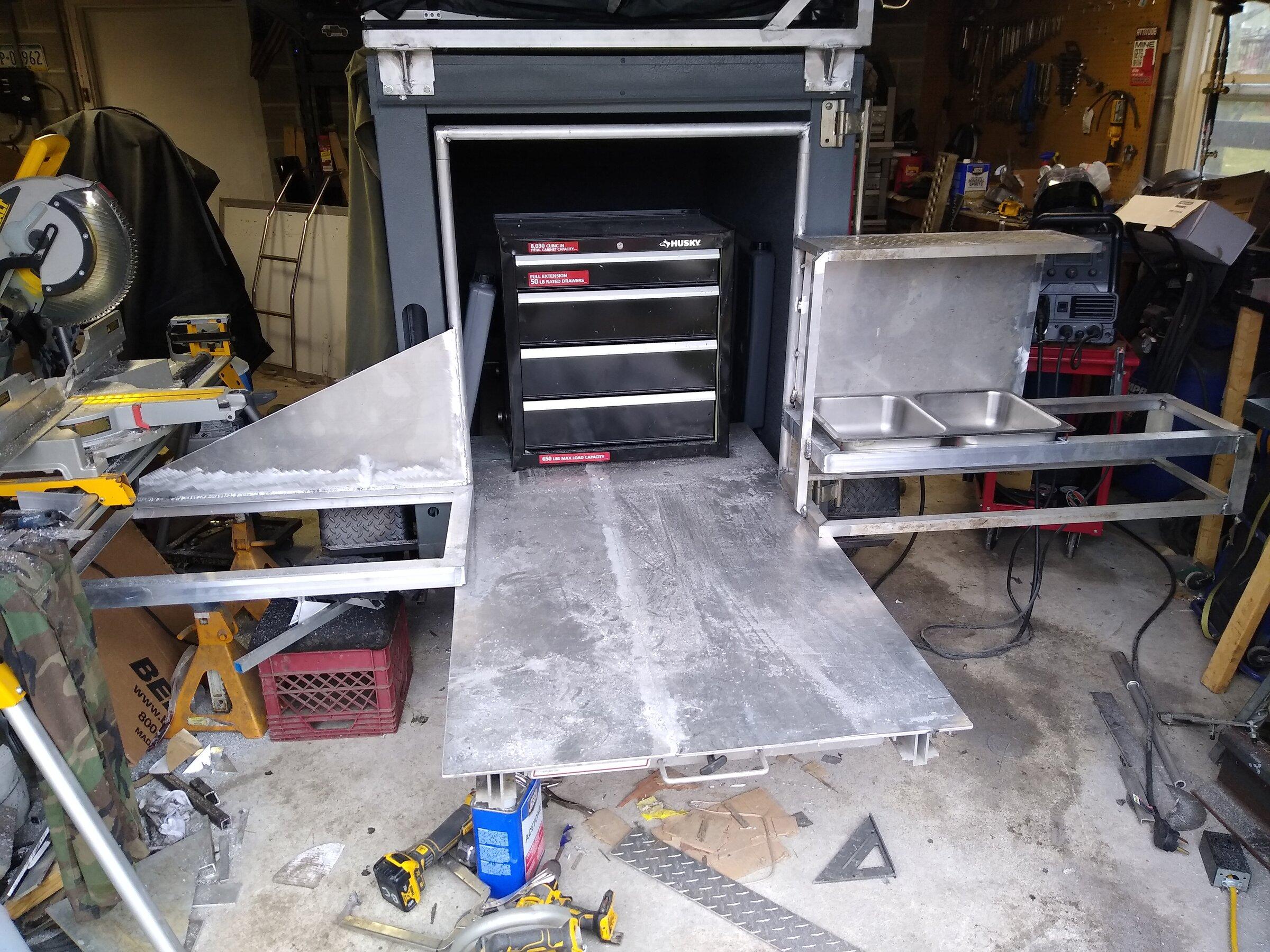

So after it was up on its new wheels, I reinstalled the aluminum drawer that I had removed from the old trailer into the new one. It fit like a glove after modifying the 1/4" thick aluminum deck I had previously built. The sink pictured was an idea I had, which has changed since...









azmojave

Well-Known Member
First Name
Bobby
Joined
Nov 2, 2021
Threads
48
Messages
2,494
Reaction score
5,181
Location
Phoenix, AZ
Vehicle(s)
2021 Sarge Green Mojave
Occupation
Retired Trucker. Current Sawyer
Next came the modifications. I knew I wanted a Timbren axle-less suspension setup since my previous trailer. I ordered one of their HD long spindle 2,200lb kits with brakes, and found some YJ wheels to go with them. Since the frame I there little trailer was "lacking" to put it nicely, I extended the 3" C-Channel from the tongue all the way around the base of the trailer, and mounted the suspension to that.

Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211001_175523832


Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211001_175523832
Good choice. I had Timbren’s put on my teardrop after destroying two different torsion axle setups.


Sponsored

OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1
(as you can tell I'm playing "catch-up" and not really building it this fast, lol)

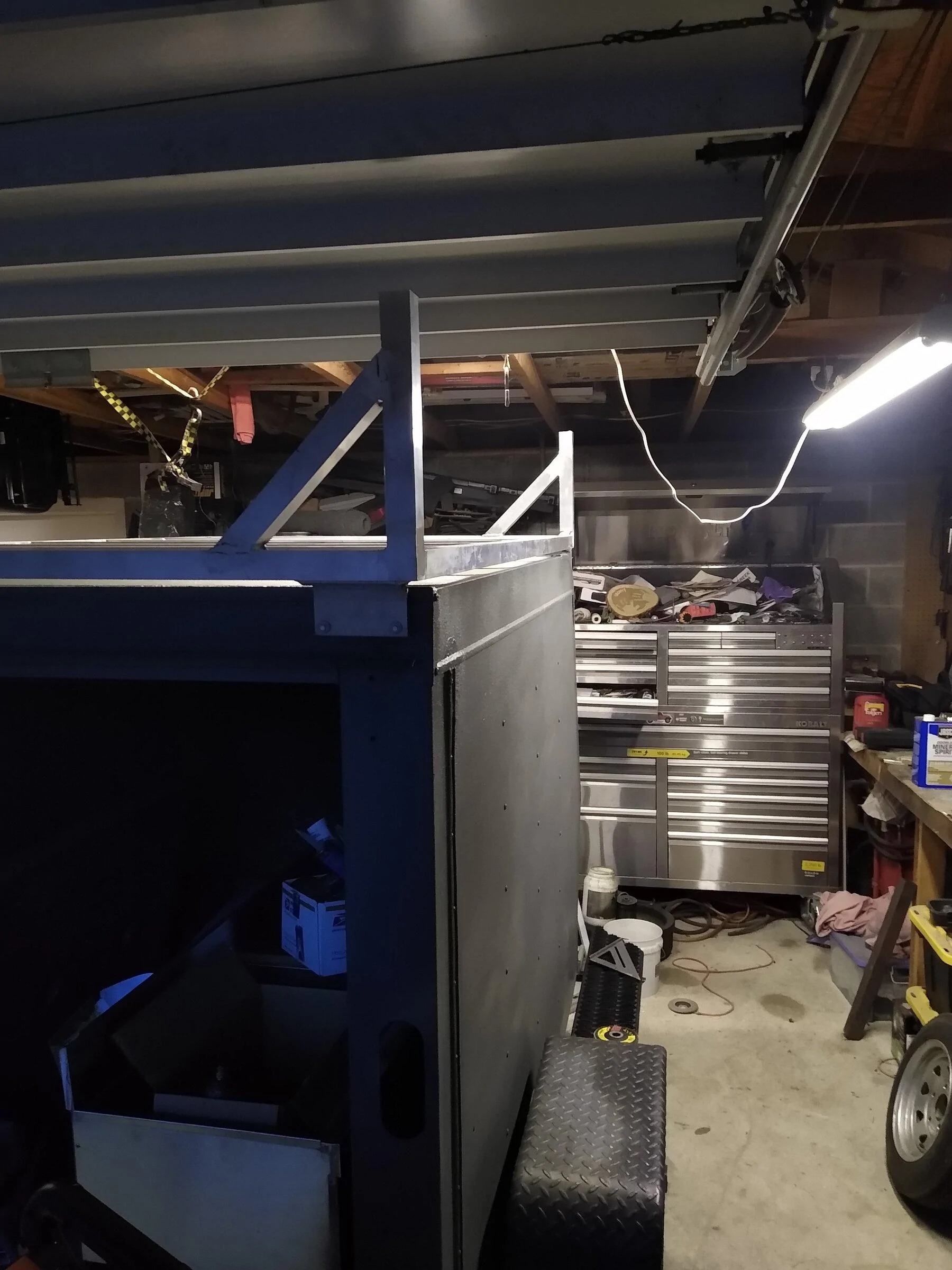

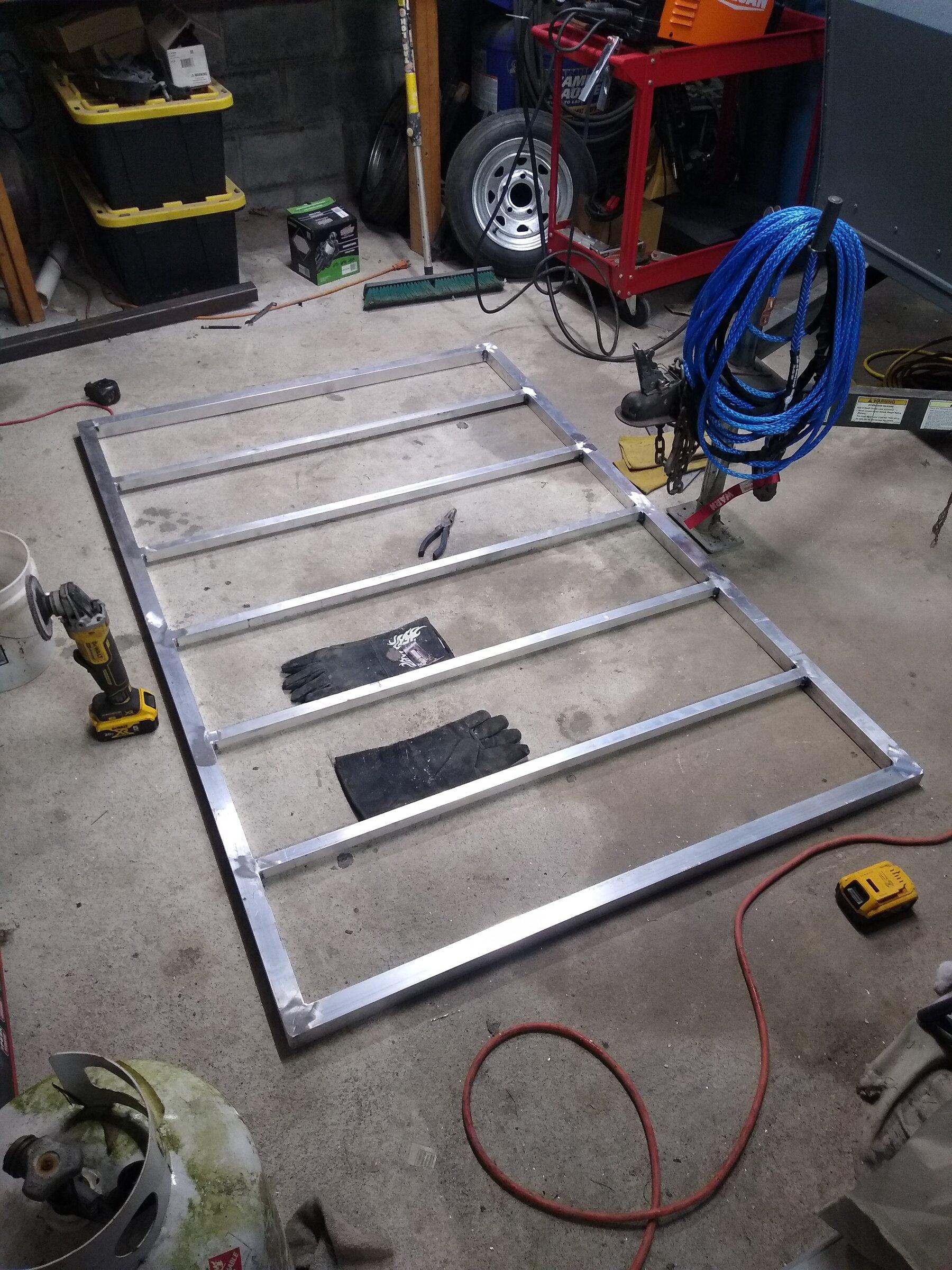

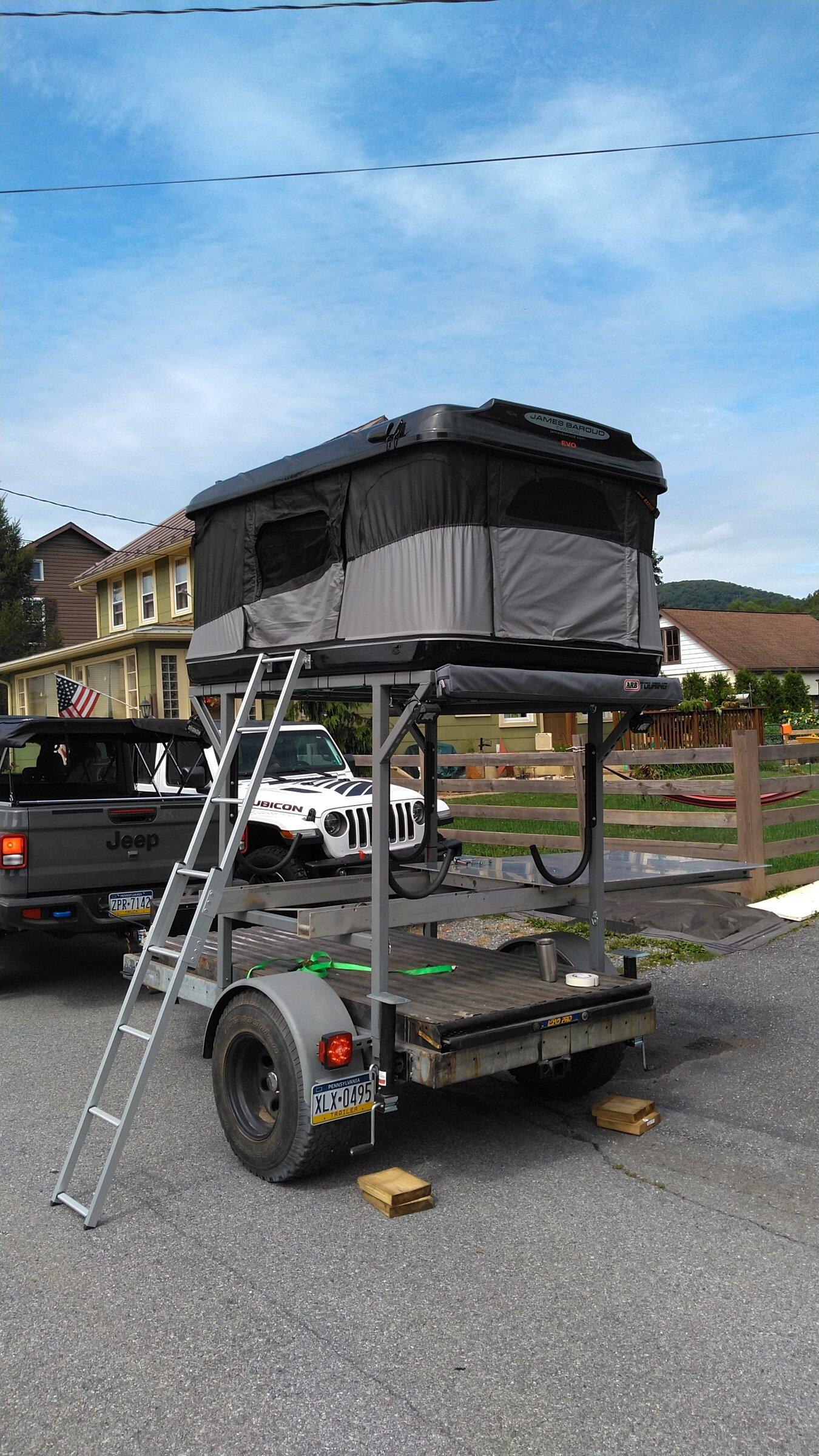

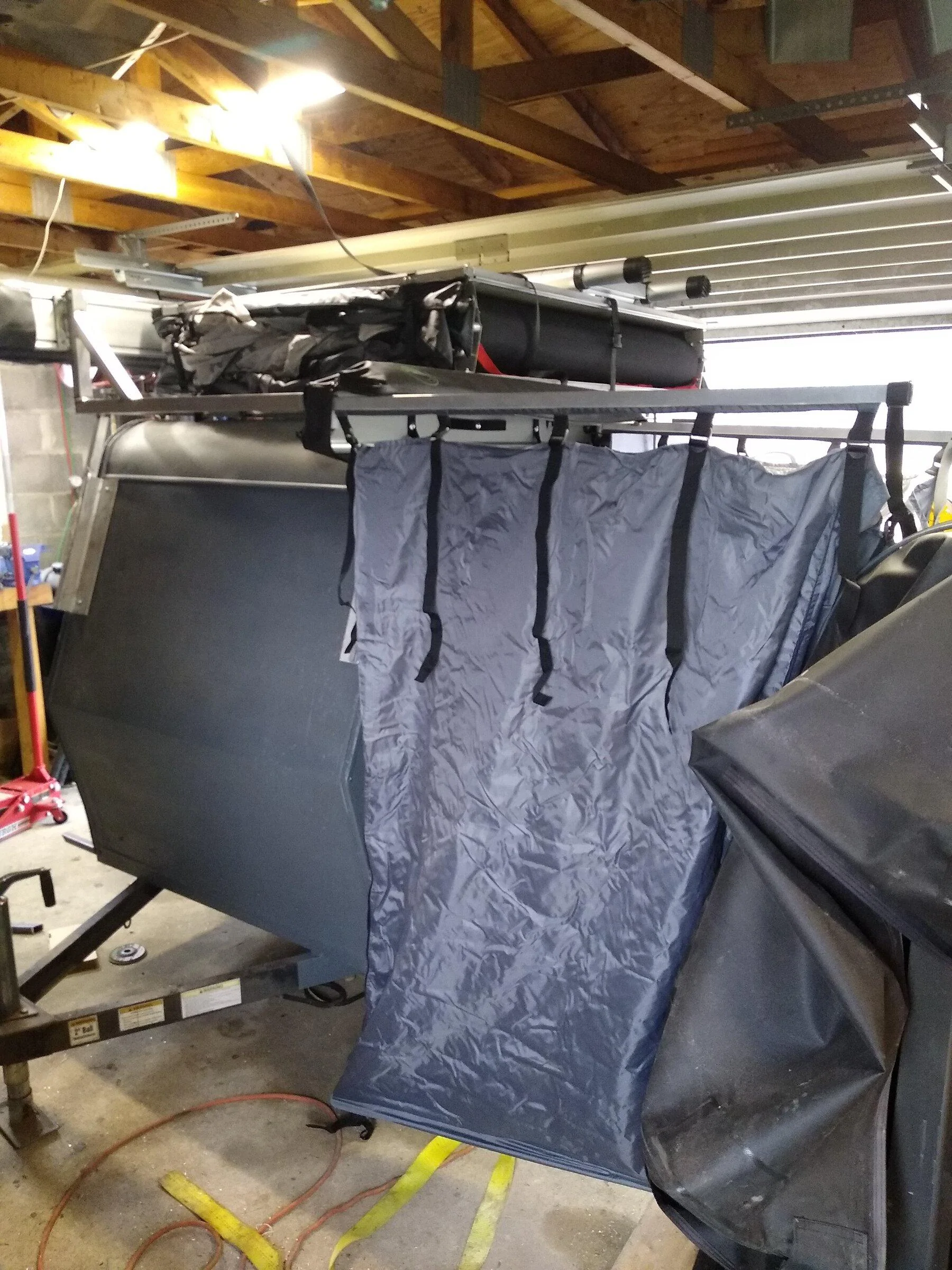

Next was the roof. I bought a SmittyBuilt RTT from a good friend of mine and ordered an Overland Vehicle Systems 270 awning and needed some way to mount it. I didn't want to mount it to the roof of the trailer because it was not strong enough to support the weight. I fabbed up an aluminum rack, and mounted it to the internal frame of the trailer.






OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1
Good choice. I had Timbren’s put on my teardrop after destroying two different torsion axle setups.
I hit a pothole in Ohio and bent the axle on my last trailer. I knew I would need/want something beefy for my next build, and this setup is a beast!


azmojave

Well-Known Member
First Name
Bobby
Joined
Nov 2, 2021
Threads
48
Messages
2,494
Reaction score
5,181
Location
Phoenix, AZ
Vehicle(s)
2021 Sarge Green Mojave
Occupation
Retired Trucker. Current Sawyer
(as you can tell I'm playing "catch-up" and not really building it this fast, lol)

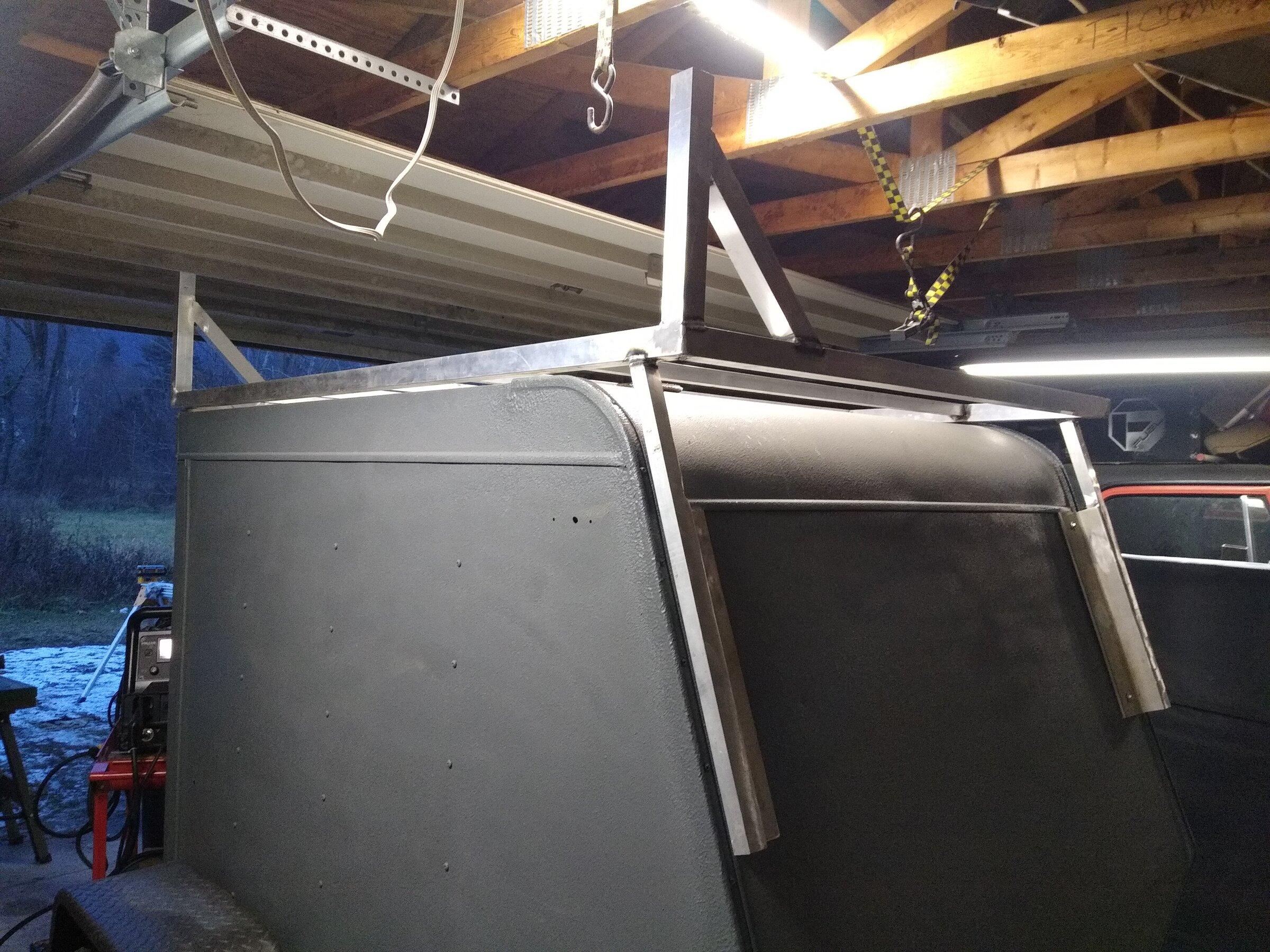

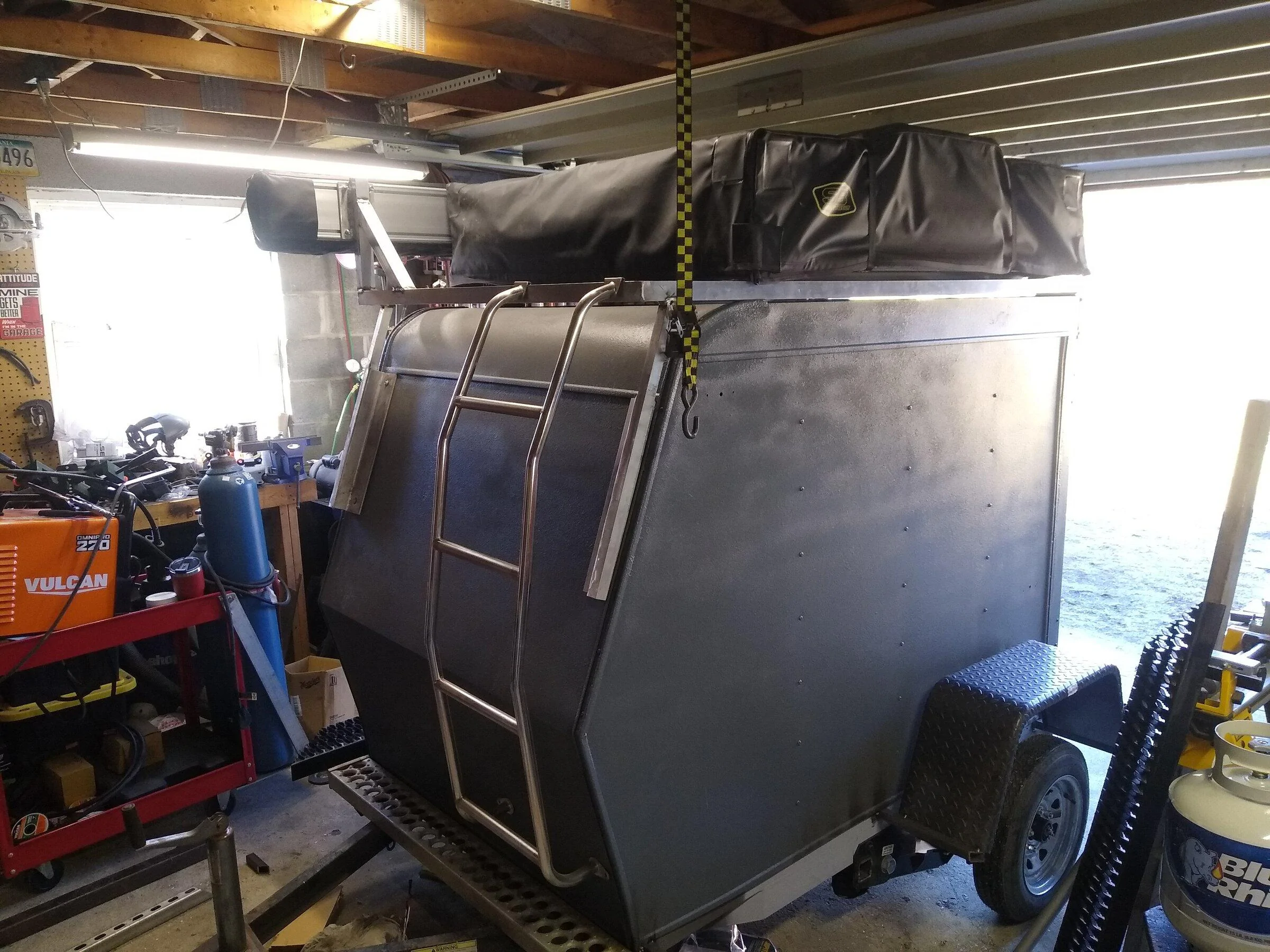

Next was the roof. I bought a SmittyBuilt RTT from a good friend of mine and ordered an Overland Vehicle Systems 270 awning and needed some way to mount it. I didn't want to mount it to the roof of the trailer because it was not strong enough to support the weight. I fabbed up an aluminum rack, and mounted it to the internal frame of the trailer.

Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211224_165144733


Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211224_165144733


Jeep Gladiator My DIY Overlanding & Camping Trailer IMG_20211224_165144733
Nice job. I envy all you “I fabbed up” guys LOL

OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

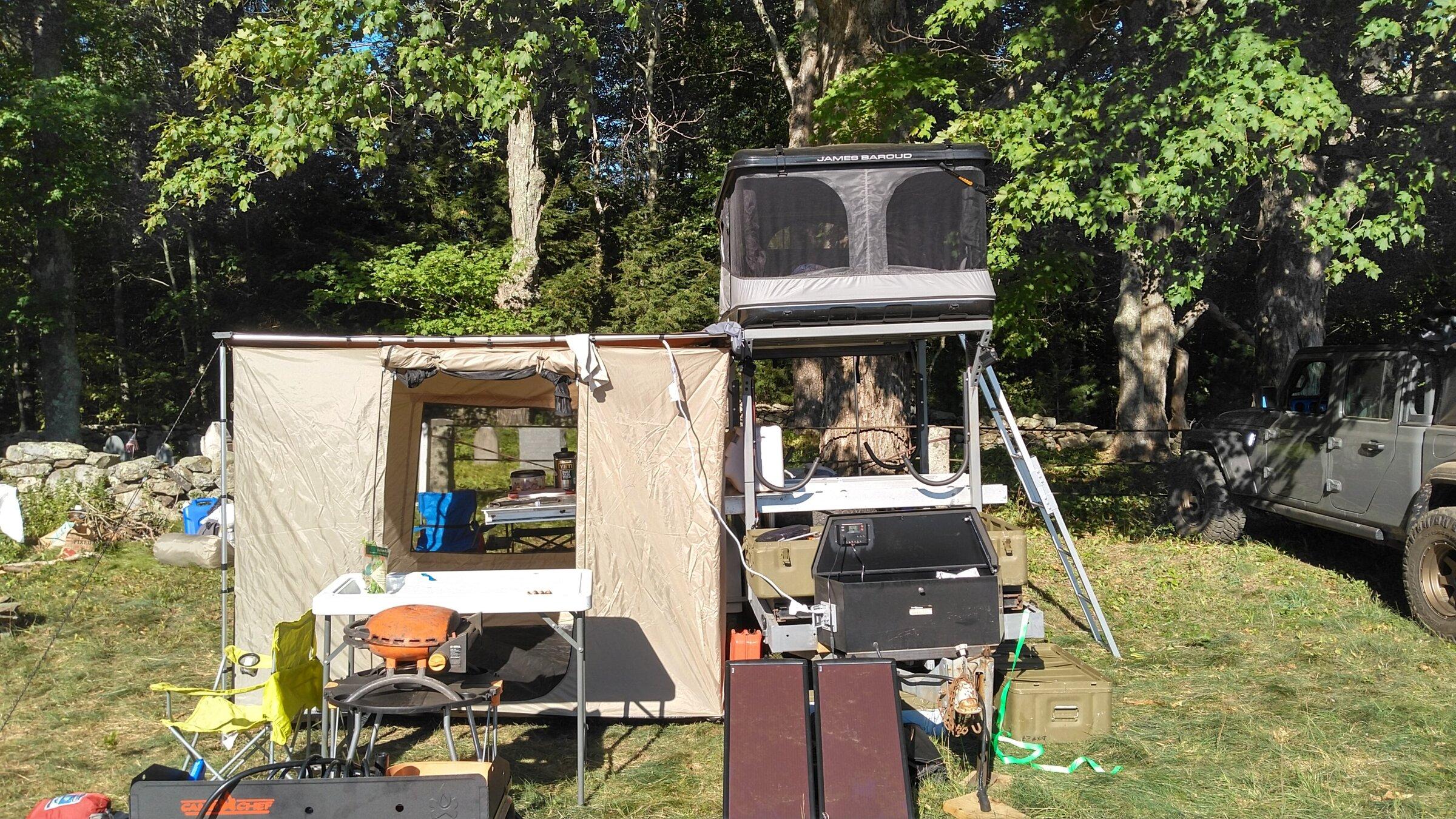

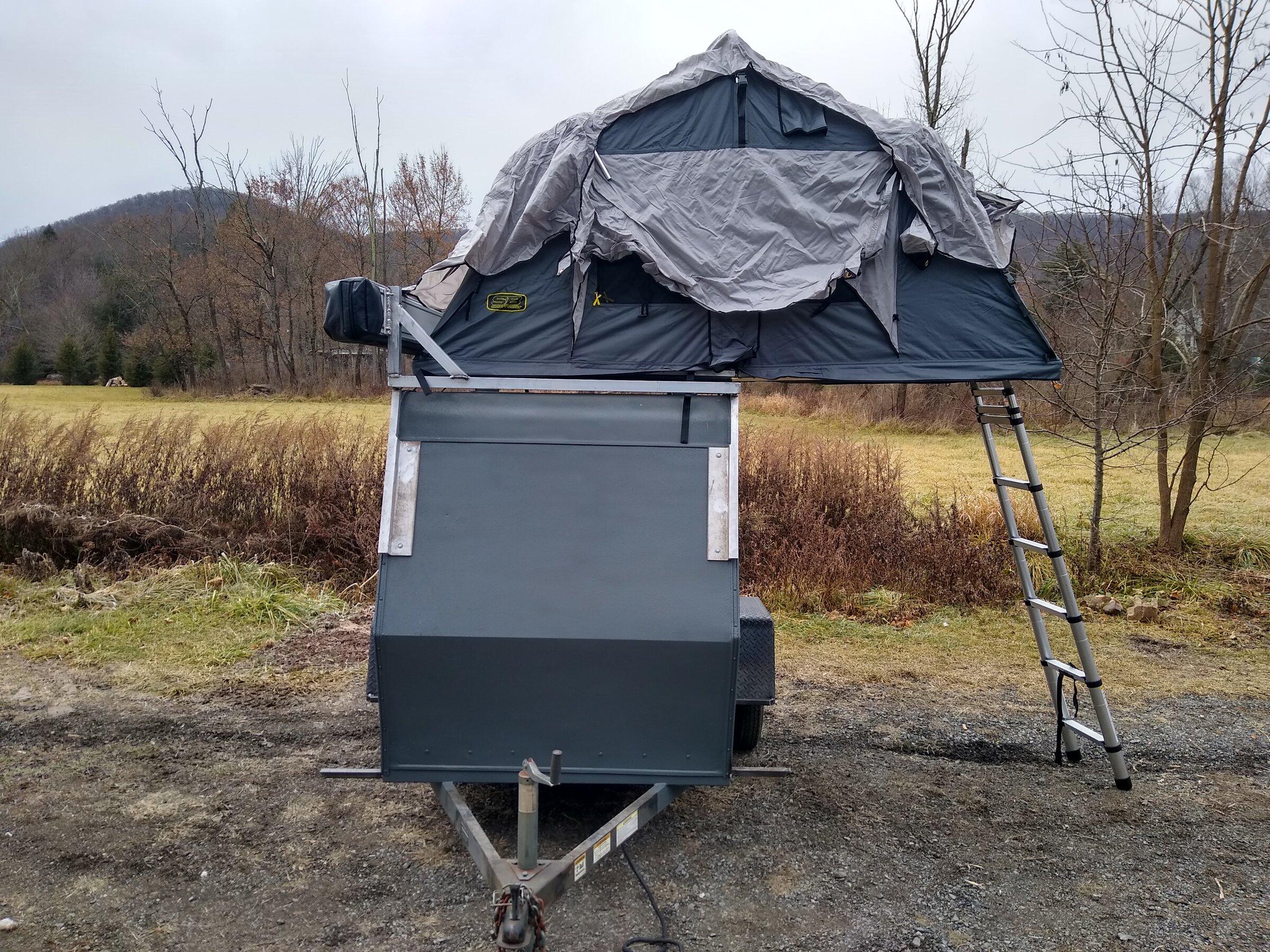

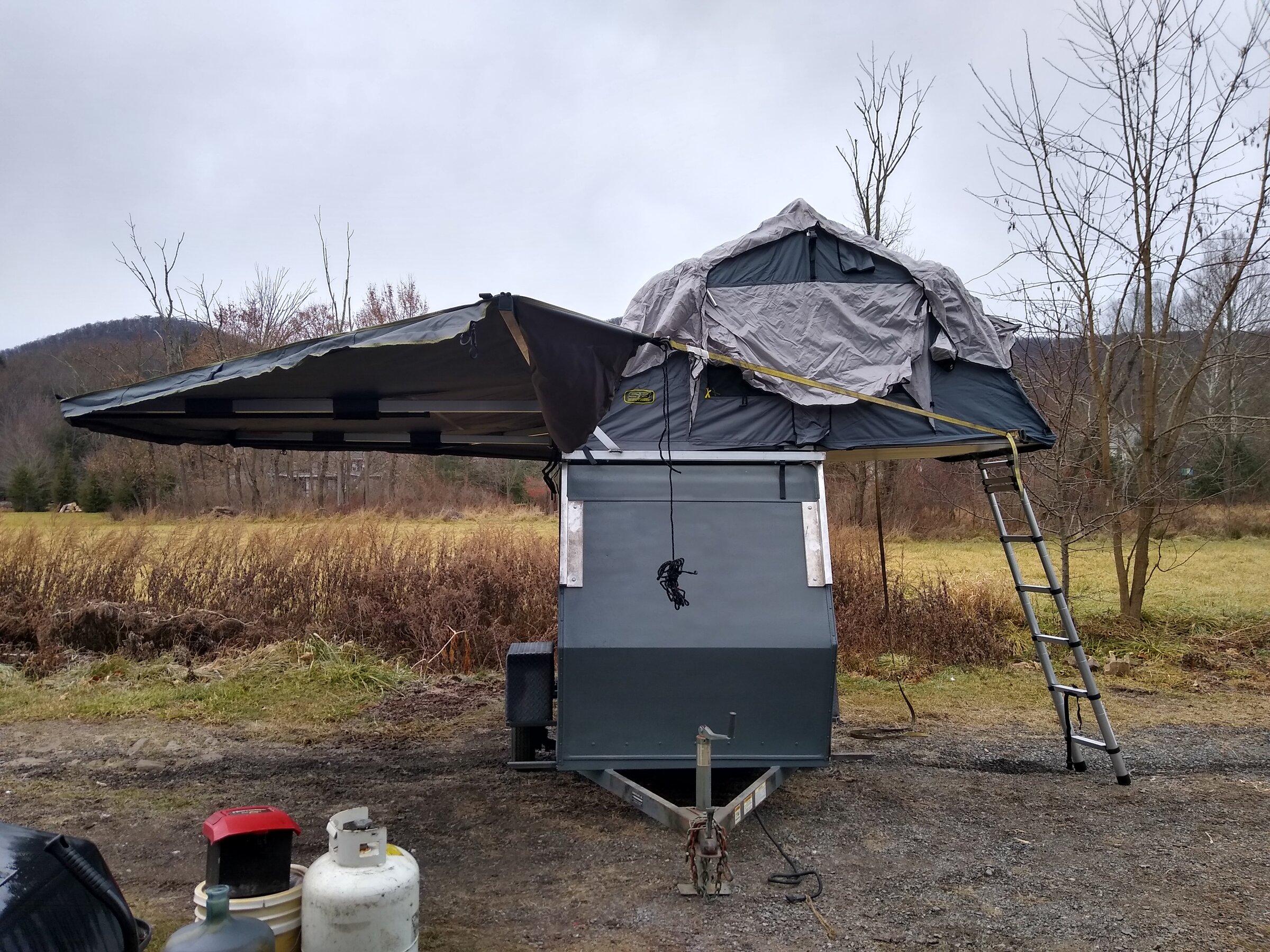

After that came mounting the awning and tent. The awning is huge!!! I have it on uprights because I'm 6'5" and I didn't want to have to duck under it.










OP
OP
Benbean66

Benbean66

Well-Known Member
First Name
Ben
Joined
Apr 29, 2019
Threads
13
Messages
1,207
Reaction score
1,748
Location
PA
Vehicle(s)
1973 Honda CB350, '88 RHD YJ, '88 YJ, 2020 JT Spor
Occupation
Railroad Equipment Operator
Vehicle Showcase
1

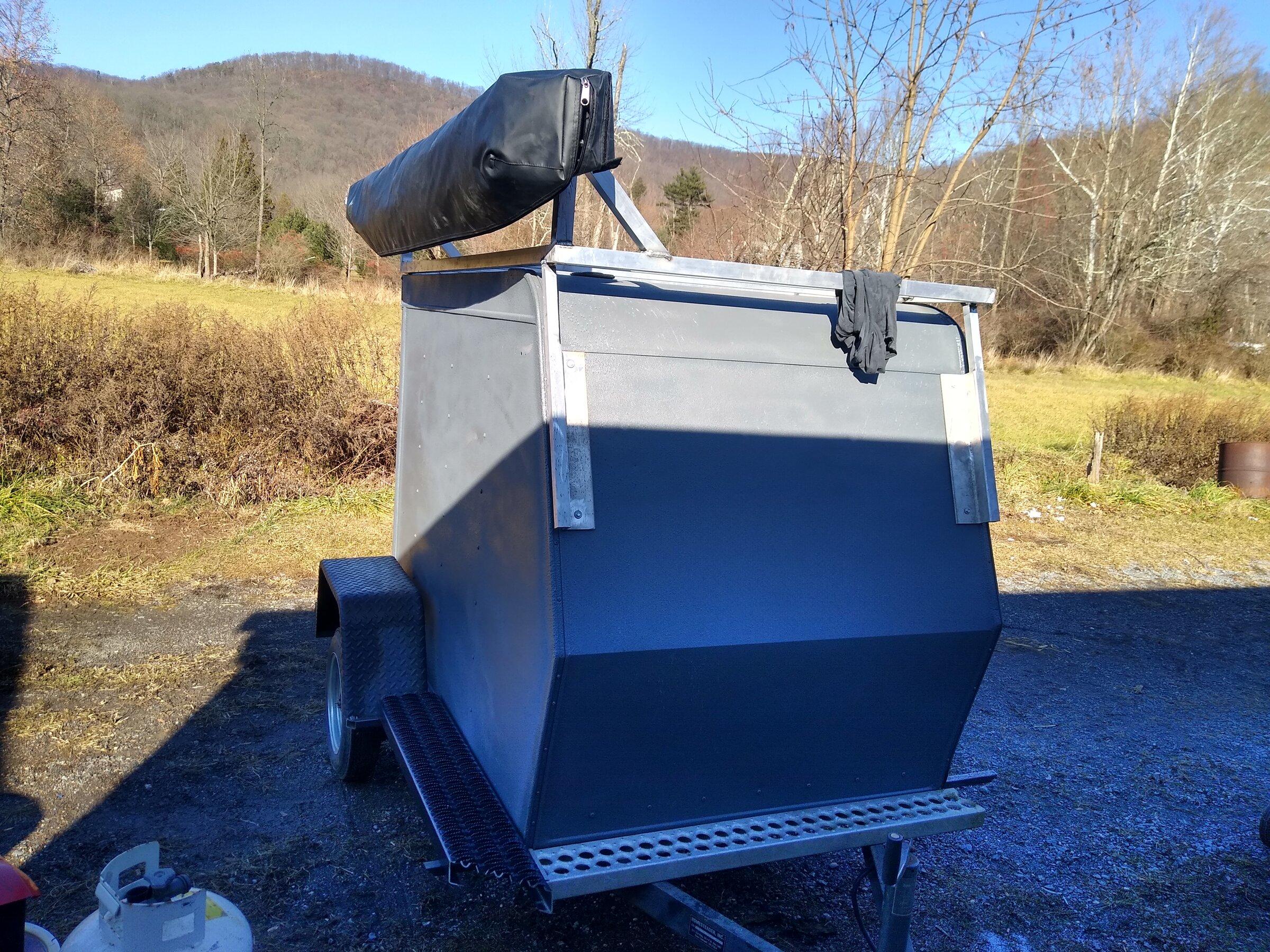

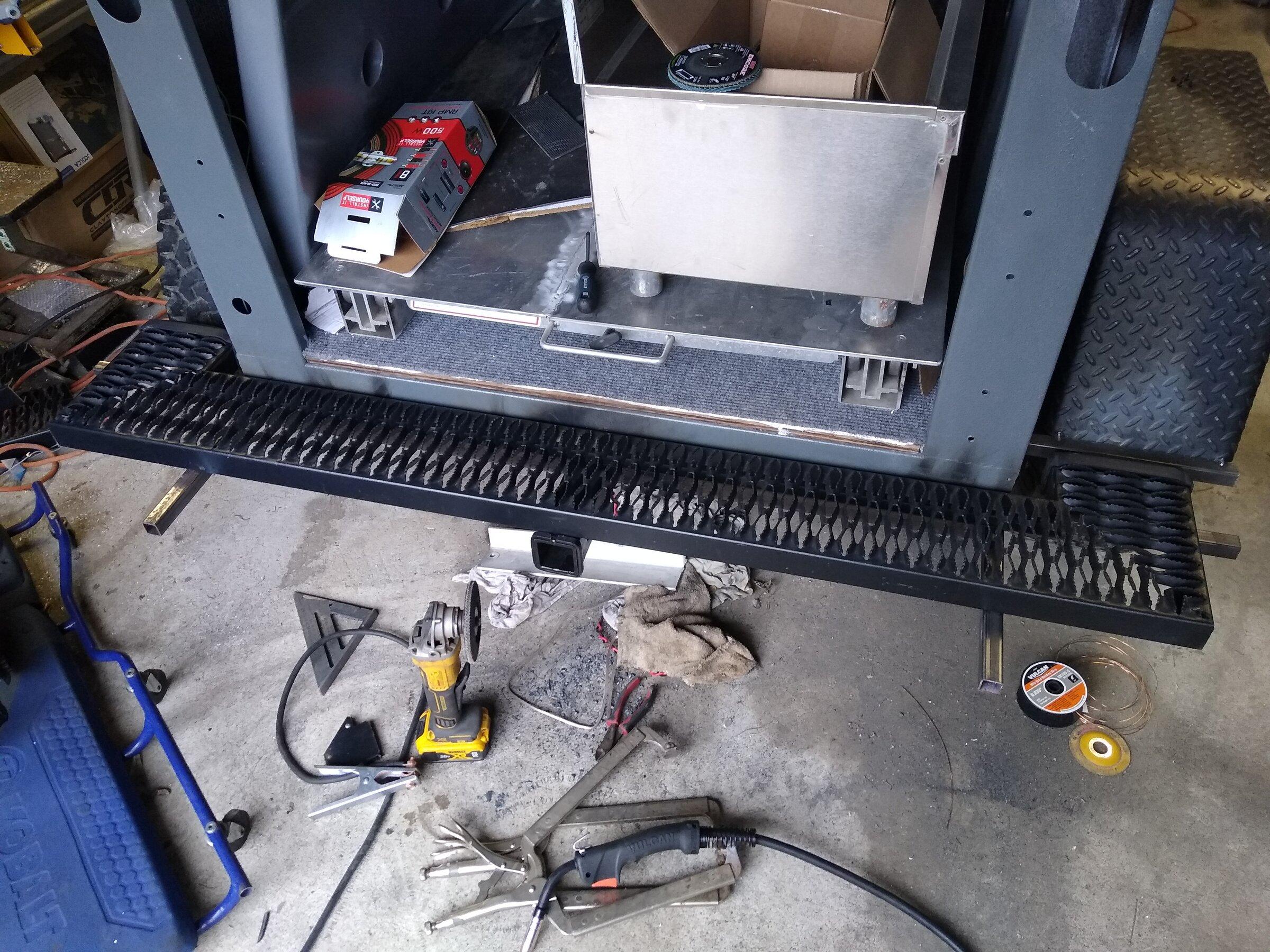

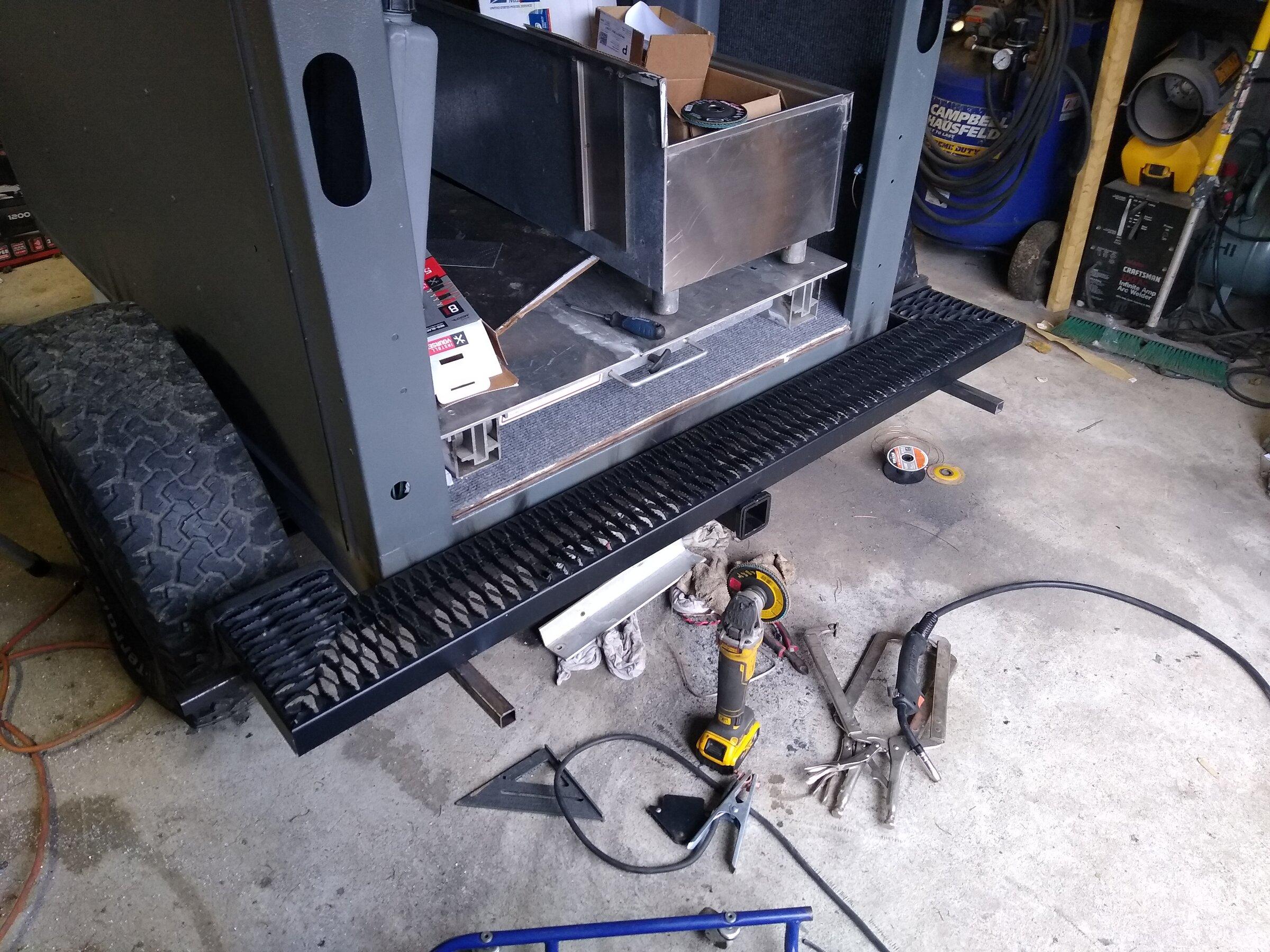

So I wanted to be able to reach the RTT easily (and my son and girlfriend are not as tall as I am) so I made up some steps that are going to go the whole way around the trailer. I also installed a hitch in the rear C-Channel for a bike rack and also in case I need to pull it out if I was ever in that scenario.
