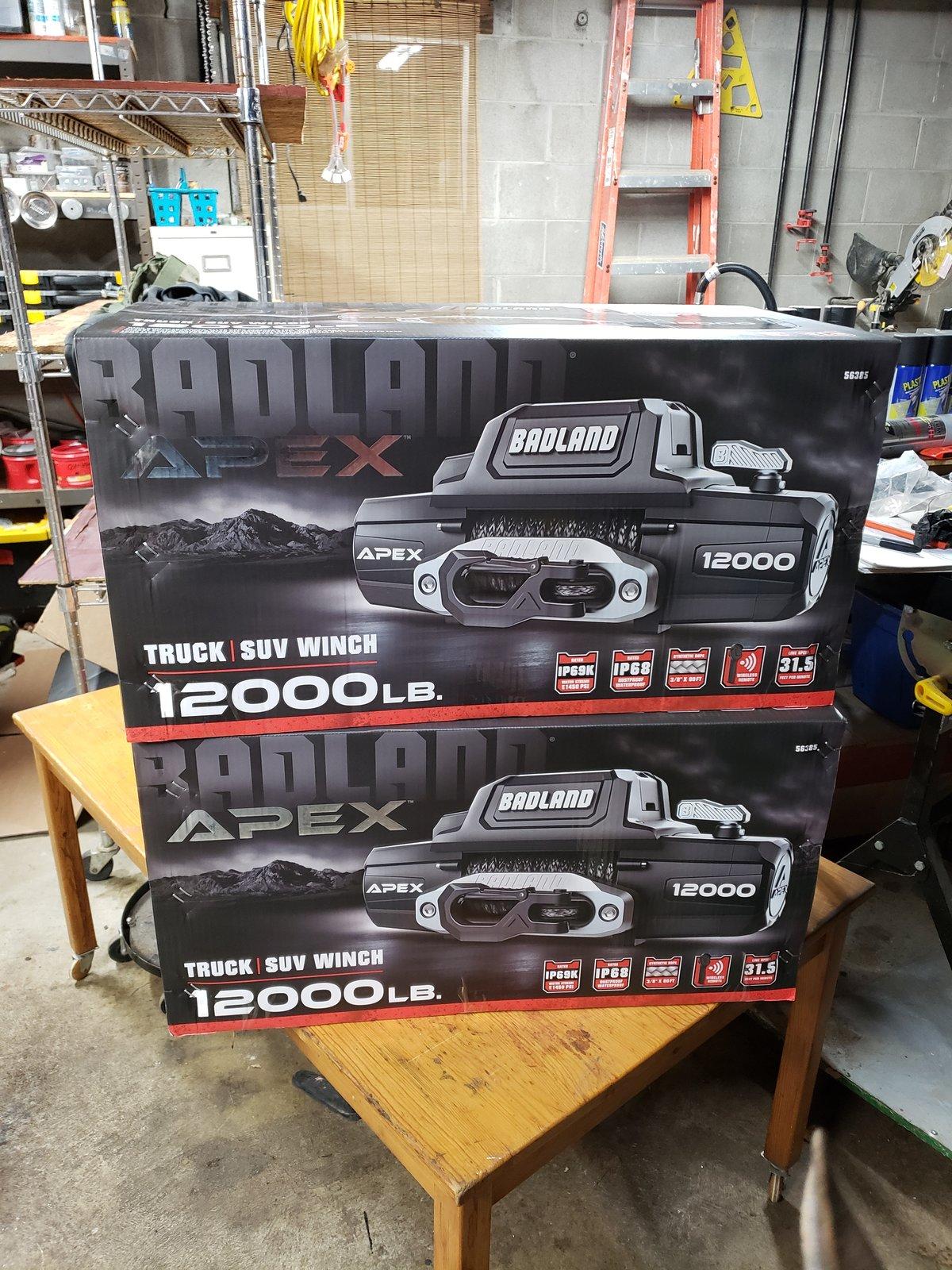

New Apex 12K Harbor Freight winch Install

[Sorbs]

What you need:

1. WARN 101255 Winch Mount Plate for 18-19 Jeep JT/JL with Factory Steel Bumper = $273.99 @ Quadratec
2. Harbor Freight Apex 12k winch = $599.00 with coupon
3. Harbor Freight 6 Ft. Inverter Cable Set - SKU #63747, #2 AWG = $30.00 with 20% off coupon
4. Home Depot metric M8-1.25 zinc flange nuts x6 = .72 cents (re-using steel bumper hex bolts to cover holes in bumper)
5. Deep sockets and short sockets - 13mm, 16mm, and 18mm
6. Jeep Hex bits
7. Metric allen keys

Steps to remove bumper:

1. Remove lower skid plate with 13mm socket
2. Remove plastic spacer between bumper and grill (discard)
3. Disconnect foglight coupling on the passenger side of the bumper frame rail
4. Remove 8x18mm bumper bolts with a deep socket
5. Remove winch cutout panel but keep hex screws for dress up after the install
6. Install Warn winch plate per instructions

Prepping Apex for control box removal:

1. Follow instructions to remove control box enclosure from top of the winch
2. Completely disassemble enclosure
3. Take wireless switch and winch control wired plug receptacle out of the enclosure
   • Note: winch plug receptacle wires use Siamese blade connectors to the electronic controller. Just disconnect each wire at the siamese blade connector to pull wires through enclosure hole
4. Optional: use electrical tape to clean up loose wires and strengthen connections

Install winch to the winch plate

Note: if you want to get your hands inside the bumper do not bolt winch to plate yet, just make sure the anchor nuts on the winch are secured with tape so they don’t fall out while you're futzing with the bumper nuts. You’re going to be under the winch plate lining up your winch after your bumper is secure so if those nuts fall out you’ll need to remove the bumper to get to them.​

Electrical install

1. With the 6 Ft. Inverter Cable Set connect wires (Red, Yellow, Black) to winch terminals using enclosure delete kit that comes with the Apex winch; run cables along passenger frame rail up to battery
2. Connect wires to winch control block
3. Tuck controller box between passenger fender and battery
4. Connect power wire to control block
5. Connect ground to the battery
6. Test wired/wireless controller on the free spool (hold controller wireless button for 3 seconds to turn on)
