New to the Forum! MOPAR LED Lighting Conversion Question

[Kristy]

Thanks in Advance! I have a new gladiator overland that did not come with the LED package so I'm trying to convert back to MOPAR LED Headlights, fog lights, and tail lights. Are these not plug and play? Do I need any special connectors to install the headlights or taillights? Already have the headlights and fog lights, should have the taillights in this week. Thanks for any help!

Sponsored



[XraytecH]

To run the DRL Halos on the MOPAR Headlight, there is a wire harness that needs to be integrated into the system.

Also you'll have to tell the Jeep's computer that you switched to LEDs. You can either go to the dealership and have them flash the computer or buy a Tazer JL Mini or something similar to flash the computer yourself.



[SPED1]

68347117AB is the Mopar part# for the jumper harness to go to the body control module



[Tighand]

I know with some or all 2021s they are plug and play at least wiring wise. I just installed some about a month ago. Just need to look at the plugs and see if you have all 5 wires going to them.



[FutureOdin]

I know with some or all 2021s they are plug and play at least wiring wise. I just installed some about a month ago. Just need to look at the plugs and see if you have all 5 wires going to them.

I think you mean 4 wires.

I had all 4 wires going to the driver side headlight, only had 3 on the passenger side. BUT I was able to replace a 16" harness that had the 3 wires to one with 4 (since 4 wires were coming in, 3 wires going to the headlight).

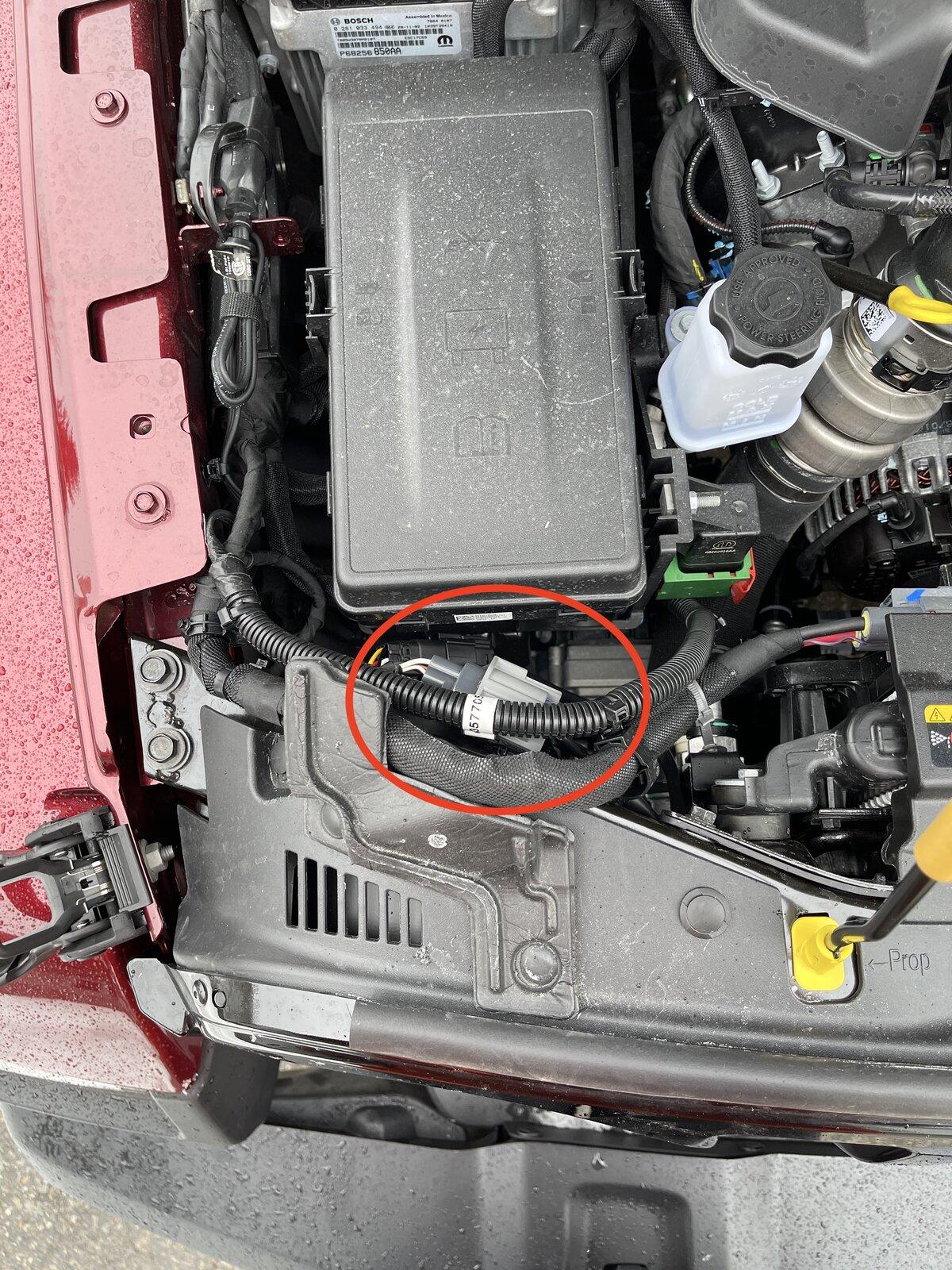

The connector circled goes to the headlight. the portion on the left side had the 4 wires, portion on the right was 16" that only had three wires and plugged into the headlight on the other side. Had a guy on eBay create a replacement harness for a factory look and it was plug and play.



[Tighand]

I think you mean 4 wires.

I had all 4 wires going to the driver side headlight, only had 3 on the passenger side. BUT I was able to replace a 16" harness that had the 3 wires to one with 4 (since 4 wires were coming in, 3 wires going to the headlight).

The connector circled goes to the headlight. the portion on the left side had the 4 wires, portion on the right was 16" that only had three wires and plugged into the headlight on the other side. Had a guy on eBay create a replacement harness for a factory look and it was plug and play.

You are correct....I have slept since then I was thinking pin #5 in the plug. Looks very nice! I am glad that I didn’t have to worry about anything like that though. Like the color also



[garzilla]

Thanks in Advance! I have a new gladiator overland that did not come with the LED package so I'm trying to convert back to MOPAR LED Headlights, fog lights, and tail lights. Are these not plug and play? Do I need any special connectors to install the headlights or taillights? Already have the headlights and fog lights, should have the taillights in this week. Thanks for any help!

did you ever get this installed?
