Notchy Steering After TSB 08-074-20

akneppers

Well-Known Member
Joined
Mar 17, 2020
Messages
51
Reaction score
24
Location
Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon
So thought I'd create a new thread separate of the TSB thread. But i got the TSB completed and noticed that I definitely got a notchy feeling steering. My fluid a little above the cold line when I checked after it sat all night. I tried to turn the wheel from lock to lock to bleed out air. But if i turn the wheel slowly while not moving I can feel the electric power steering notch through what feel like detents.

Anyone else?



Advertisement





kd1yt

Well-Known Member
First Name
Trevor
Joined
Apr 6, 2019
Messages
96
Reaction score
72
Location
VT 05640
Vehicle(s)
2020 Gladiator JT Sport S Red, 2014 Ural sidecar 2wd motorcycle, '51 Dodge M37
So thought I'd create a new thread separate of the TSB thread. But i got the TSB completed and noticed that I definitely got a notchy feeling steering. My fluid a little above the cold line when I checked after it sat all night. I tried to turn the wheel from lock to lock to bleed out air. But if i turn the wheel slowly while not moving I can feel the electric power steering notch through what feel like detents.

Anyone else?
https://www.jeepgladiatorforum.com/...chy-steering-after-tsb-new-box-install.34593/

[PS, not me, but I noticed that there was another thread with someone mentioning this]


Geekjeep

Well-Known Member
Joined
Oct 20, 2019
Messages
163
Reaction score
62
Location
Florida
Vehicle(s)
Gladiator sport s
Yup. I’ve been posting the same. I got the same issue


WK2JT

Well-Known Member
First Name
Darren
Joined
Mar 11, 2020
Messages
150
Reaction score
101
Location
Atlanta
Vehicle(s)
JT Overland
For what it’s worth, it get a twitch/notch with the original steering box when sitting at a stop with my hand resting on the wheel. Doesn’t sound as bad as you mentioned, but about every 10 secs or so, it’ll twitch and provide feedback through the wheel. This is without moving the wheel... just resting with some tension on it.

OP

akneppers

Well-Known Member
Joined
Mar 17, 2020
Messages
51
Reaction score
24
Location
Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon
  • Thread starter
  • Thread Starter
  • #5
Yeah so i checked the oil level and all seemed good. But I get the twitch too, but its a weird almost tactile clicking. And when i hold the steering wheel i can hear almost a whirling sound. I checked the oil level while doing this and it still held full. There is oil around the replacement box but i attributed it to replacing the old box with the new. Since my PS fluid never hasnt dropped.


TrainMan

Well-Known Member
First Name
Jared
Joined
Mar 8, 2020
Messages
205
Reaction score
284
Location
Pennsylvania
Vehicle(s)
2015 Chevy Silverado, 2020 Jeep Gladiator Sport S.
I noticed the twitchy/notchy feeling the first day slowly driving through the parking lot. I haven't noticed it lately. So idk I can't contribute any help.

First Name
Christopher
Joined
Jul 11, 2020
Messages
19
Reaction score
28
Location
Dallas, Texas
Vehicle(s)
Gladiator Overland 2020, Cherokee 1995, Cherokee 1993
So thought I'd create a new thread separate of the TSB thread. But i got the TSB completed and noticed that I definitely got a notchy feeling steering. My fluid a little above the cold line when I checked after it sat all night. I tried to turn the wheel from lock to lock to bleed out air. But if i turn the wheel slowly while not moving I can feel the electric power steering notch through what feel like detents.

Anyone else?

I dont know if we are having the exact same issue, but it could be.
I found that after the TSB was done, the dealership left a bolt loose. On the steering column, going into the steering box, there is a universal joint covered by a rubber boot. There is a small exposed bolt that holds the joint in place. That bolt was VERY loose on mine, which caused some strange behavior with the electric steering. It was constantly trying to adjust my steering wheel, and felt a little loose.

If that bolt is loose on yours, it could be causing part of your issue.
Hope this helps!

OP

akneppers

Well-Known Member
Joined
Mar 17, 2020
Messages
51
Reaction score
24
Location
Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon
  • Thread starter
  • Thread Starter
  • #9

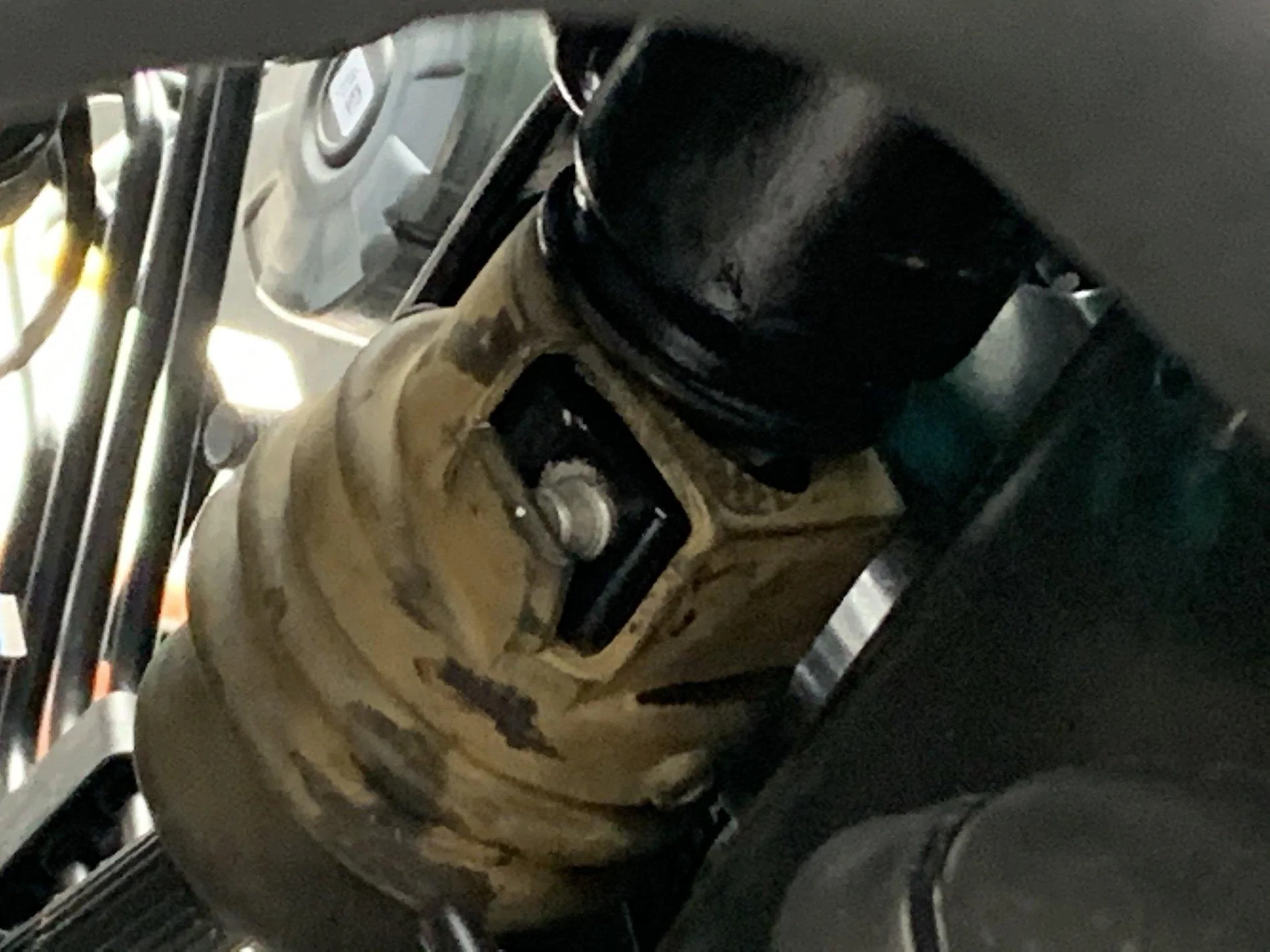

this guy? That’s the thread side
Looks like the other side of that. Mine was a 1/2 bolt and mine was actually tight.

appreciate the help though, I was hoping it was it!

First Name
Christopher
Joined
Jul 11, 2020
Messages
19
Reaction score
28
Location
Dallas, Texas
Vehicle(s)
Gladiator Overland 2020, Cherokee 1995, Cherokee 1993

this guy? That’s the thread side
Not that one, there is another one... maybe on the other side?
Ill take a pic tomorrow and upload it.
I dont think it was a 1/2, but I could be wrong.

Mine was VERY loose, and I was able to get a socket on it without taking anything off. Just a tight squeeze from above.

Heres a diagram of what im talking about.
https://parts.thomascdj.com/v-2020-...ering--steering-column-and-intermediate-shaft
On this diagram, its part number 10.

I hope this helps someone. Haha

OP

akneppers

Well-Known Member
Joined
Mar 17, 2020
Messages
51
Reaction score
24
Location
Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon
  • Thread starter
  • Thread Starter
  • #11
Dropped her off at the dealership this morning, showed the tech the issue and he definitely noticed the wheel start pulling itself while turning.

@Geekjeep you take yours in or find the issue?


Geekjeep

Well-Known Member
Joined
Oct 20, 2019
Messages
163
Reaction score
62
Location
Florida
Vehicle(s)
Gladiator sport s
I haven’t had time but will try and drop it off today. The issue is with mine it’s not major. It’s just a wierd notchy feel. They may say it’s the 37s. For sure my system wasn’t bled as I’ve had to refill my reservoir three times. It didn’t drop to empty but that means air is coming out. The only reason I don’t think it’s air is because it’s consistant. Feels like your riding some small gentle cogs as you turn the wheel. It’s most noticeable while turning left around 15mph at like 10 oclock


robinja

Well-Known Member
First Name
James
Joined
Jan 14, 2020
Messages
112
Reaction score
187
Location
Florida
Vehicle(s)
Jeep Gladiator Overland, Jeep TJ, Jeep Grand Cherokee
Occupation
Project Manager
Vehicle Showcase
1
For what it’s worth, it get a twitch/notch with the original steering box when sitting at a stop with my hand resting on the wheel. Doesn’t sound as bad as you mentioned, but about every 10 secs or so, it’ll twitch and provide feedback through the wheel. This is without moving the wheel... just resting with some tension on it.
I had the same wheel feedback prior to TSB replacement. I have not noticed the feedback since. I have also not felt any gear clicks/notchy feel after TSB replacement.

OP

akneppers

Well-Known Member
Joined
Mar 17, 2020
Messages
51
Reaction score
24
Location
Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon
  • Thread starter
  • Thread Starter
  • #14
Yeah its weird, I never had the wheel feedback before the TSB but got it now. Tech thought it maybe a bad new gearbox so theyre gonna order one just incase but theyre opening a stars case to see what FCA says.


Geekjeep

Well-Known Member
Joined
Oct 20, 2019
Messages
163
Reaction score
62
Location
Florida
Vehicle(s)
Gladiator sport s
is your really noticeable. Mine is like a gentle gliding over a few cogs. Its just consistent and wierd.
