Overland diesel front springs same as diesel Rubicon

[Vtur]

Anyone else diesel comes with front stock springs 6377AA, which is the same as rubicon front springs 6377AA/6378AA?

However, my Overland rear part number are different though.

Sponsored



[Abnmarine]

I just checked mine and they don’t have a part number on them.



[Vtur]

I just checked mine and they don’t have a part number on them.

Thanks for checking David!

I find it odd that some members with non rubi diesel claiming they got 1-1.5" lift by using rubi springs. The diesel rubi suspension that i've bought came with steel bumper as an option as well.

I'm hoping those with early diesel production can chime in, as i think FCA decided to installs rubi front springs to all diesel models.



[Abnmarine]

That is possible. I swapped my springs awhile ago for some Teraflex 2 1/2”. I didn’t have the stickers on the factory ones either along with no markings. Odd.



[Vtur]

That is possible. I swapped my springs awhile ago for some Teraflex 2 1/2”. I didn’t have the stickers on the factory ones either along with no markings. Odd.

Were the spring glued on isolator blue or light grey in color? My is grey exactly like the rubi springs.



[Abnmarine]

Were the spring glued on isolator blue or light grey in color? My is grey exactly like the rubi springs.

Mine are also gray.



[Vtur]

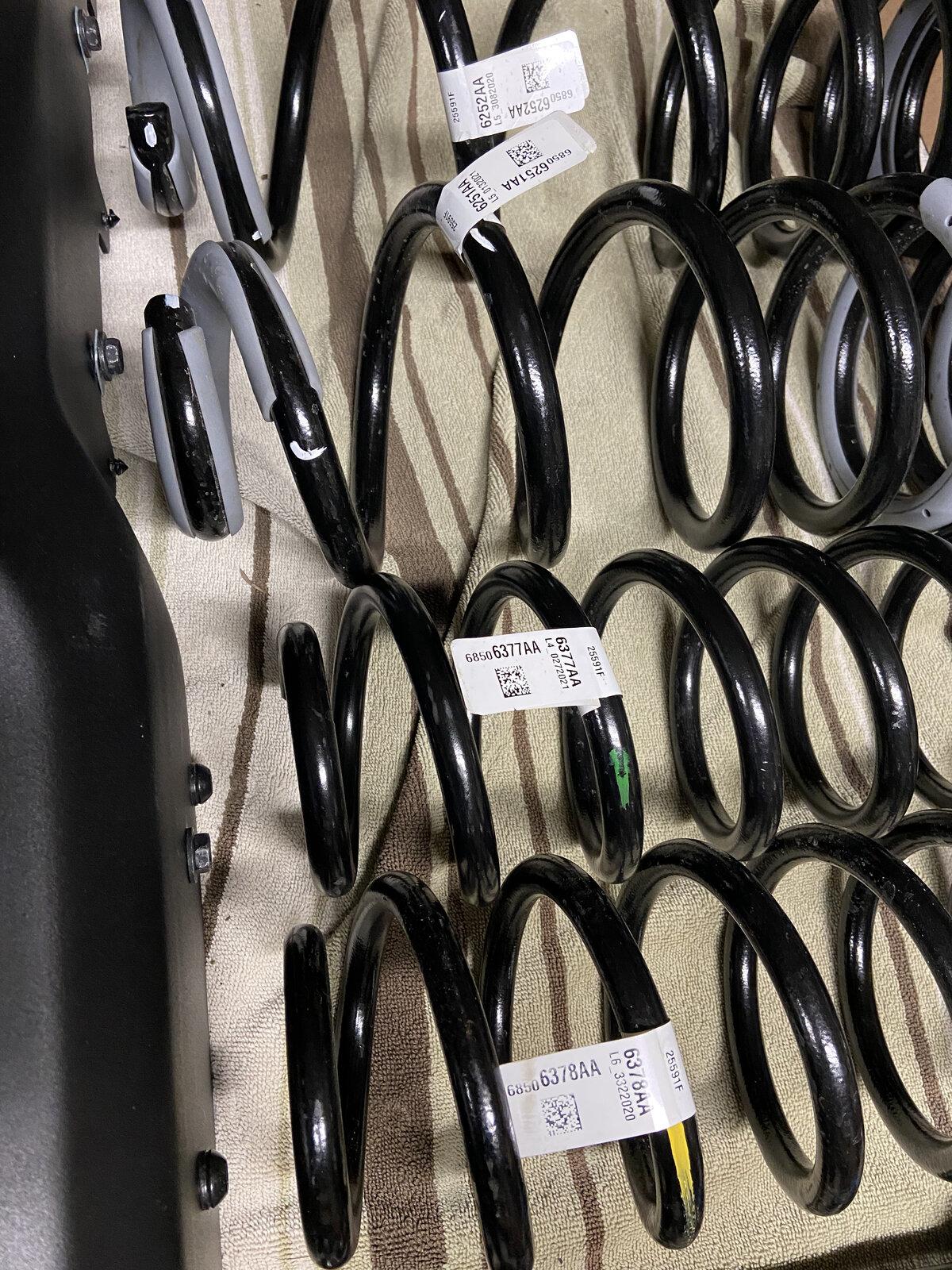

Here's my rubi diesel springs for refence.



[Saltymedic]

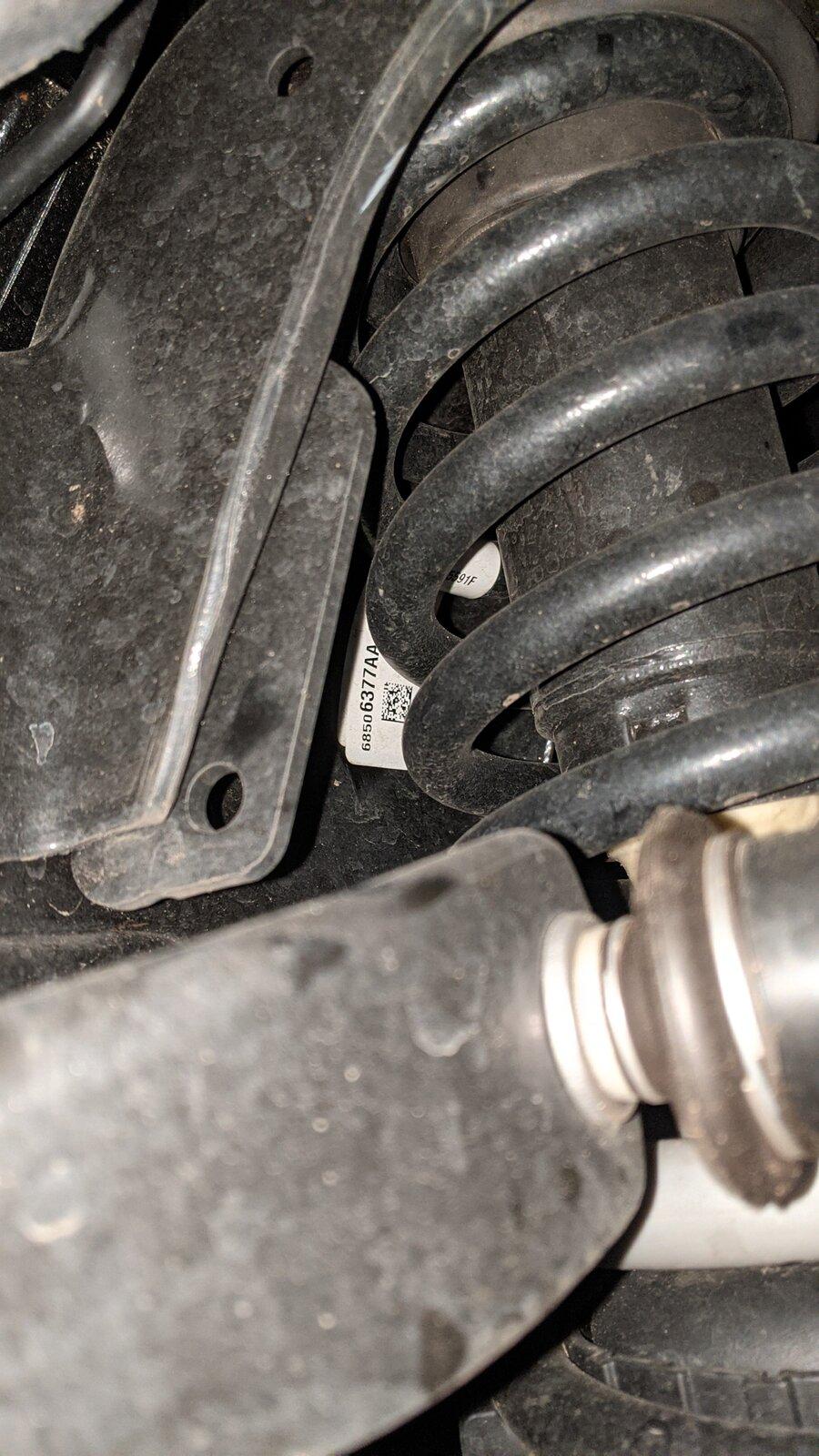

non-rubi diesel



[Vtur]

Today, i replaced just the shocks with rubi ones and it ride great. Less body roll during turns.



[Tguerrero]

Anyone else diesel comes with front stock springs 6377AA, which is the same as rubicon front springs 6377AA/6378AA?

However, my Overland rear part number are different though.

Yes all Diesel Gladiators come with Rubicon suspension.



[kooltoys]

Im take offs are completely different PN 68459618AA
2021 Overland High Altitude diesel



[Saltymedic]

I like where this thread is going.

Here's my rubi diesel springs for refence.

Strange!

my Willy's addition eco has matching springs both driver and passenger sides.

The fronts are both 6377AA with GREEN paint pen marks and the rears are both unmarked yet have a GREEN paint pen marks mark.

Which exact corners did each of those springs come from?

The reason I'm asking is I have a lift on the way which says it has corner specific springs. If that's so I want to match it up to the proper corner the best I can.



[Vtur]

I like where this thread is going.


Strange!

my Willy's addition eco has matching springs both driver and passenger sides.

The fronts are both 6377AA with GREEN paint pen marks and the rears are both unmarked yet have a GREEN paint pen marks mark.

Which exact corners did each of those springs come from?

The reason I'm asking is I have a lift on the way which says it has corner specific springs. If that's so I want to match it up to the proper corner the best I can.

I don't know which corners as mine fronts are both 6377aa. However, those springs were removed from a rubi with steel bumper as an option. I would guess the 6378aa is to compensate for sway disconnect and locker.

Hopefully your lift instructions will indicates.



[CerOf]

Here's my rubi diesel springs for refence.

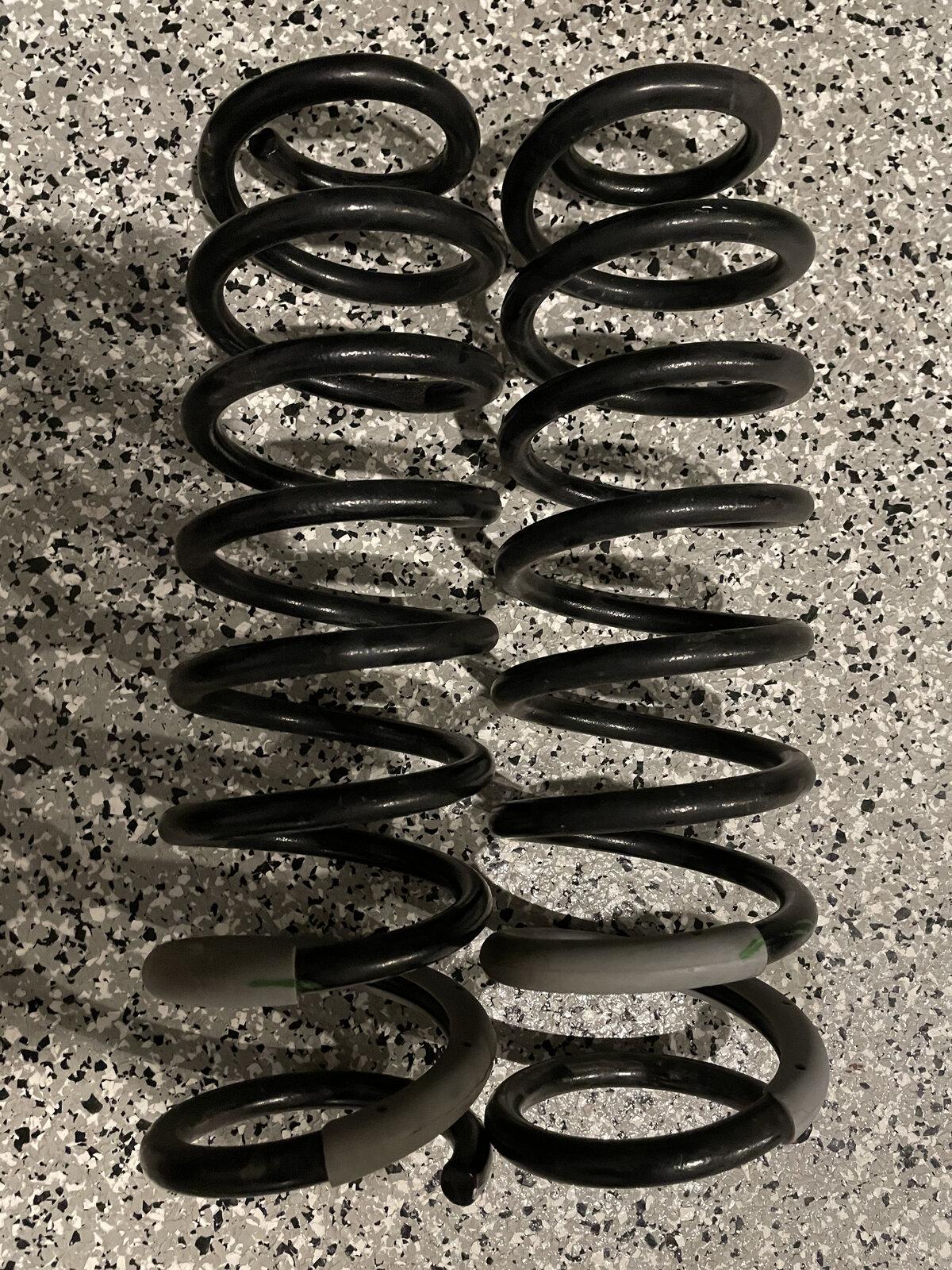

Mine didn’t have part numbers but look the same as yours.

Mine are from a rubi diesel with factory installed front and rear metal bumpers.



[Saltymedic]

Mine didn’t have part numbers but look the same as yours.

Mine are from a rubi diesel with factory installed front and rear metal bumpers.

do you recall which corner the 6378aa was on?
