Park Sensor Help

Gavidoc

Member
First Name
John
Joined
Jul 8, 2020
Threads
2
Messages
20
Reaction score
28
Location
Massachusetts
Vehicle(s)
Gladiator Overland, TJ Columbia
Holy crap these things are driving me nuts.
I decided to swap my plastic bumper for the rubicon steel bumper and these damn parking sensors can kiss my ass.
Different brackets to mount them in the steel bumper. I think I got the right things just to run into assembly issues. Finally got them all installed with I think the right parts but now I am not sure if the orientation is correct.
Anyone with a rubicon can you please help?

need to know how they should be oriented. Images would be helpful.

These are the parts I bought.

park distance bezels
6MH82RXFAB
6MH83RXFAB
6MH84RXFAB
6MH85RXFAB

Park Distance Bezels
6UD40RXFAA
6UD41RXFAA
6UD42RXFAA
6UD43RXFAA

after installing them I followed the orientation of my overland bumper but when I put it in reverse the warning starts immediately.

ā€˜

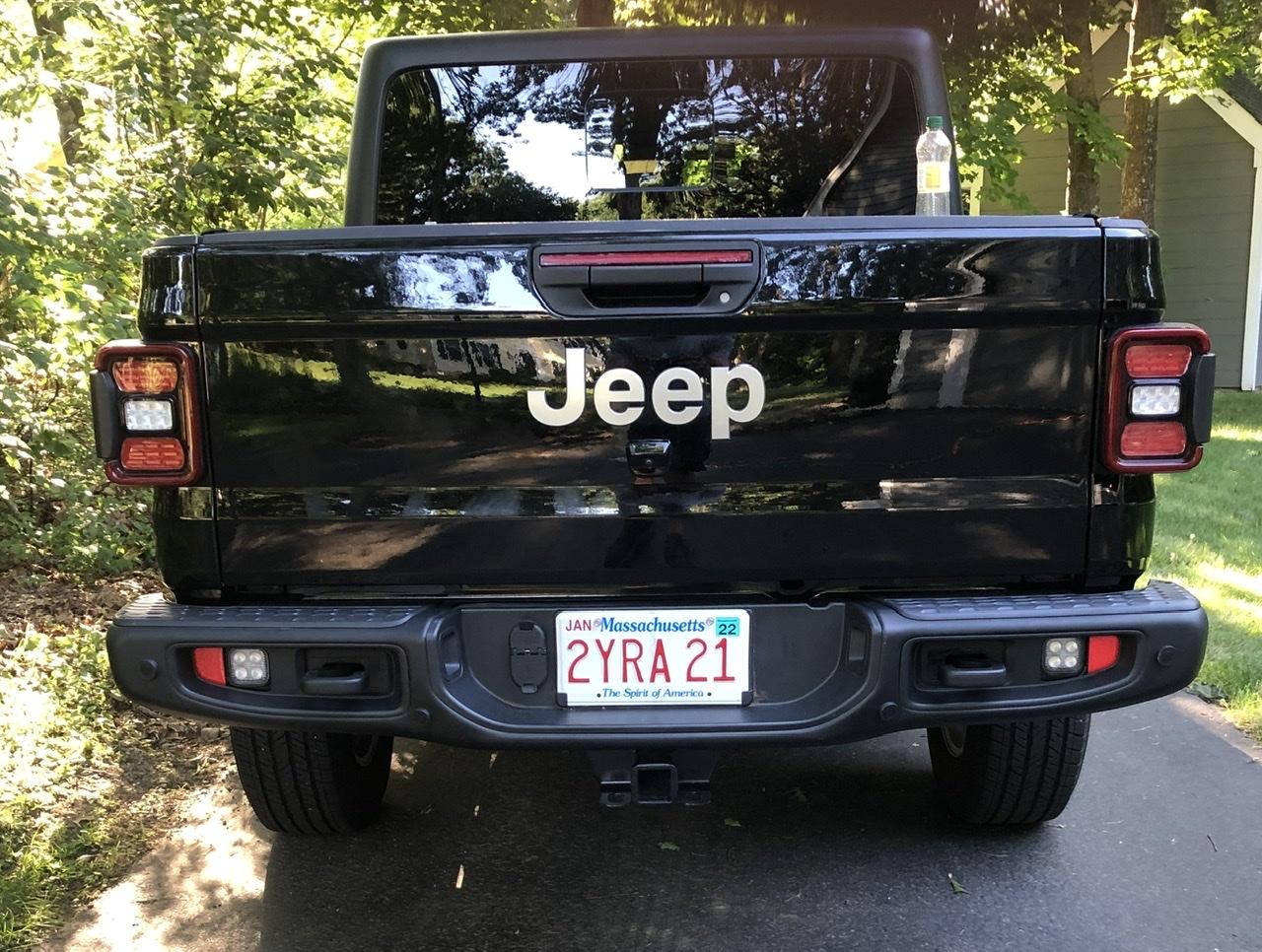

Jeep Gladiator Park Sensor Help 79A77D57-535C-4689-B455-C682C2273F9F
Sponsored



DougM55

Well-Known Member
First Name
Doug
Joined
Jan 24, 2020
Threads
2
Messages
125
Reaction score
116
Location
Tampa Bay
Vehicle(s)
2020 Gladiator Sport S
Did you ever get this figured out? I replaced mine with an aftermarket bumper and now the thing starts beeping and going nuts as soon as itā€™s in reverse. I thought maybe they need reset. Dealer checked it out and said no reset available.

OP
OP
Gavidoc

Gavidoc

Member
First Name
John
Joined
Jul 8, 2020
Threads
2
Messages
20
Reaction score
28
Location
Massachusetts
Vehicle(s)
Gladiator Overland, TJ Columbia
Did you ever get this figured out? I replaced mine with an aftermarket bumper and now the thing starts beeping and going nuts as soon as itā€™s in reverse. I thought maybe they need reset. Dealer checked it out and said no reset available.

All trial and error.

I started with the center sensors. Parked really to something and slowly moved forward until the object was at the last yellow/orange line on the camera and adjusted the inner sensors till they were pretty close.

Then did the same with each outside sensor.

Is it perfect and like it was originally? No. Is it workable? Yes.


DougM55

Well-Known Member
First Name
Doug
Joined
Jan 24, 2020
Threads
2
Messages
125
Reaction score
116
Location
Tampa Bay
Vehicle(s)
2020 Gladiator Sport S
Hmm...Iā€™m confused. What did you adjust? The angle of the bezels?

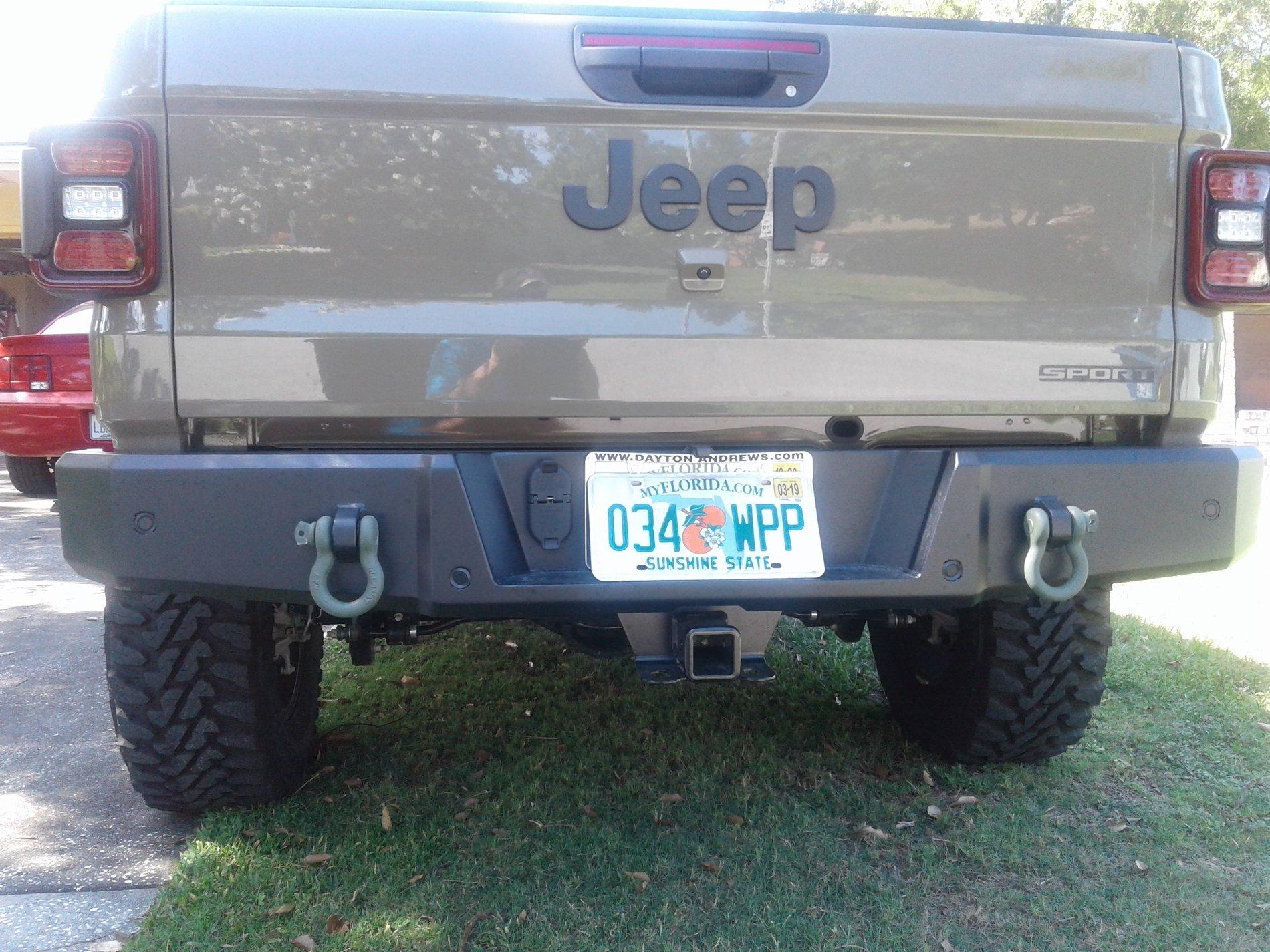

I bought a Magnum Raptor rear bumper. They call for replacing the bezels with ones from a Ram 1500. They are perfect straight with no angles. The bumper is pretty much straight too so Iā€™m not sure adjusting the angles would help.

OP
OP
Gavidoc

Gavidoc

Member
First Name
John
Joined
Jul 8, 2020
Threads
2
Messages
20
Reaction score
28
Location
Massachusetts
Vehicle(s)
Gladiator Overland, TJ Columbia
Hmm...Iā€™m confused. What did you adjust? The angle of the bezels?

I bought a Magnum Raptor rear bumper. They call for replacing the bezels with ones from a Ram 1500. They are perfect straight with no angles. The bumper is pretty much straight too so Iā€™m not sure adjusting the angles would help.
Yep, I just twisted them around until they were positioned to work. The sensors snap into the actual bezel which can turn in the bumper.

It isnā€™t easy. YOu have to grab the sensor from behind the bumper as well as the bezel and turn both at the same time. You kill your fingers.


Sponsored

DougM55

Well-Known Member
First Name
Doug
Joined
Jan 24, 2020
Threads
2
Messages
125
Reaction score
116
Location
Tampa Bay
Vehicle(s)
2020 Gladiator Sport S
Ok thanks for the tip. I may need to grab some of the Rubicon bezels to try it.


Rockchucker

Well-Known Member
First Name
Rick
Joined
Jun 22, 2020
Threads
0
Messages
108
Reaction score
153
Location
FLA
Vehicle(s)
JT JKU
Occupation
Retired
Vehicle Showcase
1
Ok thanks for the tip. I may need to grab some of the Rubicon bezels to try it.
Doug l did not use any bezels just took them out of the factory bumper and put them in

OP
OP
Gavidoc

Gavidoc

Member
First Name
John
Joined
Jul 8, 2020
Threads
2
Messages
20
Reaction score
28
Location
Massachusetts
Vehicle(s)
Gladiator Overland, TJ Columbia
Doug did you have a steel bumper to begin with or a plastic bumper?


Sponsored

DougM55

Well-Known Member
First Name
Doug
Joined
Jan 24, 2020
Threads
2
Messages
125
Reaction score
116
Location
Tampa Bay
Vehicle(s)
2020 Gladiator Sport S
Doug did you have a steel bumper to begin with or a plastic bumper?
I had the plastic bumper on a Sport S. The bezels were plastic welded to the bumper. The holes in the Magnum bumper are slotted so that the Ram bezels can only be inserted one way from the outside. Snapping the sensor into the bezel from inside the bumper locks it all together but the bezels wonā€™t rotate.


Rockchucker

Well-Known Member
First Name
Rick
Joined
Jun 22, 2020
Threads
0
Messages
108
Reaction score
153
Location
FLA
Vehicle(s)
JT JKU
Occupation
Retired
Vehicle Showcase
1

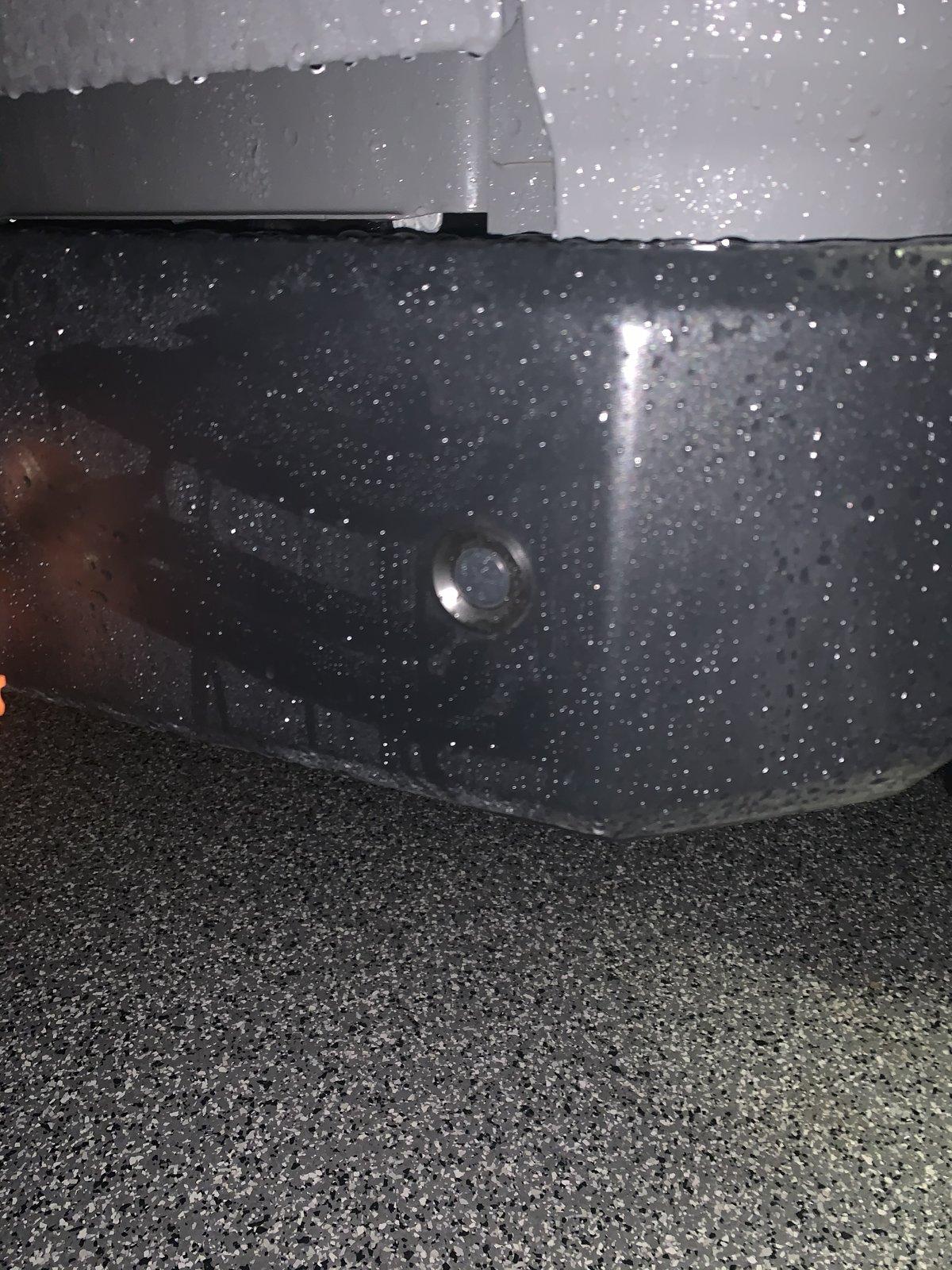

It looks like your sensors are just sitting in the holes. Can you poke them inside by accident if you push on them?
No they are tight in there
