Popping noise in the back/Passenger side

Maximus Gladius

Well-Known Member
First Name
Kevin
Joined
Jan 30, 2021
Threads
41
Messages
1,739
Reaction score
2,045
Location
Calgary, AB, Canada
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Construction, Gold Mining, Surface Engineer
48k kms, JTR.
So this low creep speed and tight turning popping noise has been bugging me for a while and after checking all the nuts and bolts in the back and finding them tight, I had to dig a little deeper.

I’ve never liked the shocks on the JTR and the wife was really complaining lately about the excessive bouncy ride so I slid underneath to look at the shocks and lo and behold, they’re oily.

Truck goes in on Tuesday. Would they determine these are shot? I pulled the bottom bolt and shoved the shock stem all the way up then let it drop on its own. It would make a pop sound as it almost flexed out.

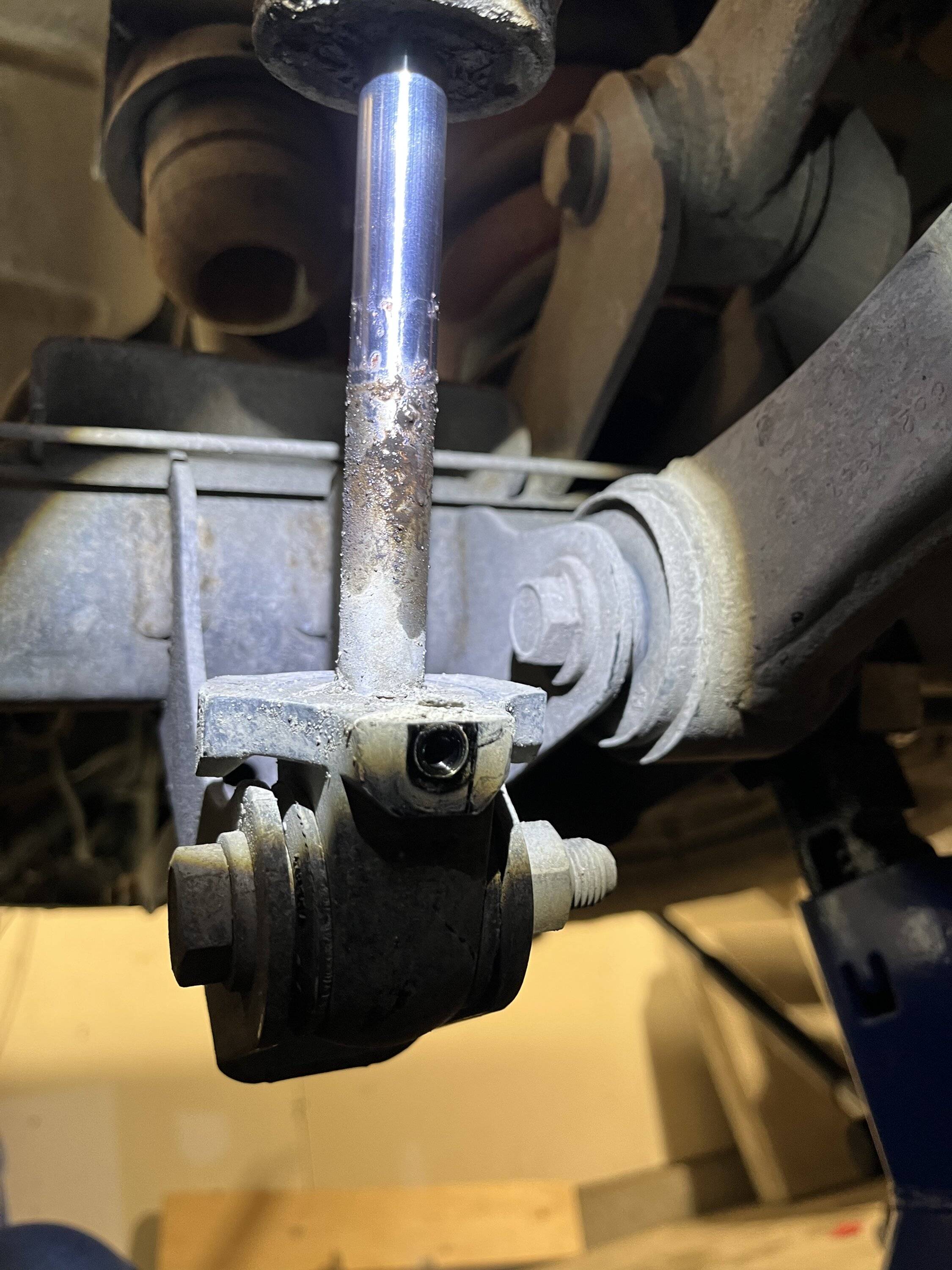

Jeep Gladiator Popping noise in the back/Passenger side DFE73BC6-08A1-4406-99D4-22445D22EBA6

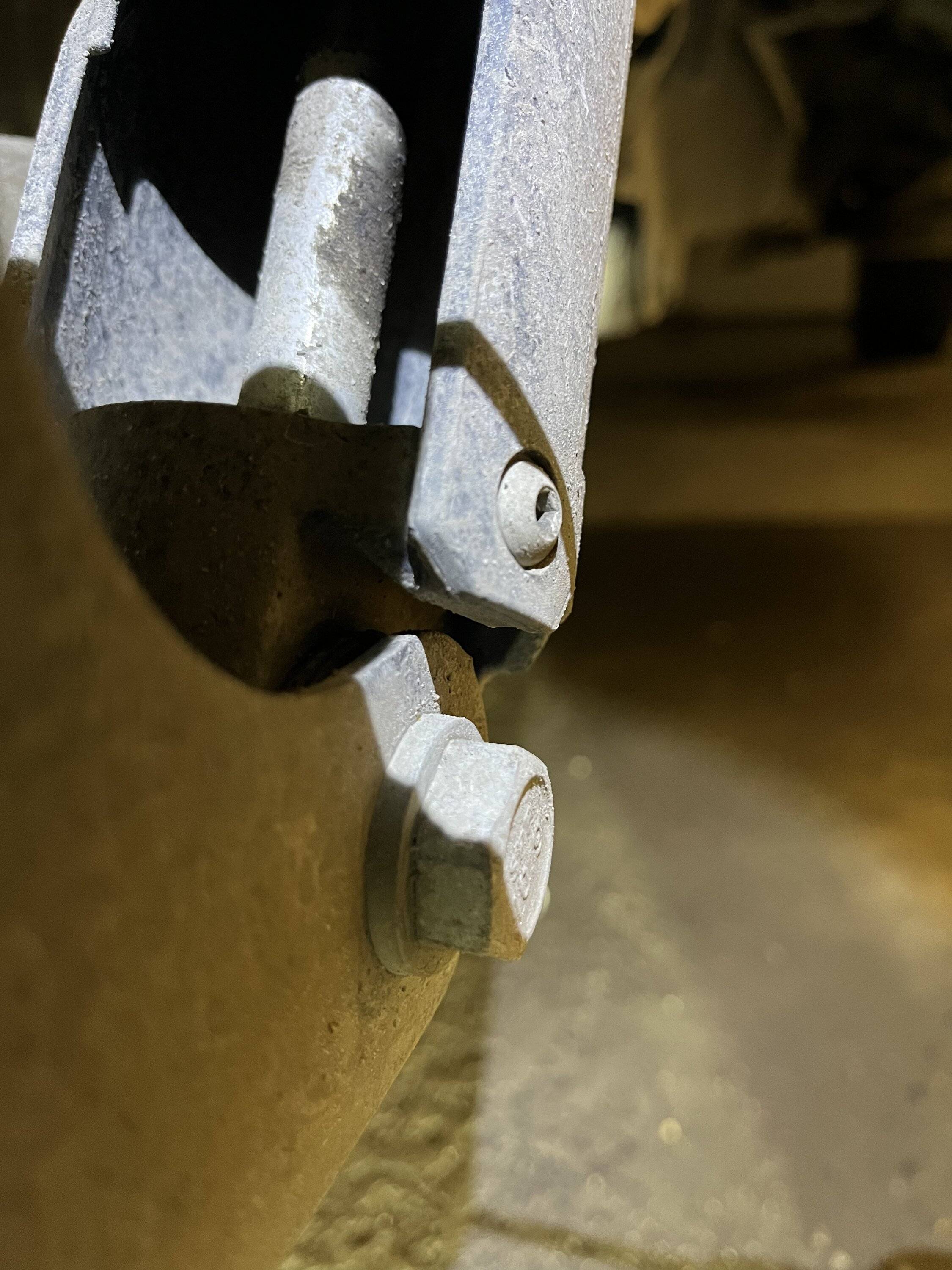

Jeep Gladiator Popping noise in the back/Passenger side 24969530-C5D8-42D0-941B-54605C8C065A

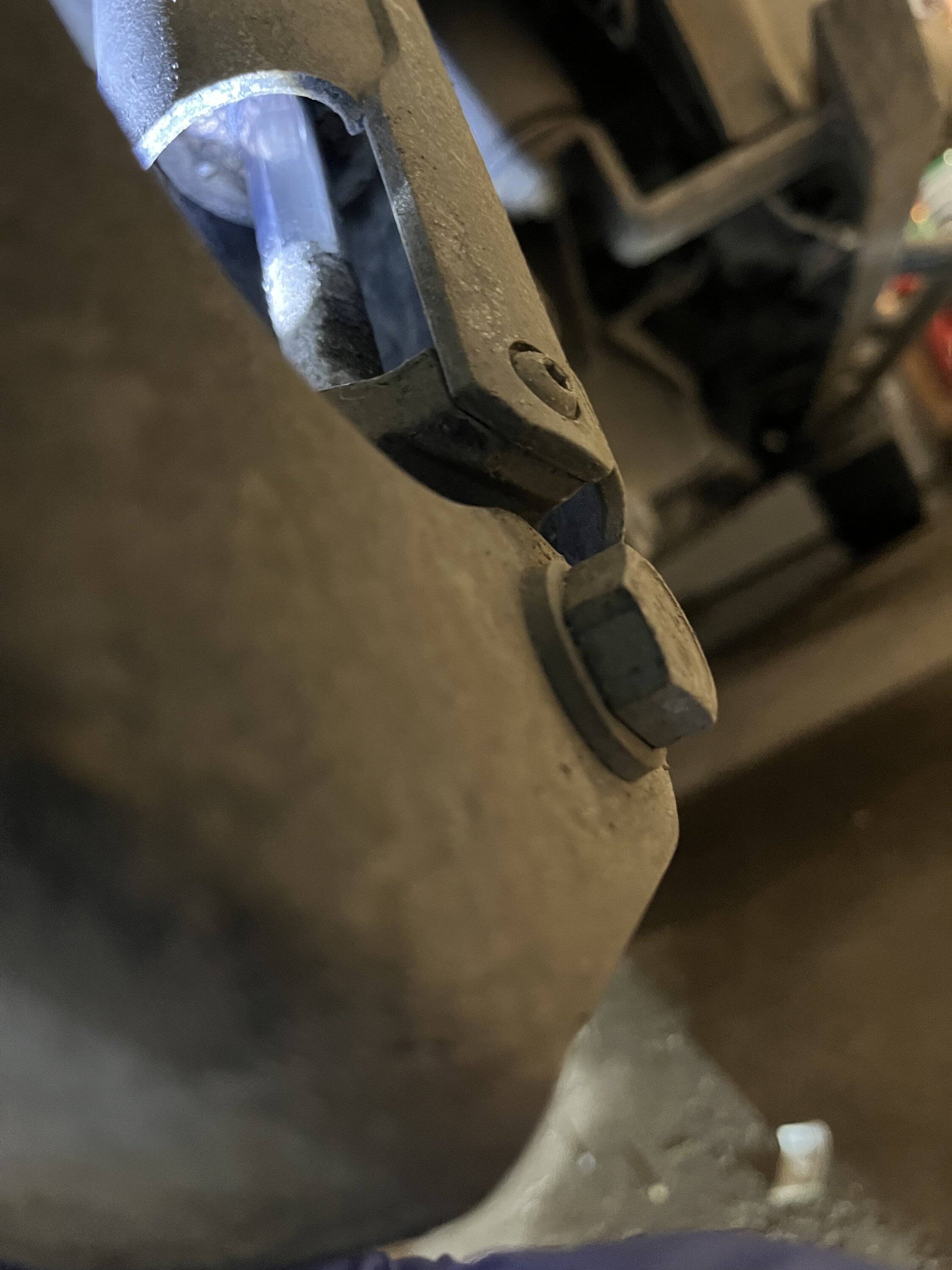

Jeep Gladiator Popping noise in the back/Passenger side 0F4F53C3-EC92-404A-BDE4-48A1A9DDCCD8

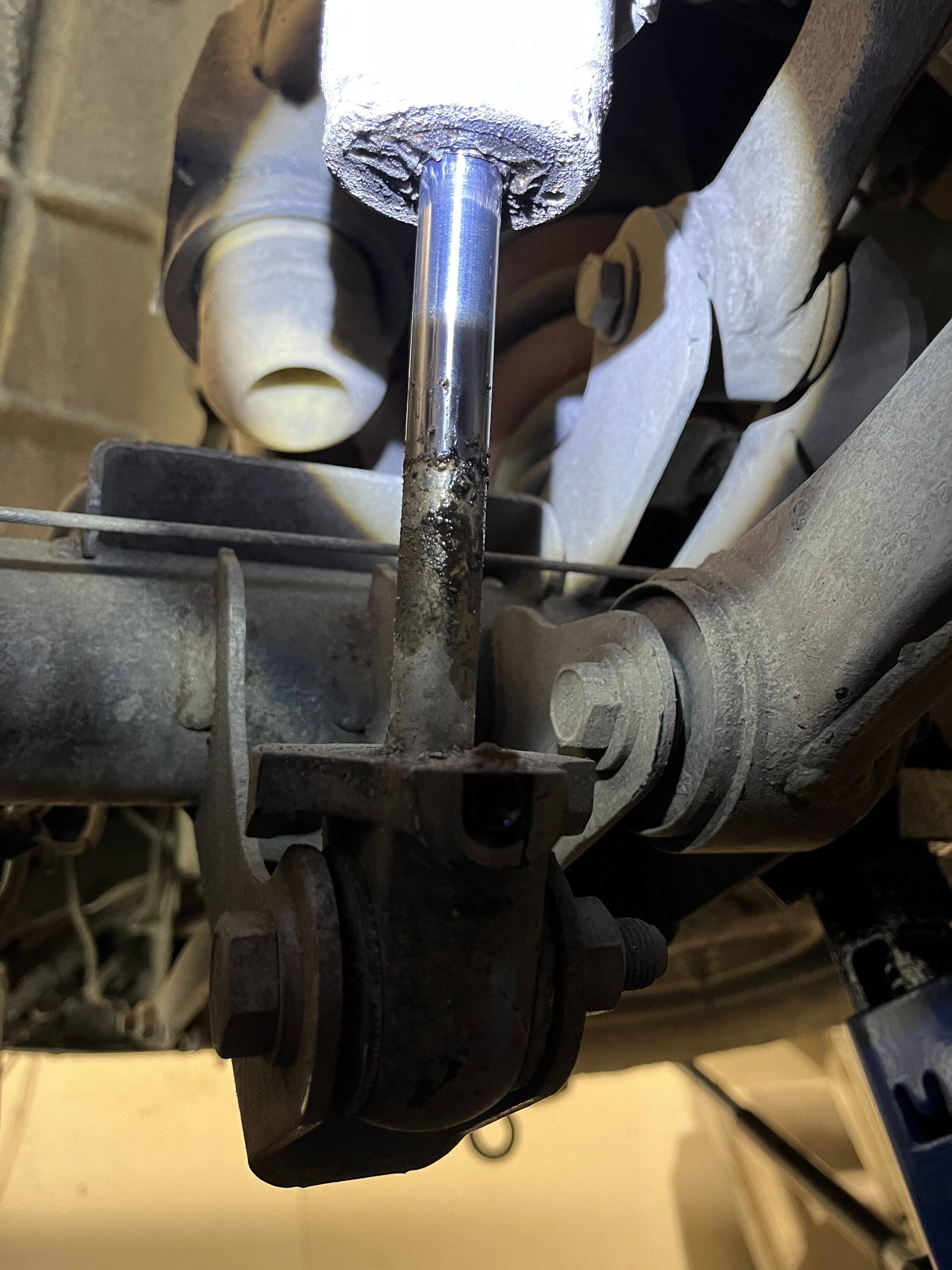

Jeep Gladiator Popping noise in the back/Passenger side 98454EA5-BACF-4158-8CFC-3A667042B1B8
Sponsored


Last edited:

Hootbro

Well-Known Member
Joined
Apr 13, 2019
Threads
35
Messages
6,372
Reaction score
10,567
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
Would they determine these are shot?
I would say yes. You would still have to be within the basic bumper to bumper warranty period for them to be covered. Then again, you are in Canada so no telling how they will handle it.

OP
OP
Maximus Gladius

Maximus Gladius

Well-Known Member
First Name
Kevin
Joined
Jan 30, 2021
Threads
41
Messages
1,739
Reaction score
2,045
Location
Calgary, AB, Canada
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Construction, Gold Mining, Surface Engineer
I would say yes. You would still have to be within the basic bumper to bumper warranty period for them to be covered. Then again, you are in Canada so no telling how they will handle it.
I’m still under warranty 😎


jac04

Well-Known Member
First Name
Jeff
Joined
Apr 20, 2021
Threads
25
Messages
1,226
Reaction score
1,740
Location
CT
Vehicle(s)
2021 Mojave, 2014 JKRX SWB
Would they determine these are shot? I pulled the bottom bolt and shoved the shock stem all the way up then let it drop on its own. It would make a pop sound as it almost flexed out.
Based on the oily condition, I'm going to say no. Manufacturers typically accept some shock 'weeping' and 'wetness' as normal, and won't do anything unless the shock is dripping oil. Your shocks do not appear to be dripping.

Now, if you can get the dealer to confirm the popping noise is abnormal, then I think you'll get the shock(s) replaced. But, actually getting the dealer to accept an abnormal sound as abnormal could be a challenge.


Lunentucker

Well-Known Member
Joined
Apr 24, 2022
Threads
187
Messages
4,829
Reaction score
11,935
Location
Virginia
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
People Work?
My JTM's Fox Shocks have been making that noise too lately. I'm going to take a look tomorrow and clean and lube the shafts.
I've been reading that the seals get stiff in cooler weather.


Sponsored

Toyfrog

Well-Known Member
First Name
James
Joined
Sep 4, 2020
Threads
8
Messages
595
Reaction score
679
Location
Houston
Vehicle(s)
2021 Mojave
My JTM's Fox Shocks have been making that noise too lately. I'm going to take a look tomorrow and clean and lube the shafts.
I've been reading that the seals get stiff in cooler weather.
My rear shocks on my 21 Mojave were leaking pretty good. Dealer replaced both of them and said something about a bad batch of seals. Didn’t question anything. That was at about 18k miles. No leaks from the new ones in about 5k miles.


Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
18
Messages
6,292
Reaction score
14,351
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
'22 JTRD, '11 370Z Nismo, '07 Honda VFR
Build Thread
Link
Occupation
Muff Diver
In the state of Pa. Leaking shocks is a reason to fail the state inspection. Being a state inspector at one time. I would fail that shock.


Lunentucker

Well-Known Member
Joined
Apr 24, 2022
Threads
187
Messages
4,829
Reaction score
11,935
Location
Virginia
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
People Work?
I just pulled the covers and inspected mine. No leaks. Cleaned with Blaster silicone spray and then applied a clean coat of same and left damp. The clunking noise is gone for now.
I'm pretty sure it was the seals binding to the shafts slightly and "popping" when they let go.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
180
Messages
29,414
Reaction score
34,986
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
48k kms, JTR.
So this low creep speed and tight turning popping noise has been bugging me for a while and after checking all the nuts and bolts in the back and finding them tight, I had to dig a little deeper.

I’ve never liked the shocks on the JTR and the wife was really complaining lately about the excessive bouncy ride so I slid underneath to look at the shocks and lo and behold, they’re oily.

Truck goes in on Tuesday. Would they determine these are shot? I pulled the bottom bolt and shoved the shock stem all the way up then let it drop on its own. It would make a pop sound as it almost flexed out.

Jeep Gladiator Popping noise in the back/Passenger side 98454EA5-BACF-4158-8CFC-3A667042B1B8


Jeep Gladiator Popping noise in the back/Passenger side 98454EA5-BACF-4158-8CFC-3A667042B1B8


Jeep Gladiator Popping noise in the back/Passenger side 98454EA5-BACF-4158-8CFC-3A667042B1B8


Jeep Gladiator Popping noise in the back/Passenger side 98454EA5-BACF-4158-8CFC-3A667042B1B8
Try. When I was in the shop doing this sort of work - if it leaked it leaked. Only a damp area wasn't a leak. If you could wipe any part of the shock and have wet oil on your finger, it was a bad shock.
My bet is that if I wiped my finger all the way around the wet part of that shock it would almost constitute a drip.
And once they start, they can be noisy.

I've not put the Rubicon take-offs back on my 2022 after taking them off my 2020 because I think they suck - bouncy shocks and zero advantage over any of the others other than looks.

In the state of Pa. Leaking shocks is a reason to fail the state inspection. Being a state inspector at one time. I would fail that shock.
I used to do inspections when Iowa had their law - and yes, that shock would fail for sure.
