Not the greatest pictures, but I will update soon.

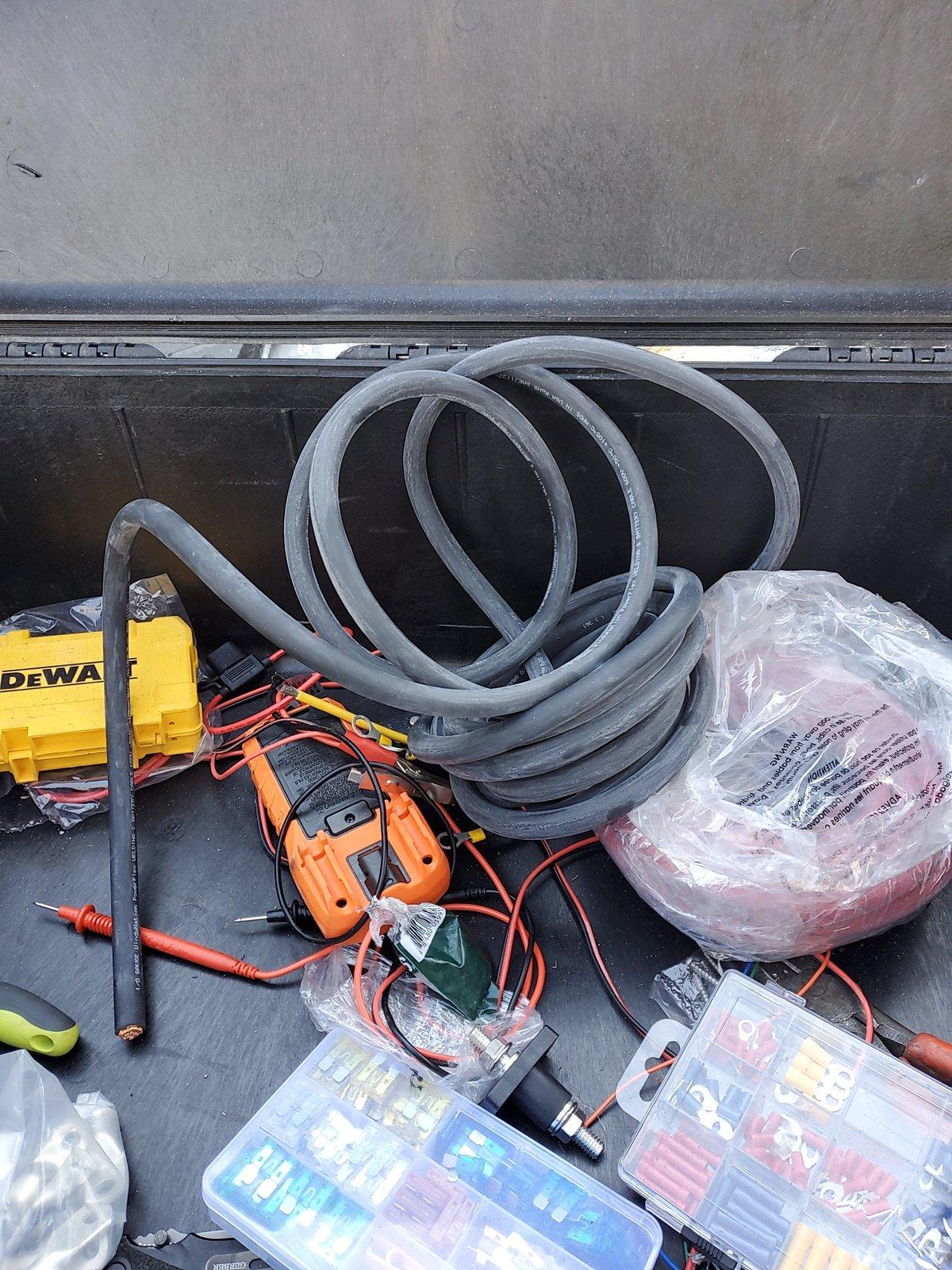

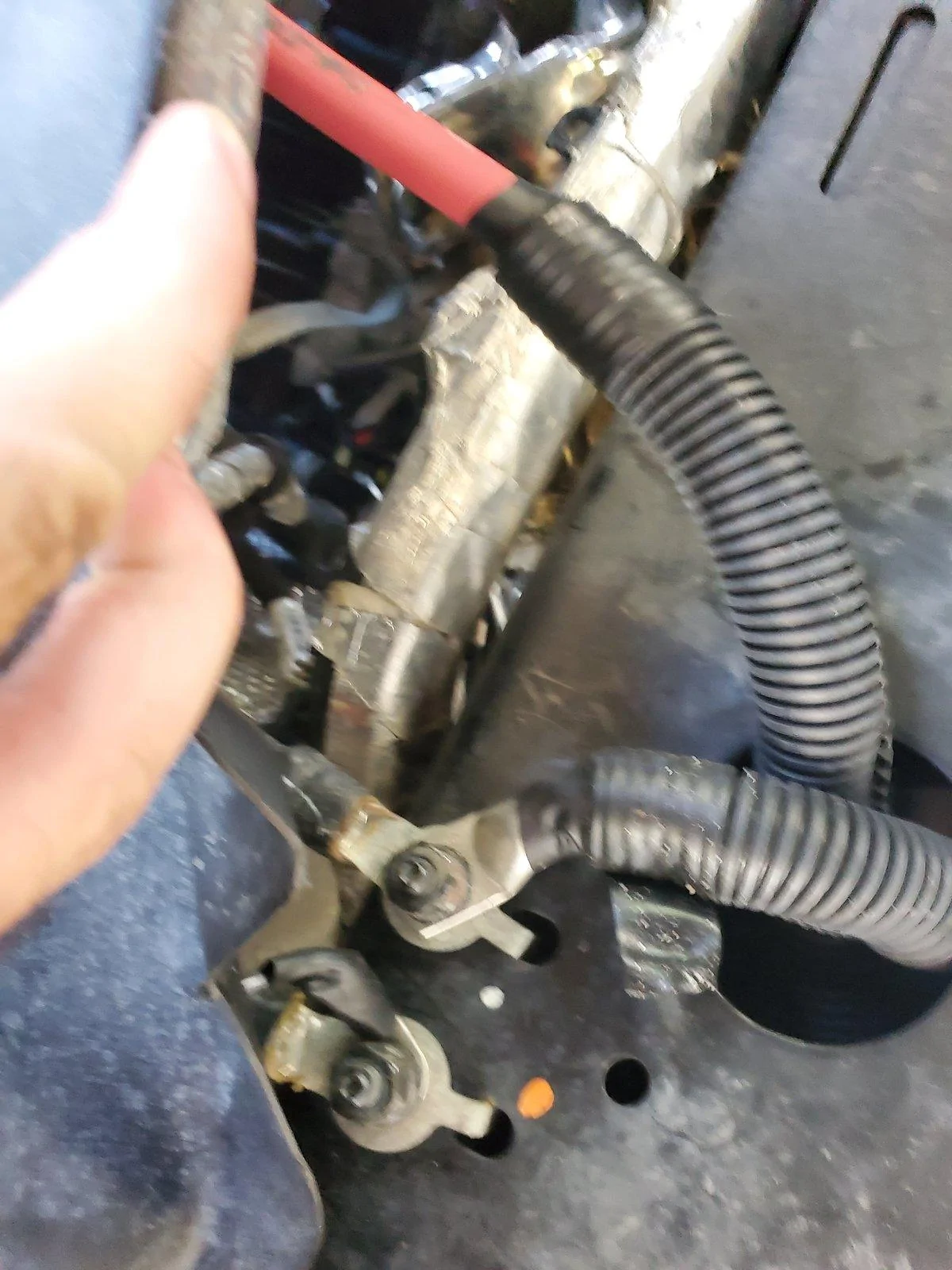

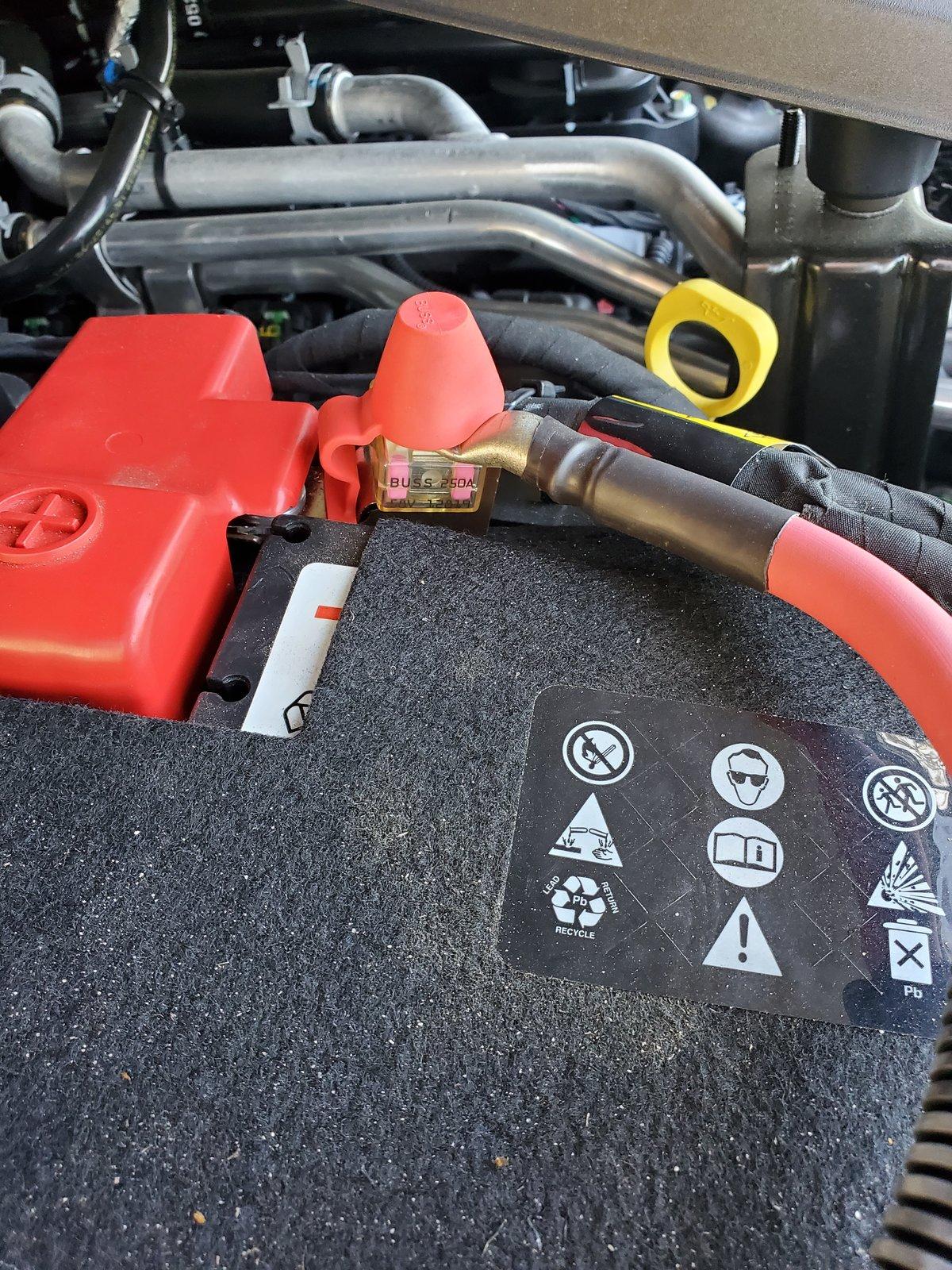

1 AWG from main battery to the bed (250A terminal fuse)

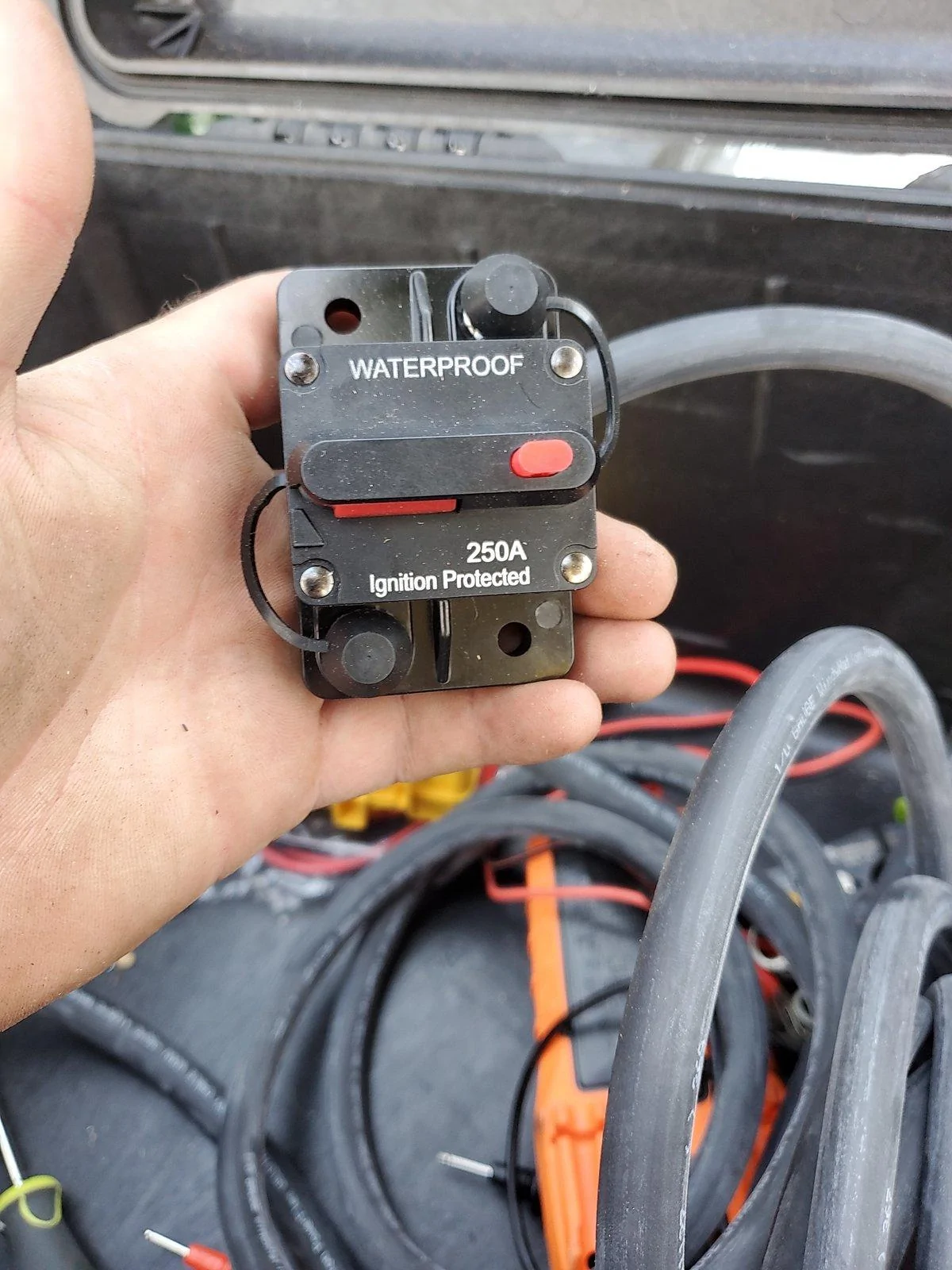

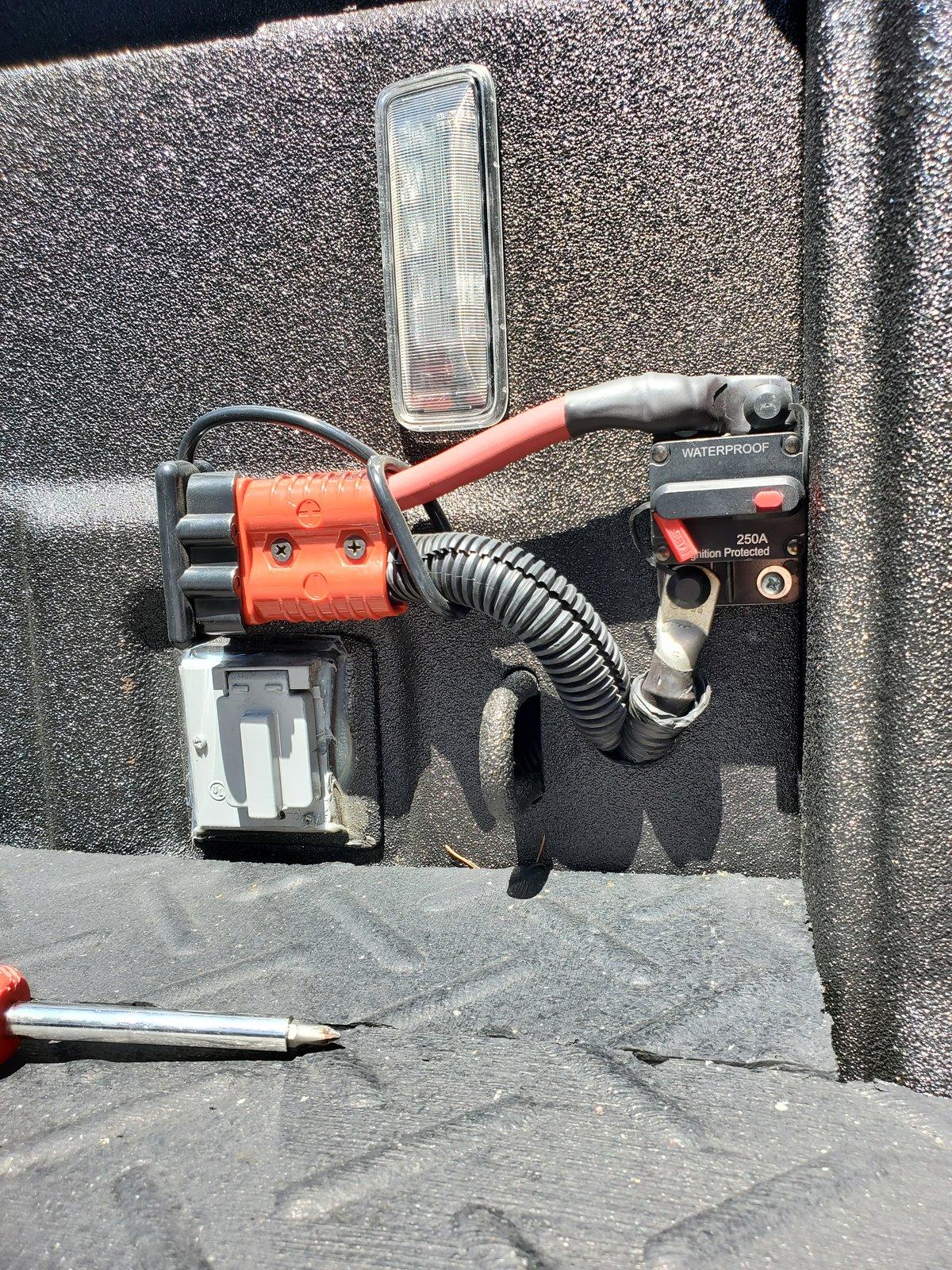

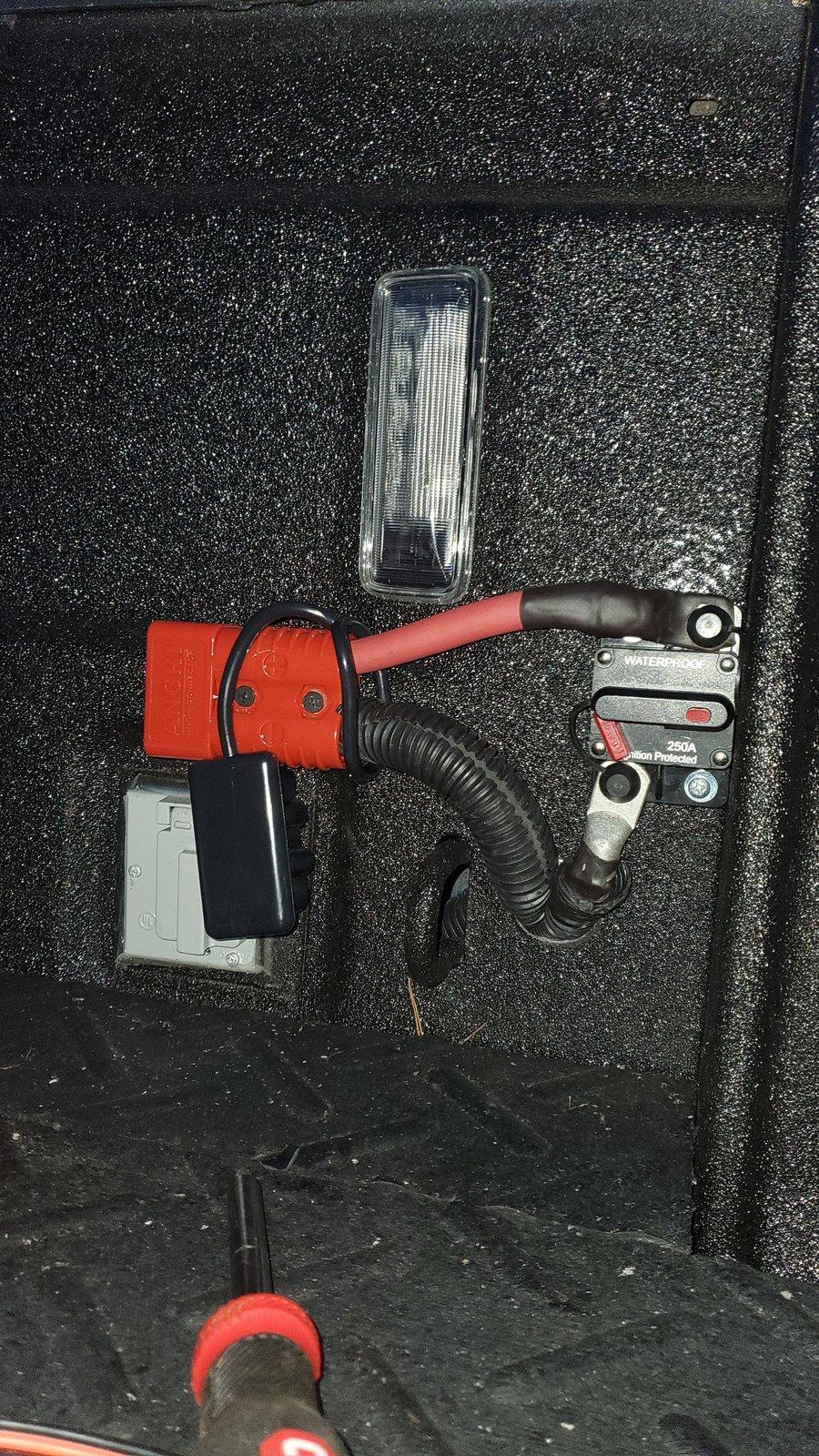

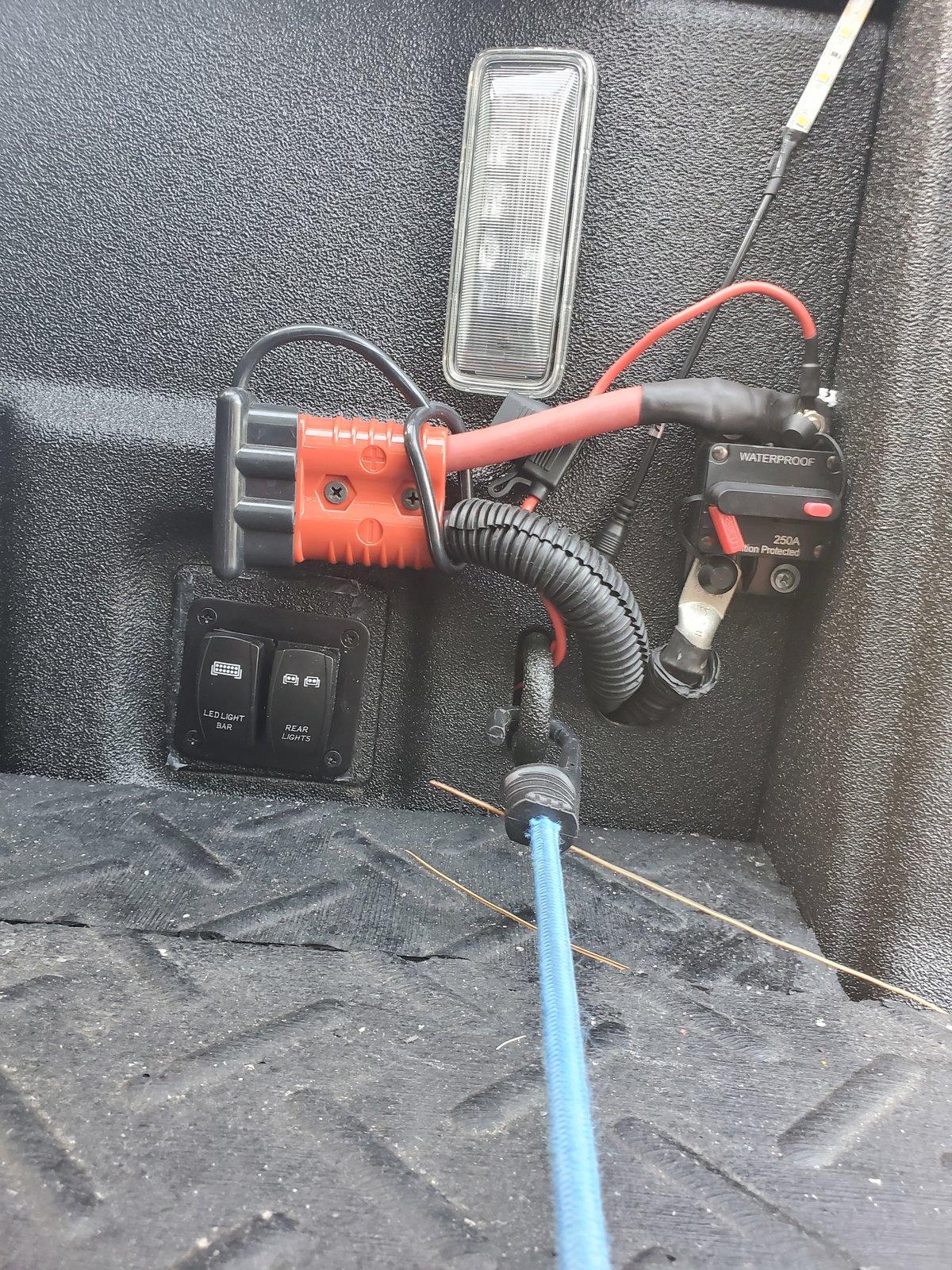

In the bed, power from main battery is wired to a 250A manual breaker, then to an Anderson Plug

INSIDE THE BOX

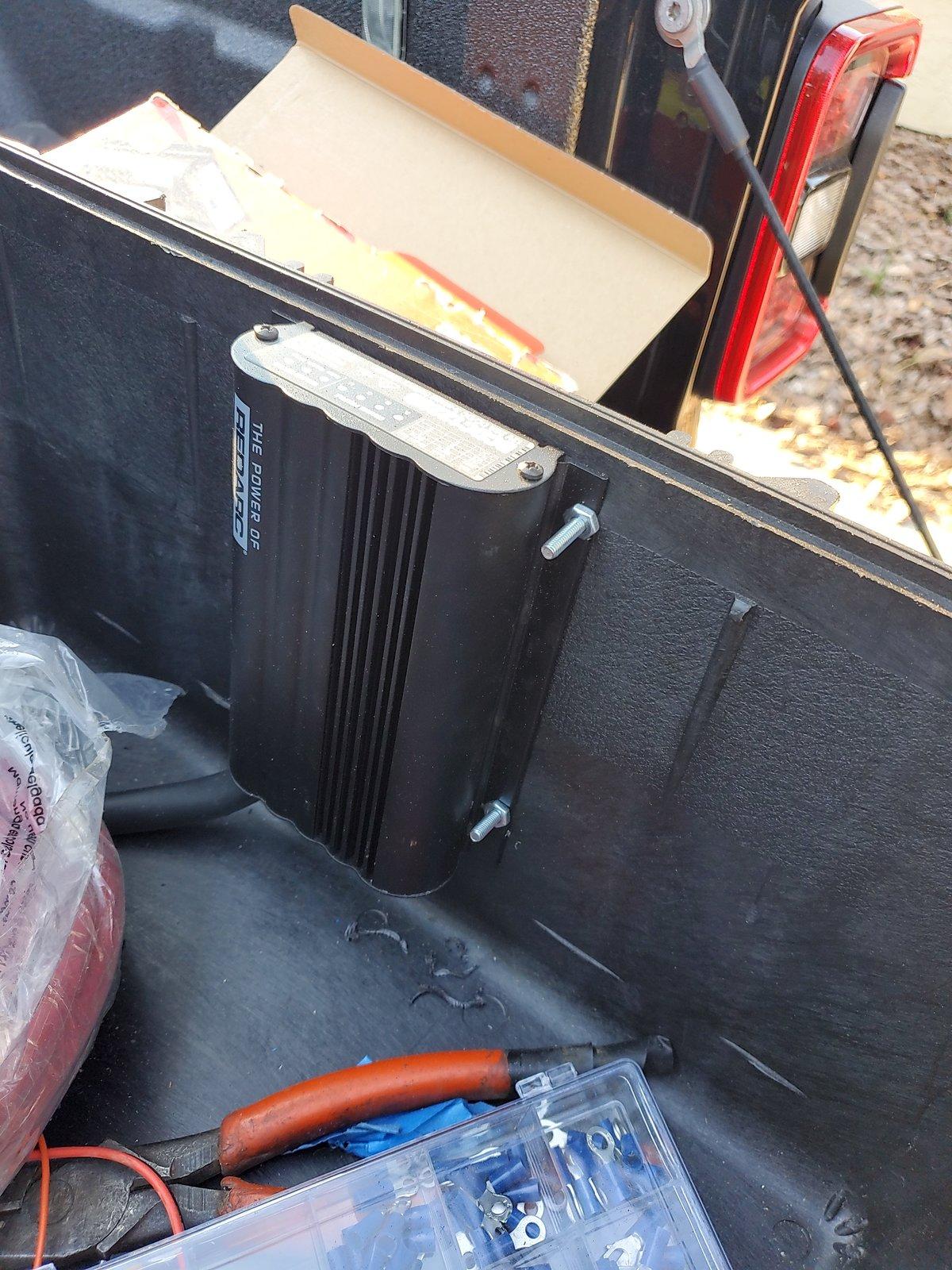

Redarc DCDC Charger

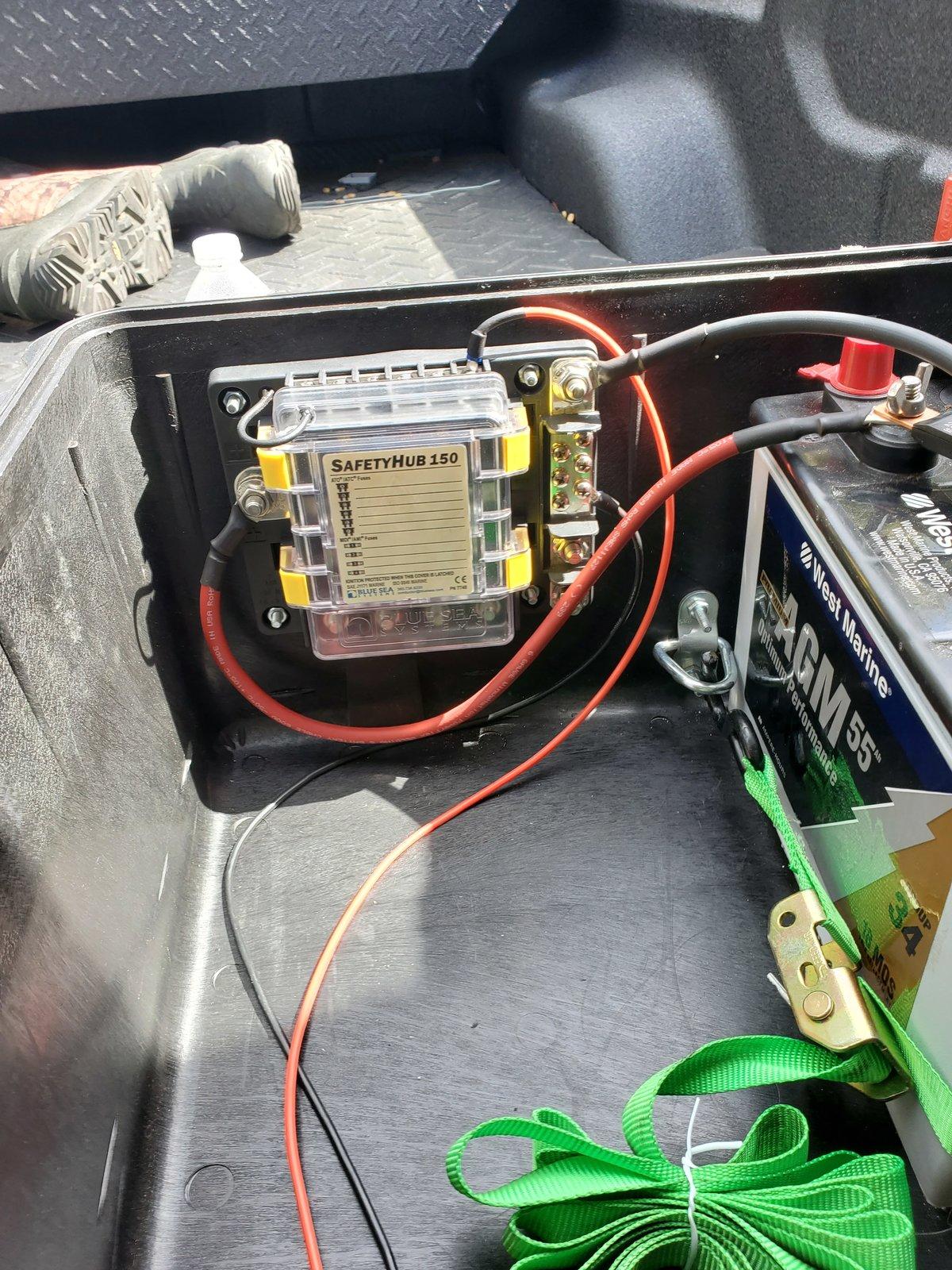

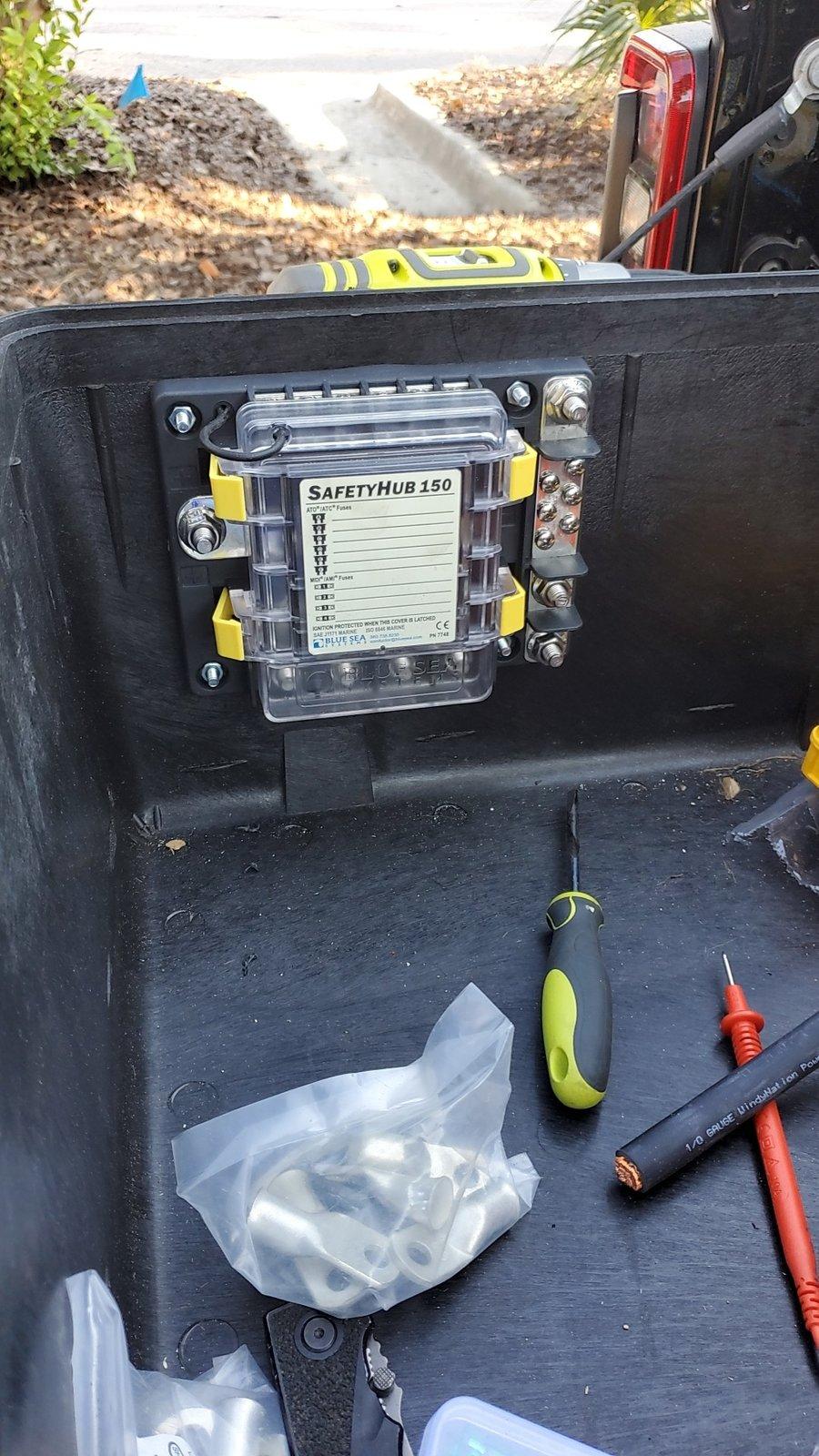

BlueSea Systems Safety Hub
All accessories will be wired through this hub

Incomplete

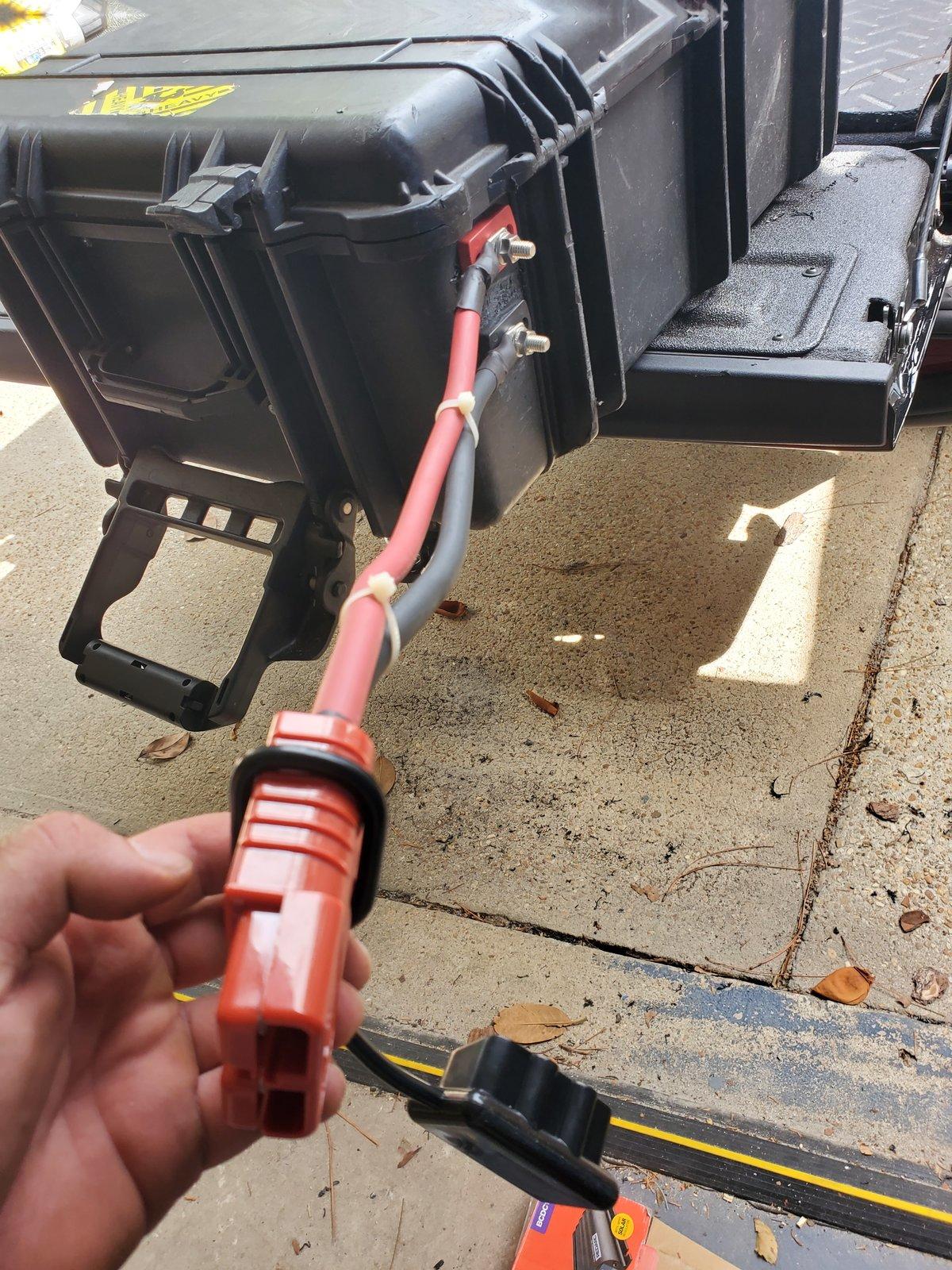

External Anderson Plug to connect Charger to Main battery/Alternator

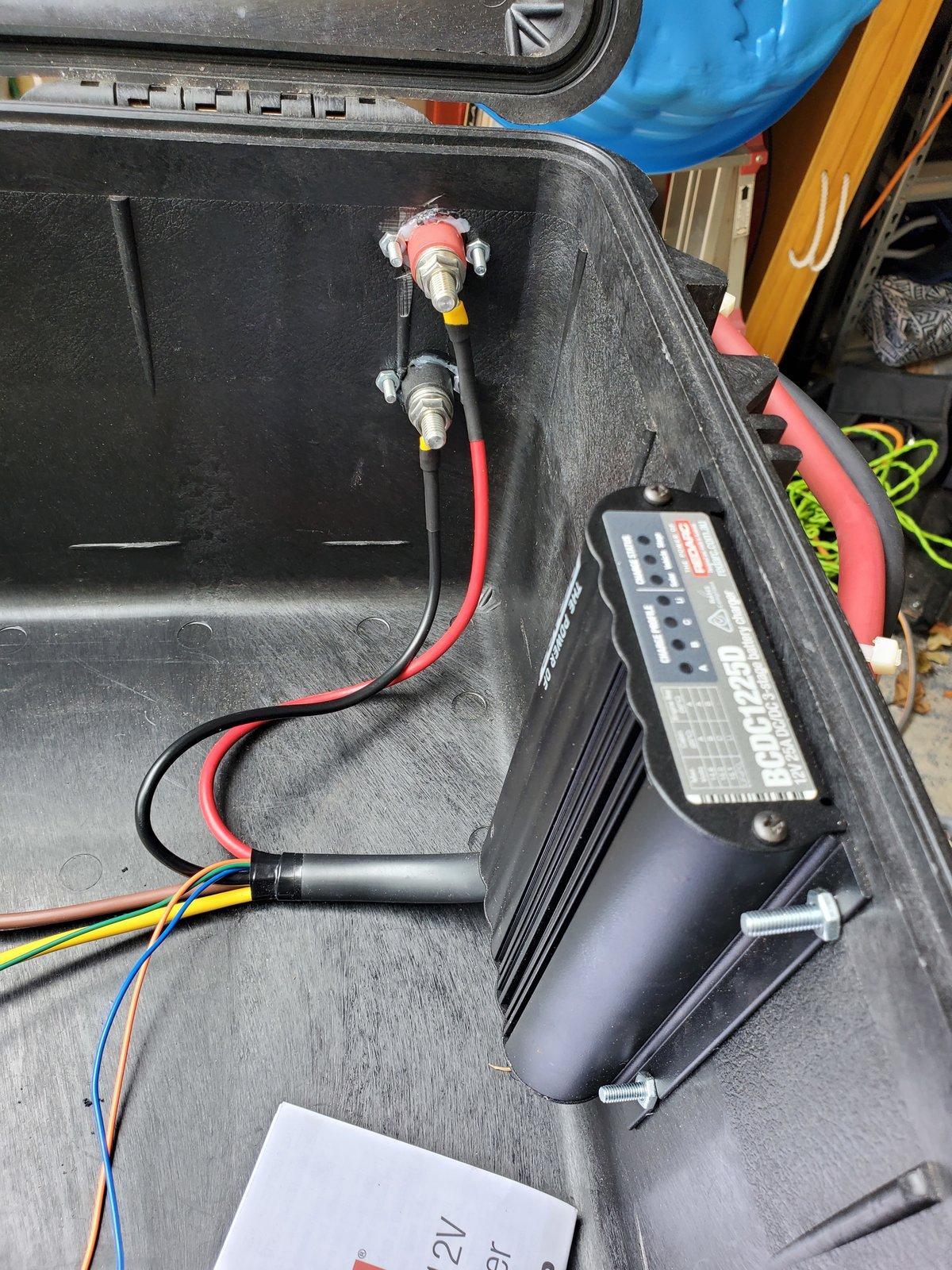

Redarc Charger Connected internally to Waterproof terminals

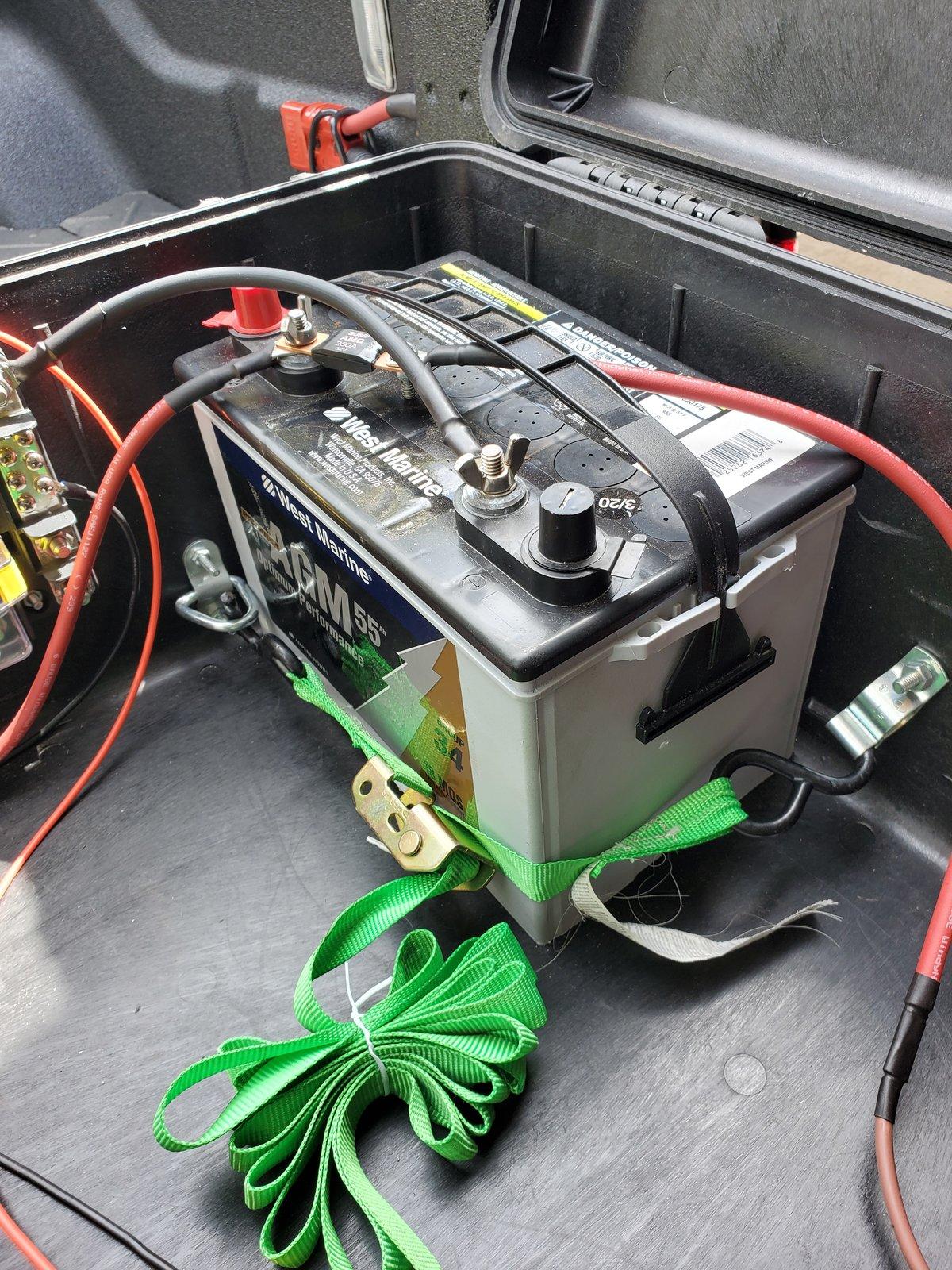

Redarc Charger Connected to Aux battery inside of box
Aux battery Connected to Safety hub
1500W Pure Sin Wave Inverted conected via Safety Hub
External 120V Outlet connected to Inverter
Flush Mount Waterproof LED light

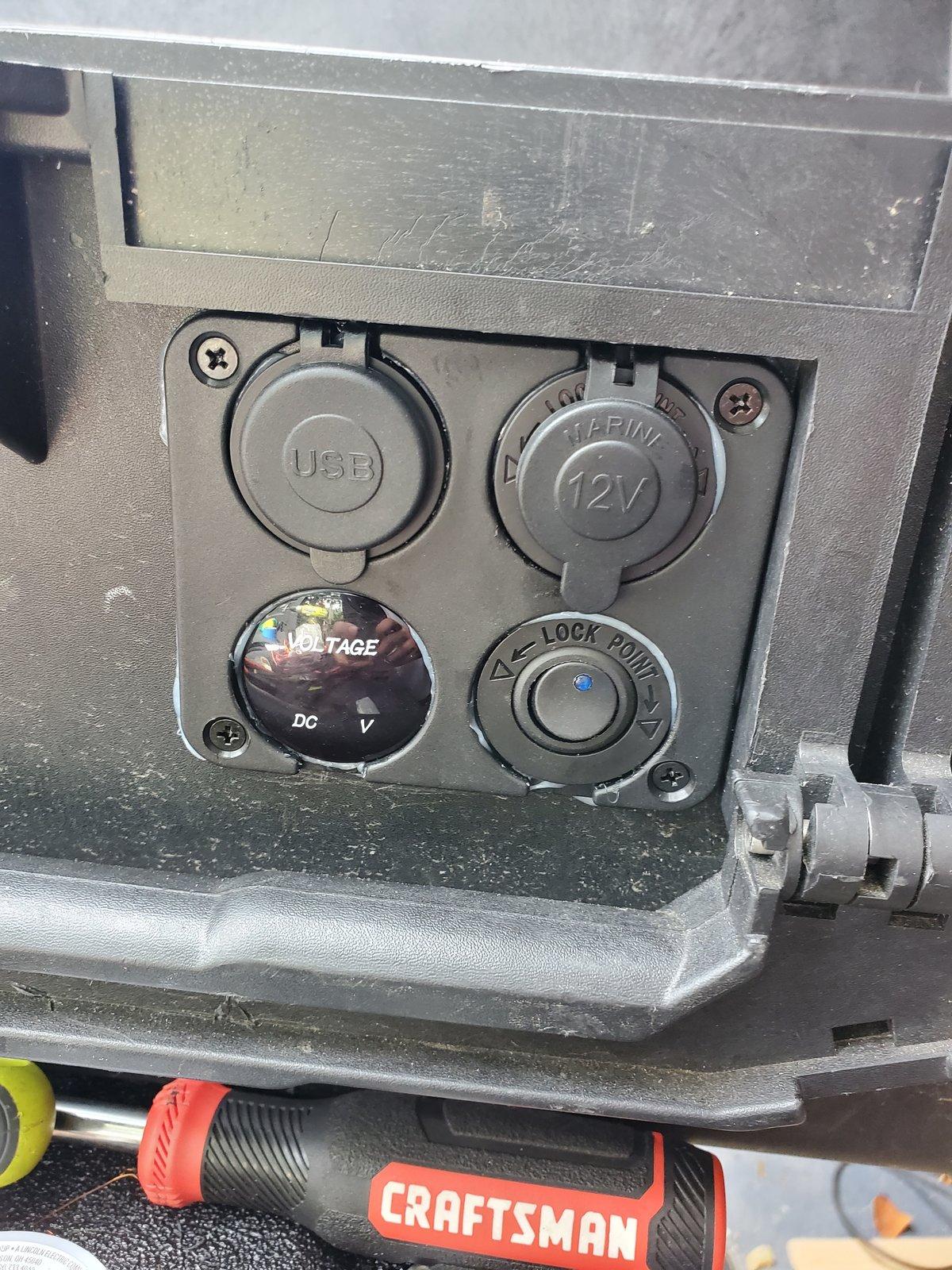

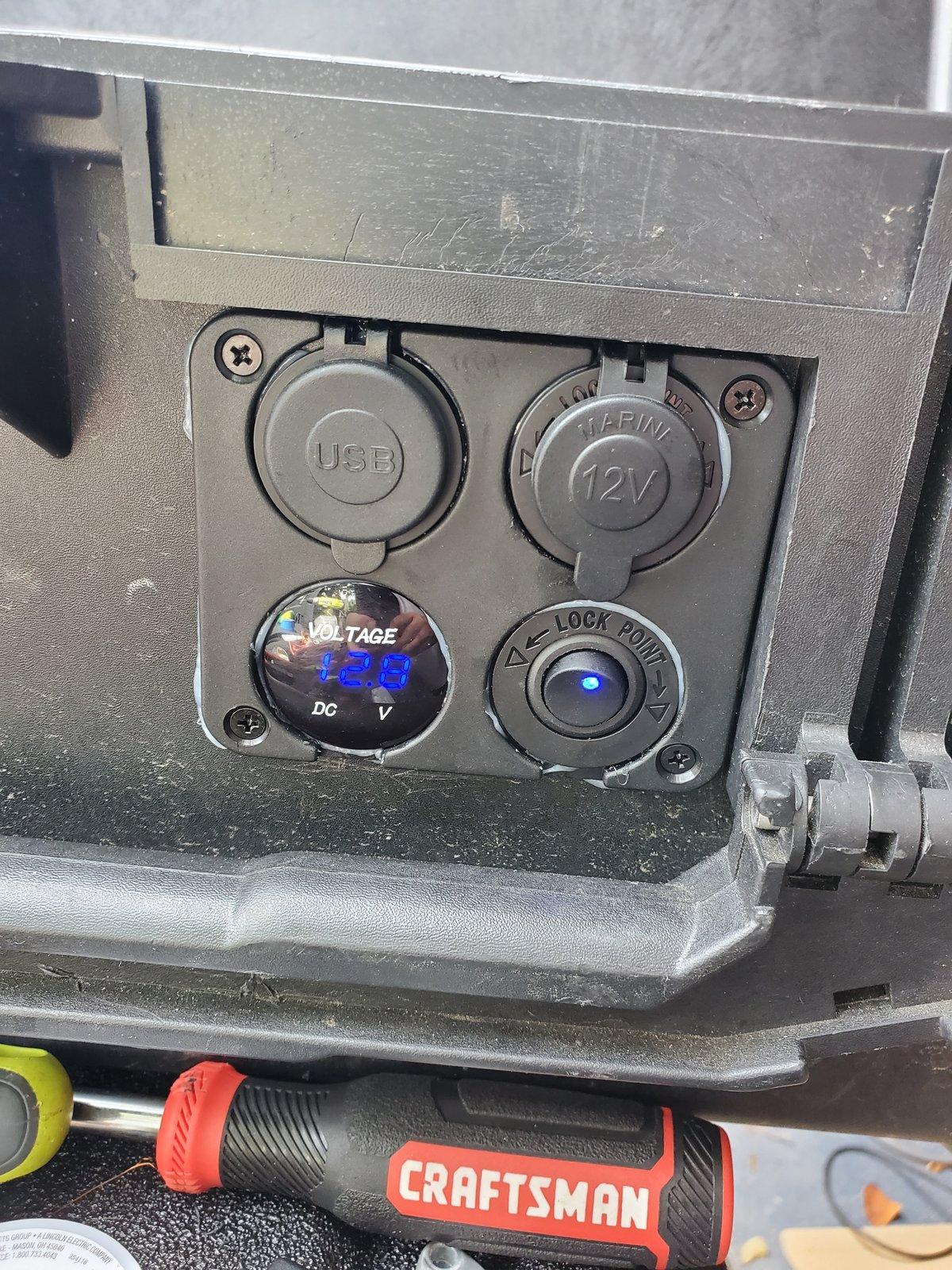

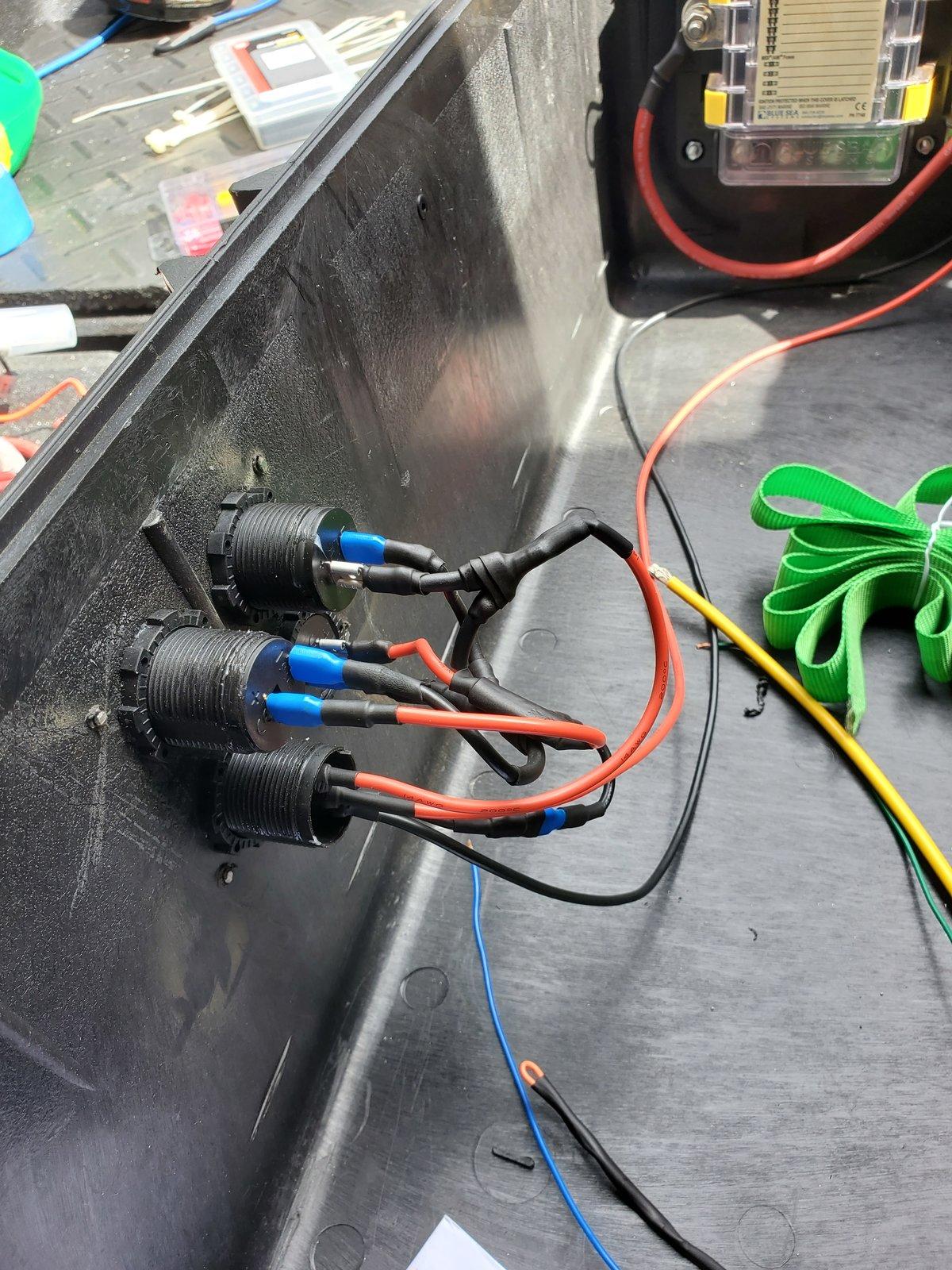

12V Pannel with voltage meter

The plan is to run everything through the safety hub and keep connections inside the box to remain watertight. Still trying to decide on type of Solar panels and Aux battery.
I want to keep everything portable so I can dismount the system and charge off of solar for more remote campsites, and for running certain things at the house due to power outages, Hurricane season is here yet again.
The box is a watertight pelican box.









Sponsored



ffdfrontman

Member
First Name
Jereme
Joined
Oct 1, 2019
Threads
1
Messages
24
Reaction score
24
Location
Texas
Vehicle(s)
2020 JT Rubicon
Occupation
Off-Road Racing
Awesome info and details. Thank you I’ve been looking for more clarity on systems like this. Keep the info coming and you might fully idiot proof this for me to build a similar/same setup.

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
Awesome info and details. Thank you I’ve been looking for more clarity on systems like this. Keep the info coming and you might fully idiot proof this for me to build a similar/same setup.


.....ill post some better pics when I get back home. It really isn't too complicated I promise!

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep

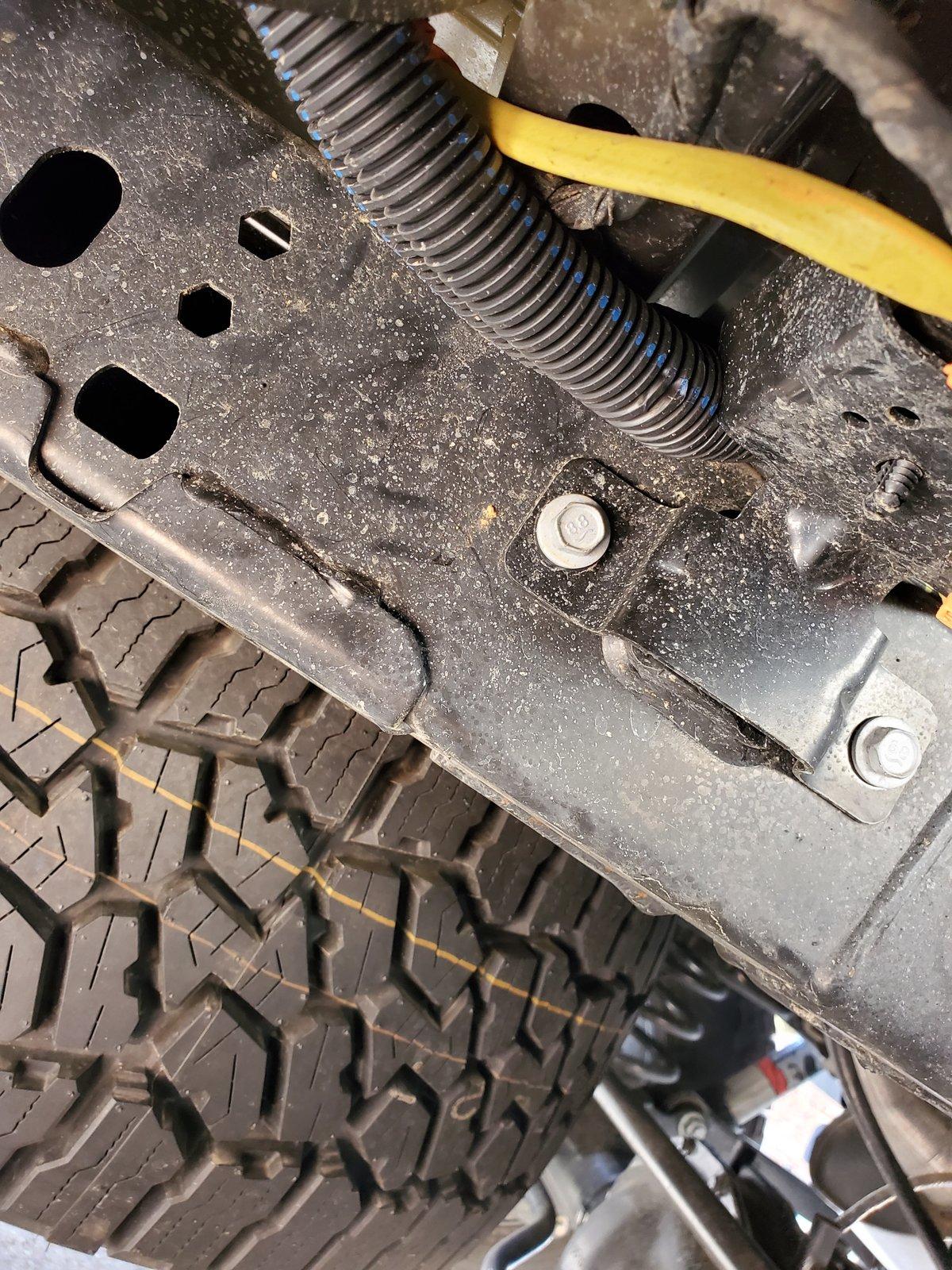

Hopefully these uploaded in order. Theyre better than the other pics I posted. Basically just wanted to show the path from battery to truck bed. Then, the innards of the box. Still trying to decide on an inverter. Also, excuse the 250 amp fuse that's not in a holder. Waiting on delivery.






















OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
So 1 more thing. My Redarc BCDC charger kept flashing in the led panel. I didn't realize that that battery had to share a ground with the charger. Connected it and problem solved.


Sponsored

ffdfrontman

Member
First Name
Jereme
Joined
Oct 1, 2019
Threads
1
Messages
24
Reaction score
24
Location
Texas
Vehicle(s)
2020 JT Rubicon
Occupation
Off-Road Racing
Again thank you. This is pretty spot on to what I’ve been wanting to do.

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
Again thank you. This is pretty spot on to what I’ve been wanting to do.
You're welcome. Feel free to hit me up if you hit a snag during your build. This was my first one so im not an expert, but ill help if I can.

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
Not necessarily specific to the power box, but added some stuff.

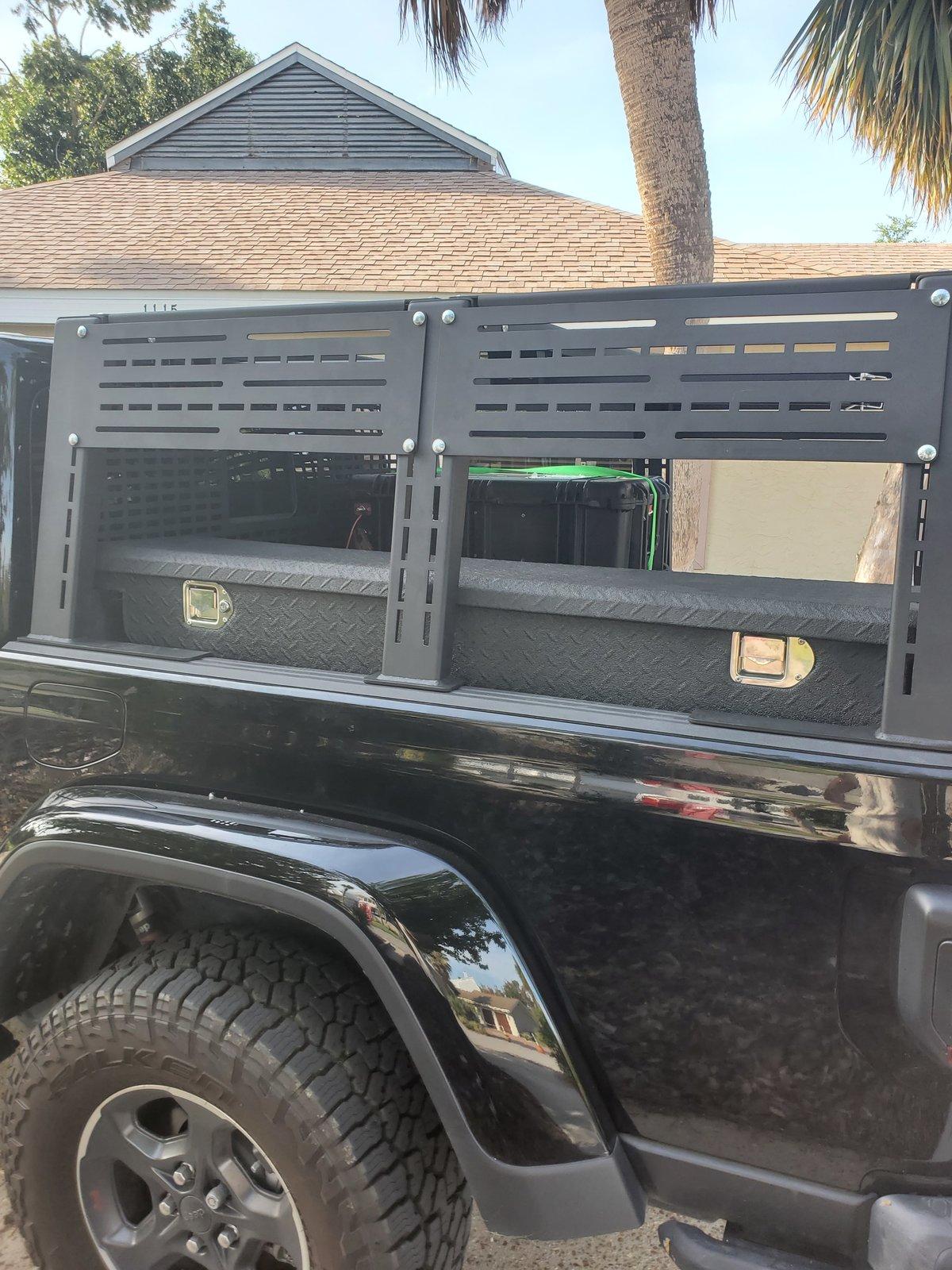

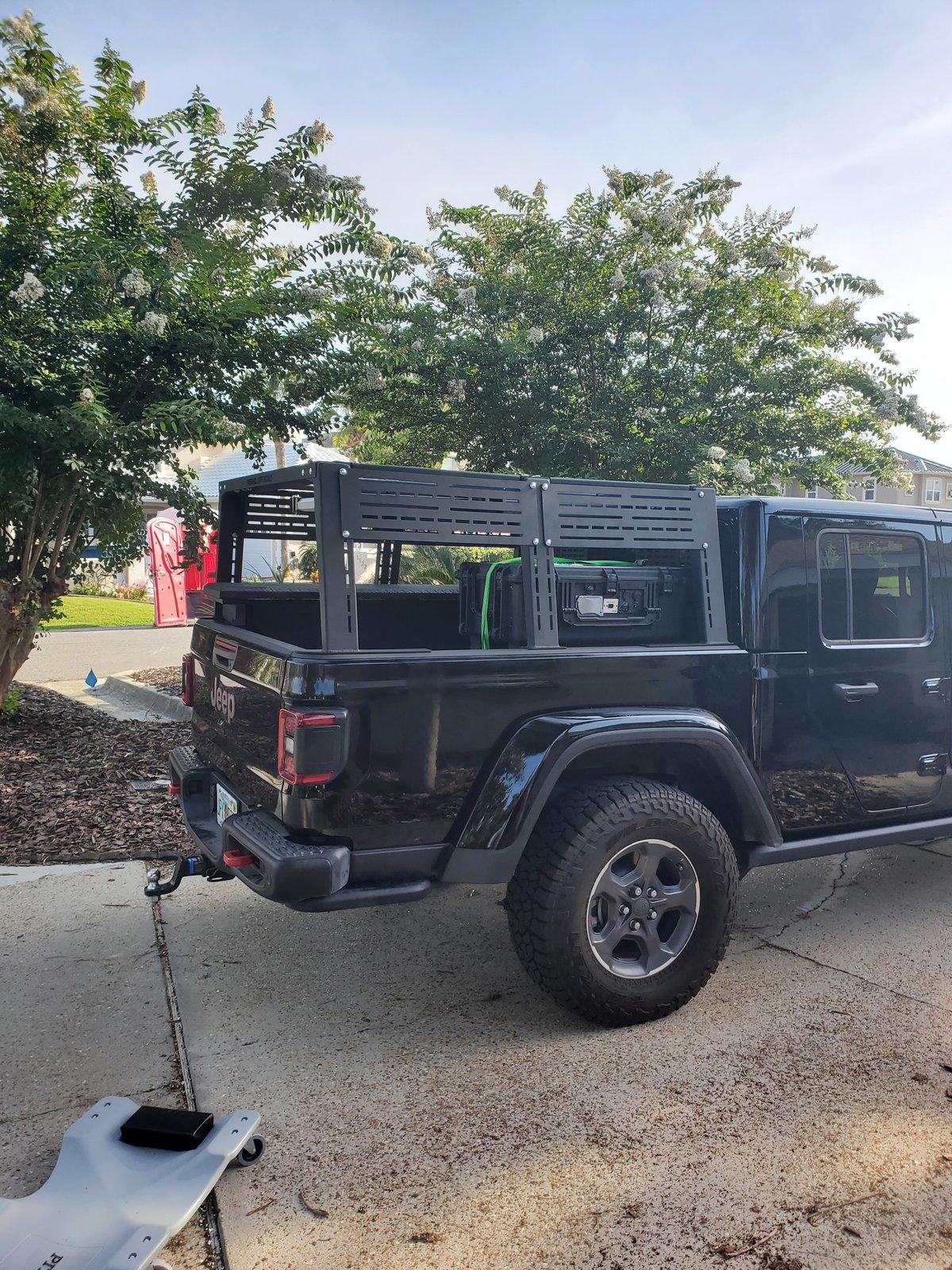

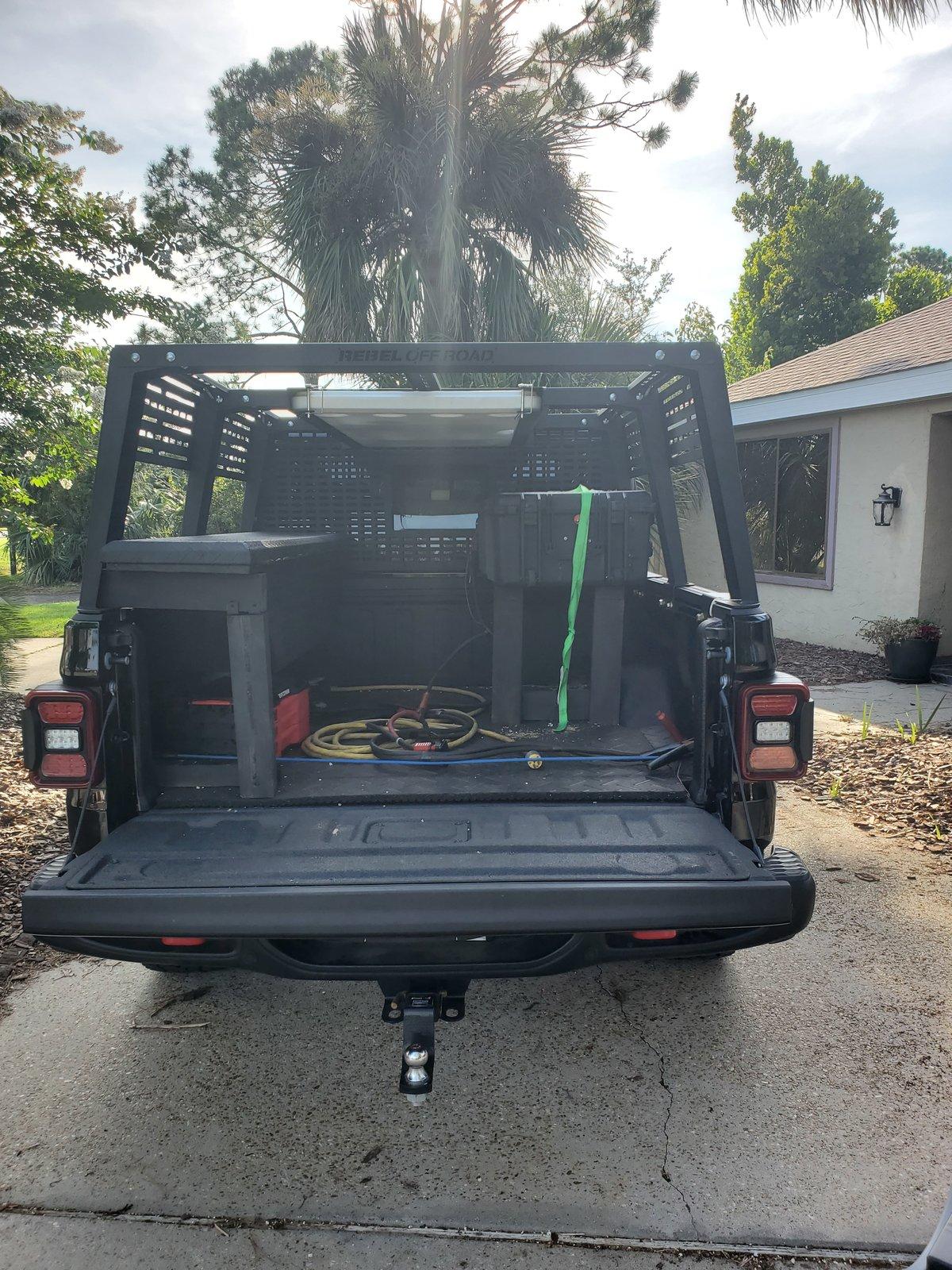

Rebel Offroad Full Height Rack
Made a shelf to mount toolbox laterally

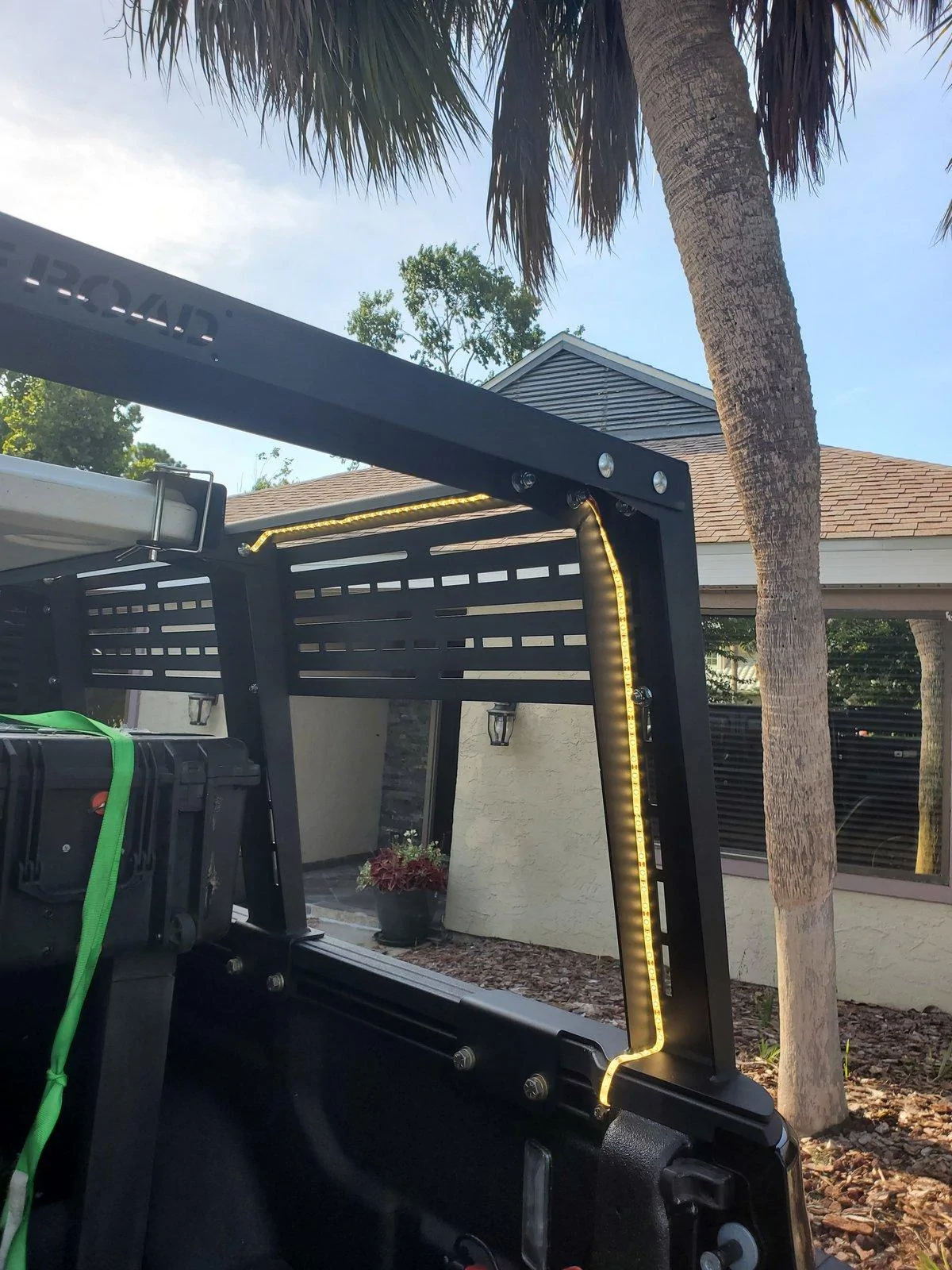

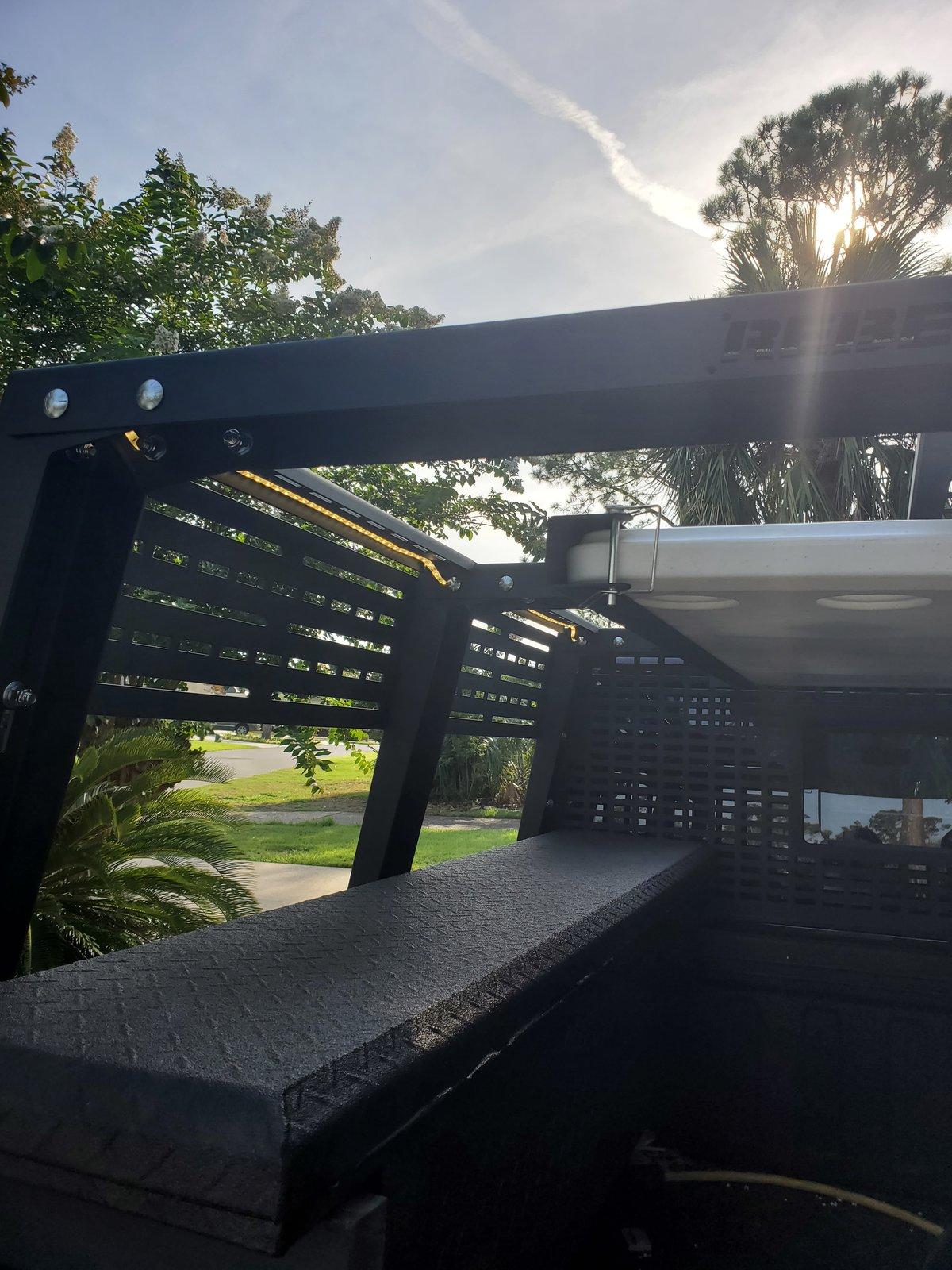

Added LEDs

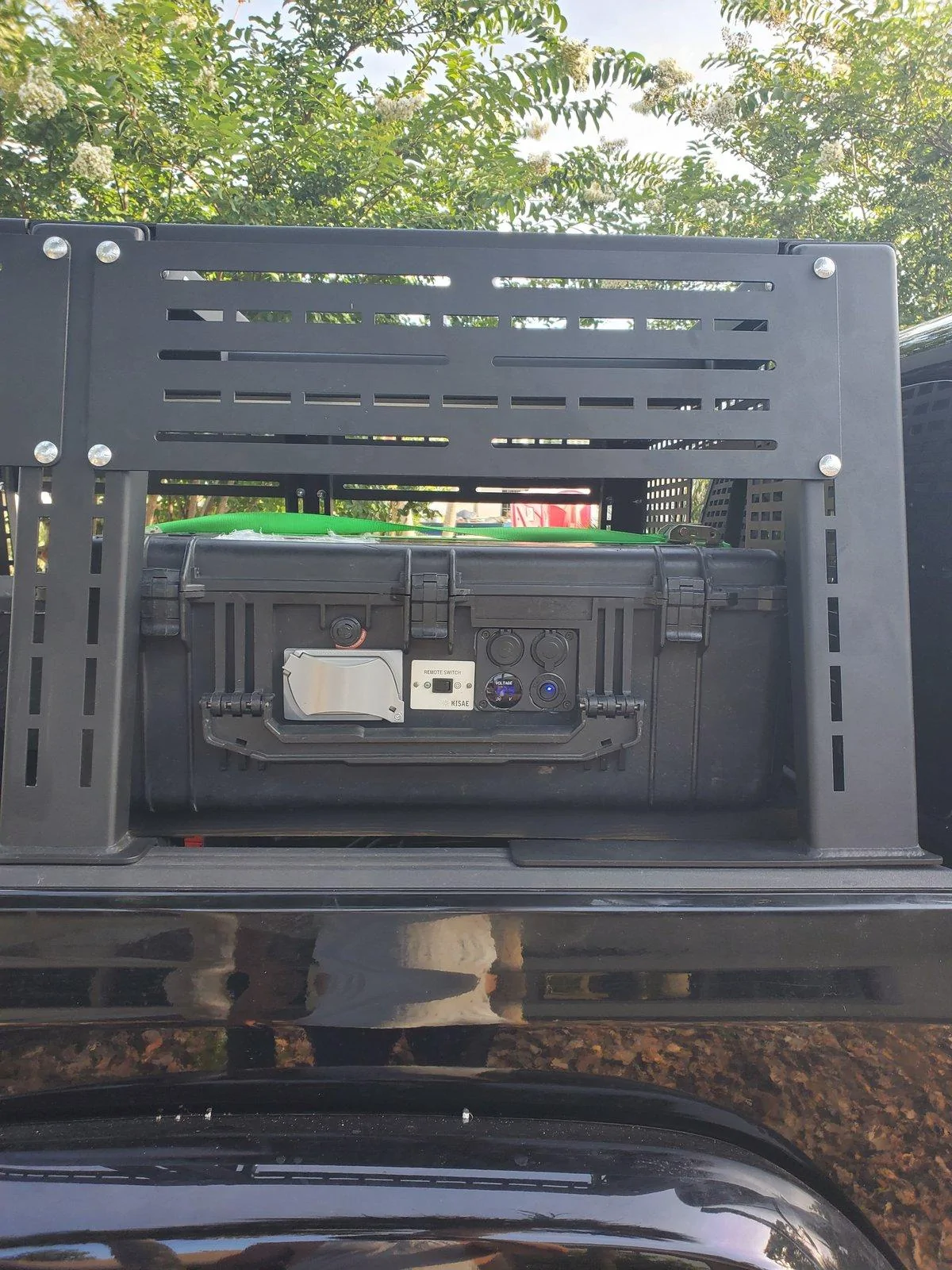

Made a platform for powerbox














OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
Update:
As I've been using the powerbox I built, I am noticing that the need to have the bcdc 1225d inside the box just isn't practical. Im not actively charging while using it. So, I decided to mount the charger in my bed. It is attached via anderson plugs if the need for portability arises. The only scenario I can think of is solar charging. I found some quick disconnect mounting plates for pelican boxes. Ill add one to this case for the charger so it will be easy to remove if needed.


OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep

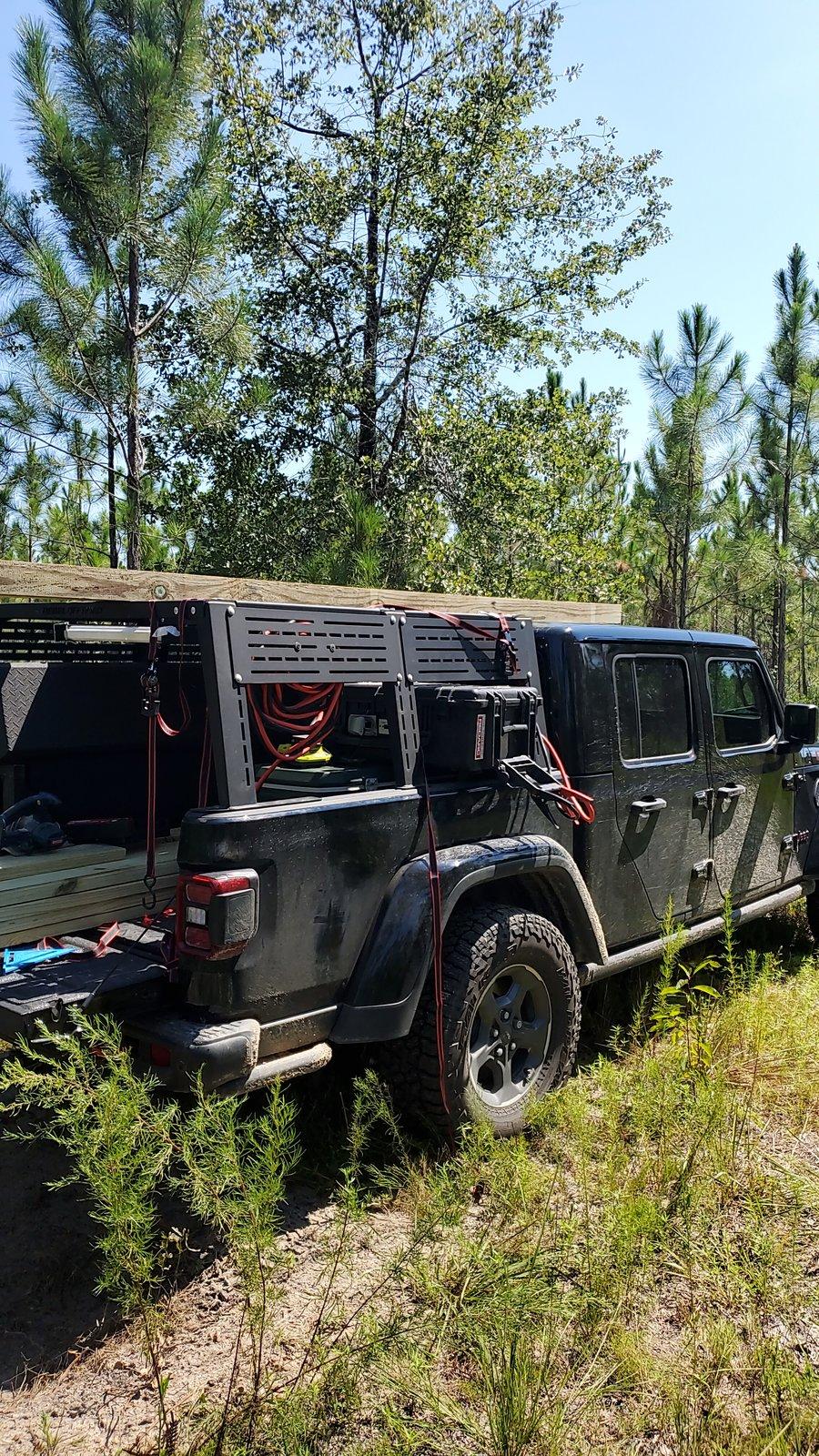

Update continued:

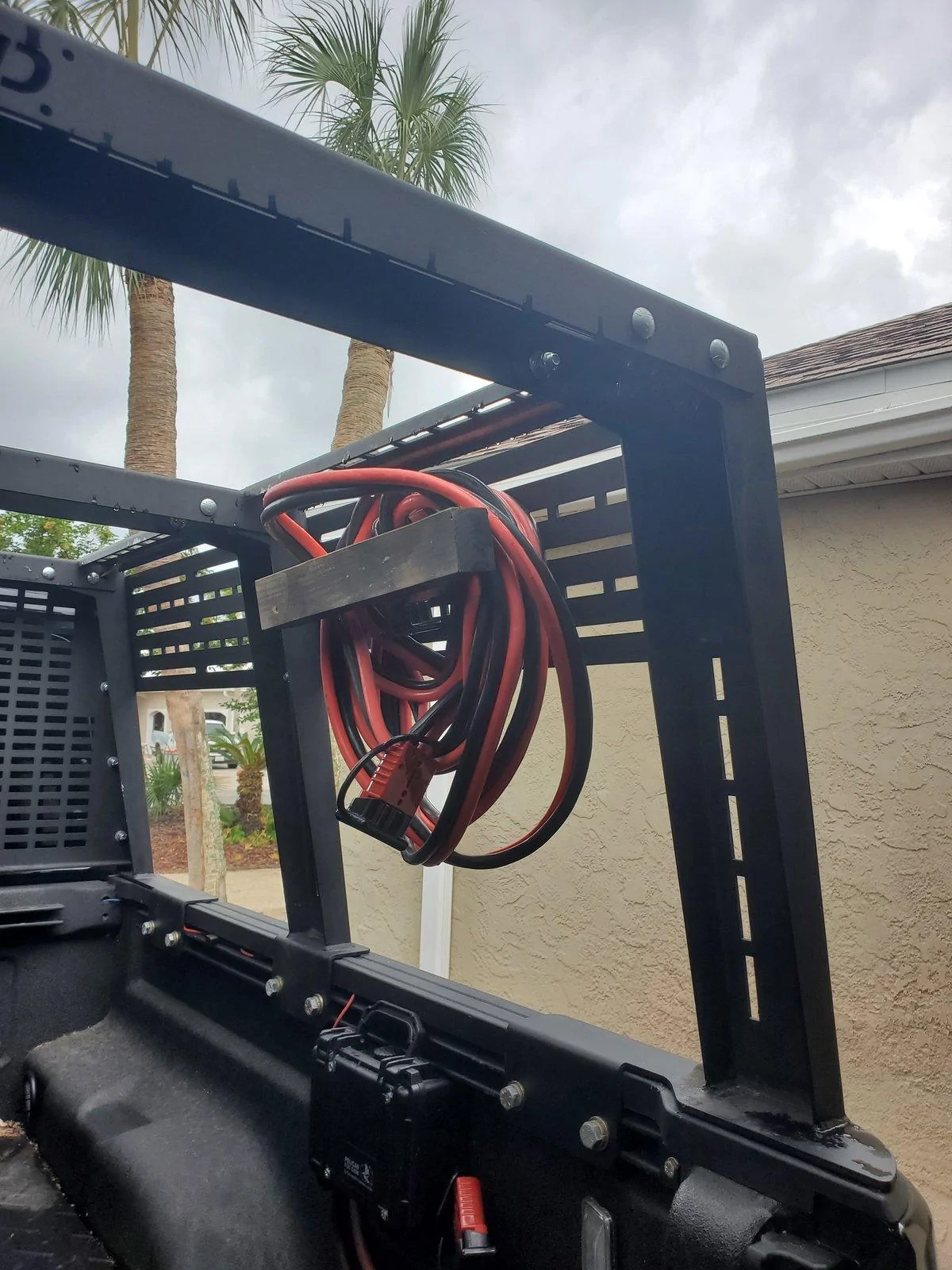

I also put anderson plugs on a 20' 2awg cable. Figure I can drag my box to wherever it may be needed and still charge it without having to suck in exhaust fumes. A side benefit is now there is room inside the box for other things. I.E. flashlight maybe felxible solar pannel, etc. Keep everything together....its turning into more of a hurricane kit than anything else. (I live in FL)

I've mainly used it to run saws, and battery chargers out on the hunting lease





Sponsored

j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Threads
96
Messages
2,940
Reaction score
3,884
Location
Foster City
Vehicle(s)
20 Gladiator Overland
That 250A breaker seems too big, no? If I read correctly it's between the 12V and the inverter. That isn't going to pop on a 12V until +3,000 watts but it's only hooked into 1,500 watts. Needs a serious meltdown to trip it, won't catch a smaller surge that would still be enough to destroy things.

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
That 250A breaker seems too big, no? If I read correctly it's between the 12V and the inverter. That isn't going to pop on a 12V until +3,000 watts but it's only hooked into 1,500 watts. Needs a serious meltdown to trip it, won't catch a smaller surge that would still be enough to destroy things.
Yes its huge. I put it there because I have an inverter on an anderson plug that I can run off the main battery if the aux batt goes flat. Just another option...i tend to build redundant systems/options. The bcdc charger is fused inside of the pelican case.


RealMcCoy

Well-Known Member
First Name
Kevin
Joined
Jan 23, 2020
Threads
1
Messages
71
Reaction score
54
Location
Fayetteville
Vehicle(s)
2020 Jeep Gladiator JT
Occupation
Retired
Not the greatest pictures, but I will update soon.

1 AWG from main battery to the bed (250A terminal fuse)
In the bed, power from main battery is wired to a 250A manual breaker, then to an Anderson Plug

INSIDE THE BOX
Redarc DCDC Charger
BlueSea Systems Safety Hub
All accessories will be wired through this hub

Incomplete
External Anderson Plug to connect Charger to Main battery/Alternator
Redarc Charger Connected internally to Waterproof terminals
Redarc Charger Connected to Aux battery inside of box
Aux battery Connected to Safety hub
1500W Pure Sin Wave Inverted conected via Safety Hub
External 120V Outlet connected to Inverter
Flush Mount Waterproof LED light
12V Pannel with voltage meter

The plan is to run everything through the safety hub and keep connections inside the box to remain watertight. Still trying to decide on type of Solar panels and Aux battery.
I want to keep everything portable so I can dismount the system and charge off of solar for more remote campsites, and for running certain things at the house due to power outages, Hurricane season is here yet again.
The box is a watertight pelican box.

Jeep Gladiator Portable Power Box IMG-20200807-WA0001


Jeep Gladiator Portable Power Box IMG-20200807-WA0001


Jeep Gladiator Portable Power Box IMG-20200807-WA0001


Jeep Gladiator Portable Power Box IMG-20200807-WA0001


Jeep Gladiator Portable Power Box IMG-20200807-WA0001
you might want to get a couple of rubber grommets to use when securing wire through the bed of the truck. I use these and they have worked great. https://www.amazon.com/Ram-Pro-Assortment-different-See-through-Organizer/dp/B01NAN025Y

Why did you choose the 250Amp and such heavy-duty cable? I used a 150 Amp to protect my SnowMaster and now wondering if I should go with a higher Amp breaker.
Your thoughts?

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep
I put some conduit around it and have some wir
you might want to get a couple of rubber grommets to use when securing wire through the bed of the truck. I use these and they have worked great. https://www.amazon.com/Ram-Pro-Assortment-different-See-through-Organizer/dp/B01NAN025Y

Why did you choose the 250Amp and such heavy-duty cable? I used a 150 Amp to protect my SnowMaster and now wondering if I should go with a higher Amp breaker.
Your thoughts?
I actually have some wire glands....just haven't gotten around to installing them.

I went with a 250 amp breaker just in case I run an inverter from the main battery. I would only do it in extreme cases, but consulted an electrician and her said for a longer lay of cable with a 2000w inverter 250 amp would be about where I wanted to be. As far as actually fusing, the charger is connected through a hub to a 30 amp fuse. Its only rated at 25 amps so maybe I should go with a smaller fuse. Everything is fused coming in and going out. Figure it never hurts to be redundant.

The cable diameter I went with was just in case I decided to use the plug for anything with a higher draw. Just wanted to make sure I wouldn't have to rewire anything in the future.

Hope this answers your question.

OP
OP
JT850

JT850

Well-Known Member
First Name
Derp
Joined
May 12, 2020
Threads
9
Messages
105
Reaction score
138
Location
Florida
Website
www.youtube.com
Vehicle(s)
2020 JT Rubicon, 2006 TJ Unlimited
Build Thread
Link
Occupation
spend money I dont have on my jeep

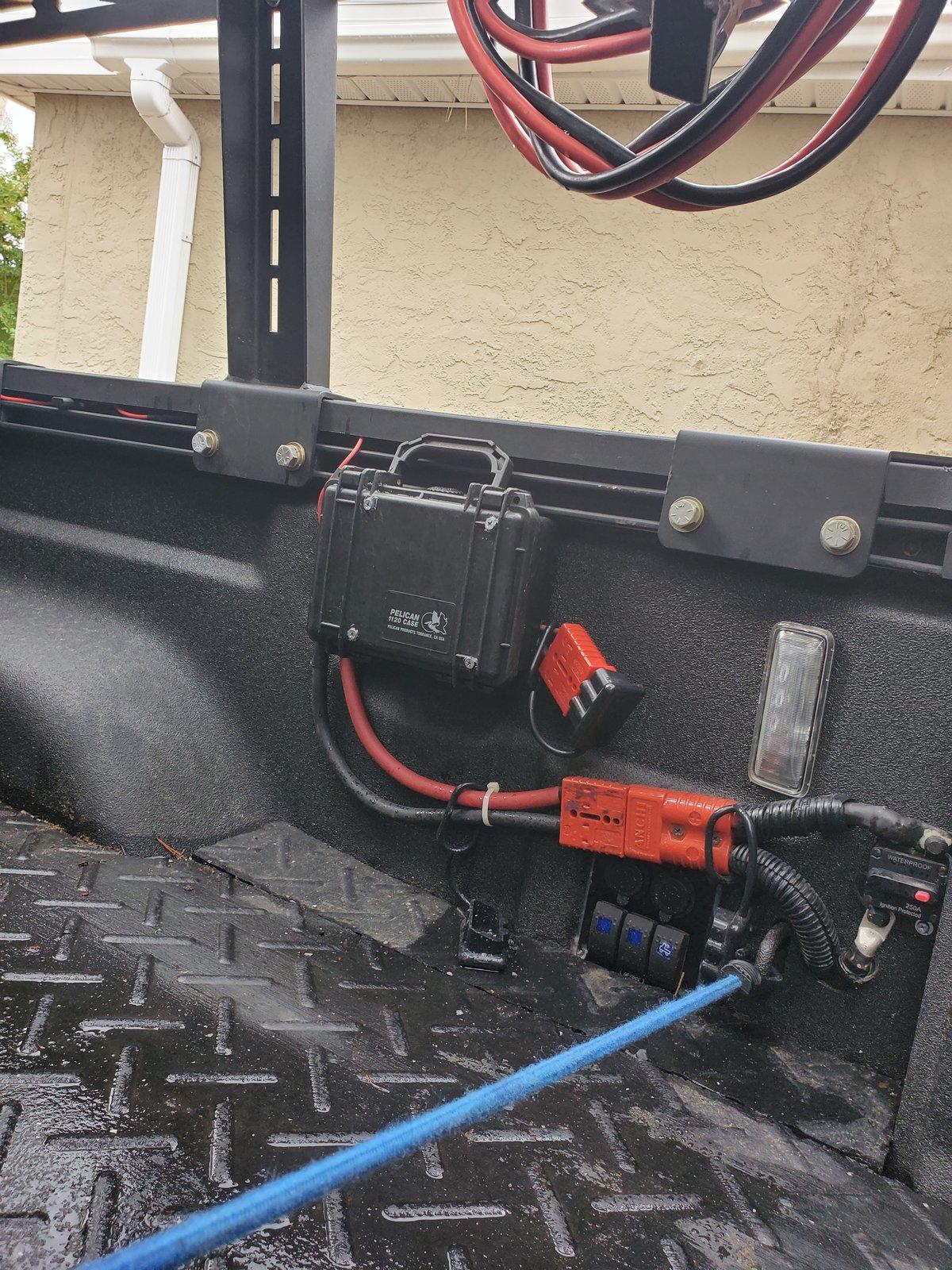

I know this is a year old...I've made a few changes. Now I run the Redarc BCDC in the bed of my truck and only use this power box when needed. Anybody build anything recently?
