Possible bed problem with 4X8 plywood

Pisgahlj

Member
First Name
Matt
Joined
Feb 3, 2019
Threads
1
Messages
10
Reaction score
6
Location
NE Florida
Vehicle(s)
05 LJ, 23 Gladiator
This thread is a little funny. I've owned lots of Jeep's. I've also hauled plywood on most of them. The CJ and LJ was on the roll bars. If the bed don't work the roll bars will.
Sponsored



furrymurray

Well-Known Member
First Name
Michael
Joined
Jan 28, 2019
Threads
4
Messages
564
Reaction score
529
Location
Saint Amant Louisiana
Vehicle(s)
2020 Jeep Gladiator SG Rubicon
This thread is a little funny. I've owned lots of Jeep's. I've also hauled plywood on most of them. The CJ and LJ was on the roll bars. If the bed don't work the roll bars will.
I myself have owned quite a few Jeeps and hauled some plywood on top. I also hauled 4 - 15" x 20' plastic culverts on top my TJ to fill in my front ditch. It was not the most comfortable ride but it did haul them. I guess we figure it out when we need something done?


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I myself have owned quite a few Jeeps and hauled some plywood on top. I also hauled 4 - 15" x 20' plastic culverts on top my TJ to fill in my front ditch. It was not the most comfortable ride but it did haul them. I guess we figure it out when we need something done?
I would frequently haul wood sticking out my passenger window on my Jetta. Only a few miles drive home from Menards. Just do what you gotta do.


JTRUBI

Well-Known Member
First Name
Chris
Joined
Nov 10, 2018
Threads
55
Messages
847
Reaction score
1,466
Location
Toronto
Vehicle(s)
Jk rubicon
Build Thread
Link

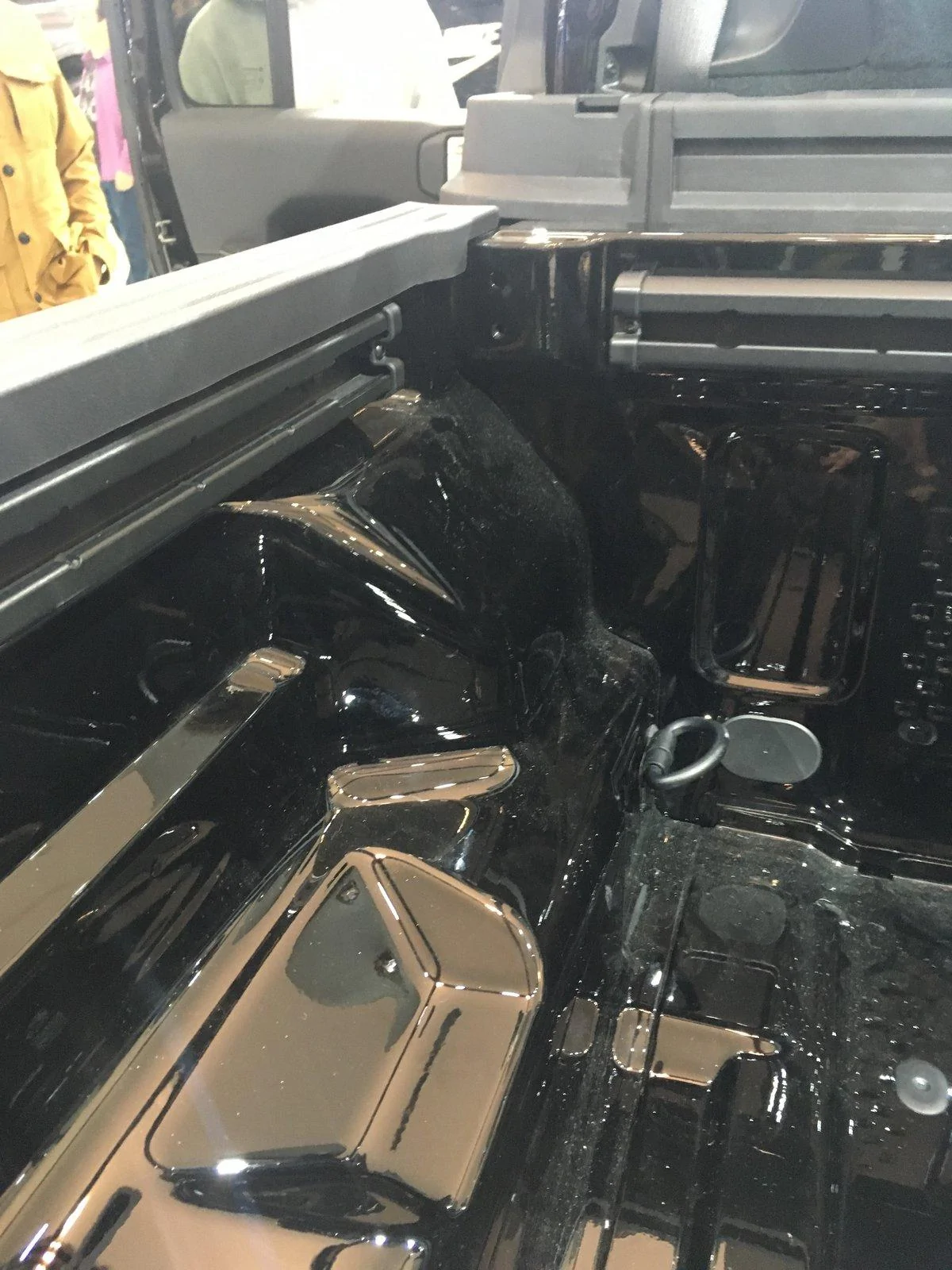

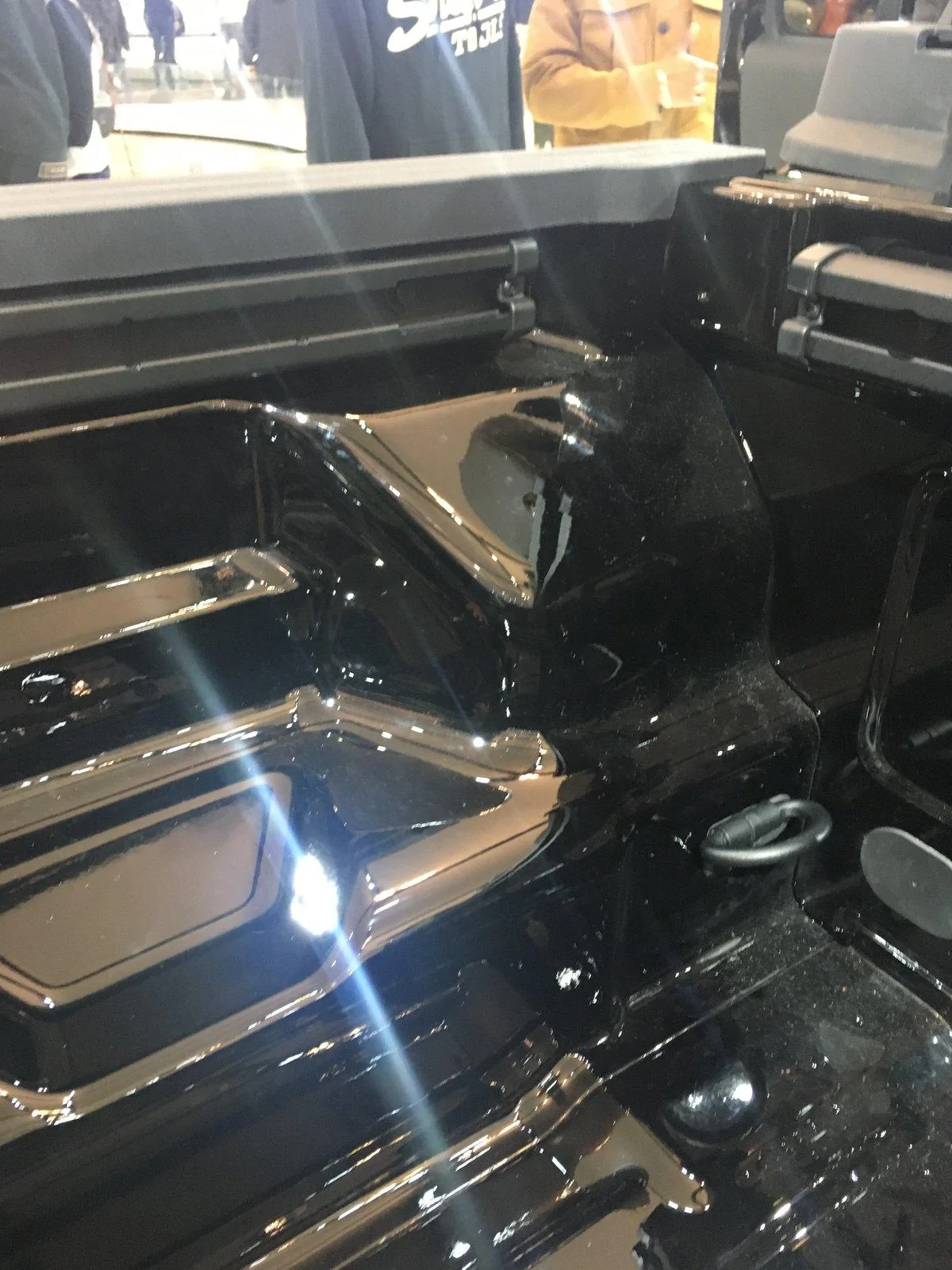

This is probably already solved but seeing it in person, no plywood issues to be worried about. Lol the area case many “strength” creases and it seems like it will take a beating

I just noticed something in a video. As everyone knows you fill up with gas on the drivers side, just forward of the rear wheel. Well that gas fill pipe runs a tad into the bed of the truck. See my attached picture. I have circled this in red. Looks like you will not be able to push the plywood sheets all the way to the back wall of the truck bed. Looks like they will stop at this point on the drivers side. Would be really bad for the weight of the plywood to break through to that gas fill pipe.




5JeepsAz

Well-Known Member
Joined
Dec 24, 2018
Threads
36
Messages
2,718
Reaction score
2,769
Location
Arizona
Vehicle(s)
1964 Kaiser-Willys Jeep Gladiator (SJ) 2dr long bed pickup truck
Build Thread
Link
This is probably already solved but seeing it in person, no plywood issues to be worried about. Lol the area case many “strength” creases and it seems like it will take a beating





I love me some plywood notch. Thanks for the pics!


Sponsored

Professor57

Well-Known Member
Joined
Dec 22, 2018
Threads
2
Messages
116
Reaction score
220
Location
Louisiana
Vehicle(s)
2003 Rubicon, 2020 Gator Gladiator
Vehicle Showcase
2

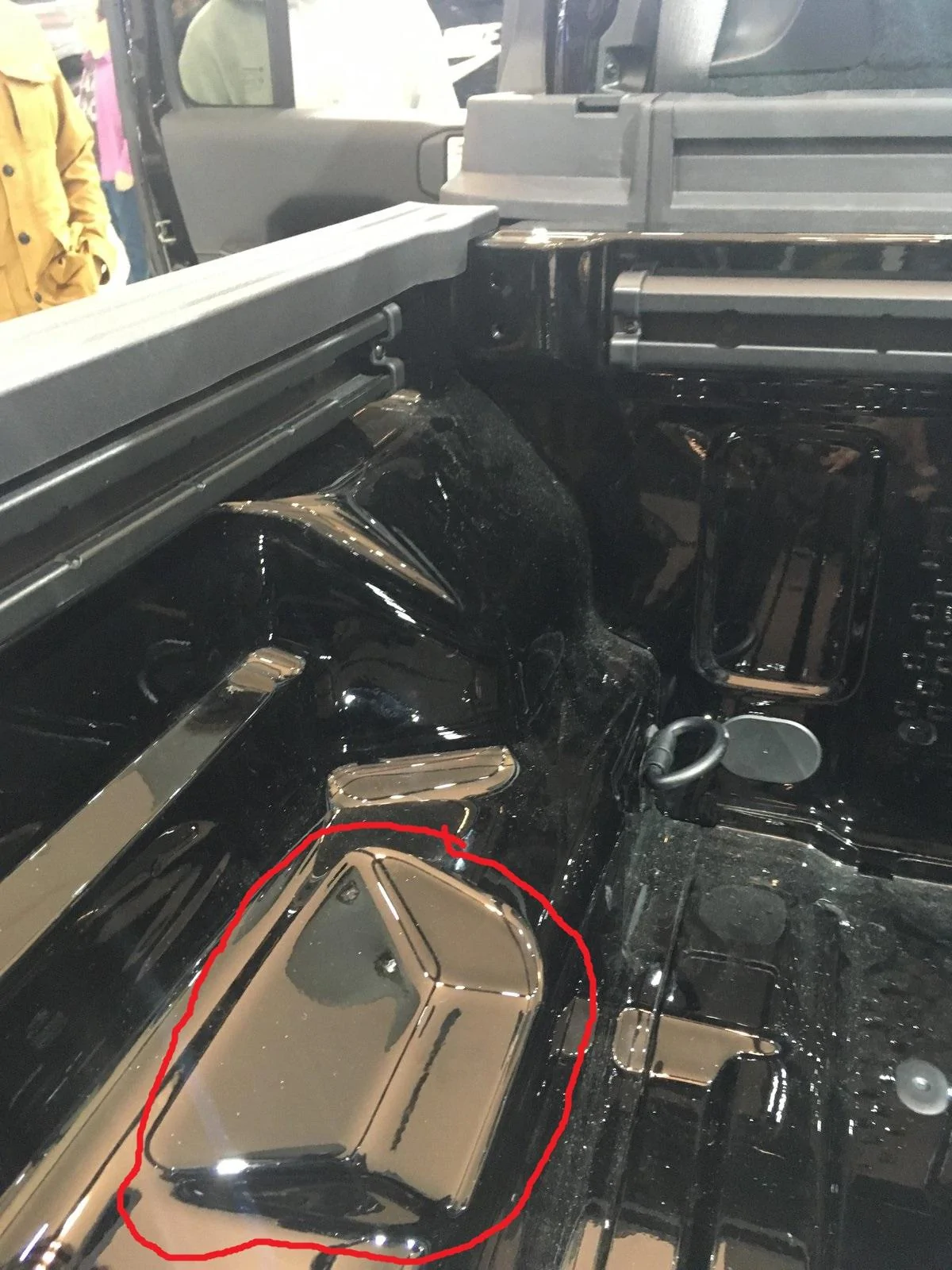

Is this whole spot for the 2x6 notch for plywood support between the wheel wells? That looks big.

2x6 bed.jpeg
When scaled with the Dring in the background it looks about the right size.


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Who said that?
i thought it was on one of the videos from the reveal at the LA Auto Show. I've watched so many videos though, so I can't narrow it down.

From what i recall, there's actually two 2x6 spots, one horitzontal on the wheel wells and one vertical closer to the tailgate.

Correct me if i'm wrong......


Jeepers!

Well-Known Member
First Name
Andrew
Joined
Mar 28, 2018
Threads
13
Messages
823
Reaction score
821
Location
The Old North State
Vehicle(s)
A Chevy and a Caddy
i thought it was on one of the videos from the reveal at the LA Auto Show. I've watched so many videos though, so I can't narrow it down.

From what i recall, there's actually two 2x6 spots, one horitzontal on the wheel wells and one vertical closer to the tailgate.

Correct me if i'm wrong......
You're correct


Sponsored

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
AGAIN . . . QUADRATEC WEBSITE YOUTUBE VIDEOS - THE BED EXPLANATION / PLYWOOD SOLUTION -IT'S ALL THERE PLAIN & SIMPLE.
The quadratec video doesn't talk about the wheel well 2x6 slot.


Lou3.6

Well-Known Member
First Name
Lou
Joined
Nov 24, 2018
Threads
6
Messages
1,036
Reaction score
698
Location
Eastern Washington State
Vehicle(s)
Jeep 2016 WK2 75th Anniversary edition
Occupation
retired Navy -- 1984 > 2004
What can I say . . .When it rains it pours ? You guys are GREAT . . . If I had a dollar for every time someone posted a video for me, over the past 4 years, I'd have half my Gladiator paid for ! ! ! :clap: :like:


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
WRONG, he talks about the 2x6 pocket BEHIND the wheel wells. Look where he's pointing to.
AT 2:49 he does say you can carry a piece of plywood on the wheel wells and this other 2x6 slot, but never says, cut another 2x6 piece of wood to go over the wheel wells.

NOW, I FOUND IT, watch the next 10 seconds of this video (at 53 second mark) as Mark Allen does mention the wheel well wood slot. Some other video at the LA show, the guy actually points out the indents in wheel wells. LMAO, I can't wait to haul some ply in this sucker.
