Power Mirrors and Remote Start not working after putting doors back on!
Gvsukids
Well-Known Member
- First Name
- Justin
- Joined
- Mar 7, 2020
- Threads
- 22
- Messages
- 5,026
- Reaction score
- 4,682
- Location
- Grand Rapids
- Website
- www.youtube.com
- Vehicle(s)
- 2020 Gladiator Sport S Max Tow
- Occupation
- Delivery Driver
Plug in the electrical connectors on the doors.
JTBurns
Well-Known Member
- First Name
- Joe
- Joined
- Jun 28, 2020
- Threads
- 20
- Messages
- 981
- Reaction score
- 1,838
- Location
- Lancaster, PA
- Vehicle(s)
- Jeep Gladiator
I'm sure you did put the electric connectors back together, however they are finicky, and you may bent a pin, which will cause things to stop working. Search for bent pins or door connector issues and you'll find plenty of threads
Fpolanco
Well-Known Member
I second what @JTBurns says. Be sure the pins are super straightened out.
I’ve been reading on this forum that if the pins are bent even the slightest, stuff goes haywire.
Even better, most dealerships won’t warranty the harness if the pins are bent beyond repair, even though they’re super flimsy.
I’ve been reading on this forum that if the pins are bent even the slightest, stuff goes haywire.
Even better, most dealerships won’t warranty the harness if the pins are bent beyond repair, even though they’re super flimsy.
Sponsored
wchevron
Well-Known Member
It's the pins. I had the same exact thing happen last year. And this year. Sometimes it's as easy as pulling the plug apart and connecting it back together again.
My pins were too bent last year. Slight bend in a couple so they were missing the slot they were supposed to be in and sliding into the slot above or below.
Easiest solution I found was to put a piece of tape over the connector. Slide the pins in, then pull apart. Then you'll be able to see which pins need to be straightened.
My pins were too bent last year. Slight bend in a couple so they were missing the slot they were supposed to be in and sliding into the slot above or below.
Easiest solution I found was to put a piece of tape over the connector. Slide the pins in, then pull apart. Then you'll be able to see which pins need to be straightened.
Nick83
Active Member
So I took my gladiator into Jeep this morning for the same thing. Noticed my power mirrors, remote start and child window lock switch was not working. They called and said unfortunately they can't cover this under warranty and will charge me 250 bucks to push the pins back. I almost said dont touch it, I'll do it myself, but I know if I were to get home and bend them back and it still not working I would have to take it back. Im hopping that happens to them tomorrow and will have to find the root of the problem and cover it under warranty.
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,491
- Reaction score
- 35,083
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
It will be that connector. It's almost 100% of the cause any time the doors are removed and put back on and something doesn't work correctly.
If you had the doors off, put them back on and something isn't working, there's very little else it could be.
If you did NOT have the doors off, then no use looking at that connector.
Sponsored
AstroZombie
Well-Known Member
He said Dongle
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,491
- Reaction score
- 35,083
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
Uh, you are in tech support, correct?
I find it humorous that people find a technical device name "humorous" LOL
I find it humorous that people find a technical device name "humorous" LOL
Nick83
Active Member

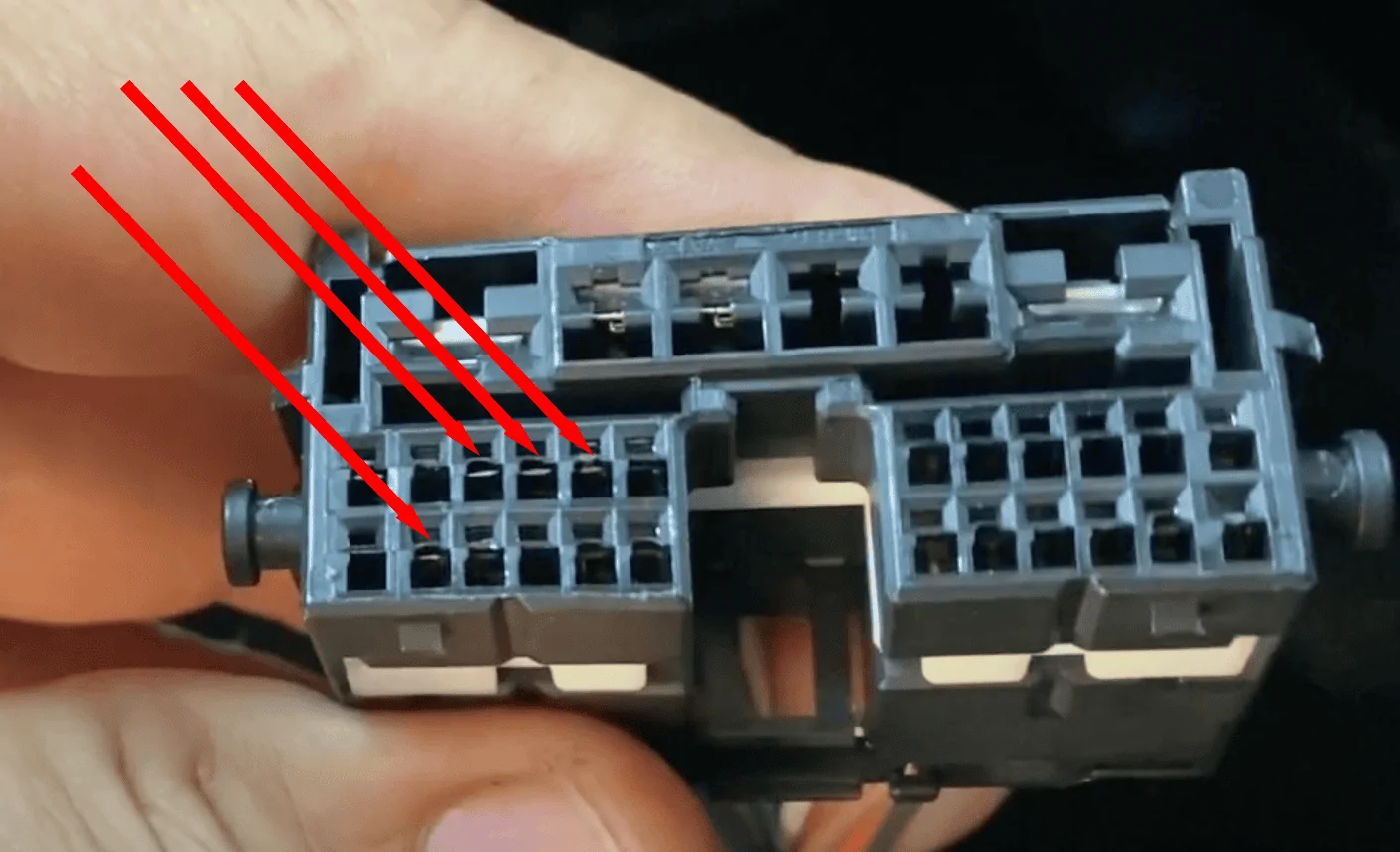

UPDATE: So the jeep dealer had my truck for 5 DAYS and they gave up on it. Dropped it off on a Monday, called me Wednesday saying they fixed it. I showed up and paid (not covered by warranty) but I wanted them to unplug and plug the connector in front of me a few times before me driving home. Sure enough they unplugged it once and it was broken again. I told them to keep the keys and do it right. So Friday rolls around and they just give up on it saying they will give me my money back, order a new set of pins and call me in 7-12 days to reschedule an appointment to see if that will fix the issue. I get home pissed and look at it myself. Its a little hard to see but there is a tiny tiny horizontal piece of plastic that divides the slots the pins go into exactly under the red arrow tip. So I took a needle and straitened them out and removed so burred plastic that was damaged by the pins pushing on that part (photo is the male plug coming off the passenger door on a 2020 Jeep JT) Then I took the smallest allen key I have and straightened the pins on the female side and it fixed the problem. I plugged and unplugged it 6 times to verify the fix and its all good. Im really sick of the experiences I've had with Jeep service. Shouldn't be like pulling teeth to get someone to take their time and care for something like it was theirs.
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,491
- Reaction score
- 35,083
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
Like I've suggested before - no tech these days are electricians. And I doubt any of them know how to actually use the tools that prep the wires, and crimp the pins in place or even how to properly release the sockets or pins.
I have 4 different expensive crimp tools and can't say I could do those exact connectors (maybe, one tool does have the inserts that should work)
Once those connectors are put together less than 110% perfectly aligned and if a person uses that lever to try to draw them together, all bets are off. Don't use that lever to pull them together is my advice.
I have 4 different expensive crimp tools and can't say I could do those exact connectors (maybe, one tool does have the inserts that should work)
Once those connectors are put together less than 110% perfectly aligned and if a person uses that lever to try to draw them together, all bets are off. Don't use that lever to pull them together is my advice.
