I got tired of dragging ass so i figured I'd put my limited skills to the test and try building a custom high clearance rear bumper for project HiCentered!









Advertisement




OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #2

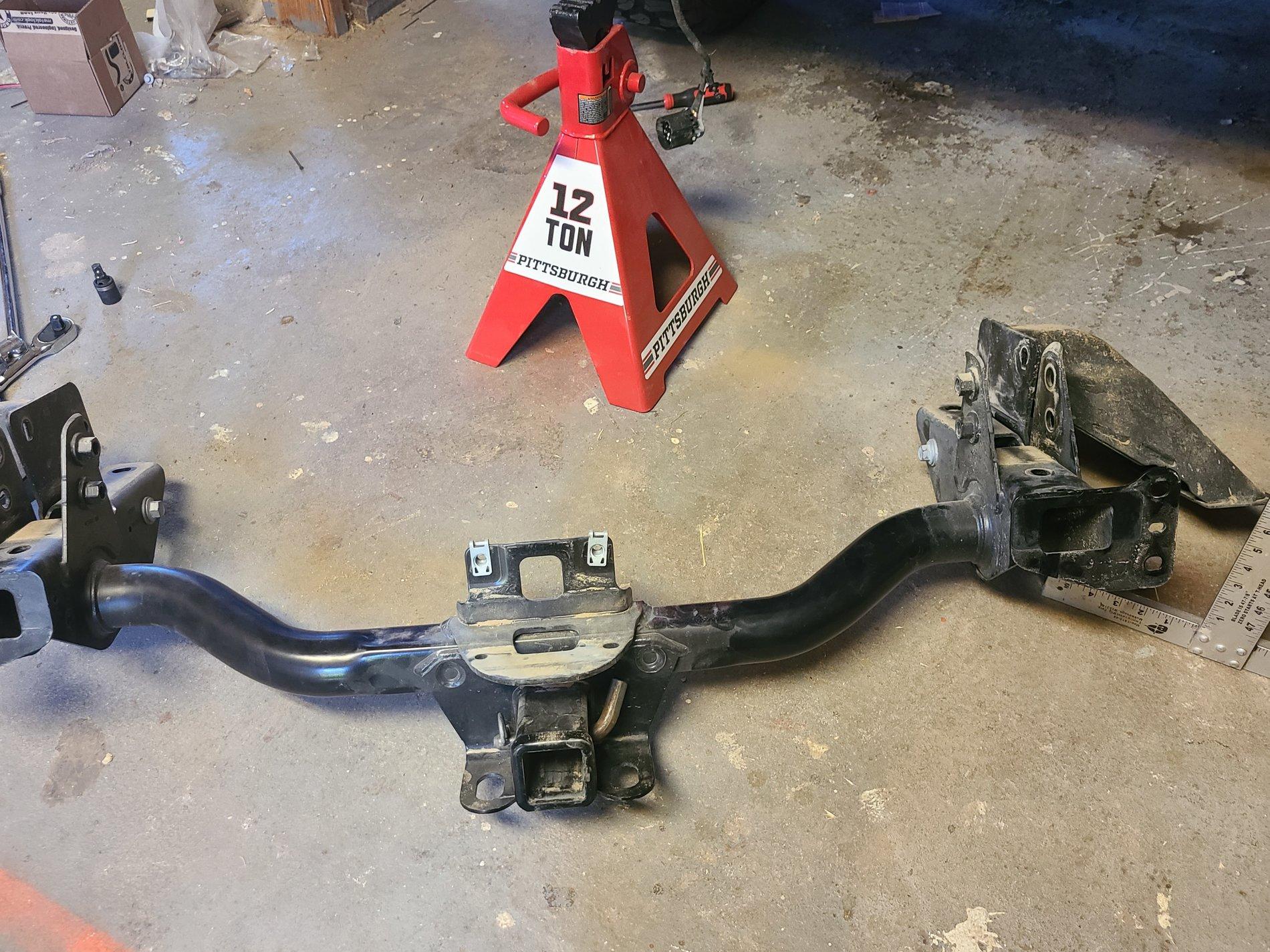

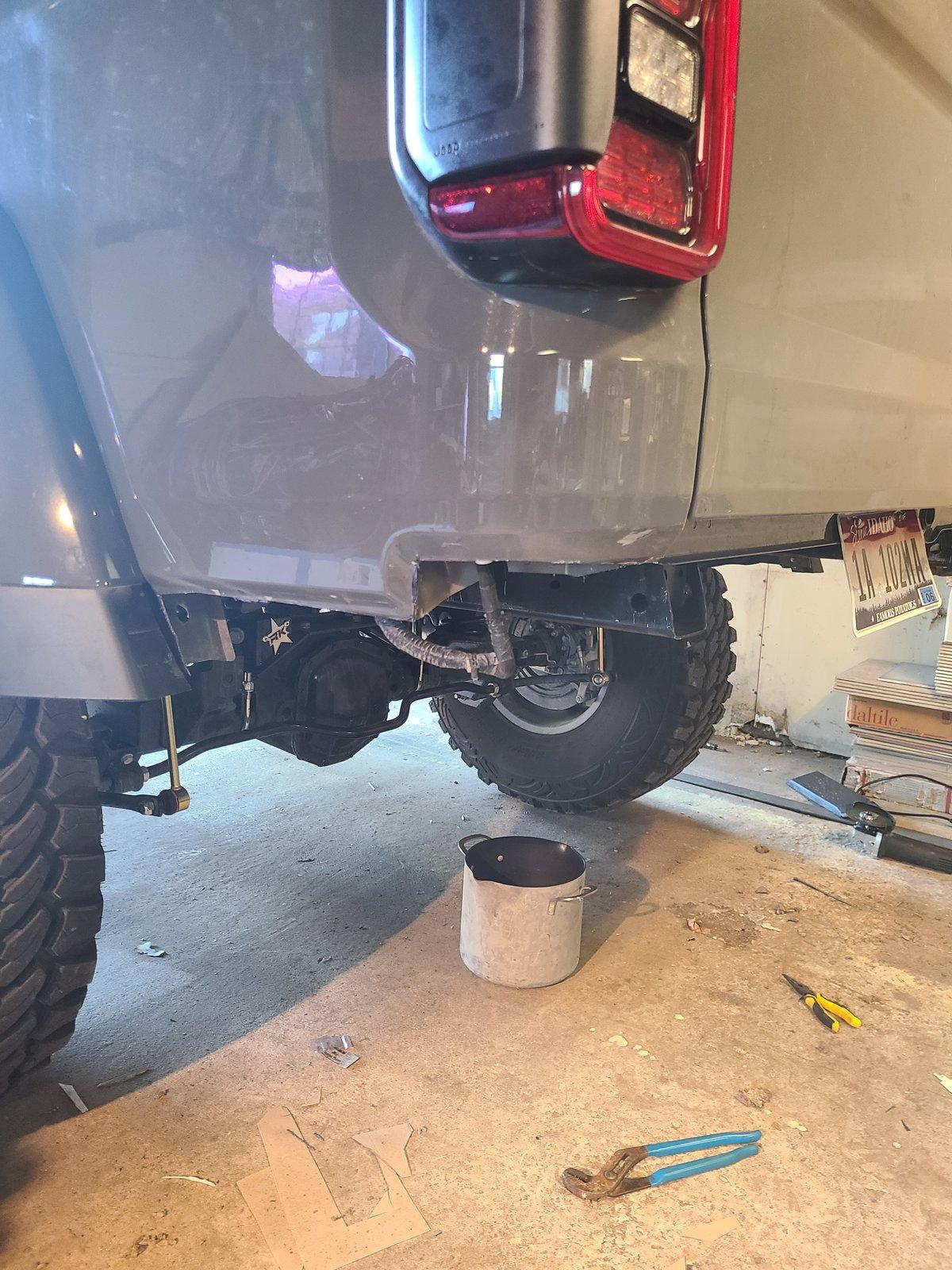

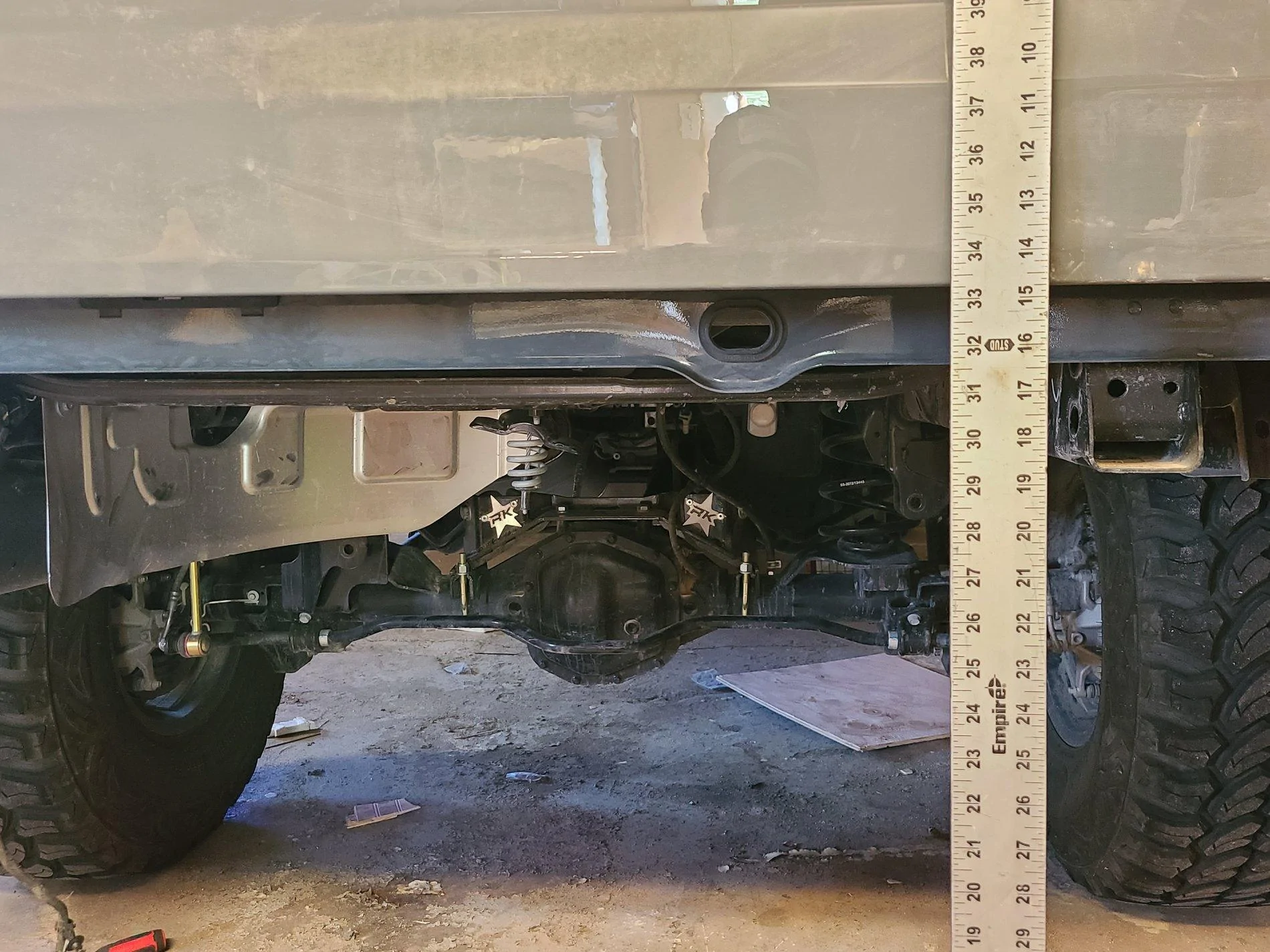

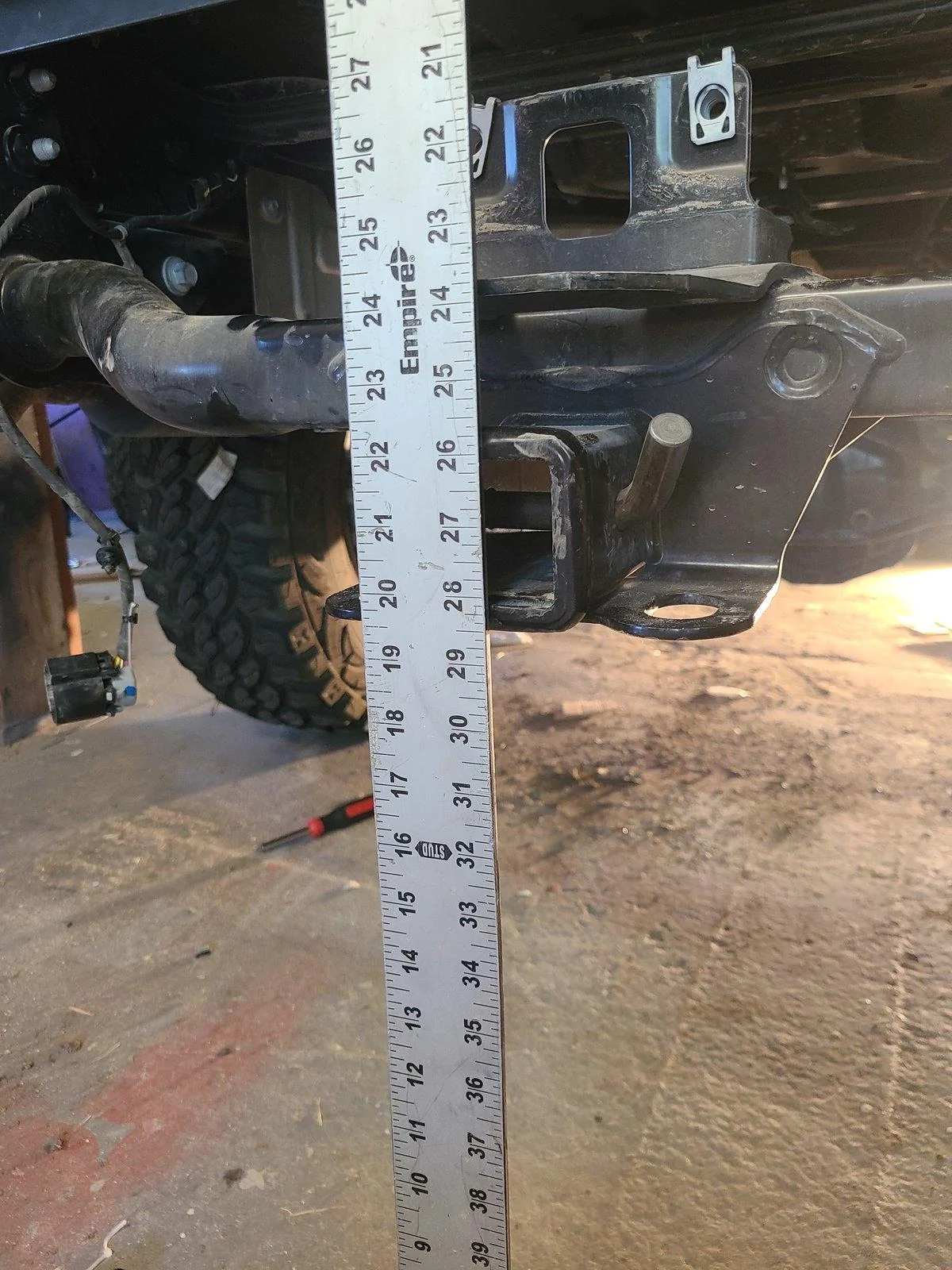

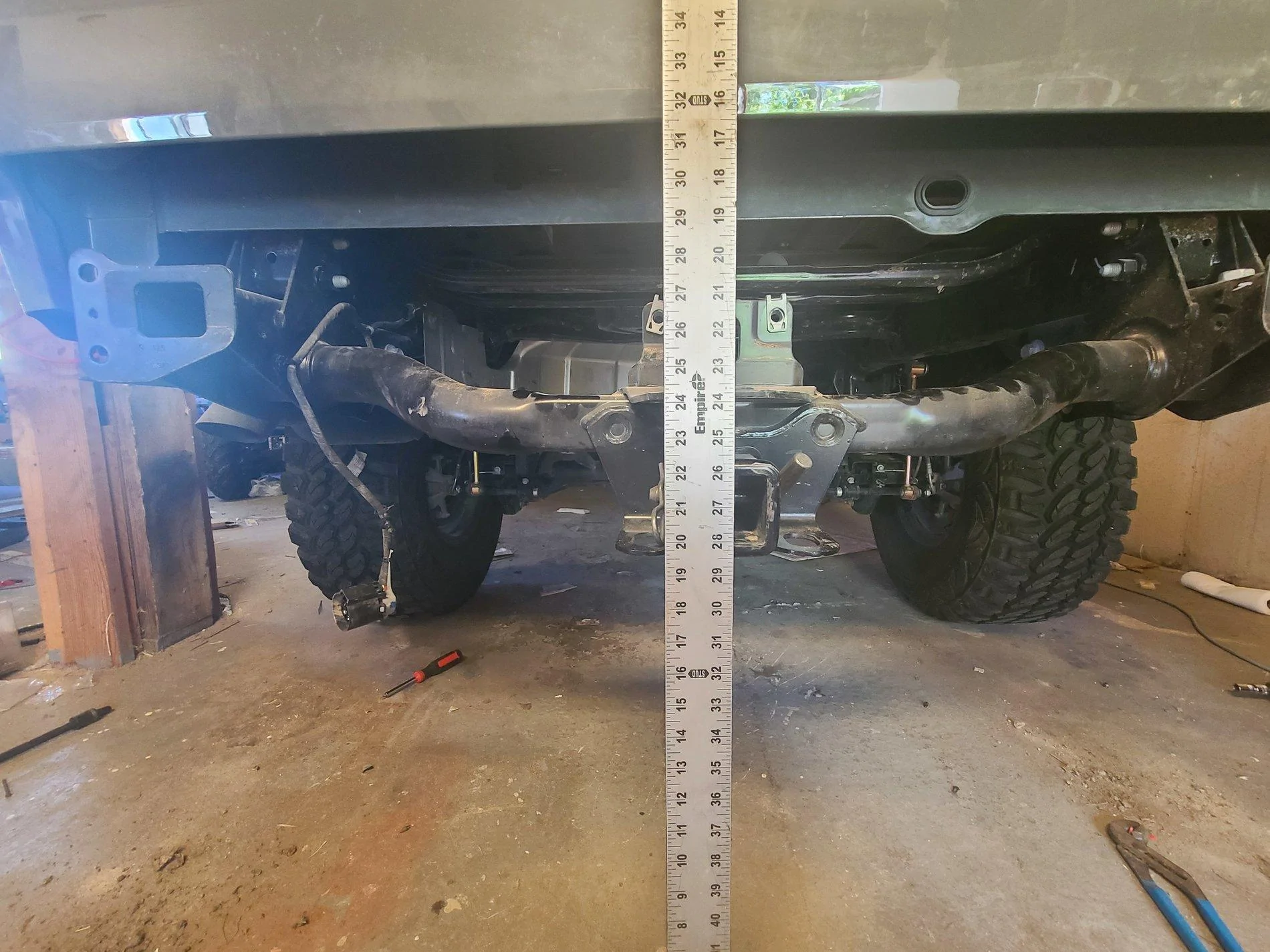

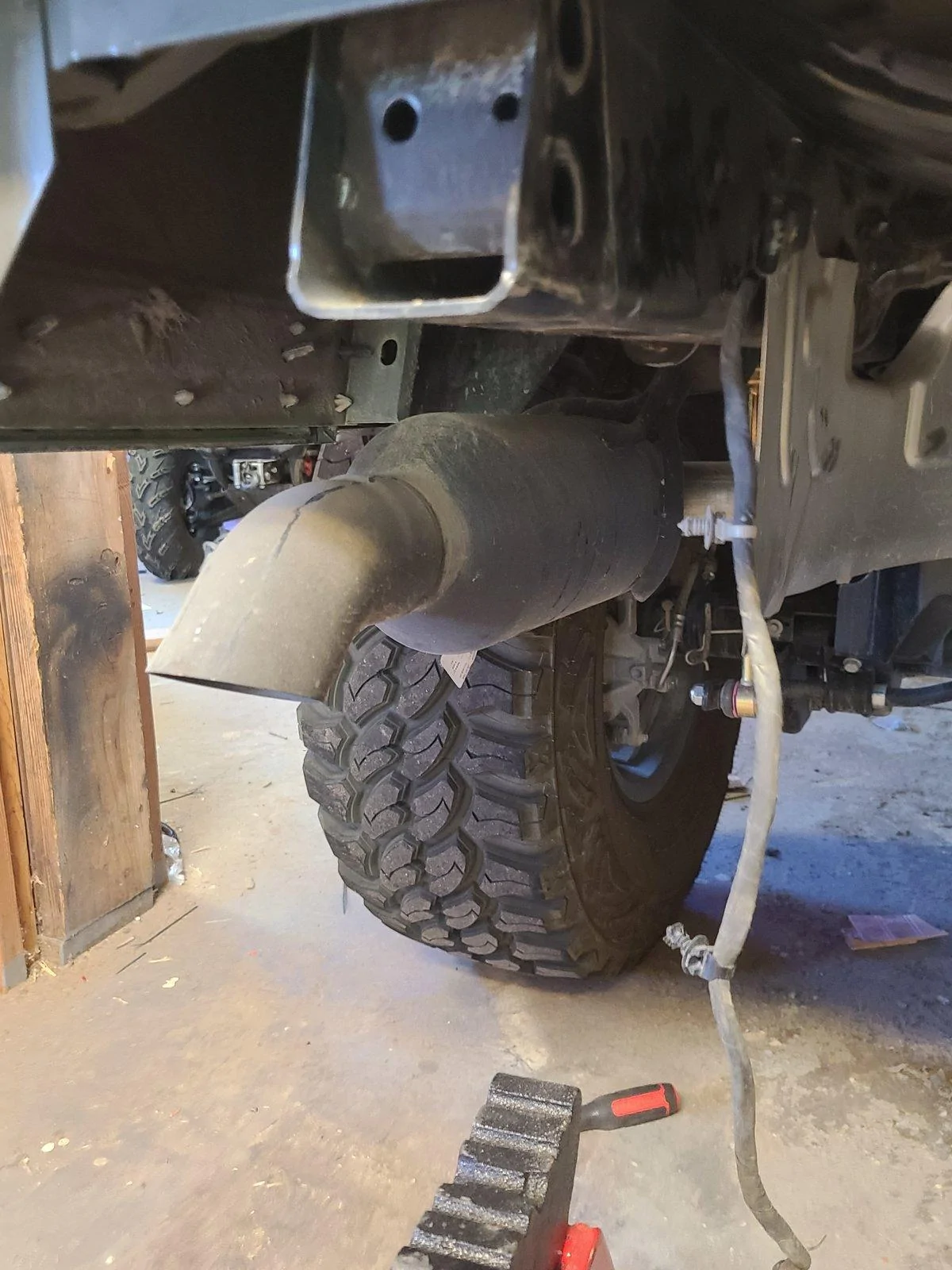

Obviously started with removing the rear bumper and hitch. Then cut off the extra muffler above the rear axle and removed the tire heat shield

OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #3

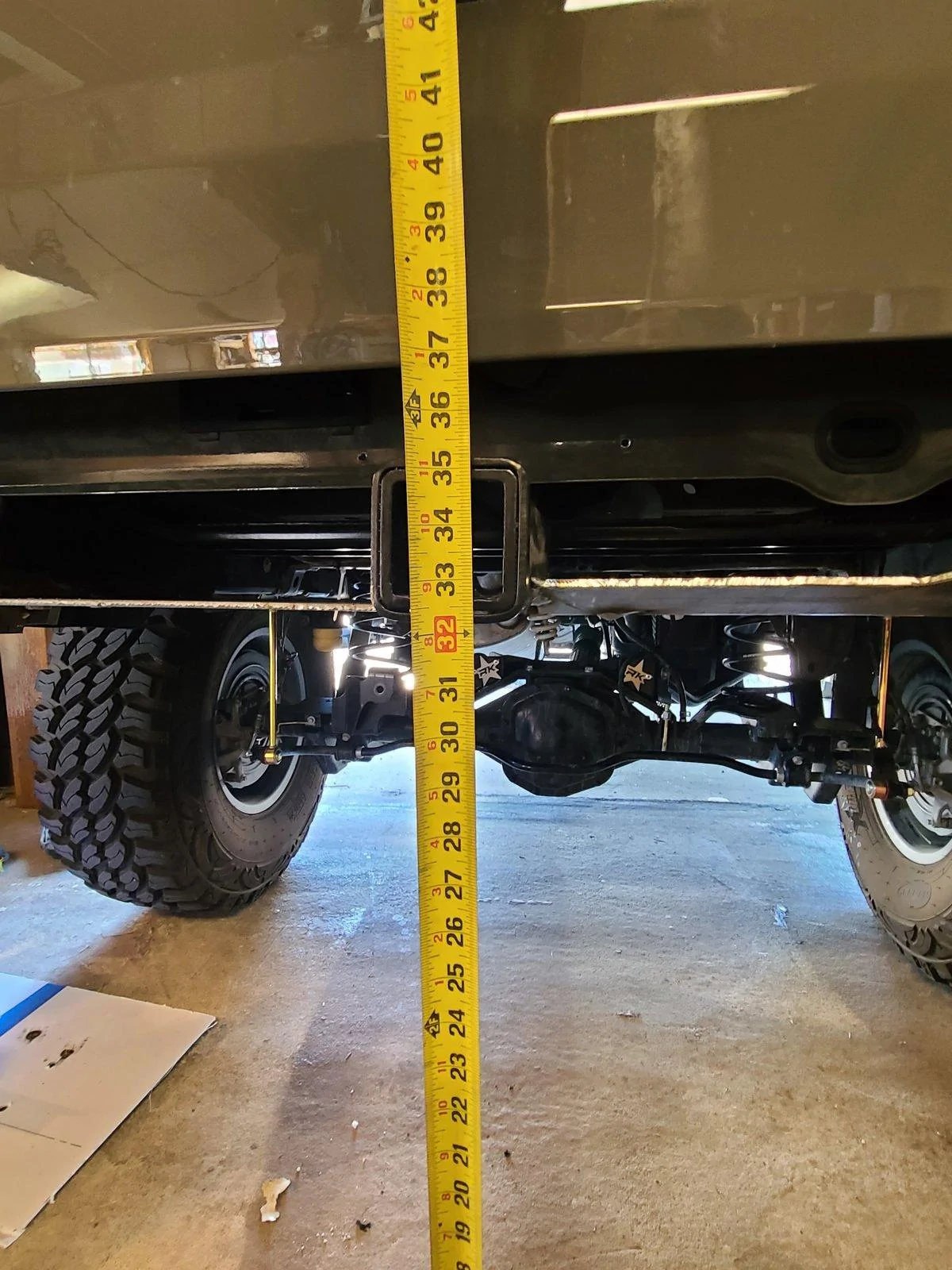

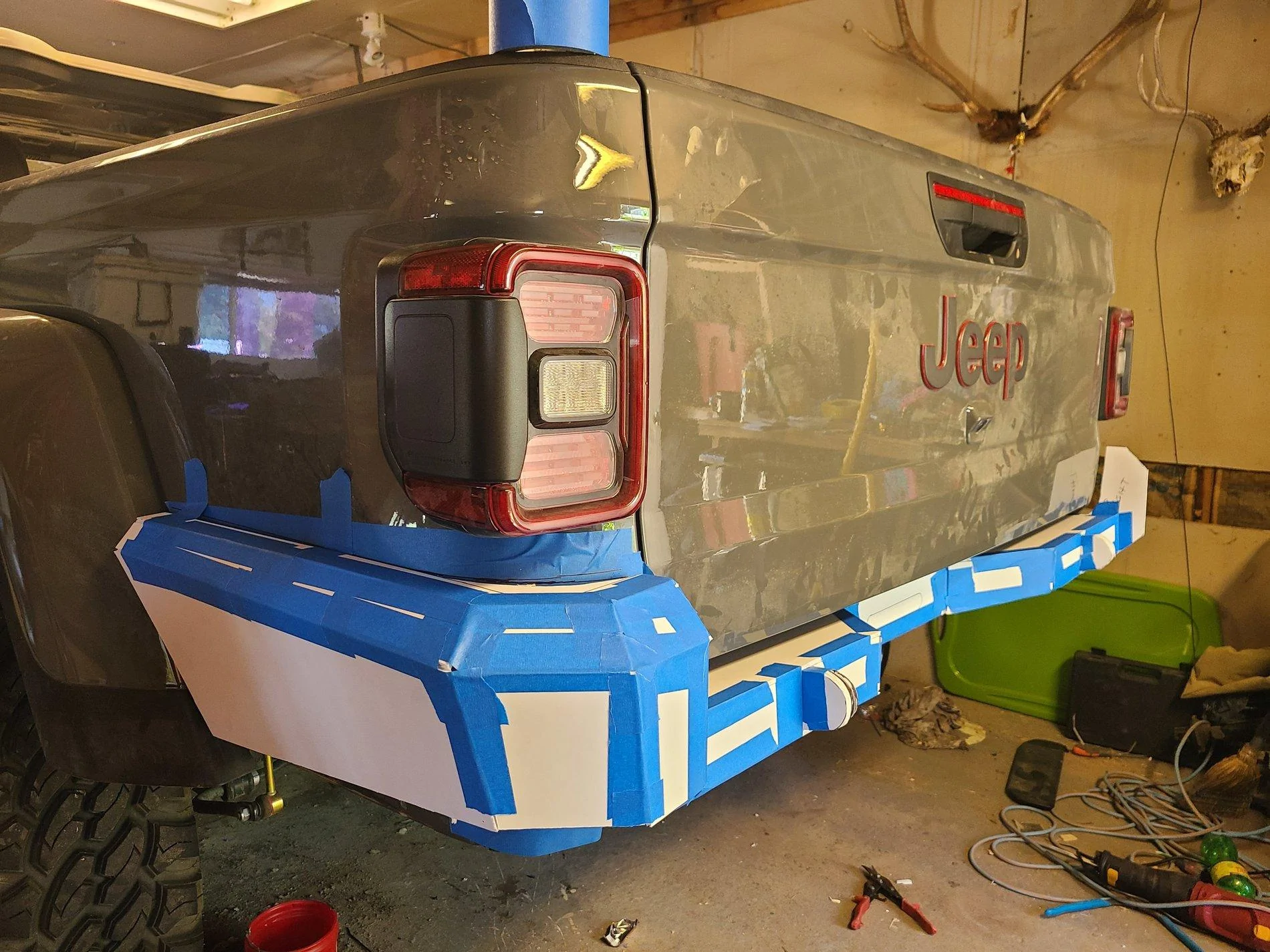

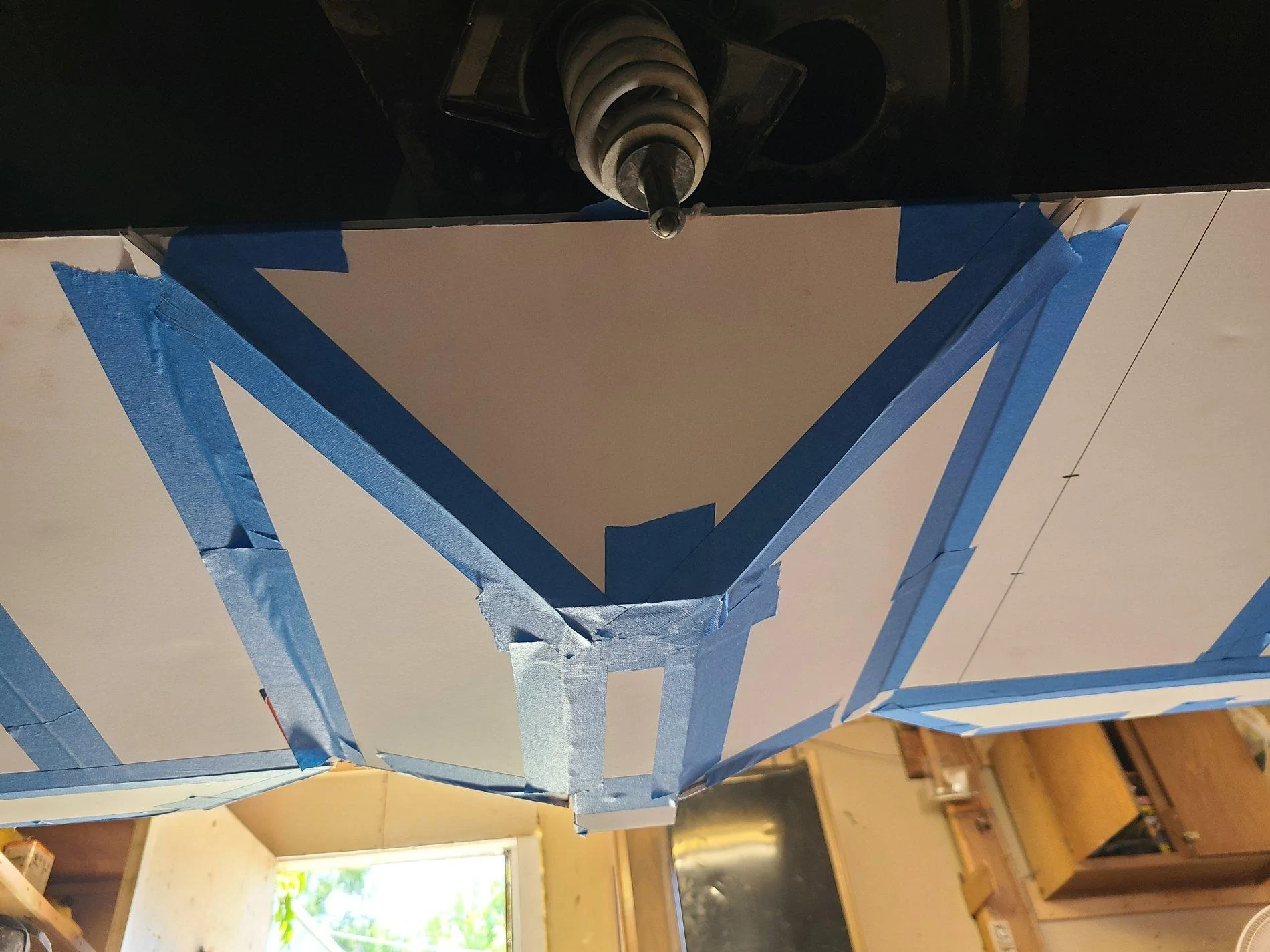

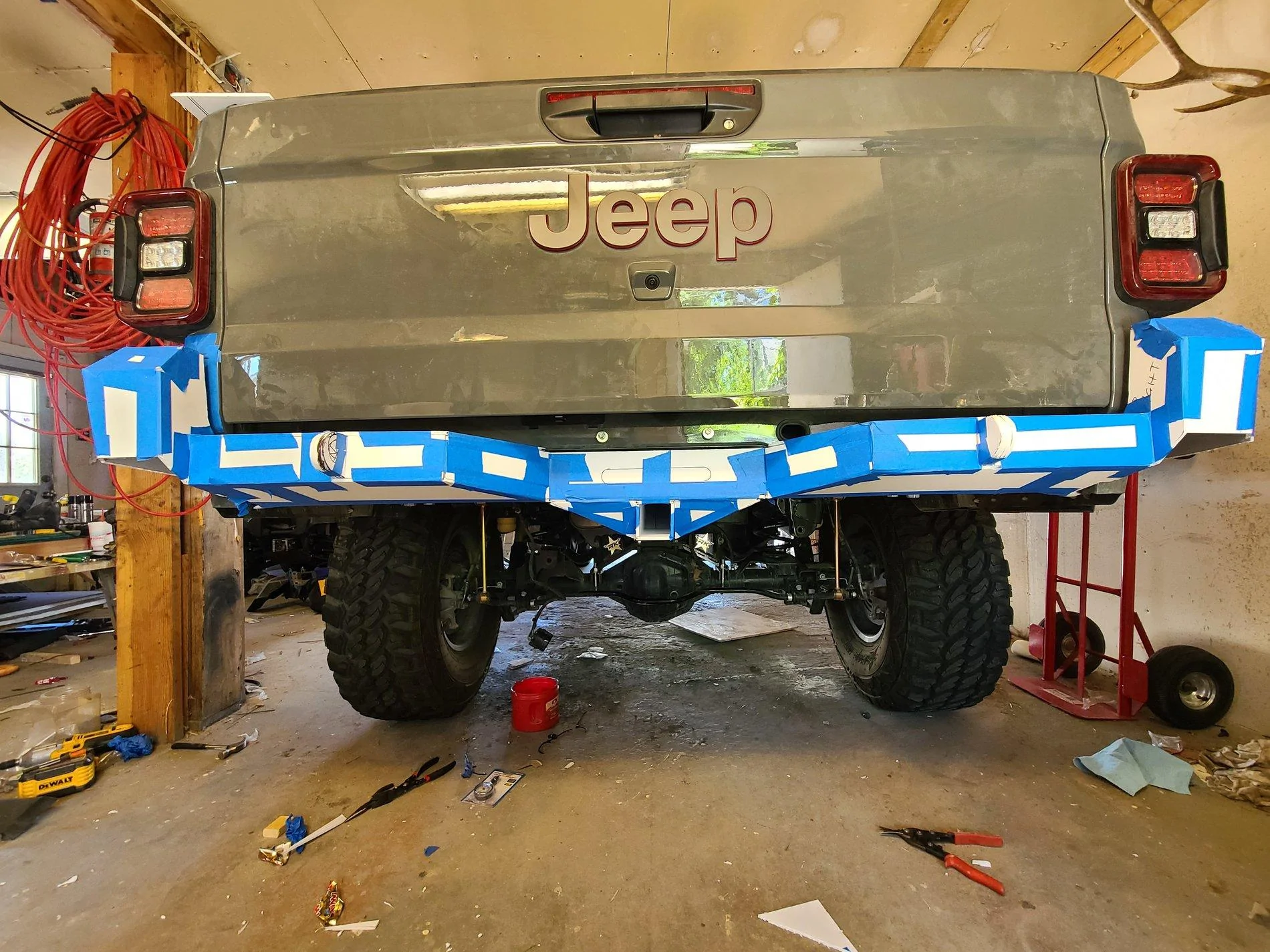

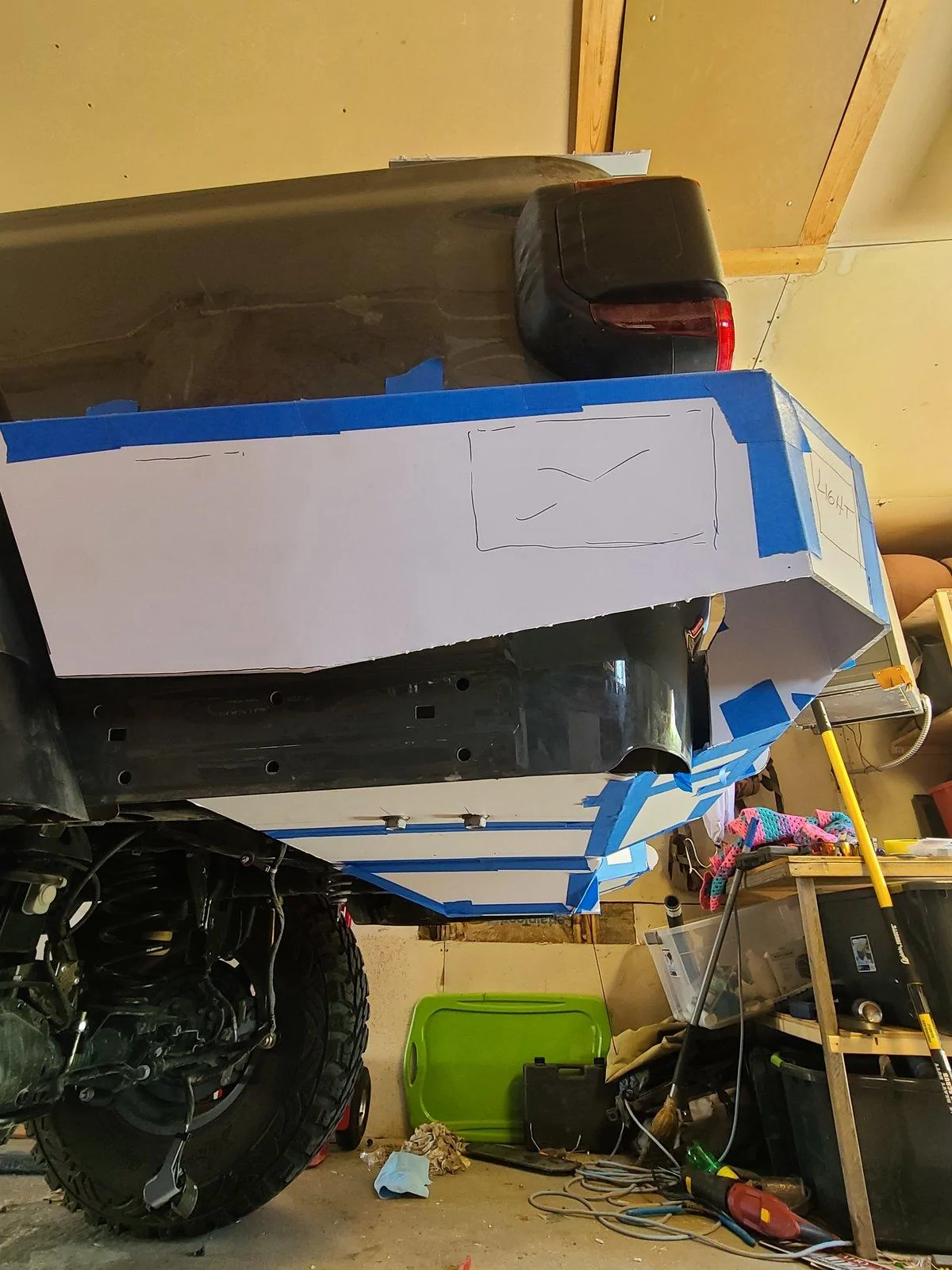

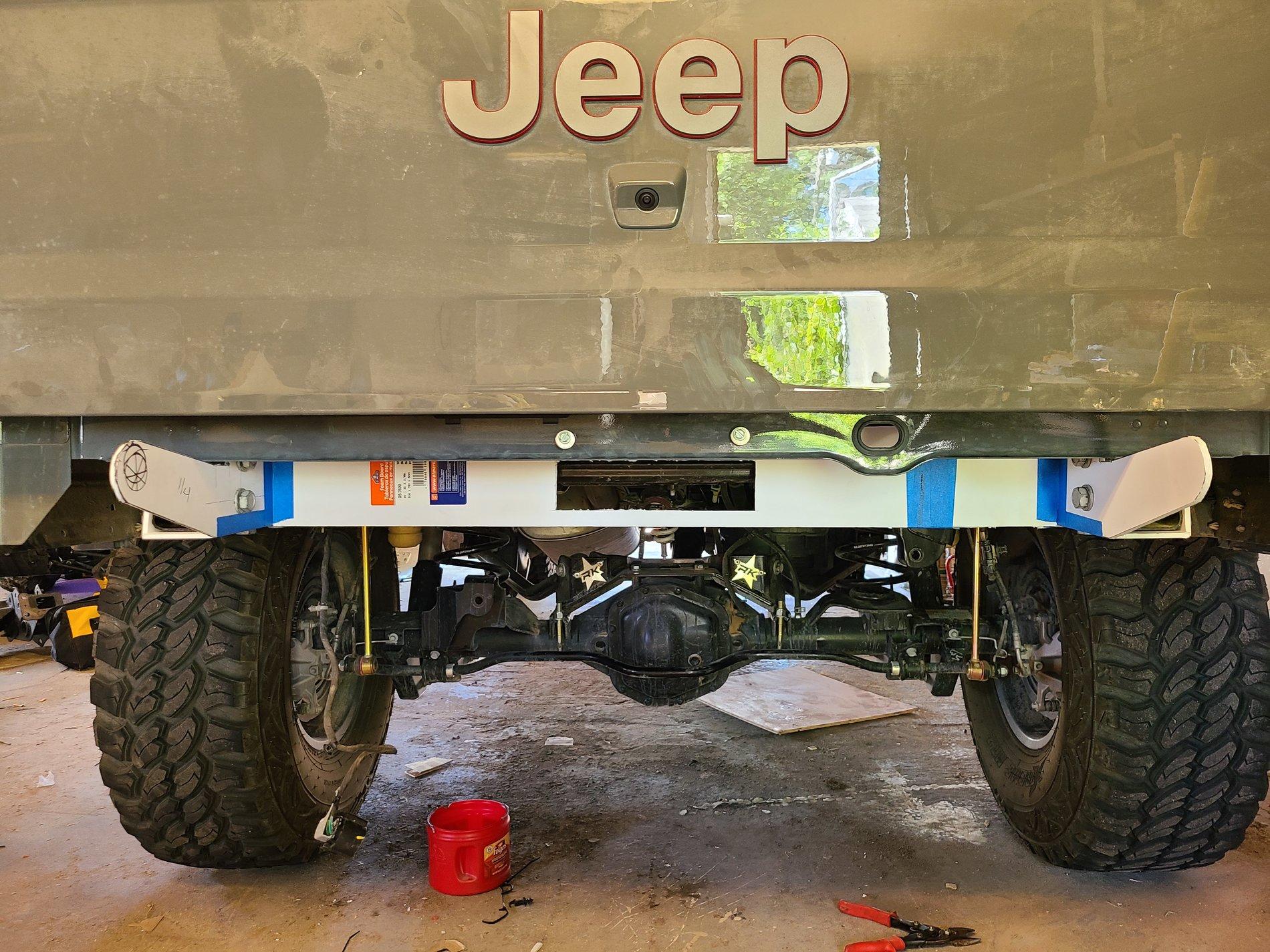

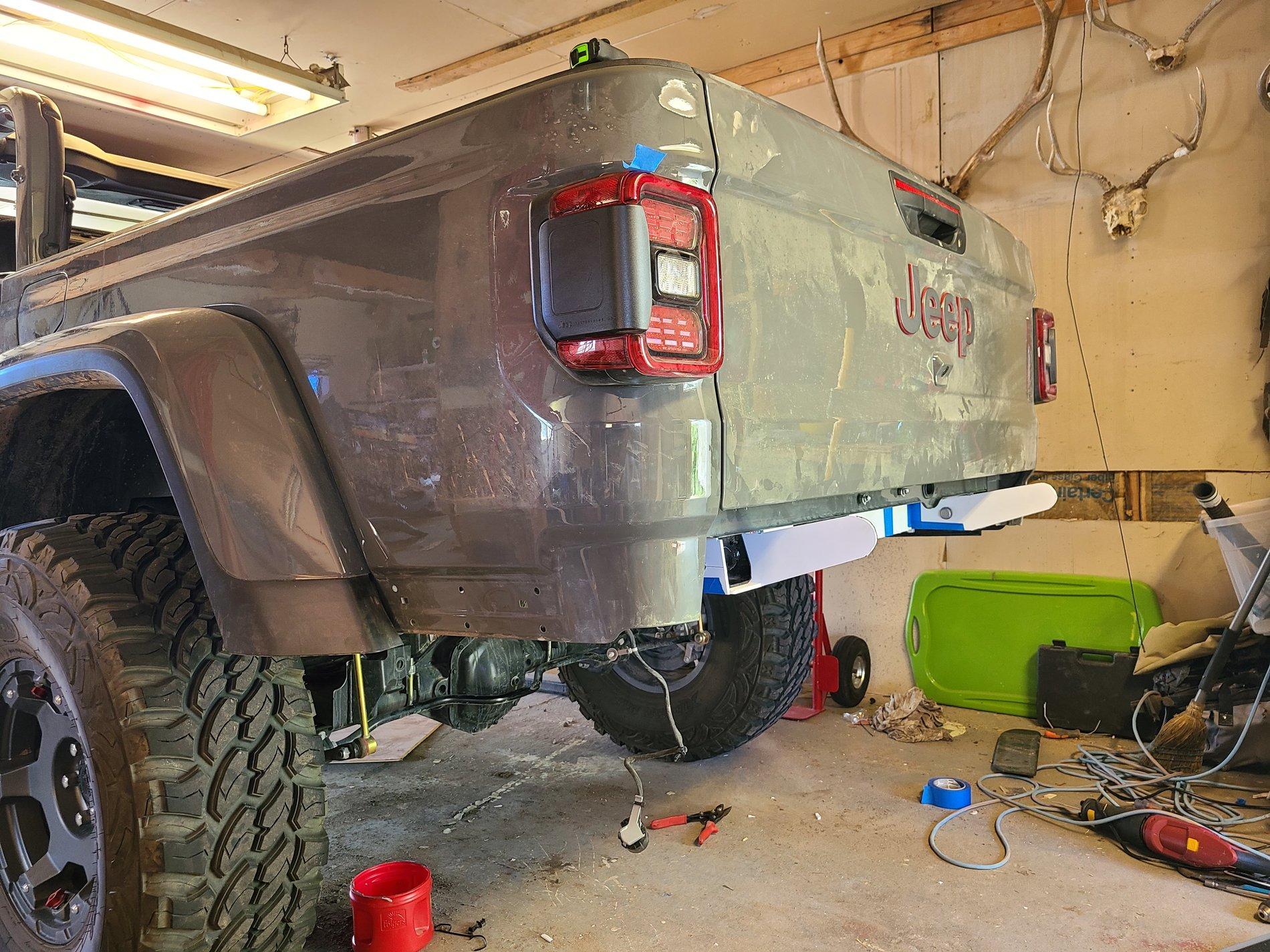

My plan was to build something with maximum ground clearance but I wanted to also mount a winch in it.

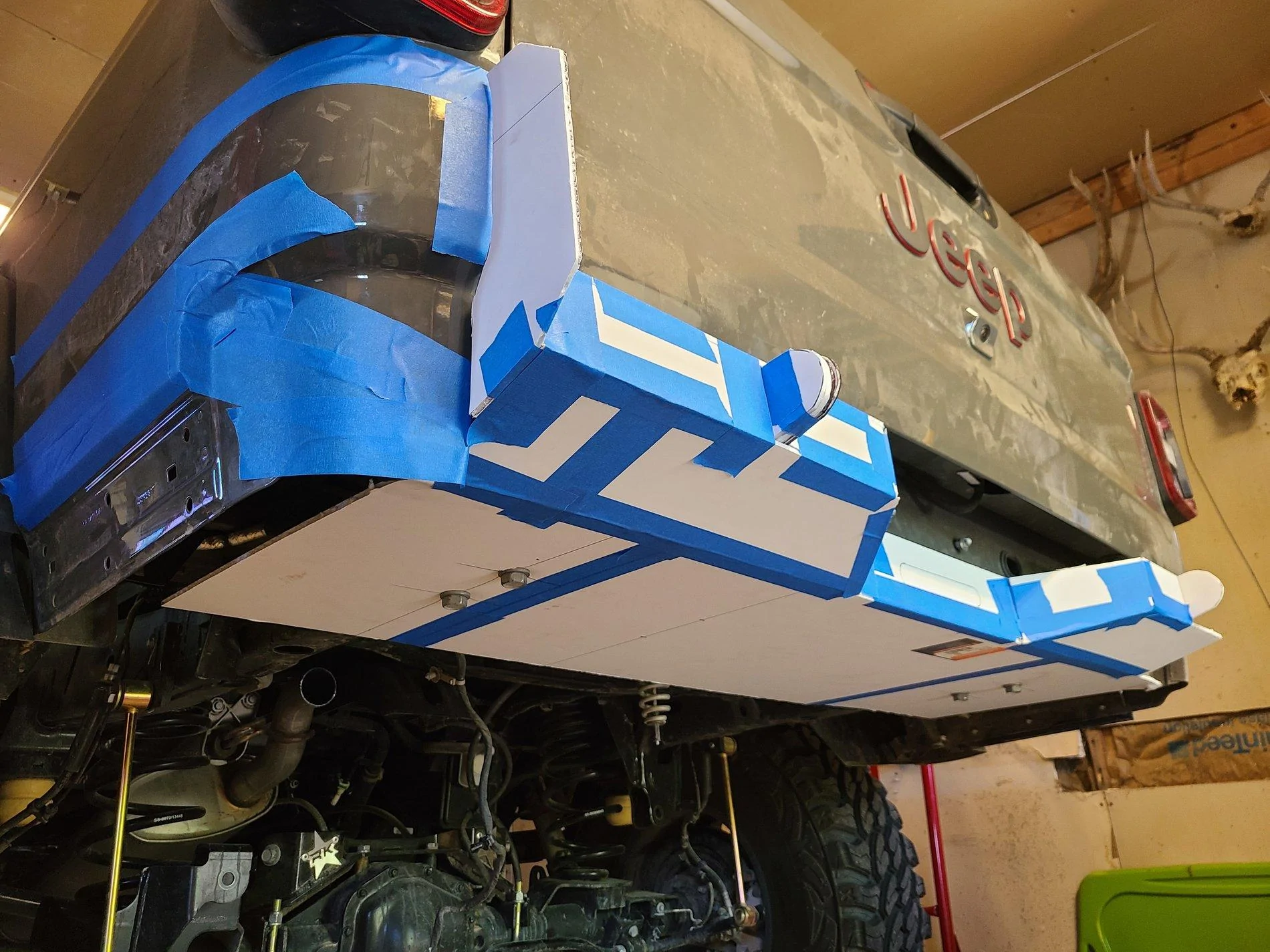

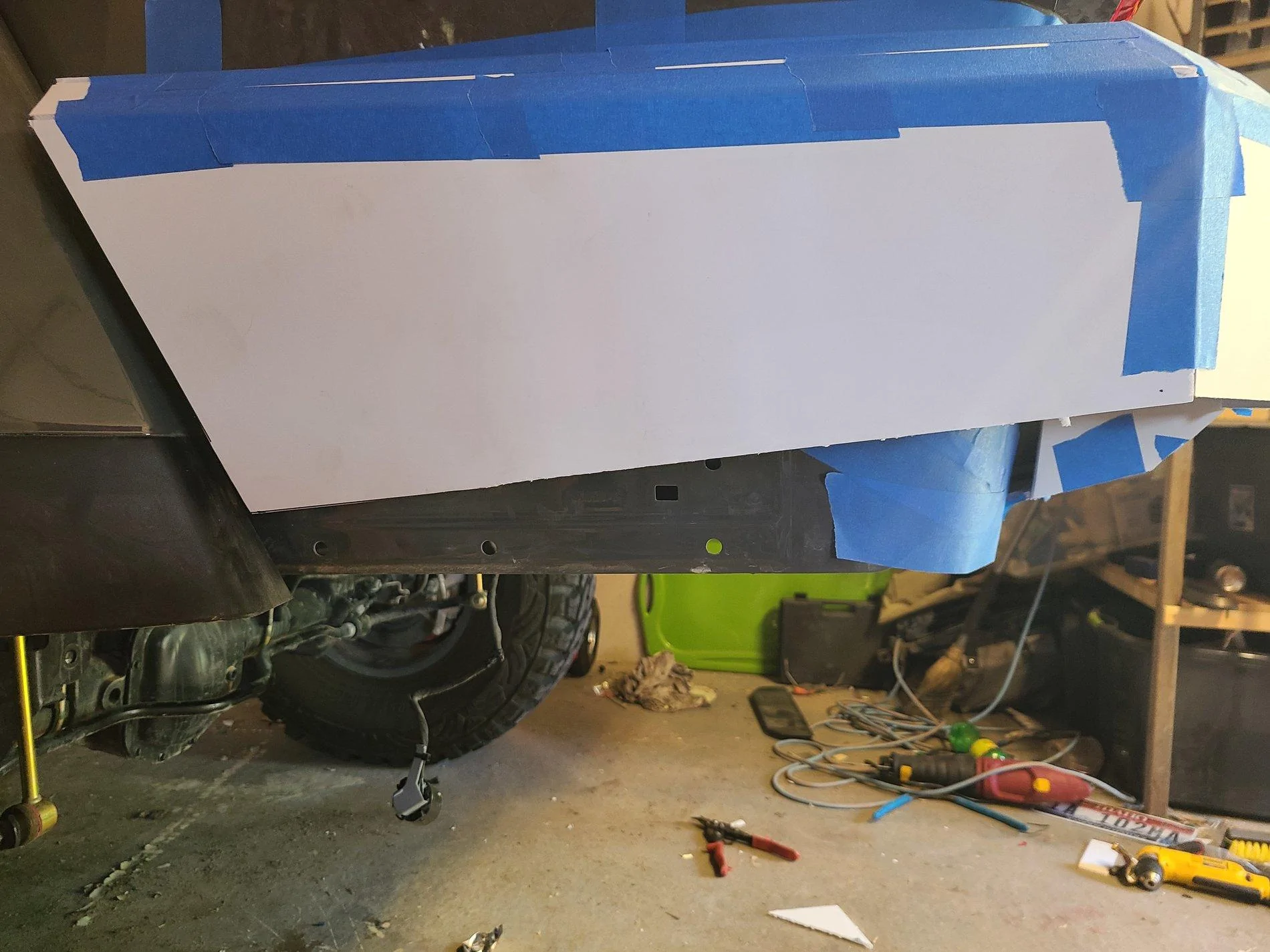

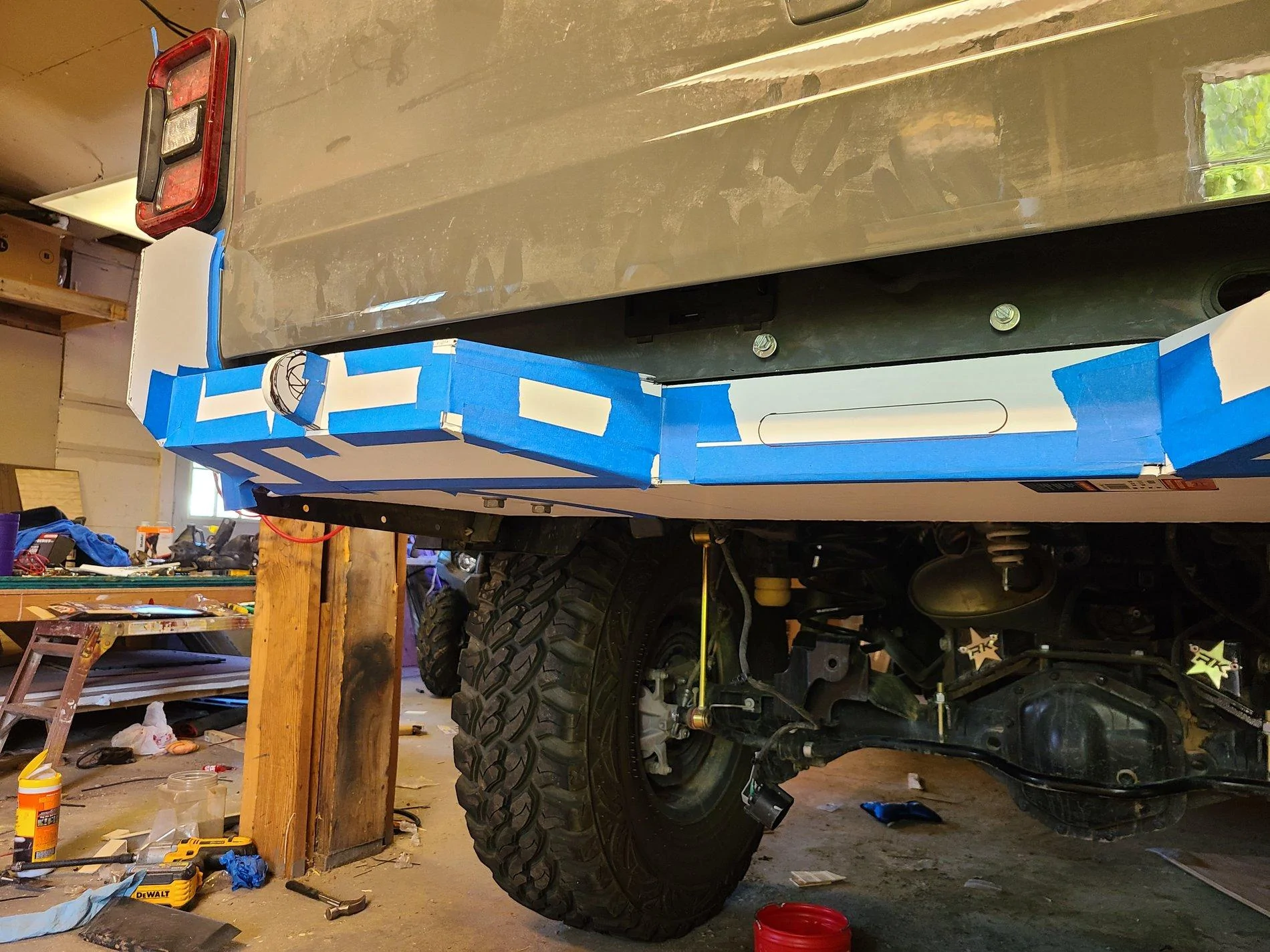

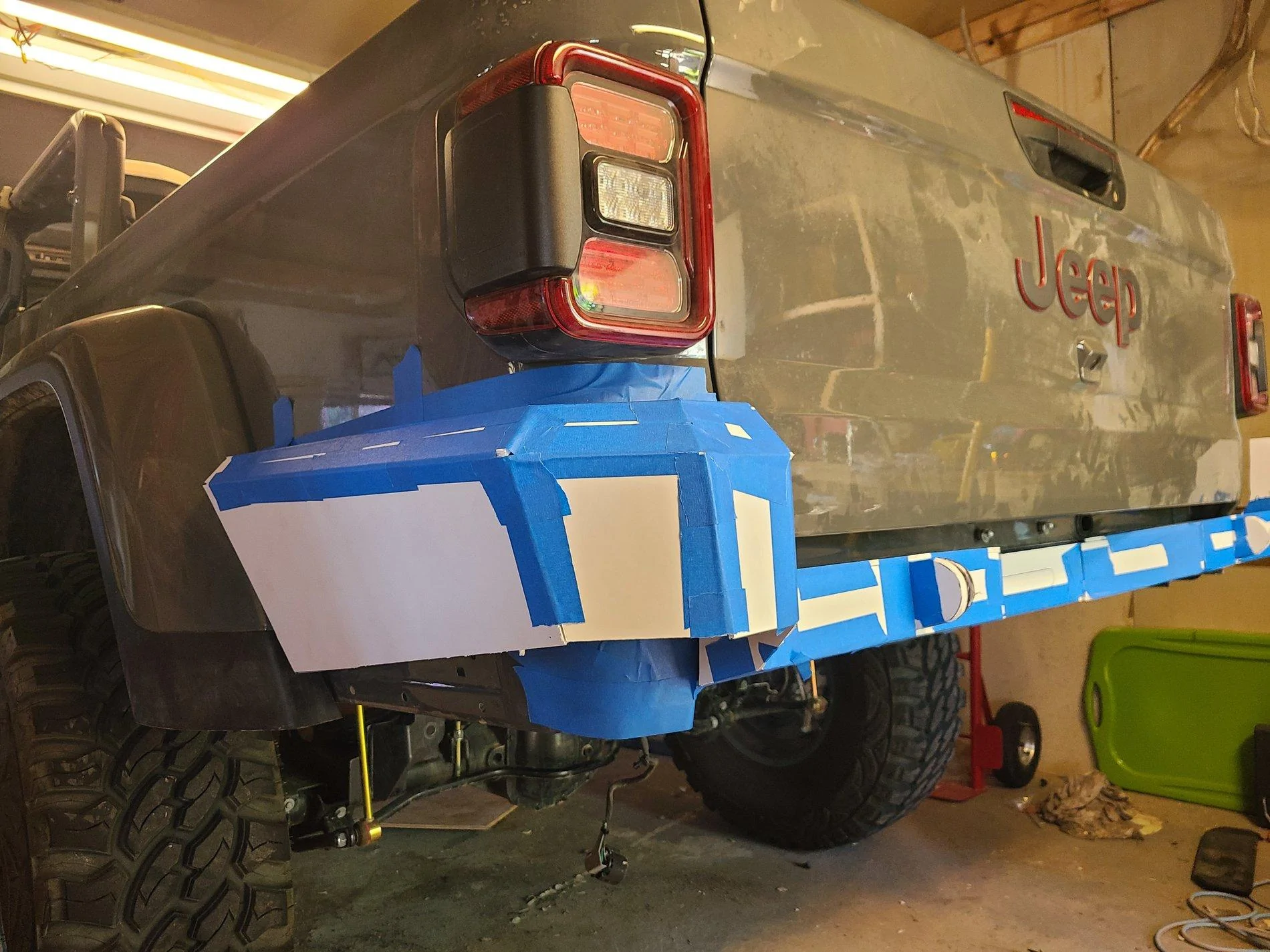

So I began mocking it up with cheap foam board.




















OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #4
After some thinking I decided to skip the winch in order to get more clearance.

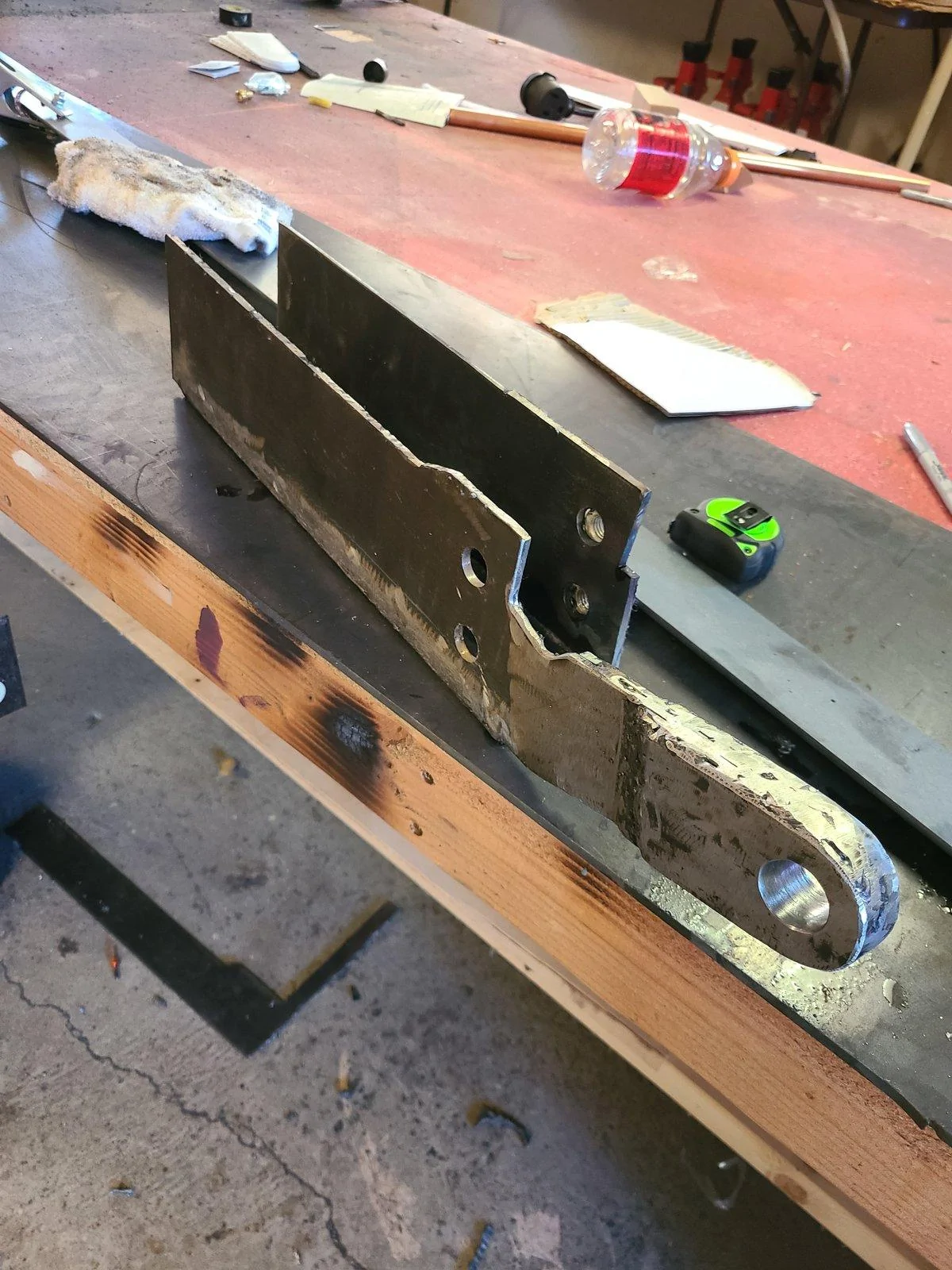

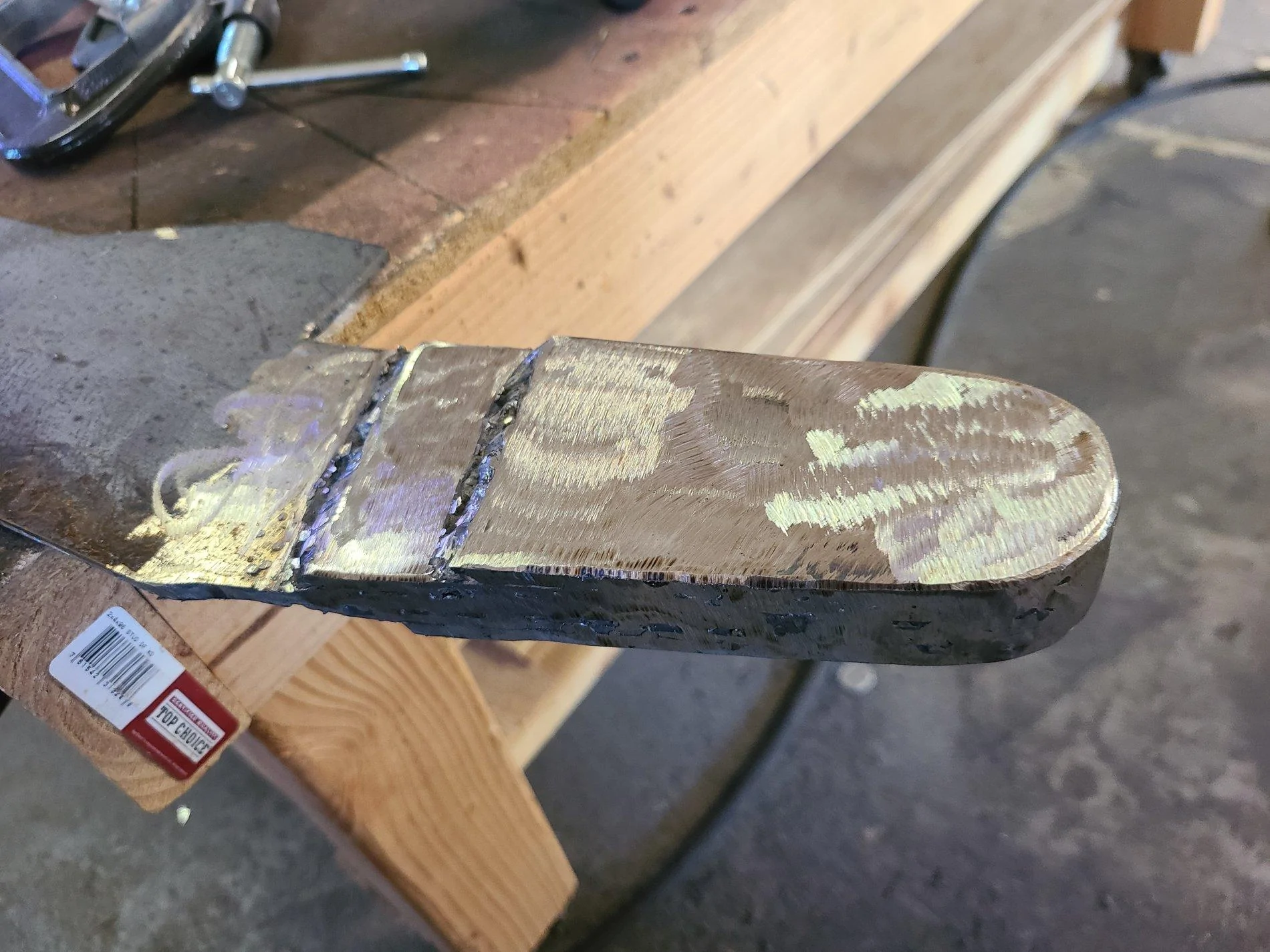

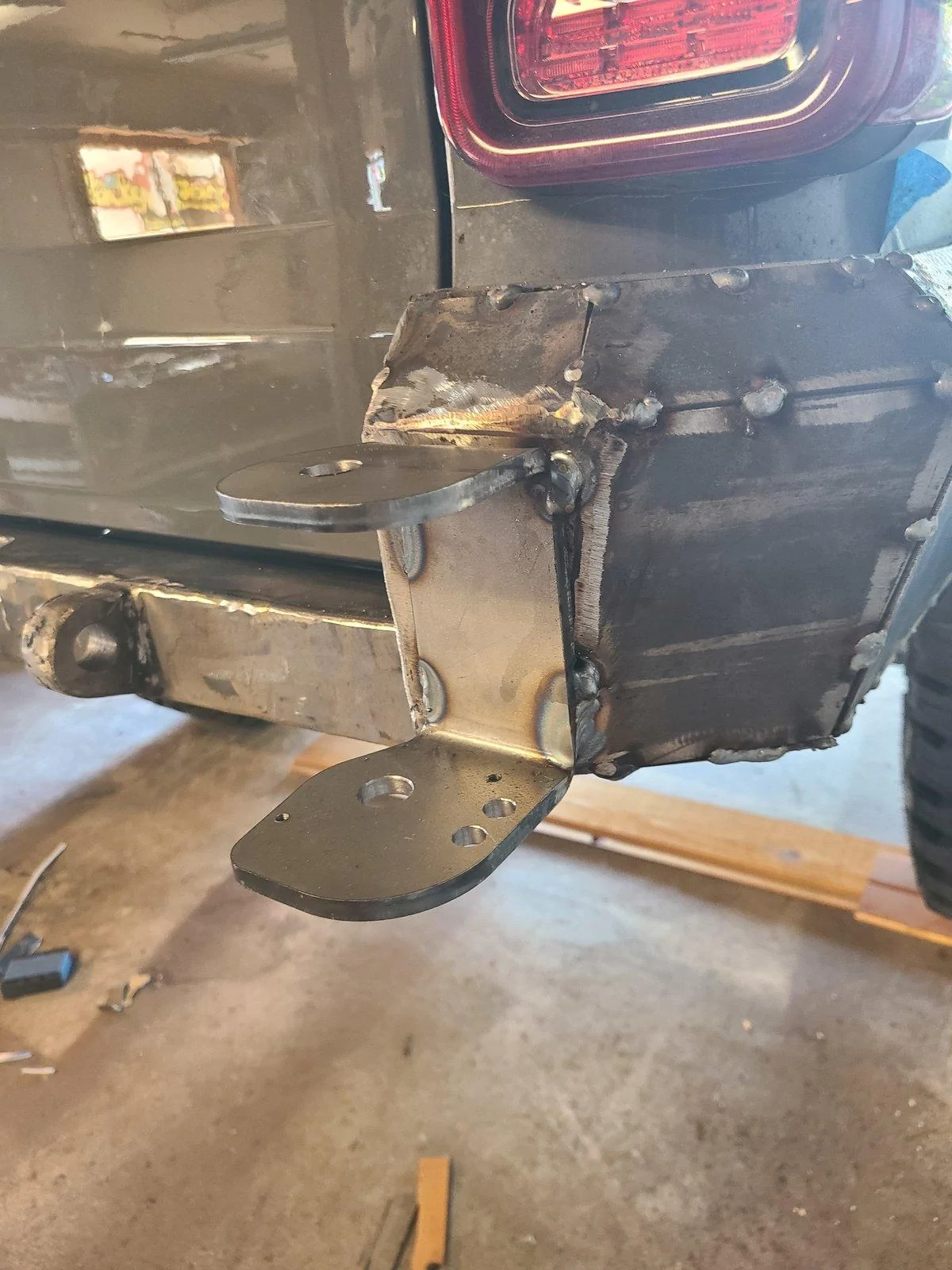

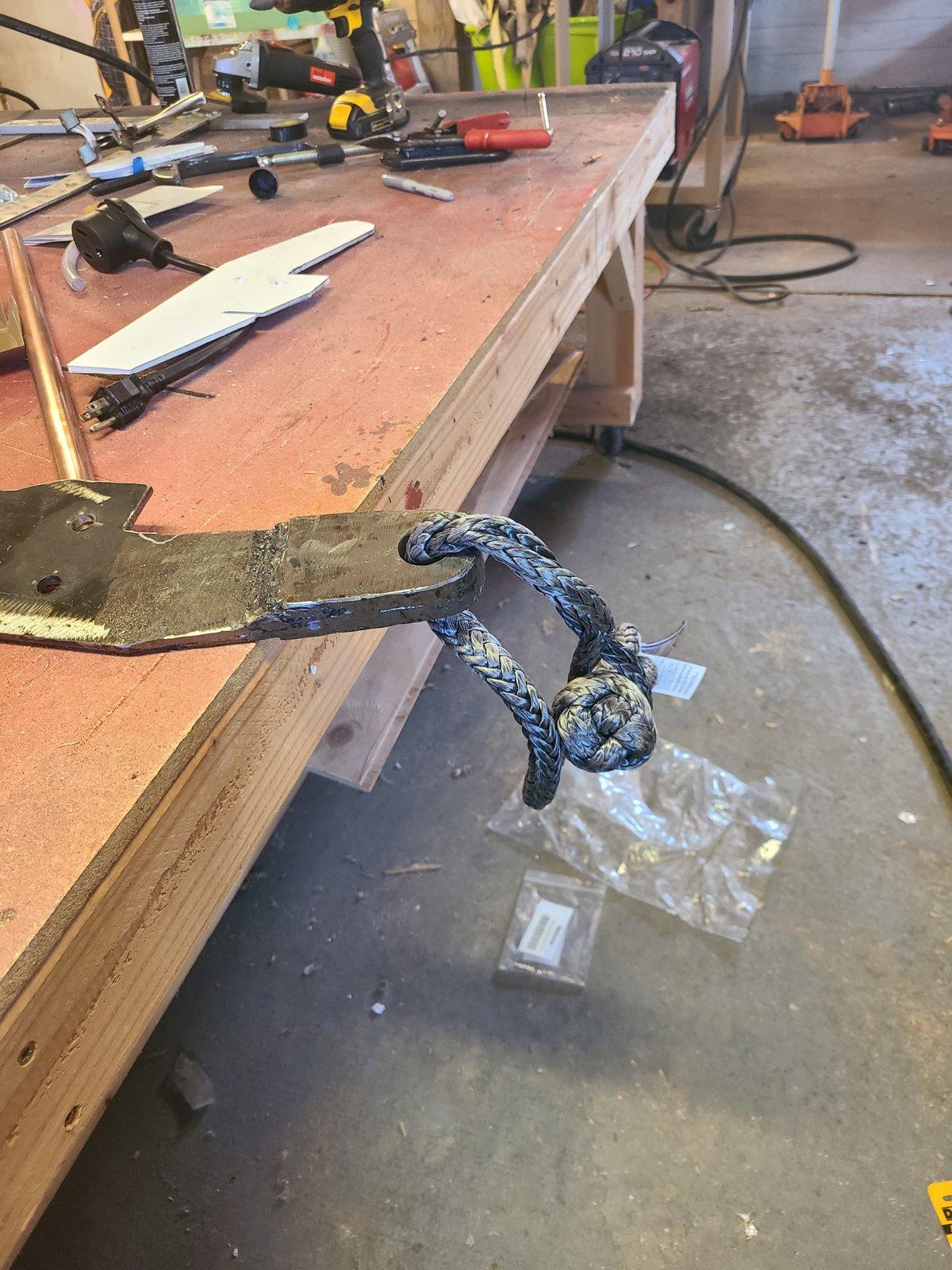

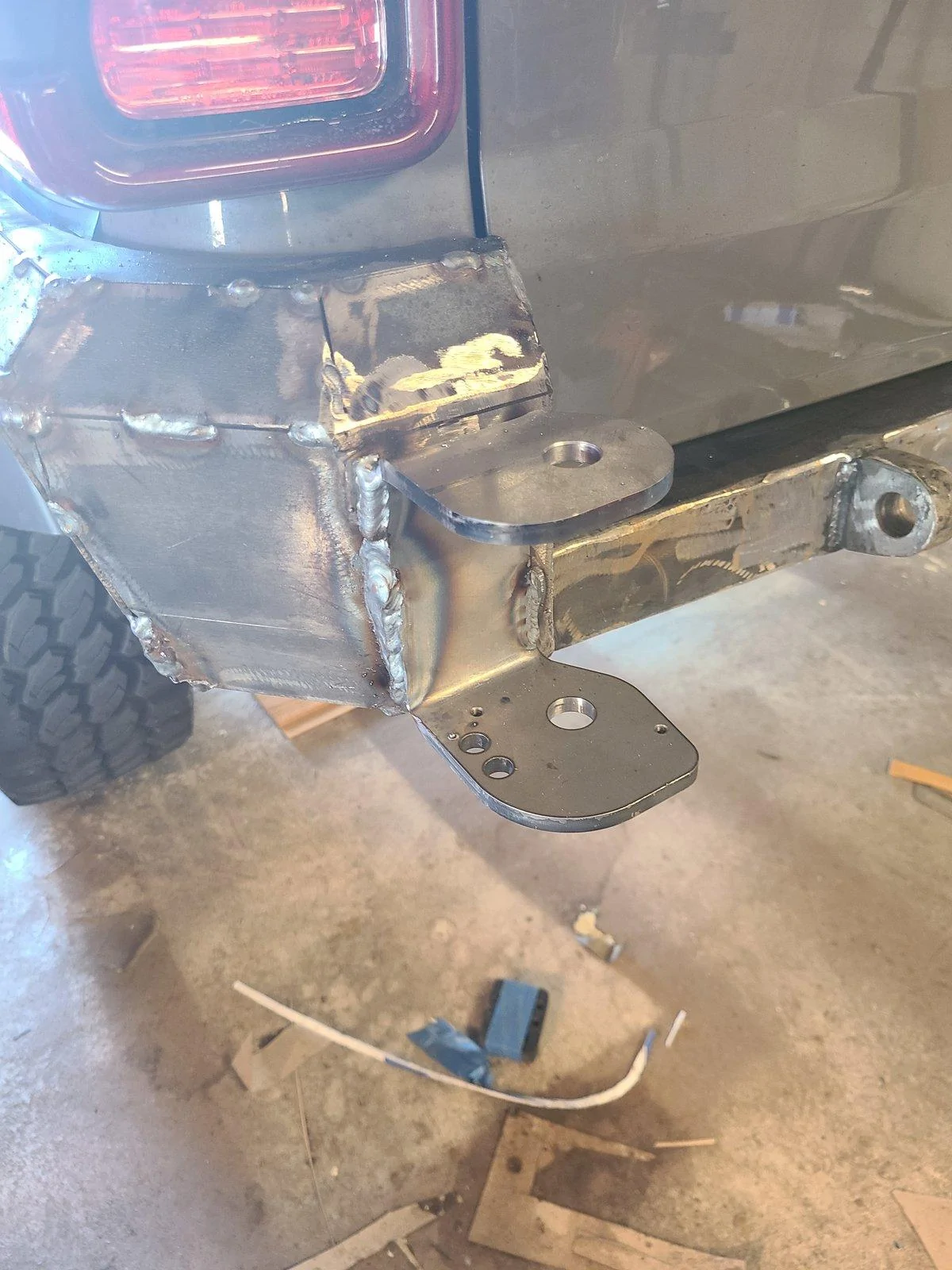

I started with the tow hooks attached to the frame and built them out to 1" thick by cutting and welding together 5 pcs of 3/16 steel. Drilling the 1" hole was really fun with my cheap mini counter top drill press








OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #5

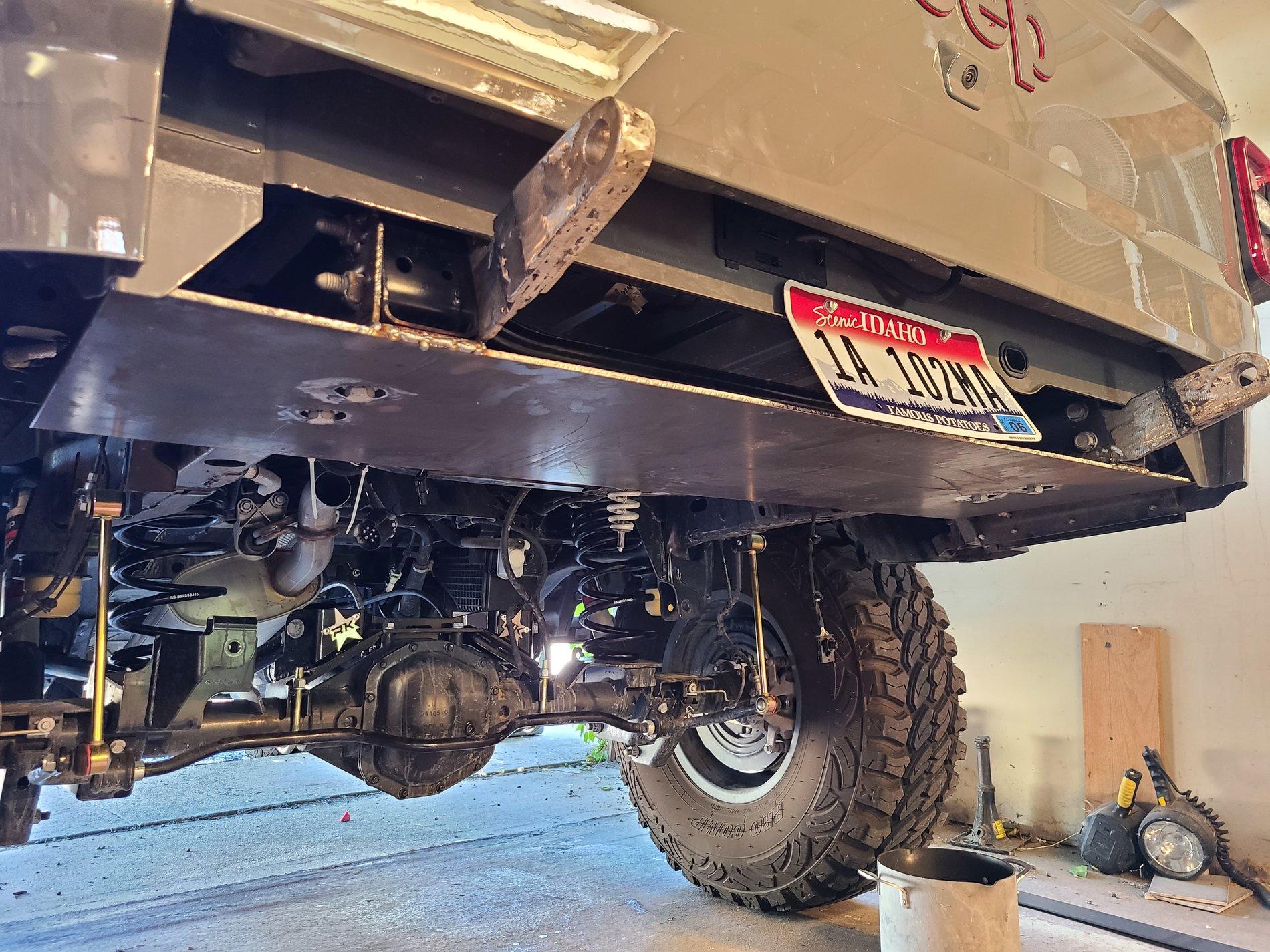

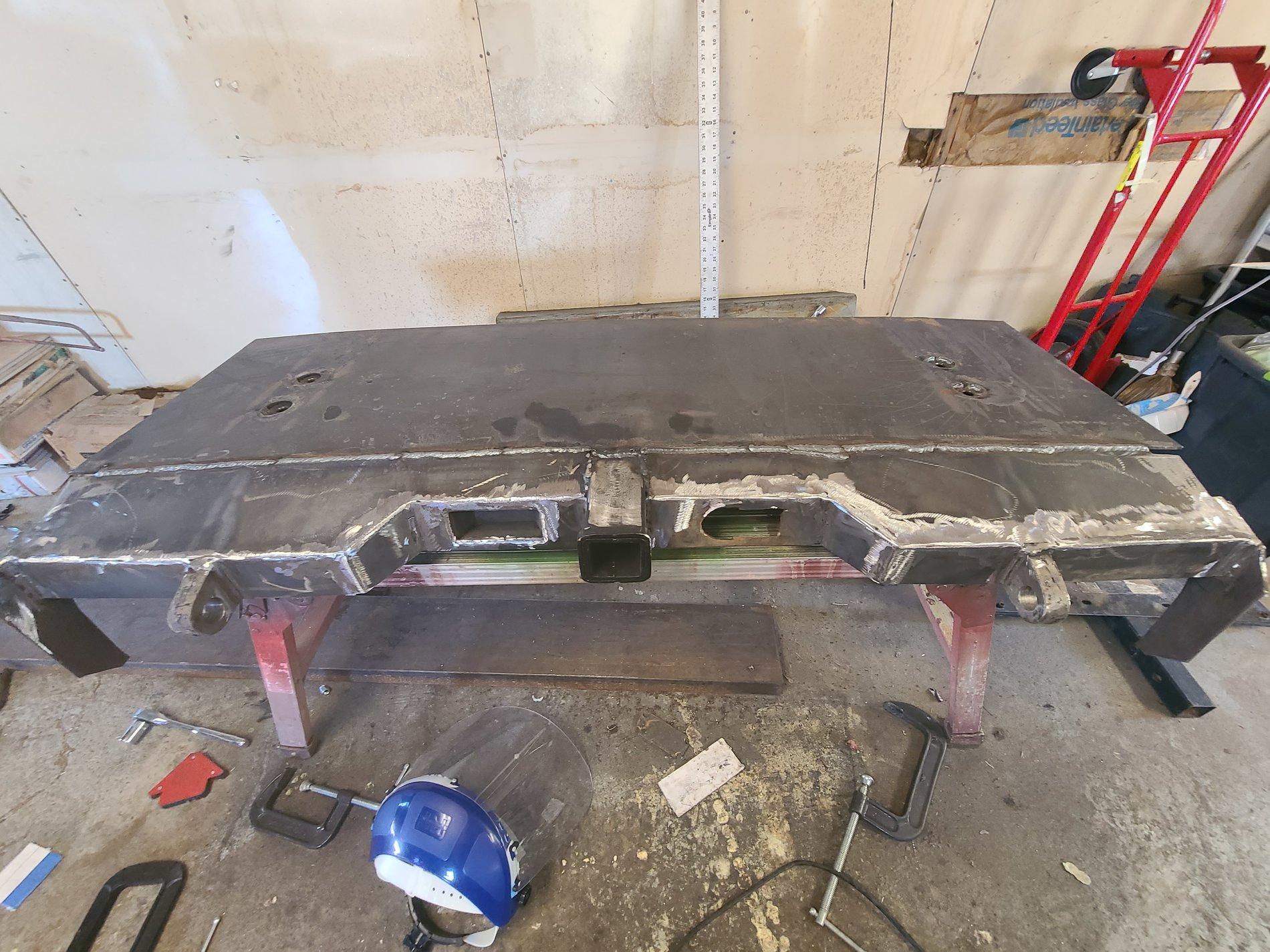

Next step was a 3/16 steel skid plate welded to the frame mounts.


OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #6

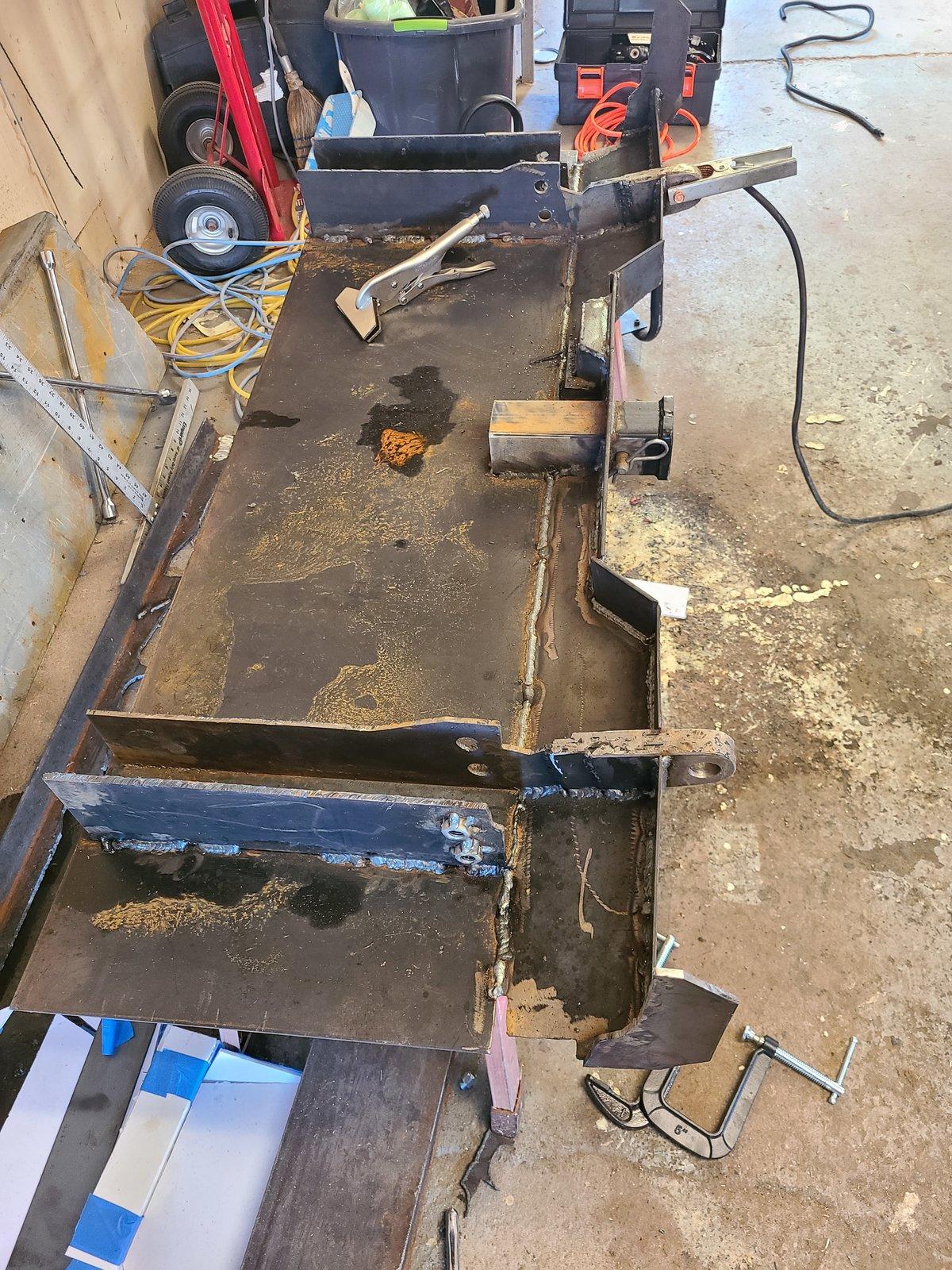

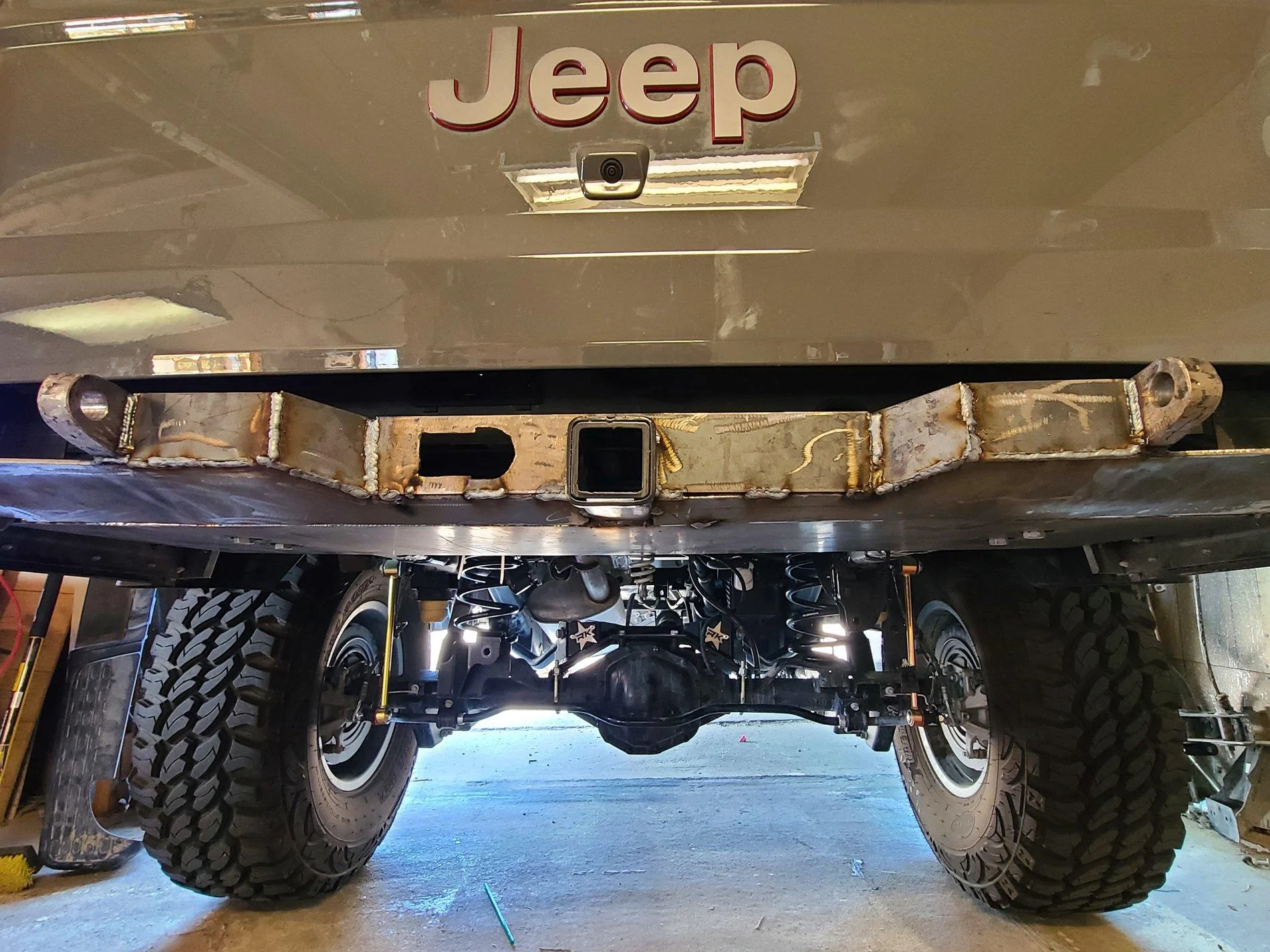

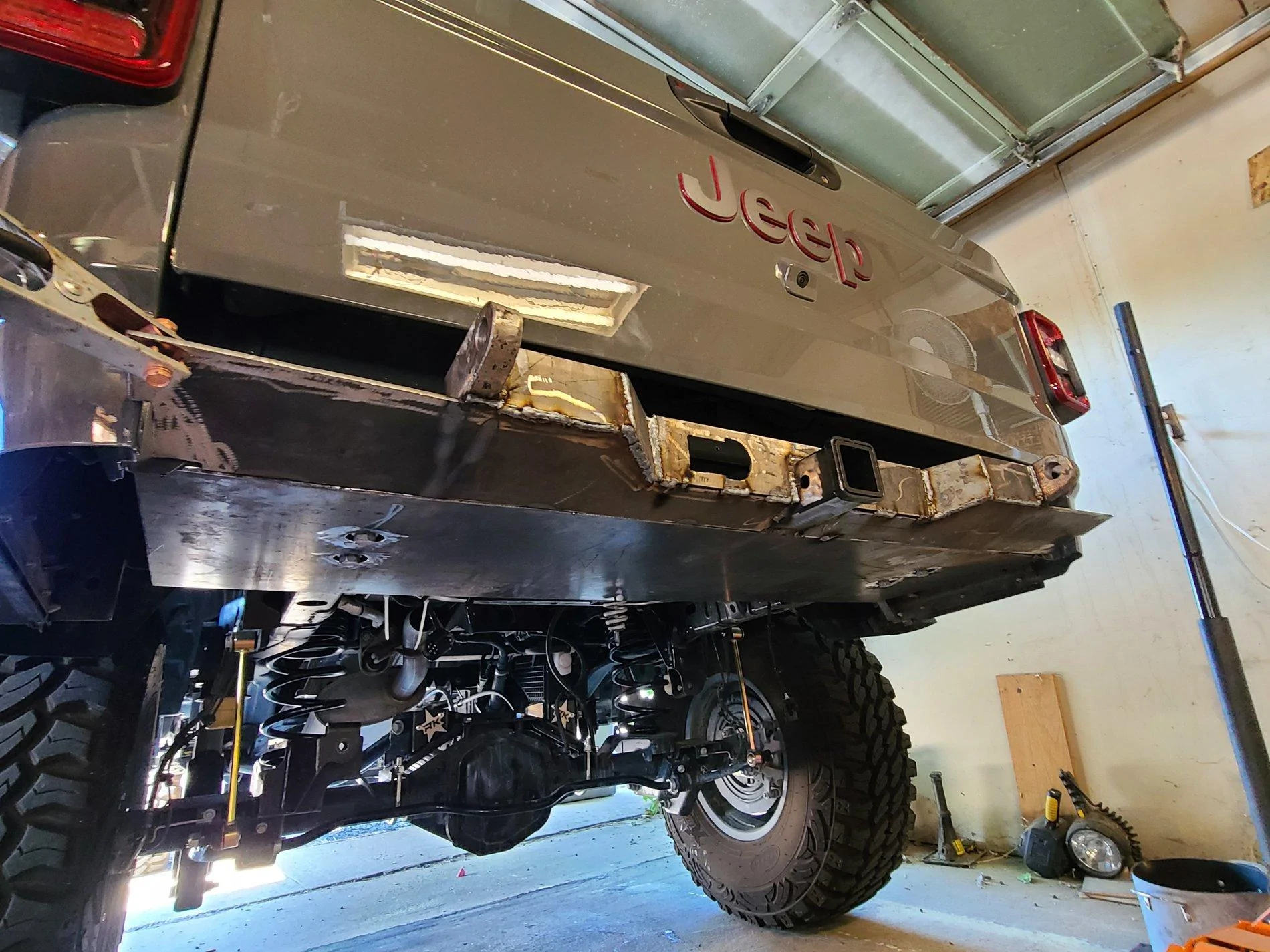

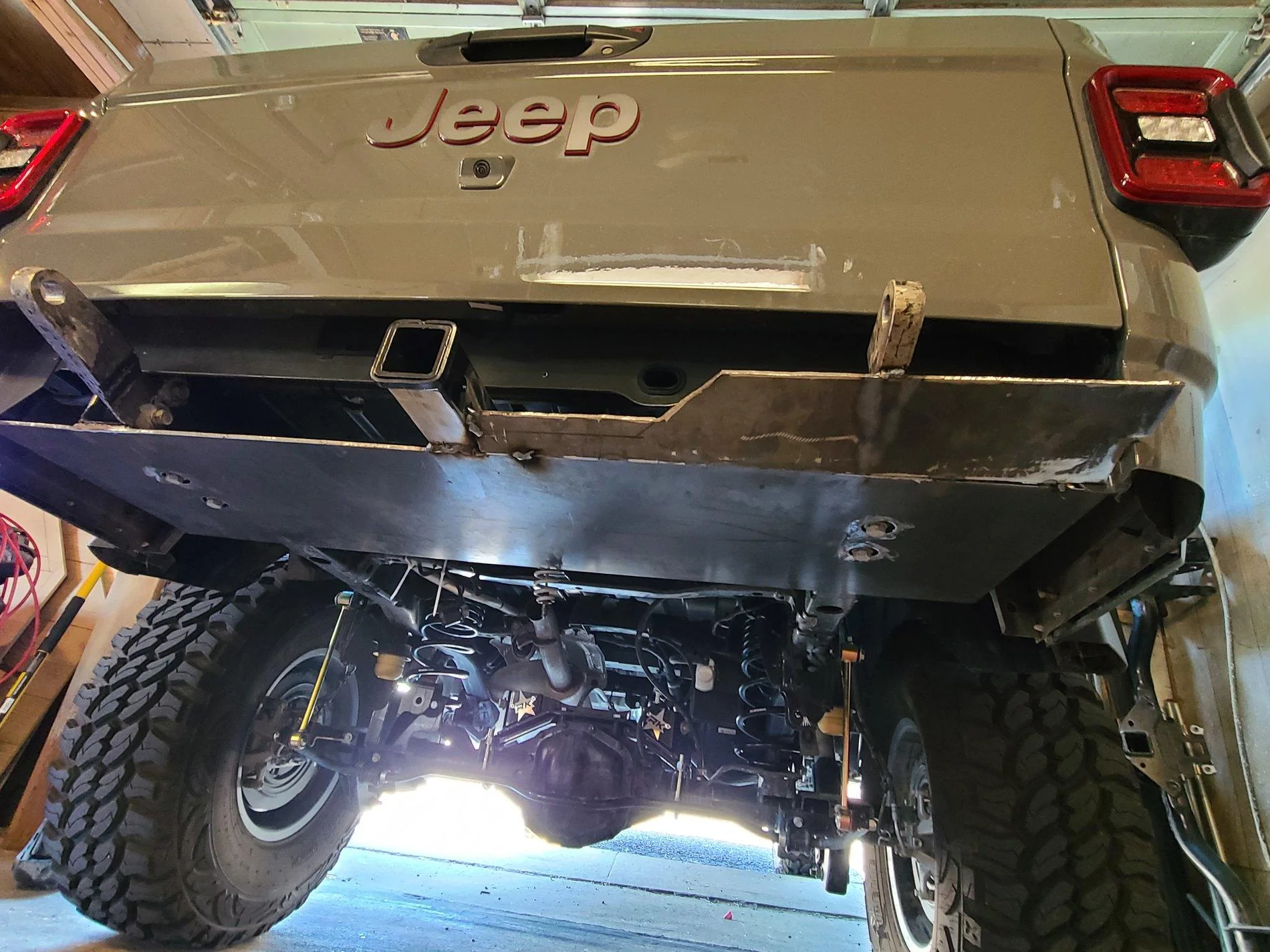

Next I made a trip to harbor frieght for a receiver. Welded it in and started adding pieces to get to this point. Now its time for beer. Hopefully more progress during the week.








OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #7

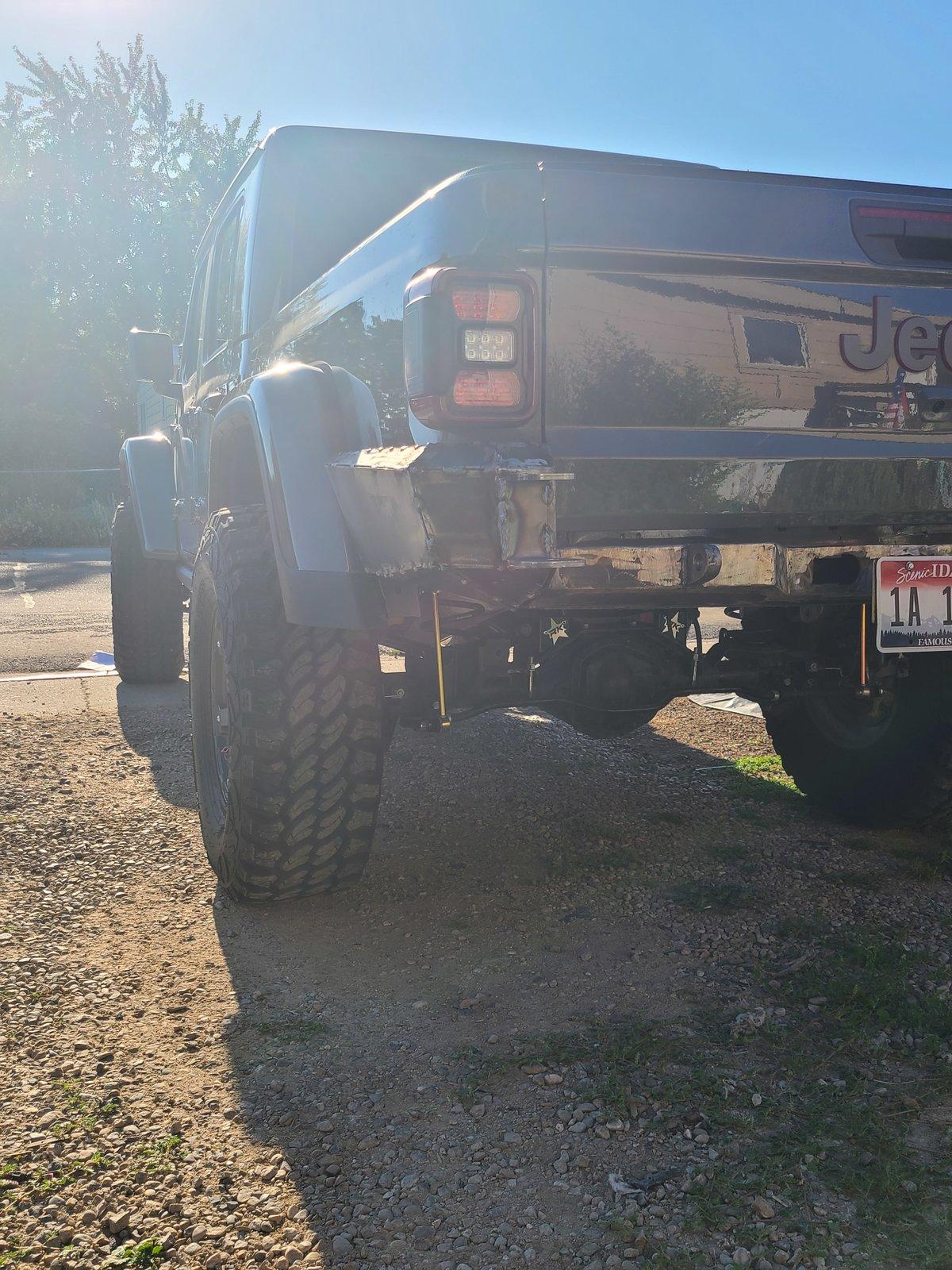

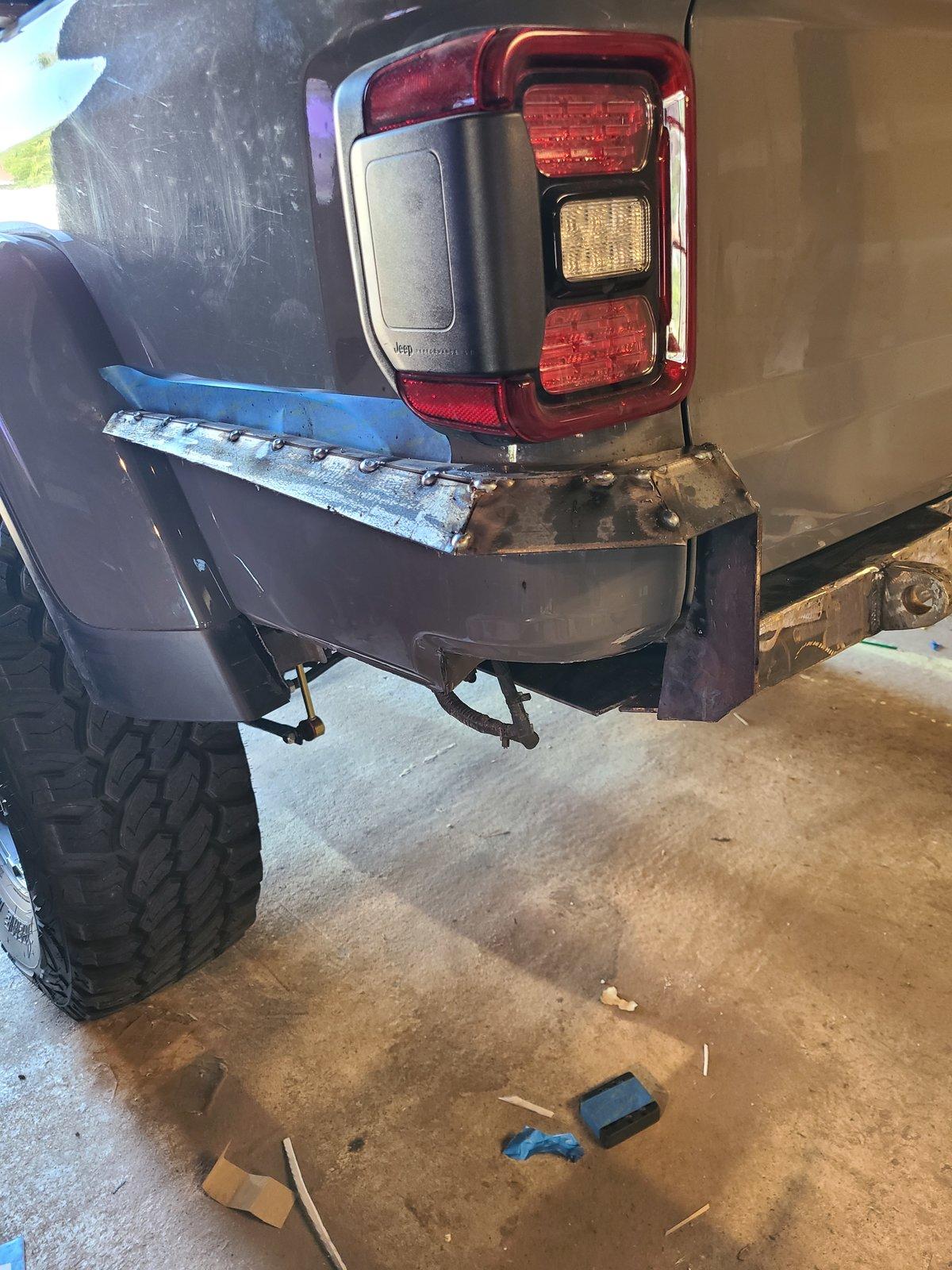

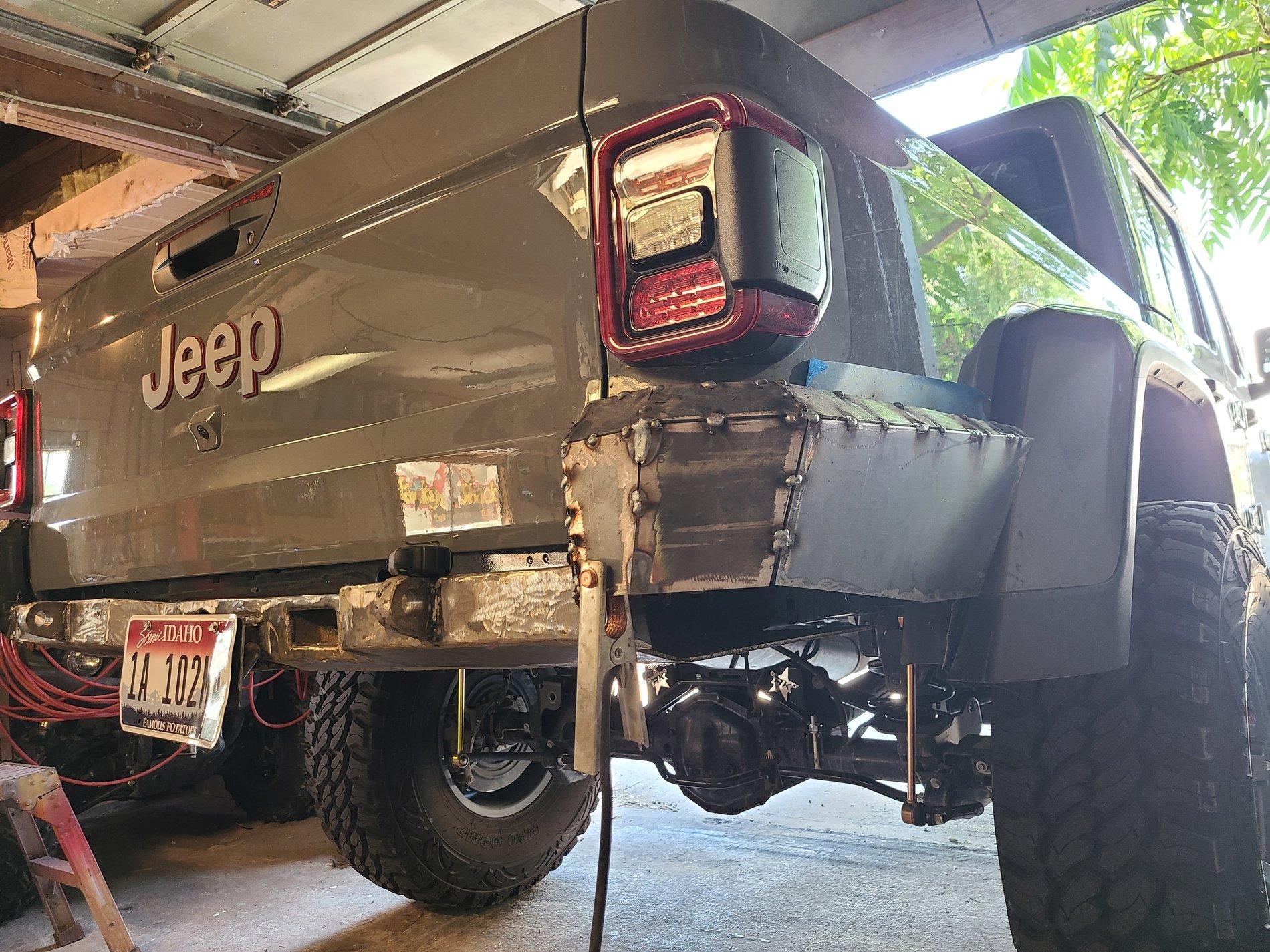

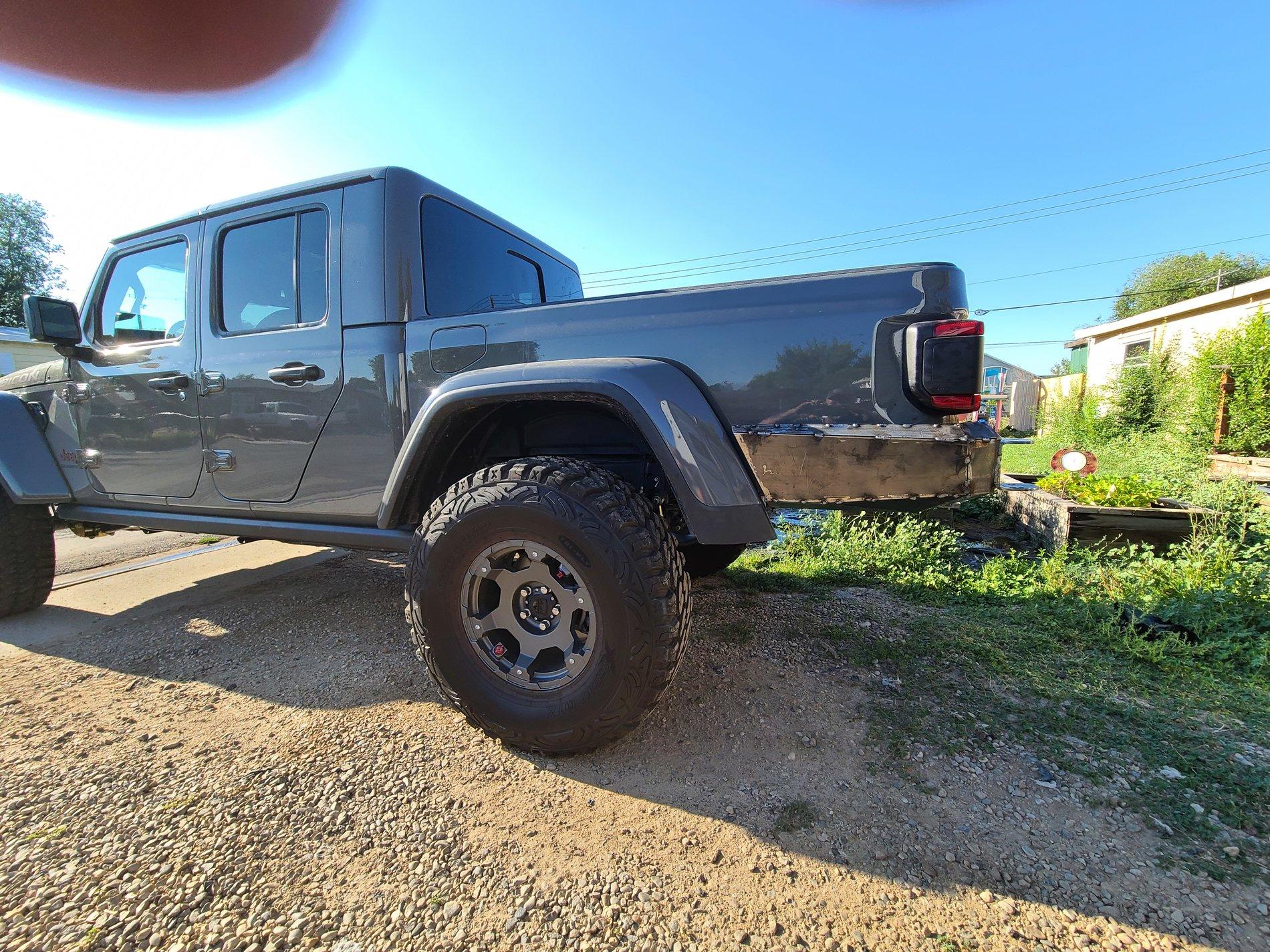

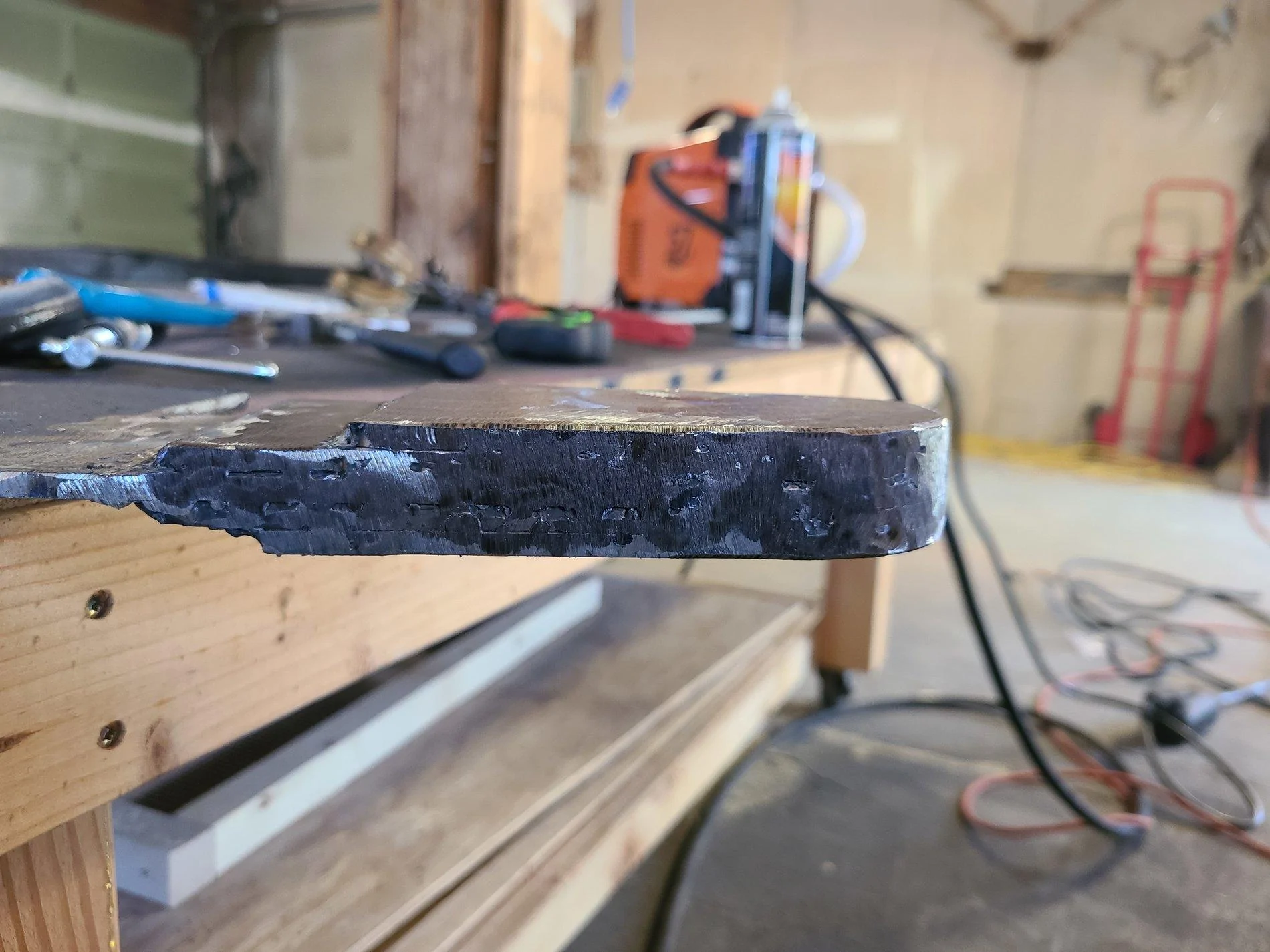

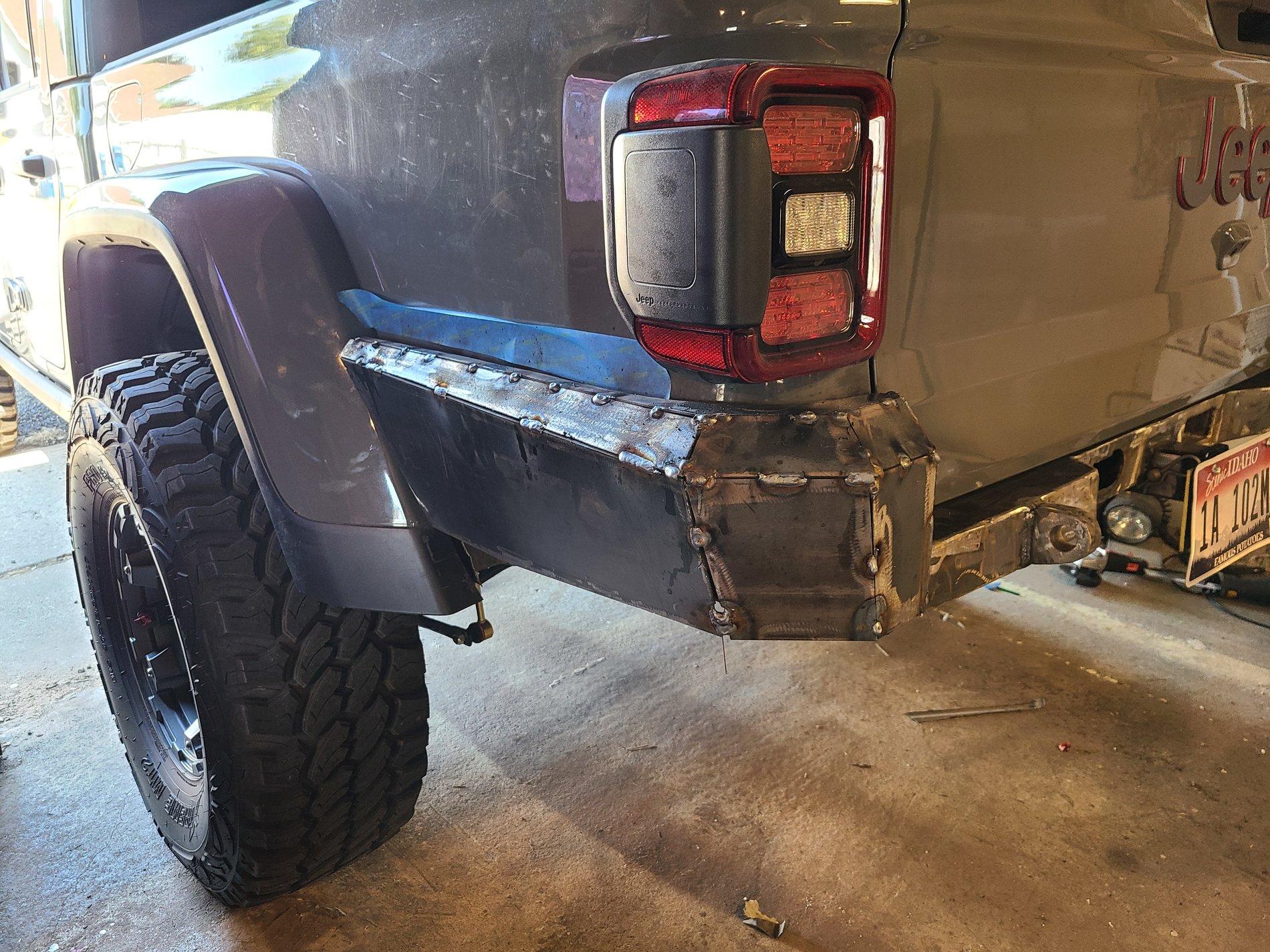

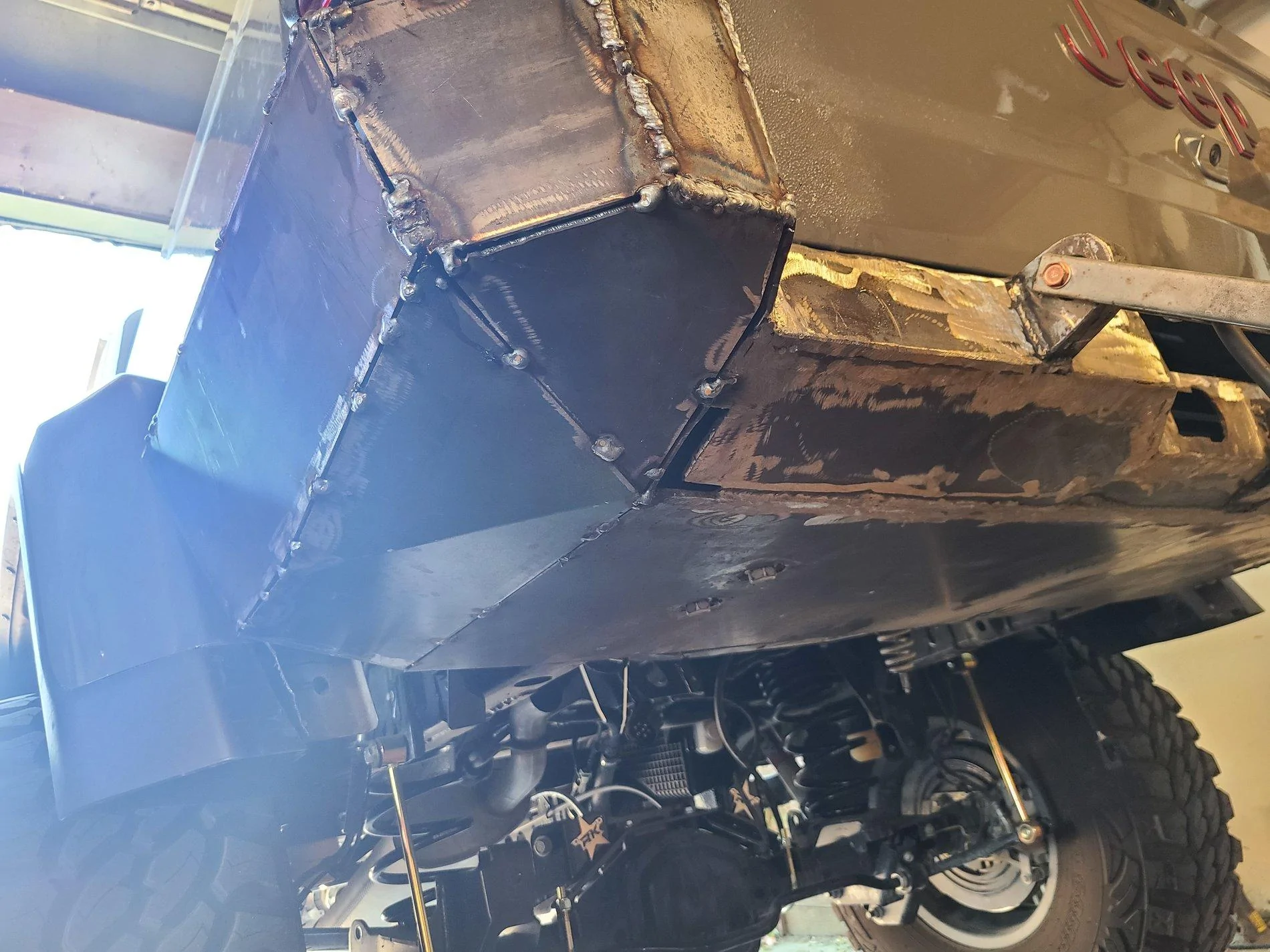

I forgot how much work this stuff is. I survived cutting, grinding, and welding in the 3000 degree shop in shorts and a t shirt. Only got burns everywhere.
Here's some pics.

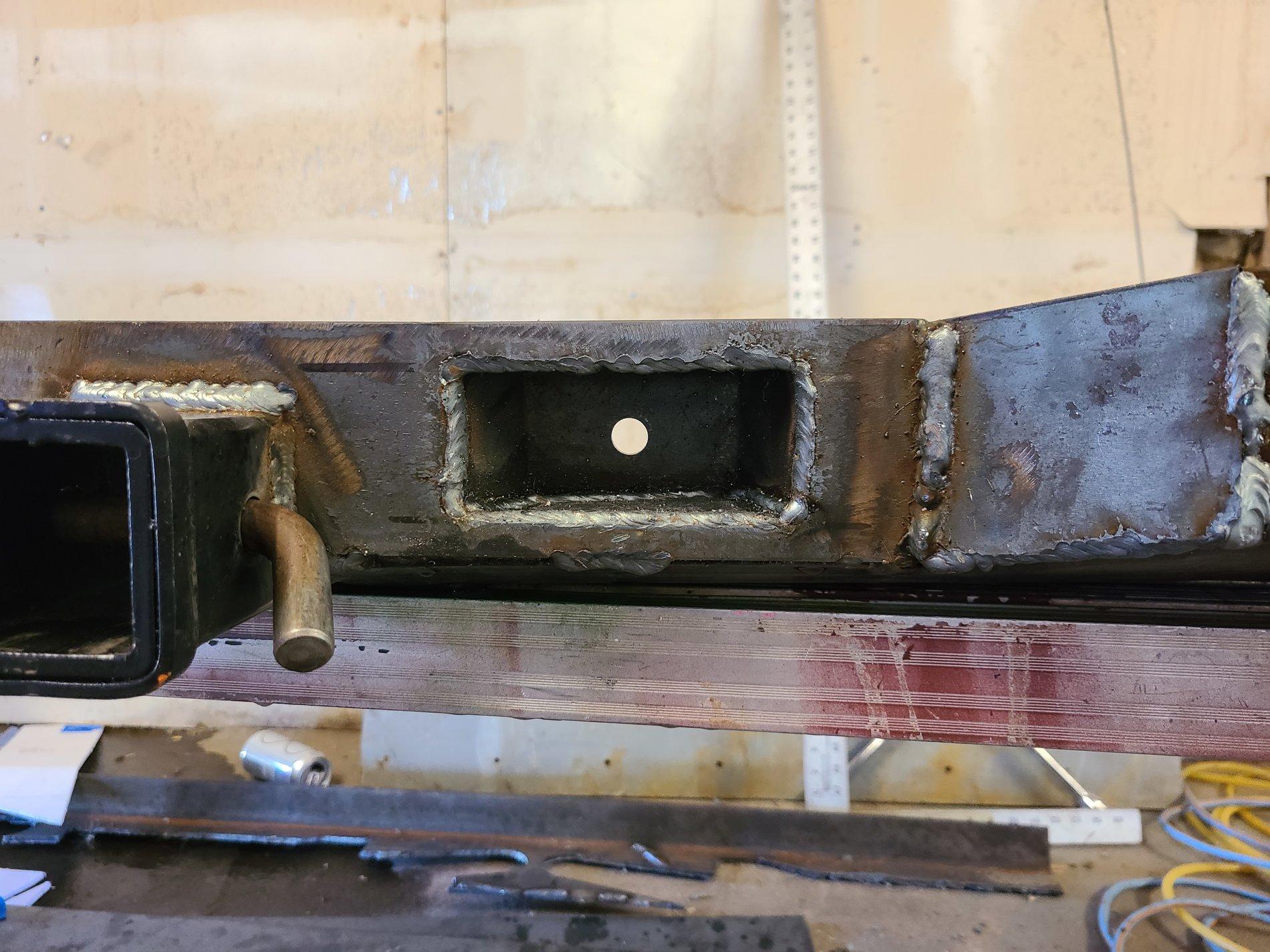

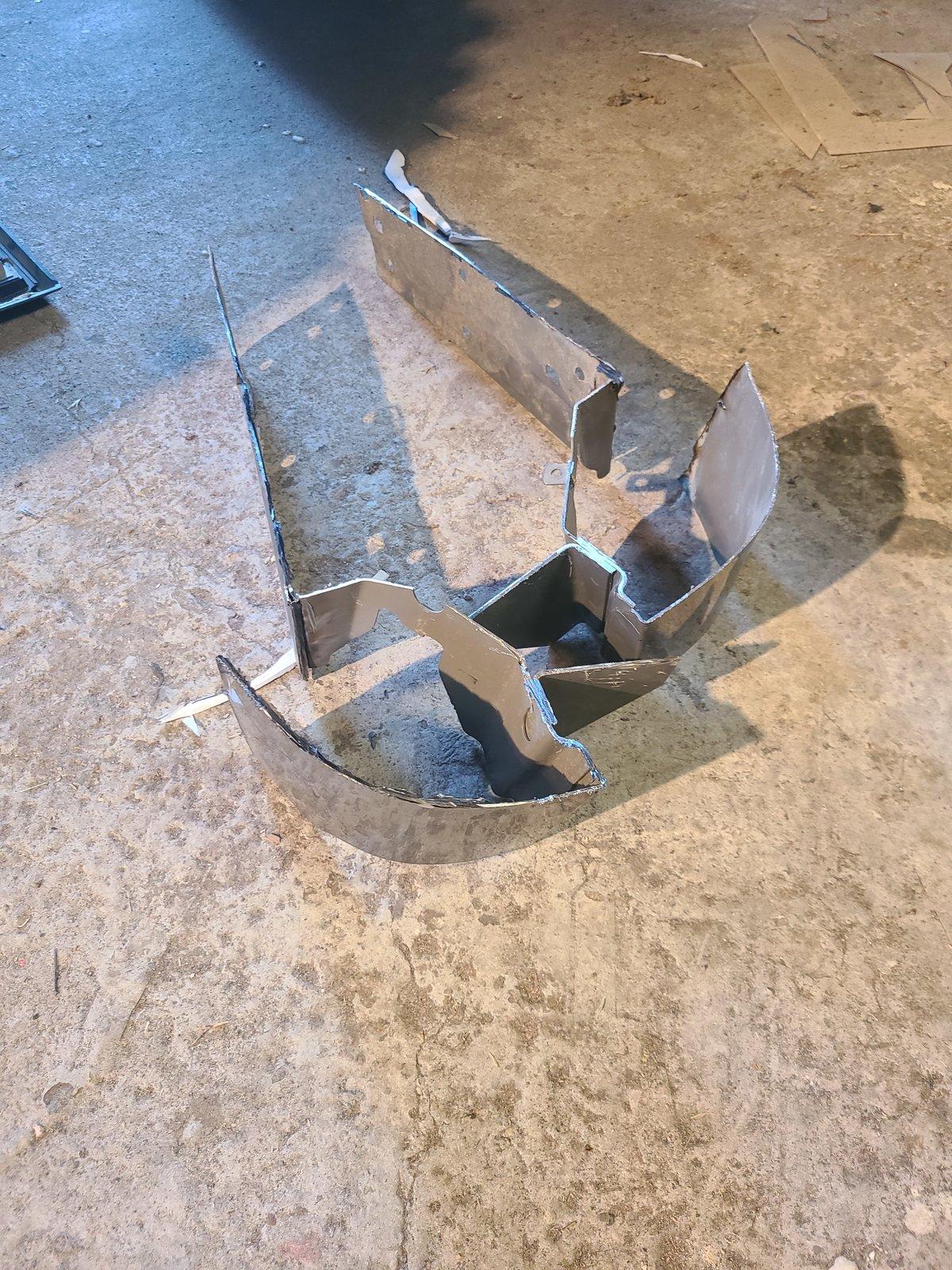

I was scared to cut the body so I built an inset to put an air hookup






OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #12

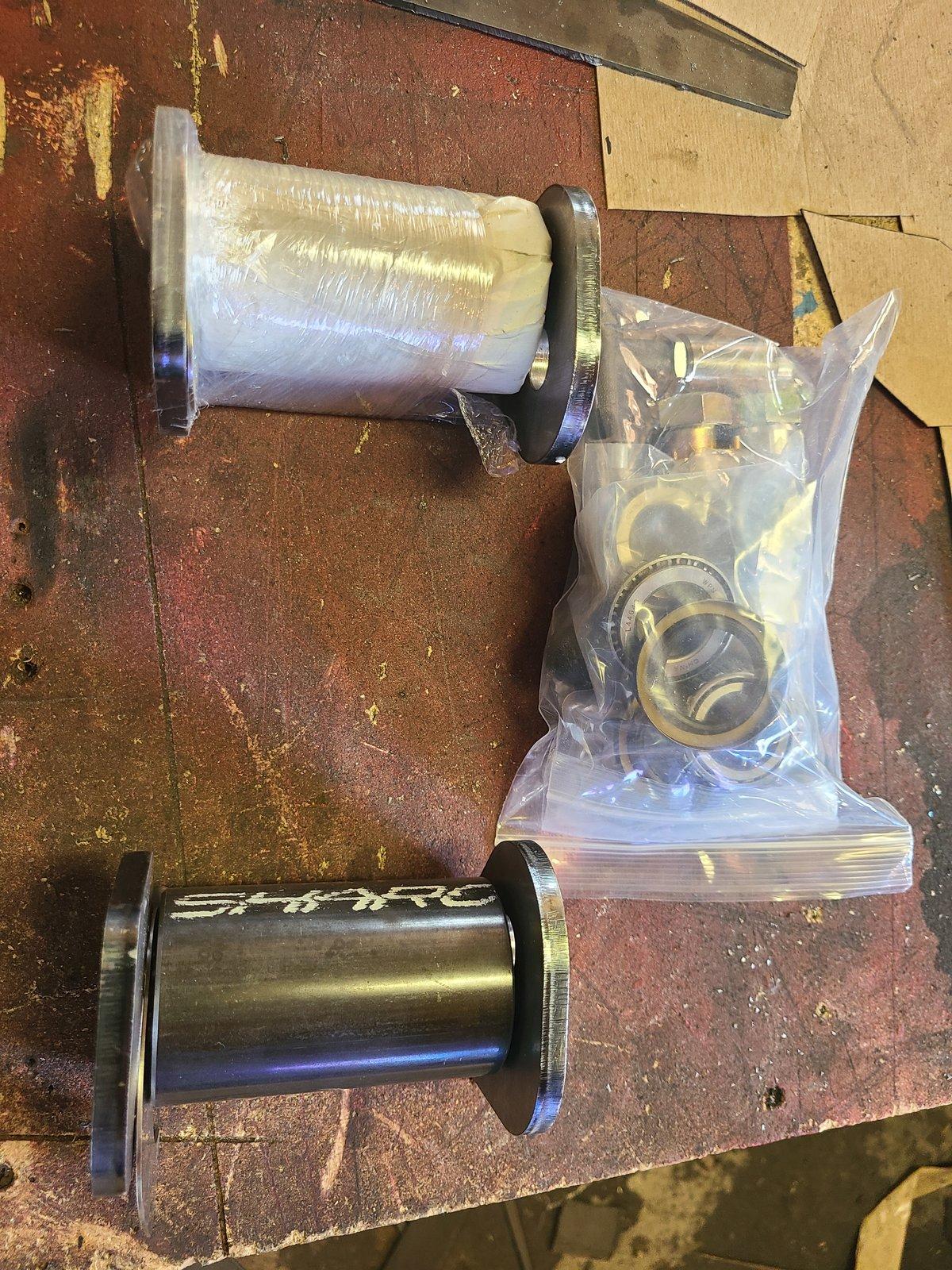

I ordered some tire swing hinges from 4x innovations. Got left and right so I can make a double gate.
These things are beefy. If anything fails itll be my crappy welds.






OP

HiCentered

Active Member
First Name
JJ
Joined
Jul 15, 2020
Messages
26
Reaction score
53
Location
Boise, ID
Vehicle(s)
2020 Jeep JTR
Occupation
Construction
  • Thread starter
  • Thread Starter
  • #13

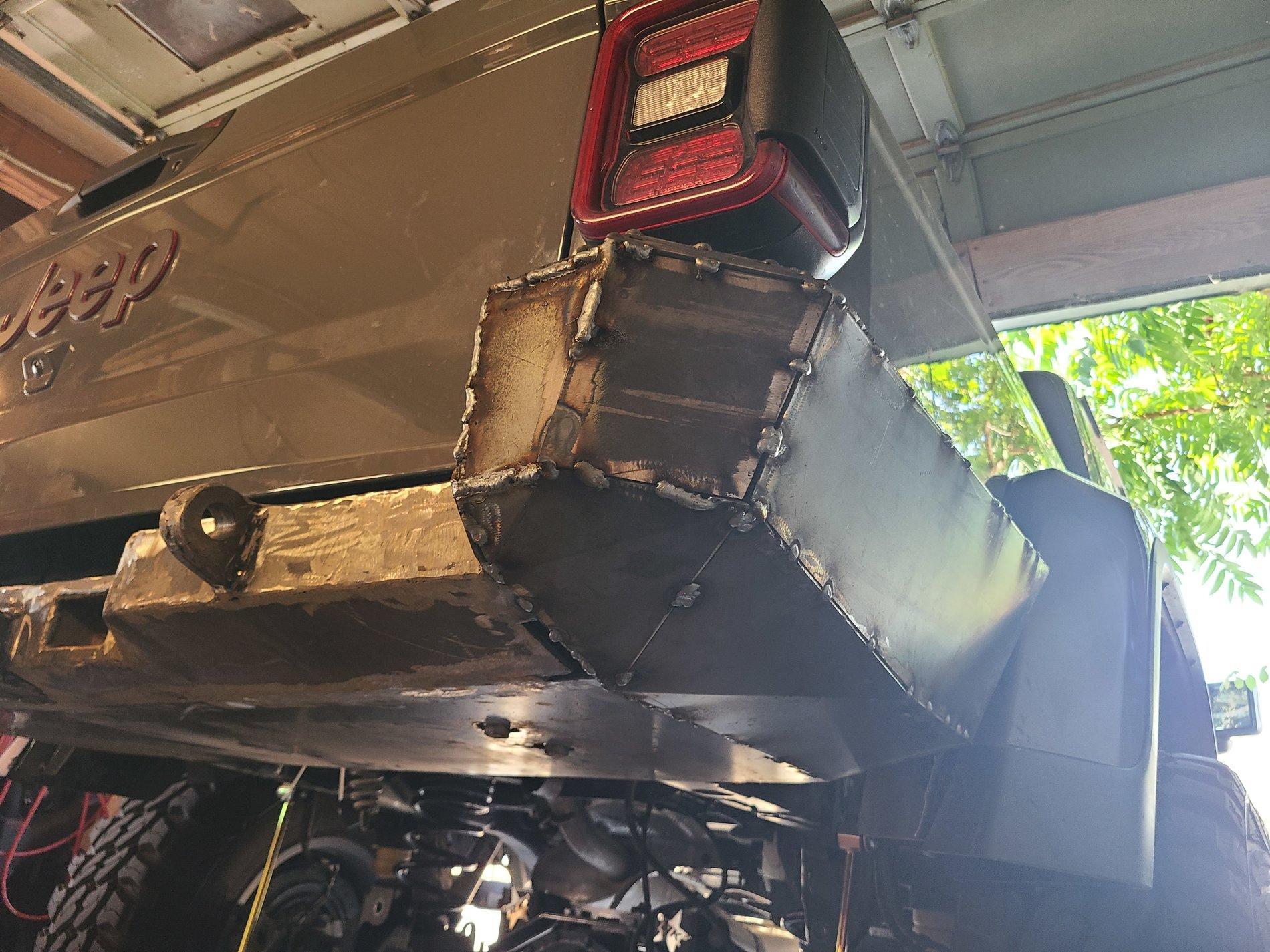

Now gotta take it down, weld, and grind. Ugh. Maybe next weekend.


SloW8

Well-Known Member
Joined
Jun 17, 2020
Messages
164
Reaction score
246
Location
SLC
Vehicle(s)
Gladiator Mojave
That looks fantastic! Nice job fixing (or at least getting as close as you can to fixing) my biggest gripe about this truck.
