question on install of Synergy bracket

AV8tor

Well-Known Member
First Name
Matt
Joined
Jan 17, 2020
Threads
17
Messages
65
Reaction score
13
Location
NorCal
Vehicle(s)
73 Ford Bronco, Gladiator soon!

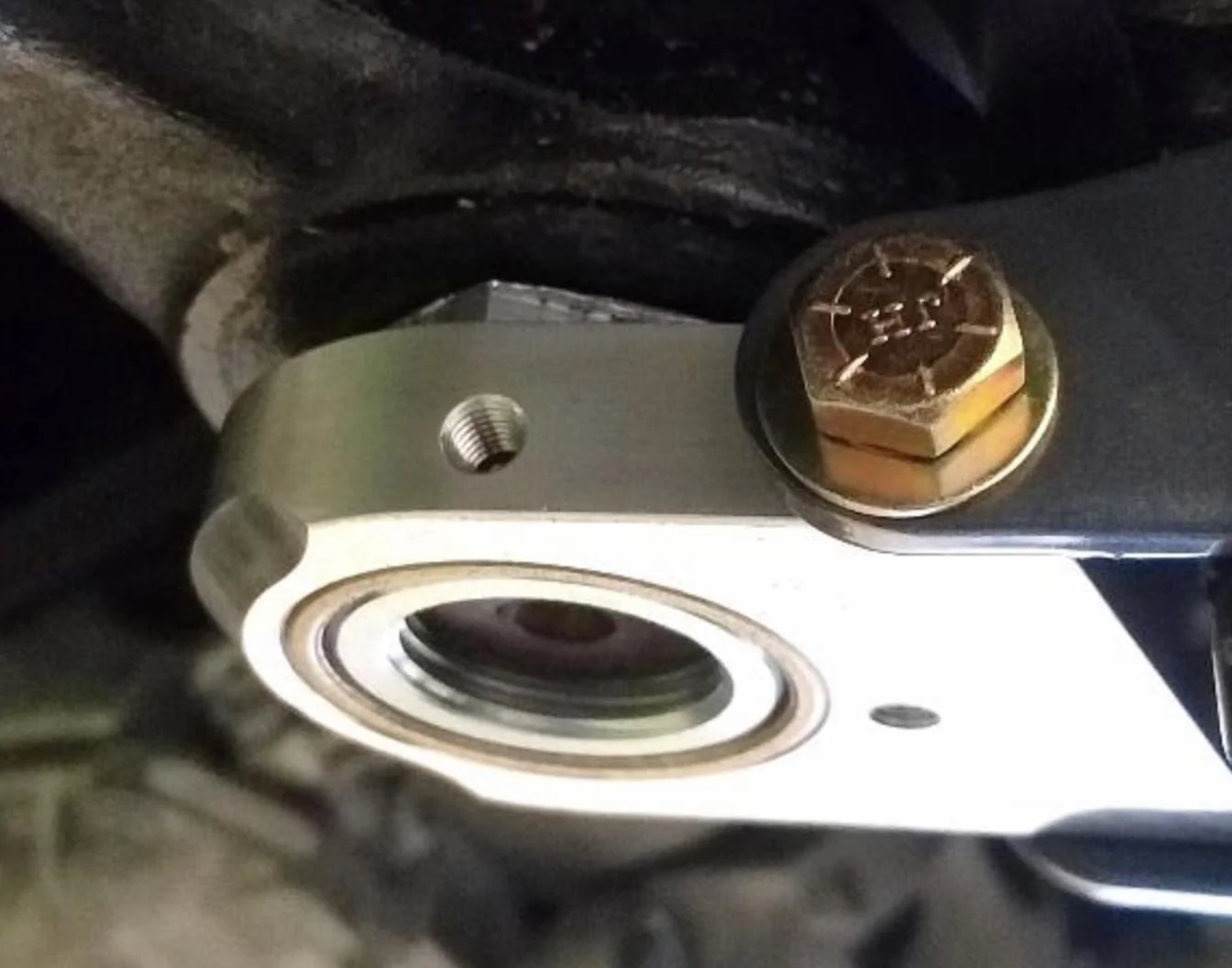

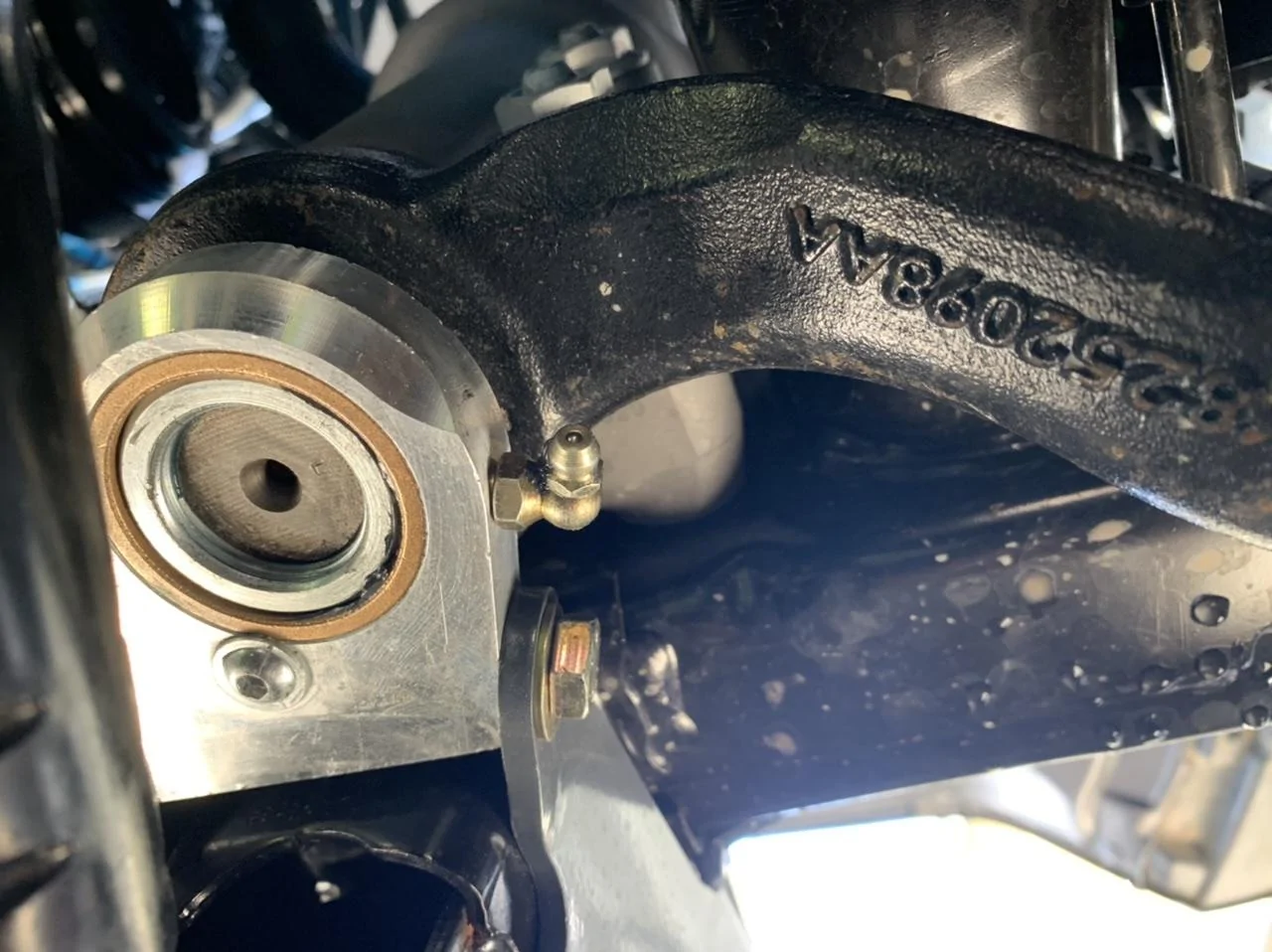

I didn’t have a torque wrench but thought I tightened the nut on the pitman arm pretty good. Can someone whose installed the bracket tell me if I’ve got too many threads showing?? Thanks!

Sponsored



Factoid

Well-Known Member
First Name
Mark
Joined
Dec 2, 2019
Threads
23
Messages
957
Reaction score
1,814
Location
San Antonio, TX/Mahopac, NY
Vehicle(s)
2020 Gladiator 2019 Porsche Cayenne 1964 Corvette
Occupation
Performance Coach
Impossible to say. At the required torque (184lb-ft), 50lb-ft is less than 1/4 turn. To achieve the required torque, a three foot piece of pipe slipped over a 1/2” ratchet will require significant force. Any picture is not going to really help. That said, yours looks very close!



Squidly

Well-Known Member
First Name
Rod
Joined
Nov 25, 2019
Threads
1
Messages
83
Reaction score
77
Location
DFW Texas
Vehicle(s)
2020 JT, 2006 LJ
You're modifying steering parts and don't have a torque wrench? Please do everyone on the road a favor and go get one and torque this right before something REALLY BAD happens.


Factoid

Well-Known Member
First Name
Mark
Joined
Dec 2, 2019
Threads
23
Messages
957
Reaction score
1,814
Location
San Antonio, TX/Mahopac, NY
Vehicle(s)
2020 Gladiator 2019 Porsche Cayenne 1964 Corvette
Occupation
Performance Coach
True. You do know that AutoZone and some other FLAPS will rent you a torque wrench for cheap?


Squidly

Well-Known Member
First Name
Rod
Joined
Nov 25, 2019
Threads
1
Messages
83
Reaction score
77
Location
DFW Texas
Vehicle(s)
2020 JT, 2006 LJ

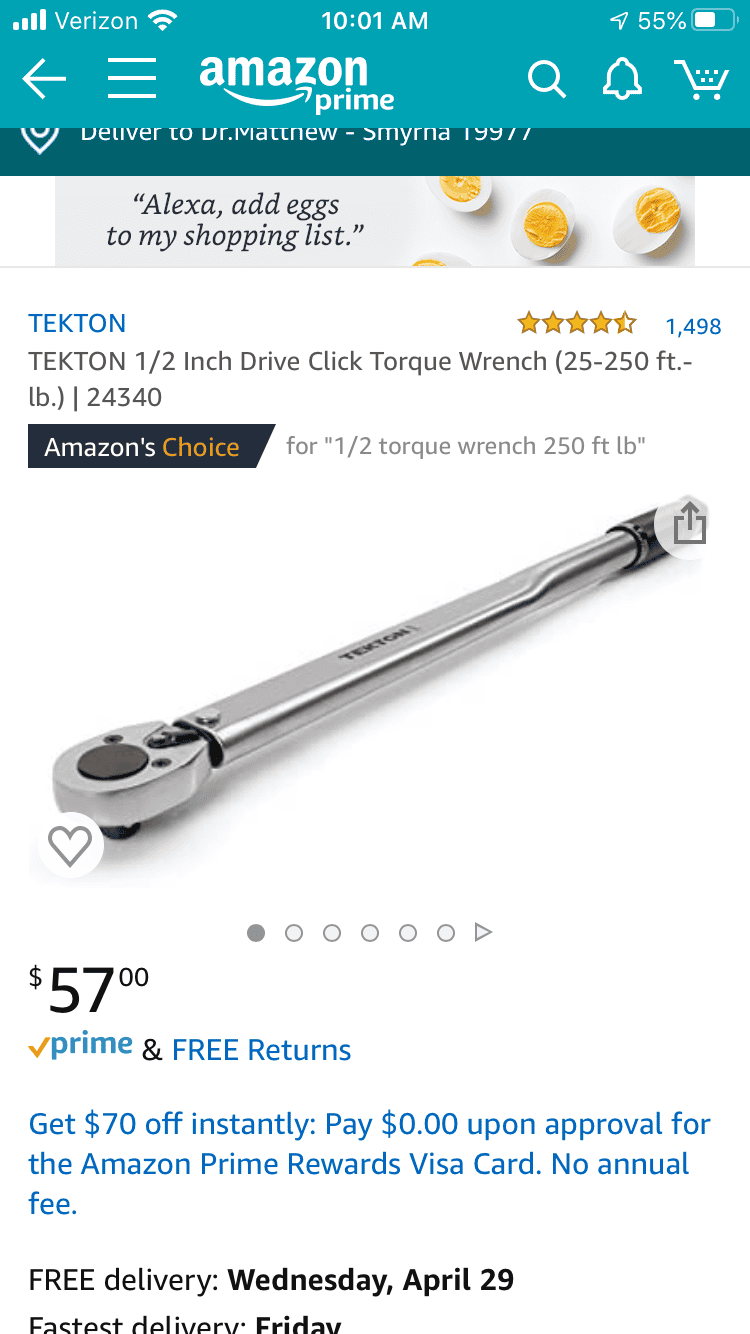

Good question, I really don't know, but even if you get a cheap one, it's better than nothing. They're not too terribly expensive and you'll use it if you ever do anything else on these things ... damn near everything has a torque spec.


Sponsored

Gren71

Well-Known Member
First Name
Matt
Joined
Jul 9, 2019
Threads
143
Messages
3,999
Reaction score
6,331
Location
Delaware
Vehicle(s)
Jeep JT sports S Max Tow
Occupation
Magician
Vehicle Showcase
1
OP
OP

AV8tor

Well-Known Member
First Name
Matt
Joined
Jan 17, 2020
Threads
17
Messages
65
Reaction score
13
Location
NorCal
Vehicle(s)
73 Ford Bronco, Gladiator soon!
Sorry- I guess I needed to clarify. I own multiple, this was done without one. I will be driving it a small amount before I get to it. Thread was for a small piece of mind.

Oh.. and I’ve got the harbor freight one and it’s held up better than an expensive digital thing I bought awhile back.
